Asylum Research    Santa Barbara, CA 93117
Aug 23, 2006 Available in Standard and Low Force models, NanoIndenter fits on MFP-3D AFM System head for viewing of sample, and drives nanoindenting tip perpendicular to sample. Tip displacement and force are measured with microscope's optical detector and NPS(TM) Nanopositioning sensors, allowing repeatable imaging, quantitative feature measurement, accurate imaging offsets, quantitative force curves, and precise positioning for manipulation and lithography.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Aug 18, 2006 Qualified to MIL-PRF-38535 Class V, 1.6-2.7 Gbps TLK2711HFGQMLV Serializer/Deserializer is suited for high-speed backplane interconnect and point-to-point data link applications. Radiation-hardened unit provides 2.5 Gbps I/O data channels for baseband data transmission over controlled impedance media of approximately 50W. Transmission media can be PCB, copper cables or fiber optic cable. Unit uses 2.5 V power supply and draws less than 500 mW.

Minicom Advanced Systems Inc.    Linden, NJ 07036
Aug 17, 2006 Comprised of transmitter and receiver connected by single CAT5 UTP/FTP cable, KVMS Extender lets user operate keyboard, video, mouse, and Serial devices up to 1,000 ft from computer. Plug-and-play hardware solution requires no software and creates no network conflicts. Desk- or flat panel-mounted product, also suited for digital signage, delivers real-time video media to plasma/LCD screens. Full Serial communication facilitates touch-screen and additional Serial device applications.

Minicom Advanced Systems Ltd.    Jerusalem 91450  Israel
Aug 16, 2006 Consisting of transmitter and receiver connected by CAT5 cable, KVMS Extender allows operation of keyboard, video, mouse, or serial devices, at distances to 1,000 ft from computer. Transmitter connects to computer or media player while receiver connects to extended keyboard, video, mouse or plasma/LCD screen, enabling PC's and players to be kept in secure, environmentally controlled operations room. Additional user can be added at transmitter end to create dual-user system.

Elmo USA Corp.    Plainview, NY 11803

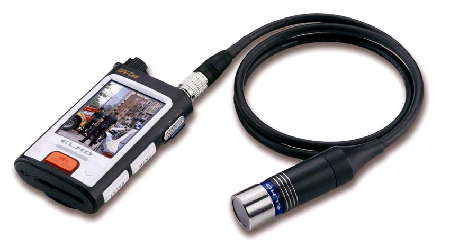

Aug 15, 2006 Pocket-sized SUV-CAM Video and Audio Recording System combines microcamera technology, MPEG4 digital recorder, and color TFT 2.2 in. LCD monitor. Featuring 3.8 mm F2.0 lens, microcamera head is waterproof up to 130 ft and is connected to monitor/recorder by 2.53 or 4.92 ft cable. Color ¼ in. CCD has 2:1 interlaced scanning system with 752 x 582 effective pixels. System is suited for handheld or body-worn surveillance, evidence-gathering, and as school bus security device.

Meller Optics, Inc.    Providence, RI 02940
Aug 15, 2006 Laser Research zinc sulfide (ZnS) Optics feature high transmission with minimal scatter and are designed for broad wavelength applications. Typically supplied with broadband A/R coatings, these water-clear, multi-spectral optics are suited for use in IR imaging and military FLIR systems. Chemically inert and non-hygroscopic products, offered in ¼-4 in. dia sizes from 1-8 mm thick, have surface accuracies to ¼ wave and 40-20 scratch-dig per MIL-PRF-13830.

Palmer Wahl Instrumentation Group    Asheville, NC 28804
Aug 14, 2006 Used for monitoring electrical and mechanical systems, Heat Spy® HSI3000 employs 160 x 120, uncooled microbolometer array and trigger-activated Class II laser. Ergonomic, handheld unit also features 3.5 in. color LCD with LED backlight. Dual measurement cursors, movable anywhere in image, provide temperature readings at each cursor location and indicate real-time differential temperature measurement between 2 points anywhere along 14 to 482°F range.

IQinVision    San Clemente, CA 92672
Aug 11, 2006 Available in 1, 2 and 3 megapixel models, IQeye700 series high-definition (HD) network cameras provides simultaneous high-resolution and low-bandwidth TCP/IP streams. Each camera is IEEE Power-Over-Ethernet (PoE) ready and includes Public View Port(TM), CF slot for on-camera storage, and LIGHTGRABBER II. Products are also available with IQrecorder On-Camera Network Video Recording Software and IQauthenticate On-Camera Digital Image Authentication.

Saelig Co., Inc.    Pittsford, NY 14534

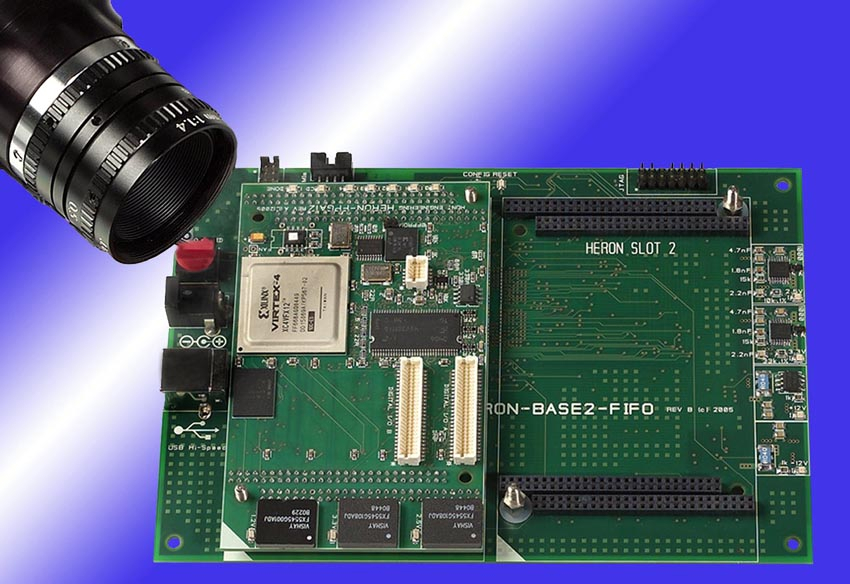

Aug 09, 2006 Self-contained and with CameraLink connection, RTG005 features embedded PowerPC processor and Xilinx XC4VFX12 FPGA, enabling combination of VHDL-programmed hardware and C-software processing. USB FIFO connection allows to 50 MB/sec data transfer speed in each direction. System supports Win2000/XP/Linux, as well as VHDL, which allows access to 128 MB DDR memory from PowerPC and VHDL design simultaneously. Board can be used stand-alone or connected to PC.

Luxo Corporation    Elmsford, NY 10523
Aug 08, 2006 KFM ESD Magnifier features glass lens with protective coating that alters electrical characteristics at material surface. Shade and arm are powder-coated with metal-laced paint measuring 10₁₀ ohms/square, and UL/CUL listed magnifier has non-corrosive aluminum housing with internal spring arms that allow infinite positioning. Unit includes 5 in. dia 3-or 5-diopter optical glass lens, and secondary add-on 4-, 8-, or 10-diopter magnification lenses are available.

Volpi Manufacturing USA    Auburn, NY 13021
Aug 08, 2006 Available with red or white LEDs, Series ILP(TM) Brightfield Ringlights provide uniformity, minimized shadows, and optimal clarity. Standard version has working distance of 1.15-3.15 in. with diameter of illuminated area ranging from 4.3-6.25 in. Focused version maintains 3.5 in. diameter of illumination over range of 2-4 in.

Extreme CCTV Surveillance Systems    Burnaby V5A 3C2  Canada
Aug 08, 2006 Intended for hazardous environments, EX70 Series Cameras and Infrared Illuminators are CSA/UL certified to Class I, Div 1, Groups B, C, and D; Class II, Div 1, Groups E, F, G; and to temperature code T6. Units are available with LXR Mechanical Filter technology, 550 TVL sensor, and optional integrated Day-Night design. Cameras minimize risk and maximize safety in oil and gas refineries, chemical plants, and agricultural applications.

AverMedia Technologies, Inc.    Milpitas, CA 95035
Aug 08, 2006 Featuring 4 video inputs, dual HDD capability up to 1,000 GB, and one USB 2.0 PC connection, AVerDVR EB1504 MPEG4 combines functionality of surveillance recorder and multiplexer in one product. It connects to any CCTV or LCD monitor and records at rates to 60 fps on each mode and 120 fps on Quad mode. Along with 4,096-event playback, backup, search, and editing capabilities, standalone unit offers Skip Bad Sector Technology and 1 channel audio I/O.

Meller Optics, Inc.    Providence, RI 02940
Aug 08, 2006 Custom Sapphire Optics are manufactured to specification for applications that require clear, chemically inert window, lens, cube, or cover that is impervious to water and can withstand pressures to 10,000 psi. Offered in sizes from ¼-10 in. dia and ½ mm to 1 in. thick, optics are available with drilled holes, slots, wedges, stepped edges, elliptical edge shaping, or metallization. Flatness can be held to 0.5 fringes of HeNe, with parallelism from 20-2 arc/sec.

Gurley Precision Instruments    Troy, NY 12181
Aug 04, 2006 Designed for precise positioning of rotary tables on machine tools, CMMs, and test equipment, Series 9480H optical encoder incorporates multiple read heads to eliminate errors and stainless steel construction for thermal resistance. Product is available with 60 mm hollow shaft and incorporates internal flexible shaft coupling. With all electronics located inside encoder, product generates up to 7,200,000 counts/rev and offers 0.00005° or 0.18 arc sec resolution.

JP Sercel Associates, Inc.    Manchester, NH 03102
Aug 04, 2006 Able to scribe and dice 12 in. wafers up to 500 microns thick, ChromaDice(TM) UV-DPSS laser systems use air bearing stages and vibration-free UV singulation process that produces clean, stress-free cuts. Laser diode wafer edge detector interfaces with motion control system and allows any type of wafer to be processed on standard dicing tape frames without damage to dicing tape. Systems are also available with 355 or 266 nm short pulse UV lasers.

American Fibertek Inc.    Somerset, NJ 08873
Aug 03, 2006 Series 93287SL Singlemode Fiber Optic Multi-channel System provides 48 channel input and output of 10-bit digitized video with bi-directional Ethernet channel, bi-directional multi-protocol data channel, and bi-directional audio channel on one singlemode optical fiber. Transmission can be via 10/100 Base T or Gigabit Ethernet. Status is provided by visual indicators or remote web based system. 94887SL Series is suited for surveillance systems with multiple cameras in different locations.

Del Mar Photonics, Inc.    San Diego, CA 92130
Aug 03, 2006 Beacon Femtosecond Fluorescence Upconversion Spectrometer measures fluorescence in 400-1,500 nm range and is used for applications in cell biology, photophysics, femtochemistry, materials science, and nanoscience. Featuring footprint of 10 x 24 x 36 in., unit offers time scale of 1,600 ps, 6.6 fs step size, <140 fs temporal resolution, repetition rate of pulses 1 kHz to 82 mHz, and average power of >0.6 W. Software provides 2D and 3D display of wavelength, time, and emission intensity.

National Federation of the Blind    Baltimore, MD 21230
Aug 03, 2006 Combining digital camera with PDA, Handheld Electronic Reader puts character-recognition software together with text-to-speech conversion technology. Users can take pictures of printed materials and hear contents of document played back in clear synthetic speech. Portable unit can store thousands of printed pages, and users can also transfer files to desktop and laptop computers, as well as Braille notetakers.

Panasonic Security & Digital Imaging Company / Vision System    Secaucus, NJ 07094

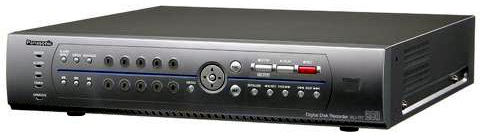

Aug 02, 2006 Suited for small- to medium-sized systems applications, WJ-RT208 Series allows up to 8 channels of real-time, high definition (HD) video and audio to be recorded at 30 images/sec using MPEG4 compression. Each channel can be independently configured for recording rate, image quality, and recording mode. Along with network functionality, DVR offers 250 GB on-board recording capacity, expandable to 2 TB; HDD heat management; automatic event log; and optional WV-CU650 System Controller.
