GE Inspection Technologies, GmbH    Huerth 50354  Germany
Nov 30, 2006 Featuring laser spot size of 50 microns, CR 50P offers user-variable scan resolution from 50-130 µm pixel pitch and can display scan results on connected laptop or local high-resolution monitor. Output data can be processed using Rhythm software, which is designed for NDT applications and provides image review tools as well as data management and storage capabilities. Unit accepts and processes, on continuous basis, flexible phosphor imaging plates up to 14 in. wide and of any length.

Fujitsu Computer Products, Inc.    San Jose, CA 95134
Nov 30, 2006 Available as 20-port XFP optical solution or in 16 CX4 ports with additional 4-ports of XFP optics, series XG2000 switches offer low port-to-port latency of only 300 nsec while delivering 400 Gbps nonblocking throughput performance. Single chip 10 Gb Ethernet units come with various XFP interfaces such as CX4, SR, and LR. With cut through and store-and-forward routing, switches also feature on-chip 3 Mb multistream buffer for full bandwidth performance.

Detector Electronics Corp.    Minneapolis, MN 55438
Nov 30, 2006 Offering high-resolution monitoring from within X-Series flame detectors, xWatch(TM) is suited for use in remote or hard-to-access areas. Both devices view same 90° cone of vision, and, when fire is detected, real-time video provides operator with ability to accurately assess risk and location of fire in monitored area to initiate appropriate response. Product also can operate as stand-alone device to monitor hazardous areas typical to petroleum and chemical manufacturing.

Tektronix, Inc.    Beaverton, OR 97077
Nov 29, 2006 Test set, comprised of RSA3408A Real-Time Spectrum Analyzer and RSA-IQWIMAX demodulation and analysis software, lets engineers perform time-, frequency-, and modulation-domain measurements to decompose signals and uncover anomalies. It can also generate in-depth analysis for troubleshooting WiMAX devices at design stage. Able to capture intermittent or random events, test set performs spectrum and modulation measurements on OFDM and OFDMA signals in accordance with WiMAX standards.

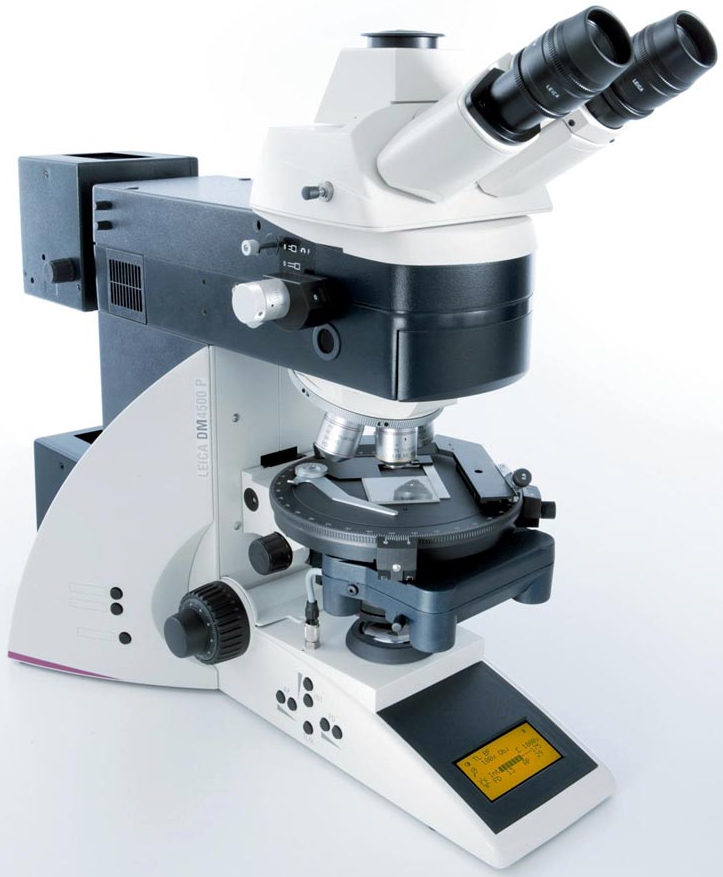

Leica Microsystems, Inc.    Buffalo Grove, IL 60089
Nov 27, 2006 Model DM4500 P incorporates automated diaphragm, condenser, and light intensity settings as well as color-neutral intensity adjustment. Employing centerable 5-position objective nosepiece and 4-position POL incident light axis, DM2500 P features height-adjustable focus knobs and color-coded diaphragm assistant as well as built-in focus stop. Offered with one of 2 conoscopy modules, DM EP features Kohler field diaphragm and magnetically-fixed blue filter.

KORENIX Technologies    Taipei 231  Taiwan
Nov 27, 2006 Designed to convert 1000Base-T to 1000Base-SX/LX signals, 3301 Gigabit Ethernet Media Converter expands network through gigabit fiber optic connection, extending single mode fiber link up to 20 km. Devices feature LC and SC connector formats in multi- and single-modes, and can be installed stand-alone or mounted on media converter chassis. Supporting packets up to 10 KB, series features auto-negotiation and flow control function on RJ-45 copper port.

Impulse Optics    Encinitas, CA 92024
Nov 22, 2006 Designed to work with lasers at variety of wavelengths, Variable Attenuator/Beamsplitter can be used as beamsplitter in holography and precision interferometry applications and as attenuator for general laboratory applications. It divides incident polarized light beam into 2 beams by 90° and intensity ratio of beams can be continuously varied by rotating input half-wave plate. Polarizing beamsplitting cube is built in with 532, 632.8, 800, and 1,064 nm wavelength options.

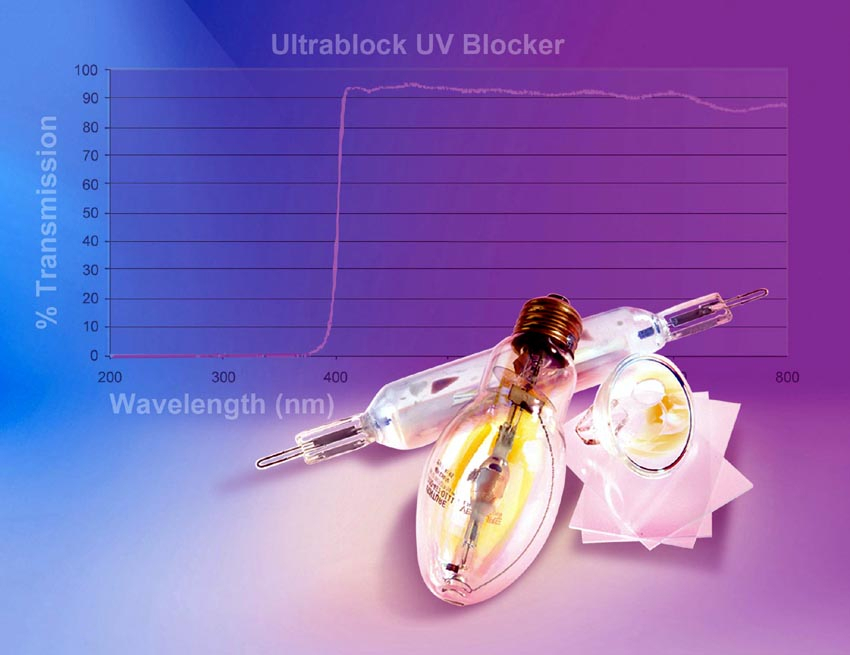

Deposition Sciences, Inc.    Santa Rosa, CA 95403
Nov 20, 2006 Available in flat sheets of Borofloat(TM) glass with 1.1, 1.75, 2.2, and 3.3 mm thickness, UltraBlock(TM) transmits greater than 90% of visible wavelengths between 425 and 700 nm without changing color appearance of source material. Product can be applied to transparent substrates such as float glass, fused silica, and sapphire glasses and to curved surfaces of lenses, covered glasses, and tubes. Filter is used in LCD projectors, fiber illuminators, and retail display lighting.

Techwell, Inc.    San Jose, CA 95134
Nov 20, 2006 TW6802 PCI Express DVR solution supports 8-channel real time and 16- or 32-channel non-real time recording, and over 6 full D1 resolutions. Support for 7 frames/sec recording in NTSC, 6 frames/sec in PAL, and 1-channel audio recording is also featured. Supporting simultaneous live, play, record, and network connection, 4-channel TW2700 Standalone DVR includes Ethernet (TCP/IP), remote viewer program, and USB 2.0, and handles two 250 GB hard drives.

DALSA    Waterloo, ON N2V2E9  Canada
Nov 20, 2006 Xcelera Series X64 frame grabbers offer image acquisition capability and deliver bandwidth of 1 Gbps over multiple-lane PCI Express implementations. They are Windows XP Professional X64 compatible and feature half-length PCI Express x4 board. Model CL PX4 Dual is capable of acquisition from one Medium or simultaneously from 2 Base Camera Link cameras, while Model CL PX4 Full acquires images from one Base, Medium, or Full Camera Link camera.

Taiyo America, Inc.    Carson City, NV 89701
Nov 16, 2006 Used for designs that need laser direct imaging, Model LDI-1000 GA solder mask requires 80 mJ/cm² of exposure energy and provides coatings up to 65 microns in thickness. RoHS compliant product meets low halogen standards and is compatible with final finishes including electroless nickel/immersion gold, silver, and tin. Solder mask is heat resistant and is compatible with lead-free assembly.

Raytek Corporation    Santa Cruz, CA 95061 1820
Nov 15, 2006 Using IR point sensor, Model GS110 measures temperature on uncoated side of Low-E glass, automatically correcting 2D thermal image for accurate results. By detecting thermal irregularities within glass and identifying defective heating elements, system allows processors to optimize product quality. If fault or defect occurs, alarm is triggered to allow for corrective action. System allows user to set up pre-defined recipes to accommodate frequent product changes.

DALSA    Waterloo, ON N2V2E9  Canada
Nov 15, 2006 Designed for high speed and high throughput applications such as patterned color web (print) inspection, color document scanning, food inspection, and printed circuit board inspection, Piranha Color is available in 2k or 4k resolutions with line rates up to 33 kHz. Features include built-in flat field correction, Camera Link interface, and tri-linear sensor technology to maximize color performance.

Keithley Instruments, Inc.    Cleveland, OH 44139 1891
Nov 15, 2006 Designed to work with Model 2910 RF Vector Signal Generator, Model 2810 RF Vector Signal Analyzer uses software-defined radio architecture with 500 MHz digital signal processor to enable data acquisition and processing. Unit features greater than 30 MHz of 3 dB measurement bandwidth with 20 MHz of flatness within 1 dB. In addition to decomposing waveform into constituent frequencies, unit offers ability to decompose digitally modulated signals into I and Q phase components.

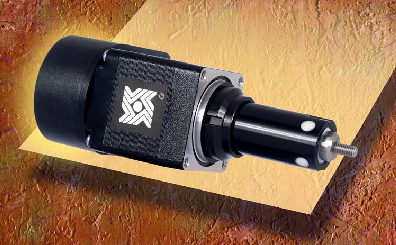

Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910
Nov 14, 2006 Delivering thrusts up to 25 lb, Size 11 Actuators are available in resolutions from 0.000125-0.002 in./step. Optical incremental encoder incorporates lensed LED light source and monolithic photodetector array with signal shaping electronics to produce 2 channel bounceless TTL outputs. Operating from -40 to +100°C, encoder offers resolutions from 200-1,024 cycles/rev or 800-4,096 pulses/rev. Actuators are suited for applications requiring precise positioning and rapid motion.

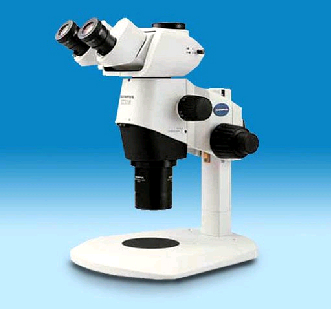

Olympus Industrial America, Inc.    Orangeburg, NY 10962
Nov 14, 2006 Suited for research in industrial materials and electronic components, Models SZX 16 and SZX 10 enable crystal-clear 3D observation and inspection down to detailed microstructure. Model SZX 16 offers 900 mm line pair resolution and Super Depth of Focus objectives, virtually eliminating image aberrations. To minimize fatigue, units feature ergonomically designed tilting trinocular observation tubes and optimized focus and zoom control knob location.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Nov 14, 2006 With supply voltage of 10-30 Vdc and sensing distance of 10-200 mm, AF fiber optic sensors feature sensitivity adjustment along with keyboard to ensure that adjustments cannot be changed. Connection to sensors is made using standard sensor cables equipped with M8 connectors. Compact units can be din-rail mounted and are suited for detecting small parts, sensing marks and contrasts on packages, and presence control on automated equipment.

Opto Technology Inc.    Wheeling, IL 60090 6056
Nov 13, 2006 Suited for applications requiring full, UV to Red spectrum, OTLA-0130 broadband white LED light engine integrates white LED with monochromatic LED die to expand spectral output. Light emitting source of less than 2 mm dia in size allows it to be coupled to optical systems such as fiber optics and focusing optics. Each LED wavelength, including white, 395, 470, 630, and 660 nm, can be individually addressed for separate pulsing and intensity balancing.

Mercury Computer Systems, Inc.    Chelmsford, MA 01824
Nov 13, 2006 Component of integrated COTS offerings, Echotek(TM) Series ECV4-RFT 6U Wideband Remote Fiber Transceiver is used in applications requiring 274 Mbps and higher wideband data links that require blend of wideband I/O from dual 1.5 GS/sec 8-bit A/D converters and dual 1.2 GS/sec 14-bit D/A converters. Onboard Xilinx Virtex(TM)-4 FPGA reconfigurable processing resources enable multi-board coherent processing in distributed systems.

Sony Electronics Inc.    Park Ridge, NJ 07656
Nov 10, 2006 Manufactured for commercial movie theaters, Model SRX-R220 digital projector is capable of displaying 2K and 4K content on screens 55 ft or larger. It offers automated zoom lens position for multiple-format screen fills, auto focus function, and image masking with enough range for 10° down angle. Compliant with Digital Cinema Initiative specifications, projector also features housing that meets FIPS 140/2 security requirements and comes with color management software.
