Cables To Go    Moraine, OH 45439
Jun 01, 2007 Featuring low-smoke, zero-halogen jackets, Fiber Optic Patch Cables are designed for environments where protection of people and equipment from toxic and corrosive gases is critical. Units are offered in duplex 62.5/125 multimode and duplex 50/125 multimode models in more than 60 configurations. Cables are suited for close quarter applications such as ships, submarines, aircraft, high-end server rooms, and network centers.

Konica Minolta Sensing Americas, Inc.    Ramsey, NJ 07446
May 31, 2007 Model CA-2000 2D Color Analyzer delivers 1-million pixel resolution, 2D measurement of luminance and chromaticity distribution of flat panel displays, DLP projectors, back up lights, and instrument panels. Tristimulus filters combined with ultra high-resolution CCD offer responsivity matching human eye, while compact, lightweight design allows it to be used anywhere. CA-S20w Data Management Software provides processes from measurement to data analysis and color evaluation.

Coherent Inc., Laser Group    Santa Clara, CA 95054-1112
May 29, 2007 Featuring consumable crystal lifetime of 40,000 hr, RoHS-compliant AVIA 266-3 offers users deep UV diode-pumped solid state (DPSS) laser that provides 3+ W of Q-switched output at 266 nm and pulse repetition rates to 100 kHz. Use of automated systems such as Posilock(TM) beam pointing active stabilization system delivers optimal spatial control and resolution. Offering pulse to pulse stability, laser is suited for use with range of materials.

Thermo Fisher Scientific    Waltham, MA 02454
May 24, 2007 Designed for Evolution 300 and 600 spectrophotometers, accessories facilitate measurement of specular reflectance of solid materials with mirror-like or glossy surfaces. VN Absolute Specular Reflectance accessory provides absolute, single-bounce measurements at 10° angle of incidence, while Fixed Angle Specular Reflectance accessories offer 15, 20, 30, 45, and 60° angles of incidence. For routine measurements, Variable Angle Specular Reflectance accessory covers 30-80° range.

Renishaw, Inc.    Hoffman Estates, IL 60192
May 24, 2007 Bringing nanometer-level motion analysis to calibration, error-mapping, and compensation processes, lean design XL-80 system makes all measurements based on wavelength of stabilized HeNe laser source. Portable product weighs 3 kg, takes readings at 50 kHZ, and offers environmentally corrected accuracy to ±0.5 ppm over 32 to 104°F operating range. Other characteristics include 4 m/sec linear measurement speed, 1 nm resolution, and warm up time of less than 6 min.

Performance Coatings International    West Caldwell, NJ 07006
May 23, 2007 Resistant to abrasion and chemicals, optically clear LensGuard coatings are suited for use on polycarbonate, CR-39, and other polymeric substrates used in ophthalmic industry. Series includes 5 tintable and 5 non-tintable coatings. Products protect against scratches to promote longevity of lenses and will not peel or flake off under normal wear and tear. Also, formula facilitates cleaning of smudges and smears from surface.

Performance Coatings International    West Caldwell, NJ 07006
May 23, 2007 Vueguard® 931-AF, 932-AF, and 933-AF allow display lenses or windows to withstand increased levels of moisture and heat without fogging. Along with abrasion resistance and optical clarity, these solvent based, UV-curable coatings exhibit degree of surface slip that facilitates surface cleaning. Vueguard 931-AF is suited for gauges and lenses, and all fog-resistant coatings suit applications such as marine, appliances, aerospace, and equipment indicating units.

Mid-West Instrument    Sterling Heights, MI 48314
May 21, 2007 Model 121 features industrial terminal strip and removable cover for wiring, 8-28 Vdc loop power, weather resistant gauge front, and push button zero reset feature. Accurate at ±2% from 20-100% of full scale, Model 121 operates at temperatures of 20-150°F and safe working pressure of 6,000 psig. It is available in aluminum or 316 SS pressure housing with 316 SS and internal ceramic parts in pressure ranges from 0-5 to 0-110 psid.

Aeroflex Laboratories    Plainview, NY 11803

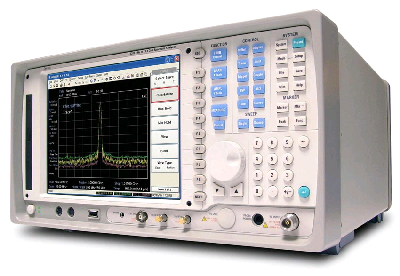

May 18, 2007 With digital demodulation, 3280 Series enables engineers to analyze 802.11a, b, and g wireless networks. Units range from 3 Hz to 26.5 GHz and provide ±0.15 dB accuracy up to 3 GHz. Full-frequency mode links rear panel IF output at 421.4 MHz to demodulator input, allowing user to demodulate signals over full frequency range of analyzer. Dual-channel mode links directly from instrument's front panel or optionally via rear panel connector to create dual-channel instrument.

Canto Software, Inc.    San Francisco, CA 94105
May 15, 2007 Compatible with any Cumulus 7 digital asset management system, Video Suite v2 enables video professionals to catalog video into scene-specific shots, each with its own thumbnail and metadata. With ability to automatically capture file-specific metadata, software features Flash 8 support, enabling organizations to publish assets on web in motion-graphics file format. Controllable through user permissions, it allows editing on cataloged metadata without altering original files.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
May 14, 2007 Designed to amplify photodiode signals from fiber optic cables in ONET, Model LOG114 operates on single +5 or ±5 V dual supply over temperature range of -5 to +75°C. DC precision product features 1 µsec rise and fall time, and can handle 8 decades of dynamic range (equivalent to 27 bits, 100 pA to 10 mA input) that suits laser control systems. Available in 4 x 4 mm QFN-16 package, unit can be used for industrial/medical optical density/absorbance measurements.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217
May 14, 2007 Handheld Yellowjacket® branded 802.11 spectrum/packet analyzer demodulates and analyzes 802.11b (2.4 GHz), 802.11g (2.4 GHz) and 802.11a (5 GHz) packets. Yellowjacket® B/A/G is accurate to within +1 dB and measures RF energy enabling it to broadly read 2.4 and 5 GHz network WISPs and hotpsots. Unit features SNR, Multipath, Delay Spread, Channel Frequency Response, SSID, and RSSI for Wi-Fi analysis.

Pinpoint Laser Systems    Peabody, MA 01960

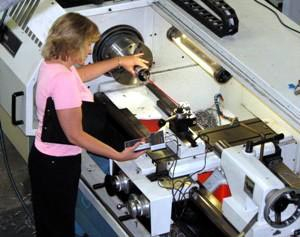

May 09, 2007 Designed for use on factory floor to align and adjust various machinery, Spindle Alignment Kit provides information on runout, centerline offset, parallelism, concentricity, and other parameters to achieve optimal alignment. With ability to measure to precision of 0.0001 in., Microgage system features round laser that is secured into chuck or attached to end of shaft/spindle and allows for alignments up to 150 ft distances.

Atmel Corp.    San Jose, CA 95131
May 09, 2007 Used in optical pick-up units of DVD and CD drives, ATR0874 comes in 4 x 3.5 mm QFN open-house package that can fit into slim drives found in laptops. IC includes 10 channels with 4 different gain steps, and open cavity permits laser direct access to die surface and photo diodes. Able to be soldered at temperatures to 260°C, solution is designed for high-speed DVD applications such as DVD-RAM and DVD+/-RW at wavelength of 650 nm and CD-RW at wavelength of 780 nm.

JAI, Inc.    San Jose, CA 95134
May 09, 2007 Based on 3CCD prism technology, Model CV-M9 GE progressive scan RGB color camera provides full XGA (1,024 x 768) resolution for each of red, green, and blue color bands. Featuring manual and automatic one-push white balance adjustment, unit helps attain correct setting for wide range of color temperatures and under difficult lighting conditions. It can be operated in continuous (free-run) mode at 30 fps or in external edge pre-select/pulse width control trigger modes.

Omron Scientific Technologies Inc.    Fremont, CA 94555
May 08, 2007 Available in Advanced, Standard, and Basic versions, MiniSafe® MS4800 series is suited for use in multi-sided and dual-axis guarding applications. Cascaded configuration minimizes cabinet space requirements, and optical scan codes eliminate cross talk, enabling OEMs to consistently build identical machines without staggering transmitter and receiver position. Models cover protection heights from 11-85 in. and offer sensing ranges from 23-65 ft, with resolutions from 0.55-1.57 in.

SUI    Princeton, NJ 08540
May 08, 2007 Offered as 4 in.³ OEM module or 9.5 in.³ enclosed module, SU320KTSX-1.7RT shortwave infrared (SWIR) video camera offers 320 x 256 pixel format on 25 micron pixel pitch. Low-power (under 2 W @ 20°C), solid-state imager operates at room temperature and offers simultaneous 12-bit Camera Link® digital output or EIA-170 compatible analog video. On-board automatic gain control and built-in nonuniformity corrections enable delivery of clear video at every lighting level.

Motorola, Inc.    Schaumburg, IL 60196 4041
May 08, 2007 Emulating traditional coaxial network, Cable PON (Passive Optical Network) allows cable providers to deliver deep-fiber services that plug directly into existing cable infrastructures and back-office operations. Solution also promotes conversion readiness by offering cable operators ability to extend service via PON while preparing for seamless evolution to GPON-enabled fiber-to-the-premises (FTTP) platform and still utilizing pre-existing cable resources.

Olympus America, Inc.    Center Valley, PA 18034
May 07, 2007 Along with brightfield slide capability, Nanozoomer offers attachment for converting fluorescence glass slides into digital slides. System automatically scans up to 210 slides at 20x or 40x via three 4,096 x 64 pixel Time Delay and Integration (TDI) CCD imaging sensors. Entire slides can then be archived, without possibility of image quality degradation or fading. With image of entire slide on monitor, specific points can be selected for further magnification/observation.

VEE GEE Scientific, Inc.    Kirkland, WA 98034

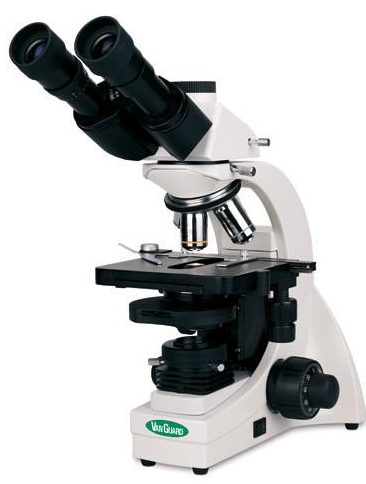

May 04, 2007 Suited for laboratories, industrial facilities, clinics, and universities, Series 1300 clinical compound microscopes support Koehler illumination for promoting uniform brightness and eliminating glare. Products come with focusing controls, high-eyepoint eyepieces, and soft eyecups. Brightfield models use common illumination technique, while phase contrast models use special lighting configurations.
