AltaSens, Inc.    Mountain View, CA 94040
Nov 15, 2007 Designed to satisfy medical regulations, MD-V delivers megapixel-class resolution and progressive frame delivery in 1/3 in. optical format. Camera leverages ProCamHD 2462 imaging SoC sensor, including its full video resolution of 1,280 x 720 pixels, integrated 12-bit A/D conversion, and Tapered-Reset technology able to be deployed in sterile operating rooms, offers real-time 60 fps rate and supports HDMI, SDI, Composite, and Y/C output formats.

Seiko Epson Corporation    Suwa, Nagano   Japan
Nov 15, 2007 Suited for use in digital cameras, optical low pass filter (OLPF) employs structure wherein wide-band phase retardation film is sandwiched between pair of quartz plates. This design provides uniform light separation at all wavelengths of visible light, eliminating moire patterns across visible spectrum. Requiring only 2 quartz plates, this OLPF enhances quality of digital cameras and enables them to be made thinner.

Remtec, Inc.    Norwood, MA 02062
Nov 14, 2007 Intended for demanding optoelectronic applications, Laser Diode Submounts offer 25-75 micron thick copper metallization and Zero Pullback(TM) from burr-free ceramic edge. Submount materials include BeO with thermal conductivity from 280-325 W/moK and AlN from 170-230 W/moK. PCTF® technology combines elements of thick and thin films with plated copper and nickel/gold finish. Selective plating capability ensures optimal wettability of GaAs dice by gold tin soldering.

Canon U.S.A. Inc.    Lake Success, NY 11042-1113
Nov 13, 2007 CanoScan scanners allow users to copy, scan, e-mail, or create PDF file. Equipped with Film Automatic Retouching and Enhancement Level 3 technology for fading and graininess reduction, CanoScan 8800F Color Image Scanner features white LED lamp and 4,800 x 9,600 dpi optical resolution. CanoScan LiDE90 Color Image Scanner features 2,400 x 4,800 dpi optical resolution and Quick and Automatic Retouching and Enhancement Level 3 technology for removal of dust and scratches from scanned images.

International Radiation Detectors    Torrance, CA 90505
Nov 12, 2007 Featuring 10 x 10 mm² active area, SXUV 100 Ultraviolet/Extreme Ultraviolet (UV/EUV) Photodiode has nitrided metal silicide front window that permits operation without loss of performance in high-humidity and other environmental conditions that normally require sealed packages. Photon detector is designed for long-lifetime operation in high-particle flux environments without loss of responsivity. Diodes with single active areas are available from 1-576 mm².

Amada America, Inc.    Buena Park, CA 90621
Nov 12, 2007 Model FO4020NT 6,000 W laser features shuttle tables, automatic focal and assist gas control, and automatic nozzle changing device. Offering 3,150 ipm max X- and Y-axis speed and 2,362 ipm max Z-axis speed, system supports sheet sizes up to 80.7 x 160 in. with positioning accuracy of 0.0004 in./20 in. It includes X-axis dual drive rack and pinion gantry and Water Assisted Cutting System (WACS(TM)) with adjustable water mist to absorb heat generated by cutting process.

Edmund Optics    Barrington, NJ 08007
Nov 12, 2007 TECHSPEC® VZM(TM) 100i lens is suited for video cameras and inspection systems that handle wide range of objects without changing working distance. Unit offers 0.25x primary magnification, 4:1 zoom ratio, horizontal field of view of 25.6 mm when using 2/3 in. sensor, and 175 mm working distance with up to 70 lp/mm resolution. Including 28 mm dia compact removable mount with optional zoom lock adapter, it features rack-and-pinion focusing movement and parafocal design.

Optek Technology, Inc.    Carrollton, TX 75006-6905
Nov 12, 2007 UL-approved OPI120 and OPI123 Series, rated to 15 kV, have hermetically sealed IR LED packaged with phototransistor or photodarlington output. Designed to provide high-voltage isolation between input and output as well as electrical isolation in dirty environments, solutions feature LED with peak wavelength of 890 or 935 nm, forward dc current of 150 mW, and power dissipation rating of 200 mW. Depending on series, minimum collector-emitter voltage for output photosensor is 25 or 20 V.

RTS, Inc.    Deer Park, NY 11729
Nov 09, 2007 Fabricated of double-laminated PVC, Flexible Waterproof Housings are designed to protect cameras to depths up to 33 ft, allowing videographers to make professional videos while diving or snorkeling. Integrated, optically neutral flat glass port fits in front of HD camera lens to preserve sharpness and avoid distortion. Non-corrosive and seawater-resistant clamping rail fits together and is tightened by 3 screw-knobs for waterproof seal. Sealants are not required.

Ethernet Direct    Newburyport, MA 01950
Nov 09, 2007 Equipped with 6 port 10/100/1000T plus 2 SFP ports, Model HMG-628G Managed Industrial Gigabit switch offers gigabit connectivity on every port, and supports Dual Homing and Ring Coupling. It enables users to mix and match fiber interfaces, depending on their existing network structure. IP security function supports 10 IP address accounts for system management security for Web, SNMP, and Telnet management security to prevent intruder.

Optek Technology, Inc.    Carrollton, TX 75006-6905

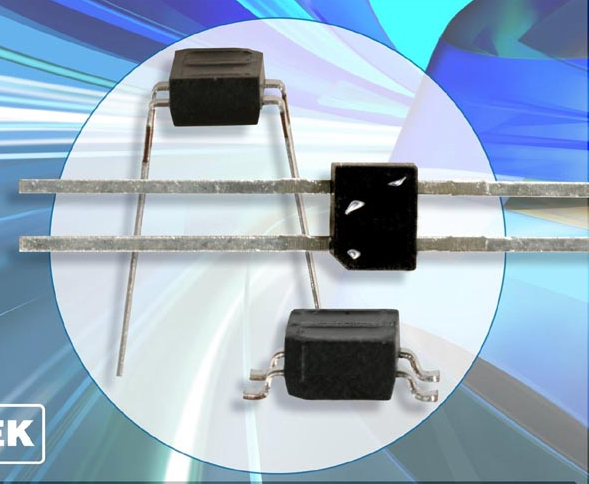

Nov 06, 2007 Available with axial, gull wing, or right angle lead configurations, Series OPB609 sensors consist of 940 nm infrared LED that has maximum forward voltage of 1.7 V and reverse dc voltage of 5 V and NPN silicon phototransistor mounted side-by-side on parallel axes. Units feature 50 mA forward dc current with maximum reverse current of 10 µA and peak forward current of 1 A, 75 mW power dissipation rating, and -25 to +85°C operating temperature range.

Pickering Interfaces    Wobum, MA 01801
Nov 05, 2007 Housed in compact 1U high form factor, Models 60-850 (single mode) and 60-851 (multimode) optical switching multiplexers are suited for use in rack mounted applications. All optical connections are provided on front panel, and include captive dust covers to protect connectors when they are not in use. LXI Class C compliant interface allows units to be remotely controlled via its Ethernet port through web browser or by programmatic interface.

GeoVision    Corona, CA 92882
Nov 02, 2007 GV-Standalone DVR captures videos at up to 120 fps with 2 CIF resolution, and allows independent adjustment settings for channel resolution, quality, and frame rate. GV-Compact DVR supports GPS, which helps facilitate global tracking/recovery operation. Both units feature up to 4 channels of video/audio recording and playback, viewlog search by calendar date/time format, professional Web and on-screen-display controls, TV/VGA output with spot monitor, and scalable motion detection.

Leica Microsystems, Inc.    Buffalo Grove, IL 60089
Oct 31, 2007 Leica AM TIRF MC (Multi-color, Total Internal Reflection Fluorescence) system allows entire fluorescence excitation spectrum to be used for real-time visualization of live cell dynamics. Scanner sensor automatically matches TIRF angle at all wavelengths to required penetration depth and positions laser so TIRF penetration depth remains constant. Solution integrates 4 solid-state lasers for excitation of fluorophores at wavelengths from 405-632 nm.

Saelig Co., Inc.    Pittsford, NY 14534
Oct 31, 2007 Housed in USB-powered box, PC-based PoScope combines 2-channel, 100 Hz to 200 kHz oscilloscope; 2-channel spectrum analyzer; 2-channel chart recorder that displays signals from 0.01 Hz to 200 kHz; 8- or 16-channel logic analyzer with 1 kHz to 8 MHz recording; 5-channel square wave and PWM generator; and 8-channel, 1 kHz to 1 MHz pattern generator. With USB interface, users can record, output, and print all waveforms or update firmware as new features become available.

Luxo Corporation    Elmsford, NY 10523
Oct 31, 2007 Supplied in die-cast aluminum housing, round-lensed KFM-HO series features 22 W T5-C fluorescent light source and 3,500 lux at focal distance. Illumination is supported by high-frequency electronic ballast that minimizes heat emission and provides flicker-free operation. Models feature 5 in. dia optical glass lens, either 3-diopter (1.75x), 5 diopter (2.25x), or 10 diopter (3.50x) versions. Secondary add-on lenses in 4-, 8- or 10- diopter magnifications are also available.

Edmund Optics    Barrington, NJ 08007
Oct 30, 2007 Techspec(TM) UV Fused Silica five sided penta prisms shorten optical path lengths by reflect light rays through two reflections through 90° angle without inverting or reverting images. UV grade fused silica composition offers thermal expansion coefficient of 0.5 µ/°C. Features include various coating options such as aluminized, inconel, and black paint, as well as uncoated or UV-AR coated exit faces.

Sensortechnics, Inc.    Walpole, MA 02081
Oct 29, 2007 OLP series of miniature optical liquid level switches measure the presence or absence of liquid in applications such as medical equipment, HVAC, compressors, hydraulic reservoirs, machine tools, and leak detection. They feature solid state technology with no moving parts and are available with analog, digital, as well as transistor outputs for switching currents up to 500 mA. Miniature plastic polysulphone housings provide media compatibility.

Arecont Vision    Altadena, CA 91001
Oct 26, 2007 Delivering full motion progressive scan resolution, Models AV1305DN, AV2105DN, AV3105DN, and AV5105DN are 1.3, 2.0, 3.0, and 5.0 megapixel cameras, respectively. They use IR cut filter removal for low light sensitivity, and support both PoE and auto-iris control functionality. Based on massively parallel MegaVideo® technology, single-sensor cameras have Ultra Forensic Zooming, offering ability to zoom after event up to 96X. Images can be cropped to 16 x 9 aspect ratio for true HD format.

Palmer Wahl    Ashville, NC 28804
Oct 25, 2007 With range of 392 to 1,652°F, High Temperature HSI3002 Heat Spy® Thermal Imaging Camera has 20° x 15° field of view and trigger-activated, Class II laser. Integral 160 x 120 pixel, uncooled, microbolometer array displays hi-res, real-time, thermal images on 3.5 in. color LCD with LED backlight. Fully radiometric unit measures temperature of every pixel, and Easy Report software lets user insert multiple images, with data, taken during site survey to produce inspection reports.
