Optotherm, Inc.    Sewickley, PA 15143
Nov 13, 2008 Micro system is offered with thermal imaging camera featuring 320 x 240 element, uncooled detector; 0.05°C sensitivity; 20 µm microscopic lens; wide-angle lens; and 16-bit digital Camera Link interface. Additionally, system elements include tower computer and monitor, vertical camera stage, xy table, thermal chuck with controller, and I/O relay module. System is suited for semiconductor failure analysis as well as calculating thermal resistance and identifying die bond defects.

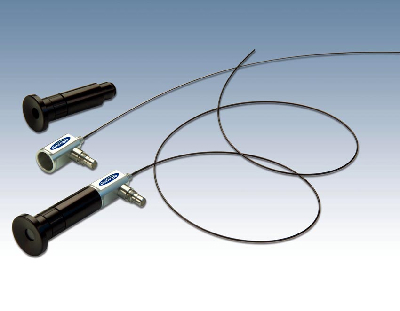

GenScope(TM)    East Longmeadow, MA 01028
Nov 12, 2008 Engineered for high-speed inline and maintenance inspections, Micro GenScope line includes MicroFlex, Micro SemiRigid, and MicroRigid models. MicroFlex has fused quartz fiber optic image bundle that provides clear, bright images, while MicroRigid GenScope has solid glass rod lens that runs entire length of stainless steel probe. Both attach to digital video documentation systems and use interchangeable focusing eyepiece that adjusts to user's vision.

Ophir-Spiricon Inc.    Logan, UT 84321
Nov 12, 2008 Designed for material processing applications such as drilling, ablating, and marking, YAG Focal Spot Analyzer attenuates 1,064 nm YAG power lasers with short, compact path lengths of 50-200 mm, and supports powers levels from less than 1 to 400 W. With adjustable attenuation up to 1 x 10-10, system measures focal spot characteristics, as well as how focal distance shifts with power. Modular C-mount unit can be added to any CCD camera.

Gradient Lens Corporation    Rochester, NY 14608
Nov 11, 2008 By accommodating microscope lens or borescope, Luxxor Video Microscope lets users switch from external to internal inspection. Microscope attachment features f/4.5 zoom lens that delivers sharp close-up views of exterior of any metal machined part, casting, or welded part, with magnification ranges from 15-83x. Users can capture video or still images with included computer software, document inspection images, store and email images to others, and measure defects.

GAO Tek Inc.    Toronto M1B2K4  Canada
Nov 11, 2008 Utilizing macro-bending technique, GAO820 Optical Fiber Identifier can check and measure current signal without affecting normal transmission signal. It indicates 5 grades of signal intensity for signal frequencies of 270 Hz ±5%, 1 kHz ±5%, and 2 kHz ±5%. Specifications include 800-1,700 nm wavelength range, InGaAs detector, 250 µm adapter for bare fiber, 900 µm for tight tube fiber, and 3 mm adapter for tail fiber.

QNAP Systems, Inc.    Taiwan   China
Nov 07, 2008 Powered by Intel 1.6 GHz CPU and 1 Gb DDRII memory, standalone network video surveillance recording system, VioStor-5020 NVR can monitor and record in real-time from up to 20 channels. System features up to 7.5 Tb storage capacity; centralized monitoring with "Click-to-Go" PTZ control; adjustable display mode; digital zoom for monitoring/playback; alarm notification on monitoring and real-time email notification; and 2 Gigabit LAN ports for load balancing/failover/multi-LAN configuration.

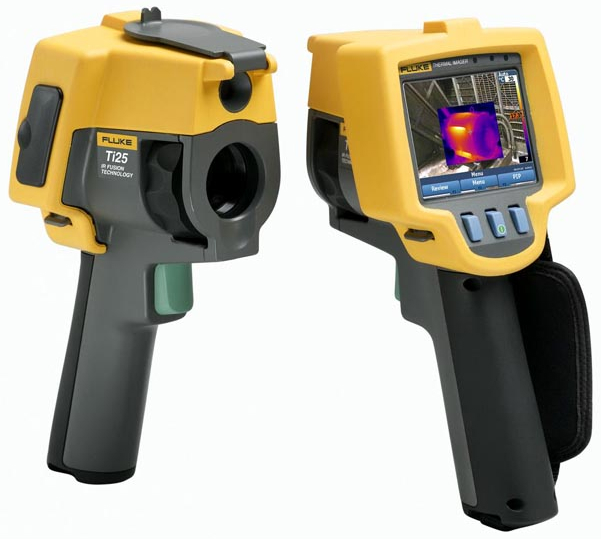

Fluke Corp.    Everett, WA 98203
Nov 06, 2008 Fluke thermal imagers come standard with SmartView(TM) v2.0, a modular suite of tools for viewing, annotating, editing, and analyzing IR images. Users can download images captured with any Fluke thermal imager equipped with IR Fusion® and then analyze, optimize, and organize those images; add notes and comments; and create reports. Images, data, and analysis can be sent directly into PDF or MS Word document, and UI design/functionality facilitates use.

ICOP Digital, Inc.    Lenexa, KS 66219
Nov 06, 2008 School Bus Security Camera System incorporates Model 4000 (4 or 8 camera) mobile DVR and controller to deliver extended periods of recording and flexibility for onboard communication, sensor integration, and networking. Camera coverage provides surveillance for passenger cabin video and audio monitoring, recording of stop-arm violators, and views of driver area and bus entrance. System also allows for windshield-mounted cameras that record activity in front of the bus.

PerkinElmer, Inc., Life Sciences Headquarters    Boston, MA 02118
Nov 06, 2008 Designed to produce Raman data from physically small samples or from small areas of large samples, RamanMicro(TM) 300 is suited for analyses of sample homogeneity, analysis of multilayer polymers, and forensic analysis of fibers. For micro-macro and Raman-probe capabilities, unit can be linked to RamanStation(TM) 400, which is suited for macro sampling. RamanStation 400 can be fitted with RamanMicro 300 or remote fiber-optic probe via external port.

Prosilica Inc.    Burnaby V5J 5E9  Canada
Nov 05, 2008 Capturing 30 fps at full 1,920 x 1,080 resolution, GE1910 features 2/3 in. optical format progressive scan CCD sensor. Color and monochrome models are available, each supplying GigE Vision(TM)-compliant Gigabit Ethernet interface. Frame grabber is not needed for operation, and features include snapshot/global shutter, pixel binning, and AOI readout. Other offerings include external trigger and sync I/O, RS-232 peripheral port, event recorder capability, and pre-trigger recording.

Fairchild Semiconductor    San Jose, CA 95134
Nov 05, 2008 Designed to meet regulations such as 1Watt Initiative and ENERGY STAR®, FOD41xx series eliminates RC-snubber network when used to drive snubberless discrete power TRIAC. RoHS-compliant products utilize Pb-free terminals and feature 10,000 V/µs min rating for commutating and static dv/dt, protecting against noise found in industrial environments. Each optically-isolated TRIAC driver also restricts optocoupler from turning on when ac voltage is near zero.

Megladon Manufacturing Group, Ltd.    Austin, TX 78758
Nov 05, 2008 Suited for use in CATV node tail applications, Bend Insensitive Fiber Optic Drop Cables with HLC ScratchGuard(TM) Technology are available in both 10X and 100X versions. Cables may be configured in various fiber counts and lengths and are supported with all standard fiber optic connectors including the SCAPC HLC (Hardened Lens Contact).

Lextech Labs    Lisle, IL 60532
Nov 04, 2008 From iPhone or iPod Touch, iRa remote surveillance viewing and control system enables access to multiple live video feeds and direct camera pan-tilt-zoom control over Wi-Fi. Videos can be viewed full-screen and software is suited for use in shopping malls, parking lots, parking garages, museums, power plants, and government labs where security guards need to be mobile.

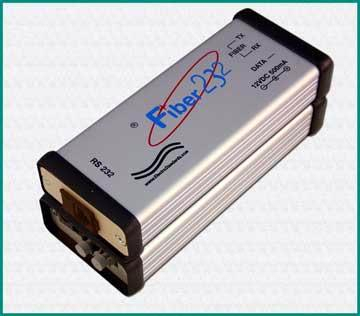

Electro Standards Laboratories    Cranston, RI 02921 3403
Nov 03, 2008 HP Fiber to RS-232 and HP Fiber to RS-485 converters connect fiber optic linked terminals to controller having either RS-485 or RS-232 interface ports. Models 4127 and 4129 convert HP Fiber to RS-485 while Models 4137 and 4139 convert HP fiber to RS-232. Both models provide full galvanic isolation (no metallic connection) between connected devices and acheive data transfer rate greater than 20 Kbps.

Nikon Inc.    Melville, NY 11747
Nov 03, 2008 Equipped with AF-S NIKKOR 18-105 mm VR image stabilization lens, D90 digital single lens reflex (D-SLR) camera captures still images with max JPEG burst rate of up to 4.5 fps and HD movie clips at 1,280 x 720 with sound at 24 fps max. It utilizes CMOS image sensor with 12.3 effective megapixels and EXPEED(TM) image processing system. Other features include 11-point AF system with scene recognition and face detection; ISO 200-3,200 sensitivity; and HDMI terminal.

JDSU    San Jose, CA 95131
Nov 03, 2008 Able to test VDSL triple play services up to 30 MHz, T-BERD/MTS-4000 Multiple Services Test Platform enables IPTV and VoIP measurements from DSL access interface or Ethernet port and VDSL and ADSL testing via Infineon Technologies chipset. Unit includes OTDR, PON meter, video inspection scope, and laser source/power meter capabilies for optical testing, as well as Web browser and 1 Gb extended memory. It features 7 in. display with GUI, with touchscreen optional.

HunterLab    Reston, VA 20190
Oct 28, 2008 Featuring rubberized handle for sure-handed carrying, MiniScan EZ can be used on plant floor, production line, or outdoors to measure reflected color of product. Weighing 2.25 lb including batteries, unit offers measurement repeatability, ability to take thousands of measurements using standard AA batteries, and button pad for thumb-tip navigation. Measurements can be stored in memory for printing or downloading to PC.

GAO Tek Inc.    Toronto M1B2K4  Canada
Oct 20, 2008 Hot-swappable XFP modules are 100% CISCO compatible, and can be removed from host device. Pluggable interfaces include data speeds of 10/9.9 G. XFP-based systems offer features for physical network connectivity, including media converters, distance extenders, cross-connects, Ethernet switching and routing equipment, and wave division multiplexing solutions.

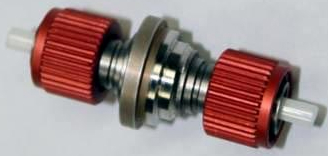

Pacific Aerospace & Electronic    Wenatchee, WA 98801
Oct 16, 2008 FC/APC fiber optic bulkhead connector suits electronics that require high-bandwidth fiber optic connectivity and must operate reliably in harsh conditions. Designed to be laser-welded into lightweight titanium or aluminum housings, hermetic connector promotes reliability by eliminating failure due to solder joint fatigue. Use of Kryoflex® polycrystalline ceramic-to-metal sealing technology achieves leak rate less than or equal to 1x10^-9 cc/sec He at one atmospheric DP.

Apollo Imaging Technologies, Inc.    Ramona, CA 92065
Oct 14, 2008 Suited for prototype development and production, AIT100 meets need for standalone video acquisition and processing system. Open and ready-to-run Video Analytics on the Edge (VAE) development platform can acquire images via built-in megapixel sensors or external NTSC/PAL video. Solution is based on Texas Instruments' 720 mHz TMS320DM642 DSP with resources that include 256M SDRAM, 32M flash, 10/100 Ethernet, RS232/485, analog video out, audio I/O, GPIO, and IEEE 802.3af-compliant PoE.
