Bosch Security Systems    Fairport, NY 14450 9199

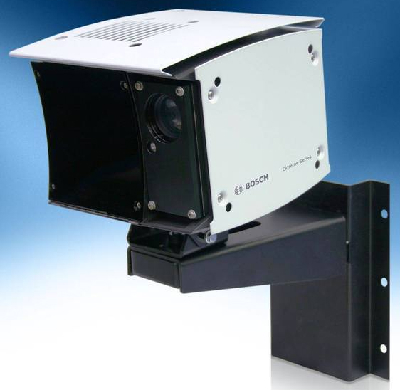

Nov 30, 2009 Supplied in IP68, all-weather housing, ZX55 and ZX55-IP employs IR technology for nighttime imaging over distances up to 300 m in complete darkness. Integrated 9-90 mm varifocal IR-corrected lens eliminates focus shift and IR bleed. Furthermore, ZX55-IP offers Intelligent Video Analysis capability and tri-stream video encoder. Classification, recognition, and identification level performance is rated to 100 m, enabling operators to distinguish facial features.

CUI, Inc.    Tualatin, OR 97062
Nov 30, 2009 Offering 2-bit quadrature resolution with square wave output signal, C14 panel mount optical encoder suits application in industrial equipment, portable communication equipment, and medical equipment. Series has 16 or 32 angle of throw position along with 3 shaft options that include 3.175 mm with slotted end, 6 mm dia round, and 6.35 mm with D-cut. Termination options included are solder holes, 130 mm cable with connector, and pcb or panel mount.

CUI, Inc.    Tualatin, OR 97062
Nov 30, 2009 Offering 2-bit quadrature resolution with square wave output signal, C14 panel mount optical encoder suits application in industrial equipment, portable communication equipment, and medical equipment. Series has 16 or 32 angle of throw position along with 3 shaft options that include 3.175 mm with slotted end, 6 mm dia round, and 6.35 mm with D-cut. Termination options included are solder holes, 130 mm cable with connector, and pcb or panel mount.

Avago Technologies    San Jose, CA 95131
Nov 25, 2009 Suited for industrial control applications, ACPL-K370/K376 detect AC/DC sources and convert voltage to logic interface across optical coupling barrier to provide safe isolation in electronically noisy environments. Threshold sensing input buffer ICs permit control of threshold levels over wide range of input voltages up to 1,140 Vpeak, with single external resistor. Housed in SO-8 package, detectors operate from -40 to +105°C and meet 8 mm clearance and creepage requirements.

Synology Inc.    Taipei 103  Taiwan

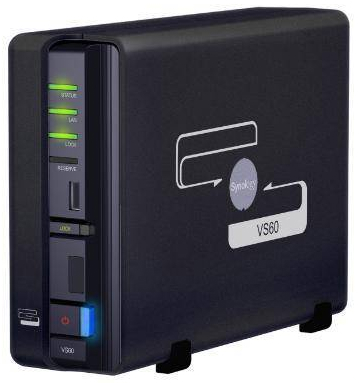

Nov 24, 2009 Synology Visual Station VS60 monitors multiple IP cameras managed with Synology Disk Station and displays images on connected LCD monitor or TV screen. Solution supports IP cameras features such as PTZ and snapshot and offers 2 USB ports for mouse operation and external disk connection. DSP processes images, lowering power usage down to 5.2 W for entire system, and support for live-viewing of camera inputs in multi-screen wall format suits large-scale deployments.

Lenel Systems International, Inc.    Pittsford, NY 14534
Nov 24, 2009 Fully customizable and scalable, GuardallVision supports up to 16 video channels, live recording at up to 30 fps, and up to 4 TB of redundant onboard video storage. It supports monitoring and maintenance of multiple DVRs and offers multiple embedded real-time analytics features as well as recording modes. Supporting up to 16 analog cameras and 4 IP cameras, product hosts its own web interface and can export data to external storage devices for video archival.

SightLogix, Inc.    Princeton, NJ 08540
Nov 24, 2009 Used to monitor critical outdoor assets in all weather conditions, SightLogix WideView SightSensor provides intrusion detection over 105° field of view to create buffer zone for areas requiring close-in, wide-area security. Intelligent video camera incorporates multiple DSPs within nitrogen-purged enclosure and can be mounted directly on asset. Designed to minimize false and nuisance alarms, product typically detects pedestrian-sized intrusion over ~60 m wide and 40 m distant area.

CTI Electronics    Stratford, CT 06615
Nov 23, 2009 Electro-Optical Encoders feature redundant photo-detector and light path to monitor encoder LED light output. Light-intensity feedback is then used by circuit to ensure maximum performance and life of quadrature output. Encoders allow for high encoder wheel resolution as well as durability.

Larson Electronics, LLC    Kemp, TX 75143
Nov 19, 2009 Incorporating Flir Hi-Res camera into remote controlled spotlight chassis, RCL-336 lets operators scan plant and equipment for thermal energy hot spots that indicate potential problems. IR thermal imaging camera is embedded in pan tilt base system that enables operator to position camera's field of view with 360° of rotation and 140° of tilt. Able to be permanently or magnetically mounted, camera passes information to 6 in. black and white monitor.

Starrett, L.S., Co., The    Athol, MA 01331 1915

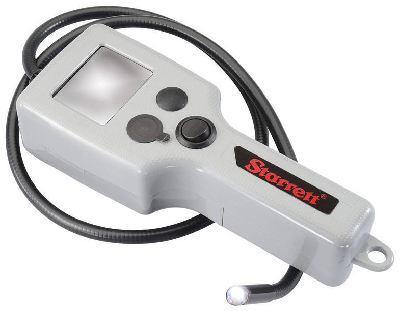

Nov 18, 2009 Used for remote inspection of areas inaccessible to naked eye, 679 Series Inspection Scope employs auto-focus digital video camera with 3 light intensity settings, full color image sensor, and dual solid state LEDs. Its 2.5 in. full color LCD screen, featuring 320 x 240 pixel resolution, displays live video from digital camera. There are 2 models available with cable lengths of 3 or 6 ft for flexible, water-resistant shaft with metal tip.

Megladon Manufacturing Group, Ltd.    Austin, TX 78758

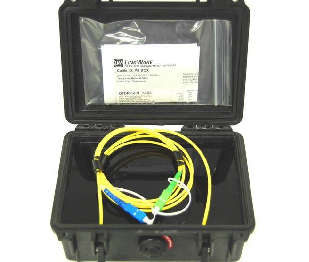

Nov 18, 2009 Placed between OTDR and link under test, Pulse Suppression Box delivers consistent test results in network certifications. Unit serves as dead zone elimination tool as well as reference grade fiber cable that provides accurate field testing and predictable calibration. Housed in drop resistant, waterproof case, Pulse Suppression Box assemblies use Hardened Lens Contact termination process and SCRATCHGUARD technology for all major glass and connector types.

Avago Technologies    San Jose, CA 95131
Nov 18, 2009 Available in SO-5 package, 1 MBd Model ACPL-M50L supports supply range from 2.7-24 V and is driven by low forward drive current of greater than 3 mA with high current transfer ratio greater than 80%, allowing direct drive from microcontroller without need to add buffer chip. Single-channel optocoupler features low propagation delay of 1 msec max. Operating from -40 to +105°C, TTL compatible device is suited for harsh industrial environments.

Coherent Inc., Laser Group    Santa Clara, CA 95054-1112
Nov 18, 2009 PowerMax(TM) USB/RS sensors include signal processing and power measurement electronics inside USB 2.0 or RS-232 cable connector. Units connect directly to PC and include PowerMax PC applications software with virtual instrument interface, which enables operator to take laser power readings, log data, and compute measurement statistics. Suited for various applications, sensors provide accurate laser power measurement from deep UV to IR over µW to kW power range.

Thermo Fisher Scientific    Waltham, MA 02454
Nov 17, 2009 Offering flexibility for QA/QC, life science, and general research methods, Evolution(TM) 60S offers 1.0 nm spectral bandwidth and scanning technology for acquiring spectral data at speeds over 4,200 nm/min. It meets requirements of international pharmacopeias and offers validation tools for regulated marketplace. Requiring no warm-up time, xenon lamp is rated for 3 years of continuous use. System also comes with 6-position cell changer and aluminum base plate single cell holder.

Molex Inc.    Lisle, IL 60532-1682
Nov 17, 2009 Offering copper and optical direct attach options for same system port, iPass+(TM) enables 12 channels of 10 Gbps data for up to 120 Gbps of total bandwidth. High-Speed Channel (HSC) pluggable CXP copper and optical interconnect system features unitary press-fit connector and cage assembly that provide one-step placement to host board. CXP 12X direct attach copper cables accommodate single, ganged, or stacked connector configurations in high-density requirement applications.

Lanner Electronics Inc.    Sijhih City Taipei 221  Taiwan
Nov 17, 2009 Utilizing H.264 AVC codec, Model VR-1208 supports up to 8 channels of D1 analog video and records both NTSC and PAL video systems. Unit is built around 1.6 GHz Intel Atom N270 CPU and Intel 945GSE chipset, with 1 GB DDRII onboard memory. PTZ camera control has RS-485 interface, which supports Pelco-P and Pelco-D protocol. For storage, DVR features two 3.5 in. hard drive bays with SATA II connections. External connections include 2 serial ports, 4 USB, 1 GB Ethernet, and 1 VGA output.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Nov 16, 2009 Intended for plastic fiber optic cables, SU18 and SU19 Photoelectric Fiber Optic Sensors feature multiple detection modes, selectable timing functions, remote teach capability, and 4-in-1(TM) output. Latter automatically selects NPN light/dark on and PNP light/dark on output options from single sensor. While SU18 series is available in pushbutton or potentiometer adjustable versions, SU19 series offers 4-digit, percentage-of-light-received LED display and glass detection mode.

Allied Telesis    Bothell, WA 98011
Nov 16, 2009 Using iMAP 9810 Intelligent Multiservice Access Platform, service providers can deliver FTTx services without risk of blocking. IP/Ethernet networking solution supports IP services simultaneously over copper and fiber infrastructures. Unit supports 1 Gbps, Active Ethernet, and EPON FTTx from any of 8 service slots, as well as copper-based services including ADSL2+ and VDSL2. As mid-mile transport device, iMAP 9810 can be provisioned with either 8-port GigE or 6-port 10 GigE modules.

Olympus NDT    Waltham, MA 02453

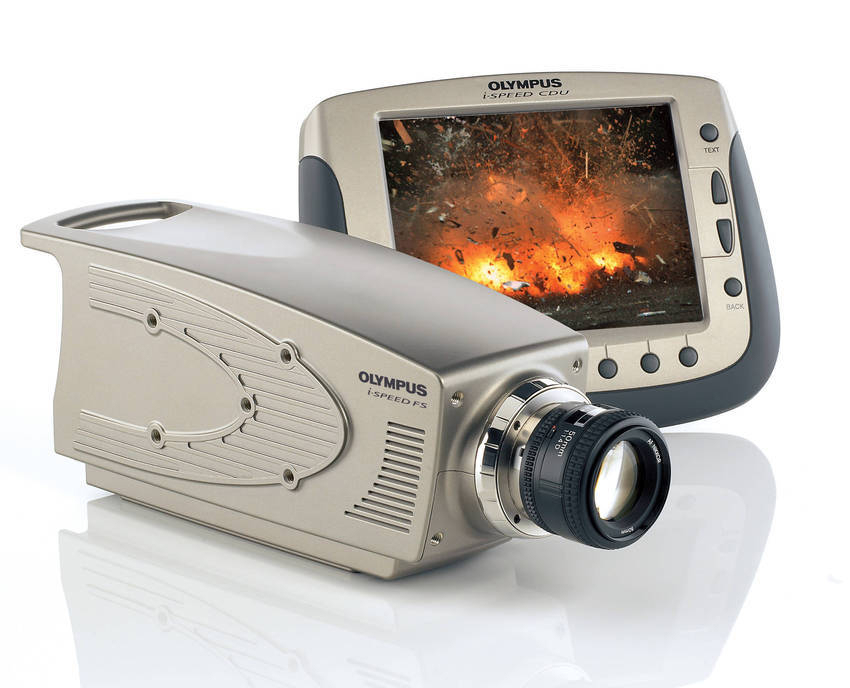

Nov 13, 2009 Designed for ballistics testing, i-SPEED FS camera features sub-5 µs IRIG-B time synchronization and time stamping, global shutter speed to 0.2 µs, and top frame speed of one million fps. Model i-SPEED TR, for research and development, can be connected to PC via GbE and is controlled with Olympus Control-Pro Software Suite, while i-SPEED LT offers standalone design with simplified operation. Each can include optional Controller Display Unit for control/live display of all features.

AMS Technologies AG    Munich 82152  Germany
Nov 12, 2009 FiberTECII(TM) Series laser modules integrate electronics with DC power operation for laser diode drive and protection, direct modulation of output power, and feedback functions. Units include micro lens that transforms elliptical beam into circular one, optimizing efficiency of coupling power into fiber. Various wavelength and power options are available, including 488, 532, 405, and 635 nm products. Modules suit medical, bioanalytical, and automated instrumentation.
