JDSU    San Jose, CA 95131
Jan 04, 2010 In addition to trans-reflective touch screen display, visual fault locator, and inspection scope, T-BERD/MTS-4000 is offered with field-interchangeable, single-slot optical time domain reflectometer (OTDR) module. Metro-access mid-range OTDR adds stabilized light source and power meter option for insertion loss measurement, PON-optimized dynamic range for testing through splitters, ability to perform in-service testing, as well as traffic and automated bend detection.

HANKWANG USA, INC.    Lombard, IL 60148
Jan 04, 2010 Series PL features Beam Radius Control, which adjusts beam diameter for different material thicknesses, and Constant Beam Delivery System that ensures consistent length of beam over work area. System includes S5 High-Speed Cutting Head that allows up to 1,120 ipm for 20 ga mild steel and 790 ipm for 16 ga SS. Tube cutting rotary axis supports tubes up to 12 in. OD. Unit has plasma monitoring unit, lens crack sensor, as well as touchscreen CNC to simplify setup/operation.

HANKWANG USA, INC.    Lombard, IL 60148
Jan 04, 2010 Series TL features cutting head that uses quick piercing nitrogen-injection technology and measurement/sensing mechanisms that enable change from signal size to pulse monitoring to optimize cutting conditions. Able to cut up to 0.25 in. thick mild steel and 0.2 in. thick stainless steel in sizes up to 21 ft long and with 6 in. dia., unit incorporates Siemens SINUMERIK 840D for maintaining complete processing cycle control by single operator, using touchscreen and simple language commands.

Boulder Imaging, Inc    Louisville, CO 80027
Dec 30, 2009 Supporting various input types, including NTSC, GigE, and Cameralink, Quazar VR300 Compact has ability to record from multiple input sources simultaneously. It has small footprint of 8 x 11 x 13 in., weighs 24 lb, and can record up to 150 MB/sec for long durations. Entry level device can stand alone or be integrated with other vision systems. Applications include medical imaging, machine vision, security and surveillance, scientific research, and quality control.

Mitutoyo America Corp.    Aurora, IL 60504
Dec 23, 2009 With measuring range of 10 mm and 0.01 mm type contact point made of R5 carbide, 542 Series Laser Hologage employs diffracted laser beam interference to perform accurate, repeatable measurements. Ultra-fine diffraction grating is holographically recorded on scale, and resulting resolution of 0.01 µm suits measurement of parts found in semiconductor and related industries. Also, linear ball bearings in guide provide smooth movement and durability.

Ideal Industries, Inc.    Sycamore, IL 60178
Dec 21, 2009 Fitting into adapter bay, FiberTEK® FDX Modules extend capabilities of LanTEK® II LAN Cable Certifiers to include certification of multi-mode and single-mode fiber optic cabling to Tier 1 standards. Single strand of fiber connected between handsets is tested at 2 wavelengths and in both directions simultaneously, while length of fiber is accurately measured. Field changeable SC, ST, and FC adapters eliminate need for hybrid launch cables.

TE Connectivity Ltd.    Berwyn, PA 19312
Dec 21, 2009 Addressing thermal management and EMI management requirements of MSA, CFP-Compliant Interconnection System includes module plug connector that straddle-mounts to board within transceiver module, and host receptacle connector, which surface mounts to host board. Two-piece, 148-position unit offers signal integrity over 20 differential pairs to support 4-channel 40 Gbps and 10-channel 100 Gbps operation. Applications include switches and routers for telecom and data centers.

Toshiba America Information Systems, Inc    Irvine, CA 92618-1697
Dec 18, 2009 Along with 2 megapixel CMOS sensor, IK-WB30A has electronic pan-tilt-zoom feature that transmits thumbnail images of entire fields of view to allow camera operator. MPEG-4 and MJPEG video can be streamed simultaneously at up 30 fps, and each can be configured with individual resolution, quality, and frame rate settings. Offering 1,600 x 1,200 resolution and day-night imaging, product has built-in SD card slot and supports PoE and 2-way audio.

NAPCO Security Group    Amityville, NY 11701
Dec 18, 2009 With no programming required and no computer software to install, IVR250 can record and store up to 30 days of continuous high-res video from up to 6 cameras online at up to 20 fps. Unit plugs directly into camera network and supervises itself as well as its network cameras. Napco-provided iSeeVideo site, password-protected and self-administered, lets users navigate and look up archived video.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Dec 18, 2009 Available in FM 1D1 and ATEX versions for Zones I and II, Sitrans SL combines benefits of tunable diode laser technology with direct operating mode close to process. Non-interfering inline reference cell enables laser locking independent of process gas concentration. Laser light is sent from transmitter, through process gas, and arrives at detector on receiver side. Since bandwidth of laser light is narrow, only gas component of interest will interact with it, providing accurate O2 analysis.

GAO FiberOptics Inc.    Toronto   Canada
Dec 16, 2009 Rugged model A0610001 displays attenuation values in either dB or dBm and available calibrated wavelengths include 1,310, 1,490, 1,550, and 1,625 nm. Supporting operating time of 40 hr when fully charged, device features auto-off function and restores attenuating value automatically. It is designed for on-line testing and maintenance of fiber optic systems as well as digital communication system devices such as PHD or SDH, or systems using analog modulation such as CATV.

Transduction    Mississauga, ON L4W5A1  Canada
Dec 15, 2009 Enclosed in waterproof aluminum casing, TR-9070-IR is equipped with IR LEDs and suited for indoor/outdoor applications involving difficult lighting, day/night surveillance, or where detailed images are required. It can capture and transmit images at up to 720 x 1,280 resolution using M-JPEG or M-PEG4 video compression, and comes with 6 mm wide angle lens with horizontal 60° view. Images can be accessed live from smart phone, or viewed directly on PC with Internet access.

Advanced Inspection Technologies    Melbourne, FL 32940
Dec 15, 2009 Providing thermal resolution less than 80 mK, Testo 881 Handheld Infrared Cameras feature intuitive menu, LEDs for illumination of dark areas, and one-hand operation with motor focus and 5-way joystick. Integrated voice recording function facilitates documentation of measurement results. In addition to infrared recording, cameras create parallel real image of location with integrated digital camera. A 32° standard lens shows large image section, while 9° telephoto lens detects details.

Inkcups Now    Danvers, MA 01923
Dec 14, 2009 By pad printing plates directly from digital files, direct-to-plate Cobalt 300 enables printing of neck labels with logos and letters as small as 4 pt type on T-shirts, sweatshirts, uniforms, and other apparel. Servo-driven motor enables max etching speed of 110 ips, while XY motion of laser print head allows etching of images up to 12 x 24 in. In addition to plate-making, CO2 laser system is suitable for engraving various substrates and cutting fixtures.

Medit, Inc.    Winnipeg, MB R3C2B3  Canada
Dec 14, 2009 Suited for accessing spark plug holes or inspecting industrial equipment, Wireless Video Borescope Systems feature 0.22 in. probe diameter with small CMOS video camera chip located directly in tip. Probe can be used remotely, or it can connect directly with monitor to form one solid unit for tight spaces. Featuring 3.5 in. LCD screen with 325 x 250 pixel resolution, 2.4 GHz wireless monitor includes image and video capture buttons as well as SD memory card to save files.

Ludeca Inc.    Miami, FL 33172

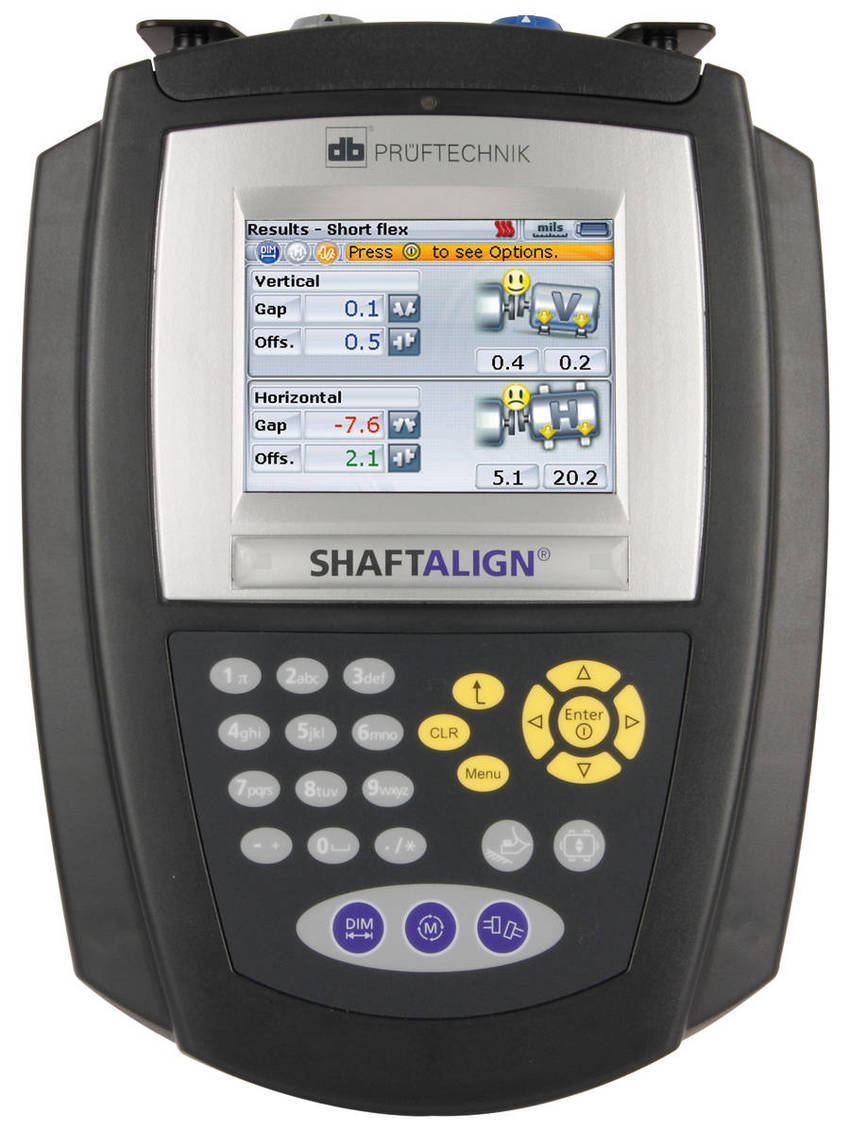

Dec 11, 2009 Powered by rechargeable batteries, SHAFTALIGN® features TFT backlit color display that shows all relevant alignment results on one screen. Auto-flow capability, which delivers Dimension-Measure-Results functionality, guides user to obtain desired machinery alignment condition, and Active Clock measurement mode automatically collects laser coordinates for corresponding shaft position. Unit requires 3 readings over rotation angle of less than 70º to achieve precision alignment.

IPG Photonics Corp.    Oxford, MA 01540
Dec 11, 2009 Available in peak powers of 750, 1,500, 3,000, and 5,000 W, air-cooled YLR-X/Y-QCW-AC Lasers provide energies from 7.5-50 joules per pulse, wall plug efficiencies greater than 30%, and maintenance-free operation. Quasi Continuous Wave lasers offer various options for output fiber size and BPP from 0.35 x mrad to 2 mm x mrad. Plug and play design and fiber delivery system are standard. Lasers suit spot welding, seam welding, and drilling applications.

Riegl USA, Inc.    Orlando, FL 32819
Dec 10, 2009 Consisting of two VQ-250 scanners on mounted platform accompanied by GPS-INS and up to 8 digital cameras or video equipment, Model VMX-250 makes 600,000 measurements/sec, allowing surveyors to capture dynamic 3D data at highway speeds. Echo digitization technology penetrates foliage, fences, and other obstacles, while online waveform technology allows for more than 10 measurements/laser shot. Combination results in laser precision of 1 cm or better and accuracy of 3 cm or better.

GAO FiberOptics Inc.    Toronto   Canada
Dec 08, 2009 Designed to carry out absolute and relative power tests as well as optical loss tests, Model 801 is suited for use in optical telecommunication, CATV, and labs. Unit supports multi-wavelength precision measurement and automatic bi-directional tests. It includes backlit display, low voltage warning, automatic power off, and memory capacity of 50 data items. Laser source operates at dual wavelengths of 1,310 and 1,550 nm, while optical power meter module works at wavelengths from 800-1,600 nm.

OSRAM Opto Semiconductor    San Jose, CA 95134
Dec 08, 2009 With efficiency of 25l m/W, Orbeos OLED panel features a round lamp surface of 80 mm dia, weighs 24 g, and is 2.1 mm thick. Surface-emitting, nonglare panel provides warm white color temperature of 2,800 K, while brightness level is typically 1,000 cd/m² with power input of less than 1 W. Spring contact mounted unit is switched on/off without delay and is continuously dimmable. With lifespan of 5,000 hr, product contains no mercury and emits no UV or IR radiation.
