Advanced Photonix, Inc.    Camarillo, CA 93012
Mar 30, 2010 Model CR-100A compact coherent receiver is available in configuration that includes internal polarizing beam splitter, and one without. Compact form-factor compliant product supports four 32 Gbaud outputs and covers both C and L bands. It also incorporates optical beam splitters, mixers, high-speed photodiode arrays, and amplifier arrays. Next generation 40G, 100G, and beyond line-side telecommunication networks utilizing DP-QPS format are supported.

Edmund Optics    Barrington, NJ 08007
Mar 30, 2010 Suited for weight- and size-sensitive applications, TECHSPEC® Ultra-Thin N-BK7 Windows measure 0.20 mm thick and feature precision substrate with ½ wave transmitted wavefront error. Each is available uncoated or with MgF2 Anti-Reflective (AR) coating in 8 standard sizes from 5-50 mm dia. Suitable uses include cover plates for biotech imaging and replacement windows for CCD sensors as well as various other R/D and OEM applications.

Samsung Techwin America    Carson, CA 90746
Mar 29, 2010 Offering 600 TV lines of resolution, W5 Series includes SCD-2080 dome, SCP-2120 PTZ mini-dome, SCB-9050/9051 thermal imaging, SCO-2120R waterproof IR, and SCD-2010/2030 fixed dome cameras. Samsung Super Dynamic Range (SSDR) technology increases level of visible detail in dark areas while maintaining image clarity in brighter parts of image, and Super Noise Reduction III (SSNR III) combines adaptive 2D and 3D filters for less noise and motion blur, even in low light.

Samsung Techwin America    Carson, CA 90746
Mar 29, 2010 In addition to intelligent video analytics, 1.3 megapixel PoE-enabled cameras feature WiseNet DSP for optimal image quality and progressive scan technology for noiseless capture of moving objects. HD network box camera (SNB-5000) and SMT dome camera (SNB-5080) enable multi-stream encoding of H.264, MPEG4, and MJPEG images simultaneously at various resolutions and frame rates. Along with various image enhancement technologies, cameras support automatic switching between Day/Night mode.

SightLogix, Inc.    Princeton, NJ 08540
Mar 29, 2010 Utilizing advanced video processing technologies, WideView SightSensor delivers intelligent close-area surveillance, optimizing security for both critical infrastructure and general commercial outdoor surveillance applications. Five DSPs integrated to optics mitigate ill effects of extreme real-world interference, such as high wind, precipitation, shadows, and vibration. Operating over standard IT networks, camera enables registration of fields-of-view to actual GPS coordinates.

Photron USA, Inc.    San Diego, CA 92126

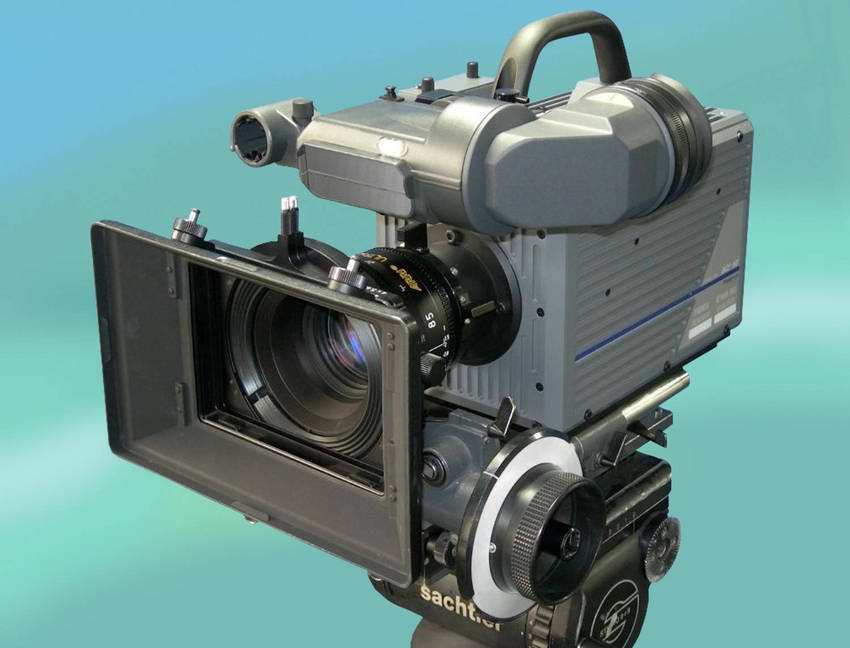

Mar 29, 2010 With 12-bit dynamic range and 4 mega pixel (2,000 x 2,000 to 1,000 frames/sec) resolution, Fastcam BC2 camera offers full 1,080 high definition resolution at 1,920 x 1,080 up to 2,000 frames/sec and reduced resolution to over 86,000 frames/sec. It has 2.76 µsec shutter, low noise artifact-free electronically cooled CMOS imaging sensor, and instant playback via dual HD-SDI outputs. Unit is compatible with Sony HDVF-C30WR HD viewfinder, and PL, B4, and Nikon F-mount lenses.

Thermo Fisher Scientific    Waltham, MA 02454

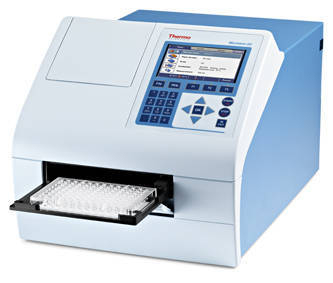

Mar 29, 2010 Offering wide wavelength range from 200-1,000 nm for 96- and 384-well plates and various types of cuvettes, Multiskan GO UV-Vis can scan complete spectrum of sample in under 10 sec. It supports endpoint, kinetic, and spectral scanning assays and provides precise temperature control for handling temperature-critical assays. Suited for photometric research applications, including DNA, RNA and protein analysis, unit also offers extensive automatic self diagnostics at instrument start-up.

Arecont Vision    Altadena, CA 91001
Mar 29, 2010 Available in color, day/night, and color auto-iris versions, AV10005 Series provides 3,648 x 2,752 pixel resolution at 6 fps in 10 MP mode and 1,920 x 1,080 at 30 fps in 1080 mode. Functionality lets users crop field-of-view to any resolution, select 4:3 or 16:9 aspect ratio, and apply H.264 or MJPEG compression. In addition to real-time motion detection, features include ability to digitally pan, tilt, and zoom live with multiple zoom windows while recording full field-of-view.

SightLogix, Inc.    Princeton, NJ 08540
Mar 29, 2010 By incorporating 105° field-of-view lens, WideView SightSensor(TM) delivers close-in, buffer zone security over areas up to 60 m wide and 40 m distant. It can also detect objects moving directly below camera with no blind spot. Able to operate in all weather and climate conditions, camera incorporates features such as day/night imager, electronic stabilization, on-board DSP-based image processing, video analytics software, camera control, and geospatial target tracking.

OFS, Specialty Photonics Division    Avon, CT 06001
Mar 26, 2010 Designed to replace traditional indoor riser and drop system with exterior solution, EZ-Bend® Bundled MDU Cabling System is made with 5 or 6 EZ-Bend 4.8 mm indoor/outdoor cables stranded around messenger cable, which can be secured to roof or base of building as required by application. EZ-Bend Technology provides less than 0.1 dB per 5 mm radius turn bending loss performance at 1,550 nm using solid glass fiber construction and is splice compatible with typical installed fibers.

Dicon Fiberoptics Inc.    Richmond, CA 94804
Mar 25, 2010 Delivering fast switching time, high port count MEMS 1x56 optical switch features internal MEMS components, which meet Telcordia GR-1221 standards. Compact switch is suited for 1xN optical switching for port sizes between 1x25 to 1x56 with single mode fiber. Optical switches with port counts up to 1x128 are also available for FTTH monitoring solutions.

Molex Inc.    Lisle, IL 60532-1682
Mar 24, 2010 Targeting telecom, datacom, and computer markets, PRIZM(TM) LightTurn(TM) Cable Assemblies use low-profile connectors from US Conec Ltd that mate to Avago Technologies' MicroPOD(TM) 120 Gbps board-mounted parallel optic modules. Perpendicular mating allows for tight spacing of modules and facilitates cable management since modules can be aligned in rows. Mated on top of modules, multi-fiber ribbon cable assemblies also optimize airflow on PCBs.

Oclaro    San Jose, CA 95134
Mar 24, 2010 Model TL9040 Indium Phosphide-based transponder module is provided on 300-pin Multi-Source Agreement (MSA) platform. Multi-rate adaptable 43 Gbps RZ-DQPSK transponder suits wideband tunable, C-band applications requiring -150 to +150ps/nm dispersion tolerance in noise loaded link applications. End-users are able to exploit power of vertical integration, which allows differentiation of features at chip level.

Avago Technologies    San Jose, CA 95131
Mar 24, 2010 Model ASMT-FJ60 is miniature auto focus LED that incorporates untinted, non-diffused lens that provides light output within 10° radiation pattern. Dome lamp is suited for use as auxiliary auto focus flash in camera applications that require long distance illumination. Measuring 4.8 x 4.8 x 4.35 mm, it features light output of 29 cd at 20 mA and meets IEC/EN 60825-1 Eye Safety Class 1M requirement. Unit is RoHS-compliant.

OFS, Specialty Photonics Division    Avon, CT 06001
Mar 24, 2010 Designed to endure harsh operating conditions, RoHS-compliant FITEL® S153A has rubber pads for shock/impact resistance and is water/dust resistant to IPX2/IP5X. Protection sleeve shrink time is 25 sec with pre-heating mode, splicing requires 9 sec, and up to 200 splicing cycles can be performed on one charge of 2 built-in rechargeable batteries. Tool can splice telecommunication fibers such as SM/MM as well as bend insensitive fiber and ultra bend insensitive fiber.

ID Technology Corp.    Fort Worth, TX 76106

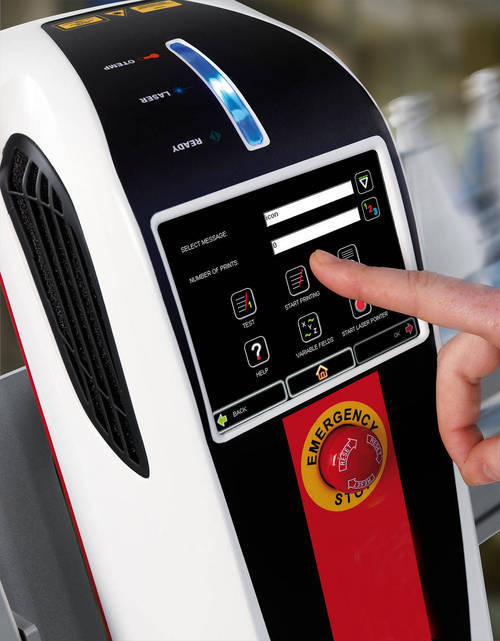

Mar 23, 2010 Designed for small-character coding applications in packaged goods and industrial products, iCONNET comes with integrated touchscreen interface, photocell, nose cone protection, and mounting bracket. MarcaLite software enables printing of logos and graphics as well as alphanumeric characters. Requiring no consumables, laser leaves no mess and presents no solvent emissions. Optional remote control is available.

Molex Inc.    Lisle, IL 60532-1682
Mar 23, 2010 Featuring all-metal housing, LC2+ Optical Connectors come in simplex and duplex models for multi-mode, single-mode, and APC applications. Latch retention system and high-temperature strain relief boot work in conjunction with EP aerospace-grade fiber optic cables and sealing features to protect from moisture propagation going through connector to active devices. Interconnects are fully compatible with all LC form factor connectors, adapters, active devices, and tooling.

VideoIQ, Inc.    Bedford, MA 01730
Mar 23, 2010 Integrating 0.5 TB onboard NVR storage, iCVR dome cameras offer zero-bandwidth recording, eliminating need to stream images across network to central NVR. Adaptive analytics automatically calibrate in minutes to deliver real-time threat detection and forensic evidence. Units integrate with leading video management systems, command and control integration platforms, and access control systems. Vandal-proof, IP66 outdoor rated, and indoor models are available.

Veeco Instruments Inc. Corporate Headquarters    Woodbury, NY 11797

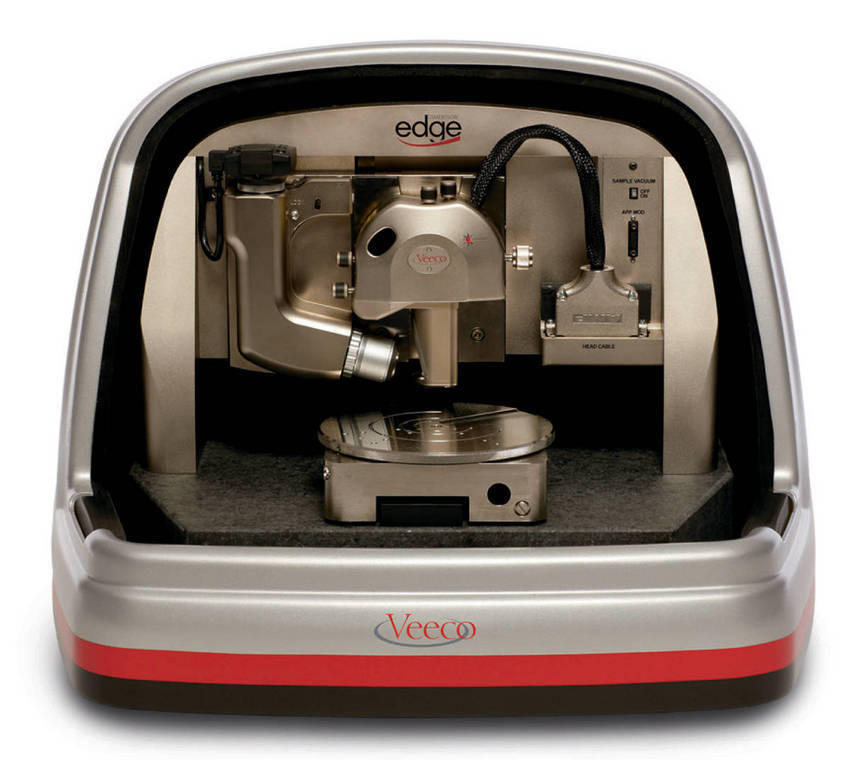

Mar 22, 2010 Dimension® Edge(TM) AFM System provides seamless path from sample placement through optical identification of target region, and from AFM survey mode to zoomed-in feature identification. Closed-loop and drift-compensated stage promotes productivity and accuracy, and low noise levels permit collection of fine details needed for proper material identification. Imaging and single-point spectroscopy capabilities suit many applications, such as characterization of solar and semiconductor devices.

GAO Instruments Inc.,    Toronto   Canada
Mar 22, 2010 Suited for engineers working on single mode optical cable networks, Model A0670011 conducts measurements of absolute light power in dBm and tests loss or relative power level in dB. Handheld unit operates over wavelength of 780-1,700 nm with input range of -43 to 27 dBm at accuracy of ±1%. Powered by 2 NiMH AA batteries, meter includes backlit LCD screen and is available with both FC and SC connectors. Meter is suited for installation, debugging, and maintenance of networks.
