Pass & Seymour/Legrand    Syracuse, NY 13221
Dec 15, 2006 Designed for mounting class 2 low-voltage devices, Low Voltage Brackets incorporate reinforcement ribs to minimize racking, cable tie ports to hold cable during trim-out, and countersink holes to prevent wallboard bow. Metallic swing brackets are available for old work applications, while nail-on, face-mount, and screw-on styles are offered for new work applications. All feature installation and height alignment features for mounting devices next to adjacent switches.

DIRAK    Chantilly, VA 20151-1220
Dec 11, 2006 Consisting of door component and frame component, SNAP-LINE 180° Lift-Off Hinge makes it possible to remove door from cabinet or enclosure without disassembling hinge. Door part of hinge, with pre-fitted pin halves, snaps into prepared cut-out on door. Set of spring-loaded wings is inserted into channel in hinge housing. As wings retract after passing through cutout, hinge is held securely in place, even in severe vibration applications.

J. W. Winco, Inc.    New Berlin, WI 53151
Nov 14, 2006 Accommodating ½ in. round or 7/16 in. square tubing, Cross Blocks for Square and Round Tubes feature stainless steel socket cap screws and hex nuts. Used for mounting perpendicular and horizontal rods, blocks are made of black glass filled nylon plastic that is resistant to oil, solvents, and corrosion, and has maximum heat resistance of 110°C. Cross blocks suit conveyors, packaging equipment, pharmaceutical, automation, and material handling industries.

HellermannTyton    Milwaukee, WI 53224
Nov 13, 2006 Injection-molded E Series Horizontal Wire Managers are for use on standard 19 in. racks. Extra wide spacing between fingers and smooth edges provide routing of cable bundles, and built-in bend radius control maintains 1 in. minimum bend radius for transmission reliability. Multiple mounting slots on sides of wire managers permit alignment on rack while wire retention tabs and built-in cable retainers between fingers keep cables inside wire manager.

Mitee-Bite Products Inc.    Center Ossipee, NH 03814
Nov 08, 2006 Available in variety of sizes and lengths, low-carbon, precision ground Locating Rails include mounting holes and socket head cap screws. Users mill slot in fixture plate to locate rail and drill and tap mounting holes. Height of rails can be adjusted by depth of slot. Steps can be machined on rails to hold work piece above fixture plate, or radius can be machined to match contour on machinable clamps for irregular shaped parts.

ERICO    Solon, OH 44139-2631
Oct 23, 2006 H23 Box Mounting Brackets attach 4 and 4 11/16 in. outlet boxes to wood or metal studs, accommodate 2½ and 3½ in. stud depths, and comply with NEC® Article 300.4(d) and CEC® Rule 12-3012. Extending stud depths to 4 in., CADDY MEB1 brackets mount on either side of stud without need to reposition box, and include V-notch on center for consistent positioning. Both electrical box supports reduce drywall bulge when used with SMS8 low-profile self-tapping screws.

Sony Precision Technology America Inc.    Canton, MI 48187
Oct 19, 2006 Offering high-speed or multi-purpose mounting, calibrated Model SI-G200 supports 2 optional interchangeable rotary heads in one platform, and is capable of generating 45,000 CPH output performance. High-speed head offers ±0.045 mm placement precision and 0.08 sec placement tact time, while multi-purpose head features ±0.040 mm placement precision and 0.16 sec placement tact time.

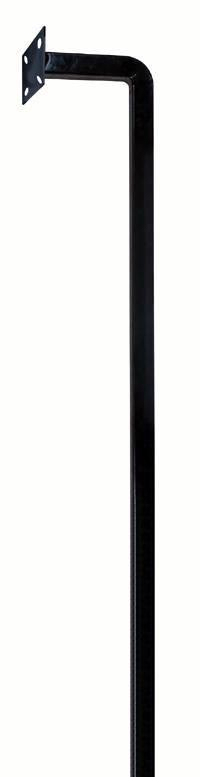

Safety Technology International    Waterford, MI 48327
Aug 31, 2006 Featuring anti-corrosive powder coat finish, mounting pedestals provide outdoor mounting of security and access control equipment. Model STI-9779 measures 60 in. high and is designed to be anchored, cemented, and buried in ground. Designed with base for mounting to concrete pad, STI-9780 is 42 in. high and features mounting flange cover plate to protect mounting nuts. Heavy gauge steel pedestals can be used for telephone entry, card readers, gate operators, push buttons/switches, and keypads.

ERICO    Solon, OH 44139-2631
Aug 14, 2006 Installed vertically or horizontally on racks, ceilings, and walls, CADDY® CATCR50 plastic, low-voltage cable support is designed for use with CAT 5e and higher, fiberoptic, and coaxial cable. Rounded edges avoid over-bending and kinking of cables, and closure has locking teeth that retain bundled cable in one-piece support. UL®-recognized for air-handling spaces, product requires nail, screw, push pin, or pop rivet for complete installation.

Southco    Concordville, PA 19331 0116
Jul 26, 2006 Available in range of sizes, CEMA(TM) ST Series features hardened steel components and can be configured with equal torque in both rotation directions, or with higher torque in one direction. With positioning torques from 0.3-44 lbf-in., units eliminate need for secondary mechanical supports and provide zero-backlash operation. They accommodate handheld electronics, portable computer displays, POS terminals, medical equipment, and automotive video screens.

ERICO    Solon, OH 44139-2631
Jul 17, 2006 Available in 2 and 4 in. sizes, electro-zinc plated CADDY® SLOT LOCK is UL®-Listed and meets Factory Mutual deflection requirements without need for additional spacers. Removable slotted crossbeam accelerates assembly time and minimizes deflection by capturing top and bottom legs and locking them in place under load. Notches in crossbeam prevent it from working loose, even under extreme vibration. Product also conforms with Federal Specification WW-H-171.

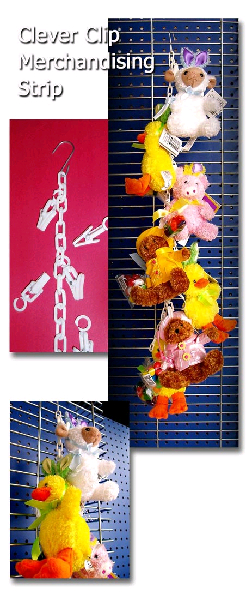

Clip Strip Corp.    Hackensack, NJ 07601
Jun 28, 2006 Clever Clip Style Merchandising Strips combine spring hinged Clever Clips, 36 or 48 in. polyethylene chain with ¾ x ½ in. links, and S hook. Each Clever Clip has mounting ring for attachment, removal, and reattachment to any link in chain, enabling strip to be adapted to range of products of different lengths and bulk. Strips are suited for displaying plush toys, snack bags, sponges, gloves, socks, mini travel kits, etc.

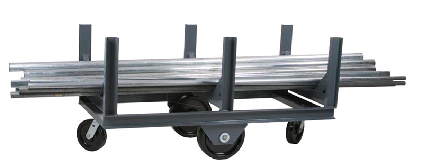

Durham Manufacturing Company, The    Durham, CT 06422-2108
Jun 05, 2006 Available in 8 models from 5-12 ft long, Bar Cradle Trucks are 28 in. wide with 3, 4, or 5 cradles, determined by length. All are elevated to accommodate forklift loading. Featuring all welded steel construction, models rated at 4,000 lb have 3 in. C channel frames with 10 x 2 ½ in. center phenolic load wheels and 6 x 2 in. phenolic bolt-on swivel casters. Models rated at 10,000 lb have 4 in. C channel frames, 12 x 3 ½ in. load wheels, and 8 x 2 ½ in. phenolic bolt-on swivel casters.

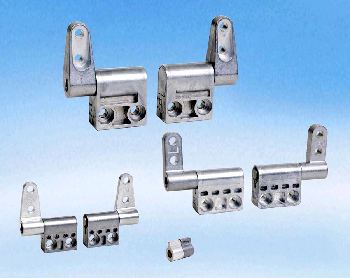

Sugatsune America, Inc.    Carson, CA 90746
Apr 28, 2006 Constructed of 316 and 304 stainless steel, SFTH Series Hinges are offered in 5 standard preset torque settings ranging from 4.3-49.9 lb-in. Units have 20,000 life cycle and operating temperature range of -4 to 140°F. Available in choice of weld on, non-handed, lift off, quick release, spring loaded, and bearing models, hinges are suited for industrial design, clean room, exterior, or corrosive environments.

Sugatsune America, Inc.    Carson, CA 90746
Apr 28, 2006 Made of 303 and 304 stainless steel, DS, KB, WH, El, EP, and FC Series Hooks include double, swing, butterfly, rotating, wire, plastic, and recessed models, and brackets include folding and spring loaded versions. Hooks come in mirror, mirror/satin, polished, or pure satin finishes, while shelf brackets are available in white, black, and stainless steel finishes. All are suited for light or heavy-duty applications in industrial design and exterior environments.

R & M Energy Systems    Willis, TX 77378
Mar 28, 2006 Era® Rod Guides take wellbore deviations, dynamometer readings, workover histories, well operating conditions, and production data into consideration for proper selection of guide design, material, and spacing for each well. Designed to reduce maintenance and provide solutions for down-hole tubing wear, products are also available in following types: High Performance, Classic, Rotating, and Field-Installed Rod Guides.

Guden, H. A., Co., Inc.    Ronkonkoma, NY 11779
Jan 23, 2006 Eliminating need for fasteners and leaves, Weld-On Hinges provide precise, smooth operation. Steel, stainless, and aluminum products come in 12 stock sizes with available options for fixed pin, fixed pin with grease fitting, or removable pin hinges. With degree of fit that results in minimal sag, hinges are suited for applications that range from cab enclosures to cabinets and toolboxes, safes, security gates, and safety containers.

ERICO    Solon, OH 44139-2631
Jan 19, 2006 For overhead decking applications, CADDY® SPEED LINK LD comes with universal toggle/wire rope assembly in 6.6, 16.4, and 32.8 ft lengths. Optional Y-toggle consists of 20 or 31 in. length of wire rope with toggle on each end. Center of wire rope is looped and crimped. Universal support system suspends static loads, even at angles, such as lighting fixtures, speakers, alarm sensors, signage, and pipes. Plastic sleeve keeps wire rope looped up until ready for installation.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Nov 30, 2005 Designed to be on shop floor next to machines, benchtop Toolmaster TM10 Presetters produce run-out less than 0.00008 in. with Needle Bearing Basket. Tool taper rides on needle bearings, which allows dust and debris to pass through. With 2% taper contact, debris or scratches in toolholder will not effect measurement. Units are suited for all tool measuring and presetting applications, and do not require any special computer or programming knowledge.

Beckhoff Automation LLC    Minneapolis, MN 55337
Nov 23, 2005 Series ZK1020 IP-Link Bridge Connectors and Series ZS5300 I/O Mounting Rails are suited for applications that require IP67-rated I/O terminals mounted outside of cabinet and directly on machines. Connectors are used for high-density, side-by-side Fieldbus Box I/O mounting where modules are 0-5 mm apart. Made of 1.5 mm thick stainless steel with pre-cut M3 threads to attach I/O modules, Mounting Rails come in 500 mm long increments and mount on machines with M5 screws.
