Grommets & Bushings
(Showing headlines 1 - 20) more ....
Hose Strain Relief Kit is available for hose reels.
Tempe, AZ 85283-4323
Oct 28, 2013
Available for hand crank and motorized reels with hose IDs from ½–1½ in., Coxreels® Hose Strain Relief Kit protects hose fittings and connections from potential damage. Clamp takes on force from over-extended hose during use and protects hose fittings and connections at riser from excessive tension. With this mounted kit, hose remains secured against drum and allows hose to be routed between riser connection and clamp with proper bend radius. This minimizes opportunity for hose to strain.
Over-Mold Strain Relief increases durability of battery clips.
Chino, CA 91710
Oct 02, 2013
Offered as alternative to slip-on boot, over-mold solution for battery clip — electrical device used for jump starting vehicles and also common on test equipment — provides strain relief that adds durability and longevity to assembly. Over-molding also increases insulation and grip as well as aesthetics. Over-molding handles encapsulate soldered connection in plastic for additional protection and strength, and logo space for branding and labels is provided.
Circular Over-Mold integrates XLR connector and PCB.
Chino, CA 91710
Aug 08, 2013
Circular over-mold for PCB with Switchcraft XLR connector furthers capabilities of current PCB and connector design by broadening type of connectors that can be integrated with PCB. Integration of XLR and PCB into one over-molded unit streamlines connector's contours, which disguise internal PCB. Inner cap, designed out of hard durometer resin, serves as structure for over-mold, which provides aesthetics of part and integrates strain relief section into mold.
Custom Overmold is available for Molex® XRC connectors.
Chino, CA 91710
Aug 01, 2013
Custom overmold, available for IP67-rated and waterproof Molex® XRC (Extra Rugged Circular) connectors, integrates solid rib strain relief and custom recessed grooves that promote additional grip. Along with providing additional rugged protection to connector, this aesthetic encapsulation helps reduce stress on internal connections that would otherwise occur over time. Customized branding is also available.
Firestop Grommet supports 1-5,000 cables.
Specified Technologies Inc.
Somerville, NJ 08876
Jan 23, 2013
Engineered to permanently seal cable penetrations through fire-rated walls, EZ Path® Firestop Grommet eliminates need for sleeves, sealant, and putty. Two-piece grommet snaps together around cable and locks tightly into wall. Providing up to 2-hour rating in gypsum board and stud wall assemblies, Model RFG1 seals single low voltage cables or smaller cable bundles with max OD of 0.27 in., while Model RFG2 seals single low voltage cable or cable bundle with max OD of 0.53 in.
Cable Strain Relief Kit fosters custom project development.
Chino, CA 91710
Jul 24, 2012
Available to aid in development of custom strain relief for new or existing project, 24-piece sample kit provides variations of 88,000 ISC strain relief options. Strain reliefs are discrete component injection molded from flexible resin, usually PVC. Products have hole size same diameter of cable being used and are held into place with slot and flange. Design provides structure and support in stressed portion where cable jacket ends and connection is made to component.
Insulating Grommets dampen vibration as well as noise.
Keystone Electronics Corp.
Astoria, NY 11105
Feb 14, 2012
Anti-Vibration Grommets are engineered for electrical insulation, mechanical damping, and noise suppression in office or lab equipment. Specifically, products are engineered to isolate sensitive instrumentation from unpredictable vibration and shock. Integrated fingers flex as needed to provide necessary dampening, while shoulder screws provide correct spacing for full tightening. Able to accommodate .031-.125 in. thick panels, grommets are manufactured from EPDM rubber in black or blue.
Reducer Snap Bushings suit through-panel applications.
Toms River, NJ 08753
Jul 11, 2011
Designed for mounting hole diameters from .375-2.0 in. and panel thicknesses up to .125 in., Reducer Snap Bushings insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines. Products also provide neater look where cable OD to bushing ID clearance is minimized. Manufactured from 6/6 nylon in standard black color, bushings insert into mounting holes with fingertip pressure and withstand push back force of 35 lb.
Silicone Gel Bushings isolate electronic equipment.
Advanced Antivibration Components - AAC
New Hyde Park, NY 11040
Jun 03, 2011
Made of silicone gel with brass collar, V10Z61MA and V10Z61MB Series Bushings are available in 5 models with collar ID of .12-.16 in. and operating temperature range of -40 to +392°F. Units isolate vibration in low frequency applications with loads ranging from 0.11-17.64 lbf per mount. Bushings are suited for isolating electronic equipment such as speaker systems, turntables, and cameras.
Machining Center Mounting System features helical extraction design.
Kurt Manufacturing Co., Industrial Products Div.
Minneapolis, MN 55413 1540
Apr 06, 2011
Consisting of high precision pins, bushings, and liners that provide locating repeatability up to ±.005 in., PinLock(TM) System facilitates attachment and removal of fixtures, subplates, and vises from machining centers. Helical extraction design aids in overcoming binding in side load conditions. Precision machined of heat-treated, alloy steel with black oxide finish, liner bushings are available for fixture plate thicknesses of 0.75, 1.00, 1.50, and 2.00 in.
Cable Grommets offer IP67 or NEMA 4X protection.
Automation Systems Interconnect, Inc.
Mechanicsburg, PA 17055
Mar 18, 2011
Rutaseal® Grommets provide way to feed cable through enclosure wall or panel while maintaining protection level of IP67 or NEMA 4X. Withstanding operating temperature range of -40 to +110ºC, units can be inserted in panels with thickness ranging from .5-4 mm. They are available to fit metric threaded entries ranging from M12 to M50 and PG threaded entries from PG 7 to PG 36.
Right Angle Cord Grips offer liquid-tight strain relief.
Toms River, NJ 08753
Aug 06, 2010
Available in PG, NPT, and metric threads in variety of sizes, Right Angle Cord Grips feature all nylon construction with Buna N sealing gland that resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. Each is molded in open position to facilitate installation. After cable insertion, fitting snaps closed while bending cable without damage. UL and CSA certified, cord grips are suitable for NEMA 6P enclosures and have 94V-2 flammability rating.
Ratcheting Strain Relief features removable design.
Toms River, NJ 08753
Apr 21, 2010
Designed to self-lock onto cable, Snap-In Ratcheting Strain Relief can be removed through insertion of snap ring pliers with .040 in. tips into holes located on outside of part. Unit is available for .875 in. hole size with .770 in. flats and installs with fingertip pressure. Wire locking ratchet allows for wire range of .115-.575 in. Suited for one or multiple round or flat wire cables, strain relief can be preassembled offline for final assembly at later time.
Strain Reliefs provide safety in potentially explosive areas.
Flemington, NJ 08822
Feb 23, 2010
Offered with 3/8 to 1 in. NPT threads or M12 to M63 metric threads, IP68-rated strain reliefs for cable entries provide safety in explosion-endangered areas by eliminating any potential for arcs, sparks, or hot surfaces. Clamping ranges are available from 2.5-6.5 mm to 35-48 mm, depending on type of relief. Product can be mounted using flat seal or metal locknut and provide gas- and water-tight solution with capability to perform over temperature range from -20ºC to 60ºC.
Repair System returns fastener holes to nominal size.
Fatigue Technology, Inc.
Seattle, WA 98188
Oct 02, 2009
Designed for ¼-3/8 in. dia fastener holes, ForceMate 2 Panel Repair System can fix damaged countersunk holes in access panels and other thin-skinned surfaces. It installs 2 nested bushings into hole in one operation via cold expansion tooling to bring fastener holes that have been ovalized, oversized, shifted off-center, or otherwise damaged back to nominal size. ForceMate 2 bushings increase bearing area in hole to reduce repeated stresses.
Bronze Bushings/Bearings do not contain lead.
Graphite Metallizing Corporation
Yonkers, NY 10703
Jun 22, 2009
GRAPHALLOY® bushings and bearings are nongalling and are dimensionally stable even when submerged, under load, or experiencing wide temperature swings. Able to withstand temperatures from cryogenic to +1,000°F, bearings and bushings are self-lubricating, suiting them for applications where maintenance operations are infrequent or difficult. They are suitable for deep-well and water pump applications and are also FDA-approved for food-grade applications.

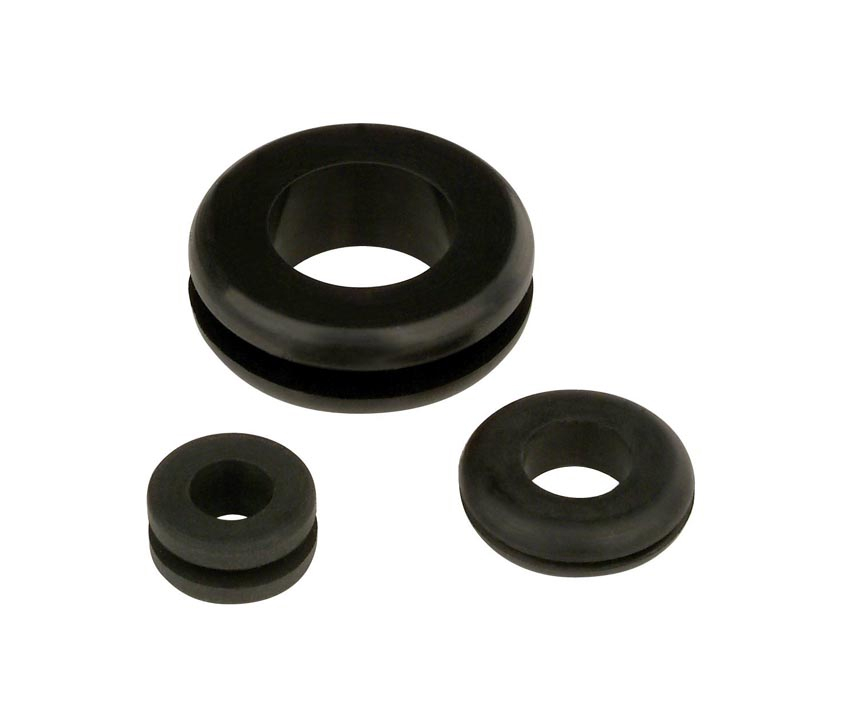

Rubber and PVC Grommets provide wire management.
Erie, PA 16510
Apr 01, 2009
Available in rubber, PVC, and TPR, Grommets are suitable for protecting wires, cables, and hoses that pass through standard sheet metal panels. Units fit standard panel holes from 3/16-2 ½ in. in diameter by snapping into holes without need for tools. PVC and TRP versions are suited for areas where chemicals or high temperature exposure are concerns.
Linear Bushings facilitate manual positioning.
Schaumburg, IL 60173
Feb 11, 2009
Available in range of sizes and in single or double versions, LHBBC16 Pillow Block Linear Bushings with Clamp Levers feature slit collar inside that works as clamp and is tightened around shaft as clamp lever rotates. With eco-friendly, self-lubricating design, LHBB-MX16 Pillow Block Linear Bushings extend maintenance intervals making them suited for machines and equipment in difficult-to-reach environments.
Brass Grommets are self-piercing with sharp edges.
Raynham, MA 02767
Oct 01, 2008
Compatible with most grommet presses, ClipShop(TM) Brass Grommets are available in 1/8 to 1½ in. ID sizes in various finishes, including brass, antique brass, nickel, black oxide, and custom colors, or with nickel-free construction. Chemical compounding of raw materials, processing, and manufacturing methods results in grommets with sharp edges, eliminating need for hole punching.
Hard/Soft Cable Connections offer high strain/bend relief.
C & M Corp.
Wauregan, CT 06387 0348
Aug 04, 2008
Reducing stress and strain from electrical conductors' termination points, hard/soft strain relief is engineered with anti-twist function as well as elimination of pistoning action of conductors inside cable jacket at termination point of assembly.
It meets or exceeds straight pull test of its corresponding cable and connected assembly. Weighted 180° tick-tock flex tension testing achieves 750,000 cycles. Unit can be produced in PVC (and its alloys), polyurethane, and TPR.
