Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012
May 12, 2011 Rated to 150 psi, BFAS Series Tank Adapters offer safe pipe connections to thermoplastic and metal storage tanks. Fitting design, which features short pattern barrel in PVC, CPVC, or PP and standard sized flange, also includes left hand threads to prevent fitting from unscrewing. Able to be installed by one person, products have hex body and FPM or EPDM gasket seal and come in sizes from ½-3 in. with either Socket x Thread or Thread x Thread end connections.

Aries Electronics, Inc.    Bristol, PA 19007-6810

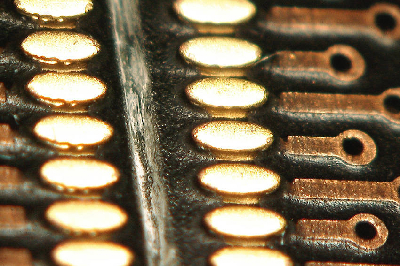

Feb 11, 2011 Mounted to existing PCB via raised pads up to 0.010 in. on adapter bottom, Fine Pitch Bump Adapters feature pads on component side, designed to accept any device on any pitch 0.5 mm or greater, and route signals for packages including TSSOP, QFP, and other fine-pitch devices down to 0.40 mm. Boards are 0.032 in. thick FR4 or Rogers 370 HR with ½ oz copper traces on both sizes. Non-solder mask defined pads are finished with electroless nickel immersion gold.

Ironwood Electronics, Inc.    St. Paul, MN 55121
Nov 30, 2010 Model PC-BGA256B/BGA256E-B-01 is designed to receive 23 x 23 mm BGA, 16 x 16 array, 1.27 mm pitch on top and converts 1:1 pin mapping to 17 x 17 mm BGA, 16 x 16 array, 1 mm pitch on bottom, allowing new development system board to be tested with previous version of BGA device. Convertor can also be reversed by removing solder balls from 1 mm pitch side and adding them on 1.27 mm pitch side, and can be soldered directly onto SMT pads of development boards using standard solder methods.

Parker Hannifin Corp., Tube Fittings Div.    Columbus, OH 43228
Nov 30, 2010 Dual Seal Flange Adapters optimize reliability and safety of high-vibration, high-shock hydraulic 4-bolt connections in subsea oil and gas applications. Available in ½, 1, and 1½ in. sizes, they incorporate radial and face seal methods to ensure port retention and maximize sealing capacity. Captive O-ring groove on flange head helps prevent leaks, while face seal resists environmental pressures. Adapters are constructed from SAE 316/316L stainless steel.

Brennan Industries, Inc.    Cleveland, OH 44139
May 13, 2010 Machined from round stock, flange adapters are hot-piercing bent for desired angle and do not have braze and weld points. Swept configurations enable performance in limited clearance applications and connection sizes range from ½-4 in. Operating in pressures as high as 6,000 psi, SS O-ring face seal fittings are designed to eliminate leaks in hydraulic systems on industrial/commercial equipment. They are available in 23 configurations and in 35 size combinations.

Ironwood Electronics, Inc.    St. Paul, MN 55121
May 11, 2010 Board-to-board socket adapter consists of SF-BGA352B-B-42 female socket module, which can be soldered to motherboard using standard soldering methods without warping, and SF-BGA352B-B-41 male pin module that solders to upgraded daughter board. Both modules are constructed with high-temperature FR-4 substrate and come with lead or lead-free solder ball types. Physical length from top connection point on male pin module to solder ball on female socket is 4.5 mm, minimizing electrical path.

CRAIC Technologies Inc.    San Dimas, CA 91773
Apr 06, 2010 Mountable on open photoports of many microscope brands, Universal C-mount Adapter (UCA) allows camera or spectrophotometer to be parfocal and parcentral with eyepieces on microscope. It features X, Y, and Z adjustment, as well as wide range of photoport flanges for quicker use of cameras and spectrophotometers attached to microscopes.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Feb 10, 2010 BGA Switch-A-Pitch adapters connect 0.40 mm pitch devices to boards with 1.00 mm pitch. Adapters have tops with BGA landing pads on 0.40 mm pitch and bottoms fitted with BGA balls on 1.00 mm pitch, with open space around adapter tops to allow for additional components. Operating in temperatures up to 221°F for FR4 and up to 266°F for lead-free, units allow for different termination styles or pitches on one board. They can also be fitted with active or passive components.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Nov 19, 2009 Fine Pitch Bump Adapters allow use of higher pitch devices on boards with pitches down to 0.40 mm. While tops have landing pads that can be designed to accept any device on any pitch and settle into fine pitch footprints, bottom has raised connection pads up to 0.010 in. that facilitate mounting of adapter to target board. Adapters, which can operate up to 221°F (FR4) and 266°F (lead-free), can be manufactured for RoHS compliance.

Ironwood Electronics, Inc.    St. Paul, MN 55121
Oct 20, 2009 Consisting of solder balls on bottom side and round pads on topside, Model SF-BGA199B-B-05 accommodates 0.65 mm pitch, 12 x 16 mm body, 18 x 22 array Samsung MCP KMYFE0C0CM-D300 memory ICs. If target circuit board already exists or mounting holes cannot be drilled into target board, then BGA SMT adapter can be used with Ironwood GHz socket. Constructed with high temperature FR-4, adapter assures match with target PCB's CTE and prevents failures that may occur with CTE mismatch.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Oct 16, 2009 Designed to adapt smaller pitch devices to larger footprints, Switch-A-Pitch Adapters eliminate need for laser-drilled microvias on motherboards while enabling use of standard line and trace spacing down to 0.003 in. Adapters have tops with BGA landing pads on 0.50 mm pitch and bottoms fitted with BGA balls on 1.00 mm pitch. Operating up to 221°F for FR4 or up to 266°F for lead-free, adapters feature non-solder mask defined pads finished with electroless nickel immersion gold.

Ironwood Electronics, Inc.    St. Paul, MN 55121

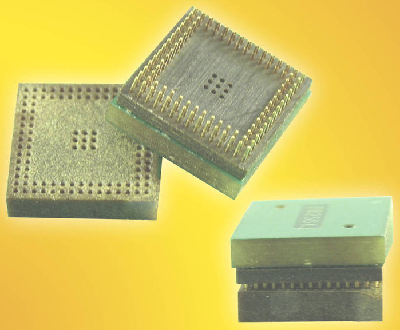

Oct 02, 2009 Constructed with Torlon 5530 material, SFS-BGA104A-52 allows 0.5 mm pitch, 8 x 8 mm body, and 15 x 15 array BGA devices to be socketed and operate without compromising performance. Giga-snaP(TM) BGA SMT adapter pair consists of SFS-BGA104A-52 female sockets with machined pins and sleeve spring that matches male pin LSS-BGA104A-51. Required force per pin of 40 g facilitates plugging/removal, and physical connection length of 2.8 mm promotes high-frequency signal transmission.

Ironwood Electronics, Inc.    St. Paul, MN 55121

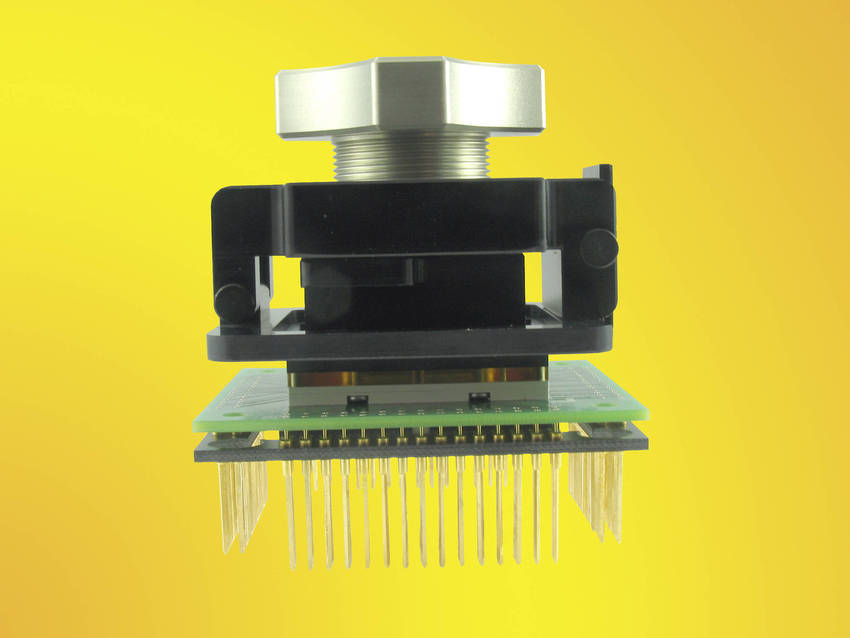

Aug 27, 2009 Constructed with gold plated solder-tail machined pins, PA-BGA117C-P-S-01 prototyping adapter interfaces 117 position 0.075 in. pitch BGA SMT land pattern to 0.100 in. center pin grid array. Clam-shell spring pin ZIF socket, SS-BGA117C-01 can be used with adapter for access to address and data lines. Socket operates at bandwidths up to 10 GHz with less than 1 dB of insertion loss, and can handle up to 100 W with custom heat sink. Self inductance of contactor is typically 0.62 nH/pin.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Jul 17, 2009 Facilitating high density interconnect (HDI) construction, BGA Switch-A-Pitch Adapters allow tighter pitch devices to be placed on existing larger pitch designs. Series includes models with tops where BGA landing pads are on 0.40 mm pitch and adapter bottoms are populated with BGA balls on 1.27 mm pitch. Measuring 0.062 in. thick, design eliminates need for laser-drilled microvias on motherboards; standard line and trace spacing down to 0.003 in. can be used.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Jun 17, 2009 Offering standard pin 1-to-pin 1 routing connection scheme, which can be customized to accommodate any connection requirement, Fine Pitch Bump Adapters enable use of any SMT IC device on pitch of 0.4 mm or higher to 0.5 mm pitch PCBs designed for TSSOP and QFP packages. Adapter boards are fabricated from 0.032 in. thick FR4 or Rogers 370 HR, with ½ oz copper traces on both sides. Operating temperature is up to 221°F for FR4 versions and 226°F for lead-free version.

Ironwood Electronics, Inc.    St. Paul, MN 55121
Jun 08, 2009 Giga-snaP(TM) BGA SMT adapter pair consists of SF-BGA316C-B-62F female sockets with machined pins epoxy over-molded into assembly that matches male pin LS-BGA316C-61. Soldered to PCB using standard soldering methods without warping, SF-BGA316C-B-62F allows 0.8 mm pitch, 17 x 17 mm body, 20 x 20 array Analog Device ADSP-BF539/ADSP-BF539F ICs to be socketed and operate in demanding automotive applications. Both adapters are constructed with high temperature FR-4 bodies.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Apr 03, 2009 Offered in panelized form, as adapter only, or with mounted devices, Switch-A-Pitch Adapters have tops where BGA landing pads are on 0.5 mm, and bottoms with BGA balls on 1.27 mm pitch. Units are 0.062 in. thick FR4 or Rogers 370 HR, with ½ oz copper traces on both sides. Non-solder mask defined pads are finished with electroless nickel immersion gold and have solder spheres of 63/37 lead/tin or of lead-free SAC305 alloy. Devices operate up to 221°F for FR4 or 226°F for lead-free.

Phihong USA    Fremont, CA 94539
Apr 02, 2009 Delivering 12 Vdc output, PSA12A-120-R and PSA12E-120-R 12 W wall-mount adapters are designed for use in USA and Europe respectively. They are double insulated, Class B EMI compliant, and have no-load power consumption of less than 0.3 W. Protected against over-voltage and short-circuit, products can operate in temperature range of 0-40°C and can tolerate up to 90% humidity. Applications include wireless communications, networking, portable equipment, and peripherals.

Opw Engineered Systems    Lebanon, OH 45036
Feb 02, 2009 Available in openable and non-openable versions, 891 Series API Adaptors conform to API RP-1004, ADR, and EN13083 specifications. Units include poppet seal that can be replaced without removing adaptor from tank, flat bottom design for minimal product retention, stainless steel internals, and Viton® GFLT seals. Adaptors are compatible with diesel, biodiesel, gasoline, ethanol, and methanol.

DIRAK    Chantilly, VA 20151-1220
Jan 16, 2009 Assembly method for attaching round rods to latch in multiple-point locking applications eliminates need for screws and tools. Round rod slides into polyamide adapter and remains in place, and resulting assembly is clipped onto grooved stud of 2- or 3-point cam. Rattle-free solution accelerates assembly, and end-users can cut standard-length round rods to custom lengths. Once attached to rod, adapter will not loosen, separate from rod, or come off.
