Bellows Seal withstands extreme system pressures.

May 22, 2014

Designed for use in injection valve applications, DELTA P is capable of withstanding high external system pressures, while maintaining low differential pressure across edge welded bellows. Dome and injection pressure ranges are both 1,000–15,000 psig. Constructed with Inconel 718/625 bellows and Incaloy 945/945X housing, DELTA P provides minimum of 20,000 cycles. Read More

Mounting & Attaching Products

Rubber Boot protects pressure gauges.

April 15, 2014

Featuring shock-resistant PowerFlex™ movement, Protective Rubber Boot Accessory is available for lower connected type commercial pressure gauges, including 1000, 1005, 1005P, 1005S, 1005P-XUL, and 1005M-XRG. Boot provides added protection if gauge is struck while installed or dropped during portable use. Read More

Plant Furnishings & Accessories, Mounting & Attaching Products

Machine Roof Cover will fit any rail.

December 10, 2013

Configurable to most rail and way systems, Gortite® Machine Roof Covers are constructed of polyurethane and aluminum and provide workers with protection from airborne dirt and particles generated by machines and equipment. Translucent polyurethane bellows permit lighting of equipment, and products extend over 10X length of retracted dimension. Other features include self-supporting span up to 30 ft wide with minimal deflection, and noise level reduction capacity. Read More

Mounting & Attaching Products

Black PVC Boots improves durability of Molex connectors.

July 2, 2013

Typically molded in black PVC, multi-application boots consist of discrete injection molded part that slides over power and signal connectors, such as Molex® microfits and minifits, to improve aesthetics and durability. Design allows use on cable or wire bundles with various ODs, promoting flexibility to accommodate needs of multiple assemblies. Boots can also be made in various molding compounds and colors, and logos are also available. Read More

Mechanical Power Transmission, Mounting & Attaching Products

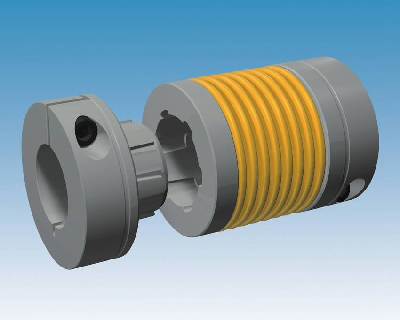

Steel Bellows Couplings offer nominal torques from 24-120 Nm.

October 16, 2009

Available in 3 sizes, backlash-free primeflex Couplings can be plugged in and dismantled safely without risk, and can be mounted onto shafts via clamping or shrink disk connections. Torque is transmitted via frictional locking or via frictional and positive locking. Misalignment capability compensates for axial, radial, and angular shaft misalignments, while internal mechanism with integrated stop prevents damage that can occur with excess mounting pressure. Read More

Mounting & Attaching Products

Bellows Assemblies suit temperature responsive applications.

March 26, 2009

Manufactured to customer's specifications, Athermalization Bellows Assemblies are thin-walled, electrodeposited nickel bellows, soldered to custom end pieces filled with working fluid and then sealed. By sealing specific volume of fluid within bellows, volumetric thermal expansion characteristic of fluid is transformed into measurable linear movement, which can be used as actuator, or calibrated to be read as control data. Read More

Electrical Equipment & Systems, Mounting & Attaching Products

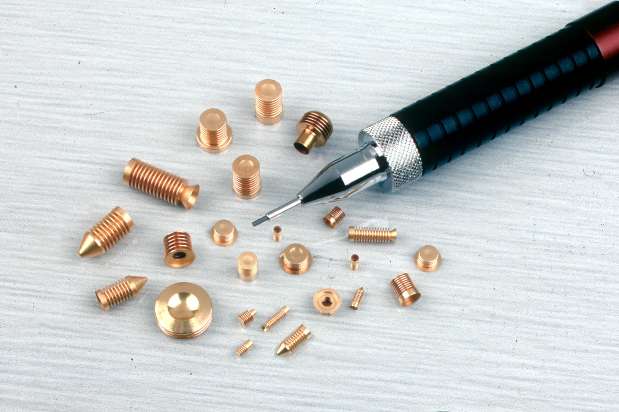

Gold Plated Bellows enable high frequency interconnection.

March 26, 2009

Offering alternative to spring loaded type test pins for high frequency test applications, Gold Plated Bellows Contacts are manufactured from electrodeposited nickel and gold-plated according to ASTM-B-488. They are rated for max current of 4 A and designed to provide lifetime spring and force repeatability. Typical units have low loss of .20-.45 dB at 6 GHz. Featuring one-piece construction, devices have no moving parts and can be made as small as .020 in. in diameter. Read More

Plant Furnishings & Accessories, Mounting & Attaching Products

Protective Covers come in variety of bellows types.

September 22, 2008

Designed to protect machinery from oil, dirt, chips, and other contaminants, custom-engineered, Protective Bellows-Type Covers are available in way covers, photographic bellows, linear bearing way covers, ballscrew and rod covers, and die set shields. Units are suited for machine tools, robots, precision slides, automated handling equipment, and cameras, as well as medical, dental, and office machinery. Read More

Mechanical Power Transmission, Mounting & Attaching Products

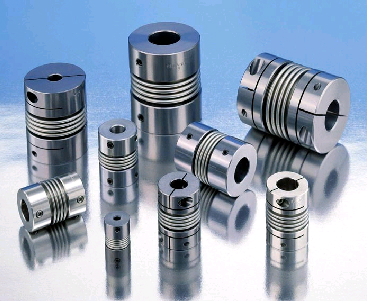

Metal Bellows Couplings are offered in pluggable version.

September 15, 2008

Backlash-free metal bellows couplings have pluggable, removable clamping hub. Tightening torque values increase with increasing OD of coupling hubs, which range from 27-84 mm, and bore sizes range from 3-40 mm. Stainless steel versions are available upon request, but standard materials are aluminum for sizes 2-60 and steel for sizes 80-150. Products are suited for applications requiring backlash-free qualities. Read More

Mounting & Attaching Products

Transport Mechanism moves large telescopic steel covers.

July 30, 2008

Designed for speeds from 98-262 fpm, Transport Mechanism for Telescoping Steel Covers eliminates high limit stop forces and corresponding noises in all operational positions, moving smoothly when covers are pulled apart as well as when they come together. Mechanically muffled unit travels on guides for stability. Since mechanism is not positively driven, it does not need to move entire mass. Depending on length of stroke, only boxes moved are those required for clearance. Read More

Mechanical Power Transmission, Mounting & Attaching Products

Metal Bellows Couplings feature conical flanges.

August 15, 2007

Applied primarily to dynamic, controlled drives, Series AK metal bellows couplings are used where 2 rotating, opposite shafts must be coupled with force-locking and without backlash. Angular, lateral, and axial offset can be compensated, and resulting reaction forces can be neglected. Available in torque range of 30-5,000 Nm and diameters from 12-85 mm, products exhibit torsional stiffness and can be modified to desired specifications. Read More

Mounting & Attaching Products

Miniature Couplings are made to ISO 9001 specifications.

August 14, 2007

Featuring double bound connection between locking ring and metal bellows, DKN couplings facilitate force fit connections with locking rings. Steel bellows lend to minimization of radial, axial, and angular forces as well as backlash. In addition to potentiometer, angular encoder, tachometer, and Servo drive applications, couplings are suited for use in CNC axes, stepper motors, robot drives, linear devices, and material handling devices. Read More

Mounting & Attaching Products

Metal Bellows enable backlash-free operation.

August 14, 2007

Suitable for use at numerically controlled machinery and equipment, AKD and AKN Couplings can be supplied with adjusting spring grooves. Clamping is designed to guarantee that torque transfer without adjusting spring grooves is absolutely backlash-free, even with high speeds. Both types of couplings are within torque range of 18-500 Nm and within shaft diameter range of 10-60 mm. Couplings can also be made to customer's specifications. Read More

Mounting & Attaching Products

Blow Molded Bellows are designed to meet OEM requirements.

July 10, 2007

BMS Custom Molded Bellows are available in sizes from ¼-6 in. dia by up to 16 in. long with 0.015-0.040 in. thick walls, and can be manufactured from wide range of materials for chemical resistance and bio-compatibility. Available convoluted or corrugated, they can incorporate various open- and closed-end finishes. Bellows can also be integrated with straight tubing to simplify alignment or compensate for vibration. Read More

Mounting & Attaching Products

Bellows Coupling uses stainless steel bellows for rigidity.

September 1, 2006

Suited for precision servo applications, compact Model BKC exhibits high torsional rigidity with zero backlash and flexibility across all 3 axes of possible shaft misalignment. Connection between stainless steel bellows and aluminum clamping hub is buried within fit-length of hub itself. Shaft hubs are custom bored on each side for shaft sizes from 5/16-2.95 in., with or without keyways. Sizes are available for torque capacities from 1,133-4,425 lb-in. Read More

Mounting & Attaching Products

Bellows Couplings feature zero backlash.

August 23, 2006

Suited for 1/8-3/8 in. and 3-12 mm dia shafts, Series S50FP9 has max torque range of 120-300 oz-in. Couplings accommodate max angular misalignment of 5-6° and parallel offset of .015 in. Featuring phosphor bronze bellows, brass hubs, and tin plate finish, units absorb end play in shafts and dampen vibration and noise levels. Fairloc® hub fastening system eliminates marred shafts while adding positive metal-to-metal fastening strength along both hub sections. Read More

Mounting & Attaching Products

Welded Metal Bellows suit semiconductor manufacturing equipment.

July 18, 2006

Produced using ultra-thin metal plate welding technology, nesting-type Welded Metal Bellows offer cleanliness and corrosion resistance, as well as pressure and heat resistance. Units can be compressed to full contact position and operate in range of low and high temperatures. Suited for high vacuum applications, bellows are utilized in accumulators, couplings, mechanical seals, pressure sensors, switches and transducers, rod seals, and temperature sensors. Read More

Mounting & Attaching Products

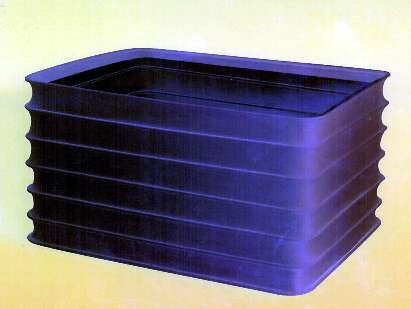

Chemical Resistant Bellows suit harsh environments.

June 21, 2006

Made of PTFE fluoropolymer material, chemical-resistant bellows can be used as covers and connections in harsh chemical environments such as paint mixing tanks. Thermally sealed construction results in bellows that are air- and liquid-tight. Various round, square, and rectangular shapes can be manufactured with minimal or no tooling charge. Read More

Mounting & Attaching Products

Sealed Bellows suit mid- to high-volume applications.

June 21, 2006

Square or rectangular in shape, bellows are made from single layer of thermoplastic film, which can also be fabric-reinforced for more rugged applications. Material also meets Class 100 cleanroom ratings and can operate over 0-200°F temperature range. Featuring air- and light-tight construction, covers are available with fold heights from 3/8-2 in. Typical uses include photographic equipment and coordinate measuring machines. Read More

Mounting & Attaching Products

Metallic Bellows withstand environmental extremes.

May 16, 2006

Depending on application, expansion joints are constructed from stainless steel or with alloys such as Inconel, Monel, Hastelloy, or Titanium. Styles include axial single or double bellow sets, with or without anchor bases; universal single or double tied units, with 2 or more tie rods; articulated single or double hinged and single or double gimbal; pressure-balance bellows in in-line, elbow and tee configurations; and applied-pressure internal or external to bellows. Read More
