Wire Grip handles both coated and galvanized guy wire.

November 26, 2014

Designed for use with cable sizes from 0.16–0.55 in., Chicago® Grip - Coated Guy Wire features sawtooth jaw profile that will not slip on coated or galvanized guy strand. Longer 5 in. jaw also increases surface area in contact with cable, which minimizes cable damage. Read More

Mounting & Attaching Products, Fasteners & Hardware

Hose Strain Relief Kit is available for hose reels.

October 28, 2013

Available for hand crank and motorized reels with hose IDs from ½–1½ in., Coxreels® Hose Strain Relief Kit protects hose fittings and connections from potential damage. Clamp takes on force from over-extended hose during use and protects hose fittings and connections at riser from excessive tension. With this mounted kit, hose remains secured against drum and allows hose to be routed between riser connection and clamp with proper bend radius. This minimizes opportunity for hose to strain. Read More

Test & Measuring Instruments, Mounting & Attaching Products

Production Testing Grips serve high-volume operations.

August 8, 2013

Split insert tensile grips, designed as self-contained assembly for high-volume production testing of shoulder-end or button-head machined specimens, conform to ASTM E8, A370, A48, and GOST 1497 (type III specimen). Used for testing high-strength materials that may damage or excessively wear traditional grip arrangements, grips promote effective testing on various metals and alloys. Automatic positioning of inserts ensures uniform specimen support and loading for standard specimens. Read More

Material Handling & Storage, Mounting & Attaching Products

Manual Wedge Grips meet Nadcap requirements.

February 13, 2013

Available in 22,000 and 56,000 lbf capacities, Manual Wedge Grips are suitable for tensile tests on composites, metals, and plastics over temperature range of -112 to +482°F. Grips incorporate moving body, driven by worm gear drive, which closes jaw faces together in self-centering action to clamp specimen. Symmetrical construction of grip body provides even clamping of specimen under load. Together, these features ensure accurate specimen alignment, satisfying Nadcap AC7122-1 and AC7101. Read More

Mounting & Attaching Products

Ergonomic Handle Grips assist with prevention of MSDs.

January 24, 2013

Designed to fit any cylindrical or semi-cylindrical handle, Re-Grip Handle Grips assist in maintaining control of tools by providing non-slip, cold resistance qualities and redistributing bad energy caused by impact and excessive vibration. Grips help minimize safety risk and repetitive motion disorders. Typical applications include hammers, shovels, pneumatic tools, wrenches, brooms, and brushes. Read More

Mounting & Attaching Products

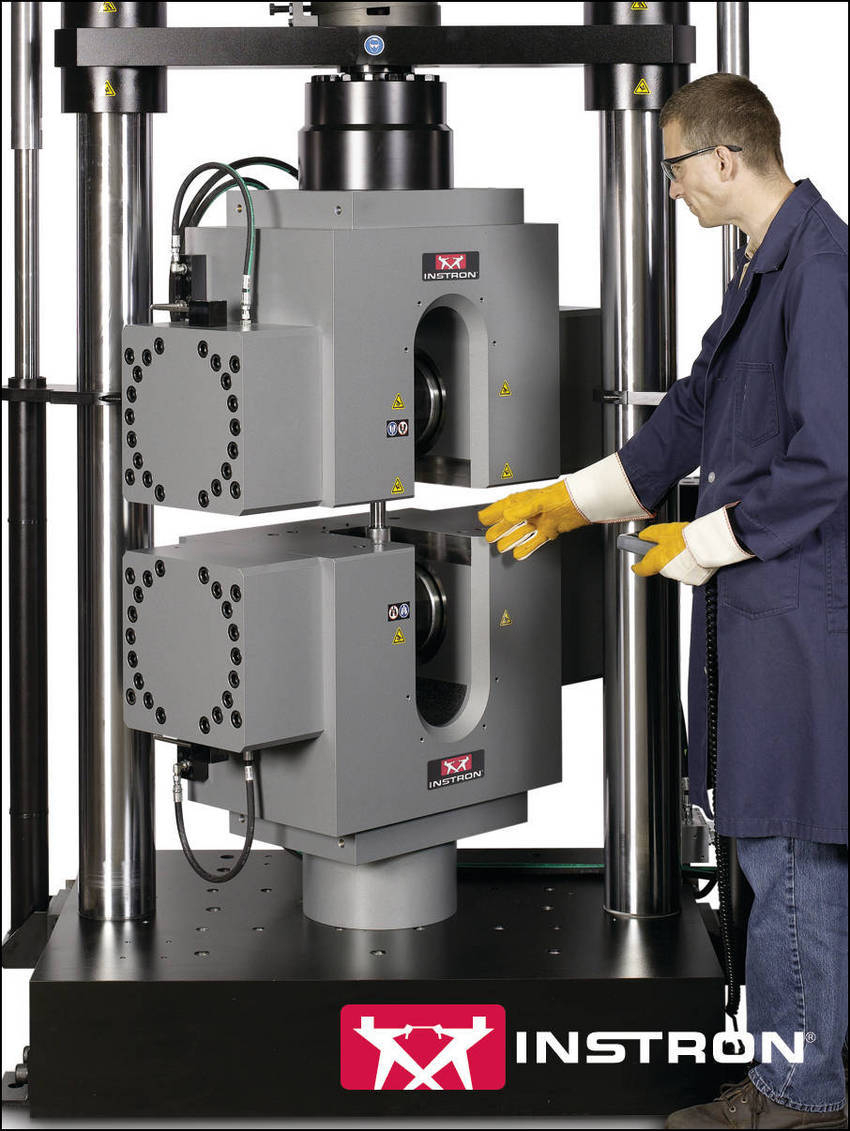

Hydraulic Grips offer open-front design, side-load dampening.

January 21, 2013

Designed to enhance gripping performance, usability, and operator safety, hydraulic side-action grips with DuraSync technology are field-serviceable and can be used in high-capacity metals testing. DuraSync technology consists of mechanical synchronizer located outside gripping pocket, which prevents mechanical failure due to contamination. Adjustable clamping force alleviates specimen slippage and grip breaks, and opposing jaw faces repeatedly self-center during specimen clamping. Read More

Material Handling & Storage, Machinery & Machining Tools, Mounting & Attaching Products

Flexible Workholding Solutions target 5-axis machine tables.

January 11, 2013

Unilock 5-axis workholding product offerings locate/stabilize workpieces. With dual 45° 105/65 Base Plates, 5-Axis Duo Bridge can mount directly on top of 5-axis table or be loaded through pair of zero-point chucks. Unilock 5-Axis Riser Chucks, Extensions, and Reductions, with 80 mm working diameter, are offered on base plates or as stacking modules in 75 and 100 mm heights. Infinitely adjustable First Grips and Dovetail Grips are limited only by length of thread that pulls jaws together. Read More

Mounting & Attaching Products

Liquid Tight Cordgrips come in straight-thru and pigtail designs.

November 12, 2012

Heyco®-Tite Straight-Thru Snap-In-2® Liquid Tight Cordgrips handle flexible cords with .065-1.000 in. dia, while Pigtail versions are suitable for .065-.709 in. dia cords. Both products fit panels from .062-.125 in. thick. Providing liquid tight strain relief protection, they ensure IP 65 and IP 67 seal, have 94V-2 flammability rating, and operate over -22°F to +212°F temperature range. Units are constructed of nylon 6/6 with Buna N or TPE sealing gland and install with no tools or locknuts.
Read More
