Vibration Mounts have stainless steel leaf spring design.
Advanced Anti-Vibration Components - AAC
New Hyde Park, NY 11040
Sep 02, 2005
Designed for use with rotating and/or reciprocating devices, V10Y15 Series is constructed with materials impervious to corrosion. Design employs 2 or more stainless steel U-formed leaves situated at each end, with space in-between filled with polymer compound or stainless steel mesh. Nonmetallic collars backed by stainless steel washers, provided for load attachment, help reduce noise transmission. Damping material is oil and hydrocarbon solvent resistant.

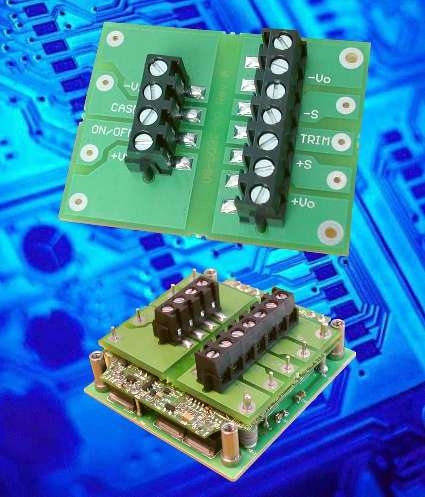

Terminal Adapter suits bench testing and design work.
Farnborough, Hants GU14 0NR United Kingdom
Aug 30, 2005
With max output power of 24 A, Model ZTAH offers alternative to PCB mounting of half-brick DC/DC converters. Two rows of 5 mm pitch screw and clamp terminal blocks accommodate 26-16 AWG wire. Measuring 1.69 x 2.17 in. x 0.457 in., single-sided adapter fits on top of converters by solder fit or with pluggable option and does not hinder conventional mounting of converter.

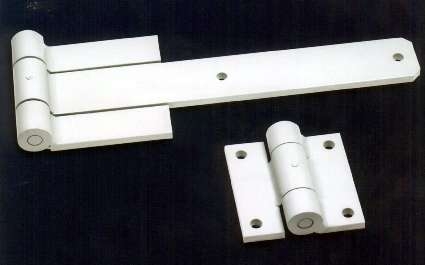

Door Hinges are offered in various styles.
Door Engineering & Mfg. Co.
Kasota, MN 56050
Aug 25, 2005 Constructed with dual shear points for increased strength, Precision Hinges feature fully concealed dual thrust and needle bearings for smooth motion under large loads. Non-removable, hardened steel hinge pins ensure safe, secure fit. Hinges are available for 4-fold and swing door systems for commercial, industrial, security, and custom applications.

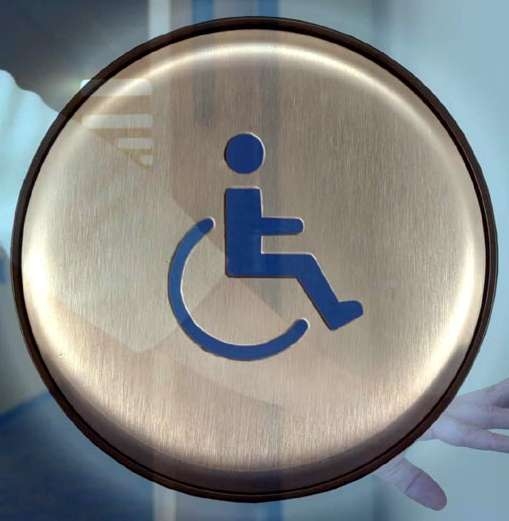

Door Activation Push Plates have wireless design.
Pittsburgh, PA 15215
Aug 22, 2005 Able to work with swinging, bi-fold, low energy, and rolling industrial doors, Panther Series come as pre-assembled products with integrated wireless RF 433 transmitter. All-active plate design triggers door regardless of what part is pressed. Featuring waterproof construction and tamper-resistant design, product can be installed using quick plate mounting kit or 2- or 4-bolt gang box. Design features recessed front plate with beveled edges.

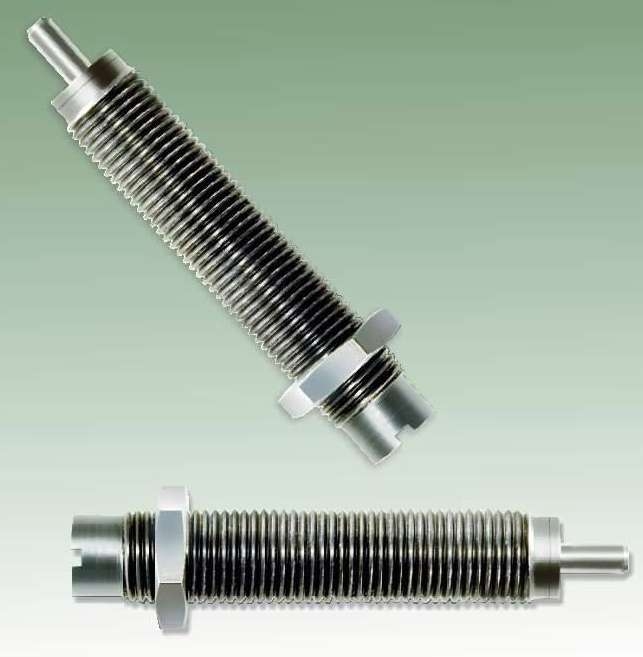

Miniature Shock Absorber suits industrial applications.
ACE Controls, Inc.
Farmington, MI 48335
Aug 18, 2005 With integral mechanical stop and stainless steel piston rod, MA 50M miniature adjustable industrial shock absorber
offers effective weight range of 10-45 lb and energy per cycle rating of 50 in-lb. Applications include rotary actuators, small linear slides, material handling and packaging equipment, small robotics, machine tools, as well as pick & place equipment.

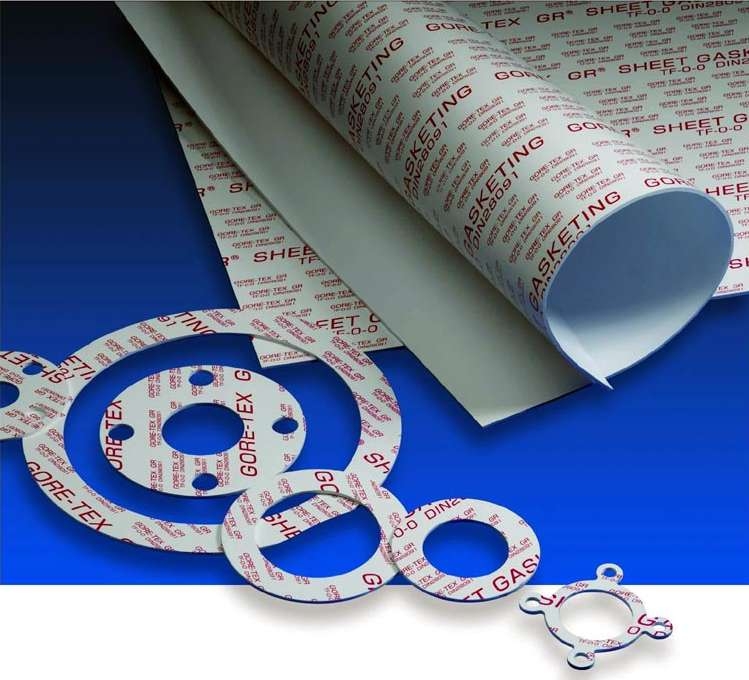

Sheet Gasketing is suited for sealing applications.
Gore, W. L., & Associates, Inc., Electronic Products Div.
Elkton, MD 21922-0160
Aug 18, 2005 Due to its microstructure, GORE-TEX GR® withstands creep relaxation and offers dimensional stability at elevated operating temperatures. Sheet integrity helps prevent fractures that can occur due to improper gasket loading. Made from 100% GORE-TEX® expanded PTFE, product is impervious to chemicals, suitable for use from â€“450 to +600°F, and withstands pressures to 3,000 psig. Material also complies with FDA food requirements.
Clips facilitate installation of new ceilings.
Chicago, IL 60680-4678
Aug 17, 2005 CELEBRATIONâ„˘ Renovation Clips enable contractors and remodelers to install CELEBRATION Metal Ceiling Panels or TRUEâ„˘ Acoustical Ceiling Panels without removing existing ceiling. One clip is attached to each intersection of T-bar grid, and new panels are snapped in place over original ones. Made from flame-resistant, self-extinguishing resin, clips can be attached to any 2 x 2 or 2 x 4 ft roll-formed, metal 15/16 in. face suspension system.
Cart Positioner offers 3,000 lb capacity.
Herkules Equipment Corp.
Walled Lake, MI 48390 1662
Aug 17, 2005
Designed to position industrial carts with narrow casters that typical lifts can not manage, Post Lift features 3/8 in. top plate, push button controls, and air or electric operation. Controls can be free-standing or mounted to post. Lift offers alternative to fork lift truck use in facilities trying to minimize injuries and truck maintenance.
Rotary Indexing Machine automates manual operations.
AIM Joraco, Division of Automated Industrial Machine, Inc.
Smithfield, RI 02917
Aug 12, 2005 Fully pneumatic, PLC-controlled Toggle-Aire® Model 1011 RTPLC provides ram-to-station accuracy of ±.0015 in. and press component stroke repeatability of ±.001 in. Unit features 24 V PLC with 2-line LCD display, intuitive operator interface, and self-diagnostics. User can independently control index and ram speed, up/down stroke, dwell-at-station, and totalize. Available in ˝, 3, 5, and 10-ton press versions with up to 24 stations, machine produces up to 3,600 parts/hr.

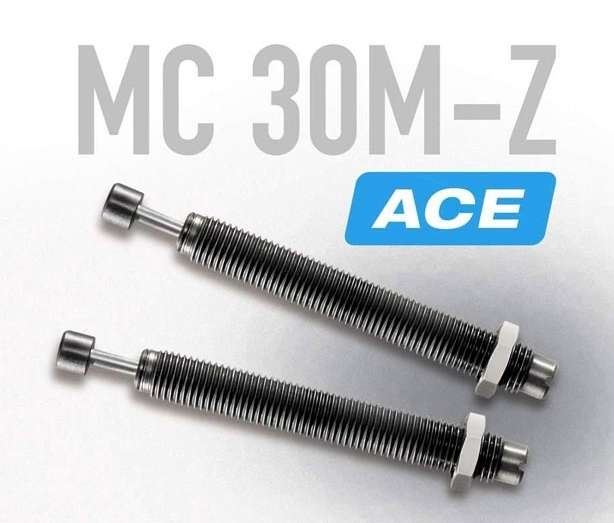

Industrial Shock Absorber fits in confined spaces.
ACE Controls, Inc.
Farmington, MI 48335
Aug 11, 2005 Suited for mounting into pneumatic cylinders and rotary actuators, miniature Model MC 30M-Z features stretch seal design and offers high energy absorption in confined spaces. Self-compensating design allows unit to handle multitude of applications including small linear slides, material handling and packaging equipment, small robotics, office and medical equipment, and instrumentation.

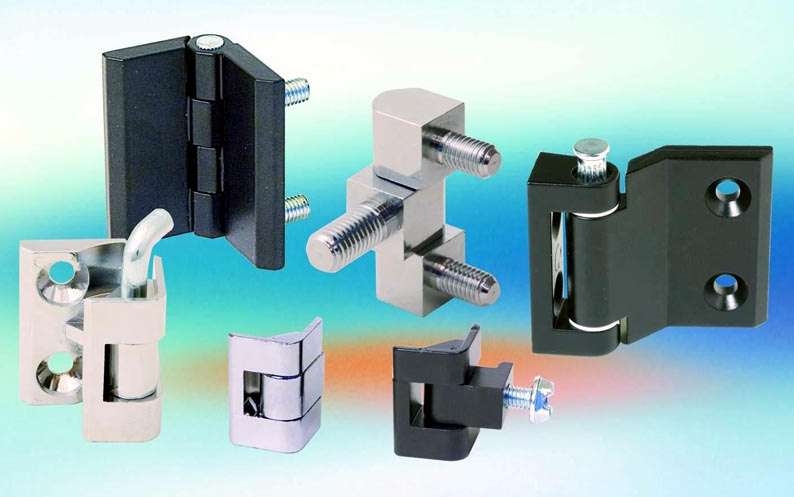

Hinges permit 180 degrees of free-swinging motion.
Concordville, PA 19331 0116
Aug 11, 2005
Offered in 2 classes, Free-Operating Hinges handle axial and radial working loads from 270-1,120 lb-ft. Fixed-installation EH Class accommodates doors and frames that are on same plane. Extended offset hinge style permits full-door opening in applications where cabinets or enclosures are tightly configured. Door-removal, corner-hinge style KH Class fits virtually flush into corner bend of formed sheet metal doors, providing clean aesthetic look.
Handrail Brackets meet ADAAG and building code requirements.
Wagner Companies, The
Bulter, WI 53007
Aug 11, 2005
Extruded aluminum Handrail Brackets offer 1? in. horizontal and vertical clearance to meet code requirements and recommendations of ICC, NFPA, and ADAAG. Available with 2? or 3? in. centerline, brackets come with square or rounded wall mount design and universal saddle appropriate for mounting round or flat railing sections. When used with 1.50 in. dia tubing, bracket with 3? in. centerline projection will meet NFPA 5000 2? in. clearance requirement.
Adjustable Lanyards offer operating lengths up to 2 m.
Sydney NSW 2128 Australia
Aug 09, 2005 Approved to AS/NZS 1891.1 standards, Lanyards adjust from 750 mm up to max of 2 m in length, allowing user to set shorter tie off point, controlling free fall and work positioning distances. Units are manufactured from 45 mm heavy-duty gray polyester webbing. Shock absorbing unit is encased in UV-resistant transparent plastic for inspection. All models are available with variety of end connectors and harness attachment points to suit user needs.
Collet Indexers come in 1- or 2-axis configurations.
Troyke Manufacturing Co.
Cincinnati, OH 45262
Jul 26, 2005
With 36:1 gear ratio, 3C collet indexer features ˝ in. collet capacity and tapered spindle nose, while 5C collet indexer features 60:1 gear ratio, 1/16 in. collet capacity, and 2 3/16 in. -10 threaded spindle nose. Featuring A2-5 spindle nose, 16C collet indexer offers 60:1 gear ratio, single- or dual-axis machining of parts up to 1 5/8 in. dia, and internal pneumatic clamping. Indexers all feature pneumatic collet closers, 1-4 spindles, and 0-50 rpm speed range.
Housing Covers protect automation sensors.
SoftNoze USA, Inc.
Frankfort, NY 13340-5100
Jul 25, 2005 Suited for block-style inductive proximity sensors, Housing Covers provide protection from heat, abrasion, debris, and minor impacts. Fabricated from various plastic types including Teflon®, Delrin® and HDPE, units extend sensor life beyond that of unprotected sensors and can be customized to fit individual requirements.
Barrier Isolator assists with USP<797> compliance.
Baker Co., The
Sanford, ME 04073
Jul 25, 2005 Featuring contained, positive-pressure work area, SterilSHIELD® Model SS500 is designed for aseptic compounding of non-hazardous drugs. It creates HEPA-filtered unidirectional airflow of better than ISO Class 5 air cleanliness conditions within chamber. Measuring 5 ft wide, unit has 2-glove positions and ergonomic design with slanted viewscreen, top hinge, and oval gloveports. With touchpad membrane control, microprocessor controller enables operation without relays or switches.
Cord Grips have snap-in design for space-restricted areas.
Axcell (Heyco Products, Inc.)
Toms River, NJ 08755
Jul 22, 2005 Suited for fixed and mobile applications, Snap-In-Mount Cord Grips are custom-manufactured to accommodate cable and wire diameters from .079â€“1.00 and above. Smooth, rounded interior edges allow insertion of cords and cables through grips without binding or scraping of insulation. Constructed from polyamide 6/6 nylon, products resist pulling, twisting, and pulsing forces; are chemical-resistant; and meet UL 94V-2 flammability requirements.
Magnet and Copper Wire are supplied on 2 and 10 lb spools.
Bridgeport, CT 06608
Jul 21, 2005 Suited for small-volume users, 34â€“14 AWG Round Magnet Wire is stocked on 10 lb spools and used for board-mounted components in power supplies, voice coils in speakers, and motor coils. Tinned Solid Copper Wire, offered on 2 and 10 lb spools, is available round and flat from 36â€“22 AWG for use in pins and PCB connections. Also available, 30â€“9 AWG Flat Magnet Wire is suited for use anywhere compact coils and improved heat dissipation are desirable.
Flexi-Hinge Devices come in single- and double-end types.
New Hyde Park, NY 11042-5416
Jul 18, 2005 Flexi-Hingeâ„˘ devices in S99FXS and S99FXD Series utilize crossed springs made to exacting tolerances of 400 series stainless steel, capsuled in cylindrical housing, to provide angular travel up to ±30°. Without requiring lubrication, frictionless products can function at limited angular travels indefinitely and are self-centering when unloaded. Zero backlash units come in ODs from .1250â€“1.000 in. and lengths from .200â€“1.600 in.
CNC Rotary Table Indexer suits EDM machine applications.
Heartech Precision Inc.
Elk Grove Village, IL 60007-5617
Jul 12, 2005 Featuring adaptable sealing system, Model JNC140-EDM can be used in submersible applications with EDM dielectric fluids. Auto Air Purging system removes any possible condensation accumulation inside indexer housing. Indexer has stainless steel faceplate with 140 mm dia and center height of 110 mm. Table center through-hole dia is 28 mm and max work dia is 140 mm. Maximum workload is 136 lb when mounted vertically and 275 lb when mounted horizontally.
