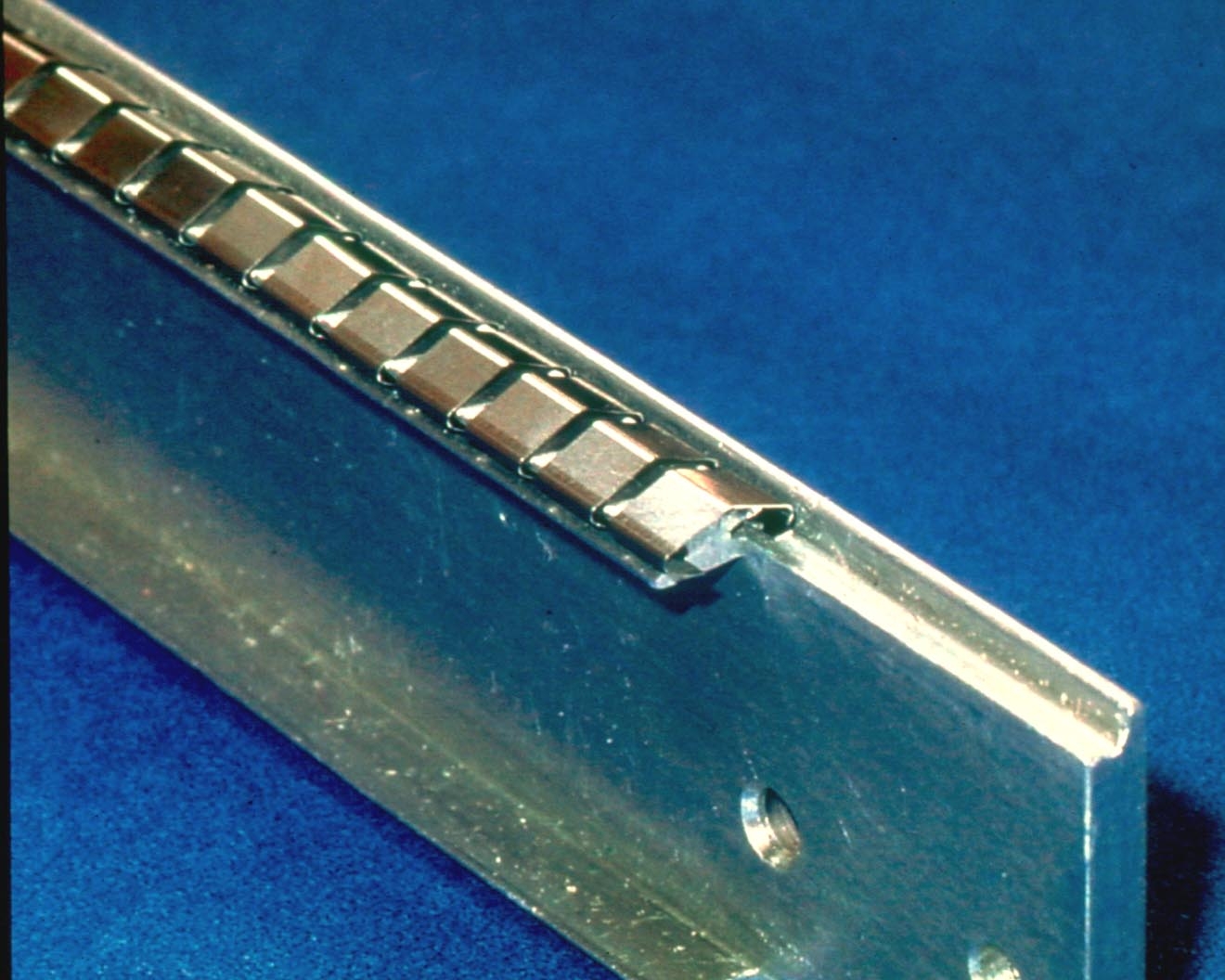

EMI Gaskets shield CompactPCI enclosures.
Chomerics, Div. Of Parker Hannifin Corp.
Woburn, MA 01888-4014
Jun 21, 2002 Metal spring finger gaskets provide EMI shielding of faceplate interfaces on high frequency CompactPCI industrial computing and communications systems. Gaskets meet IEEE 1101.10 EMC Front Panel reference design. They are provided in two profiles: one is available in both beryllium copper and stainless steel, and other is produced exclusively in stainless steel. Gaskets are available in standard 3U and 6U CompactPCI lengths, and in easily trimmed 16-in strips.
Modular Framing System is assembled without welding.
MK Automation Engineering Inc.
Bloomfield, CT 06002
Jun 19, 2002
Series 40 aluminum profile system has 40 x 40 to 120 x 240 mm base sections, 90 cross sections, and wide selection of connector accessories, including corner blocks, universal angle brackets, hinges, base plates, and gussets. Components can be used to build light machine frames, enclosures, guarding, work stations, railings, stairs, and platforms. Complex, precision assemblies can be built using simple hand tools, M8 screws, and nuts.

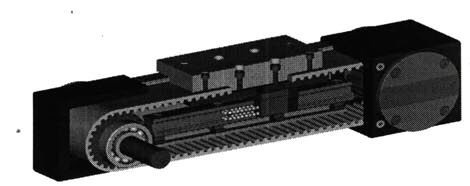

Positioning Modules come in linear and rotary versions.
Bedford, MA 01730
Jun 18, 2002 ALM series linear module uses ballscrews or synchronous belt drive for rapid and accurate movement. Monorail guideways allow for accurate guidance under high tilting or tipping torques. ALS series linear module can be driven with synchronous belt, ballscrew, or pneumatic cylinder. ARS series rotary module complements ALM and ALS modules. It has sealed housing and is able to withstand high axial and radial loads. Unit is worm gear driven through eccentric cam.
Rotary Indexer works without servos.
Flagstaff, AZ 86004
Jun 17, 2002 Indexer provides angular rotation in small increments in either direction. It can be used in two operating modes. One mode is operation as small bench top turn table; other mode is providing rotary motion when mounted to independent motion device or robot arm. Plant air is used with simple on/off digital programming using solenoid operated four way valves and standard controllers.
Wafer Loader includes 14 in. monitor and keyboard.
Adept Technology, Inc.
San Jose, CA 95134
Jun 10, 2002 Adept Wafer Loader fully automated wafer handling solution suits SMEMA compatible screen/stencil printers that support wafer sizes to 300 mm, including thinned wafers. Designed for bump and semiconductor ball placement applications, loader offers scalable performance, managed process transitions, and modular design. System can be expanded and reprogrammed for use as back-end cluster tool, and supports optional wafer and lot tracking.

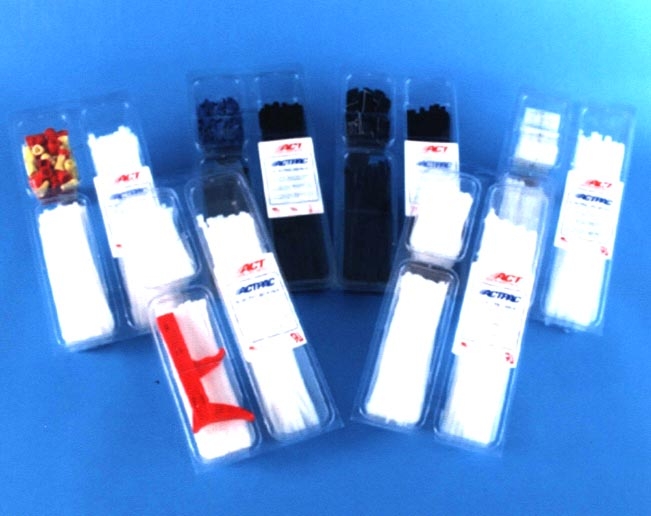

Cable Ties come in convenient packs.
ACT Fastening Solutions
Gardner, MA 01440
Jun 06, 2002
ACTPAC cable tie multi-pack containers incorporate 3 easy access doors and are reusable. Constructed of rigid clear PVC, they measure 14 x 7 x 2 in., and fit into toolboxes. Packs also incorporate convenient hanging t-slot for display and storage. Models include Standard ACTPAC; Tension Tool ACTPAC; 1 in. Mounting Pad ACTPAC; 3/4 in. Mounting Pad ACTPAC; Yellow and Red Wire Connector ACTPAC; and Blue Wire Connector ACTPAC.
Aluminum Connectors suit freestanding wall applications.
Walls & Forms Inc.
Dallas, TX 75374
Jun 05, 2002
Aluminum Connectors, used on CornerForms(TM) panel connector system, feature formed channels that nest metal standards. They include Corner Posts and Three Way Posts that accept 3/4 in. predrilled countersunk holes. Connectors come in 96 in. lengths. Additional aluminum profiles include tubes, bullnose profiles, channel moldings, poster frame and display stand components, and 90 and 180 deg posts.

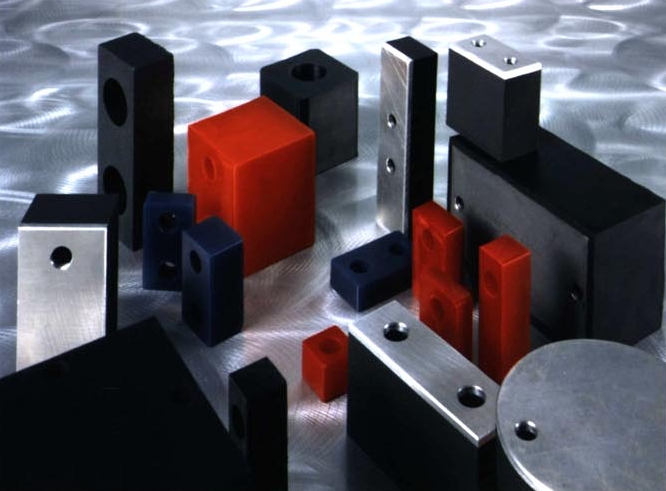

Bumpers come in standard and custom sizes.
Fairlane Products, Inc.
Fraser, MI 48026
Jun 05, 2002 Square and Rectangular bumpers are available in black neoprene and polyurethane, in 60 and 80 durometers, with sizes of 3/4 in. square to 2 1/2 x 4 in. Heights range from 3/8 to 2 in. Special cut bumpers are available in black neoprene, 80 durometer, with thickness from 3/8 to 2 in. They can be fabricated with drilled, counter-bored, or tapped holes, with aluminum backing.

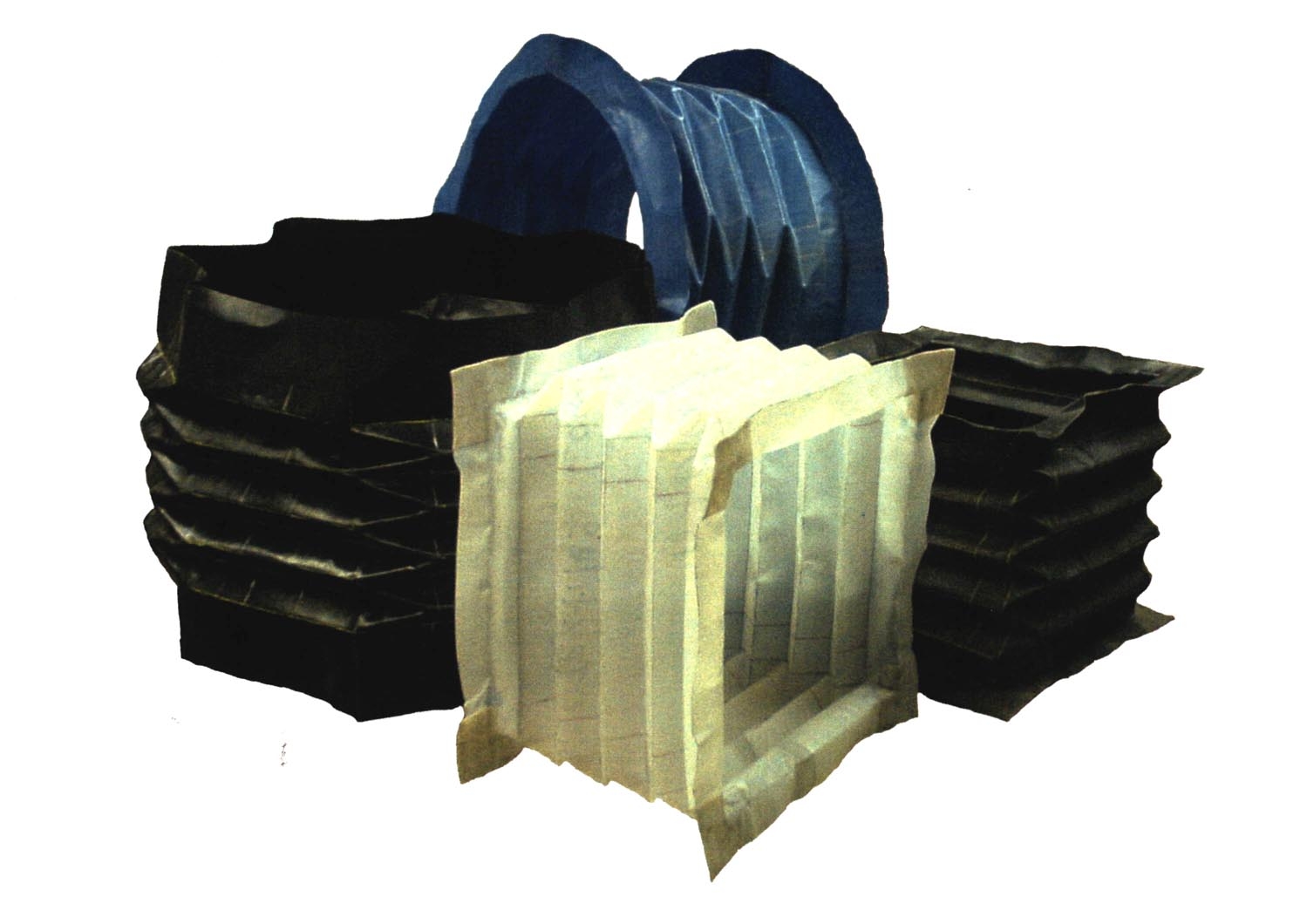

Bellows Covers resist chemicals and UV.
Textiles Coated Inc.
Amherst, NH 03031
Jun 04, 2002 Available in round and rectangular shapes in open-ended or closed form, LFPâ„˘ Bellows and Way Covers are made with flexible, multilayered PTFE material. Heat-sealed covers have no stitching, maintain zero-porosity even after severe flexing, resist chemical attack and ultraviolet exposure, and are rated for 500°F. Covers can incorporate numerous types of end attachments, and are available in thicknesses ranging from 5 to 60 mils.
Flange Gaskets seal under low pressures.
Gore, W. L., & Associates, Inc.
Newark, DE 19711
May 31, 2002 TriGuardâ„˘ gaskets provide positive sealing in fluid piping on fragile flanges or flanges with irregularities, where bolt torque and gasket compression stress must be limited. Expanded PTFE material combines sealing characteristics of elastomers with temperature and chemical resistance of PTFE. Gas-tight sealing can be achieved at 250 psi. They are available in 1/2 to 28 in. ANSI ring and full face gasket sizes for contamination services and highly aggressive fluids.
Linear-Rail Bellows are thermally sealed.
Machesney Park, IL 61115
May 31, 2002 Thermally Sealed Linear Rail Bellows offer liquid and dust proof materials and profiled PVC stiffeners in every fold. They install with snap on fit and Velcro fasteners. Thermally Sealed & Stitched Bellows offer seamless design for both liquid and particle protection. PVC frame is permanently attached into each fold. Stitched Style Bellow comes in round and rectangular form. Armadillo Bellows are offered with stainless steel clad plates.
Connectors eliminate need for rigid line.
Peabody, MA 01960 5099
May 30, 2002 EIA connectors, suitable for flexible braided cable, simplify routing. Available as straight and right angle plugs, receptacles, and adapters in 7/8 and 1 5/8 in. line sizes, they suit high power applications up to 10,000 W. Construction features silver-plated beryllium-copper inner conductors; Teflon® dielectrics; and brass and nickel or silver-plated bodies. They provide 50 ohm impedance and can handle 6,000 V.

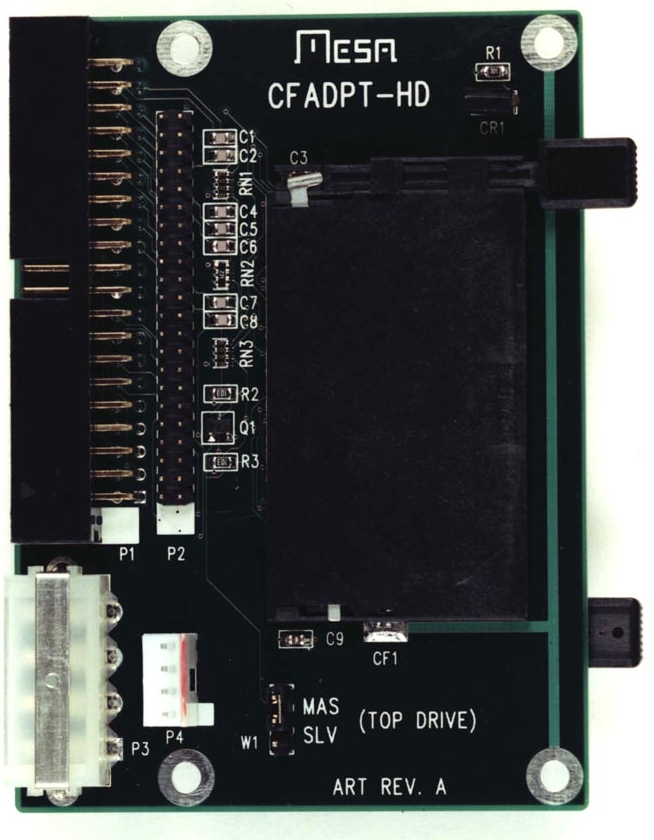

IDE/Compact Flash Adapter allows through-panel mounting.
Richmond, CA 94806-1950
May 30, 2002 CFADPT-HD IDE to dual compact flash adapter allows connecting 2 compact flash cards to any system having IDE port. Designed for embedded systems, it has both 40 pin .1 in. and 44 pin 2 mm IDE connectors. Both hard disk style and floppy style power connectors are available for supplying power to CFADPT-HD when 40 pin IDE cables are used. Power is provided by IDE cable when 44 pin cable is used.

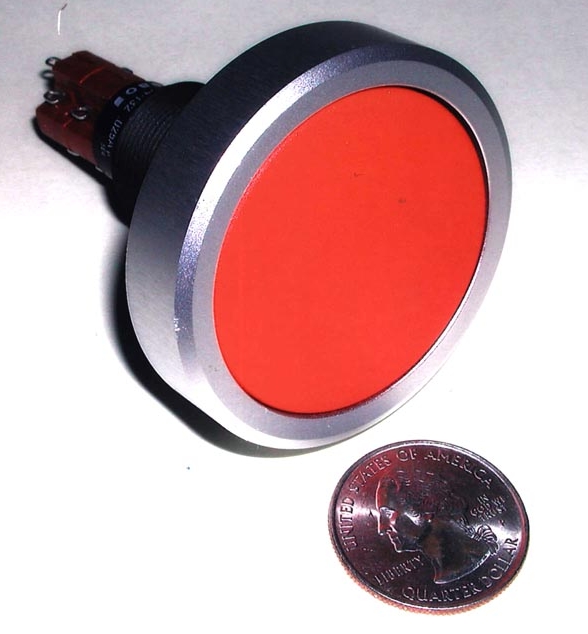

Adapter encases pushbutton switch.
EAO Switch Corp.
Milford, CT 06460
May 29, 2002
Extreme Duty Front Ring Adapter, installed in conjunction with mushroom cap, converts Series 14 pushbutton into larger, more rugged switch. Sealing o-ring protects switch element from outside weather conditions. Adapter is made of anodized aluminum and available in natural or black. It is suitable for use in emergency call boxes.

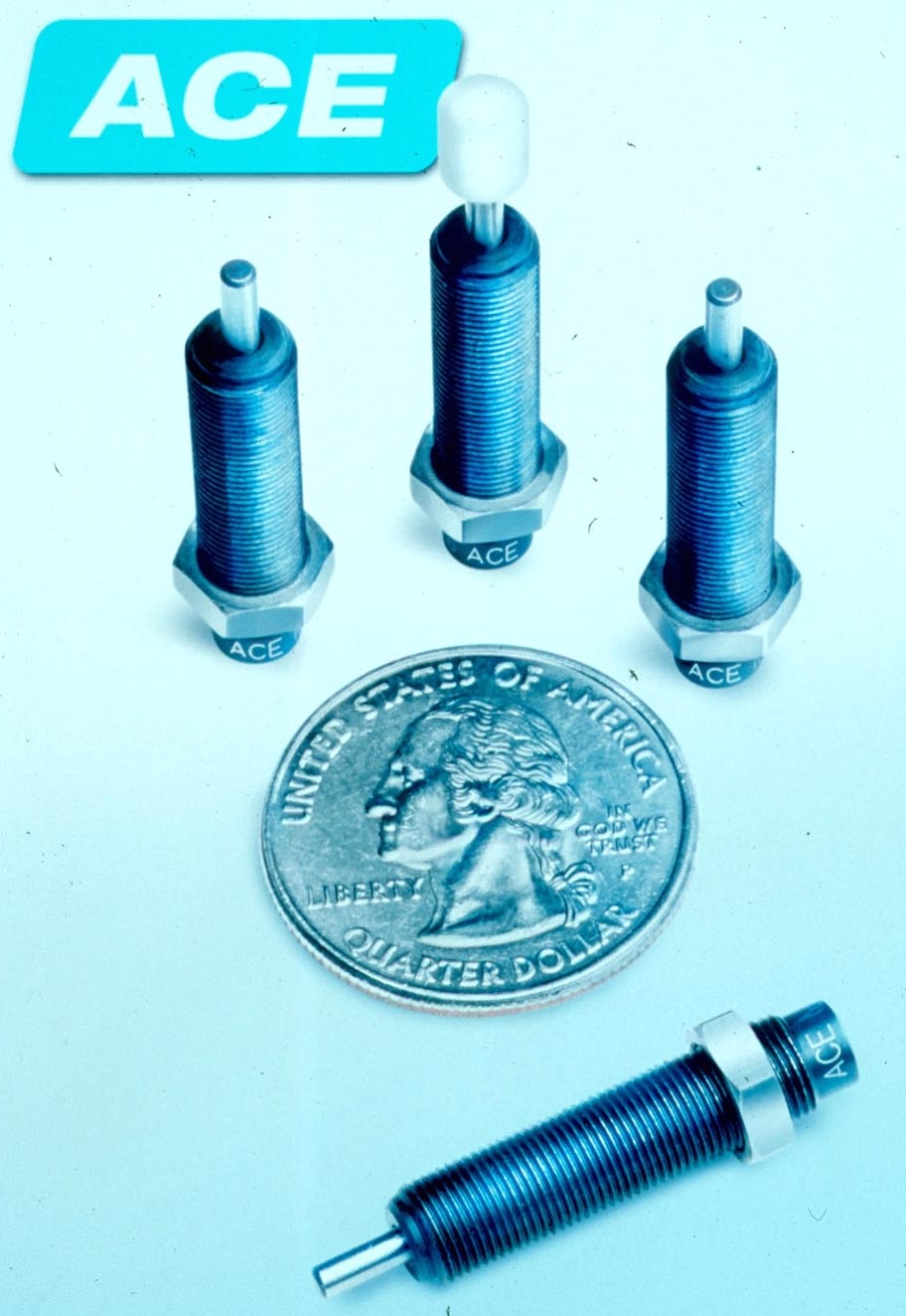

Industrial Shock Absorber is 1.22 in. in length.
Ace Controls, Inc.
Farmington, MI 48332
May 23, 2002 MC 9 miniature series can be mounted in confined spaces. It features internal accumulator, stainless steel piston rod, integral mechanical stop, and fully threaded metric outer tube. Two weight ranges are available for handling multiple load conditions. Applications include small slides, packaging equipment, small robotics, instrumentation, and high speed automation.
Isolators protect bearings from environment.
Rock Island, IL 61204 7331
May 23, 2002 VBXX-Dâ„˘ Series Isolators consist of rotor and stator, and are designed to keep bearings uncontaminated and properly lubricated. They are suitable for use in rotating equipment, including motors, machine tool spindles, gear boxes, blowers, turbines, fans, and pumps. Once installed, users obtain non-contacting labyrinth sealing technology for improved uptime.
Tooling Packages provide fast tool changeover.
Madison Heights, MI 48071 9636
May 22, 2002 VM modular quick-change tooling packages are designed for use with Mazak Integrex 100Y, 200Y, 200SY, 300Y, and 400Y machine models. Machines are equipped with spindles that accept tooling connection. All tooling is balanced to G2.5 @ 6000 rpm, and through-hardened to Rc 48-52 with ground V-flange.

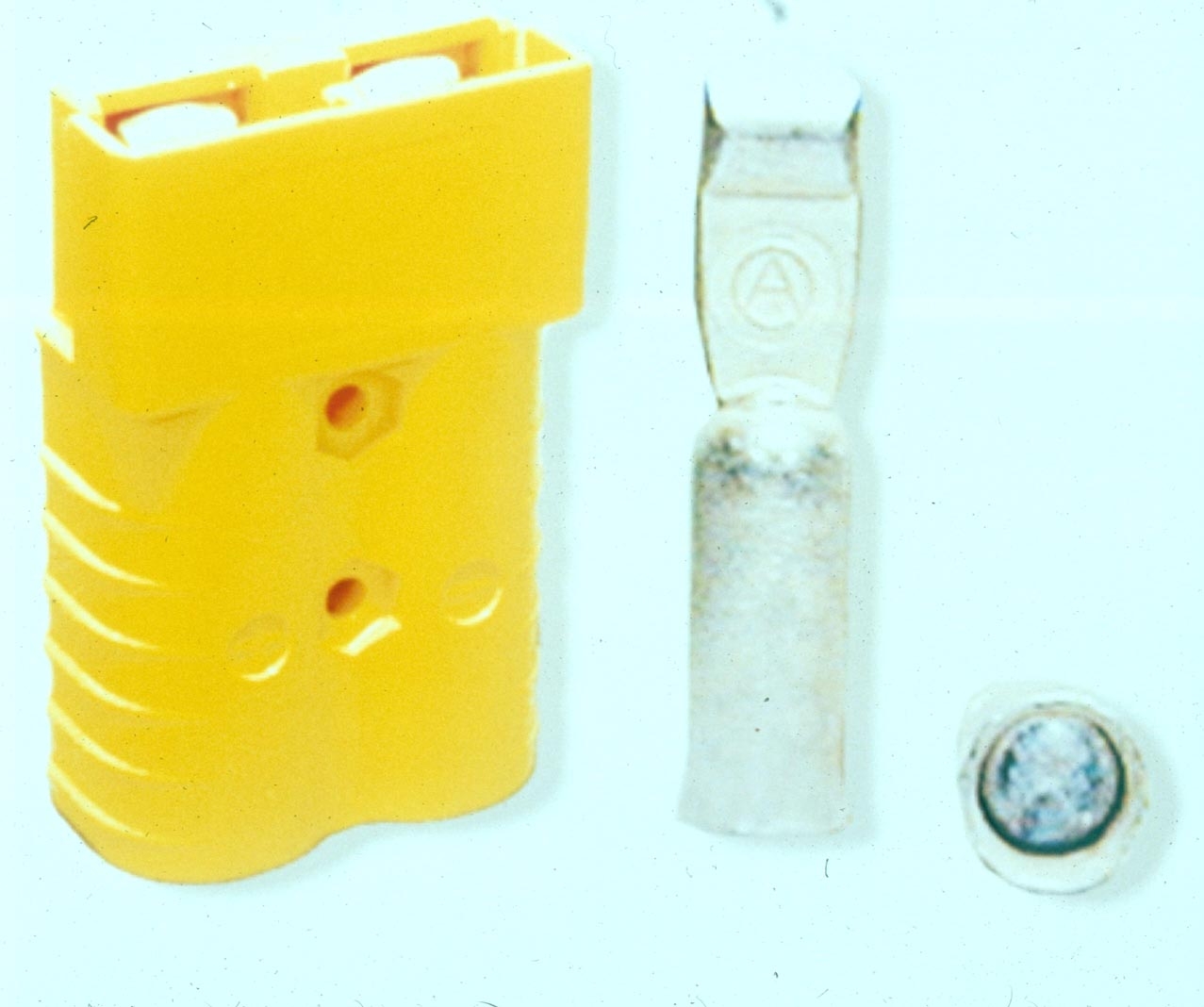

Connector comes ready to solder.
Anderson Power Products
Sterling, MA 01564
May 21, 2002 Fuselokâ„˘ has contact that contains pre-measured amounts of solder and flux for rapid, easy installation. Connectors are available in 175 and 350 A, 600 V, ac/dc, to fit cables in sizes from 2 awg up to 4/0 wire. Each connector kit includes all components required to create UL approved wire connection, including silver-plated copper contacts, connector housing, and cable strain relief clamp. They eliminate need for technician to carry crimping tools.

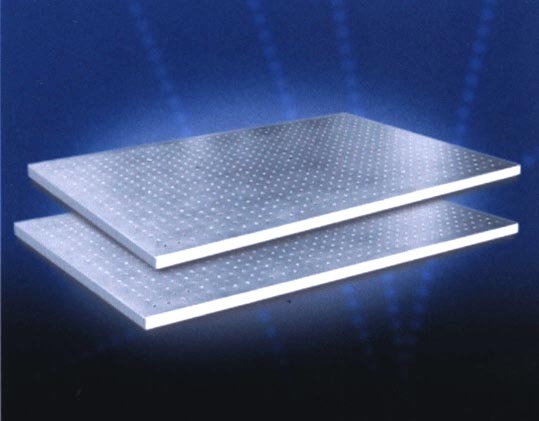

Mounting Plates provide stable surface for equipment.
Kinetic Systems, Inc.
Boston, MA 02131
May 21, 2002 Lightweight Series 7000 aluminum plates provide flat surface for mounting sensitive equipment. Black-anodized, non-magnetic plates are available with ˝" thickness in 5 standard sizes up to 24 x 48 in., with flatness of ±0.030 in. over 24 x 24 in. area. They weigh 0.05 lbs per square inch. Mounting holes are available, tapped on English, 1/4-20 x 1 in. grid or metric, M6 x 25 mm grid. Custom sizes and configurations are also available.
Mini USB Connectors are suitable for portable devices.
San Jose, CA 95125
May 20, 2002 Mini A-type, B-type USB connectors are intended for use in host and peripheral devices, respectively. AB-type allows for both A- and B-type cables to be inserted, and can be used in devices with host and peripheral capabilities. All mini-USB types are fully shielded and feature indentations for grounding and mating retention. Insulator material is made from PA6T thermoplastic, and contacts have 30 microinch gold on contact area.
