Canfield Connector Div., Canfield Industries Inc.    Canfield, OH 44514
Apr 27, 2004 Virtually indestructible 5F&J solenoid valve connectors come with molded-in screws and gaskets and are available in ISO, Mini, 8 mm, and 9.4 mm sizes. Options include straight or right angle wire orientation, lighted and surge suppressed, as well as standard or custom wire lengths. Round connectors, 8 and 12 mm sizes, offer 3–5 pin configurations and come in molded or field-wire versions.

Jamac Inc.    Elk Grove Village, IL 60007
Apr 27, 2004 Suited for high-precision manufacturing applications, JSG Series multipurpose gantry system utilizes aero-stage drive system and closed loop AC servo motors. Other features include 17.6 lb portable tool weight, adjustable height, and built-in sequencer. Flexible, multi-axis, overhead positioning system can be combined with options such as CCD camera work-positioning, sensor tool positioning, and off-line programming software.

Guden, H. A., Co., Inc.    Ronkonkoma, NY 11779
Apr 13, 2004 Doors mounted with latch hinges can be secured in place and removed. Suitable for applications with limited swing, they provide alternative to slip joint hinges. Four standard sizes are offered, ranging from 7/8–2¾ in. long and 0.04, 0.05, 0.062, 0.125, and 0.187 in. thick. Latch hinges are available in stainless or zinc-plated steel, with or without holes, left and right handed. Optional pin hold-back feature locks pin during assembly and removal.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Apr 08, 2004 Offered with 8 leads, SOIC Adapters are .062 in. thick FR-4 with 1 oz of copper traces on both sides. They are available on .300 in. DIP centers and can be mounted on PCBs with hole diameter of .028 in. Pins are 360 ½ hard brass alloy, and pin plating is 5.08 µm minimum tin/lead 93/7 over 2.54 µm minimum nickel. Adapters provide upgrade from older Aromat HB2E relays to surface-mount TXSS relays while keeping same PCB layout. Max operating temperature is 221°F.

Sloane, R. & G., Mfg. Co., Inc.    Little Rock, AR 72206
Apr 06, 2004 PVC and CPVC Expansion Joints suit applications where air or fluid can experience 30°F shift in temperature. Inner and outer telescoping tubes allow mounting between 2 fixed points. Inner tube expands and contracts against anchored outer tube to provide flexibility, while triple O-ring design enhances strength and rigidity. Operating ambient temperature range is from 60-90°F, and operating fluid temperature range is 50-80°F.

Adaconn & Inserta Products, Inc.    Blue Bell, PA 19422

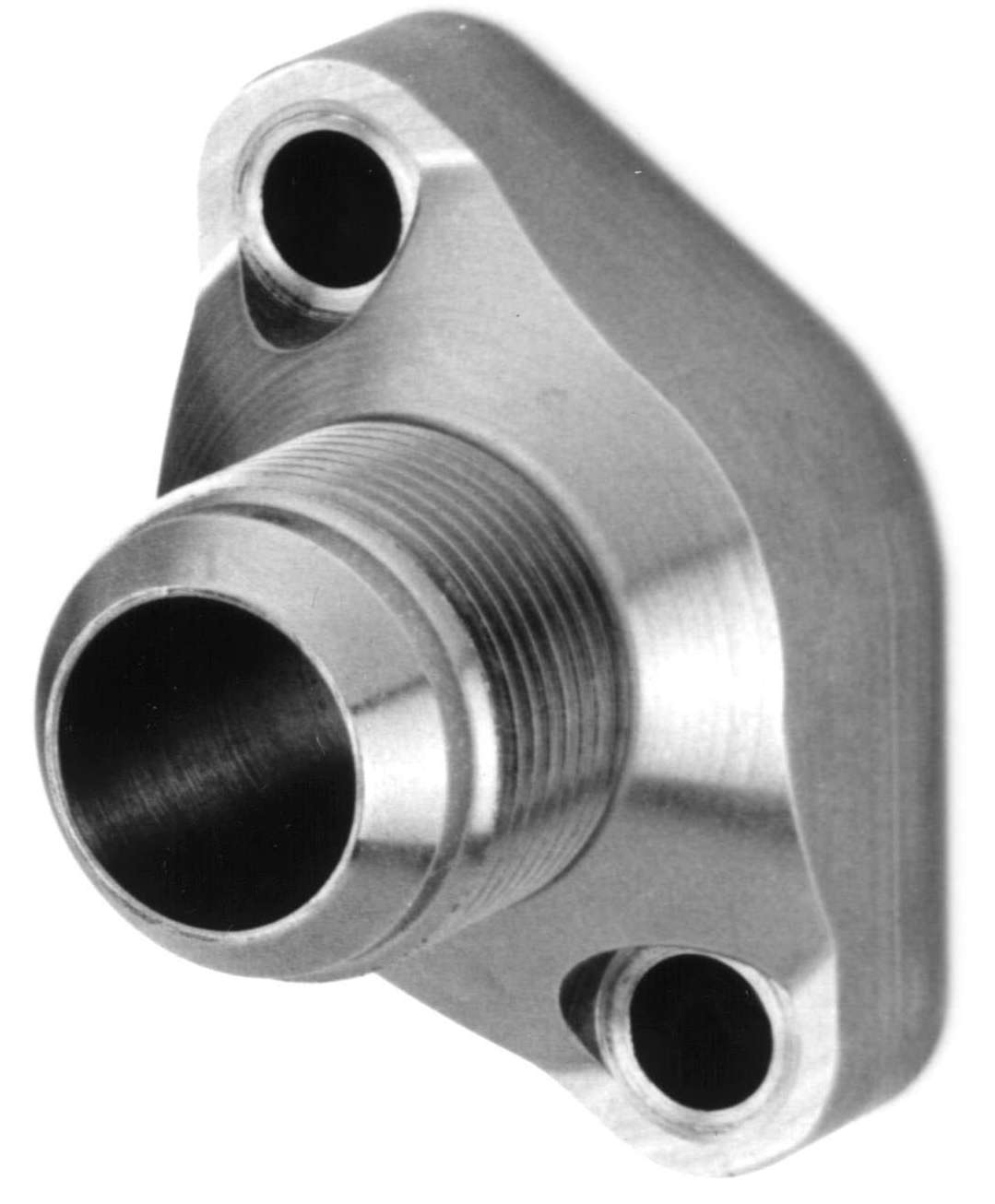

Apr 06, 2004 ADAFLANGEâ„¢ Adapters, suited for use in hydraulic component or system designs, require only 2 bolts. Available in 1/8–2 in. sizes, they mate with either of 2 diagonal tapped mounting holes of same nominal size SAE CODE 61 4-bolt flange port. Compact footprint permits adjacent ports to be nested together in close proximity. The 2-bolt flange mounting holes may be oriented 360° about central fluid flow axis.

L P International Inc.    Brantford N3T 5P9
Mar 31, 2004 Model LE-1 acts as power stairclimber, tailgate lift, curb/dock leveler, motorized stacker, and balanced handtruck. This allows operators to power heavy loads off vehicles, over curbs, up stairs, and onto platforms or work benches. Operator can change load's center of gravity by pressing one button. Unit enables one man operation when moving loads up to 650 lb. It does 100% of lifting, eliminating risk of back injuries.

Swagelok Company    Solon, OH 44139 2764
Mar 31, 2004 Flange Adapters create seamless transition from piping to tubing systems. Connections meeting ANSI, DIN, EN, and JIS standards are available in variety of sizes up to NPS 2 in. and from DN10–DN50. Pressure class ratings range from ANSI 150 to 2500, DIN PN2.5 to PN320, and JIS10K to 63K. Sealing face options include raised face, RTJ, and tongue-and-groove. Metric and fractional tube fitting and tube adapter end connections provide leak-tight seal.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Mar 29, 2004 Suited for hazardous and non-hazardous applications, KF-ExDuct optimizes space by mounting up to 90 safety barriers along 1.8 m length. Aluminum extrusion's integrated cable duct allows system and field cables to be routed directly below barriers, with suitable isolation between. Power can also be applied to barriers with Power Rail, which snaps into trough of standard 35mm DIN rail pre-molded into KF-ExDuct.

ACE Controls, Inc.    Farmington, MI 48335
Mar 26, 2004 NuCushions are comprised of elastomer material that adapts to pneumatic cylinder pistons to provide cushioning. They help reduce reaction forces when piston impacts head or cap of cylinder. Metal to metal contact is cushioned and cycle rates are maintained without loss of cycle time. Adding NuCushions eliminates need for bleed needle assembly, cushion spud, and spud seal. NuCushions also compensate for changes in velocity, weight, and pressure.

Westmark bv    Woudenberg 3931 ER
Mar 25, 2004 Cablesafe® helps eliminate falls caused by tripping over cables and hoses spread over decks and work floors by suspending all cables, extension cords, wires, and hoses away from floor. S-shaped hooks are produced from non-conductive and non-flammable reinforced polyester and can be reused. Glow-in-the-dark properties are suited for storage tanks, legs of drilling rigs, submarines, and underground tunnels.

ERICO    Solon, OH 44139-2631
Mar 18, 2004 CADDY® SPEED LINK System helps reduce inventory and storage space. Able to support various suspension applications, system features all-steel construction and employs flexible galvanized steel cable with hook bonded to one end as means of support. Steel locking device ensures stability and allows for adjustment of supported object during and after installation. System allows objects to be hung at various angles, even from sloped ceilings.

Ergotron, Inc.    Eagan, MN 55121
Mar 18, 2004 Neo-Flexâ„¢ Arm clamps to back of desk and provides 8 in. of vertical movement for positioning monitor so that top of screen is at, or slightly below, user eye level. It is compatible with VESA-compliant flat panel monitors that weigh 18 lb or less and enables 180° right/left and up/down monitor tilt, 360° monitor portrait/landscape rotation, and 360° arm side-to-side rotation. Safety-stop prevents monitor contact with worksurface.

FLUSH-CUT INC.    Cazadero, CA 95421
Mar 17, 2004 Suited for automotive bodywork applications, Flush-Cut Adapters for cutting, rasping, and sanding allow users to make cuts in hard-to-reach places. They also permit rasping and sanding from flush surface in tight spots, without bending blades or damaging materials. Tools, able to reach behind trim and framing members, are useful in projects from framing to finishing.

Herkules Equipment Corp.    Walled Lake, MI 48390 1662
Mar 15, 2004 Power Rotate-Multiple Position System allows assembly workers to retrieve parts continuously by rotating full bin to within operational reach. Rotating base is air powered with spiral gear and equipped with outer ring of support casters for offset loads. Power rotating function is bi-directional and provides 360° operation with zero-effort positioning. Base can support 4 independent lift modules. Tilt or Rotate module attachment is optional.

Bell & Gossett    Morton Grove, IL 60053
Mar 12, 2004 Check-Trol® combines features of flow control valve, isolation valve, and companion flange in single valve. Full port ball valve allows circulator to be removed without draining system. Internal spring check prevents gravity circulation and flow in wrong direction, while free-floating companion flange provides alignment and simplifies installation. Suited for all major circulators, Check-Trol® is available in ¾, 1, and 1¼ in. NPT and Sweat models.

Asymtek    Carlsbad, CA 92008
Mar 12, 2004 Tilt accessory is available on SC-300 Swirl Coatâ„¢ applicator and provides 4 positions: 30° from vertical to left, right, front, or back. Tilt is controlled by company's Easy Coat® for Windows NT® software and can be retrofitted into existing Century conformal coating systems. It operates in bead, monofilament, and swirl modes and is suitable for use with solvent-less formulations, coatings with greater than 100 cps, and low-viscosity film coating materials.

ACE Controls, Inc.    Farmington, MI 48335
Mar 11, 2004 Miniature industrial shock absorber models MA 30M and MC 30M allow for energy absorption in confined spaces. Adjustable MA 30M has weight range of .5–31 lb and energy per cycle rating of 31 lb-in. Features include integral mechanical stop and stainless steel piston rod. Available in 3 weight ranges, self-compensating MC 30M handles changing energy conditions without need for adjustment. Applications include linear slides, instrumentation, and robotics.

Cooper Crouse-Hinds Molded Products    La Grange, NC 28551
Mar 11, 2004 Used in applications where HID high bay and low bay lighting fixtures are used, sheet steel flexible swivel fixture hangers are suited for use ½ or ¾ in. fixture conduit stems. They permit conduit stem of fixture to swing in any direction and attach via 2 screws. Hangers are available in 2 styles: for attachment to octagon or round steel boxes, and for attachment to 4 in. square steel boxes. UL listed products are finished with zinc chromate.

Tolco Corp.    Toledo, OH 43624
Mar 10, 2004 Designed to brace against sway and seismic disturbances, Figure 4L in-line longitudinal sway brace attachment employs one-piece design that permits swivel in only one direction. Break-off head bolt is used to verify proper installation torque. Made of carbon steel, attachment comes with plain, electro-galvanized, or HDG finishes and is rated for 2,015 lb horizontal design load. It is available in sizes from 2½â€“8 in. IPS and is UL and cUL listed.
