Handrail Brackets meet code requirements.
Wagner Companies, The
Bulter, WI 53007
Dec 20, 2004
Style D formed handrail brackets offer 1? in. horizontal and vertical clearance to meet code requirements and recommendations of Americans with Disabilities Act Accessibility Guidelines. ADAAG Section Advisory 505.6 states that space between wall and handrail must be 1? in. and that horizontal projections should be 1? inches minimum below bottom of handrail gripping surface. Brackets meet both clearance requirements.
Wire-Protection Grommets are custom cut.
Device Technologies, Inc.
Southborough, MA 01772-1033
Dec 15, 2004
Grommets are available in bulk packaging of factory pre-cut lengths, reducing waste and saving time of manual cut-off. Kits are suited for use on assembly lines to reduce scrap and increase throughput. They may also be shipped with products for customer end-use installation. All kit envelopes are printed to customer specifications.
Angle Plates suit air cylinders, actuators, and motors.
Schaumburg, IL 60173
Dec 07, 2004
Offered in sizes from 3-18 in. Angle Plates combine iron, steel, 304 stainless steel, or aluminum casting with straightness and perpendicularity within 0.003 in. over 6 in. run to guarantee precise fit with no gaps between machinery and plate. Faces and edges are machined flat, square, and parallel. Plates are available with standard pre-drilled mounting hole patterns as well as without holes to allow customer to drill plates in-house.

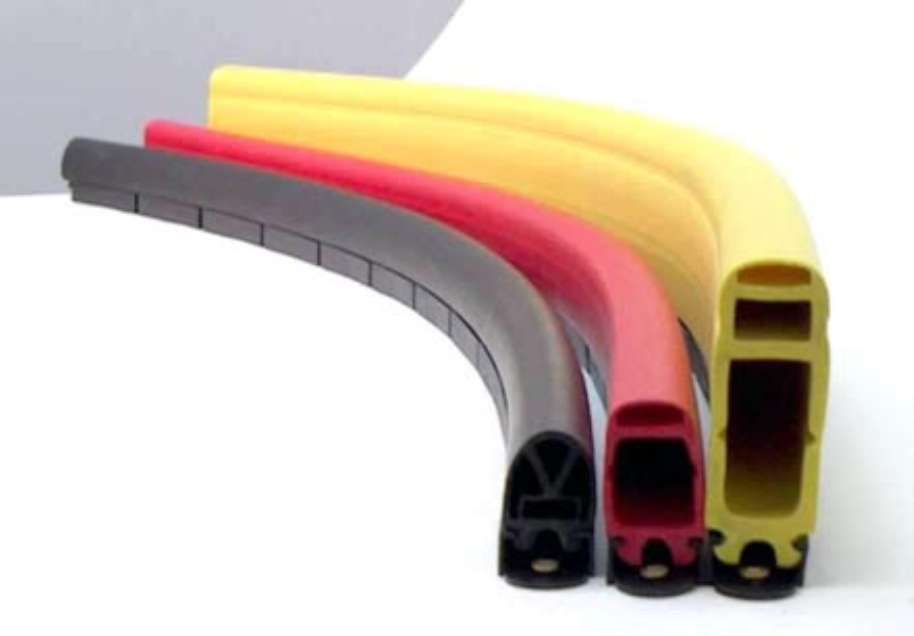

Sensing Edge conforms to application requirements.
Farmingdale, NY 11735
Dec 01, 2004 Flexionâ„˘ system suits situations where sensing edge is required to curve laterally. Interlinked mounting channel provides flexibility to follow natural contours of an application. Typical applications include curved sliding doors, medical tables, S-curve enclosures, and contoured pinch points. Each sensing edge has continuous length of sealed ribbon switch encased in extruded housing. It is water and chemical resistant.

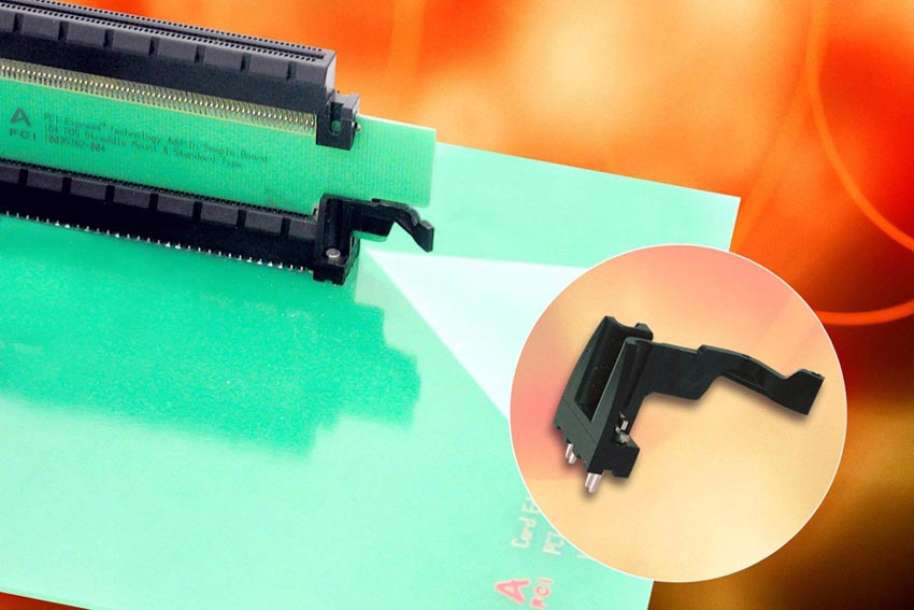

Retention Mechanism protects graphics card.
Etters, PA 17319 9769
Dec 01, 2004 Board-level retention mechanism for PCI Express graphics cards protects against electrical interrupts and mechanical damage caused by system-level shocks and vibration. Flexible arm extends away from slot and includes molded post that snaps into notch on bottom of add-in card. Device solders to motherboard adjacent to x16 PCI Express card edge connector, and engages with hockey stick shaped hook on bottom of graphics card.
Wall Plates/Frames accommodate interchangeable jack modules.
Pass & Seymour/Legrand
Syracuse, NY 13221
Nov 30, 2004 TradeMaster® Keystone Wall Plates and Decorator Frames accept any combination of UTP and multimedia jack modules. Modules are available with F connectors for video coax cable; Category 5e jacks for data, telephone, camera, and audio; binding posts for speaker wiring; RCA to F connectors for sub-woofer pre-out; and blank modules to fill unused jack module spaces. Wall plates and frames come in 1, 2, 3, 4, and 6 port variants in ivory, light almond, and white.
Drum Loader offers 52-tool capacity.
ANCA Pty Ltd
Bayswater North VIC 3153 Australia
Nov 29, 2004 Enhancing production capabilities of GX7, tools are placed in tool holding pockets equally spaced 360° around periphery of rotating part of drum. Tools are removed from pocket and transferred into rotational interchange arm that loads it into machine. Interchange arm is double ended, allowing loading and unloading functions to occur simultaneously. Loader can load either straight shank tools direct from loader or tools held in Nikken KM style collets.

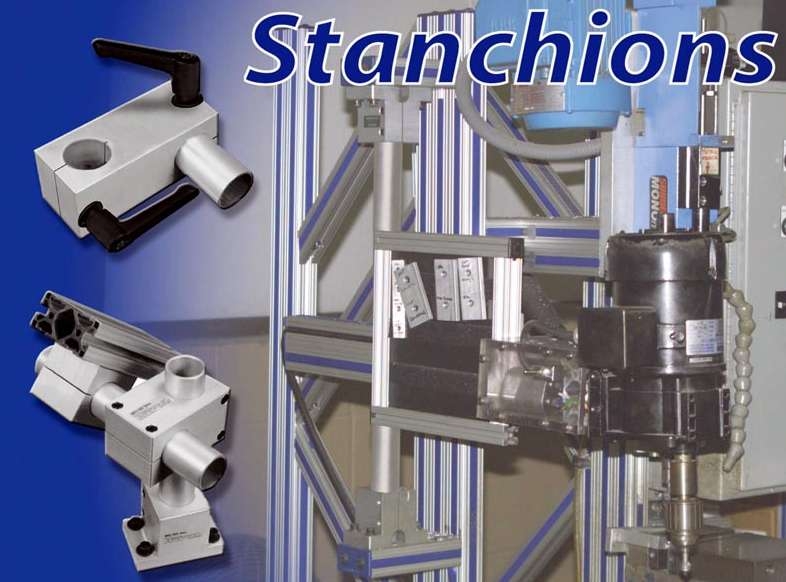

Stanchions add 4th or 5th axis to T-slotted frames.
Columbia City, IN 46725
Nov 24, 2004
Quick Clamp Stanchions are available in over 40 standard models, including single or double shaft bases, blank or pre-drilled mounting plates, and single or double mounting blocks in 1, 1.5, and 2 in. bore sizes. Adjustable without use of tools, devices allow user to precisely position camera equipment, scanning devices, light sources, photo sensors, computer monitors, and actuators.

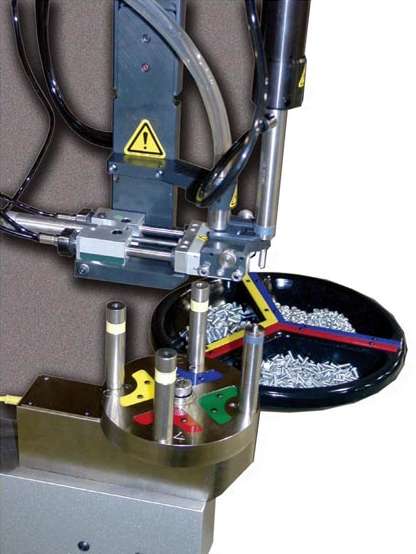

Turret Tool System facilitates fastener installation.
PennEngineering® (Penn Engineering)
Danboro, PA 18916
Nov 19, 2004
PEMSERTER® QX(TM) can alternate between anvil tools to install variety of fasteners in one workpiece without tooling changeovers. System includes 4 anvil tools; one is dedicated to automated feed tooling, while others can be used to install up to 3 different products manually. Parts trays and anvils are color-coded, and system detects which station is in install position to prevent operators from proceeding unless correct station is locked in position.

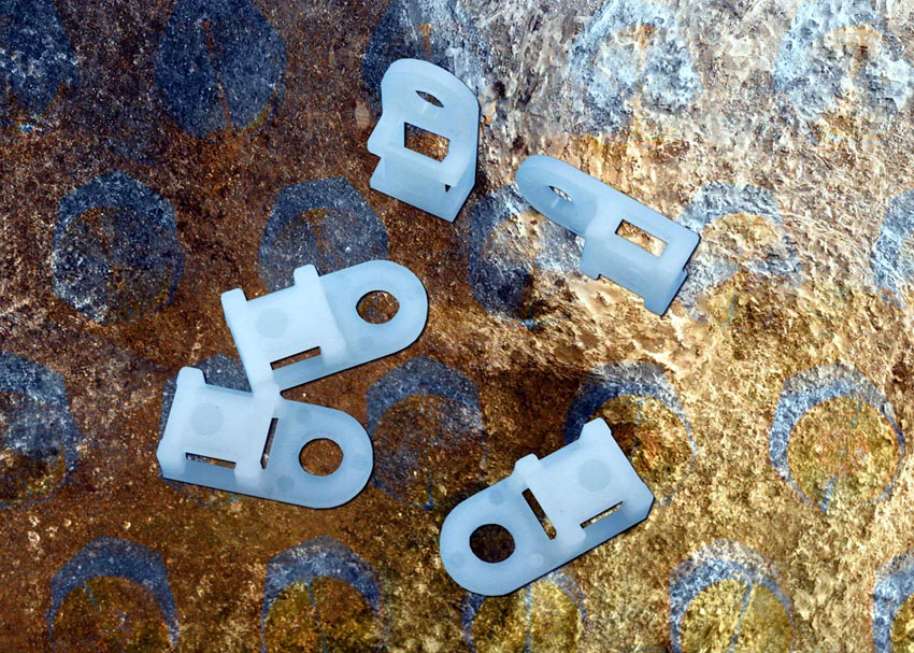

Clip Mount is offered in screw-mount style.
Micro Plastics Int'l Ltd
Coventry West Midla CV2 1SR United Kingdom
Nov 18, 2004
Screw mounted style CLIP MOUNT tie holder, molded in natural colored nylon 6/6 material, offers 2-way entry and is secured with a No. 8 mounting screw.
Clamps, Straps, and Hangers fasten electrical conduit.
EGS Electrical Group
Skokie, IL 60077
Nov 16, 2004 Clamps, straps, and hangers assist contractors in running and anchoring electrical conduit. Clamps are formed from malleable iron with galvanized finish, and accommodate conduit in trade sizes from ˝â€“6 in. They secure rigid or flexible metal conduits, and IMC or EMT running across, parallel, or perpendicular to beams, channels, cable tray, and angle supports. Steel hangers and snap-type straps are zinc-plated and handle trade sizes from ˝â€“4 in.
Spiral Wound Gasket meets needs of problem applications.
Tiansheng Sealing Co.,ltd
Cixi 315302 China
Nov 12, 2004 Spiral wound gaskets exhibit adequate residual stress, flexibility, and recovery capabilities that enable them to meet requirements of applications with high temperature variations (thermal cycling), high pressure variations, and flange rotation problems.

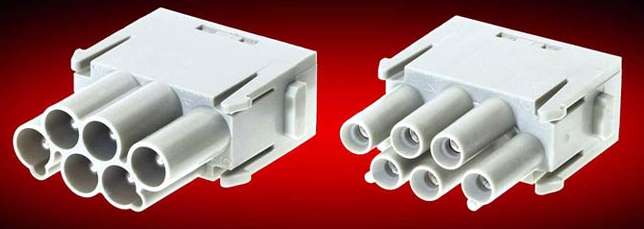

E Protected Module offers finger-safe protection.
Nov 08, 2004
Han® E Protected Module enables user to assemble connector to individual configuration requirements. Product features finger protected male and female contacts that provide safe connector solution in applications where power could come from male or female side, such as frequency converters, power ring circuits, or battery charging circuits.
Positioner supports high-gain, log periodic antennas.
Souderton, NY 18964
Nov 01, 2004 Compatible with antenna Models AT2526 and AT5026, non-conductive Model AP5010 is built on casters to facilitate movement in shielded room or in open site testing. Design allows test engineer to position antenna for vertical or horizontal polarization and permits antenna to be tilted at 30°. Antenna Model AT2526 covers frequency range from 26â€“250 MHz and accepts up to 15 kW input power, while Model AT5026 covers 26 MHz to 5 GHz and accepts up to 5,000 W.
Expansion Joint features lightweight elastomer composition.
Holz Rubber Co.
Lodi, CA 95240
Oct 27, 2004 Offered in EPDM and Nitrile tube materials, Model 320EZâ„˘ compensates for movements in piping systems due to thermal and mechanical vibration and growth, protecting pipes and flanges from pre-mature cracking and breakage. Ranging in size from 1˝â€“20 in. ID, expansion joint can replace filled arch, flowing arch, standard, and wide arch designs. Lower spring rates and reaction forces allow customers to use lighter anchoring system and less reinforcement.
Pump Frame prevents premature bearing/seal failure.
SKF USA, Inc.
Lansdale, PA 19446
Oct 21, 2004
Environamics universal power frame cartridge eliminates premature bearing and mechanical seal failures caused by heat, vibration, misalignment, and cavitation. Modular replacement for existing power frames bolts into place without modifying pump, piping, or foundation. Interchangeable shaft ends enable unit to fit any impeller configuration. Cartridge can be converted from standard power frame to hermetically sealed unit.
Graphite Sheet provides cylinder head gasket material.
Cixi Weilite Sealing Material Co.,Ltd.
Cixi City 315300 China
Oct 18, 2004 Reinforced Graphite Sheet is formed by sticking flexible graphite sheets together with metal plate. It offers compressibility and resilience, as well as sealing properties for microscopic surface irregularities. Ranging in thickness from 1.0â€“3.0 mm, sheet is offered in lengths and widths of 1,500, 1,000, and 500 mm.
Anti-Vibration Mounts feature stainless steel construction.
Natick, MA 01760-1314
Oct 15, 2004 AM 2100/4100 Series of machine mounts are designed for leveling and vibration damping in applications where moisture, liquids, and corrosive fumes come in contact with machinery. Carrying loads up to 4,000 lb, mounts
feature shock absorbing, neoprene rubber soles to reduce vibration and to prevent creeping and walking in compliance with OSHA anchoring requirements. They can also adjust to pitched surfaces by providing ±7ş angular play.
Foot absorbs shock and dampens vibration.
Chicago, IL 60680
Oct 07, 2004 Constructed with thermoplastic elastomer material, SVF-1 has design that provides spring-like shock absorption. It can be installed by hand and accommodates panel thicknesses from .012â€“.169 in. by offering use of various mounting options. Uncompressed height of foot is .32 in. with diameter of 1.5 in. It is suited for applications with significant movement and vibration, such as in digital video recorders, players, cooling fans, and HDDs.
Adapter facilitates quick change for magnetic drills.
Hougen Mfg. Inc.
Flint, MI 48501 2005
Oct 05, 2004 Adapter assembly provides quick-release change feature that adapts spindles of drills to use RotaLocâ„˘ and the RotaLoc Plus Annular Cutters. It allows use of proprietary tools with Quick-Shank mounting design in drill models HMD505, HMD904, and 10914. With ľ in. depth of cut, RotaLoc cutters are available 1/2â€“1 1/16 in dia in 1/16 in. increments and 12â€“27 mm dia. RotaLoc Plus tools extend size range to 1 3/8 in. and 35 mm and provide 1 in. depth of cut.
