Hardinge Workholding Division    Elmira, NY 14902
Feb 24, 2005 All-digital 5C Indexing System is configured with infrared send and receive, which functions with handheld computers utilizing Pocket PC. Programs can be written from remote location and uploaded to indexer's servo control via handheld computer. Retrieval of programs can occur while indexer is operating or on standby. Editing of program can be done using notepad format on handheld computer, however program has to be stopped to beam it to servo control.

Wiremold/Legrand    West Hartford, CT 06110
Feb 23, 2005 Overhead Wireless Access Point Bracket attaches directly to wire-style cable trays and may also be hung from cable tray using threaded rod. If optimal access point location does not coincide with cable tray, bracket can be suspended from building structure with threaded rod. Support bars are punched to accommodate different rod sizes. Galvanized steel bracket includes mounting straps that allow wide variety of mounting configurations.

Adaconn & Inserta Products, Inc.    Blue Bell, PA 19422
Feb 22, 2005 INSERTAâ„¢ 4-Bolt Flange Rotational Retaining Adapters provide way to rotate flow plane 90°, allowing flow in horizontal and vertical planes. Design A provides clamp flange seal on face diameter and counter-bored thru holes from face 1 to face diameter for socket head clamping bolts. Design B has plain clamp face for applications that require this geometry. All adapters offer design options for multiplaner SAE Code 61 and Code 62 fluid flow systems.

Ideal Shield, LLC    Detroit, MI 48209
Feb 22, 2005 Suitable for indoor or outdoor use, low-density polyethylene thermoplastic sleeve slides over existing guard posts. Smokers Can attachment is made from flame resistant resin and has internal snuffer that extinguishes cigarettes and conceals odors. Mounting hardware is included.

Sunnex, Inc.    Natick, MA 01760-1314
Feb 17, 2005 Designed for equipment that does not require floor fastening, M-Series features built-in leveling bolt. Mounts provide direct leveling and insulate machinery against adverse effects of structure-born noise. Mechanically fastened nitrile pad is chemically resistant to most fluids and dampens up to 80% of machine or environmental vibration. Applications include automatic lathes, grinding machines, injection molding machines, and drilling/milling machines.

J. W. Winco, Inc.    New Berlin, WI 53151
Feb 17, 2005 Available in nitrile-butadiene-rubber or fluorocarbon-rubber (Viton), Metric Size O-Rings range from 1.15-1,044 mm ID with cross sections from .7-15 mm. Non-standard sizes and other materials are available upon request.

HellermannTyton    Milwaukee, WI 53224
Feb 01, 2005 Manufactured from heat-stabilized, impact-modified nylon 6/6, weld stud mount does not rust or abrade wire, cable, or hoses. Product eliminates use of p-clamps, nuts, bolts, and washers to secure wire harnesses and hoses to metal frame when used in conjunction with cable tie. Able to be welded onto painted frame rail without grinding surface, application takes 1/3 of one second. Installation does not require hole drilling or paint removal.

Zero-Max, Inc.    Minneapolis, MN 55441 5537
Jan 26, 2005 Heavy-duty Model 1100 Overhung Load Adapter (OHLA®) eliminates premature hydraulic motor or pump bearing failure due to overhung radial and/or axial loads. Unit provides solid, permanent mounting surface while sealing out dirt and contamination in harsh environments. With cast iron housing and 130,000 psi stress-proof steel shaft, product is suited for SAE D pump and motor applications operating at speeds up to 3,500 rpm with proper lubrication.

TruSeal Technologies Inc.    Beachwood, OH 44122

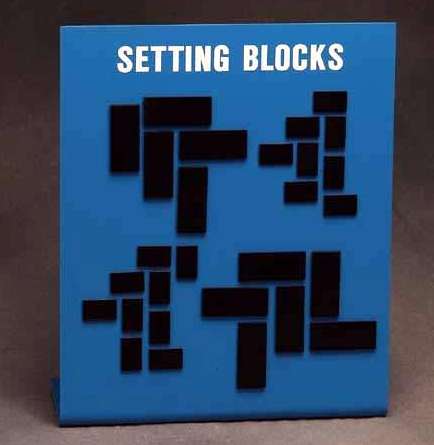

Jan 18, 2005 Setting Blocks protect glass against vibration and shock from handling, shipping, and wind loads. Available with or without pressure-sensitive adhesive, blocks elevate and isolate insulating glass units from sash. Neoprene material makes blocks resilient, allowing glass unit to handle stressed conditions. Offering temperature range of -20 to 170°F, blocks are available in various thicknesses, widths, and lengths.

Stockwell Rubber Co. Inc.    Philadelphia, PA 19136-1512
Jan 13, 2005 Produced from liquid silicone rubber, Silicone Foam Gasketing is offered with film supported acrylic adhesive and unsupported acrylic transfer adhesive. Soft and medium grades come in thicknesses of .062–.375 in. and roll lengths from 30–10 linear ft. Made from gum-based silicone compounds with expanding agents, Closed Cell Silicone Sponge comes in medium grade from .032–.188 in. thick with unsupported acrylic transfer adhesive. Roll lengths range from 30–15 linear ft.

Stockwell Rubber Co. Inc.    Philadelphia, PA 19136-1512
Jan 13, 2005 Silicone foam gaskets and cushioning pads, supplied in custom die cut, water jet cut, and slit-to-width configurations, are produced from liquid silicone rubber technology. Various grades are flame retardant to UL94V0 and UL94HF-1, and products are offered in 6 compression-force deflections from 0.75–18 psi and thicknesses from .032–1.0 in. They are suited for use as shock and cushioning pads in applications with temperatures from -67 to +392°F.

Stockwell Rubber Co. Inc.    Philadelphia, PA 19136-1512
Jan 13, 2005 To support molded silicone rubber requirements that would typically exceed those for liquid injection molding (LIM) processing, LIM manufacturer offers shot size of 380 g and platen designs for injection molded gaskets up to 12 x 12 in. or 8 x 20 in. LIM silicone withstands temperatures from -100 to +450°F, and cure cycles range from 30–90 sec. Process targets medical diagnostic, analytical instrumentation, communications, navigation, safety, and food processing industries.

Sandvik Materials Technology, Strip Products Div.    Benton Harbor, MI 49022

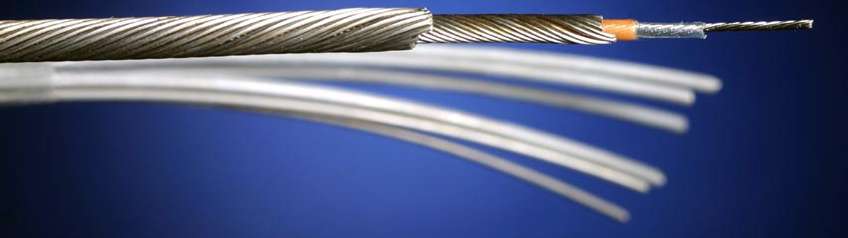

Jan 07, 2005 Stainless steel wire grade, Sandvik Sanicro 36Mo, is nitrogen-enhanced, austenitic alloy that resists effects of corrosion in chlorides, H₂S, and CO₂ environments. Contents of chromium, molybdenum, and nickel contribute to resistance against pitting, and tensile strength for slicklines and logging cable lines are 270 and 300 ksi, respectively. Slickline products range from 0.082–0.125 in. dia, while logging cables range from 0.0243–0.0445 in. dia.

Wagner Companies, The    Bulter, WI 53007
Dec 30, 2004 Style B formed handrail brackets offer 1? in. horizontal and vertical clearance to meet 2004 ADAAG (Americans with Disabilities Act Accessibility Guidelines) Section Advisory 505.6 code requirements. Product ensures space between wall and handrail is 1? in. and that horizontal projections occur 1? in. below bottom of handrail gripping surface. Brackets come in steel (part No. 3319), satin stainless steel (No. 3320), and satin muntz (No. 3321).

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Dec 29, 2004 With 18 x 18 in. footprint, Series 6000 measures 13.5 ft long, and can be positioned in 180° rotation or 360° after removing stop. When not in use, arm can be swung against wall or beam for safe, out-of-the-way storage. Tubular-steel construction provides protection for weld and control cables, fume extraction hoses, and air or electrical cables. Self-equalizing mechanism, with counterbalance springs, maintains height of arm where operator positions it.

Stockwell Rubber Co. Inc.    Philadelphia, PA 19136-1512
Dec 20, 2004 Rocket Motor Mounting Pads protect solid fuel rocket motors by cushioning motor housings against impact and excessive vibration. They are bonded to aluminum and steel chocks and support structures with conductive silicone rubber adhesive. A carbon filled conductive silicone coating is then applied to edges of pads to complete grounding path. Pads are offered in dimensions of 10–72 in. x 2–40 in. x .25–2.00 in.

Stockwell Rubber Co. Inc.    Philadelphia, PA 19136-1512
Dec 20, 2004 Flexible silicone rubber adhesive pads, LCD gaskets, and window gaskets are specified for hand-held and portable units requiring low-temperature functionality. Able to maintain consistent bond strength down to -70°F, 30 durometer silicone rubber substrate with silicone polymer adhesive on both sides allows for thermal expansion and contraction of mating plastic components and metal frames. Adhesive composite is available in .025 and .040 in. nominal thicknesses.

Wagner Companies, The    Bulter, WI 53007
Dec 20, 2004 Style D formed handrail brackets offer 1? in. horizontal and vertical clearance to meet code requirements and recommendations of Americans with Disabilities Act Accessibility Guidelines. ADAAG Section Advisory 505.6 states that space between wall and handrail must be 1? in. and that horizontal projections should be 1? inches minimum below bottom of handrail gripping surface. Brackets meet both clearance requirements.

Device Technologies, Inc.    Southborough, MA 01772-1033
Dec 15, 2004 Grommets are available in bulk packaging of factory pre-cut lengths, reducing waste and saving time of manual cut-off. Kits are suited for use on assembly lines to reduce scrap and increase throughput. They may also be shipped with products for customer end-use installation. All kit envelopes are printed to customer specifications.

Misumi USA    Schaumburg, IL 60173
Dec 07, 2004 Offered in sizes from 3-18 in. Angle Plates combine iron, steel, 304 stainless steel, or aluminum casting with straightness and perpendicularity within 0.003 in. over 6 in. run to guarantee precise fit with no gaps between machinery and plate. Faces and edges are machined flat, square, and parallel. Plates are available with standard pre-drilled mounting hole patterns as well as without holes to allow customer to drill plates in-house.
