Eaton Corporation    Raleigh, NC 27615
Sep 19, 2011 Available in open and enclosed configurations, Model S611 minimizes shock to mechanical components by gradually accelerating and decelerating load. Unit features integrated bypass as well as overload, undervoltage, overcurrent, phase loss, jam, and stall protection. Offered in 6 frame sizes for current ranges from 26-414 A, controller can take 230-600 V with power from 40-350 hp. It is rated to NEMA Type 1, 12, 3R, 4, and 4x with high-fault combination ratings up to 100 KA.

ABB Automation    New Berlin, WI 53151
Sep 19, 2011 Suited for applications where space is limited but advanced functionality is required, PSE Series features built-in class selectable electronic overload, built-in bypass, language-neutral backlit LCD, and 4-button keypad. All circuit boards have protective coating, ensuring reliable operation in environments where corrosive gases and acids may exist. Ensuring balanced control of all 3 phases, 2-phase torque control eliminates DC component during starting and stopping of motor.

Maxon Precision Motors    Fall River, MA 02720
Sep 19, 2011 Measuring 45 mm in diameter, 70 W Brushless DC Flat Motor is available with Hall sensors and comes in 4 windings of 24, 30, 36, and 48 V. Unit delivers max continuous torque of 130 mNm at up to 85% efficiency. Motor can be combined with more than 54 planetary and spur gearheads. Designed as internal or external rotor motor, unit is suited for self-contained drive systems as well as industrial automation applications.

Buehler Motor, Inc.    Morrisville, NC 27560
Sep 19, 2011 Available in 70-100 mm lengths, 40 mm BLDC motor features 8-pole rotor with plastic-bonded neodymium magnets and 3 Hall sensors that precisely position rotor within motor. Segmented stators allow for maximum copper fill for optimal performance, and precision ball bearings ensure smooth operation over 20,000 hr life. Designed for rotational speeds between 6-48 V, motor is capable of block, sinus and vector commutations and is customizable with flat, thread, or cross bore shaft designs.

Midwest Motion Products    Watertown, MN 55388
Sep 13, 2011 Accepting any 12 Vdc source, including solar or battery power, Model MMP TM57-12V GP52-124 develops 136 lb-in. torque at 35 rpm. Reversible gearmotor measures 2.24 in. D x 7.76 in. L and has keyed output shaft of 12 mm D x 25 mm L. Mounting is accomplished with 4 face mount M5 threaded holes, equally spaced on 40 mm dia BC. Featuring IP54 rating for operation in harsh environments, motor requires just 7.2 A at 12 Vdc to generate full load torque.

Midwest Motion Products    Watertown, MN 55388
Aug 25, 2011 Measuring 2.24 in. dia x 8.35 in. long with 12 mm dia x 25 mm long keyed output shaft, Model MMP-TM57-24V GP52-2076 accepts any 24 Vdc source, including solar or battery power. Reversible gearmotor requires just 3.6 A at 24 Vdc to generate full load torque. Motor windings for 12, 28, 36, 42, 48, 60, and 90 V are available. IP54-rated for operation in harsh environments, motor is mounted via 4 face mount M5 threaded holes, equally spaced on 40 mm dia B.C.

Yaskawa Electric America, Inc., Switch Div.    Waukegan, IL 60085

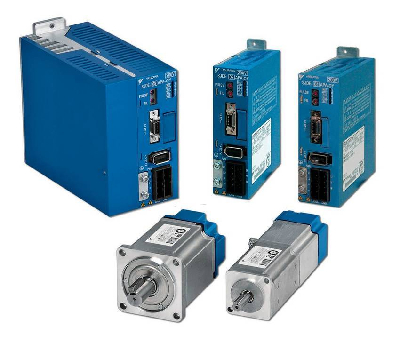

Aug 18, 2011 Supporting speeds up to 4,500 rpm, Junma AC Servo accepts pulse reference input from host controller or PLC. System parameters are set on system power up, machine load inertia is calculated automatically, and tuning gains are adjusted dynamically, even when load changes. Four servo motor and amplifier sets are available with rated outputs from 100-750, capable of both 100 and 200 V input voltages. Feedback is provided with 16-bit incremental encoder, delivering resolution of 65,536 pulses/rev.

Nippon Pulse America, Inc.    Radford, VA 24141
Aug 11, 2011 With 4 mm dia shaft and stroke lengths to 40 mm, model S040 suits small-scale applications. It provides up to 0.98 N continuous force, 0.6 Arms continuous current, 3.8 N acceleration force, and 2.2 Arms acceleration current. Regardless of winding size, servomotor has width of 10 mm and forcer length of up to 79 mm. Designed for minimal heat generation, product uses all magnetic flux and has no cogging. These features enable sub-micron resolution without external heat sink.

BEI Kimco Magnetics    Vista, CA 92081
Aug 03, 2011 Meeting requirements of down hole oil exploration, 3.6 in. OD x 12.5 in. long Model DII36-125-000A survives ambient temperatures approaching 200°C and pressures of 30,000 psi. Hall effect sensors are provided for commutation, and samarium cobalt magnets ensure efficient operation. Also, housing allows motor to be filled with oil to compensate for elevated pressures. Product delivers 62 lb-in. peak torque and 44 lb-in. at speeds of 2,000 rpm on continuous basis.

AutomationDirect.com    Cumming, GA 30040-9905
Jul 18, 2011 Offered with 1-200 hp ratings and 1,200, 1,800, and 3,600 rpm speeds, IronHorse(TM) 3-phase, industrial-duty T-frame and TC-frame TEFC motors feature ribbed cast iron frames for optimal cooling. Products also feature solid full frame length cast iron mounting feet, cast iron junction box with rubber gasket, and rubber dust cover. While motors 10 hp and lower employ maintenance-free bearings, larger motors are available with NSK/NTN/SKF ball or roller bearings.

Nippon Pulse America, Inc.    Radford, VA 24141
Jul 18, 2011 Featuring 2-phase, tin-can style design, Model PF55 is available with both unipolar and bipolar windings. With unipolar winding, unit offers holding torque of 120 N, while bipolar winding provides 150 N of holding torque. In full-step excitation mode, motor has 48 steps/rev, rated voltage of 5 and 12 V, inductance from 12-37 mH, and 5-36 W resistance. Gearhead version, available with 20 ratio options from 6/25 to 1/300, provides max torque of 400, 700, and 1,000 mNm.

Bosch Rexroth AG Industrial Hydraulics      Germany
Jul 15, 2011 Featuring 4 sizes with graded lengths and max force range of 20-1,700 N, MCL Series supports accelerations up to 300 m/s² and max speed of 1,200 m/min. Ironless primary part contains 3-phase copper winding, which is completely compound-filled and not inserted into iron core. U-shaped secondary part contains permanent magnets and encloses primary component. Able to position small parts with max synchronization, motors are suited for assembly and handling in semiconductor and solar industries.

Marathon Electric, a Regal-Beloit Company    Wausau, WI 54401
Jul 06, 2011 Housed in IP54+ rated enclosures with MAX GUARD® insulation system for use in strenuous environments, SyMAX(TM) Ultra-Efficient(TM) Series includes SyMAX(TM) FHP with NEMA 48 frame and SyMAX(TM) IHP with 182-215T frame. Radial flux design enables elimination of sheaves and belts, gearboxes, and chains in certain applications. SyMAX-i(TM) FHP model features IntelliDrive(TM) embedded electronic control system with proprietary algorithms that allow power to be controlled while maintaining optimal efficiency.

Maxon Precision Motors    Fall River, MA 02720
Jun 28, 2011 Featuring 60° winding pattern and NdFeB high performance magnet, EC16 is available with hall sensors or as sensorless solution. There are up to 5 winding types available and 4 motor options: 30 or 60 W, sterilizable or non-sterilizable. Designed for stability and quiet running, motor is coupled with gearheads that are also sterilizable and can be used in medical and hand tool applications.

Eaton Corp.    Pittsburgh, PA 15272
Jun 24, 2011 Suited for pump, fan, and conveyor belt applications as well as water/wastewater and HVAC industries, DS7 Soft Start Controllers provide smooth acceleration and deceleration of load, minimizing shock to mechanical components. Units are available for current ranges from 16-32 A. With asymmetric delay angle control, devices help make torque behavior similar to 3-phase starter. UL approved controllers can take 24 Vac/Vdc or 110 V/230 V of alternating control voltage.

Animatics Corp.    Santa Clara, CA 95054
Jun 21, 2011 Featuring Mil-style connectors and IP65 rating, SM23165MT-IP SmartMotor(TM) is completely dust-tight and can withstand splashing water, oil, non-hazardous liquid and food debris, and rainy conditions. Motion control system supports Combitronic communication protocol as well as DeviceNet or CANopen. Unit features 10 points of 24 V I/O, stand alone linear interpolation, RS-485 port, and programmable limits. For applications requiring complete submersion up to 1 m deep, IP67 upgrade is available.

Crouzet    San Diego, CA 92154
Jun 17, 2011 Providing output torque up to 120 Nm, 3-stage Model 80199701 handles high side loads with 1,000 N radial and 200 N axial. Standard motor package features IP20 protection rating that can be upgraded to IP54. Measuring 81 mm dia x 229 mm long, motor incorporates shaft extension on rear, allowing for encoder or brake. Unit can operate with voltages from 6-75 Vdc, uses hall sensors and 8-wire connection scheme, and is available in 1, 2, or 3 stage gearboxes.

H2W Technologies, Inc.    Santa Clarita, CA 91350
Jun 15, 2011 Operating at 400 Vac, 75 Hz, Model LMG-06-650-SSE features synchronous velocity of 675 ips. Non-contacting linear motor is encapsulated in stainless steel enclosure using 400°F potting compound, which protects components and seals against moisture. Three-phase coil assembly can be directly connected to AC line for single-speed applications or to adjustable frequency drive for variable speed control of motor. Model LMG-06-650-SSE is reversible and can be dynamically braked.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502
Jun 07, 2011 AC input stepping motor and driver package, RK Series, is available with 3-channel, 500-line, TTL-based encoder option. Closed-loop, low-vibration, low-noise stepping motor solution comes in 42, 60, 85, and 90 mm frame sizes. Additional features include 0.72º resolution and strain relief. Various motors are available, with 3 gear types and microstepping driver with built-in Smooth Drive. Harmonic (HG), Planetary (PS), and Taper Hobbed (TH) gears are available for all frame sizes.

Applimotion, Inc.    Loomis, CA 95650
May 27, 2011 Custom design engineering service, used for incorporating ULT, UTH, UTS, and UTO frameless motor kits into application-specific, direct drive motors, delivers precision encoders and bearings in unique packages. Application-specific design elements can take mechanical, accuracy, and harsh environment requirements into account. After appropriate motor kit is selected, engineers guide end-users through selection of feedback and precision mechanical attributes.
