Technosoft S.A.      Switzerland
Apr 28, 2005 Based on MotionChip™ DSP Control Technology, IM23x motors provide motion control solutions for pulse and direction; stand-alone, pre-stored sequences; and multi-axis applications. Motor, power electronics, controller, position sensor, and interface are integrated into one 104–144 x 57 x 57 mm unit with local digital and analog I/O signals. Offered in 3 lengths, motors produce 0.1–0.3 Nm permanent output torque and operate from 12–48 V power supply.

Midwest Motion Products    Watertown, MN 55388
Apr 28, 2005 Model MMP.TM55-12V.GPK52-029.1 is rated for 2.9 Nm continuous torque at 160 rpm, with 9 Nm peak. Measuring 2.14 in. dia x 7.25 in. long, servo motor features keyed output shaft with 12 mm dia and 25 mm length. Mounting is accomplished with 4 face mount M5 threaded holes, and available options include integral optical encoders, failsafe brakes, analog tachometers, and planetary gear heads.

Bison Gear & Engineering Corp.    St. Charles, IL 60174

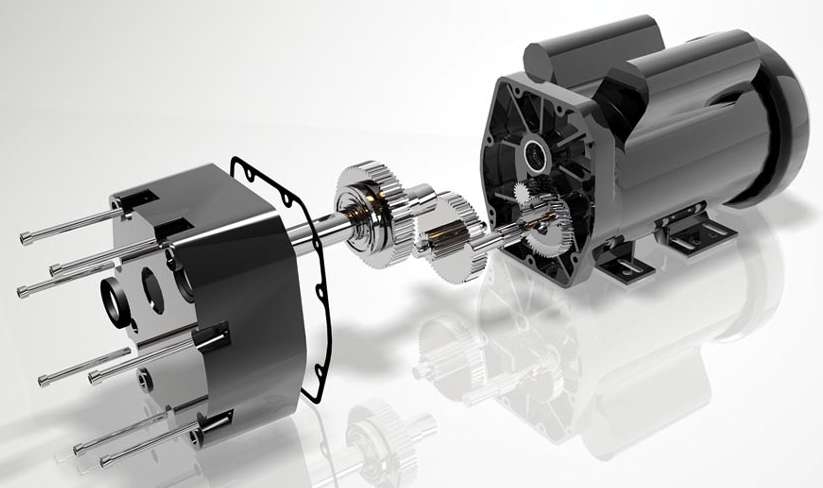

Apr 20, 2005 Available in 5 gear ratios from 5.8:1–42.8:1, 880 series parallel shaft gearmotors are totally enclosed, fan-cooled units with preloaded and permanently lubricated, shielded bearings as well as dynamically balanced rotor shaft. Motor options include single-phase 115/230 Vac, 50/60 Hz or 3-phase 230/460 Vac, 50/60 Hz. Able to produce up to 1,060 lb-in. continuous-duty torque, motors are offered with 2- and 3-stage integral gear cases.

PennEngineering Motion Technologies, A PennEngineering Company    Harleysville, PA 19438 0003

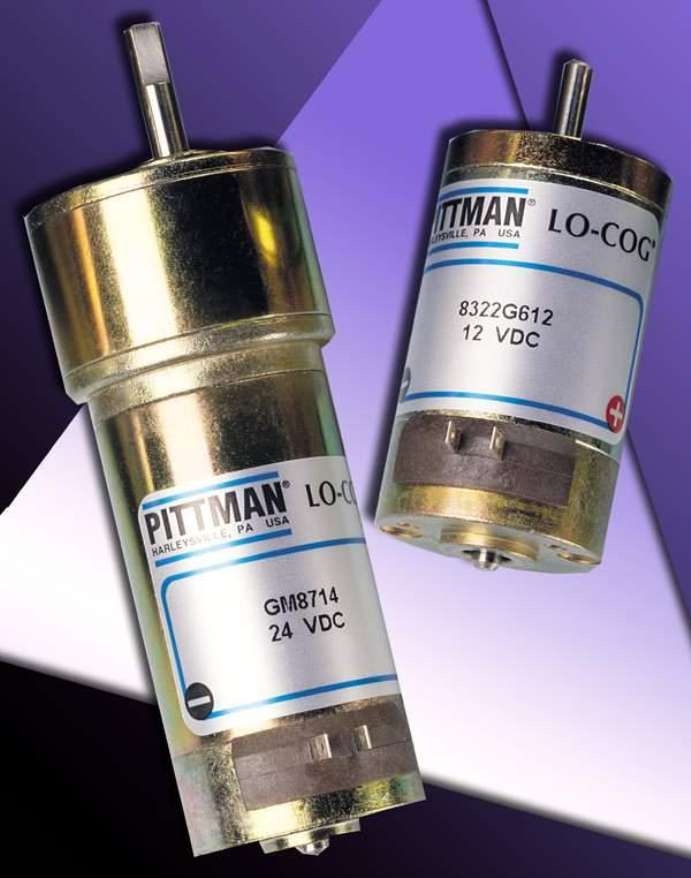

Apr 19, 2005 Pittman® Series 8000 brush-commutated DC motors minimize magnetic cogging at low speeds, which allows smooth and quiet operation. Motors are available in 3 lengths: 2.070, 2.445, and 2.915 in. They can achieve peak torques up to 16.8 oz-in. and speeds up to 10,650 rpm for standard motors at rated voltages. Windings are resin-impregnated for greater reliability. Applications include data storage, medical/biotech, semiconductor, and automation industries.

Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910

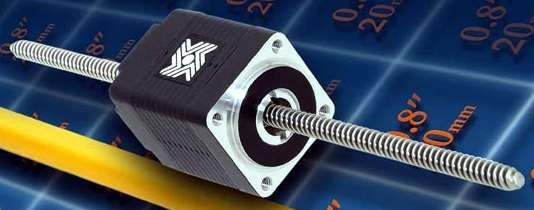

Apr 18, 2005 Suited for linear motion applications, Size 8 hybrid linear actuator features engineering thermoplastics in rotor drive nut and stainless steel Acme lead screw for quiet and maintenance-free operation. It is available in resolutions from 0.0015–0.04 mm per step and delivers thrusts of up to 10 lb. Design is suited for linear travel requirements and applications where lead screw is secured at both ends, and motor translates along lead screw.

Midwest Motion Products    Watertown, MN 55388

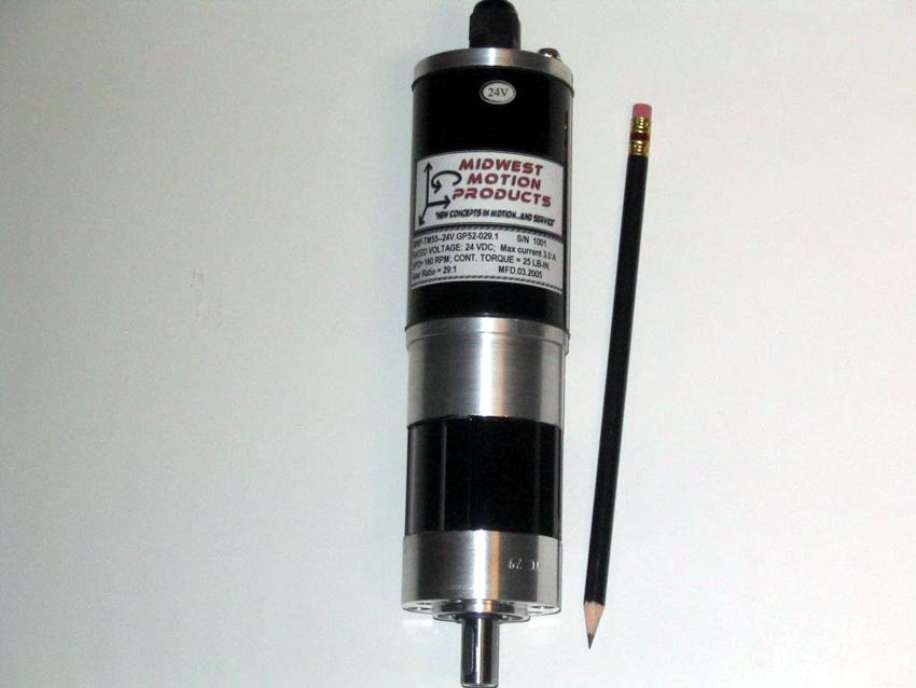

Apr 15, 2005 Measuring 2.14 in. dia x 7.25 in. long, Model MMP.TM55-24V.GPK52-029.1 has keyed output shaft of 12 mm dia by 25 mm long. Mounting is accomplished with 4 face-mount M5 threaded holes, equally spaced on 40 mm dia BC. Output is rated for 2.9 Nm continuous torque at 160 rpm and 9 Nm peak. Motor requires 3.0 A at 24 Vdc to generate full load output torque. Options include optical encoders, failsafe brakes, analog tachometers, and planetary gear heads.

Danaher Motion    Wood Dale, IL 60191-1073
Apr 06, 2005 Superior Electric Series XCE satisfies ATEX standards for use in potentially explosive atmospheres as defined by CE directive 94/9/EC. Motors have flameproof enclosure with max surface temperature of 100°C. Requiring only resistor-capacitor network to operate from single-phase ac utility power, units turn at speeds of 72 rpm with 60 Hz or 60 rpm with 50 Hz. They are available with torques up to 1,500 oz-in., for operation on 120 or 240 Vac, in standard NEMA size 42 or 66 housings.

Bison Gear & Engineering Corp.    St. Charles, IL 60174

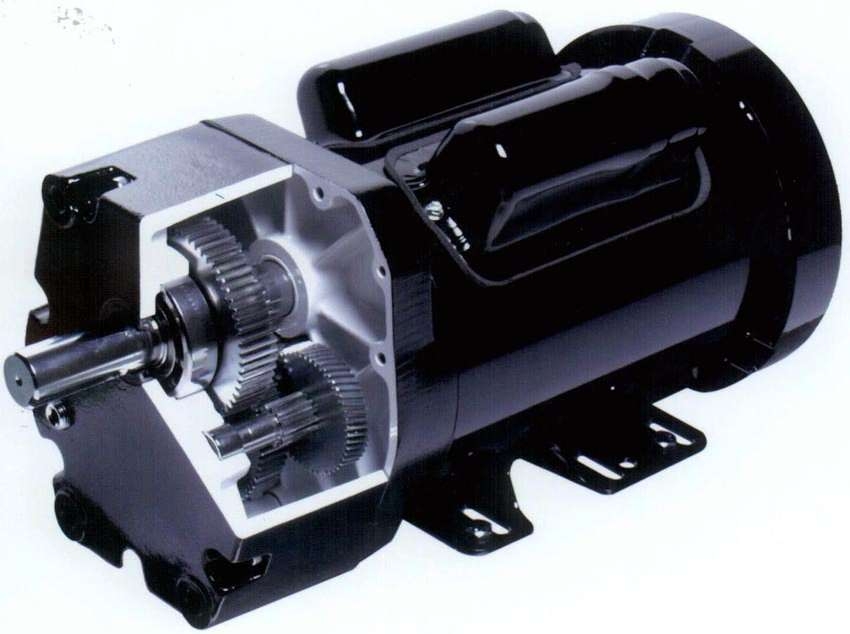

Apr 05, 2005 Parallel shaft 880 series, available in 5 gear ratios from 5.8:1–42.8:1, consists of totally enclosed, fan cooled motors with preloaded, permanently lubricated, shielded bearings and dynamically balanced rotor shaft. Able to produce up to 1,060 lb-in. continuous-duty torque, products feature 2- or 3-stage integral gear cases with AGMA grade 9 hobbed gears. Operation options include single-phase 115/230 Vac, 50/60 Hz or 3-phase 230/460 Vac, 50/60 Hz.

Bison Gear & Engineering Corp.    St. Charles, IL 60174
Apr 05, 2005 Totally enclosed, fan-cooled, reversible motors are 3-phase, 230 V, 50/60 Hz units that can accept optional external brake. Rated from 2–30 rpm @ 6 Hz and 26–437 rpm @ 90 Hz, products include ¼ hp models in 200 and 650 Series and ½ hp models in 400 and 650 Series. AC gearmotors use variable frequency inverter drives to offer constant torque from 6–60 Hz input and constant horsepower from 60–90 Hz; torque ratings range from 92–941 to 59–627 lb-in.

Baldor Electric Company    Fort Smith, AR 72901
Apr 01, 2005 Super-E® brake motors have ISR magnet wire and are inverter-ready. They feature 20:1 constant torque speed range when used with adjustable speed drive, and spring-set brake is mounted opposite drive end, providing NEMA standard foot mount spacing. Features include 230/460 V brake coils, 1-30 hp, 1,780 rpm, and TENV or TEFC enclosures. Super-E Washdown ½-5 hp brake motors, designed for food processing applications, are also available.

Baldor Electric Company    Fort Smith, AR 72901
Apr 01, 2005 SSMSM series servomotors, available in standard and low inertia models and 5 frame sizes, provides continuous torque to 280 lb-in with peak torques ranging 3-4 times continuous. Rated IP67, they withstand 1,500 psi washdown conditions and can be used in harsh, corrosive, high hygiene environments. With UL, CSA CE and BISSC agency approvals, typical applications include food/liquid processing, packaging, pharmaceutical, and beverage handling.

Lin Engineering    Santa Clara, CA 95054
Mar 18, 2005 Suited for commercial grade vacuums up to 10 Torr, Nema size 11, 1.8° vacuum motors in 211 Series employ no-lube stainless steel bearings or special-lube stainless steel bearings depending on rating of vacuum environment. Series measures 1.1 in.² and includes models with 1.24 in. (211-13), 1.75 in. (211-18), and 1.99 in. (211-20) lengths and respective holding torque capabilities to 9.2, 13.7, and 16.6 oz-in.

Bodine Electric Company    Northfield, IL 60093
Mar 16, 2005 INTEGRAmotor integrates brushless dc motor and speed control in one package, minimizing both EMI and installation time. It operates from regulated 24 Vdc power supply and is available with or without integral gearbox; parallel and in-line gearboxes are offered with outputs from 1.0-2,500 rpm. Stock models accept analog ±5 Vdc input signal for speed control or direction. Hollow shaft and OEM custom built-to-order models are also available.

Servo Magnetics, Inc.    Canoga Park, CA 91303
Mar 14, 2005 At 48 V, Model 000-0358 brushless DC frameless motor operates at 200 rpm and delivers 600 oz-in. of torque with 80% efficiency and can deliver burst of stall torque up to 1,300 oz-in. Compact 6.5 in. dia x 2 in. long motor utilizes high-energy, high-temperature, rare-earth magnets, making it suitable for use in applications where demanding temperatures are found. Custom mounting configurations and variety of electrical and mechanical options are available.

Copley Controls Corp.    Canton, MA 02021
Mar 08, 2005 ServoTube(TM) Motors feature magnetic design that enables Hall position sensor to replace optical encoder, allowing motors to meet IP67 specifications and permitting regular wash-downs. Users can double or triple drive force by using 2 or 3 forcers on single thrust tube. Four models with 25 mm diameter thrust rods provide 11.5-23 lb continuous force, 70-175 lb peak force, and max travel of 1,186 mm. Models with 38 mm diameter thrust rods are approx 3x as powerful.

Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910
Mar 04, 2005 Size 8 captive linear actuator is designed with integral anti-rotation mechanism for applications where external anti-rotation methods would not work. It features engineering thermoplastics in rotor drive nut and stainless steel Acme lead screw. With resolutions ranging from 0.0015–0.04 mm per step, thrusts up to 4.5 kg, and 21 x 21 mm frame size, applications include medical equipment, x-y tables, and valve control. Custom designs are also available.

LEESON Electric Corp.    Grafton, WI 53024-0241
Feb 28, 2005 With max rating of ¼ hp @ 2,500 rpm, DC Washguard® products meet IP55 environmental conditions and feature stainless steel or Mirolon 3300 fortified Teflon® output shafts. Motors are offered with face or base mounting. Gearmotors with parallel output shaft have ration options from 5:1 up to 336:1, with full-load torque exceeding 300 in-lbs. Right angle shaft configurations offer ration options from 5:1-60:1, single stage, with torque up to 135 lb-in.

Baldor Electric Company    Fort Smith, AR 72901
Feb 25, 2005 Series DSM includes NEMA frame sizes 17, 23, and 34, each with 1, 2, or 3 winding stacks. Torque ratings include 32, 60, 74.9, 90, 144, 239, 381, 575 or 1,061 oz-in. The 1.8° stepping motor can be configured for operation in any of 14 step sizes from ½-256 micro-steps per full step using Windows® utility and motor-to-PC set-up cable. Chosen setting is stored in non-volatile memory and may be modified on-the-fly by motion controller if required.

Danfoss Bauer Inc.    Somerset, NJ 08873 1212
Feb 18, 2005 Three-phase, 2-stage BS Series worm geared motors are available with power range from 0.05–7.5 hp, output speeds of 0.2–300 rpm, and torque of 220–8.850 lbf-in. With stator windings of insulated enameled copper wire, aluminum die cast cage rotor, and sealed gearbox housing, motors offer IP 65 rating. Installation options include foot or flange with single or double output shaft, shaft mounting with hollow shaft in keyed, or shrink disk version with torque arm.

Empire Magnetics, Inc.    Rohnert Park, CA 94927 1908
Feb 16, 2005 Available in 8 standard frame sizes, stainless steel Series WD withstands frequent wetting or washdown. For food service and other washdown applications where motor is not normally submerged, units are supplied with cooling fans. For marine or nuclear applications where submerged motors are cooled by surrounding water, motors are oil-filled and pressure-compensated. Custom versions for use in reactor pools are also available.
