Rockwell Automation    Milwaukee, WI 53204
Aug 12, 2005 Offering 1,200 psi washdown capabilities, MP-Series stainless steel motor meets government regulations in industries such as food, beverage, and life sciences. Meeting IP66, IP67, and IP69K standards, passivated 300-series stainless steel housing can be cleaned with caustic chemicals without concerns about corrosion or motor damage. Shaft slinger protects shaft seal against direct high-pressure spray and prevents abrasives from damaging seal.

Elwood Corp.    Oak Creek, WI 53154

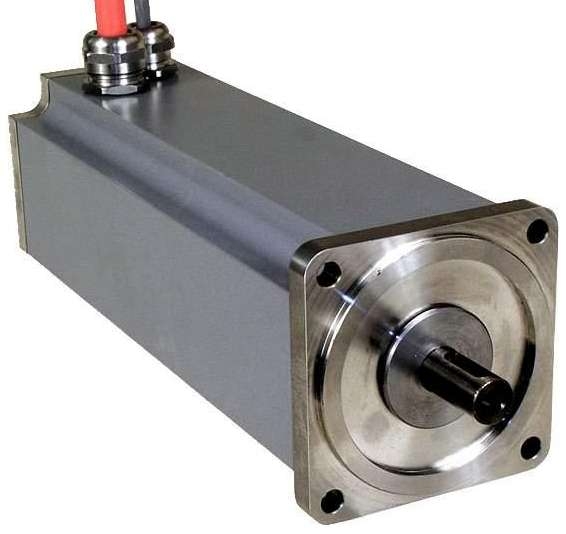

Aug 08, 2005 Utilizing smooth, finless aluminum housing, Severe Duty SD-Series exceeds IP66 guidelines for complete protection against dust, strong jets of water, and effects of immersion. All other external components are 300 series stainless steel. Design minimizes possible entrapment of food particles with single-piece motor/feedback housing, while non-contact, stainless shaft seal provides protection against moisture intrusion around shaft opening.

Elwood Corp.    Oak Creek, WI 53154
Aug 08, 2005 Suited for use in beef, poultry, dairy, and pharmaceutical industries, SS-Series All-Stainless Servo Motors utilize single-piece tubular housing and round mounting flange to eliminate potential pooling points. All external surfaces are 300 series stainless steel, and design incorporates radiused corners. Use of non-contact, stainless steel shaft seal and redundant o-ring seals protect against moisture intrusion.

PennEngineering Motion Technologies, A PennEngineering Company    Harleysville, PA 19438 0003
Aug 05, 2005 Available in lengths of 1.256, 1.556, and 1.901 in. Pittman® Series 6000â„¢ 22 mm brush-commutated motors utilize skewed 5-slot armature design and bonded neodymium iron boron magnets. They achieve max peak torques up to 10.2 oz-in. and speeds up to 8,550 rpm. Modular motor design enables customization with cables, shaft-mounted pulleys and gears, ball bearings, windings, optical encoders, and planetary gearheads to satisfy application requirements.

Lin Engineering    Santa Clara, CA 95054

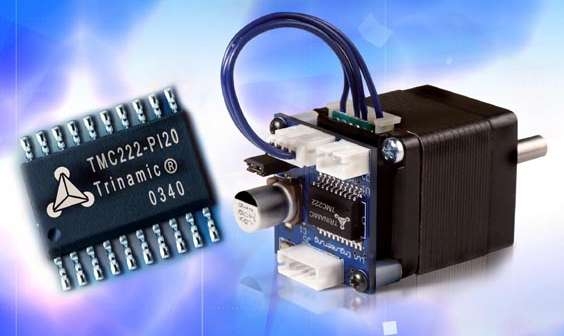

Aug 02, 2005 MiniPak combines NEMA Size 11, 1.8° step motor with drive/control board using Trinamic TMC222 drive chip. Motor measures 1.1 in.² and produces 9.2 oz-in. of holding torque. Operating from 8–29 Vdc, drive board has programmable coil current up to 800 mA and is capable of 2x–16x microstepping. It contains fixed frequency PWM current control with automatic selection of fast and slow decay mode as well as built-in ramp generator for autonomous positioning and speed control.

Nidec Copal USA Corp.    Torrance, CA 90501

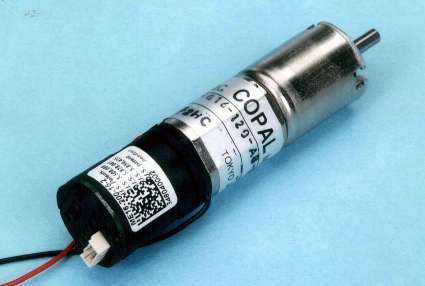

Aug 02, 2005 Measuring 0.63 in. OD x 2.46 in. long, Series HG16 integrates miniature DC motor, geartrain, and encoder assembly. Available in 12 models with voltages of 6, 12, and 24 V, units offer gear ratios of 30:1, 60:1, 120:1, and 240:1 and torque from 3.47–6.94 oz-in. No load speeds range from 390 rpm in 30:1 model down to 60 rpm in 240:1 models. Optional encoder allows user to position gearmotor in increments of 75, 150, 160, and 200 counts of positions per revolution.

Applimotion, Inc.    Loomis, CA 95650

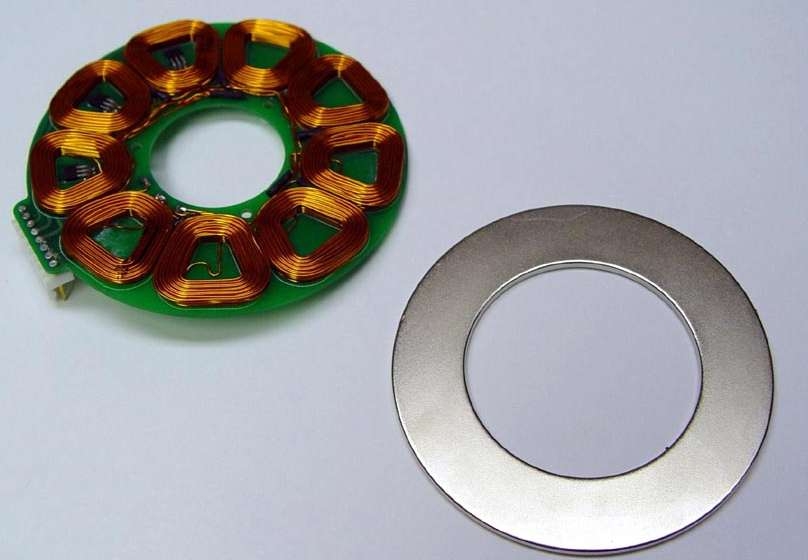

Aug 02, 2005 Frameless, Axial Airgap Series AAG offers smooth sinusoidal torque output versus angle and applies to almost any speed range. Motors can be optimized for 3-phase brushless motor controllers from 5–48 V with speeds from 0.1–20,000 rpm. Axial thickness of 5 mm can be achieved at up to 300 mm diameter. Applications include scanning equipment, inspection machines, and small integrated pumps.

AutomationDirect.com    Cumming, GA 30040-9905
Jul 27, 2005 SureServoâ„¢ digital brushless servo systems include 8 servo motors, in brake and non-brake models, that can be operated with 1 of 3 servo drives. Systems range from 100 W to 3 kW continuous power, and can be controlled in position, velocity, or torque mode. Utilizing 8 programmable inputs and 5 programmable outputs, real-time connectivity with any control system is assured. Configuration and diagnostics is accomplished using keypad/display or SureServo Proâ„¢ PC-based software.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005

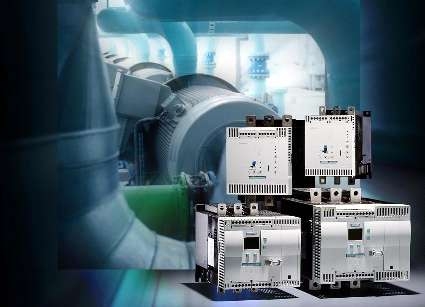

Jul 25, 2005 Sirius 3RW40 controls 2 phases in power range up to 300 hp/460 V, while Sirius 3RW44 features closed-loop torque control, allowing it to start drives up to power rating of 950 hp/480 V in standard configuration. Both have motor protection with adjustable overload tripping time, and bypass contact system, which minimizes power loss. Polarity Balancing ensures smooth start-up by generating uniform motor starting characteristics in speed, torque, and current.

Bodine Electric Company    Northfield, IL 60093
Jul 18, 2005 Compact, built-to-order type -HG gearmotors are available with 42R ac induction, 33A permanent magnet dc, and 34B brushless dc motors. Design utilizes 3-stages of gearing, providing gear ratios from 6:1-110:1. Able to output from 3-23 rpm, products are unvented with needle bearings for intermediate gear stages and large ball bearings on output shaft. They feature selectively hardened helical and spur gearing as well as single, double or hollow shaft configuration options.

Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910

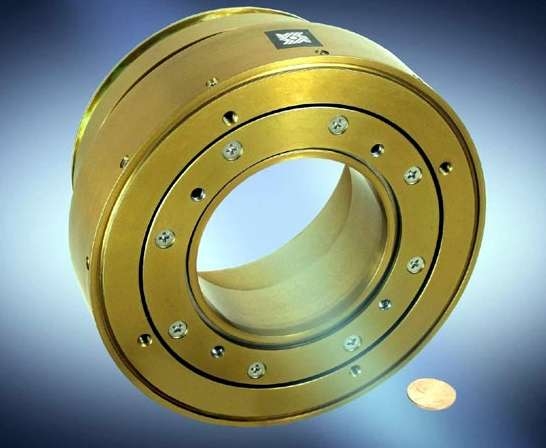

Jul 12, 2005 Suited for military and heavy duty automation applications, hollow pancake stepper motor provides 1.8° step angle and 400 oz-in. of torque. At 5.7 in. dia and 1¼ in. thick, motor accommodates microwave tube through 2½ in. central hole. Standard configuration includes ball bearings. Optional coils are available in wide voltage range with bipolar or unipolar configuration.

Danaher Motion    Wood Dale, IL 60191-1073
Jul 12, 2005 Available with unipolar or bipolar construction and sintered bronze sleeve bearings, Portescap 42S048 Can Stack Step Motors feature 7.5° step angle and provide up to 7.2 oz-in. of holding torque. Windings can be optimized to satisfy specific application requirements. Motors are suited for medical equipment such as analyzers, pumps, and scanners, as well as factory automation applications.

Nippon Pulse America, Inc.    Radford, VA 24141
Jul 07, 2005 Available with outside dimensions of 25 and 35 mm, LINEARSTEP® motor employs special type of thread spec and neodymium magnet rotor. Typical applications include X/Y table laboratory systems, medical pump devices, semiconductor wafer handling machines, optical camera systems, and antenna communication devices.

Falk Corporation    Milwaukee, WI 53208

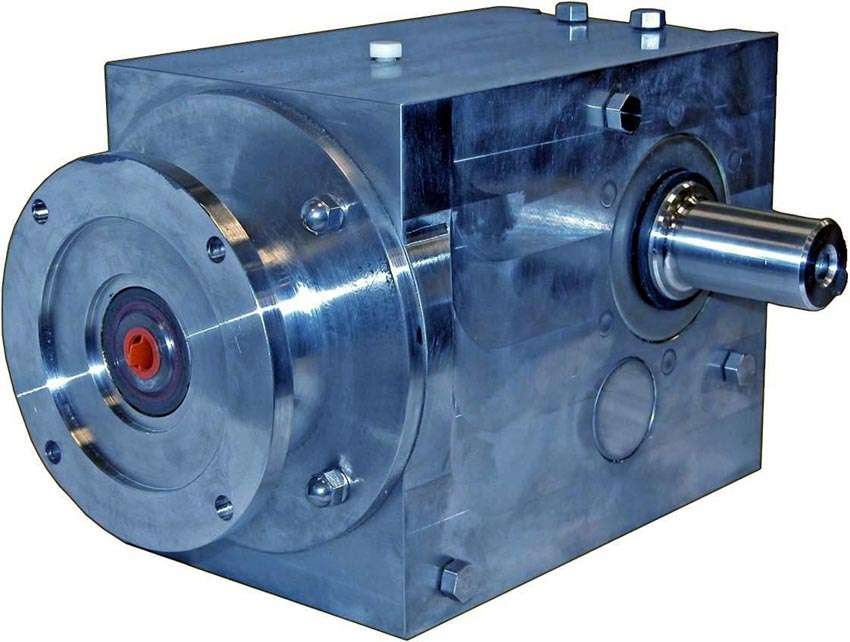

Jun 09, 2005 Ultramite SS right-angle, helical bevel gear drives feature smooth housing and C-Face mounting surfaces constructed of corrosion-resistant 316SS Stainless Steel. All unused housing holes are plugged with stainless steel caps, and nameplate information is etched into housing. Dual Lip/High Pressure Exclusion Seals keep lubrication in, while standing up to harsh chemical and high-pressure wash down environments. All hardware features capsulated locknuts.

Selco Products Co.    Reno, NV 89521-5908

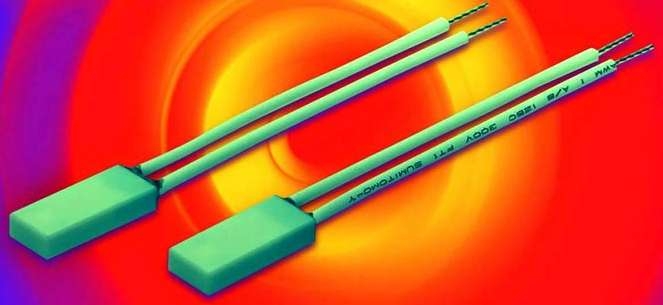

Jun 08, 2005 Designed to provide overload and overheat protection, EP42P combines non self-resetting function with built-in ceramic PTC heater positioned directly next to bi-metal sensing switch to provide operational safety in appliances with moving parts. Measuring 17.0 x 7.3 x 3.9 mm, miniature solution features PBT resin-encased enclosure and non-current-carrying bimetal element. It meets UL requirements of motor protection 125 V/250 Vac, ½ hp max.

Lin Engineering    Santa Clara, CA 95054
Jun 02, 2005 Provided with miniature E4 encoder from US Digital, 211 series 1.8º, NEMA 11, bipolar step motors measure 1.1 in.² and are available in 1.24, 1.75, and 1.99 in. lengths. Product, depending on length, can produce max holding torques of 9.2–16.6 oz-in. Integrated encoder provides digital quadrature encoder feedback of motor position as well as stall detection. Capable of tracking 100–300 cycles/rev and 400–1,200 ppr, encoder adds 0.9 in. of length to motor.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089

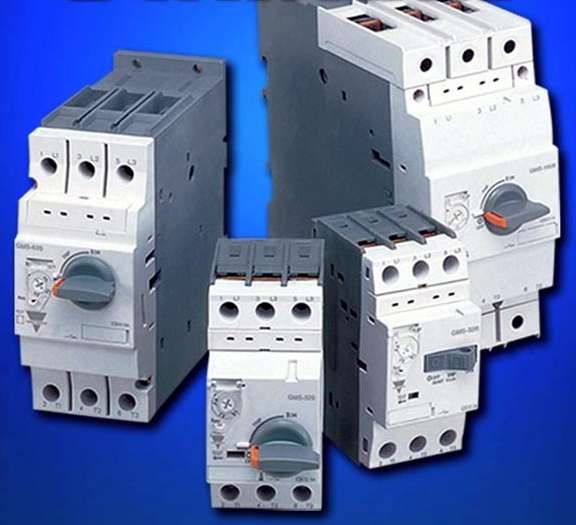

Jun 01, 2005 Equipped with IP20 finger safe terminals and trip test, GMS Series includes 3 frame sizes rated for up to 32, 63, and 100 A. All units are available with rotary switch, except 32 A version, which is available with rotary and rocker switch. Slide out handle provides method to lock manual motor starter in OFF position, and dial cover secures current trip setting. Able to be DIN rail or surface mounted, devices are UL and cUL listed and CE marked.

Bodine Electric Company    Northfield, IL 60093

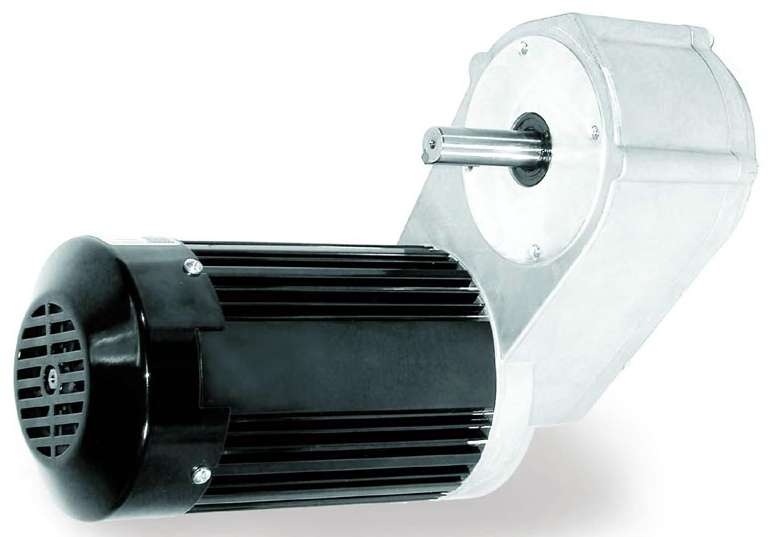

May 23, 2005 Pacesetter(TM) AC inverter duty motors, gearmotors, and AC variable speed controls feature Quintsulation(TM) 5-stage insulation system. Protected against spikes and corona damage caused by inverter, motors and gearmotors are rated from 1/25-¾ hp, 230 Vac, 60 Hz, 3-phase. Fan-cooled, totally enclosed units feature aluminum center ring and endshields as well as hardened helical output gearing. Hollow shaft versions of right-angle gearmotors are also available.

Servo Magnetics, Inc.    Canoga Park, CA 91303
May 20, 2005 Suited for applications sensitive to torque ripple, model 000308-02 produces cogging torque of no greater than 1 oz-in. at 60 rpm. Smooth running characteristics make unit eligible for use in high-resolution printing, scanning, and positioning applications. Proprietary encapsulation process protects motor windings in harsh environments. Measuring 3.6 x 1.25 in., product has peak torque of 200 oz-in. and is offered with drive-specific commutation and mounting options.

Midwest Motion Products    Watertown, MN 55388
May 12, 2005 Measuring 2.14 in. dia x 7.75 in. long, Model MMP.TM55-24V.GP52-100.1 features keyed output shaft measuring 12 mm dia x 25 mm long. Output is rated for 10.0 NM continuous torque at 46 rpm and 40 Nm peak. Unit requires 3.0 A at 24 Vdc to generate full load output torque. Mounting is accomplished with 4 face-mount M5 threaded holes spaced on 40 mm dia BC. Options include integral optical encoders, failsafe brakes, analog tachometers, and planetary gear heads.
