Siemens Energy & Automation, Inc.    Alpharetta, GA 30005
Feb 28, 2006 Rated up to 20 hp, Industrial AC Motors are offered in aluminum, cast iron, and severe-duty cast iron frame configurations. Specially designed cooling fins, polypropylene fan, and internal cooling scheme minimize heat build-up. Rotating assembly incorporates anti-friction bearings, polyurea-based grease, dynamically balanced rotor, and precision-machined mating surfaces. Insulation system meets NEMA Class F standards with Class B temperature rise at 1.0 service factor.

Midwest Motion Products    Watertown, MN 55388
Feb 17, 2006 Accepting any 24 Vdc source including battery power, Model MMP-TM55-24V GP52-100 measures 2.14 in. dia x 7.75 in. long and has keyed output shaft measuring 12 mm dia x 25 mm long. Mounting is accomplished with 4 face mount M5 threaded holes, equally spaced on 40 mm diameter BC. Gearmotor is rated for 11.3 Nm continuous torque at 46 rpm and 56 Nm peak. IP54 protection level enables use in harsh environments.

Sanyo Sales & Supply Company    Bensenville, IL 60106
Feb 08, 2006 Sensorless PM Series brushless dc micro motor has 20 mm dia sleeve, 8.4 mm high x 25 mm dia rotor, and total height of 25 mm. With ceramic air bearing design that uses air as lubricant, motor features operating voltage of 12 Vdc, 70 mA load current, speed of 10,000 rpm (typ), and operating temperature range of 0-90°C. Motor is suited for applications requiring high speed and quiet operation at high temperatures.

Nanomotion    Ronkonkoma, NY 11779
Feb 01, 2006 Measuring 9 x 17 x 5 mm and weighing 5 grams, Model MM provides unlimited linear or rotary motion with .17 N of driving force and velocity up to 250 mm/sec. Motor works with company's standard amplifiers and any servo control, and can be integrated to most bearing structures. Small size and weight make motor suitable for end of arm tooling requirements.

Performance Motion Devices, Inc.    Lincoln, MA 01773
Jan 31, 2006 Available for dc brush, brushless dc, and microstepping motors, ION(TM) DC Brush Drive provides network connectivity, power amplification, and distributed control in asynchronous serial network (RS485) or CANBus network. Up to 127 ION modules can be connected on single network. With output of up to 15 A peak, and 500 W at 56 V, it features hardware performance trace, on-the-fly profile changes, and PLC style inputs and outputs.

eCycle, Inc.    Temple, PA 19560
Jan 20, 2006 Weighing 10.5 lb, EA Series brushless motors produce 11 kW at 6,500 rpm and operate at 12-72 Vdc up to 450 A. They feature custom housing and end bells, along with lightened rotor and titanium shaft. Developed to enable vertical take off and landing operations in unmanned aerial vehicles, motors are also suited for defense and aerospace applications such as hybrid and electric vehicles, mobile power generation and auxiliary power units, and aircrafts.

Midwest Motion Products    Watertown, MN 55388
Jan 16, 2006 Accepting any 24 Vdc source, Model No. MMP-TM55-24V GPk52-022 produces output rated for 2.5 Nm continuous torque at 205 rpm and 9.0 Nm peak. It measures 7.25 in. long x 2.14 in. dia and has 25 mm long x 12 mm dia keyed output shaft. Mounted via 4 face mount M5 threaded holes equally spaced on 40 mm dia B.C., motor requires 3.6 A @ 24 Vdc to generate Full Load Output Torque. Unit is rated to IP54 for use in harsh environments.

PennEngineering Motion Technologies, A PennEngineering Company    Harleysville, PA 19438 0003
Jan 12, 2006 Suited for heavy-duty power applications, brush-commutated MAE® Series 600 achieves continuous torque up to 198 oz-in. and speeds up to 3,500 rpm. Units feature ball bearings, 4-pole stators, and 21-slot armatures to minimize magnetic cogging and enable smooth, quiet operation. Motors are suited for data storage, medical/biotech, semiconductor processing, and automation applications.

Schneider Electric    Palatine, IL 60067-7399
Jan 10, 2006 Combining power and control functions with built-in intelligence and modular structure, Telemecanique® TeSys® U-Line Motor Starter operates up to 20 hp at 480 Vac with breaking capacity of 50 kA/400 V. Communication and interface modules for various network protocols enable starter to be integrated into any automation system. Broad setting ranges and ac/dc multi-range voltages enable 6 control units to meet requirements of motor applications up to 32 A.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502
Jan 02, 2006 Dustproof, splashproof, aStep AS series motor and driver packages never lose synchronization due to embedded rotor position sensor that constantly monitors performance. Protective earth ground terminal is installed on metal connector to motor case, conforming to ISO 12100. At 60 mm², AS66A and AS69A develop 170.0 and 280.0 oz-in. holding torque respectively, while 80 mm² AS98A and AS911A motors develop respective holding torque of 280.0 and 560.0 oz-in.

Baumüller Holding GmbH & Co. KG    Nürnberg D-90482  Germany
Dec 19, 2005 With stiff design suited for direct torque transfer, DSD 56...IPG incorporates planetary drive and dynamic servo motor for direct connection. Compact unit, suited for applications with maximum torque and dynamics requirements, does not require terminal connections or additional bearings. Self-cooling unit with fully encapsulated motor features continuous housing design, protected to IP65.

Baumüller Holding GmbH & Co. KG    Nürnberg D-90482  Germany
Dec 19, 2005 Offering alternative to IEC motors, DA 280 produces rated output to 450 kW. Air- and water-cooled versions are available that feature protection ratings of class IP23 and IP54 respectively. Compact unit is suited for use in plastics industry as well as general motion applications.

Midwest Motion Products    Watertown, MN 55388
Dec 01, 2005 Accepting any 12 Vdc source including battery power, Model MMP-TM55-12V GP52-022 measures 2.14 in. dia x 7.25 in. long and has 12 mm dia x 25 mm long keyed output shaft. Mounting is accomplished with 4 face mount M5 threaded holes, equally spaced on 40 mm dia BC. Requiring 7.2 A at 12 Vdc to generate full load output torque, gearmotor is rated for 2.5 Nm continuous torque at 209 rpm and 9.0 Nm peak. It features IP54 design for operation in harsh environments.

Midwest Motion Products    Watertown, MN 55388
Nov 11, 2005 Accepting any 24 Vdc source including battery power, Model MMP-S28-150C-24V GP81-014 requires 13.4 A at 24 Vdc to generate full load output torque. It produces 8.5 Nm continuous torque at 250 rpm and 90.0 Nm peak. Rated IP54 for operation in harsh environments, gearmotor measures 3.2 in. dia x 8.5 in. long and has keyed output shaft of 19 mm dia x 40 mm long. Mounting is accomplished with 4 face mount M6 threaded holes, equally spaced on 65 mm dia BC.

Sanyo Denki America Inc.    Torrance, CA 90501

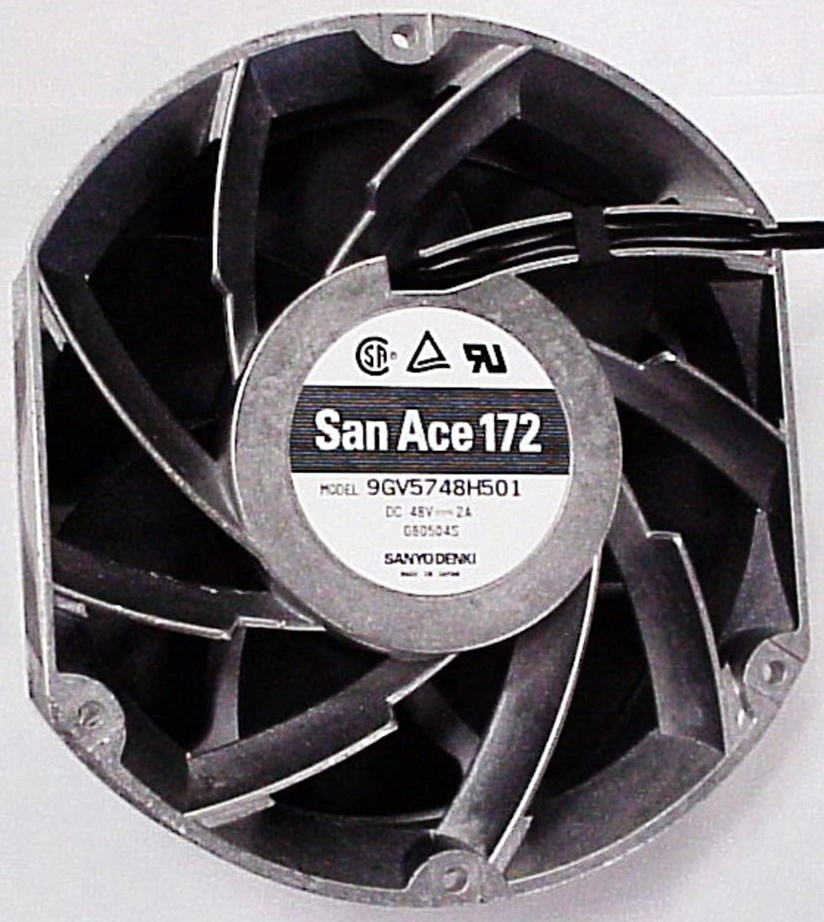

Nov 08, 2005 Offered in 24 and 48 V models, San Ace 172GV sidecut-style fan motor offers quiet operation from 6.77 x 5.9 x 2 in. package. RoHS-compliant unit, designed for use in servers, data storage systems, communications equipment, and industrial equipment, produces max airflow of 11.32 m³/min and consumes 96 W. Its L10 life expectancy is 40,000 hr @ 60ºC. Optional features include tachometer sensor and lock rotor sensor outputs as well as PWM control.

Sanyo Denki America Inc.    Torrance, CA 90501
Nov 03, 2005 Offered in 12, 24, and 48 V models, San Ace 120SG measures 4.72 in. sq x 1.5 in. thick and provides max airflow of 260 cfm. With L10 life expectancy of 40,000 hr at 60°C, RoHS-compliant motor is suited for data storage systems, communications equipment, and industrial equipment. Optional features include tachometer sensor and lock rotor sensor outputs, as well as PWM control, which permits fan's rotational speed to be controlled to attenuate noise and power consumption.

Midwest Motion Products    Watertown, MN 55388
Oct 26, 2005 Accepting any 24 Vdc source, Model No. MMP-S28-150C-24V GP81-035 requires 13.4 A @ 24 Vdc to generate full load output torque. It measures 8.5 in. long x 3.2 in. dia and has 40 mm long x 19 mm dia keyed output shaft. Rated IP54 for operation in harsh environments, unit is mounted via 4 face mount M6 threaded holes and offered with rear shaft extension to accommodate encoder. Output is rated for 20 Nm continuous torque @ 100 rpm and 90.0 Nm peak.

PennEngineering Motion Technologies, A PennEngineering Company    Harleysville, PA 19438 0003
Oct 24, 2005 Available in 2 lengths, MAE® Series 500 can provide continuous torque up to 57 oz-in., depending on model. Units include 11-slot armatures to minimize magnetic cogging, ball bearings, and 2-pole stators. Speed, voltage, current, and torque characteristics can be tailored to meet exact application requirements. Motors are suited for data storage, medical/biotech, semiconductor processing, and automation applications.

PennEngineering Motion Technologies, A PennEngineering Company    Harleysville, PA 19438 0003
Oct 17, 2005 Featuring 6-slot design, PITTMAN® Brushless DC Motors incorporate internal Hall sensor feedback for linear speed-torque characteristics, high starting torque, and variable speed control. Units are 2.3 in. in diameter and are available in 4 stack lengths of ½, 1, 1½, and 2 in. Utilizing neodymium iron boron magnets, motors reach speeds up to 8,000 rpm and mount to NEMA 23 standards. Applications include data storage, medical/biotech, semiconductor processing, and automation.

Bison Gear & Engineering Corp.    St. Charles, IL 60174
Oct 12, 2005 Mounted on gearcases, Bison 100 and 300 Series are comprised of 12 V, dc parallel shaft motors with 1/20-1/6 hp ratings. PMDC (Permanent Magnet Direct Current) motors in 100 Series offers continuous torque ratings to 100 lb-in., while those in 300 series are rated for up to 300 lb-in. torque. Both series are offered with multiple voltage and speed options.
