Applimotion, Inc.    Loomis, CA 95650
Feb 08, 2011 To accommodate needs of scanning and imaging systems, custom micro-linear motor kits feature air-core linear motors that function with servo drives and offer true sinusoidal torque curves. In single- or multi-phase configurations, units can function as limited travel actuators or linear motors and integrate with sinusoidal motor controller electronics. Initial models have profiles below 0.5 in., cover 5 N/A force constant, and operate at up to 5 m/sec on 24 V.

Ducommun Technologies, Inc.    Carson, CA 90745
Feb 02, 2011 With outside dimensions of 3.5 and 3.625 in., AC induction motors are built for performance and reliability at ambient temperatures up to 450°F and pressures to 30,000 psi. They join single-phase electric motors, with ODs from 1.5-3.625 in. (1.5 hp), which can be offered with gear heads, feedback devices, or other custom requirements. Suited for down hole oil exploration tools, motors are typically used to run central hydraulic pump or are directly coupled to drill bit.

Boston Gear    Quincy, MA 02171

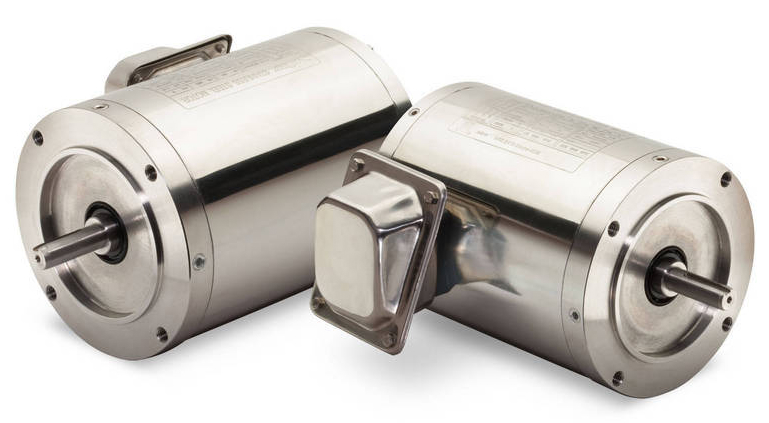

Jan 28, 2011 Available in fan-cooled and non-ventilated models, 230/460 Vac, 3-phase, 60 Hz (50 Hz) motors are totally enclosed and come in 7 sizes from .5-3 hp. Exterior construction consists of 300 Series stainless steel housing, end bells, output shaft, and conduit box. In addition to internally locked bearings that eliminate unwanted axial movement, UL/ULc-certified motors feature Class F insulation, Class B rise @ 1.15 service factor, and epoxy-encapsulated windings.

Safety Technology International    Waterford, MI 48327
Jan 17, 2011 Comprised of 9-gauge steel wire coated with corrosion-resistant, white polyester, Wire Guard Damage Stopper® (STI-9730) protects sensitive equipment against vandalism and accidental damage. It measures approximately 12 x 12 x 12 in. and installs with provided screws and anchors. Recommended for areas where abuse is severe or sensitive equipment must remain operational, variety of wire guards are available for smoke detectors, emergency lights, speaker/strobes, and clocks.

Kollmorgen Corp.    Radford, VA 24141

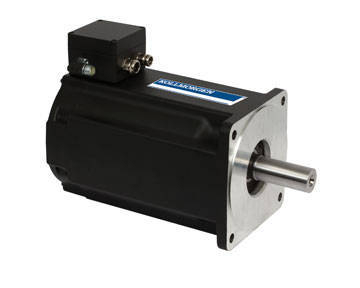

Jan 17, 2011 Available in 8 frame sizes, 28 frame/stack combinations, and 112 standard windings, AKM(TM) 8 Servo Motors provide stall torque from 75-180 Nm and power up to 19.8 kW. Windings are designed to operate at 230, 400, and 480 Vac, eliminating need for voltage transformation for machines deployed in various geographic regions. Featuring one-piece housing with Class F insulation for temperature rating of 155°C, low-cog servomotors are RoHS and REACH compliant.

Crouzet    San Diego, CA 92154
Jan 14, 2011 Offering control for speed and torque in one IP54-sealed package, 801 Series features power ratings to 205 W and torque ranges to 120 Nm. Planetary models cover speeds from 7-627 rpm, while right-angle models cover 44-440 rpm range. All models come in cast aluminum housing that measures 57 mm² and are suited for medical equipment, lab automation, and industrial applications.

Dunkermotoren USA Inc.    Elgin, IL 60124
Jan 13, 2011 Comprised of servo motors covering 40-500 W output power range, BG series integrates communication interfaces for CANopen field bus, Profibus DP (V1), and EtherCAT. CANopen over EtherCAT (CoE) function allows servo motors to act as slaves in EtherCAT network. CoE utilizes same objects as CANopen, and standardized DSP402 objects are used for positioning, monitoring, and configuring servo drives.

Maxon Precision Motors    Fall River, MA 02720

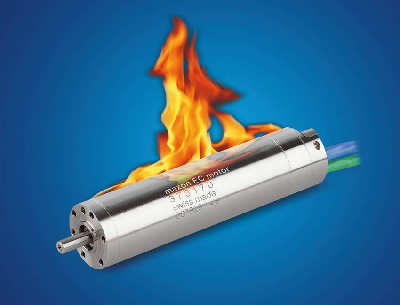

Jan 13, 2011 Measuring 22 mm in diameter, heavy-duty Model EC22 HD is intended for deep drilling applications at depths of 16,000 ft and in boreholes up to 36,000 ft long. Motor operates at temperatures up to 240°C and under atmospheric pressure conditions from high vacuum to 25,000 psi, while resisting impulse and impact forces of 100 G. With efficiency above 70%, motor can operate while submerged in oil, trebling 80 W output rating to 240 W. Efficiency in air is 88%.

Midwest Motion Products    Watertown, MN 55388

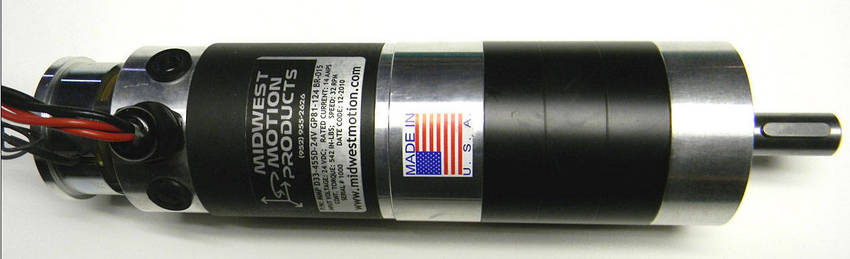

Jan 11, 2011 Accepting any 24 Vdc source, Model No. MMP-D33-455D-24V GP81-124 BR-015 measures 3.2 in. dia x 12 in. long and has keyed output shaft that measures 19 mm dia x 40 mm long. IP54-rated design incorporates failsafe brake and optical encoder and supports variable speed operation. With output rated for 543 lb-in. continuous torque at 32 rpm and 2,124 lb-in. peak, product requires 14 A at 24 Vdc to generate full load torque. Motor windings for 12, 36, 48, 60, and 90 V are available.

Animatics Corp.    Santa Clara, CA 95054

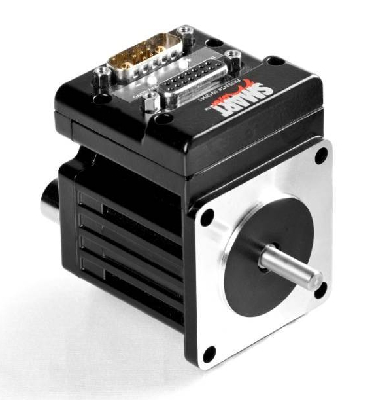

Jan 07, 2011 Integrating brushless motor, encoder, controller, and amplifier, Class 5 SmartMotor(TM) features communication speeds to 115.2 kBaud in RS-232 and RS-485 ports; isolated, 24 V I/O; and gearing, camming, and contouring functions. Combitronic(TM) technology enables over 100 SmartMotor servos to be linked over CAN. One program can be written in one motor to control all of those connected, or each motor can have its own program and share resources with every other motor.

Animatics Corp.    Santa Clara, CA 95054
Jan 06, 2011 With optional Combitronic technology, more than 100 Class 5 SmartMotor servos can be linked over CAN to create what programmer experiences as one large multi-axis controller. Combitronic technology allows any SmartMotor to read from, write to, and control any other SmartMotor to ensure maximum dependability with no data collision or loss. Even without Combitronic option, Class 5 SmartMotor offers communication speeds up to 115.2 kBaud in RS-232 and RS-485 ports.

Animatics Corp.    Santa Clara, CA 95054
Dec 23, 2010 Offering unified, multi-tasking programming environment, Class 5 SmartMotors(TM) feature Combitronic(TM) technology, which enables 2-100 integrated servos to be linked over CAN and automatically share all motion, I/O, control, and computational resources. Distributed group of SmartMotor units can automatically act as single, multi-axis controller. With SmartMotor, system integrators do not need to write communications code while eliminating data collisions and gaining full deterministic arbitration.

Exlar Corp.    Chanhassen, MN 55317
Dec 15, 2010 Operating with T-Lam(TM) segmented lamination stator technology, SLM and SLG Series suit motion control applications where flammable gases or vapors may be present. SLM Series brushless servo motor, producing speeds to 4,000 rpm, comes in multiple frame sizes, including 90, 115, and 142 mm. Available in 90 and 115 mm frame sizes, UL-Recognized SLG Series gearmotors offer integrated armature and sungear as well as 1, 2, or 3 stack lengths with single and double reductions.

Johnson Electric    Vandalia, OH 45377
Dec 10, 2010 Available in unipolar or bipolar configurations, Saia® ULE Series provides constant positioning force to 400 N over full travel lengths to 300 mm in ambient temperatures ranging from -15 to +60°C. Compact 55 x 55 mm design and NEMA 23 mounting flange enable mounting in space-restricted applications such as valve control, positioning and adjustment systems, and control systems for automation industry.

GE Energy Services    Liverpool, NY 13088

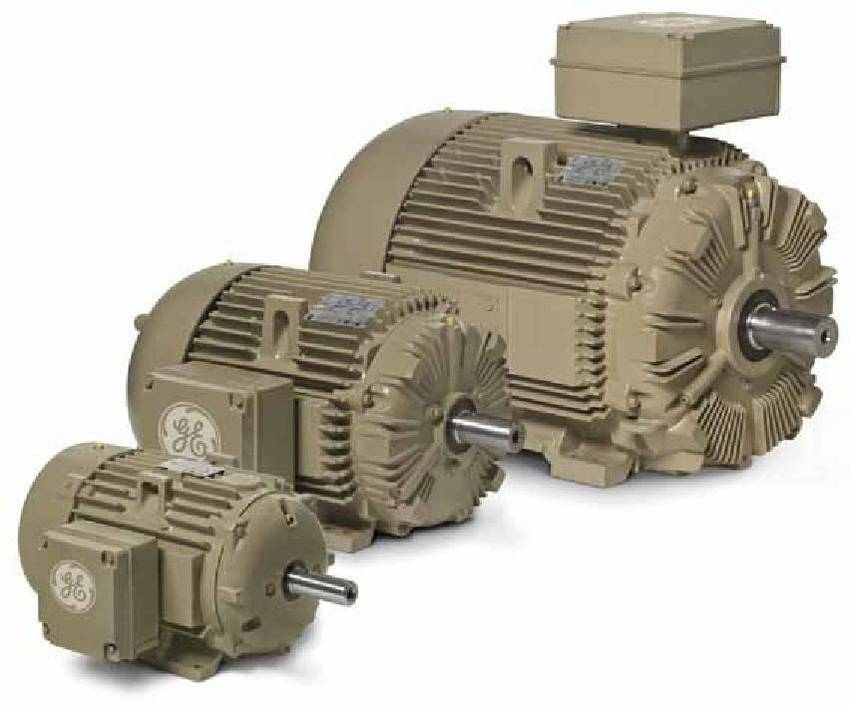

Nov 29, 2010 Suited for heavy-duty industrial applications, X$D Ultra® 841 IEC meets or exceeds requirements of IEEE 841- 2009 standard and is designed and rated for Zone 2 and Division 2 hazardous applications with 200°C or lower temperature code. Class H inverter duty insulation system features rugged cast-iron frame, conduit box, end shields, and fan cover. Included cast-in vibration pads provide repeatable vibration measurements, while mounting feet have 1.50° draft angle to ensure secure mounting.

JVL USA/Motion Control Sales Ltd.    Morrow, OH 45152
Nov 09, 2010 Featuring RS485 and CANopen serial interface as well as programmable motion controller, MIS340/1/2 motors contains everything needed to solve control task as stand-alone unit or controlled via PLC/PC. Resolution of 819,200 step/revolution promotes smooth and silent running, and 8 I/O points can be configured to be digital input/output or analog input. Velocity and acceleration ratings are 0.01 rpm and 1 rpm/sec, respectively. Unit also supports point-to-point or multi-axis operation.

Schneider Electric    Palatine, IL 60067-7399
Nov 01, 2010 NEMA Circuit Breaker Combination Starters are equipped with PowerPact eMCP circuit breakers that feature 30 mm LED pilot lights and pliable, foam-in-place cabinet seals for protection against harmful outside elements. eMCP dials can be set to comply with NEC 430.52, allowing users to handle transient inrushes without tripping. Accommodating standard 9070TF control power transformers, starters allow for wide range of fits and modifications.

MicroMo Electronics, Inc.    Clearwater, FL 33762 3008
Oct 28, 2010 Supplied as 22 mm module with uniform-diameter construction, 2232/2250...BX4 CSD/CCD motors come in 32 and 50 mm lengths with 24 Vdc rating and non-cogging torque output of 18-35 mNm. Adhesive-free products, suited for use in demanding applications, have serial RS232 or CAN interfaces, operate from -25 to +85°C, and offer configurable speed from 5-8,000 rpm. Thermally allowable continuous current is 0.69 A max, and automatic peak and continuous current limitation are standard.

ebm-papst Automotive & Drives, Inc.    Dearborn, MI 48120
Oct 27, 2010 Measuring 63 x 52 mm, VDC 3-49.15 Series is available in 2 versions with nominal voltage of 48 and 24 Vdc and operating voltage range of 18-55 or 18-30 V. Units feature output power of 105 and 63 W at 2.9 and 3.5 A current consumption, respectively. With nominal speed of 4,000 rpm, nominal torque reaches 250 mNm or 150 mNm, while max torque controlled by I2t function can be twice as high. Maintenance-free motors include solid flange with 3 tapped holes for direct mounting.

MicroMo Electronics, Inc.    Clearwater, FL 33762 3008
Oct 25, 2010 Series 1307...BH brushless gearmotors feature length of 7 mm and can achieve continuous torque of 5 mNm with speeds up to 1,639 rpm. Featuring length of 9 mm, 1309...BH motors achieve continuous torque of 5 mNm with speeds up to 592 rpm. Both gearmotors have 13 mm dia, and feature rotor that is produced photolithographically for synchronous operation without cogging. Maximum torque output of 10 mNm is achieved with neodymium magnets, and motors are driven by BLD 1501 H drive.
