Timing Belts

Mechanical Power Transmission

Timing Belts transport glass sheets.

September 11, 2014

Available in metric and inch sizes, Synchronous Timing Belts are used to transport glass sheets for applications such as beveling, edging, grooving, indexing, linear drive, polishing, and cross cutting. Urethane belts offers optimized strength, durability, and abrasion resistance. To provide added grip, friction, and durability, rubber and urethane surface covering can be applied. Read More

Mechanical Power Transmission

V- and Timing Belts provide efficient power transmission.

July 31, 2013

Suited for drive systems, SKF Belt Series includes V-Belts in wrapped classical, wrapped narrow wedge, cogged raw edge classical, narrow wedge, and Xtra power wedge configurations, as well as Timing Belts with classical, HiTD, or metric constructions. Timing belts integrate durable teeth enabling full engagement with pulley sprocket grooves to prevent slip. All belts can be specified in various lengths and dimensions with speed ratios and power ratings consistent with application requirements. Read More

Mechanical Power Transmission

Timing Belt Kits target specific service issues.

June 3, 2013

Addressing 2,000+ applications, there are over 150 ContiTech Pro Series Plus Timing Kits available for solving service problems by providing technicians with all components required to perform proper timing belt and water pump service. Kits also include additional components for issues typically encountered during such service. Built around OE-quality ContiTech® timing belt, kits include water pump, front cam and balance shaft seals, tensioners, and idlers. Read More

Mechanical Power Transmission

Pulleys and Belts suit power transmission applications.

October 20, 2010

Available with pitch from 2.5-10 mm, T Type Pulleys are made of aluminum with zinc-plated steel flanges and are either center-drilled or pilot-bored. Synchronous timing belts that accompany pulleys range in width from 6-32 mm and are double sided with Aramid tension members. Special polyurethanes, anti-static, machined, ground, and punched belt options are available. Read More

Mechanical Power Transmission

Polyurethane, 1 mm Pitch Timing Belts serve miniature applications.

September 13, 2010

Offered with Kevlar® cord reinforcement, A6B18M... Series comes in 22 different groove sizes from 94-559 mm, while A6G18M... Series, with fiberglass cord reinforcement, comes in pitch lengths from 142-705 mm. Belts are offered as standard in 3 and 6 mm widths, but special widths can be cut from sleeves. Respective breaking points for Kevlar® and fiberglass belts, both double span, are 300 and 165 N per 1 mm. Temperature range is -22 to +185°F. Read More

Mechanical Power Transmission

Endless Belts feature convertible profile technology.

September 17, 2008

Available as open ended or welded endless belts, ATN timing belts come in regular AT10, AT10 tooth profile with ½ in. tooth pitch, and regular AT20 tooth pitches. Belt profiles can be assembled by hand utilizing accompanied mounting screws and inserts, while belt length and profile location can be chosen by increments of one tooth. Profiles can be made of any material to fit application (also material mix), and can also be assembled and disassembled without removing belt from machinery. Read More

Mechanical Power Transmission

Timing Belts have tensile strength ranging from 190-1,400 N.

September 16, 2008

Offered in belt widths of 6, 10, 16, 25, and 32 mm, AT3 endless timing belts have no weld zone, and feature minimum and maximum belt lengths of 720 and 1,701 mm, respectively. Tension member comes in steel/SS. Optional nylon facing on tooth side helps reduce coefficient of friction, while zero backlash pulleys are available for bidirectional belt drives. Belts are suited for small power drives requiring high tooth sheer strength as well as high speed applications. Read More

Mechanical Power Transmission

Non-Marking Timing Belt generates 78% less dust.

April 10, 2008

Constructed of high flex plastic over hardened fiberglass cord, TruMotion® Timing Belt is available in 2 mm GT, 3 mm GT, 3mm HTD, 5 mm HTD, .080 in., 1/5 in., and 3/8 in. pitches. Tooth surfaces have outer layer of nylon for wear resistance and quiet operation. Operating from -40 to 220°F, belt is corrosion- and abrasion-resistant, making it suitable for office automation, medical equipment, laboratory equipment, and DC stepper/servo devices. Read More

Mechanical Power Transmission

Timing Belts feature polymer-free nylon tooth facing.

December 13, 2007

Providing full tooth-to-pulley contact, PowerGrip® TruMotion(TM) Timing Belts feature durable facing that minimizes noise and dust. Cream-colored polymer compound body can withstand extreme high and low temperatures ranging from -40 to +220°F. Fiberglass tensile cords ensure resistance to elongation. Compliant with RoHS, belts are suited for ATMs, cash registers, money counting machines, coin sorting, copiers, fax machines, printers, and medical equipment. Read More

Mechanical Power Transmission

Timing Belt has 15 mm pitch design.

May 31, 2007

ATS 15 timing belts are designed for power transmission and linear drive applications that require high tensile strength and flexibility. They are available in 25, 32, 50, 75, 100, and 150 mm belt widths and come in open-ended 50 or 100 m rolls, welded or in truly endless technology. Tension members are available in steel and stainless steel. Read More

Electrical Equipment & Systems, Mechanical Power Transmission

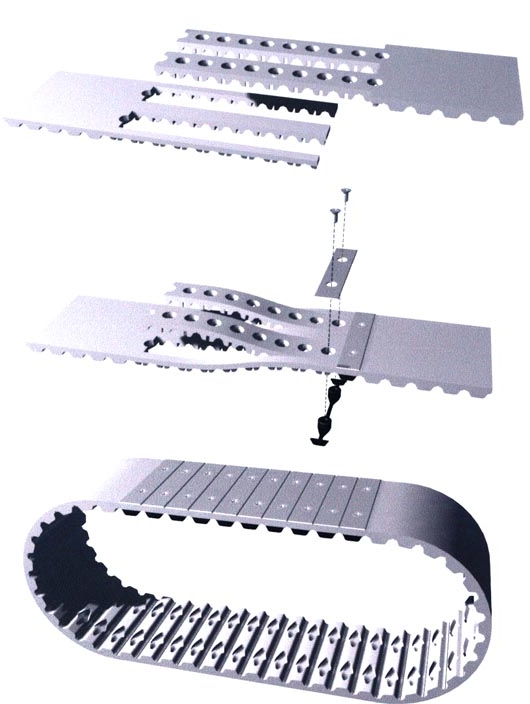

Connection System speeds timing belt assembly on machinery.

May 18, 2007

Designed for T10 and AT10 pitch timing belts, Mechanical Connection System allows for access to shafts and pulleys without disassembling machinery parts. Finger spliced ends of timing belt are prepared to be clamped together with connecting kit hardware, which consists of carbon fiber reinforced polyamide connecting plates and tooth inserts, including screws. Read More

Mechanical Power Transmission

Polyurethane Timing Belts are offered with weld-on profiles.

March 28, 2007

Steel, stainless steel, and Kevlar® reinforced timing belts are available with injection molded profiles constructed of polyurethane materials in several durometers. Selection of profile style is determined by type of product to be conveyed and general machinery design. While 3,000+ stock profiles are available, company also supplies custom designs and configurations with integrated metal components such as plates, threaded inserts, screws, and magnets. Read More

Mechanical Power Transmission

Polyurethane Timing Belts suit wide range of applications.

January 8, 2007

Available in straight-tooth, offset-tooth, or helical styles, Polyurethane Timing Belts suit linear motion, product conveyance, and power transmission applications. Steel-cord reinforced belts come in 3 configurations: open-end rolls in 325 ft lengths; welded or jointed belts made from roll material cut to length and spliced; and endless types made from long continuous cord with no splice or welding. To combat corrosion, Kevlar cord belts are available for high humidity applications. Read More

Mechanical Power Transmission

Timing Belts feature bifilar tension member arrangement.

February 3, 2006

Truly endless (BFX) polyurethane timing belts utilize bifilar design that represents tension member arrangements with left hand and right hand lay. Tension members alternate to prevent formation of lateral forces, balancing timing belts for true tracking. Bifilar technology minimizes friction forces, lending to positioning accuracy in belt drives. It also improves pitch stability by minimizing deviation of timing belt materials. Read More

Mechanical Power Transmission, Non-Industrial Products

Timing Belt Backing resists temperatures from -40 to 158°F.

January 25, 2006

Made of cellular rubber, red colored LINAFOAM is available in thicknesses of 6, 10, and 12 mm. Possessing high coefficient of friction and elasticity, polyurethane foam is resistant to abrasions, cuts, and tears. It also has sound-absorbing, and shock- and noise-dampening qualities. Read More

Mechanical Power Transmission, Services

Convertible Profiles enable flexible, precise operation.

December 21, 2005

With change of profile set-up, ATN® connection technology allows different size goods to be conveyed with same timing belt. Profiles, fastened to timing belt via nylon, brass, or stainless steel inserts, can be converted, interchanged, or reconfigured with hand tools. Allowable tensile load for ATN 10 and ATN 12.7 tooth pitch polyurethane timing belts is up to 337.2 lb, and convertible profiles can be attached in increments of one tooth. Read More

Mechanical Power Transmission

Timing Belts provide synchronous control of drives.

December 6, 2005

Offered in ¼, 5/16, and 3/8 in. widths, Series A 6G3, A 6B3, and A 6R3 feature .200 in. pitch and molded teeth on one side for positive power transmission without slip, vibration, or backlash. Small pitch belts can wind around number of small pulleys to permit multifunction operation in synchronizing shaft rotations. With 20-590 grooves and pitch lengths from 4-118 in., belts come in polyurethane with polyester cord, polyurethane with Kevlar cord, and neoprene. Read More

Mechanical Power Transmission

Spliceable Timing Belt Stock has 60 teeth per foot.

December 6, 2005

Made of nylon-covered, fiberglass-reinforced neoprene, A 6R3-C timing belt stock can be spliced to suit designs where nonstandard endless belts are not available. It comes in 3 belt widths and operates continuously in temperatures from -30 to +185°F. Produced with 1/5 in. pitch and trapezoidal teeth on one side, product provides positive, non-slip power transmission without vibration, tool chatter, or backlash. It can also wind between pulleys to synchronize shaft rotations. Read More

Mechanical Power Transmission

Timing Belts feature .080 pitch.

December 6, 2005

Made of Kevlar-reinforced polyurethane, Series A6B16-D offers positive, non-slip power transmission without vibration, chatter, or backlash. Double-sided tooth action enables belts to wind between pulleys to synchronize shaft rotations. Capable of operating in temperatures from 0-180°F, and intermittently to 248°F, belts are available in widths of 1/8, 3/16, ¼, and 3/8 in. with 132-500 grooves/belt and pitch lengths from 10.56-40.00 in. Read More

Mechanical Power Transmission

Timing Belts and Pulleys minimize noise and vibration.

July 14, 2005

Constructed of abrasion-resistant polyurethane and steel or stainless steel tension members, ARC-POWER PLUS belts are available as open-ended, spliced and welded endless, and truly endless. They provide 100% tracking in both running directions without flanges. Based on overlapping tooth arrangement, smooth interaction with idler and tensioners running on toothed side of timing belt eliminates tooth jumping. Read More
