Sprint Electric Ltd    Arundel East Susse BN18 0BE  United Kingdom
Nov 07, 2005 Mounting on standard DIN rail Models 340XRi, 680XRi and 1220XRi are designed for use with motors up to 1.8 kW, 2 hp. Units are able to regenerate energy back into mains supply under braking without need for complex intermediate storage, resistive dumping, or additional power bridges. With 4-quadrant operation, torque can be reversed very gently or almost instantly, as required.

Stafford Mfg. Corp.    Wilmington, MA 01887
Nov 04, 2005 Machined from steel or stainless steel, Stepped Bore Couplings feature 8 hex type clamp screws that provide holding power required for high-load applications. They come in 1- and 2-piece designs, with- or without keyways, as well as straight-through styles in 1-, 2-, and 3-piece configurations. Products connect shafts from ¼-2 in. bore, including inch-to-metric combinations, and will not mar shafts.

Sanyo Denki America Inc.    Torrance, CA 90501

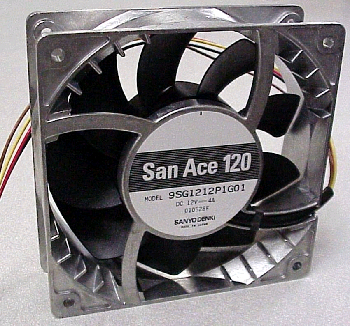

Nov 03, 2005 Offered in 12, 24, and 48 V models, San Ace 120SG measures 4.72 in. sq x 1.5 in. thick and provides max airflow of 260 cfm. With L10 life expectancy of 40,000 hr at 60°C, RoHS-compliant motor is suited for data storage systems, communications equipment, and industrial equipment. Optional features include tachometer sensor and lock rotor sensor outputs, as well as PWM control, which permits fan's rotational speed to be controlled to attenuate noise and power consumption.

Festo Corp.    Hauppauge, NY 11788

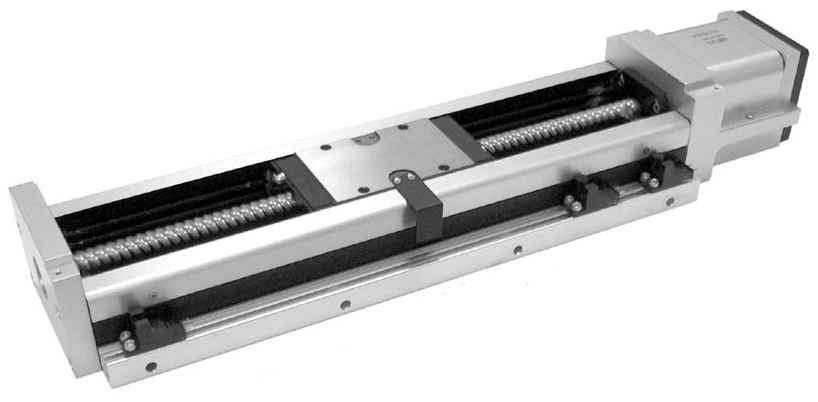

Nov 02, 2005 SLME electro-mechanical linear actuator utilizes fine pitch ball screw and recirculating ball bearing guide. Ball tracks each have 4 contact points, providing dynamic load and moment capacities to 27 kN and 1,410 Nm respectively. Features include steel, U-shaped guide rail; ±0.01 mm positioning accuracy; and ±0.005 mm repeatability. Guiding surface, ground into steel body, eliminates need for separate internal guiding rails.

Pentadyne Power Corporation    Chatsworth, CA 91311
Nov 01, 2005 Integrated with UPS, VSS+ Voltage Support Solution provides sufficient ride-through for safe system shutdown of most process operations. Used in parallel with UPS batteries, VSS+ handles short-duration power disturbances. At 100% UPS output power, single VSS+ provides up to 25 sec in 130 kVA UPS and 40 sec in 80 kVA UPS. For large power UPS systems, VSS+ systems can be paralleled together. Unit is housed in steel cabinet and requires no air conditioning or safety systems.

Rexnord Industries, LLC    Milwaukee, WI 53214
Oct 31, 2005 Offering alternative to traditional helical shaft mounted reducers, Shaft Mounted Planetgear® Reducers feature modular design and interchangeable components. Self-aligning gear train has at least 6 teeth in contact per reduction to share load equally. Integral to low speed shaft, Hydro Advantage facilitates removal of reducer. Shaft mount configuration is available on Orion, Titan, Jupiter and Hercules sizes, with output torque ranging from 280,000-2,900,000 lb-in.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Oct 28, 2005 Available with 15-120 grooves, A 6D51- (Inch) and A 6D51M (Metric) Series include 44, 2 mm pitch GT®2 pulleys made of clear anodized aluminum alloy. Fairloc® integral hub fastening design eliminates need for separate hub clamp devices, enables frequent position adjustment, and adds positive metal-to-metal fastening strength along entire hub surface. Designed for 6 mm belts, pulleys are offered in double- or no-flange types with ODs from .356-2.988 in. and 9-75.9 mm.

Technosoft S.A.      Switzerland
Oct 27, 2005 Intelligent Servo Module ISM4803 provides fully digital, true universal drive that covers all applications for ac and dc brushless, dc brush, and step motors up to 150 W. Embedded with motion control, drive, and PLC functionalities, this 64 x 104 x 16 mm, open frame unit is programmable with TML and graphical tools in stand-alone or multi-axis configurations. It delivers torque, speed, position, contouring, profiling, e-cams, and step motor emulation.

Festo Corp.    Hauppauge, NY 11788
Oct 27, 2005 HME system is comprised of linear handling axis and programmable positioning controller that incorporates all power electronics. Axis features precision guide assembly with integrated linear servomotor and displacement encoder. Model HME-16 has 40 N nominal thrust rating (160 N peak) and stroke lengths to 300 mm, while HME-25 is rated at 85 N nominal (220 N peak) and stroke lengths to 400 mm. Both can be used in thrust, speed, or position control modes.

Midwest Motion Products    Watertown, MN 55388

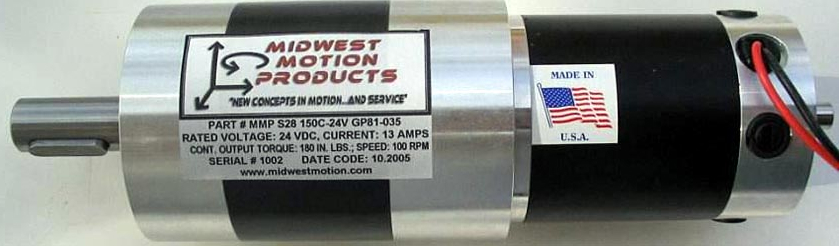

Oct 26, 2005 Accepting any 24 Vdc source, Model No. MMP-S28-150C-24V GP81-035 requires 13.4 A @ 24 Vdc to generate full load output torque. It measures 8.5 in. long x 3.2 in. dia and has 40 mm long x 19 mm dia keyed output shaft. Rated IP54 for operation in harsh environments, unit is mounted via 4 face mount M6 threaded holes and offered with rear shaft extension to accommodate encoder. Output is rated for 20 Nm continuous torque @ 100 rpm and 90.0 Nm peak.

Tusk Direct Inc.    Bethel, CT 06801
Oct 25, 2005 Plane bearings, offered in straight and self-aligning configurations, are available as unmounted bearings and in pillow block assemblies in single, twin, and flange block types. Teflon®-lined bearings can be operated without lubrication, are resistant to chemicals, and have stainless steel body. Suited for vacuum applications, ceramic-coated bearings must be lubricated and withstand rapid oscillation, impact, shock, and vibration as well as submersion and washdown.

Humphrey Products    Kalamazoo, MI 49003

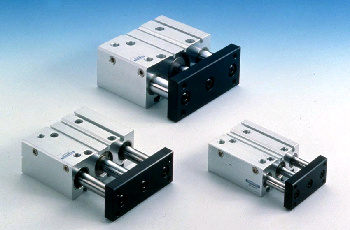

Oct 25, 2005 Series GC and GS feature standard industrial bearings, piston magnets, mechanical collars for stroke adjustment, standard hole patterns for horizontal or vertical mounting, and optional sensors. Series GC is designed for push applications, while Series GS includes integrated shock absorbers and is suited for pick-and-place applications. Sizes for both include ¾ in. bore with 8 in. stroke, 1 1/16 in. bore with 12 in. stroke, and 1½ in. bore with 16 in. stroke.

SKF USA, Inc.    Lansdale, PA 19446
Oct 25, 2005 Dimensionally interchangeable with standard products, SKF® Explorer bearings are manufactured from low-oxygen steel and feature ground transition raceways/shoulders. Modified polyamide/brass cage geometry lends to speed ratings and acceleration, lower heat generation, and reduced vibration and noise, while heat-treating process minimizes dimensional changes. Products come in multiple roller, ball, and thrust bearing configurations.

PennEngineering Motion Technologies, A PennEngineering Company    Harleysville, PA 19438 0003

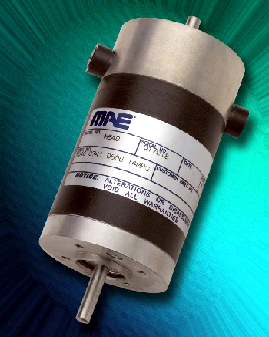

Oct 24, 2005 Available in 2 lengths, MAE® Series 500 can provide continuous torque up to 57 oz-in., depending on model. Units include 11-slot armatures to minimize magnetic cogging, ball bearings, and 2-pole stators. Speed, voltage, current, and torque characteristics can be tailored to meet exact application requirements. Motors are suited for data storage, medical/biotech, semiconductor processing, and automation applications.

SKF Motion Technologies    Lansdale, PA 19446
Oct 20, 2005 With few moving parts, Rotary Actuators offer maximum torque up to 1700 Nm, rotational motion ranges from 100-360°, and speeds up to 20 rpm. Preloaded ball-screw assembly and gear-tooth profile eliminate backlash and promote precise motion, high repeatability, and stiffness. Compact and lubricated for life, actuators are delivered ready-to-mount and can be customized with specialized internal and external components.

Amacoil Inc.    Aston, PA 19014

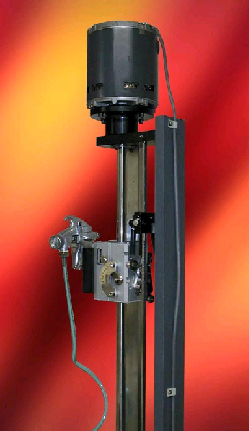

Oct 20, 2005 Facilitating smooth reversal, Series RG offers option whereby end stop assemblies are fitted with V-shaped cams to decrease linear speed of drive prior to reversal without using electronic controls or reducing motor speed. After reversal, cams permit smooth ramp up of drive speed, eliminating possible whipping action of tools. Slowdown cam applications include applying coatings, slitting, spray painting, and moving measuring probes.

Flowserve Corporation    Irving, TX 75039

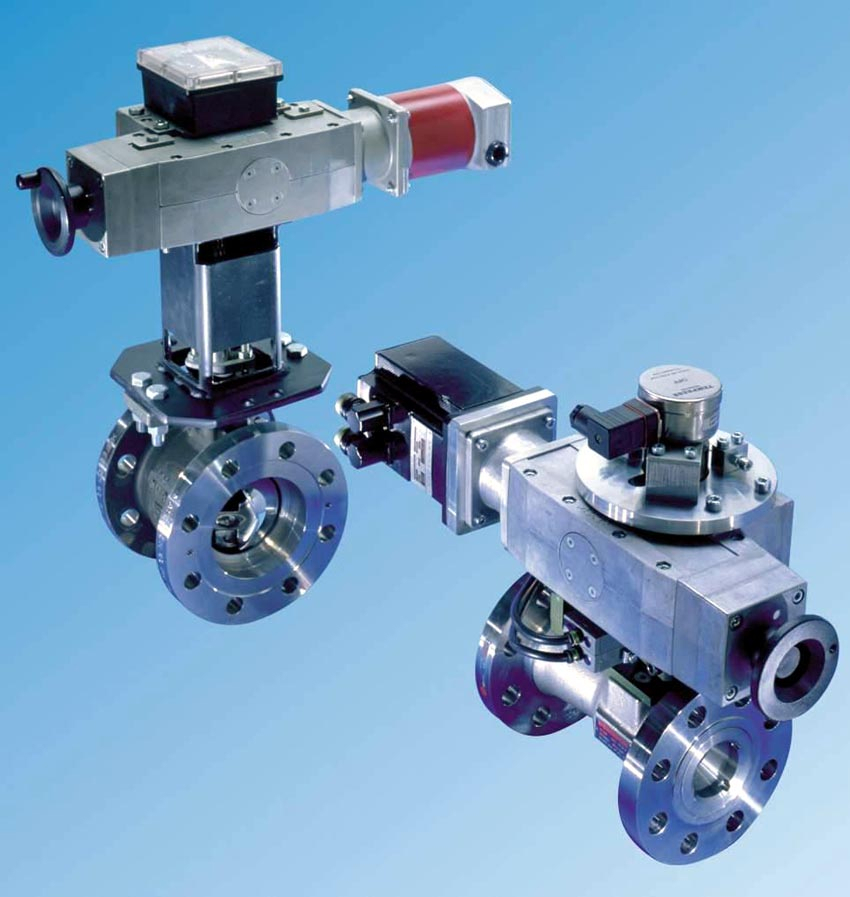

Oct 18, 2005 Available with split-phase capacitor ac-reversing motor or dc motor, L75 series is suited for remote control actuation of quarter-turn valves and other rotary devices, including on/off and modulating rotary valve applications. Multifunction capability permits use throughout process for on/off, throttling, variable-cycle, as well as analog or digital control. Offered in 8 sizes, series produces torque to 3,000 lb-in. and drives valve through sealed, permanently lubricated gear train.

BDL America, Ltd.    Wilmington, NC 28412

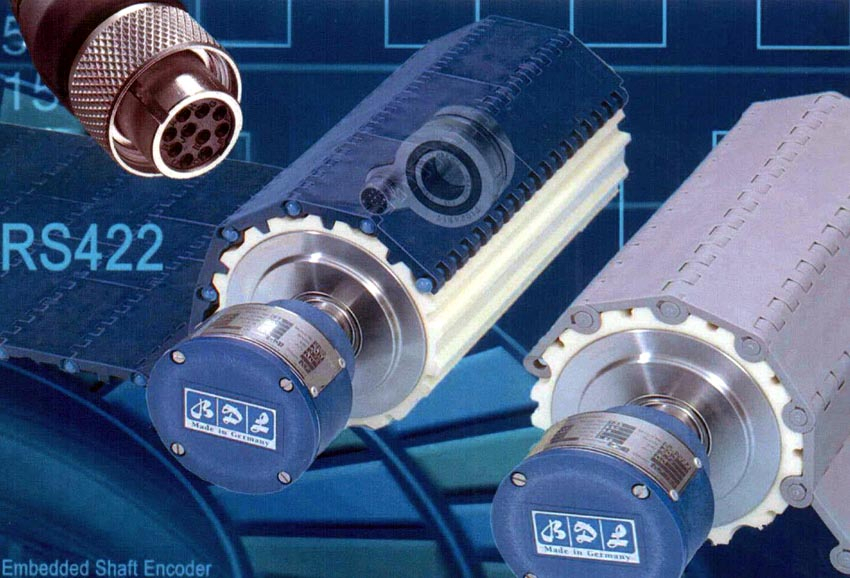

Oct 17, 2005 BDL motorized pulleys allow conveyor system operators to synchronize product movements. Shaft encoders utilize SKF or SNR pulse outputs to monitor motorized pulley movement and control conveyor belt speed, position, torque, and rotational direction. Accurate conveyor belt movements, up to ±0.0002 in. at speeds of 19-500 fpm, are achievable. Mounted with 2 brackets, pulleys range from 3.18-12.6 in. in diameter with face widths from 7.8-67 in.

PennEngineering Motion Technologies, A PennEngineering Company    Harleysville, PA 19438 0003
Oct 17, 2005 Featuring 6-slot design, PITTMAN® Brushless DC Motors incorporate internal Hall sensor feedback for linear speed-torque characteristics, high starting torque, and variable speed control. Units are 2.3 in. in diameter and are available in 4 stack lengths of ½, 1, 1½, and 2 in. Utilizing neodymium iron boron magnets, motors reach speeds up to 8,000 rpm and mount to NEMA 23 standards. Applications include data storage, medical/biotech, semiconductor processing, and automation.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416

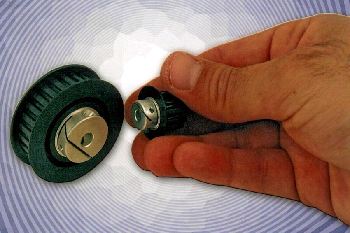

Oct 14, 2005 Available in double, single, or no flange styles, Series A 6H 3 consists of 1/5 in. pitch pulleys for 3/8 in. wide belts. Fairloc® integral hub fastening system facilitates phase adjustment, timing, position adjustment, and frequent removal problems while adding positive metal-to-metal fastening strength along entire width of pulley. Pulleys fit onto shafts from 3/16-3/8 in. diameter and have 10-72 grooves each.
