PBT Engineering Plastic suits food equipment components.
Washington, PA 15301
Jul 01, 2014
With ultra detectable design, HYDEX® 4101 UD Blue is visible to food conveyor line optical, X-ray, and metal detection systems. Engineers designing parts for food processing equipment will find particular success in applications in which parts are subjected to cleaning chemicals that are chlorine or caustic based. Available in rod and plate stocks, wear resistant polymer is suited for pump impellers, filler valve parts, and food forming plates.
High Temperature Polymer offers optimal wear characteristics.
Washington, PA 15301
May 27, 2014
Compounded exclusively using Victrex® PEEK Polymer, TECAPEEK® PVX bearing grade rod offers durability and wear characteristics needed for high temperature components used in automotive, aerospace, and other industrial applications. Product provides extended service life and optimized high temperature performance with HDT over 500°F. Offered in .5, .75, 1, 1.5, 2, 2.5, and 3 in. rod sizes, TECAPEEK® PVX is suited for bushings, bearing cages, seals, gaskets, and gears.
Stretch Rod Cylinder Replacement serves blow molding applications.
Fort Wayne, IN 46899
Oct 07, 2013
Designed to fit Krones® bottle blowing machines, field-reparable Series BCK offers single pressure operation is engineered for extended service life. Features include aluminum alloy head, built-in shock pads that absorb impact energy and eliminate metal-to-metal contact, and cushion controls that reduce field adjustment errors. Retract cylinder speed is set at factory with fixed port orifice, eliminating need for adjustment, and food-grade lubricant is used throughout.
High Performance Plastics come in plate and rod shapes.
Washington, PA 15301
Aug 16, 2013
In addition to 24 x 48 in. plates in 5 and 6 in. thicknesses, High Performance Plastics are available in 8, 9, and 10 in. diameter rods with standard length of 5 ft. Products such as TECAFORM® copolymer acetal and Delrin® homopolymer acetal come in these larger sizes. High Performance Resins such as TECAPEEK® and TECAPEI® are available in 19.68 in. widths, offering advantages in terms of part yield.
Wire Installation Rods are designed for safety and visibility.
Klein Tools, Inc.
Lincolnshire, IL 60069
Apr 11, 2013
Used for installations above ceilings, in attics, through walls, in crawl spaces, as well as under carpets and raised floors, Splinter Guard Fish and Glow Rods have protective coating that keeps users' hands free of fiberglass splinters when wire pulling. Rods come in various lengths and 5/32, 3/16, and ¼ in. flexibilities. Luminescent rods have been optimized for glow duration and intensity, and sets include bullet nose and hook attachments.
Extended Reaching Tool facilitates wipe sampling.
Richland, WA 99354-4968
Oct 29, 2010
Used to obtain wipe samples in hazardous environments where radiation may be present, long reach swab tool has rounded pivoting tip that conforms to surface. Fully adjustable tool emulates 2-finger wiping specification for optimal sample results, and telescoping pole also features pivot joints that can be used to position tool end to reach into areas not in direct line of sight with operator. Fully extended, pole reaches 10 ft. It can also fold and collapse to 4 ft for storage.
High-Temperature Vibrating Rods feature durable, insulated design.
Lincoln, NE 68507
Jul 07, 2010
Available in 2 models including SHT-120 with standard insertion length of 7.37 in. and SHT-140 with threaded pipe extension that can be customized in lengths from 14 in. to 13 ft, BinMaster SHT vibrating rods have reinforced membrane and piezo system that tolerates process temperatures up to 482°F. Constructed with SS rod probe to prevent bridging and build-up of material on sensor, they are suited for powdered or granular solids with material density of 1¼ pcf to maximum granular size of 1½ in.
Load Bearing Rods are corrosion-resistant.
Fluorotherm Polymers, Inc.
Parsippany, NJ 07054
Mar 02, 2010
Corrosion-resistant, load-bearing metal rods feature complete encapsulation in PTFE, FEP, and PFA and can be used in temperatures up to 400°F. They allow PTFE or other adapter of appropriate configuration to be placed over encapsulated rod to be used as points of support. Chemical-resistant products are constructed to bear up to 700 lb loads in nitric, hydrofluoric, hydrochloric, and sulfuric acid baths and other hazardous atmospheres.
PVC Threaded Rod is available in 13 thread sizes.
Micro Plastics, Inc.
Flippin, AR 72634
Jul 17, 2009
Offered in standard lengths of 2, 4, 6, and 8 ft, PVC Threaded Rod is amorphous thermoplastic with chemical resistance and dielectric properties. It offers tensile, flexural, and mechanical strength, low moisture absorption, dimensional stability, and flammability characteristics. Special lengths can be cut to meet custom application requirements, while 13 standard thread sizes are available from 4-40 through 1-8.
Plastic Welding Rod can be round, triangular, or flat.
Malcom Company Inc., DBA: Malcom Technologies
Portsmouth, RI 02871
Dec 19, 2006
Suited for use in plastic repair, Malcom Plastic Welding Rod comes in materials such as PVC, PP, PE, PC, LDPE, HDPE, and ABS in various colors. It is offered in 1/8, 5/32, and 3/16 in. OD round sizes, ¼ in. triangle version, and flat shapes from ¼-¾ wide. It is supplied, standard, as 17 in. lengths in 1 lb bundles, which equal 120 ft of rod or 35 ft of profile. Material can also be supplied in 48 in. lengths and on coils with custom color matching.
Extension System expands capabilities of hammer drills.
Hitachi Power Tools
Norcross, GA 30093
Nov 15, 2006
Extending reach of rotary hammer or hammer drill by 12-43 in., Power Reach allows user to drill overhead, down into water, or through 6 ft slab of concrete. Three-piece system consists of adapter, extension rod, and any SDS Max bit. It quickly connects to adapt to different applications, and eliminates any loss of power normally experienced with other extension systems.
PEEK Beading features 14,065-14,500 psi tensile strength.
Parker Hannifin Corporation
Cleveland, OH 44124
Jul 19, 2006
Offering alternative to glass, stainless steel, and other metals, TexFluor(TM) PEEK(TM) Beading is USP Class VI compliant and can repeatedly withstand sterilization with E-Beam/Gamma, ETO, or Steam Autoclave. It is available in sizes from .005 in. ID, with tolerances of ±.0005 in., up to .250 in. ID with tolerances of .005 in. Extruded in clean room manufacturing facility, beading offers abrasion resistance and max service temperature of 500°F.

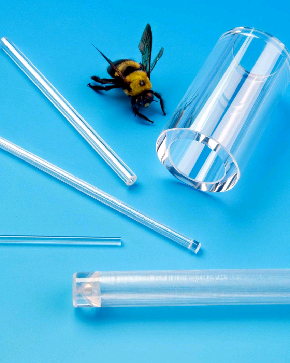

Sapphire Tube and Rods feature Moh 9 hardness.
Meller Optics, Inc.
Providence, RI 02940
Jun 27, 2006
Optical quality Sapphire Tubes and Rods are offered as-grown or can be fabricated with all surfaces polished to uniform and clear finish per MIL-PRF-13830. Available in 1/8-2 in. dia sizes up to 500 mm long with .020 in. wall, tubes incorporate 80-50 scratch-dig ID finish and 60-40 scratch-dig OD. Sapphire Rods are offered in sizes from .080-1 in. dia up to 800 mm long. All products are chemically inert, making them suited for optical, medical, and wear applications.
Rods speed installation of channel trapeze supports.
Highland, IL 62249-1331
Oct 21, 2004 Hot Rodsâ„¢ feature 12 in. lengths of all-threaded rod completely assembled with rod coupling and locking hex nut on one end, and channel nut, square washer, and locking hex nut on other end. User attaches Hot Rods to pre-cut channel supports/trapezes and connects them to desired ATR lengths for completed trapeze support that is adjustable for setting elevations. Hot Rods come in ¼, 3/8, ½, and 5/8 in. rod diameters, and all parts are electrozinc plated.
HALAR Rods suit chemical and Semicon industries.
Gehr Plastics Inc.
Marcus Hook, PA 19061
Aug 06, 2002 ECTFE (Ethylene-Chlortriflurethylene/HALAR) rods exhibit hardness and creep resistance to wear and tear comparable to PA at room temperature. Permeation resistance to oxygen, carbon dioxide, chlorine gas, and hydrochlorid acid is rated 10 to 100 times better than PTFE. UV rays have no negative influence on properties. Rods are available in sizes ranging from 25.4 to 127 mm with lengths available from 2.440 to 1.220 mm, respectively.
