Toshiba Corp. C & I Dept.      Japan
Aug 30, 2005 Based on Media embedded Processor architecture, Model MeP-h1 allows designers to customize processor configurations, including instructions and embedded memory capacity. It features 9 instruction execution pipeline stages and reorder buffer circuit that manages and shortens waiting cycles for user extension instructions. Based on 32-bit RISC processor, unit is appropriate for digital media products that require processing of large volume of image and audio data.

CyberResearch, Inc.    Branford, CT 06405 2932

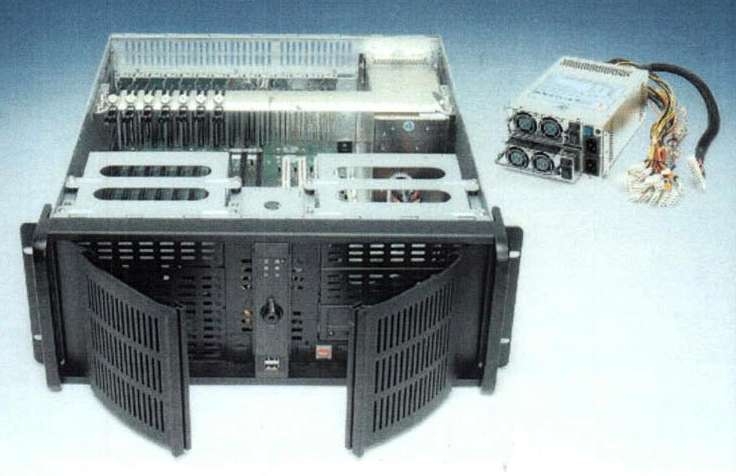

Aug 26, 2005 Featuring 4U form factor, fan-cooled ATX chassis comes with 350 W power supply and offers hot-swap 300, 400, and 500 W options. Its three 14-slot backplanes come with PICMG SBC slot and 3 combinations of PCI and ISA slots: 12 PCI/1 ISA, 7 PCI/6 ISA, or 4 PCI/9 ISA slots. Motherboard version has 5–7 slots, but all versions provide front access to 3.5 in. drive bay and four 5.25 in. bays in addition to 2 internal 3.5 in. bays.

Fiber Optic Center, Inc.    New Bedford, MA 02740 6322

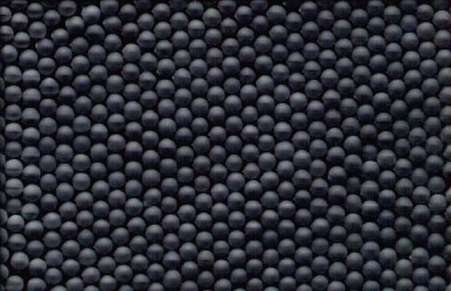

Aug 24, 2005 Available as standard items in sizes from 0.05–2 µm, AngstromSphereâ„¢ uniform, micron-sized silica spheres are supplied in dry form with no surface modification, or in dispersions of water, alcohols, or other materials. Perfectly spherical, amorphous silica spheres maintain particle size distribution of less than 10% and purity of greater than 99.9%. Custom sizes and/or surface modifications can be synthesized upon request.

O. BERK Company    Union, NJ 07083
Aug 23, 2005 Available in wide range of diameters, lengths, and orifices, Polyethylene Plastic Tubes are suited for topical skincare, hair care, personal care, spa, and medicinal/healthcare products. Matching dispensing caps are offered in snip-tip, flip-top, disc-top, stand-up, and child-resistant models.

Fine Line Production    Euless, TX 76040
Aug 12, 2005 Offered in lengths up to 10 ft, Saddlestrutâ„¢ contoured strut system is designed for attaching electrical equipment, signs, awnings, lighting fixtures, burglar bars, and other equipment to metal buildings. It works on R, U, AP, and custom panel designs. Kits are available with all mounting hardware needed for secure installations in variety of metal building applications.

Georg Fischer Piping Systems    Tustin, CA 92780

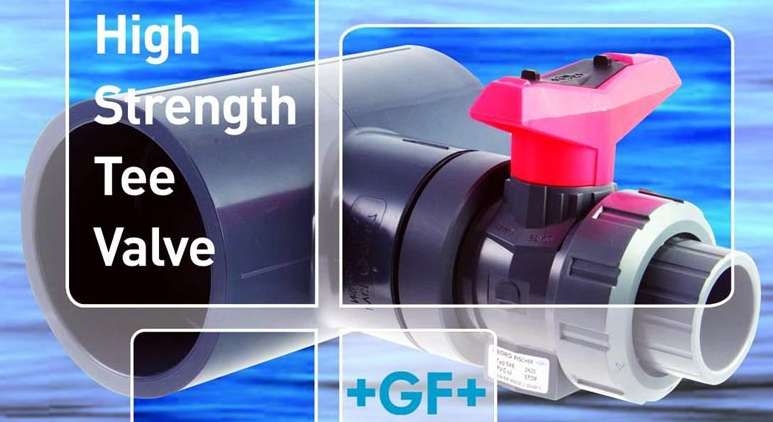

Aug 10, 2005 Suited for continuous flow applications, Tee Valve assembly includes Type 546 ball valve connected to tee by reducer bushing. Safety plug, shipped on open end of valve, prevents leakage if valve is left open when system is started up. Available in PVC and CPVC body materials with EPDM valve seals, product is offered in 1 x ½ in. through 8 x 2 in. sizes. Fully assembled unit, rated at 232 psi, also features safeblock ball seat and blow-out proof stem.

Pacific Bearing Co.    Rockford, IL 61125
Aug 08, 2005 Consisting of 4 sizes of V-grooved wheels and hardened steel raceways, V-Guide Systems come in carbon steel and stainless steel with stainless steel mounting bushings. Track is available with pre-drilled mounting holes in lengths up to 20 ft. V-shaped way configuration is self-cleaning, due to slight velocity gradient produced by change in wheel diameter over wheel to track contact patch. Permanently lubricated wheels feature dual row ball bearing construction.

SoftNoze USA, Inc.    Frankfort, NY 13340-5100
Aug 05, 2005 Right-angle Banking Screw Adapters (BSA) enable non-contact sensors to sense around corners and stop up to 4,600 lb loads. Suited for automation applications, BSA-A devices consist of heat-treat hardened, zinc-plated alloy steel components; threaded barrel; and spring-loaded piston. Sensors trigger on/off with displacement of threaded barrel’s piston. Various barrel lengths/diameters, spring rates, piston styles, and sensor diameters are available.

Image Industries, Inc.    Huntley, IL 60142
Jul 29, 2005 Stud Weldable Hydraulic Ports can be welded onto hydraulic cylinders in less than 1 second with minimal heat distortion, eliminating refinishing operations. Cross-sectional weld minimizes failures and leaks. Constructed of mild steel, ports may be threaded internally or externally. They are suited for hydraulic cylinder manufacturers serving industrial equipment, construction, farm machinery, and off-highway equipment industries.

Cerbide, Inc.    Orchard Park, NY 14127

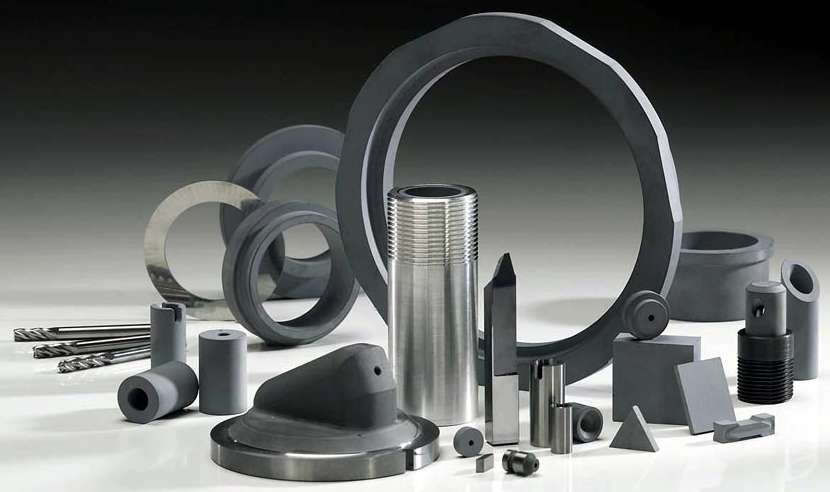

Jul 27, 2005 Suited for use in manufacture of low-impact wear parts, Cerbide(TM) polycrystalline tungsten carbide combines properties of ceramics and cemented tungsten carbide. Product exhibits abrasion and erosion resistance in wet and dry applications and demonstrates corrosion resistance in acids and caustic solutions.

Edmund Optics    Barrington, NJ 08007
Jul 25, 2005 Blazed Holographic Diffraction Gratings are aluminum coated with ion-beam etching to create standard sawtooth design. Since technique eliminates need for diamond-tipped tooling, periodic structure errors that cause stray light are no longer present. Gratings are suitable for all varieties of spectrometers, spectrophotometers, and monochromators.

Belden, Inc.    Broadview, IL 60155

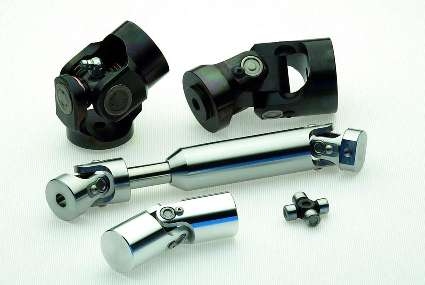

Jul 22, 2005 Manufactured in inch and metric sizes with operating angles up to 45°, Needle Bearing Universal Joints provide precise positioning and can operate continuously at high speeds. Choice of hub materials includes high grade alloy steel, various grades of stainless steel, and extruded aluminum. Featuring rigid axial stiffness for push/pull loads, units maintain low backlash and can be rebuilt when wear and tear occurs.

AGM Container Controls, Inc.    Tucson, AZ 85717 0020
Jul 19, 2005 Transformer Breathers eliminate oil thickening and deteriorating when air space above it expands and contracts with climatic variations. Units are filled with self-indicating, environmentally friendly Envirogel adsorbent that changes color when it reaches saturation level. Exhausted cartridge can be changed in minutes and contents can be recharged many times. Held in place by 4 fasteners, breather’s design eliminates need for baffle plates for even distribution of air flow.

RF Engines    Newport, Isle of Wight PO30 5WB  United Kingdom
Jul 19, 2005 Supplied on one CD, library provides Xilinx FPGA device designers with 60+ Fast Fourier Transform (FFT) cores and includes FPGA netlists for FFT range that covers different target devices. Cores run in continuous real-time and offer FFT transform lengths from 32–32,000 points. HiSpeed and QuadSpeed architectures support complex sample rates to 100 and 500 MS/s, respectively. Each design includes bit-true PC simulation, customized data sheet, and test bench for core.

Lexair, Inc.    Lexington, KY 40511 1018

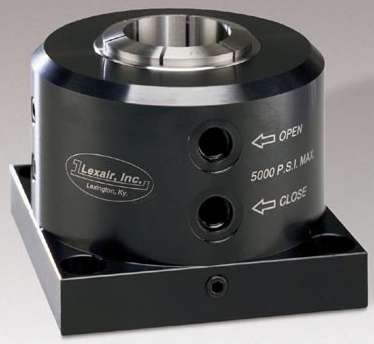

Jul 18, 2005 Accepting standard 22J collets, 22J Collet Closer operates at 5,000 psi max for heavy-duty clamping in high-pressure applications. All-steel fixed length design keeps collet and part stable to maintain fixed height from part to part. Drawtube force is 1.9X line pressure, and precision-bored orientation holes in base facilitate alignment. Machine can be used in multiple configurations using connector bushings to reduce footprint and hose requirements.

Advantech Automation Corp.    Cincinnati, OH 45240
Jul 18, 2005 Able to be integrated with ATX motherboard, IPC-7143 computing platform features I/O interfaces designed for bottom access, which facilitates overall cable organization and maintenance. Power supply is mounted on bracket with hinge design, enabling users to replace power supply module and CPU/memory on motherboard. When mounted on wall, there is no need for rear maintenance area. Unit also supports slim-type CD-ROM and 2 IDE disk drive bays for storage devices.

Nolan Co., The    Canton, OH 44707
Jul 13, 2005 Suited for railroad equipment, tow bars feature square-tube design and are offered in 5 sizes from 42 in. to 22 ft long. Zinc-plated pin-lock has ergonomic, folding handle and includes steel hairpin cotter. Painted red for visibility, clevis combination handle/restrainer keeps pin securely in tow bar and features ergonomic, hinged, fail-safe handle. Rigid-mounted pintle hook, made of forged steel, makes positive, secure connections and handles loads from 30,000–90,000 lb.

Richco, Inc.    Chicago, IL 60680

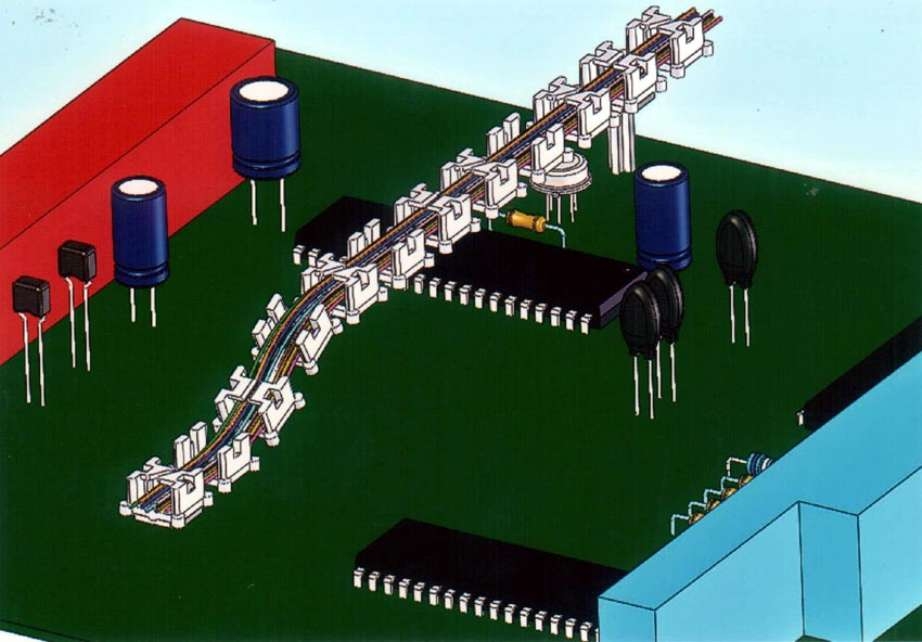

Jul 12, 2005 Designed for use with 250 and 900 micron fiber, Optical Fiber Flexible Guide (OFFG/OFFGSP) System enables fiber to snake around and over components on PCB without risk of snagging or kinking. Lugs along top of guide secure fiber into guide, and support posts mount guide onto or above PCB. Support posts are offered in flat and raised styles and are available in 3 stand-off heights. System is molded in flame retardant, UL94 VO Nylon 6/6.

Artesyn Communication Products Inc.    Madison, WI 53717
Jul 06, 2005 KatanaQp ATCA blade combines MPC7448 processor pair with 4 PTMC expansion sites, redundant IPMI-based system management interfaces, and PICMG 3.1-compliant ATCA interface. Processors, running at speeds to 1.7 GHz each, can be used for distributed or symmetric multiprocessing. Single-processor PmPPC7448 ProcessorPMC mezzanine card combines offers up to 2 GB RAM, 64 MB flash, and 3 Ethernet ports. It lets telecom OEMs add processing power to systems with PMC expansion sites.

Micro Plastics, Inc.    Flippin, AR 72634

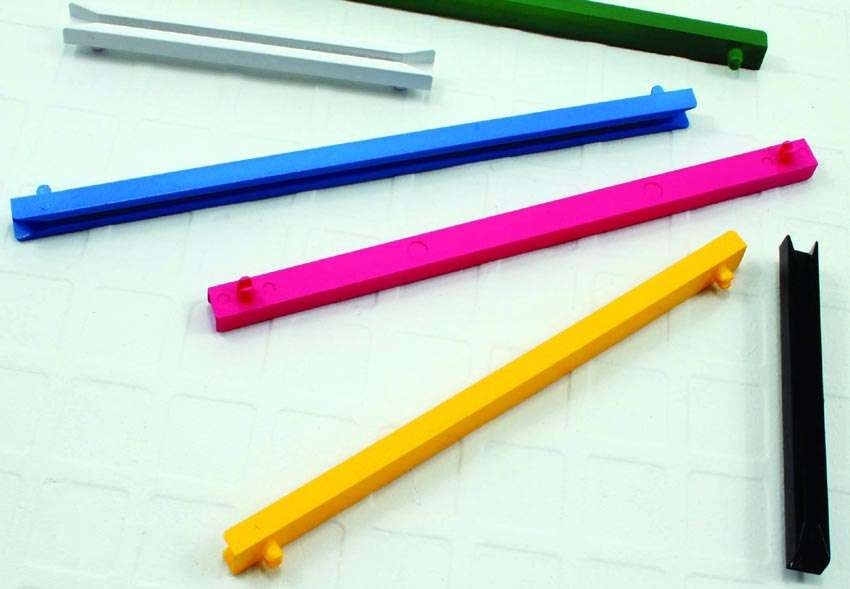

Jul 01, 2005 Offered in solid and split leg designs, Circuit Board Card Guides provide users with PCB mounting solution that facilitates panel insertion. Smooth positive channel guides PCB while firmly supporting and protecting board. Molded of electrically insulating Nylon 6/6, guides are designed to snap into pre-punched holes in chassis. Available sizes include 2½-6 in. long x ¼ in. wide, and other sizes can be tooled as needed.
