ARM Ltd.,    Sunnyvale, CA 94085
Apr 04, 2007 ARM® Cortex(TM)-M1 processor implements subset of high-density Thumb®-2 instruction set, is capable of more than 170 MHz, and delivers 0.8 DMIPS/MHz. Compatible with M1-enabled Actel Fusion Programmable system chips and ProASIC3 FPGAs, 3-stage 32-bit RISC processor is available as Cortex-A series for complex OS and user applications, Cortex-R for real-time systems, and Cortex-M optimized for microcontroller applications.

Parker Hannifin Corp    Greenfield, TN 38230
Apr 04, 2007 Capable of synchronizing gas flow with pulsing lasers, Iota One precision valve driver system offers pulse duration ranges in µsec, msec, or longer with internally-generated pulse trains achieved by setting on/off times or operating frequency. Self-contained, rack-mountable system includes front panel BNC jacks for both I/O TTL signals. Single- and multi-channel units produce repetition rates up to 250 (maximum 50% duty cycle) and 999 Hz, respectively.

SKF USA, Inc.    Lansdale, PA 19446
Mar 30, 2007 Available in 7, 9, 12, and 15 mm, Type LLM Miniature Linear Guides offer standard one-piece rail lengths up to 900 mm. Units can achieve linear motion up to 3 m/sec and acceleration up to 80 m/sec². All guides feature gothic arch grooves at raceway contacts to sustain loads from any direction. Made of stainless steel to resist corrosion, guides offer unlimited stroke and are suited for medical, semiconductor processing, electronics, and microassembly industries.

TT electronics    Ontario   Canada

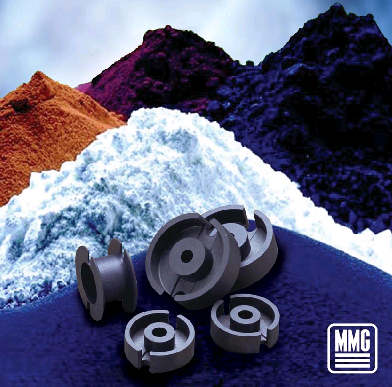

Mar 28, 2007 Featuring frequency range of 200 kHz to 1 MHz, F58 offers initial permeability of 750 when measured at 10 kHz and 0.1 mT. Ranging from 10 kHz to 500 kHz, P11 features initial permeability of 2,250 when measured at 10 kHz and 0.1 mT. Both manganese-zinc ferrite core materials are available in standard RM and pot cure geometries, while F58 is also available in toroidal core configuration. Applications include filter networks, proximity switches, and gate drive transformers.

Snowbush Microelectronics    Toronto M5G 1Y8  Canada
Mar 28, 2007 Designed to promote performance in noisy digital ASICs, PCI Express(TM) PHY is intended for 2.5 and 5.0 Gbps operation and comes with PIPE standard interface, while SATA PHY meets SATA 1.5 and 3.0 Gbps as well as SAPIS interface standards. Also available, 1.0-5.0 Gbps multi-standard SerDes macro provides complete physical media attachment layer for PCI Express, SATA, SAS, and Fibre Channel serial interconnects. It also supports XAUI, Rapid I/O, GigE, and Infiniband.

CEVA, Inc.    San Jose, CA 95110-3710
Mar 21, 2007 Optimizing data rate for stereo audio and multimedia file transfers, Bluetooth 2.0+EDR IP consists of complete hardware and software Bluetooth Baseband IP solution designed for embedded market. It provides full flexibility in choice of CPU, Bluetooth radio chipset, and operating system, offering customers range of system configurations when incorporating Bluetooth into their designs.

SKF USA, Inc.    Lansdale, PA 19446
Mar 19, 2007 Offering corrosion resistance, stainless steel Speedi-Sleeves® exhibit surface roughness of 0.25-0.51 mm. Units mount by pressing them over damaged shaft surface and do not require power tools or heating. Shafts up to 8.000 in. dia can be equipped with standard models, while shafts with diameters up to 45.000 in. can use LDSLV chrome-plated, carbon steel sleeves. Speedi-Sleeve Gold version features coating that minimizes rate of abrasive wear in contaminated conditions.

Snowbush microelectronics    Toronto M5G 1Y8  Canada
Mar 19, 2007 Silicon verified, 80 nm Line-Lock PLL IP Block uses digitally-programmable, low-jitter frequency synthesizer with high-resolution, 20-bit, noise shaping filter for fine-frequency tuning. Block has digital second loop and 2 programmable pixel clock outputs, and operates with pixel clocks up to 202.5 MHz. Occupying 0.55 mm² of silicon, it dissipates 50 mW, with long-term peak-to-peak jitter of less than 0.06 unit intervals.

Conax Buffalo Technologies LLC    Buffalo, NY 14225 4740
Mar 07, 2007 Suitable for gas or liquid, HL Glands feature Grafoil® sealant and come in ½ and ¾ in. NPT sizes. Units provide temperature range of -4 to 130°F and have pressure rating of 500 psig. With mechanically sealed HL Gland, users do not have to be concerned about cracks in compound sealants that allow explosive gases or liquids to leak in conduit system, or migration of explosive gases through stranded conductors due to pressure differential in conduit system.

PIAB Vacuum Products    Hingham, MA 02043
Mar 05, 2007 Actuated solely by vacuum, Vactivator provides control in graphic and packaging applications such as paper and blanks feeding, carton erecting, and pick-and-place procedures. No positioning units are needed; piston rod returns to its original position using vacuum and return spring while object is held by suction cup, and suction cup gripping is possible anywhere within stroke of piston rod. Solution comes in models with 0-50 or 0-20 mm stroke, both with automatic stroke control.

Altera Corporation    San Jose, CA 95134
Feb 26, 2007 TES Display Controller/Accelerated Vector Engine (D/AVE) allows systems designers to integrate specific graphics functions, such as TFT pixel rendering, into Altera's Cyclone® and Stratix® series FPGAs. Suited for automotive and industrial display applications, this FPGA-based PCI graphics IP core generates vector graphics with sub-pixel processing and extended anti-aliasing functionality.

Elma Electronic Inc.    Fremont, CA 94538

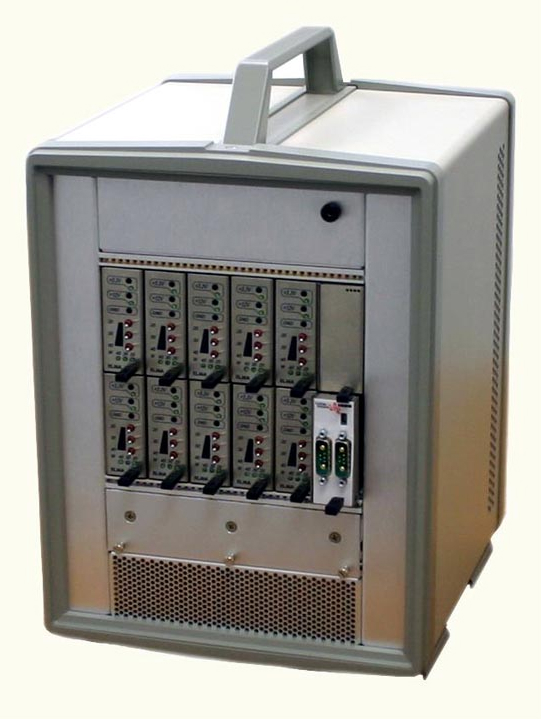

Feb 16, 2007 Utilizing modular extrusion-based design and suited for use as development chassis, Type 32M MicroTCA Portable Tower allows up to 6 AdvancedMC's in full size, single or double width format in same backplane. With 2 MicroTCA carrier hubs, backplane has Dual Star architecture, and includes redundant power modules, connections for 2 cooling units, and M4 power bolts. Chassis features EMC shielding, scratch-resistant vinyl clad aluminum covers, and two 90 cfm fans.

Elma Electronic Inc.    Fremont, CA 94538

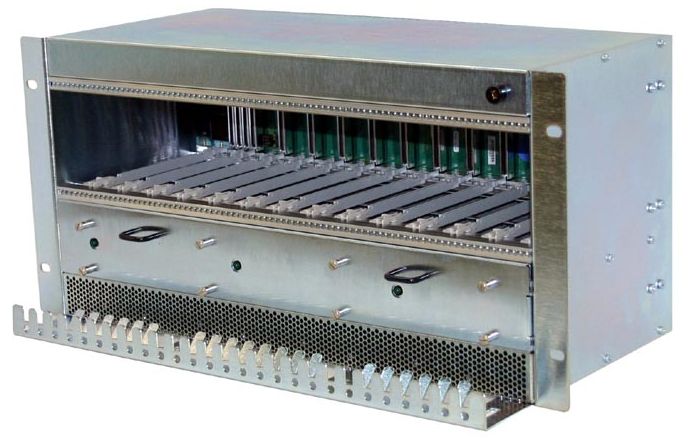

Feb 12, 2007 Cooled via 3 pluggable fan trays with air filtering, 5U MicroTCA shelf comes with 14-slot Dual Star backplane in single module, full size format. Backplane offers 10 AdvancedMC, 2-power module, and 2 MicroTCA Carrier Hub (MCH) slots. To securely hold modules in place, unit features locking strips that are stamped so they can be cut at any incremental width, allowing flexibility in how many modules are plugged in and secured.

RencoMed    Manchester, MA 01944
Feb 08, 2007 Infection control and hygiene product, DrySite Sleeve, protects IV sites from moisture-borne infections. Disposable and waterproof product promotes freedom of movement, allowing patients with chronically implanted IV catheters to wash, bath, swim, and exercise while reducing risk of infection. Application process replaces makeshift solutions such as wrapping site with cellophane and tape.

WMH Tool Group    Elgin, IL 60123
Feb 07, 2007 JET Drum Tongs have 1,000 lb capacity for lifting 55 gallon drums with overhead hoist. Model 262001 works with open top or tight-head steel drums and plastic drums with large or x-Large rings, while 262002 features release lever that allows hooks to fall and then secure drum's rim. JET Drum Lifter bears loads up to 770 lbs and can be used with overhead hoist or hooked from forklift truck. JET Drum Chain Sling is used with hoist and has single-chain capacity of 1,100 lb.

Elma Electronic Inc.    Fremont, CA 94538
Feb 06, 2007 Suited for prototyping, demonstrations, and mobile applications, VPX Portable Tower features EMC shielding, scratch-resistant vinyl clad aluminum covers, and power components. Carrying handle promotes portability, and chassis has VITA 46-compliant mesh backplane. Cooled via one 12 Vdc fan pushing 150 cfm in front-to-rear airflow configuration, chassis offers modular, extrusion-based design that facilitates configurability. Flexible 800 W power supply is included.

Rabbit Semiconductor    Davis, CA 95616
Feb 01, 2007 Powered by 58.98 MHz Rabbit® 4000 microprocessor, Model RCM4200 features quadrature encoder, 10/100 Ethernet connectivity, 35 GPIO lines shared with up to 5 serial ports, and 4 levels of alternate pin functions. Operating from -40 to +85°C, module has 8 MB on-board serial flash memory for remote data storage and optional 8-channel analog input for interfacing to variety of sensors. Unit is suited for embedded control, remote device monitoring, and serial-to-Ethernet communications.

Silicon Logic Engineering    Eau Claire, WI 54701
Jan 29, 2007 Providing 10-60 Gbps bandwidth across interface, Interlaken IP Core features scalable design that makes it suited for future network switches, routers, and storage equipment. Scalability is achieved through combination of SERDES speed of 3.12-6.375 Gbps and 1-24 SERDES lanes. Interlaken protocol combines advantages of SPI4.2 and XAUI interfaces by building on channelization and per channel flow control features of SPI4.2, and reducing number of chip I/O pins by using SERDES technology.

Stafford Manufacturing Corp.    Woburn, MA 01888
Jan 16, 2007 Designed to mount onto any pipe, tube, or shaft, 2-piece clamp-style Mounting Collars feature smooth bore with countersunk tapped hole, which accepts screw that exits through flat surface. Made from steel and stainless steel, units are adjustable and come in sizes from 3/8-1½ in. ID. Collars can be used for attaching lights, meters, sensors, and accessories onto machines, instruments, racks and conveyors, trucks, RVs, and other vehicles.

C & D Technologies    Mansfield, MA 02048-1151
Jan 16, 2007 Alleviating need to develop custom chassis to accommodate multiple power supply modules, 1U high Model S1U-3X is fully compatible with standard 19 in. rack systems. Unit, rated at 12 V and holding three D1U-W-1600-12 power supplies, is able to support 4.8 kW of bulk 12 V power, while 48 V model containing three D1U-W-2000-48 power supplies supports 6 kW of bulk 48 V power. Both offer hot intersection/removal of power supplies and feature blind docking connection.
