Mechanical Components & Assemblies
(Showing headlines 141 - 160) << 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 ...
|
 MicroTCA Chassis is offered in slim version.Elma Electronic Inc.
Fremont, CA 94538
Oct 18, 2007
The 4U Type 32M MicroTCA Portable Tower features Star backplane with up to 6 AMCs, 1 MicroTCA carrier hub slot and power module slot. Backplane incorporates J-Tag switch module slot for diagnostics. Suited for use development chassis, it accommodates single or double width format modules in same backplane. Along with 5 temperature sensors, Type 32M also features EMC shielding, scratch-resistant vinyl clad aluminum covers, and cooling is achieved with 2 x 90 cfm fans.
|

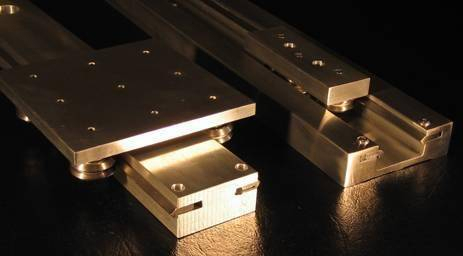

 Linear Guide is available with bridge connections.Bishop-Wisecarver Corporation
Pittsburg, CA 94565 0209
Oct 16, 2007
Suited for running 2 systems in parallel, UtiliTrak® is designed to compensate for mounting errors and does not require absolute parallelism for accurate operation. Vee side serves as motion guide, while roller side allows for parallel misalignment. Available in steel and aluminum configurations, bridge connection facilitates assembly and completes system by joining 2 slides and providing stable mounting surface.
|
IP Core handles packet transmission for Broadcom devices.GDA Technologies, Inc
San Jose,, CA 95131
Oct 10, 2007
HiGig IP is 10 Gigabit Ethernet Media Access Controller compliant to IEEE 802.3ae. It features full duplex flow control compliant to IEEE 802.3x, XGMII/XAUI interface on line side compliant to IEEE 802.3ae, and Xilinx local link interface on system side. Along with configurable depth for Rx and Tx FIFOs, 64-bit wide solution supports store-and-forward and cut-through modes of operation and includes stat counters for RMON.
|
 CompactPCI Chassis offfers built-in system monitoring.Elma Electronic Inc.
Fremont, CA 94538
Oct 08, 2007
Built with sheet metal design available in 1U-4U heights, horizontal-mount Type 39c enclosure features 3U, 4 hp configurable system monitor with Ethernet, RS-232, Web, and CLI capabilities. It monitors up to 8 voltages, 12 fan-fail signals, and 8 temperature sensors and also controls speed of fans. Solution comes with cPCI- or PICMG 2.16-compliant backplane in up to 8 slots, and backplanes have 3 pluggable 47-pin connectors that accept hot-swap power supplies for 500 W, N+1 solution.
|
FDA Compliant Tubing is suited for medical applications.Parker Hannifin Corp.
Houston, TX 77087
Oct 05, 2007
Texflour(TM) Fluoropolymer Medical Tubing is available in single and multi-lumen tubes and as heat shrinkable tubing in sizes ranging as small as .004 in. ID up to 1 in. Offered in Texflour(TM) PTFE, FEP, PFA, ETFE, and PEEK(TM), FDA and USP Class VI compliant tubing features non-stick surface and is chemically inert and non-leaching. Tubing can be customized to meet specific application requirements.
|
 Chassis accommodates backplanes of various architectures.Datametrics Corp.
Orlando, FL 32809
Oct 03, 2007
Accommodating backplanes of VME, VME64x, CompactPCI(TM), and VITA-xx architectures, Model 7004 is 4U, 7-slot COTS Mini-Tower chassis that includes twin line replaceable fan tray units (LRU) which utilize captive screws. One LRU is mounted below front subrack, while other LRU is mounted above front subrack. IEEE-1101.1 compliant and convection cooled unit also provides front access to all seven 6U backplane slots and up to seven 6U rear transition modules.
|
Rubber Connectors are suited for use in milling industry.Reichel-Korfmann Co., Inc.
Milwaukee, WI 53209
Sep 27, 2007
Made from FDA-approved materials in any size and any shape, Rubber Flex Connectors provide connection between discharge chute from screen and pneumatic blow lines in mills. They replace fabric connectors used in milling industry, minimizing maintenance concerns, and provide alternate approach to rubber sleeves, socks, boots, or tubes. Constructed with smooth interior surface, products are offered with wall thicknesses from 1/32-2 in.
|
 Telescoping Torque Arms work with assembly tools.Mountz, Inc.
San Jose, CA 95112
Sep 18, 2007
Designed to optimize production and quality control during assembly process, EZ-Glider Torque Arms help minimize repetitive motion injury and carpal tunnel syndrome, as well as eliminate torque reaction of power and pneumatic tools. They keep electric or pneumatic drivers in perpendicular or level alignment to help prevent side loading or cross threading. Crafted with carbon fiber, arms offer capacity up to 147 lb-ft and are available in models that extend up to 8 ft.
|
 Grinding Discs blend welds on contoured surfaces.Rex-Cut Products, Inc.
Fall River, MA 02720
Sep 18, 2007
Capable of producing 32 RMS finish on stainless steel and non-loading on aluminum, Cut-N-Finish(TM) Discs are constructed of multiple layers of cotton fiber, fully impregnated with aluminum oxide abrasives, and pressed and bonded together to constantly expose fresh abrasives as they work. Flexible bond can follow contoured surfaces for light grinding and blending of MIG and TIG welds. Offered in 4, 4˝, and 7 in. dia, discs come in A24, A36, A54, and A80 grit sizes.
|
Liquid-Tight Strain Relief suits dry/wet/underwater uses.Remke Industries, Inc.
Wheeling, IL 60090 6039
Sep 11, 2007
Able to withstand continuous flexing and bending, NEMA 6P- and IP68-rated Dome Cap Cable Glands can be used indoors/outdoors with range of cables. Standard nylon connectors are available with NPT or Pg threads; Spiral-Flex extended version is optimized for strain relief; and nickel-plated brass connectors come in several NPT, metric, and Pg thread sizes. Submersible to 300 ft, products provide tight seal and relieve any strain on cable once user inserts cord and tightens dome-nut.
|
ADC IP Core handles data conversion applications.Snowbush microelectronics
Toronto M5G 1Y8 Canada
Sep 10, 2007
Featuring INL of 0.59 LSB, DNL of 0.51 LSB, and ENOB of 5.2 or greater for sampling clock frequencies up to 2.5 GHz, 6-bit, 2.5 GSps ADC IP core occupies silicon area of 0.43 mm˛. Designed in 90 nm CMOS process, it utilizes automatic calibration of key analog blocks to ensure performance over variations in process, voltage, and temperature. Unit features on-chip power-supply regulation for noise immunity within large digital SOCs.
|
Manhole Cover features oversized, 36 in. diameter.CertainTeed Corp.
Valley Forge, PA 19482-0860
Sep 10, 2007
With ability to fit oversize manholes in U.S. municipalities, PAMREX 36 in. manhole cover is inflow and infiltration resistant and has ergonomics for operator safety. It is made from lightweight ductile iron and offers security from unauthorized access. Product features hydraulic arm and twin-hinge design that makes it safe to raise and lower, allowing for one-man operation. Hinged design also requires pickaxe or pry-bar to open cover.
|
Spring-Energized Seal facilitates placement in solid glands.Trelleborg Sealing Solutions
Fort Wayne, IN 46801
Sep 07, 2007
Turcon Variseal SA utilizes PTFE-based sealing solution suitable for solid glands preferred by aerospace engineers. Jacket of PTFE-based Turcon material is capable of operating in temperature extremes and resists aggressive aerospace fluids. Suited for high-frequency applications, integral Slantcoil spring is not susceptible to compression set and accommodates deformation during installation. Solution can be fit within smallest diameter Mil-G-5514F glands.
|
Fiberglass Composite Poles will not rust or rot.Shakespeare Composite Structures
Newberry, SC 29108
Sep 06, 2007
Suited for outdoor applications, Tuff-Poles® combine fiberglass and resin systems with UV inhibitors and coatings that offer protection in extreme weather conditions. Poles come in round tapered, straight, square, decorative, sports lighting, and utility models in heights to 75 ft. Available in variety of colors, pigments are formulated into resins for lasting color retention and minimal maintenance.
|
Distribution Poles safely absorb vehicular collision energy.Shakespeare Composite Structures
Newberry, SC 29108
Sep 06, 2007
Tuff-Poles® reduce ridedown G forces in collision to within TL-2 Device specifications and retain initial strength throughout their life. Fiberglass reinforcement introduces locally weakened zones at specific locations along length of pole, and manufacturing process is computer-controlled to achieve desired fracture behavior during impact without degrading strength of pole required for environmental loads. Poles are offered up to 50 ft long with ground line moment of 87,600 lb-ft.
|
Composite Poles facilitate luminaire maintenance.Shakespeare Composite Structures
Newberry, SC 29108
Sep 06, 2007
Eliminating need for lifts or trucks, Tuff-Hinge Composite poles consist of 4 ft direct burial portion embedded into ground and hinged base at ground level. Top portion consists of O-series composite Tuff-Pole® that tilts over to ground level for relamping or other luminaire service, and can then be raised to vertical position. Tamper-resistant poles are available up to 20 ft mounting height, which has 6.6 EPA max load rating at 80 mph.
|
ARM Processor Cores achieve speeds of 700 and 400 MHz.NEC Electronics
Santa Clara, CA 95050
Sep 05, 2007
Capable of executing more than 2,200 Dhrystone MIPS under nominal conditions, 700 MHz dual-core ARM11 MPCore is implemented using 90 nm process technology and suited for high-speed consumer, enterprise, and networking applications. Achieving speed of 400 MHz, ARM926EJ-S is available for implementation with 130 nm ASIC technology. Jazelle® technology enables direct execution of Java byte codes in hardware, while 16-bit ARM Thumb® instruction set shrinks code size.
|
Ruggedized Chassis suits PC104/p and PCI-104 applications.Dynamic Engineering Inc.
Ben Lomond, CA 95005
Aug 30, 2007
Along with heat sink built into internal and external walls on 3 sides, PC104p-Chassis features extruded aluminum outer housing with machined end caps that include gasket for watertight operation; EMI gasket is available. Internal card cage is isolated from external housing via bumper pads to optimize vibration and shock adsorption. In addition to custom lengths, options include 1-11 modules, 12 and 28 V power supplies, custom machining, and silk screening.
|
Finishing Flap Discs provide smooth grinding action.Rex-Cut Products, Inc.
Fall River, MA 02720
Aug 30, 2007
Layered with non-woven synthetic fiber surface conditioning materials, Rex-Cut® Megabrite T27 Flap Discs expose fresh material as they wear. Units are rated for 13,300 rpm, but provide optimum performance with minimum heat at 6,000 rpm. Available in 4 ˝ and 5 in. dia sizes with 7/8 in. holes or 5/8-11 adapters, discs are suitable for cleaning, deburring, blending, and finishing stainless steel, aluminum, and other metals. Color-coded coarse, medium, and very fine grades are offered.
|
Short Depth 2U Chassis support standard DP serverboards.Supermicro Computer, Inc.
San Jose, CA 95131
Aug 29, 2007
Designed for 12 x 13 in. serverboards, SC825MTQ series chassis supports 7 expansion cards, 3 x 3.5 in. hot-swap drive bays for RAID configuration, and 2 high-efficiency 700 W redundant power supplies. With depth of 17.7 in., unit features advanced thermal design. At 14.5 in. deep, model SC523L provides front-side I/O access, is optimized for 12 x 10 in. boards, and supports 7 low-profile add-on cards and 2 fixed internal 3.5 in. hard drives.
|
