Stafford Mfg. Corp.    Woburn, MA 01888 0670
Oct 21, 2002 One-, two-piece, and hinged smooth-bore Clamp-Type shaft collars can be tightened without gouging, dimpling, or crushing steel, glass, and acrylic shafts, or thin-wall tubing. Available in standard bore sizes from 1/8 in. to 6 in. ID, they can be made from stainless steel, steel, and aluminum, and electropolished, plated, and anodized, respectively.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192
Oct 10, 2002 Extruded profiles are available in 11 models for aluminum structural framing system. Aluminum profiles, with 10 mm t-slot design and center bore, capable of handling heavy-duty loads and applications, provide alternative to welded steel. They are offered with choice of connectors and accessories. Edge allows flush mounting of profile cover strips to create smooth, finished surface.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192
Oct 10, 2002 RexMoverâ„¢ rodless pneumatic cylinders offer virtually leak-free operation. Oval-shaped piston design allows greater resistance to side load. Air connection choices include: on side at both ends, on rear of end covers, or one on end cover. Models are available with internal guiding, slide bearing guide, mini guide, or heavy-duty guide. All feature aluminum construction, cushions and impact bumper, magnetic piston for sensors, and grooves for sensors on 3 sides.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192

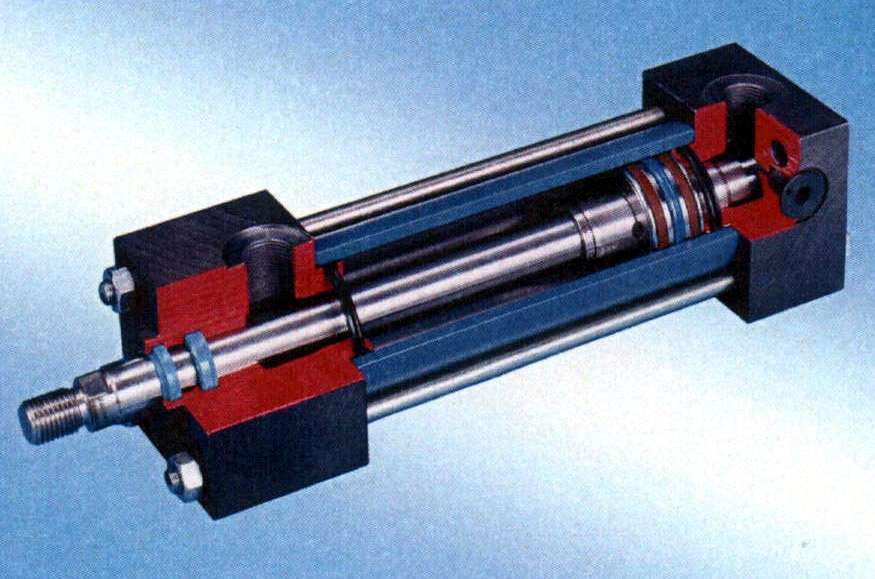

Oct 10, 2002 Model CDT3 ISO hydraulic cylinder features self-adjusting, end-position cushioning with integrated throttle and check valve function. One-piece piston, with polyurethane or PTFE piston seal and fabric-reinforced phenolic resin bearings, eliminates stick slip and provides positive sealing. Captive air bleeds are standard on head and cap to assist in system commissioning. Both male and female rod end threads are available for installation flexibility.

Thaxton, A Div. Of Hy-Tech Machine    Cranberry Township, PA 16066

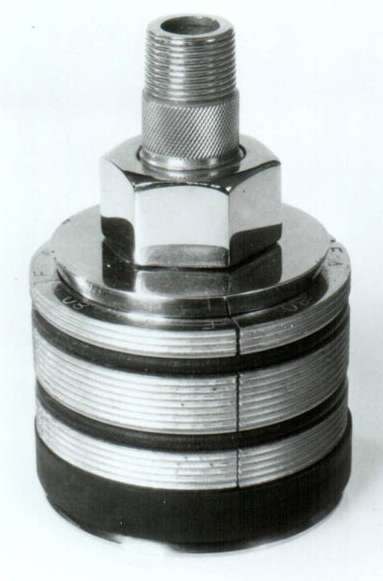

Oct 03, 2002 Type D Hydrotest Closure fits on inside diameter of pipe, tube, and variety of OEM equipment, eliminating need to weld or fabricate fixtures for testing or flushing. Made of heat treated, plated carbon steel with neoprene seals, unit is rated for temperatures from -65 to +250°F and pressures to 7,000 psi. Sizes range from 1 to 24 in. in diameter and are stocked in sizes to 12 in. diameter for Sch 40 and Sch 80.

Danaher Motion/Thomson Linear Bearing    Mayfield Heights, OH 44124
Sep 24, 2002 Precision Balls are offered in flat, diagonally cut, cone, and pin shapes that are typically used as hardened polishing and shaping tools. Sizes range from 1/6 to 1 in. in stainless steel, 52100 chrome, and ceramic materials. Balls are QS-9000 certified and ISO 9002 registered.

Stafford Mfg. Corp.    Woburn, MA 01888 0670
Sep 23, 2002 PowerRingâ„¢ keyless locking devices mount mechanical components to round shafts. Non-marring bore contracts securely onto shaft while expanding OD tightly into ID of hub. Devices are adjustable, balanced to minimize vibration at high speeds, and prevent backlash damage caused by heavy loads. Available in 24 sizes ranging from ¾ to 3 in. ID, they are suitable for mounting gears, sprockets, pulleys, and related devices.

Enerpac (Industrial Tools)    Milwaukee, WI 53201 3241
Sep 23, 2002 Hydraulic Swing Cylinders are available in capacities ranging from 300 to 7,600 lbs of force with strokes ranging from 1/2 to 1 7/8 in. They are offered in Buna-N and Polyurethane as well as Viton® for high temperatures or use in severe environments. Treatment on outside of cylinder bodies prevents surface corrosion for extended periods, and stands up to coolant and cutting fluids. Seal enables use of low pressure hydraulics without external leakage.

Jilson Group, Inc., The    Lodi, NJ 07644

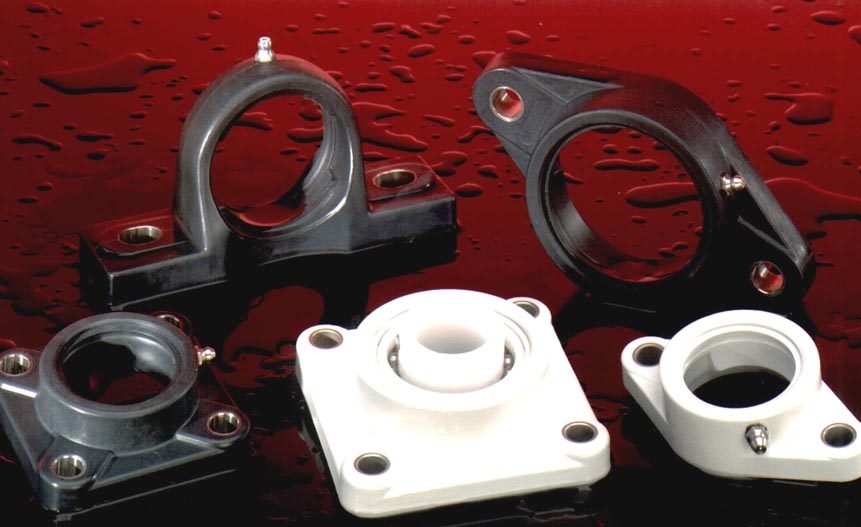

Sep 19, 2002 Dimensionally stable bearing housings are offered in pillow block and 2- and 4-bolt styles in 204, 205, 206, and 207 sizes. They can be equipped with metal or plastic insert bearings with bore sizes from ½ to 1½ in. (12 to 50 mm). Made of solid PBT thermoplastic polyester, they offer tensile strength of 17,300 psi. Able to be cleaned or hosed down with hot water, housings operate at temperatures up to 280°F and are suitable replacements for cast iron housings.

Pacific Bearing Co.    Roscoe, IL 61073

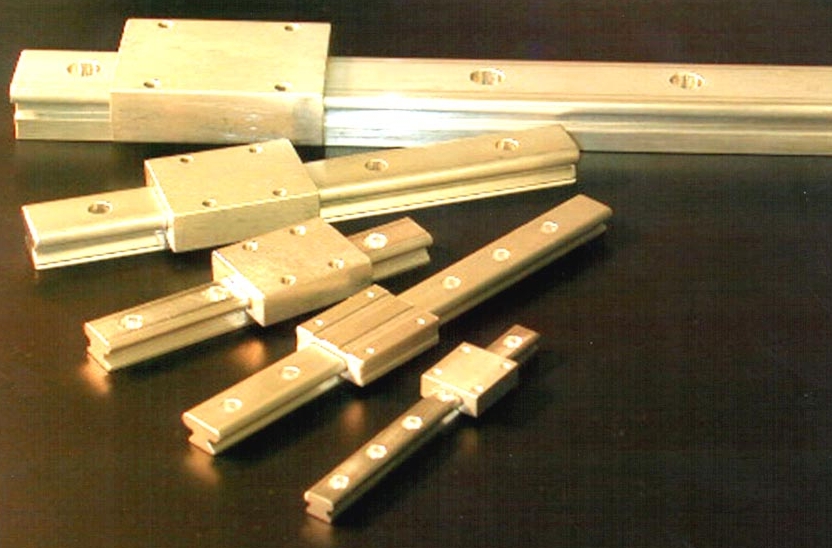

Sep 18, 2002 Mini-Railâ„¢ Plane Railâ„¢ Linear Guides are self-lubricating and offered in 2 classes. Precision Grade features FrelonGOLDâ„¢ bearing material and carriage runs on RC70 ceramic-coated aluminum rail. Maximum running clearance is .0005 in. Units are suitable for harsh conditions or where continuous duty cycle is needed. Commercial Grade is made up of clear anodized aluminum rail and carriage with FrelonJâ„¢ bearing material. Maximum running clearance is .0025 in.

Fujipoly America    Carteret, NJ 07008
Sep 17, 2002 SARCON® XR-e and XR-j offer thermal conductivity of 11 and 14 watt/m-K, respectively, which produces thermal resistance of 0.11 to 0.14 in²/W for XR-e and 0.09 to 0.12 in²/W for XR-j. Both pads offer flame retardant specifications satisfactory to UL94 V-0 class. Made from silicone compound, flexible pads conform to various design considerations and multiple component heights. They adhere to components of various shapes and sizes.

PITTMAN    Harleysville, PA 19438 0003
Sep 17, 2002 SuperBrush, for LO-COG® brush-commutated DC motors, helps delay detrimental effects of ongoing brush wear. Copper graphite brush contains 60% more brush material than standard counterparts, providing greater contact area with commutator. SuperBrush is housed in snap-together cartridge assembly, which utilizes torsion springs to ensure even brush force.

Sola/Hevi-Duty A Business Of The EGC Electrical Group    Skokie, IL 60077

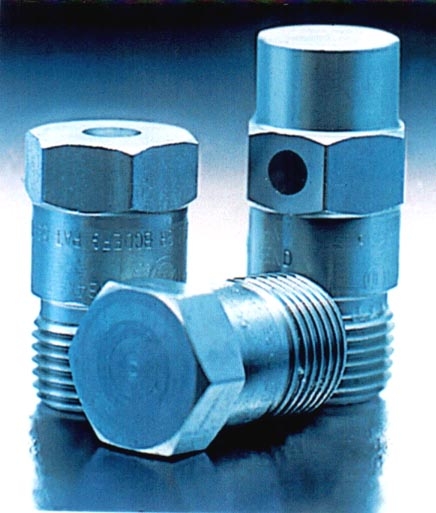

Sep 09, 2002 Drain-Breather fitting provides water drainage and continuous ventilation to minimize formation of condensation in electrical enclosures. Offered in 1/2 and 3/8 in. trade sizes, breather is machined of stainless steel. Easy to remove and install for maintenance, it is suitable for use in hazardous locations.

Thomson Industries Inc.    Port Washington, NY 11050 2214
Sep 06, 2002 MicroGuideâ„¢ linear guides, with 440C stainless steel construction, have Gothic Arch ball-groove geometry for quiet, single-rail operation, and provide accuracy up to ±0.1 mm. Available in 5, 7, 9, and 12 mm sizes, all have industry standard envelope and bolt-hole pattern for drop-in replacement of existing guides. The 5 mm MicroGuide is clean room and vacuum compatible. Applications include pick and place of miniature components and devices in processing equipment.

Nova Engineering, Inc.    Cincinnati, OH 45246
Sep 06, 2002 Comm Core Bundle includes 5 related communication IP Cores written in VHDL programming language. They include Complex Multiplier/Mixer, Numerically Controlled Oscillator, Linear Feedback Shift Register, Binary Pattern Correlator, and Early/Late Gate Symbol Synchronizer. Bundle is offered as stand-alone product or as upgrade to Constellation Development System.

Smalley Steel Ring Co.    Lake Zurich, IL 60047
Sep 05, 2002 Available in sizes down to ¼ in., spiral retaining rings are interchangeable with standard snap ring grooves. Rings have No Ears To Interfereâ„¢ with mating components, and provide 360° retaining surface. Rings are easy to install and remove—no special tooling is required.

Stafford Mfg. Corp.    Woburn, MA 01888 0670

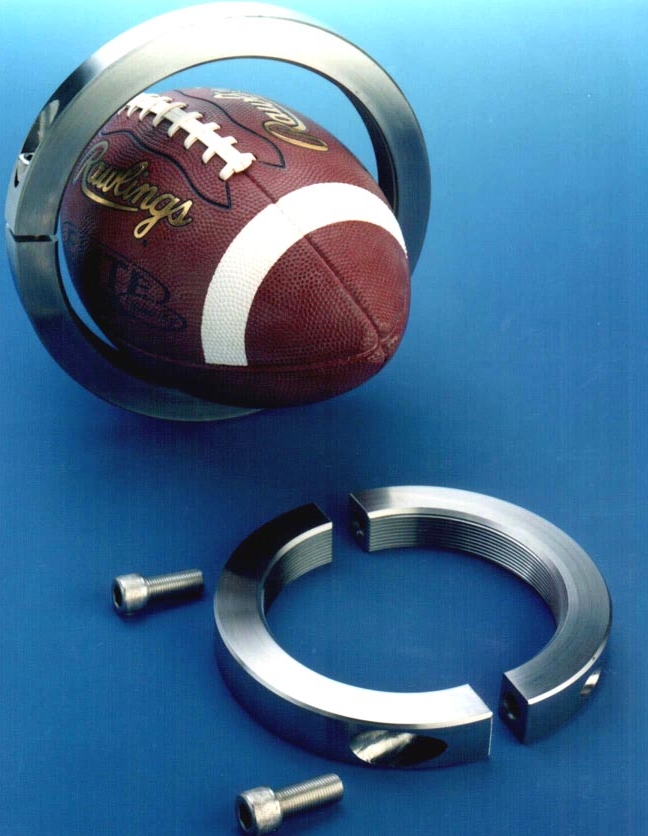

Aug 28, 2002 Shaft Collars can be custom engineered with pitch diameters up to 12 in. in UNC, UNF, Acme, or bearing lock-nut threads. They can include spanner wrench holes or slots for easy spinning on shaft, knurled OD, or face treatments to accommodate bearing race. Suitable for use with large compressors or line shafts, collars are machined from steel and alloy steel. Applications include heavy equipment used in construction, trucking, mining, and petrochemical industries.

80/20, Inc.    Columbia City, IN 46725

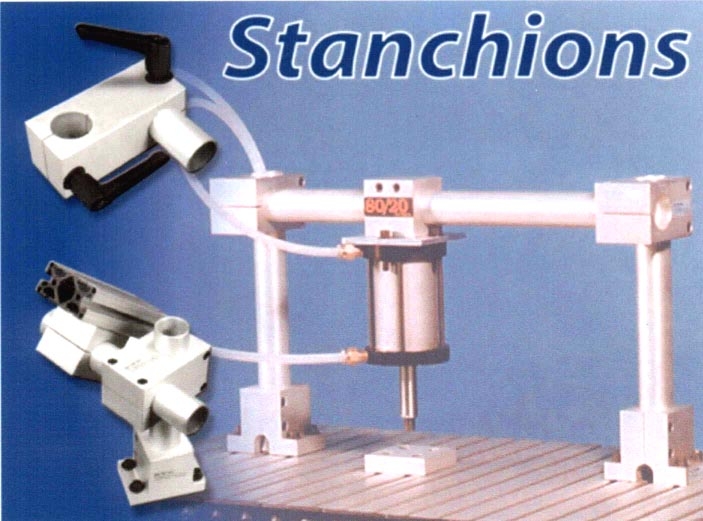

Aug 22, 2002 Stanchions are available in 40 models, including single or double shaft bases, blank or pre-drilled mounting plates, and single or double mounting blocks in 1, 1.5, and 2 in. bore sizes. Quick Clamp series of stanchions allow user to make fast adjustments without tools. Applications include positioning camera equipment, scanning devices, light sources, photo sensors, computer monitors, and actuators.

Stafford Mfg. Corp.    Woburn, MA 01888 0670
Aug 21, 2002 Solution Series Assembly consists of two steel, 2-piece collars; one which is free to slide on shaft and push against component to be moved, and another which clamps securely to shaft. It provides ½ in. range of motion. Available in 8 sizes from ¾ to 2½ in. I.D., assembly can be infinitely repositioned along shaft and offers from 5,000 to 8,000 lb thrust, depending upon size.

THK America, Inc.    Schaumburg, IL 60173 5340
Aug 16, 2002 SNR/SNS-H Caged Ballâ„¢ LM Guides feature enhanced block, radial, reverse radial, and lateral rigidity. Curvature of rolling surface matches ball diameter. Caged Ballâ„¢ Technology isolates each load carrying re-circulating ball in individual cage or pocket, preventing ball-to-ball contact and friction. Cage acts as reservoir for lubricants, eliminating need for external lubricating system. Radial Type SNR-H and 4-directional, equal load Type SNS-H are available in identical dimensions.
