Stafford Mfg. Corp.    Woburn, MA 01888 0670

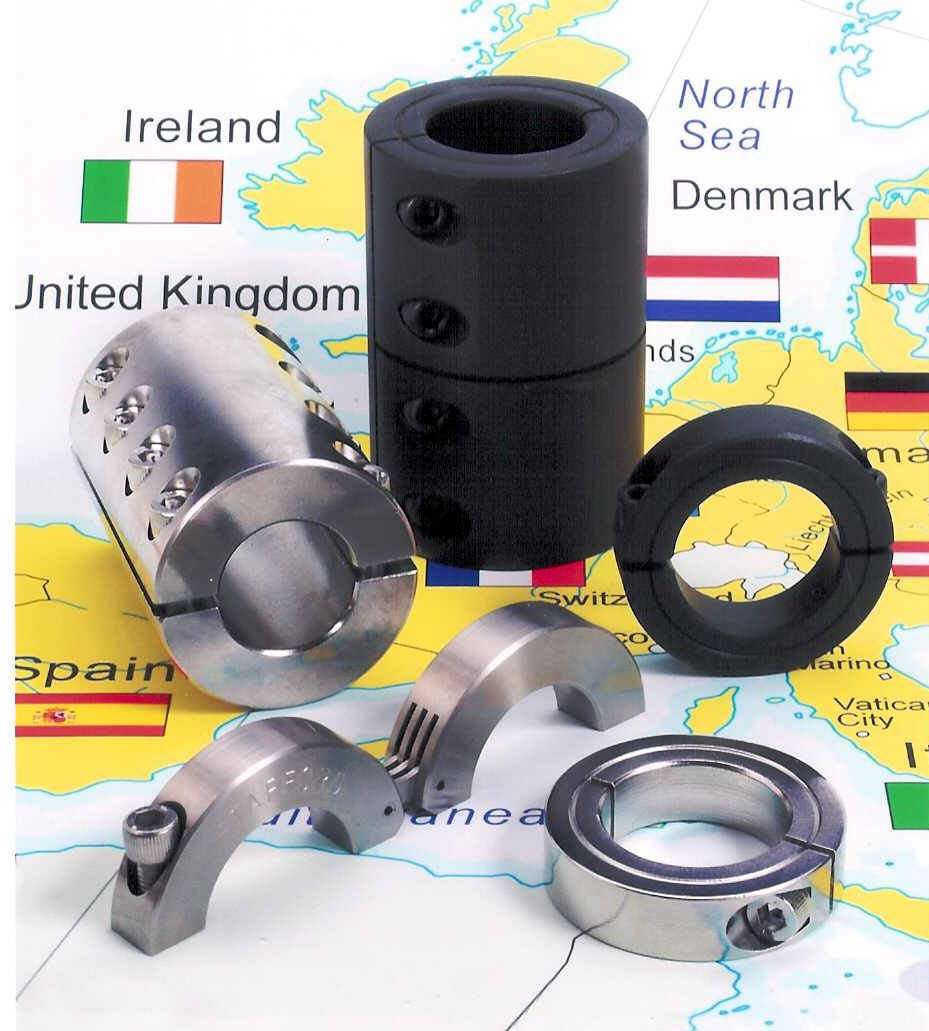

Feb 25, 2004 Metric Shaft Collars and Rigid Couplings provide machinery builders with fully metric components for compatibility with any equipment sold and serviced worldwide. Offered in steel and stainless steel with metric socket cap screws, collars come in 1-piece and 2-piece styles in 24 sizes ranging from 3–75 mm ID. Hinge collars and rigid couplings are offered in 1-piece and 2-piece styles in 16 sizes from 6–50 mm ID.

80/20, Inc.    Columbia City, IN 46725
Feb 13, 2004 Offering 24 aluminum T-slotted profile shapes, The Industrial Erector Set® gives users various options, allowing creativity when designing projects and creating solutions to problems. They include closed surface framing choices, metric or fractional units, and smooth surface or Align-a-Grooveâ„¢ framing.

Chromium Corporation Corporate    Dallas, TX 75254
Feb 09, 2004 Available in 4 grades for various application environments, CRODON® Wear Plate consists of abrasive and impact-resistant material layered upon surface of ferrous-based materials. Product can be fabricated into sheets, strips, or rolled on inner or outer diameter to unique dimensions as tight as 6 in. on radius. With nonstick, impact-tolerant, abrasion-resistant surface, wear plate can be welded, studded, and bolted for replacement during maintenance.

Parker Hannifin, Automation Actuator Div.    Wadsworth, OH 44281 0450
Feb 05, 2004 Suited for applications where inch dimensions are required, iSeries aluminum profile system includes 21 profiles plus full range of fasteners and accessories. It also offers hinges, latches, casters, leveling feet, choice of panels, and smooth face extrusions. Modular T-slot system is widely used in machine building, industrial automation, material handling, and machine safety guarding and enclosures.

Schneeberger, Inc.    Bedford, MA 01730

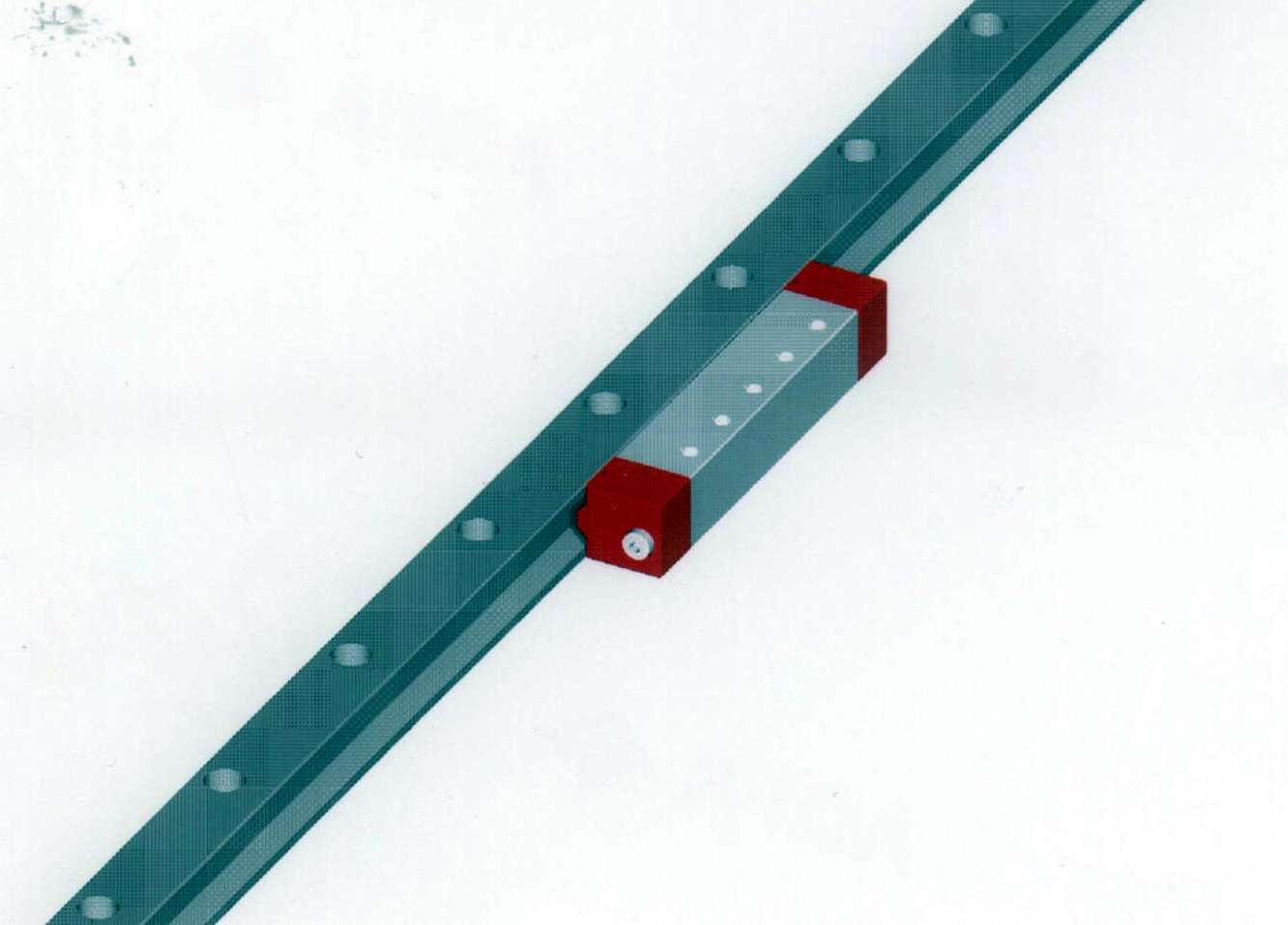

Feb 04, 2004 MRFE Linear Guide offers rails that can be manufactured to customer specification. Available sizes are MRFE 25, 35, 45, 55, and 65 with accuracy class G1. Carriage heights range from 21–51 mm and rail heights of 20–50 mm are available. Narrow and wide rail types are available with max width of 150 mm and length of 2000 mm. Static load capacities range from 35,150–265,000 N. Dynamic load capacities are from 19,550–147,500 N.

Paktek, Inc.    Tacoma, WA 98498

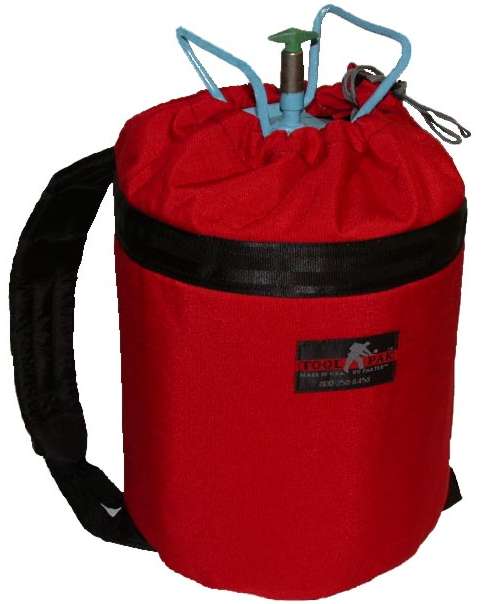

Feb 04, 2004 Made from puncture- and abrasion-resistant nylon, TankPakâ„¢ employs heavy-duty, ergonomic shoulder straps that allow user to carry bulky tanks up ladders or into tight places without use of hands. Top opening provides access to tank, while drawstring holds tank in place. Unit is expandable to fit different size tanks and protects them from dents and abrasion. It comes with handle that also works as tie down during transport.

Ezell Precision Tool Co.    Clearwater, FL 33762 4420
Feb 03, 2004 Custom Die and Mold Components include intricate mold cores, sleeves, cavities, and related parts with tolerances to 0.000050 in., depending upon configuration. They can incorporate multiple diameters, stepped sleeves, precision holes, ring vents, and form ground ends with radii, flats, spirals, and odd shapes. Featuring diameters from 0.002–8 in. and lengths to 12 in., components can be precision machined from various steels.

Igus, Inc.    East Providence, RI 02914 0349
Jan 23, 2004 Triflex® R Energy Chains® move multi-dimensionally on x, y and z axes and twist up to 380°/yd. Trailer-hitch style modular assembly delivers high tensile strength without need for steel cables. Chains protect moving cables and hoses attached to automated robotic machinery by providing impact resistance, contamination protection, and abrasion resistance. Smooth tubular design enables carriers to glide over robot without catching or tilting.

Mate Precision Tooling    Anoka, MN 55303
Jan 14, 2004 GapMaxâ„¢ turret saver forming system guide enables production of maximum height forms in thick turret punch presses without risk of damage to tool, machine, or successive forms in sheet metal. It protects machine turret while using entire turret gap for forming applications and eliminates potential for collision between press ram and tool during tool changes. Product allows for length adjustment of tool in .002 in. increments between guide shoulder and point of form.

Fibergrate Composite Structures Inc.    Addison, TX 75001-4223
Jan 12, 2004 Molded and pultruded grating features slip-resistant concave or grit-top surfaces that deliver positive traction, even where lubricants and other slippery liquids are present. Designed to replace metal grating in slippery, hazardous and corrosive environments, product helps prevent slips and falls and is suited for catwalks, flooring, platforms, trench covers, screens, and media support.

STMicroelectronics    Lexington, MA 02421
Dec 22, 2003 Based on Model ST100 DSP architecture, Model ST122 Dual MAC core is supported by evaluation chip fabricated in 130 nm technology and complete development platform. It can be mapped into versions ranging from ultra-low power to high-speed operation. Flexible instruction modes allow mixture of 16, 32 and 128-bit instructions. Evaluation device includes 16 kbytes of L1 Program cache, 256 kbytes of L2-Program memory, and 2x64 kbytes of data memory accessed at max clock speed.

Continental Fan Mfg. Inc.    Buffalo, NY 14215

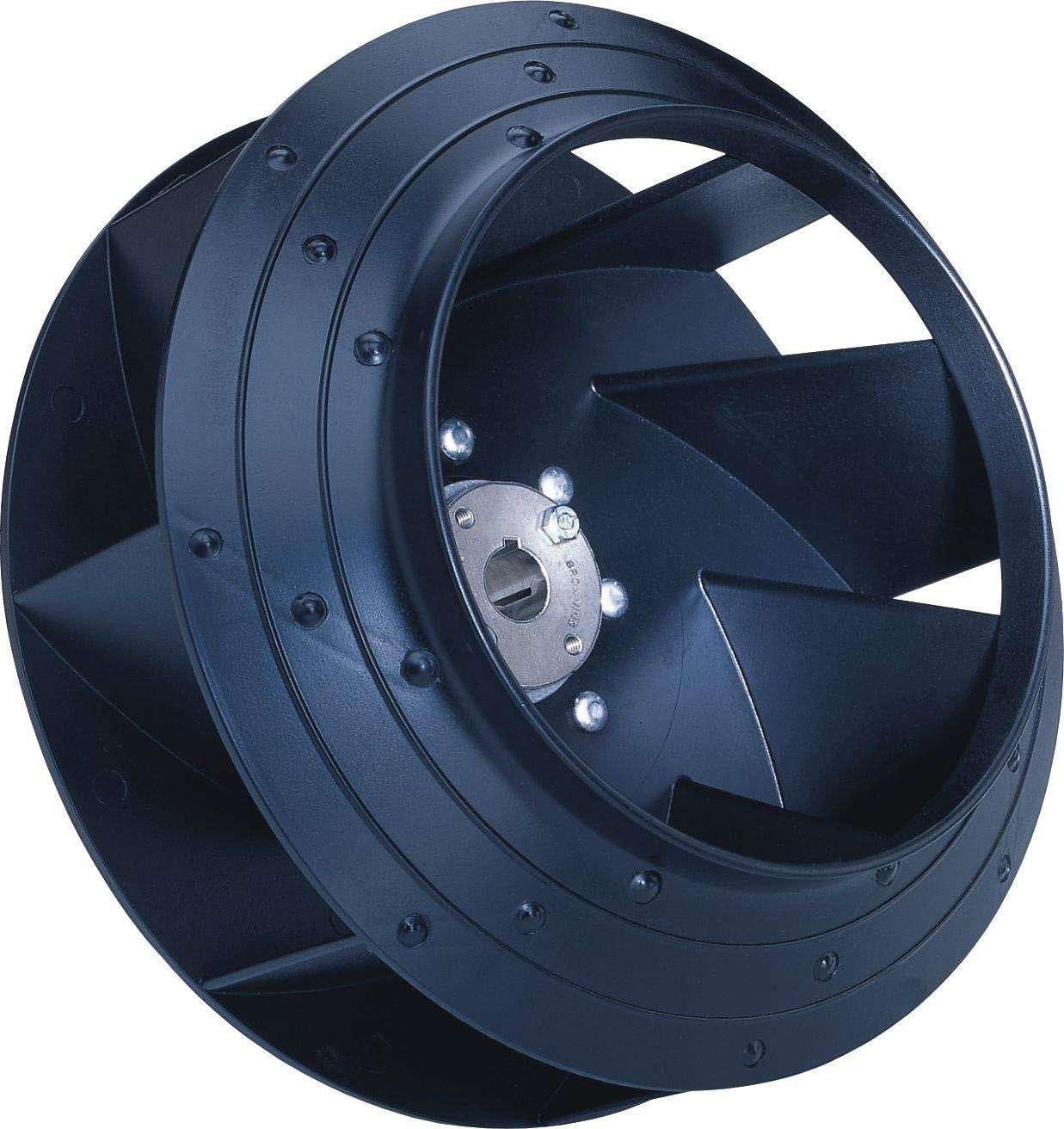

Dec 18, 2003 MF Mixed Flow Impeller provides non-stall airflow properties and non-overloading power curves. It delivers greater airflow than centrifugal fans and more pressure than axial fans. Available in diameters from 315–1,000 mm, product can be used for OEM applications such as electronic cooling or to provide general ventilation for industry and office buildings.

ConProTec Inc.    Salem, NH 03079 2060

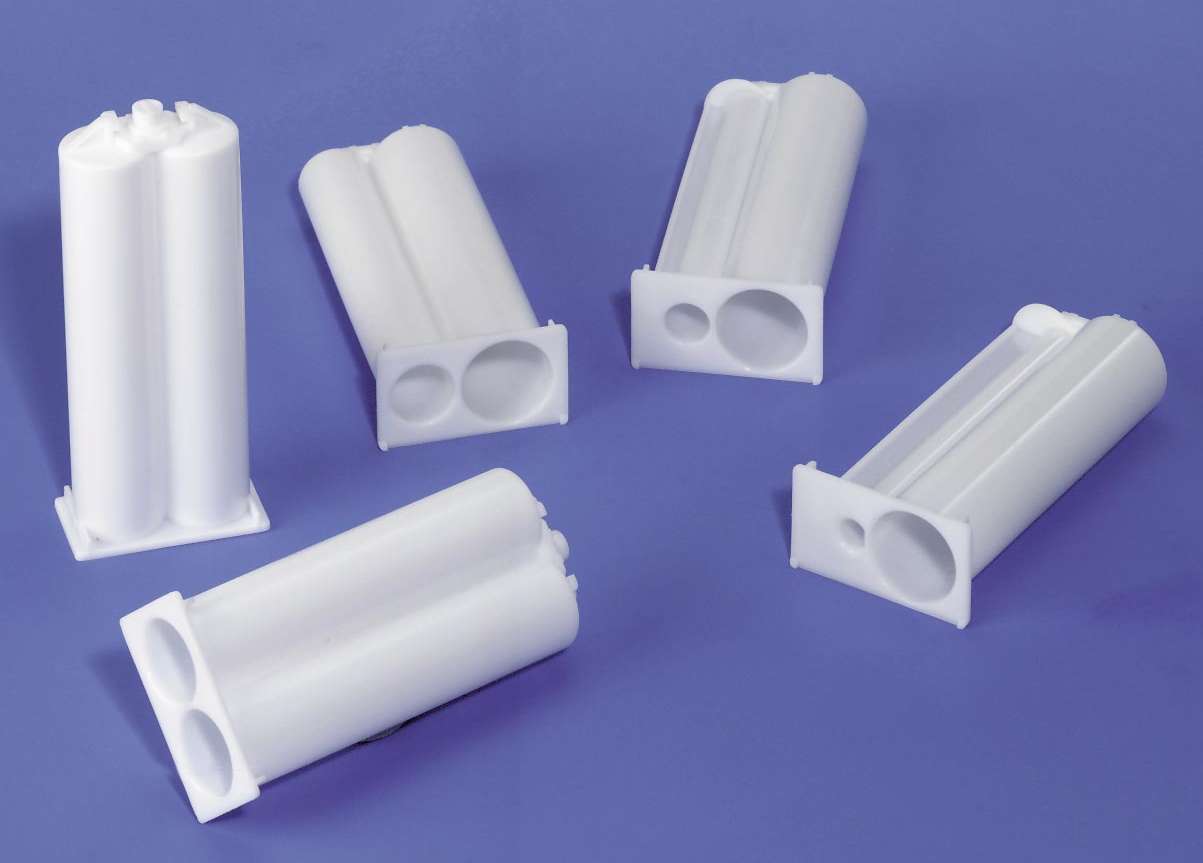

Dec 17, 2003 MIXPAC® Hand-Held Cartridge Dispensing System uses nylon cartridges for chemistries that are not compatible with polypropylene cartridges. Systems with 50 ml capacity dispense variety of ratios including 1:1, 2:1, 4:1, and 10:1. Cartridges are also available in 200 ml capacity with 1:1 volumetric dispensing ratio, as well as 400 ml with volumetric ratios of 1:1 and 10:1. System includes manual or pneumatic dispensing gun, cartridge, and static mixer.

Schneeberger, Inc.    Bedford, MA 01730
Dec 03, 2003 Models AMSA 3-A and 4-A offer resolution of .0625–4 microns. Scales for both versions feature distance coded reference marks at 50 mm intervals, signal period of 200 microns, and protection class of IP67. Scanhead lengths are 75–90 mm for roller guide Model 3-A and 66–78 mm for ball guide Model 4-A. Both include ceramic sliding elements on scanning head for protection against contamination, and hard cover band that protects magnetic scale from damage.

Murrplastik    Doylestown, PA 18901
Nov 25, 2003 Electrostatic Discharge Cable Drag Chains are electrically conductive and meet European specification ATEX-RL 9 4/9EC. ESD material can be produced in array of sizes and is distinguished from standard cable chain materials by light gray color. Chains are suited for clean rooms, microelectronic assembly areas, and other potentially explosive environments. Accessories include guide channel system, plates, and CAD assistance for construction.

SKF Motion Technologies    Lansdale, PA 19446
Nov 12, 2003 Type LLR profile rail guides feature pre-lubricated carriages incorporating foam inserts that act as lubrication reservoirs. Plastic ball separators reduce vibration and unwanted noise. Standard, long, and narrow carriages are available with or without ball separators. Standardized rails, with or without rail seal cover strips, enable limitless interchangeability for all carriage versions.

Elma Electronic Inc.    Fremont, CA 94538

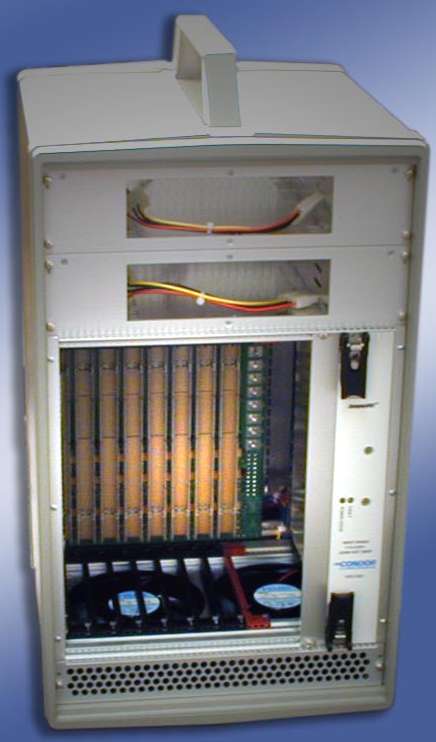

Nov 10, 2003 Offered with PICMG 2.16 backplane options, 8-slot Type 32 cPCI portable tower features 2 x 5.25 in. HH devices and 350 W plug-in power supply with option for dual redundancy. Construction includes ergonomic handle, scratch-resistant, vinyl-clad, aluminum covers, and rubber-soled feet. Option for EMI spoons ensures EMC compliance, and cooling is achieved via 90 cfm fan. Rear I/O and system monitoring options are available.

Diamond Chain Co.    Indianapolis, IN 46225 7045
Nov 10, 2003 Manufactured to API 7F specifications, 240 roller chain employs medium carbon alloy steel pins, which make it suitable for high-torque, high-load applications. ANSI 240 chain offerings include 240 Riveted, 240H Riveted, and Cottered single, double, or triple strand. Uses include off-shore oil drilling, construction, and mining applications. ANSI standard roller chains are available in pitches from ¼ – 3 in. (25-240).

Schneeberger, Inc.    Bedford, MA 01730

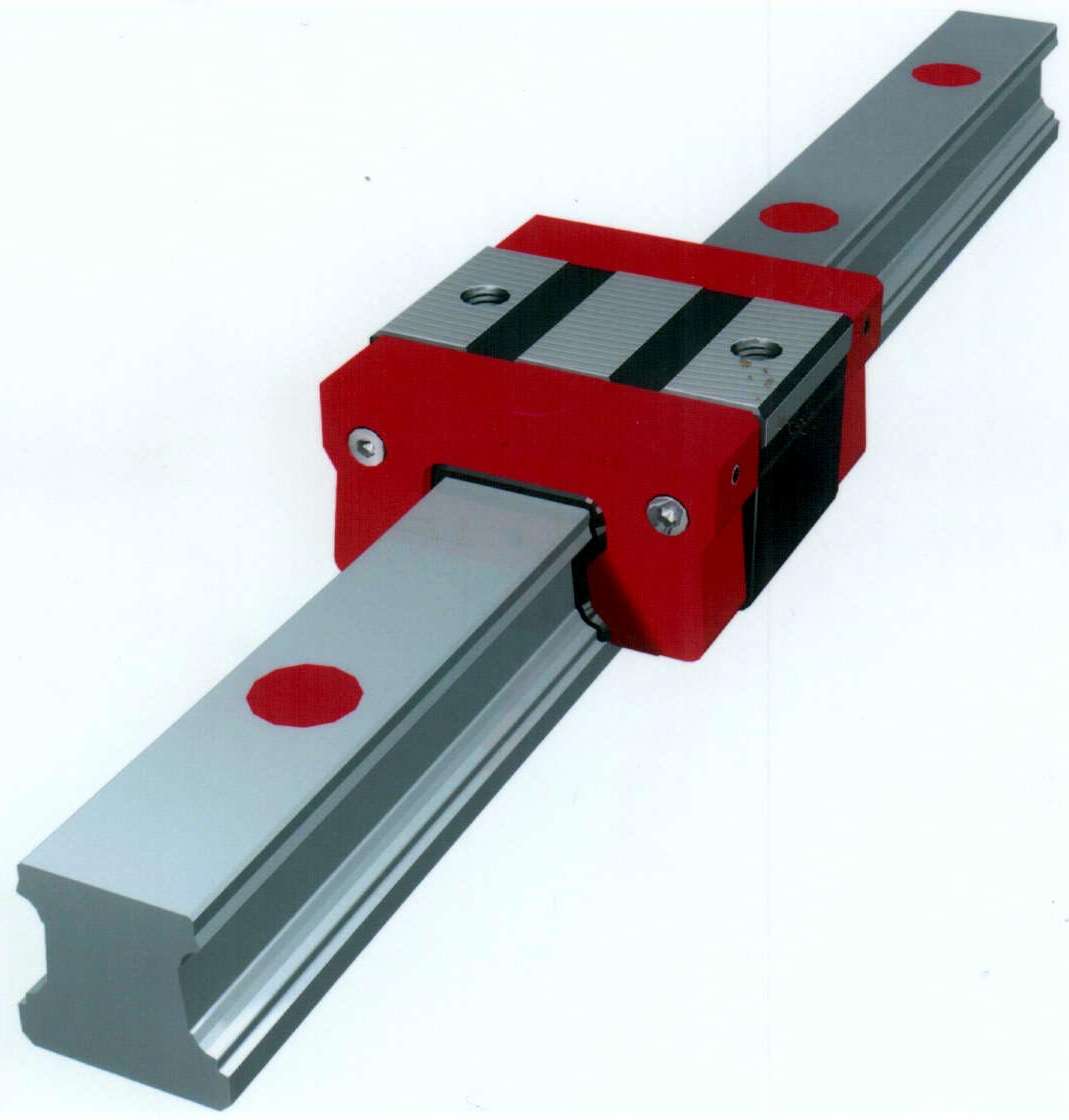

Nov 07, 2003 MONORAlL BM Ball Monorial Precision Linear Guides are offered with BME, BMF, and BMG carriages, which offer different dimensions and attaching options. Carriage BME is offered in 25, 30, and 35 sizes with dimensions from 90–118 x 57–76 x 40–55 mm and attaching holes located on side. Carriages BMF and BMG, available in sizes 15, 25, 30, and 35, measure 24–48 mm high and 34–70 mm wide. Lengths for BMF and BMG range from 60–118 and 60–144 mm respecively.

Continental Fan Mfg. Inc.    Buffalo, NY 14215
Nov 06, 2003 Injection molded from GRP polyamide, TEK Impeller incorporates compound curves and varying thickness. It is available in CW, CCW, and DWDI with matching inlet cones and has airfoil (BCA) design. Stronger than steel, but weighing less than ½ as much, unit offers non-overloading power characteristics and comes in 9 sizes from 7–18 in. dia.
