Bematek Systems, Inc.    Salem, MA 01970

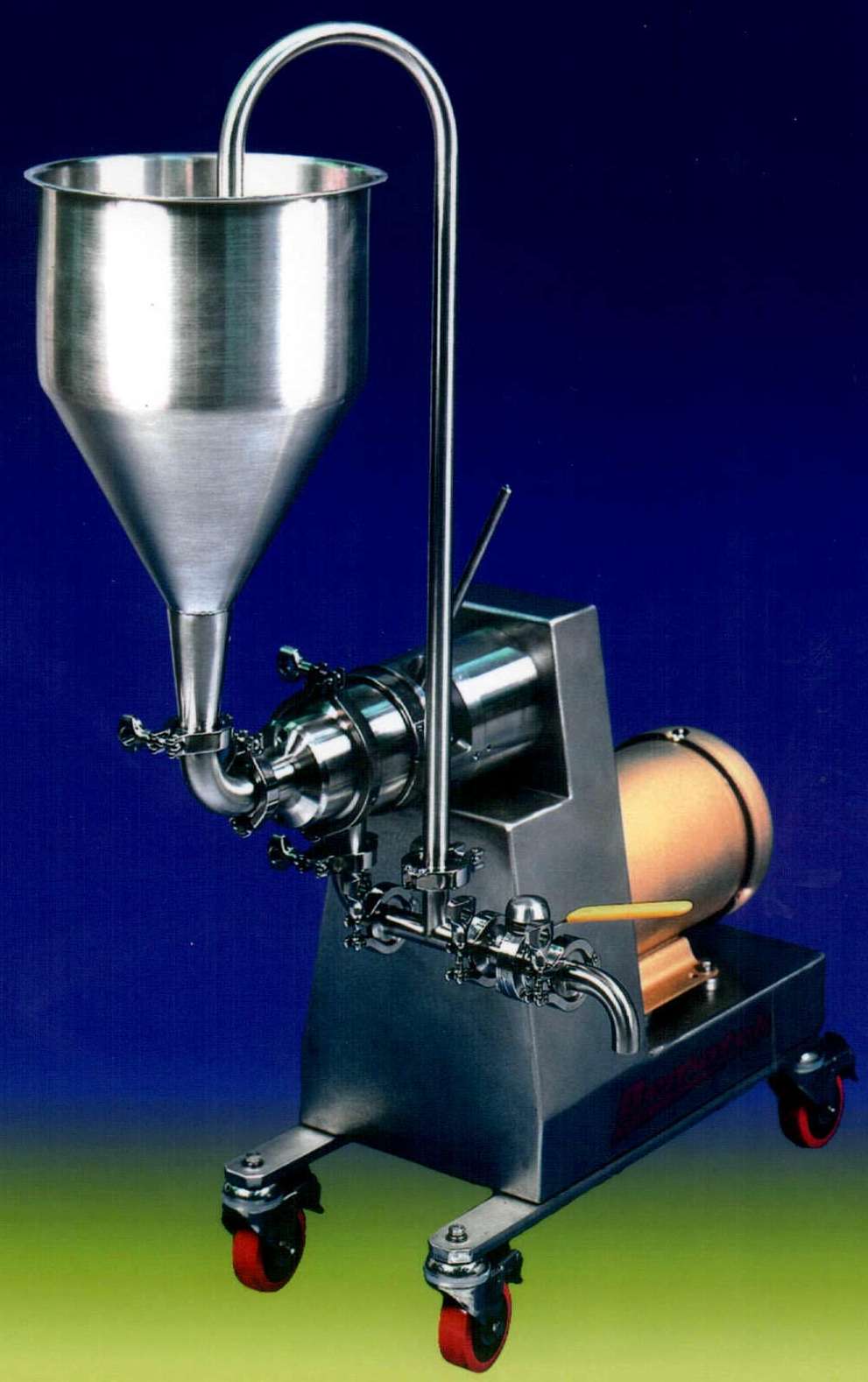

May 06, 2004 Z-Series Sanitary Colloid Mills produces ultra-fine particle size reduction and sub-micron dispersions and emulsions of varying viscosities. Milling head requires no special assembly tools, and rotor/stator gap adjustment, isolated from process area, is fully adjustable during operation. Featuring 316 stainless steel construction with Viton® O-rings, mill is available with flow rates from 12-4,500 gph and is suited for laboratory and production use.

RJG, Inc.    Traverse City, MI 49686-4713

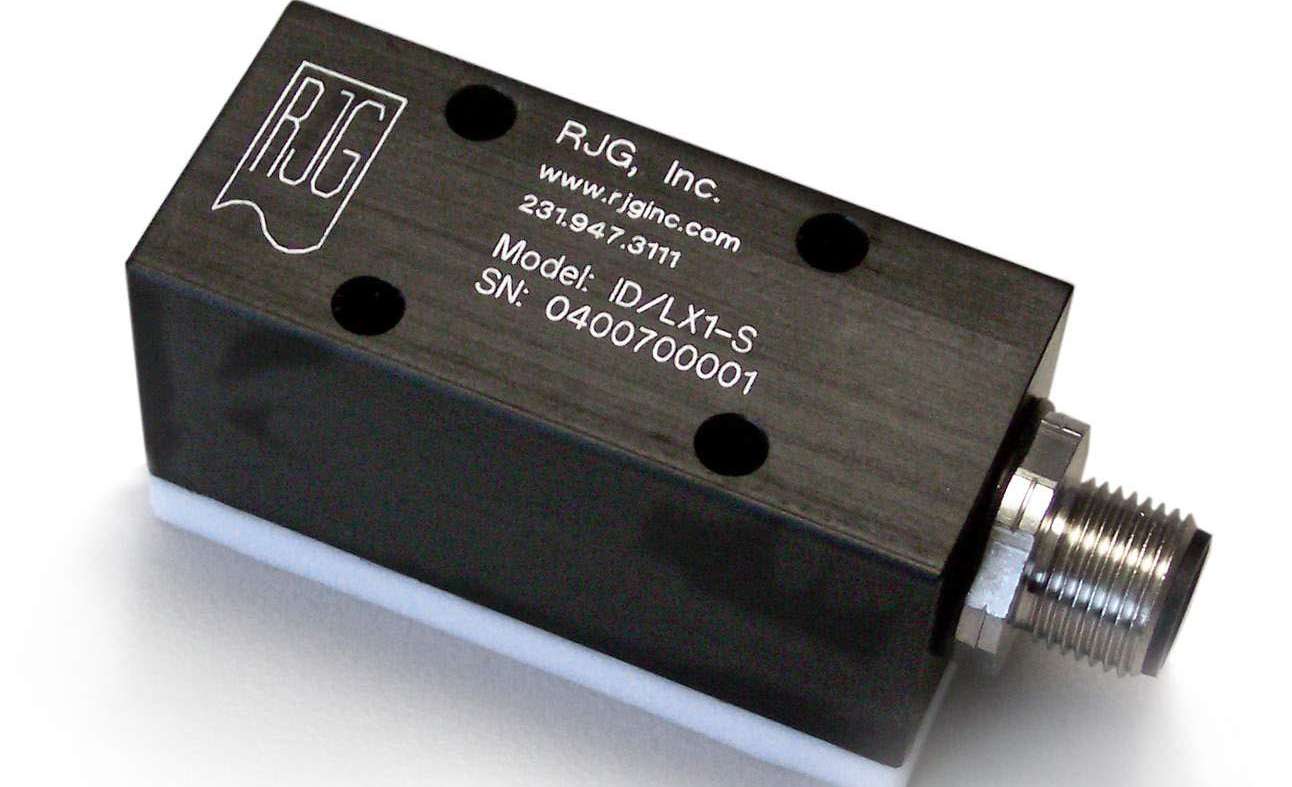

May 05, 2004 Model ID/LX1-S Mold Identifier allows un-instrumented molds to utilize identifying and job startup features of company's eDART Systemâ„¢. Device mounts on moving or stationary mold half and recognizes each mold as it is placed in machine. Identifier gets power and communications through micro connector, which interfaces unit with eDART System to automatically load correct setup information needed for particular mold.

FKI Logistex North America    St. Louis, MO 63132
May 04, 2004 Accupass(TM) pick-and-pass conveyor operates at rates up to 30 packages/min with weight capacities up to 75 lb. Utilizing modular wiring and control scheme that allows end user to select type of network used to control it, Accupass integrates with PLCs or high-level control systems normally employed in typical distribution centers. Pre-engineered, modular conveyor runs on-demand and requires no compressed air or high-voltage drops.

Henkel Loctite Corporation    Rocky Hill, CT 06067
May 04, 2004 Loctite ZETA 7735, designed for ¼-1 in dia spot curing applications, offers up to 7 W/cm² of UV light at 250-410 nm. It uses 50 W metal halide arc lamp with universal power supply and liquid-filled light wand. Lamp, which features elliptical reflector and custom coating, has 2,000 hr life expectancy. System may be operated manually or with timed shutter light exposure from 0-99.9 sec. Selector switch allows use of 110 or 230 Vac options.

Viking Corp., The    Hastings, MI 49058 9706
May 04, 2004 System K25 utilizes K25 ESFR Pendent Sprinklers and pre-mix of propylene glycol antifreeze and water. It protects up to Class II Storage Commodities in buildings up to 40 ft high with racked storage up to 35 ft. System requires minimum starting pressure of 40 psi and has maximum volume of antifreeze solution of 1,100 gallons. It provides alternative to in-rack sprinkler systems for protecting storage environments as cold as –23°F.

JDV Products, Inc.    Fair Lawn, NJ 07410

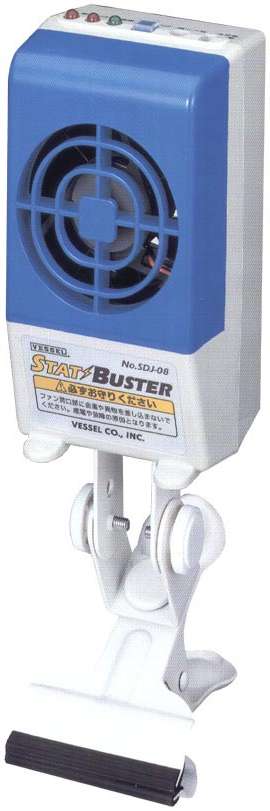

May 03, 2004 Vessel SDJ-08 Static Eraser employs detachable, pivotal clamp for targeted static removal. Built-in microcomputer notifies user via display lamp alarms if safety circuits detect voltage or fan trouble. Unit provides full-range fan speed control, auto-start mode, and UL and CE approval. With compact, lightweight design, product ensures that parts are electrically balanced as they exit mold with blast of static neutralizing ionized air.

Stratasys, Inc.    Minneapolis, MN 55344 2020
Apr 30, 2004 Built on T-Class platform, FDM Titan and FDM Vantage model high-performance thermoplastic. Former includes 5 mil or 0.005 in. resolution setting, available for use with ABS plastic modeling material, resulting in production of models with features as fine as 0.020 in. on functional prototype. FDM Titan and FDM Vantage machines also include 7 mil or 0.007 in. resolution setting for ABS modeling material.

Birchwood Casey    Eden Prairie, MN 55344 2138

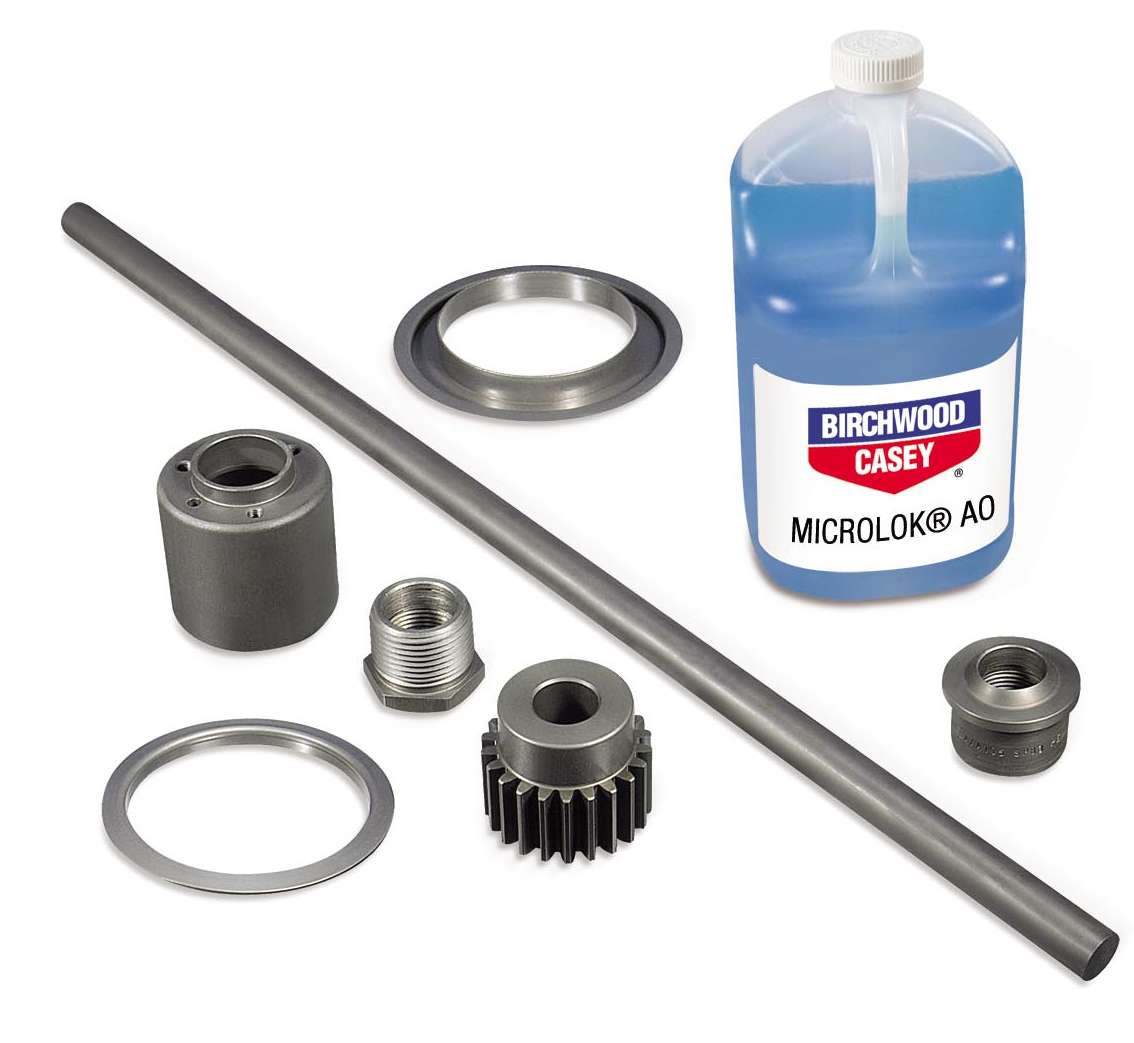

Apr 30, 2004 Microlok® AO metal coating provides corrosion resistance using non-corrosive bath. Immersion tank process works on iron and non-stainless steel surfaces to form 0.000040 in. thick aluminum oxide conversion coating. When sealed with rust preventive topcoat, Microlok AO protects parts during storage and shipping and provides break-in lubricity and anti-galling protection. Finish is suited for tooling and machine components, automotive parts, and oil-field equipment.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Apr 30, 2004 Hysol® FP4547FC is compatible with clean and no-clean flux residues. It protects lead-free flip-chip devices and allows them to meet JEDEC Level 3/260°C moisture test requirements. Incorporating 2 additives that remove and neutralize flux residues from between flip-chip die and substrate, product provides moisture resistance and facilitates assembly process. In most cases, post-assembly flip-chip cleaning processes may be eliminated.

Kintz Plastics, Inc.    Howes Cave, NY 12092
Apr 29, 2004 In-house painting facility runs 3 shifts so thermoformed part can be prepped, painted, and shipped within hours after it is formed. Screen Printing and Hot Stamping place logos, model designations, warnings, and other prominent information on thermoformed part. RFI and EMI shielding to interior of panels for electromechanical and electronic products is applied to exact specifications. Unlimited combination of surface finishes and textures are offered.

Stoody Co.    Chesterfield, MO 63017

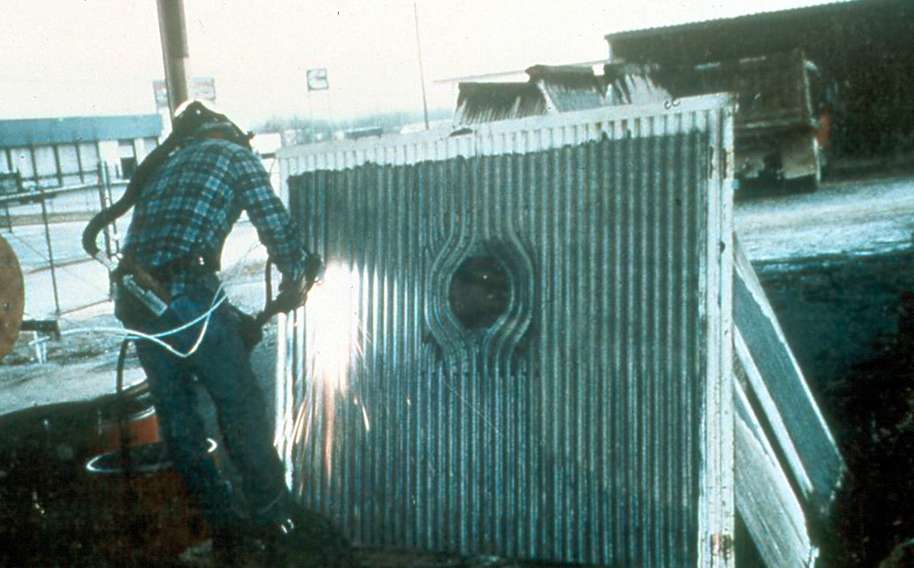

Apr 28, 2004 Stoody® 1334 alloy exceeds wear life of typical amorphous type alloy when twin-wire arc sprayed. Stoody 1334 coatings provide increased bond strength and wear resistance when deposited on boiler tubes and Yankee drier rolls. It demonstrates sprayability and is best finished with diamond wheels. The 1/16 in. diameter twin wire is available on 25 lb fiber spool.

Spectronics Corp.    Westbury, NY 11590
Apr 28, 2004 Leaks in oil-based lubrication and hydraulic systems are made visible by Spectroline® OIL-GLOâ„¢ 22 dye. Product escapes with oil and accumulates at site of each leak where it glows bright yellow-green when illuminated by UV or UV/blue light lamp. Dye remains safely in system until oil is changed, enhancing preventive maintenance. Periodic inspections with lamp will detect any future leaks before they cause damage to equipment.

Ticona Engineering Polymers    Florence, KY 41042
Apr 28, 2004 Celanex® polybutylene terephthalate (PBT) copolymer binder, which melts at 147°C, creates all-polyester hood and trunk liners in non-reactive, thermal operation. It meets European recyclability regulations and is used in powdered form to fuse mat of polyethylene terephthalate staple fibers that melts at 250-257°C. Material bonds various other fibers in felts or fabrics and can be fabricated as staple fiber, sheet, or film or coextruded over PBT fiber.

80/20, Inc.    Columbia City, IN 46725
Apr 27, 2004 Frame Fabrication Services include full assembly or sub-assembly, and complete packaging, crating, and shipping. Frames are built to specification utilizing T-slotted aluminum extrusion technology. Ready-to-use projects are provided in as little as 2 working days.

Aremco Products, Inc.    Valley Cottage, NY 10989
Apr 26, 2004 Machinable, Aremcoloxâ„¢ 502-400 produces thermally insulative and high dielectric components and fixtures used in electrical and electronics applications. It offers compressive and flexural strengths of 40,000 and 15,000 psi, respectively, dielectric strength of 400 V/mil, and thermal conductivity of 2.88 Btu-in/hr-ft²-°F. Product comes in rods from ¼â€“1 in. diameter x 18 in. long and plates from 1/8–1 in. thick x 14 x 20 in.

Drake Mfg. Services    Warren, OH 44485 1147
Apr 26, 2004 Model GS:I-V Vertical 3-Axis Bore Grinder minimizes floor space with 48 x 72 in. footprint. Unit comes with rotary diamond contour dresser, Smart-Spindleâ„¢ acoustic touch dress monitoring system, CNC taper correction, and Fanuc CNC control. Precision-balanced high frequency spindles are available from 30,000-90,000 rpm. Standard configuration allows max part diameter of 10 in. and max part length of 4 in.

Cotronics Corp.    Brooklyn, NY 11232
Apr 26, 2004 Based on cross-linked, inorganic-organic polymer system, Duralco(TM) 4701 consists of single-component adhesive and casting compound that requires no mixing or measuring. It may be used in temperatures to 600°F, adhering to metals, glass, ceramics, and plastics. VOC- and solvent-free material exhibits chemical, solvent and radiation resistance in addition to temperature stability. Product cures to 90 Shore D hardness with 11,100 psi tensile strength.

Octiv    Berkeley, CA 94710
Apr 23, 2004 Volume Logic for Windows and Mac incorporates 5-band dynamics processor that examines and adjusts audio levels in real-time. Anything playing in iTunes, MP3s, Internet radio, or CDs, is digitally remastered for consistent volume level and spectral balance. Files are not scanned or modified. Product also supports Griffin PowerMate, which consists of black, aluminum knob that plugs directly into USB port, letting users adjust volume or mute sound.

DuPont Microcircuit Materials    Research Triangle Park, NC 27709-4425
Apr 23, 2004 Series WB Photoresists offer alternative for wafer bumping versus liquid resists. Thick, dry photoresists, ranging from 50–100 microns, are applied in one step, with no solvents or drying required. Range of formulations are available for use in lead-free, photostencil, and standard electroplating applications.

Kulicke & Soffa Industries, Inc.    Willow Grove, PA 19090
Apr 22, 2004 CuPRA™ handles copper wire from 0.8–3.0 mil thick. It offers bonding performance comparable to gold bonds on various pad materials. Unit is suited for wide range of applications from fine pitch wire bonding of over 500 I/Os to low pin count devices found in power and automotive applications.
