Misumi USA    Schaumburg, IL 60173
Nov 16, 2012 Cut to lengths specifiable in 0.5 mm increments, Aluminum Extrusions are available with such machining alterations as end tapping, 45° end cuts, machined mounting features, top/bottom milling, and through holes. Selection will depend on specific application requirements, taking into account such factors as load-bearing strength, hardness, rigidity, tensile strength, finished product dimensions, and desired finish. Coating options include clear, black anodized, and yellow powder coat.

Klockner Pentaplast of America, Inc.    Gordonsville, VA 22942
Nov 15, 2012 Suited for face-seal, tray, and trapped blister thermoformed applications, Pentaform®SmartCycle® TH-ES100 PET films help consumer product companies and retailers meet sustainability goals via plastic packaging option. Films are made from 100% post-consumer recycled (PCR) beverage bottles and optimized for clarity as well as processing on standard thermoforming and form/fill/seal equipment.

Klockner Pentaplast of America, Inc.    Gordonsville, VA 22942
Nov 15, 2012 Intended for medical-device packaging, Pentamed® light foamed high-impact polystyrene (HIPS) films enable material reduction by reducing package weight while maintaining physical properties comparable to standard materials. Products offer formability and processability compatible with standard thermoforming and form/fill/seal equipment and are sealable to range of lid stocks. Able to be EtO, gamma, and E-beam sterilized, films can be used for trays, containers, clamshells, and liners.

Littelfuse, Inc.    Des Plaines, IL 60016
Nov 14, 2012 Featuring compact SOT143 package, SR70 Series TVS Diode Arrays comprises 4 low-capacitance, rail-to-rail diodes to provide protection against ESD and lightning-induced surge damage. Able to absorb up to 40 A without performance degradation, series offers loading capacitance level of 2.0 pF typical and dynamic resistance of 0.35 Ω. Product facilitates the protectection of high-speed telecommunications interfaces such as VDSL, VDSL2, T1/E1/T3/E3, and 10/100/1000 Ethernet lines.

Alliance Polymers & Services    Romulus, MI 48174
Nov 13, 2012 Maxelast® P Series TPEs provide permanent anti-static/ESD effect on sports equipment, consumer goods, and medical and electronic products, with surface resistivity down to 1,010 Ω/sq. Four grades with Shore A Hardnesses of 65, 75, 80, and 90 are available, all of which are colorable for product identification. Thermoplastic elastomers can be used for overmolding onto polypropylene and for standalone applications.

Putnam Plastics Company, LLC    Dayville, CT 06241
Nov 13, 2012 Custom PEEK extrusions for medical devices include vascular catheters with diameters as small as 0.010 in. and wall thicknesses of 0.002 in. Extrusions for non-vascular applications are offered in diameters up to 1 in., with 0.010 in. wall thicknesses. Tubing is manufactured with PEEK polymer, featuring flexural modulus of 595,000 psi to provide high strength for minimally invasive devices. Thin wall PEEK tubing also comes in semi-transparent or custom colors.

JDV Products, Inc.    Fair Lawn, NJ 07410
Nov 13, 2012 Along with adjustable 3-speed fan, VESSEL's Butterfly Louver Ultra-Slim Fan-Type Ionizer (Model No. F120-E) has adjustable front panel that can disperse airflow in wide or straight pattern for close or remote distance. This 1.98 lb unit, measuring 7.8 x 6.4 x 2.7 in. (with stand), offers decay time of within 1.3 sec at 12 in. distance, AC corona discharge method for accurate ion balance within ±10 V, and high-frequency piezoelectric transformer that minimizes ion loss.

Modern Process Equipment, Inc.    Chicago, IL 60623
Nov 09, 2012 Constructed of FDA-approved materials ranging from stainless steel to food grade plastic components, MPE Dried Fruit Gran-U-Lizer™ produces uniform grind with optimal control in various dried fruit applications. System utilizes roller-style method that maximizes yield while minimizing waste. Additionally, grinder is designed for use as part of cryogenic process. Sub-zero temperatures required for processing certain fruit products enhance grinder's performance.

Axon Corp.    Raleigh, NC 27603
Nov 06, 2012 ThermoPoint® steam-heat tunnels, integrating Category 3 safety-interlock system, also feature heat zone graduated dials and steam injector adjustment indicators for shrink process control and repeatability between batches. Each heat zone can be independently adjusted to deliver steam to label or band at different rates, heights, and angles. Tunnels are available in 3- or 6-zone configurations. They are also designed to minimize changeover time between products.

KSB Aktiengesellschaft    Frankenthal 67227  Germany
Nov 06, 2012 Serving as back-up mixer, scum breaker, or flow accelerator in biogas production and wastewater treatment, Amaprop 1000 features nodular cast iron propeller and 2 mechanical seals in tandem arrangement that seal off gearing and motor compartment. Oil reservoir between seals is filled with environmentally friendly oil that keeps seal faces lubricated and cool. Utilizing helical spur gears, mixer is powered by 3-phase 10–20 kW motor with maintenance-free bearings and temperature sensors.

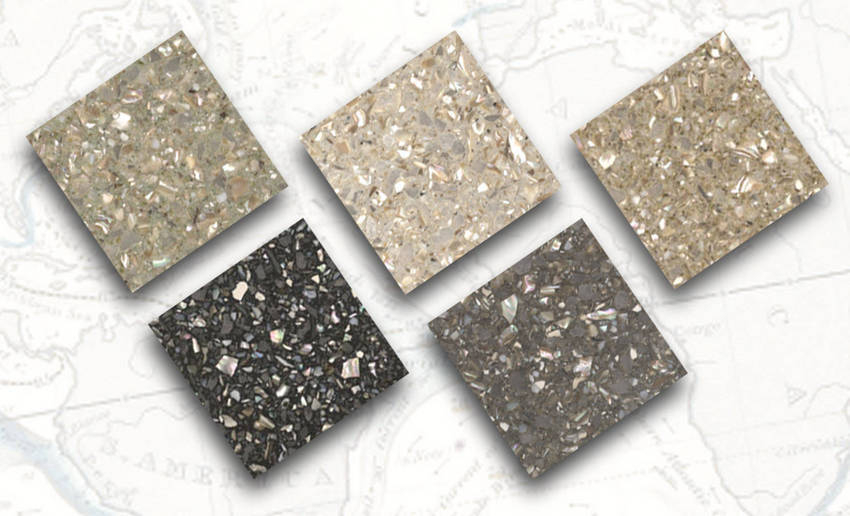

Bradley Corp.    Menomonee Falls, WI 53051
Oct 29, 2012 Offering iridescent color palette, Evero Pearl Series uses luminous and sustainable blend of bio-based resin, natural quartz, seashells, and recycled glass to complement aesthetics of hotels, restaurants, aquariums/museums, spas/resorts, and water parks/aquatic centers. Repairable natural quartz surface material, able to be molded into round and curved shapes, does not support microbial growth and is resistant to chemicals, stains, impacts, and scratches.

D-M-E Company    Madison Heights, MI 48071-2383
Oct 26, 2012 Available as complete assembly or individual components, Versa-Slide® Standard Slide Assemblies support precise alignment of mold opening and closing functions. With 10 different overall widths, components can be mixed to form thousands of combinations. Sliding mechanics are finish ground, with 0.005 in. grind stock left on overall width, bottom of wear plate, and slide angle.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Oct 26, 2012 Housed in surface mount PLCC-2 package, Model VLMU3100 serves as solid-state replacement for mercury vapor lamps in wide range of applications, including adhesive curing. Unit features typical luminous intensity of 11 mcd at 20 mA, with typical wavelength of 405 nm and forward voltage of 3.2 V. Measuring 3.2 x 2.8 x 1.9 mm, PLCC-2 package consists of lead frame, which is embedded in white thermoplastic and is compatible with IR reflow and vapor phase soldering.

Schroeder Industries LLC    Leetsdale, PA 15056-1025
Oct 23, 2012 AntiStat Pleat (ASP) Elements reduce or eliminate electrostatic discharge (ESD) problems that can occur during filtration of hydraulic and lubrication fluids. Combination of Excellement® media and ASP technology promote filtration efficiency while preventing or reducing ESD. In addition to inhibiting element damage and oil deterioration, ASP Elements decrease sludge and oil sediment as well as extend system component life.

Ross, Charles, & Son Co.    Hauppauge, NY 11788 0615
Oct 23, 2012 Designed for multi-stage mixing, PowerMix Turnkey Package consists of stirrer blade and saw-tooth disperser, both of which rotate on their respective axes at different speeds while orbiting mix vessel. Disperser incorporates powders, fibers, pellets, and other solids into liquid batch while planetary blade continuously sweeps vessel walls and bottom. Used in conjunction with Discharge System, PowerMix handles viscous dispersions up to 2 million cP, such as adhesives, sealants, and specialty coatings.

Garlock Sealing Technologies    Palmyra, NY 14522
Oct 23, 2012 Available in gaskets as well as 40 x 40 in. sheets with fiber core thicknesses of 1/16 and 1/8 in., THERMa-PUR™ Sealing Material is produced by solvent-free process that combines blend of raw materials with flexible fiber core. Non-oxidizing formulation provides optimal sealing effectiveness at temperatures up to 1,800°F, including extreme cycling conditions. THERMa-PUR is suitable for sealing connections in biomass gasification, turbochargers, and marine and land-based exhaust systems.

Munson Machinery Co., Inc.    Utica, NY 13503
Oct 22, 2012 Constructed of 304 SS or 316 SS to sanitary standards, with statically and dynamically balanced rotating runner head assembly, Model SK-30-SS is suited for reduction of fibrous and friable materials, and cracking of grains. Unit is equipped with outer stationary milling disc and inner rotating milling disc that adjusts to vary gap between discs. Precise machining and alignment of discs, together with constant spring pressure, maximize size uniformity of reduced material.

AIM, Inc.    Cranston, RI 02920
Oct 22, 2012 Available in bar solder form, lead (Pb)-free SN100C solder alloy is comprised of tin-copper-nickel and germanium and does not contain silver or bismuth. Eutectic alloy, supporting bridge- and icicle-free soldering, produces smooth, bright, well-formed fillets free of micro-cracks regardless of cooling rate. With optimized through-hole penetration and topside fillet formation, alloy does not require nitrogen atmosphere and will not erode copper from holes, pads, and tracks.

SSAB Swedish Steel, Inc.    Pittsburgh, PA 15225
Oct 22, 2012 Part of steel family that includes strength levels from 220–1100 MPa, Domex 900/960 and Domex 1100, representing hot-rolled and cold-formed steel, help reduce weight while increasing strength and durability in such applications as parts for cranes, building structures, trailer chassis, agricultural and forestry machinery, and utility vehicles. High-strength strip steel properties promote formability, bendability, and weldability as well as tight tolerances and smooth surface finish.

Ensinger    Washington, PA 15301
Oct 18, 2012 Intended for food industry, TECAFORM® UD Blue addresses all 3 methods of quality control typically used to keep food products free from foreign particulates. Porosity-free, acetal co-polymer has blue colorant specially formulated to be both metal and x-ray detectable as well as visible to production line optical scanning equipment. Material is FDA, USDA, 3A Dairy, and European agency compliant.
