Benko Products Inc.    Sheffield Village, OH 44054
Jan 18, 2013 Designed for use in remote shale oil fields, GREEN Access & Fall Protection portable loading/unloading platforms for tank trucks and rail cars negate need for installing permanent platform that can only be used at one location. Modular solutions offer flexibility to utilize temporary loading station that can be broken down and taken to next facility or project. Portable loading and unloading platforms ensure safe and efficient handling of resources.

Southworth Products Corp.    Portland, ME 04104 1380
Apr 11, 2011 For assembly or maintenance operations where large structures, such as aircraft or heavy equipment, must be accessed at elevated or varying heights, Custom-Configured Lifts can be designed into production lines. Scissor lifts are available in stationary or movable configurations with variety of platform sizes and lifting ranges to meet application-specific requirements. Options include soft start/stop, indexed lifting and lowering, fold-down safety gates, and bellows skirting.

Safway Services, LLC    Waukesha, WI 53188
Sep 14, 2009 SafAscent(TM) Wind Turbine Platform allows access to wind turbines for maintenance, repair, inspection, and cleaning. It features 6 ft 6 in. modular platform with steel wind cage stirrup, as well as 3 sets of removable, padded roller systems that protect tower and blades from damage. With 500 lb capacity, system can lift 2 workers and tools. Kit includes platform, hoist, and accessories which exceed OSHA, OH&S, and ANSI standards and meet all UL and CSA requirements.

Herkules Equipment Corp.    Walled Lake, MI 48390 1662
Apr 09, 2009 Controlled with joystick on pedestal, Zero Level Lift and Tilt facilitates loading of up to 2,000 lb of material onto lift table using pallet jack. Platform is 3/8 in. lowered and has lift travel of 25.5 in. Tilt can be operated independently of lift, promoting precise material positioning for optimized ergonomics. Able to be customized to specific material handling needs, platform is secured to floor via internal anchoring holes.

Raymond Corporation, The    Greene, NY 13778 0130
Nov 18, 2008 Featuring enclosed operator platform, Maintenance Platform Vehicle enables overhead maintenance and repair at elevations up to 371 in. Embedded ACR System(TM) regulates speed relative to elevated height at 1-6.5 mph when fully elevated. With capacity of 750 lb, platform provides room for operator, tools, and supplies. Lock on entrance gate ensures gate is closed before vehicle will operate.

LPI Lift Systems    Eau Claire, WI 54703
Sep 02, 2008 Measuring 45 ft long by 72 in. wide, platform offers fall prevention system and work area for staging packing materials used in constructing shipping crates. With lift capacity of 1,500 lb, it extends from lowered height of 5 ft to maximum raised height of 12 ft 6 in. Unit has 2 independent control stations, floor mounted pedestal control station that includes Emergency Stop, Z-axis control for up and down movement, and Y-axis control for extension/retraction of platform movement.

Sky-Trax, Inc.    New Castle, DE 19720
Nov 02, 2007 Model PD-1C Pallet Detector(TM) utilizes optoelectronic devices for sensing of LOAD and NO LOAD conditions on-board forklift trucks. With low power consumption and heavy-duty SS construction, it offers adjustable sensitivity and ON/OFF trigger points for repeatable placement of loads on forklifts. System assures drivers correct pallet placement on forks where pallet and fork visibility is restricted.

Beta Max Hoists, Inc.    Melbourne, FL 32902
Oct 05, 2007 Featuring 13.5 x 5 ft material platform, Max Climber(TM) 3300 can be anchored to building or scaffolding to transport cement blocks, drywall, glass, carpeting, and aesthetic materials. Side- and front-loading extendable basket and roof enclosure keeps materials secure during transport, while interlocking ground enclosure keeps workers out of hoistway while unit is in operation. Moving at speeds up to 70 fpm, hoist can be remotely operated from ground.

Southworth Products Corp.    Portland, ME 04104 1380
Jul 13, 2007 Offering alternative to variable-height workbenches, Lift-Tool(TM) can be moved up and down along its 14¼ in. vertical range via cordless drill to facilitate variety of lifting and positioning jobs. Platform helps improve posture while reducing fatigue and back strain at workbenches, and it can be used outdoors or indoors. Fully raised, 22 x 23 in. aluminum platform stands 17¾ in. high. It weighs 32 lb, supports up to 300 lb, and measures 3½ in. high when lowered.

LPI Lift Systems    Eau Claire, WI 54703
Feb 07, 2007 Material handling pick vehicles feature platforms that can be raised or lowered at up to 90 fpm within distribution storage rack system, with lift system designed for rail speeds up to 225 fpm. Requiring 480 V, 3-phase, 40 A power supply, platforms include flashing beacons and spring-loaded bumper on front and back for safety. Cab of pick car houses 110 V electrical outlets and shelving for electronic equipment.

JLG Industries, Inc.    McConnellsburg, PA 17233 9533
Oct 26, 2006 Combining electric drive system with multiphase hydraulic cylinder, Model 1230ES operates at 3 mph with lift/lower speed of 12 sec. Steel 3-section lifting mast is maintenance-free with no chains, cables, or rollers to adjust. With inside turning radius of 5 in., platform offers 500 lb capacity and stows to 30 x 65 ¼ in. Operator features include proportional lift and drive using single joystick, 22 in. step-in height, and saloon-style swinging gate.

Alimak Hek, Inc.    Houston, TX 77061
Nov 10, 2005 Fitted with overload protection devices and centrifugal braking systems, HEK MS ProMax is offered in freestanding and anchored configurations to reach heights up to 660 ft. Gearbox design enables travel speeds to 36 fpm, and payload capacity is 11,000 lb (twin mast) or 6,600 lb (single mast). Platforms are provided in lengths to 50 ft, and, when used in conjunction with Megadeck central deck section, have max length of 126 ft.

Beta Max Hoists, Inc.    Melbourne, FL 32902
Oct 20, 2005 Installable without requiring forklift or crane for set up, double-masted Max Climber(TM) 7700 travels up to 400 ft high at speeds to 35 fpm. Platform measures 90 x 6.5 ft, and each base unit uses four 2.2 kW motors and aluminum deck sections. When taken apart, mast sections are broken down into 5 ft, 110 lb sections to facilitate transport. Product is suited for tuckpointing, caulking, painting, restoration, and metal building installation projects.

JLG Industries, Inc.    McConnellsburg, PA 17233 9533
Apr 28, 2005 Tow-Proâ„¢ Model T350 has 35 ft platform height with 20 ft horizontal reach, while Model T500J has 50 ft platform height that includes a 4 ft jib boom with 130° vertical motion and 30 ft horizontal reach. Both machines feature 370° turntable rotation and have 500 lb capacity in 30 x 48 in. aluminum platform. Power is provided by 24 V, 220 Ah batteries or from optional 9 hp engine. Other features include surge brakes, parking brakes, hour meter, and tilt alarm.

Equipment Company Of America    Union Lake, MI 48387 0600
Mar 15, 2005 Available in electro-hydraulic and winch-operated versions, outriggerless elevating work platforms feature ability to be moved through standard pedestrian doors. Units are offered with platform heights up to 25 ft and are also available with outriggers.

Equipment Company Of America    Union Lake, MI 48387 0600
Mar 15, 2005 Workmaster and Stockmaster products enable users to safely utilize fork lifts as work platforms. Integral pockets receive forks, and chain is used to secure product. Installed in seconds, products are rated for capacities up to 1,000 lb. Stockmaster can carry pallet and personnel simultaneously. Optional accessories include sliding tool tray, horizontal or vertical tube caddies, overhead guard, and casters.

Skyjack Inc. / Boom Division    Guelph Ontario N1H 1B9, CD   Canada
Nov 12, 2004 Reaching work heights up to 25 ft, SJIII Compact 3215 and 3219 feature 23% gradeability and 26 x 64 in. platform. Narrow design allows them to fit through standard doorway. Units offer variable-speed front wheel hydraulic drive, 90° steering, proportional drive-lift joystick control system, and positive traction. Safety features include lift relief valve that limits capacities, manual lowering system, and tilt alarm with drive-lift cutout.

Hydra Platforms Mfg., Inc.    Lake Wylie, SC 29710

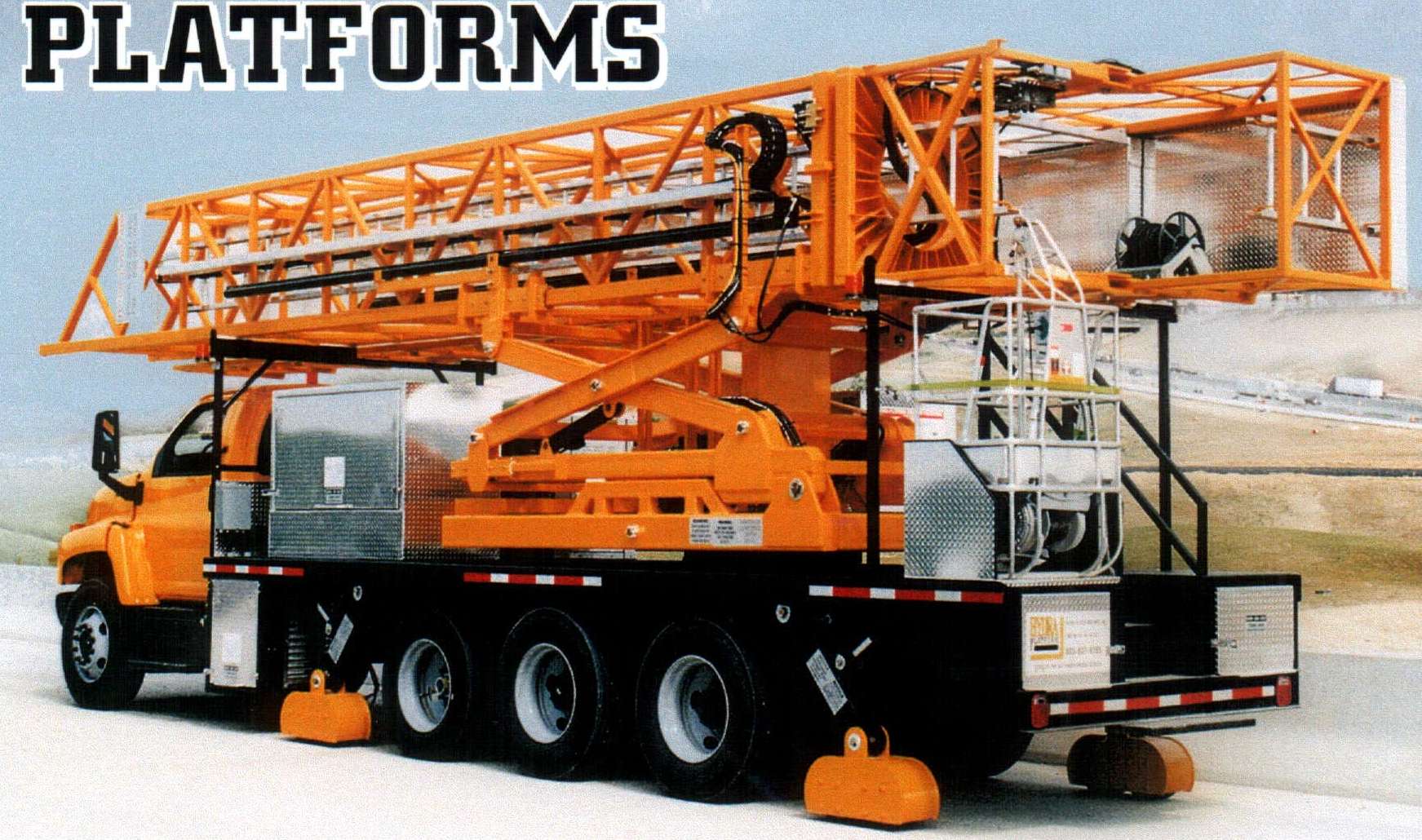

Jul 16, 2004 Model HPT 20/66 mobile Truck Mounted Under Bridge Access and Work Platform accommodates several workers and materials, up to 2,000 lb total, simultaneously on 42 in. wide platform. It incorporates Tower Separation System and is self-erecting and self-propelled on bridge.

JLG Industries, Inc.    McConnellsburg, PA 17233 9533
Apr 19, 2004 Manually propelled, battery-powered Model 19AMI-DC features non-marking tires and anodized aluminum mast. Standard platform, measuring 25.5 x 26 in., has 110 V double receptacle and is fitted with quick-change mount for optional platforms. Lift measures 34 in. wide and lifts up to 350 lb to working height of 25 ft 4 in. Batteries can be recharged using automatic, built-in charger, and battery discharge indicator warns of low charge conditions.

JLG Industries, Inc.    McConnellsburg, PA 17233 9533
Mar 26, 2004 SkyAirâ„¢ Compressor fits under hood of company's boom lifts and is driven by 7,500 W SkyPowerâ„¢ generator. It delivers air to platform-mounted regulator through airline integrated into powertrack. Compressor can provide up to 9.3 cfm at pressures of 125 lb/in² to operate ½ in. drive impact wrenches, air hammers, drills, and other tools. SkyAir helps promote job site safety by eliminating dangers from airlines hanging over platform rails.
