Air Caster Corp.    Decatur, IL 62526

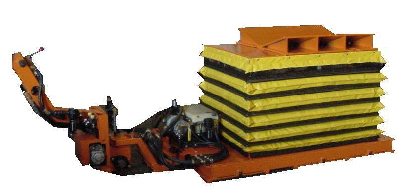

Jul 28, 2010 Mounted to air caster platform, pneumatic-powered, hydraulic lift enables movement and positioning of 10,000 lb aluminum coils. Overall down height is 13 in. with vertical travel of 24 in. Steerable drive tractor enables operator to precisely position lift-platform to place coil into unwinder.

Raymond Corporation, The    Greene, NY 13778 0130
Jul 23, 2010 Model 4250 trucks feature ComfortStance suspension, optional on Model 4150, that adapts automatically to user's weight and, combined with cushioned floor mat, provides impact and vibration isolation. Handling loads from 3,000-5,000 lb, 3-wheel trucks have operator compartment with contour-padded cover, 3-tiered scalloped armrest, and multifunction control handle. Dual-steer-wheel design shortens turn radius, while angled front cover and clear line-of-sight from compartment optimize visibility.

Anver Corp. - Anver.Com    Hudson, MA 01749
Jul 23, 2010 Available with lifting capacities up to 2,000 lb, VPFL series vacuum lifter requires only 8 in. headroom and is suited for onsite and in-plant use, stacking and unloading pipe, or feeding machinery. It can be equipped with custom/interchangeable pad attachment featuring rugged foam pad mounted on steel plate, which is bolted onto all-welded frame. Standard features include control valve with safety lock, high capacity pump, gauges, air filters, and sensor with audio-visual alarm.

Meadow Burke Products, Inc.    Tampa, FL 33619
Jun 29, 2010 With capacity rated at 2,000# SWL, MB Cable Life Loop + Plus System enables heavy units to be lifted without having to switch to larger cable. Capacities meet required 4:1 in 2,500 psi concrete, allowing system to be used for purposes such as utility products, beams, and columns. Cable lift loop has embedment depth that is ~2/3 of overall length, which leaves 1/3 of lift loop exposed and available for attachment to lifting hook or shackle.

Presto Lifts, Inc.    Attleboro, MA 02703
May 20, 2010 Equipped with 18 x 30 in. platform, DXL Series features double scissor mechanism, which allows for 6 in. collapsed height while providing 42 in. raised height. Foot switch operates 1/3 hp motor that runs on 115/1/60 power. Lifts are suited for wide variety of work positioning, assembly, repair, and inspection applications in factories, warehouses, retail stores, and repair shops.

Advance Lifts, Inc.    St. Charles, IL 60174
Apr 12, 2010 Featuring open area under platform that facilitates straddle stacker access, EWS all-electric lift is suited for applications where air is not easily available and hydraulic fluids cannot be tolerated. It employs standard 115 V power units, and rear mounting increases accessibility when lift is in down position to aid maintenance. Lift is available with full compliment of options to suit needs of individual applications.

Rotary Lift    Madison, IN 47250
Mar 26, 2010 Designed for general service work, Y-Lift(TM) Model YA12 can be used for 4-wheel alignments on wheelbases from 71½ to 158 in. Hydraulic cylinder, locking mechanism, and position sensor are all located inside runways to protect against damage. Providing 12,000 lb capacity, drive-on hinged lift is ETL/ALI certified to meet ANSI/ALI ALCTV-2006 safety standards. It is compatible with all alignment instrumentation, including 3D and camera wheel alignment systems.

Anver Corp. - Anver.Com    Hudson, MA 01749

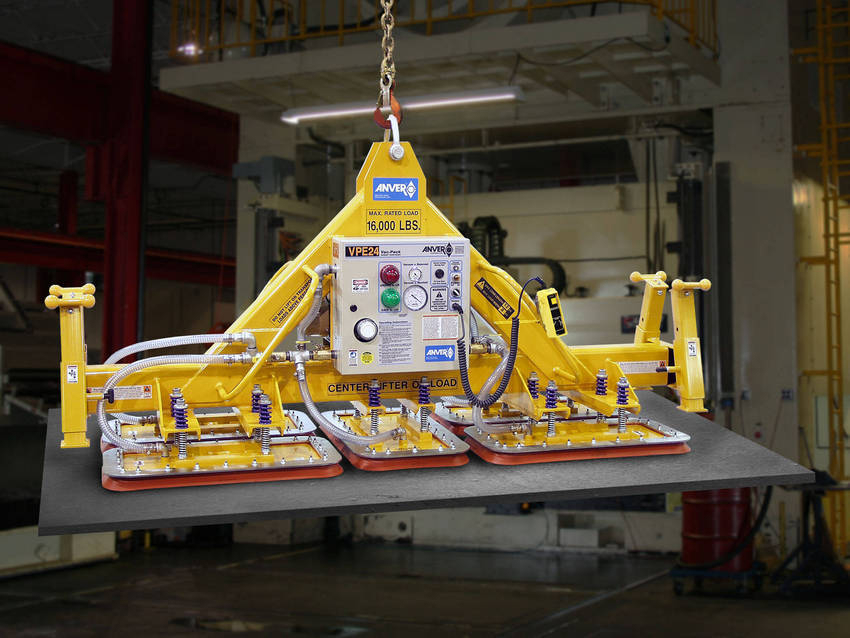

Mar 19, 2010 Featuring all-welded steel frame and beam with 4-8 silicone sealing ring vacuum pads, E-Series has 16,000 capacity for handling ferrous and non-ferrous plates up to 8 x 12 ft. Below-the-hook vacuum powered lifter is designed for optimum safety, with control pendant that requires two-hand operation and if there is loss of power, it has self-contained vacuum reservoir, check valves, and leakage sensor with audio-visual alarms. Vacuum pads feature double spring suspensions.

Herkules Equipment Corp.    Walled Lake, MI 48390 1662
Mar 11, 2010 Featuring 4,000 lb capacity and fully raised height of 32 in., Scissor Lift Table helps optimize ergonomic conditions for workers. Tilt is limited to angle of 10°, maximizing control during process. Measuring 42 x 64 in., platform manually rotates 360° and uses air brake to lock in any position. All controls are located on one remote pedestal.

Arena Products, Inc.    Rochester, NY 14615
Feb 09, 2010 When used with Arena Air-Evac® Starfish(TM) Liner, Starfish Lift enables safe raising and lowering of top-discharge, positive-displacement pumps or mixers in and out of A330 Shipper(TM) for efficient discharge of viscous products. Remote control pendent allows one operator to lower and raise pump while guiding throat of pump into or out of top fitment of liner. Powered by 24 Vdc rechargeable battery, ergonomic unit has 66.6 in. lift height and 60 lb lift capacity (with extension boom).

Raymond Corporation, The    Greene, NY 13778 0130
Jan 06, 2010 Designed for smooth transport of products and stacking of pallets, 3-wheel, sit-down Model 4450 offers selectable travel speeds and short head length, which minimizes turning radius, making it suited for tight spaces in warehouses and loading docks. ACR System(TM) on both drive and lift systems provides consistent truck performance as battery discharges, while 4-cylinder mast eliminates center free lift cylinder so operators can clearly see load.

Nexen Lift Trucks Ltd    Suffolk NR32 1UL  United Kingdom

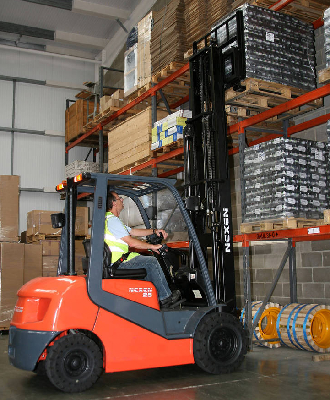

Dec 29, 2009 Featuring fully floating and vibration-isolated driver's cell with adjustable suspension seat and steering column, X-Range Forklift Trucks minimize transmission of drive train vibration to operator. Overhead guard is isolated from chassis for maximum protection. Optimal versions include Driver Presence Sensing system, which automatically locks all hydraulic functions as well as drive to transmission if operator leaves seat. Optimal + models additionally incorporate anti-rollback system.

Terex Aerial Work Platforms    Redmond, VA 98052
Dec 22, 2009 Genie® slab scissors of GS(TM)-30/-32/-46 Series are electric machines, suited for emission-sensitive environments, available with battery charger that maximizes battery life for optimal productivity. Compliant to ANSI/CSA/CE standards, charger features A/C power indicator as well as diagnostic capabilities. Plug located in rear minimizes susceptibility to damage, while non-marking tires and tight steering capabilities promote maneuverability in space-constrictive areas.

Flexilift    VIC 3175  Australia
Dec 10, 2009 Able to create up to 30% more storage space within existing warehouse or logistics centers, G4 electric VNA (Very Narrow Aisle) counterbalance truck can be used in narrow aisles or outside in depot yards. It has 2,000 kg load capacity and lifting capabilities exceeding 12 m. Combining functionality of counterbalance and reach trucks, product can articulate through 220° and allows ISO pallets to be stacked and picked in 1,600 mm wide aisles in 2 separate movements.

SERAPID, Inc.    Sterling Heights, MI 48314
Oct 15, 2009 Designed for communications, reconnaissance, and surveillance applications, Telescopic Mast System can reach heights of 60 ft or more with loads of over 1,000 lb, and is capable of resisting lateral loads and withstanding high wind situations. Self-guided lifting column is powered by Rigid Chain, which is a mechanical actuator that is flexible in one direction and forms steel beam in other direction. Custom-designed as well as harsh environment models are available.

Kelley Company    Carrollton, TX 75006
Oct 08, 2009 Suited for loading operations where space is restricted, Hulk® hydraulic dock lifts can accommodate variety of truck styles; from 20 in. step vans or pick-up trucks to high cube vans, and 60 in. high stake bed vehicles. Lift-mounted controls give operator control to set platform at exact position for level interface between truck and dock. Units include dual hydraulic lifting cylinders for performance and velocity fuses on cylinders for preventing uncontrolled descent.

Terex Corp.    Westport, CT 06880
Oct 02, 2009 Available in 3 Runabout model heights of 12, 15, and 20 ft, Genie® QuickStock(TM) Lift comes in both Retail and Warehouse versions. Retail model, with 53 x 29.5 in. footprint and zero inside turning radius, offers capacity up to 500 lb and can maneuver through tight aisleways. It includes non-marking tires, dual platform swing-gates, dual flashing beacons, and obstruction sensing pad. Warehouse version offers same features with exception of beacons and sensing pad.

Nexen Lift Trucks Ltd    Suffolk NR32 1UL  United Kingdom
Sep 22, 2009 Offered in 2-3.5 ton capacities, X-Range is comprised of 7 models powered by choice of Kubota/Yanmar or Nissan/GM engines. There are also 3 packages with multiple drivetrain configurations. Constructed with one-piece chassis, trucks integrate Smart Dash engine monitoring system and fully floating driver's cell, which is attached to chassis using anti-vibration dampers. Low center of gravity promotes torsional rigidity and stability, and machines are fitted with rubber-mounted steer axles.

Advance Lifts, Inc.    St. Charles, IL 60174
Sep 14, 2009 Instant Dock model 6568 requires users to place this dock lift on existing concrete pad, lay it down, and plug it into available electrical power source. Along with 6 x 8 ft platform, lift incorporates self-contained, 5 hp power unit with 5,500 lb lifting capacity. This product, which facilitates safe loading or off-loading of trucks, is suited for locations that do not have dock area.

Toyota Material Handling U.S.A., Inc.    Irvine, CA 92623-7419
Sep 14, 2009 Available in 4 models, IC pneumatic lift trucks feature 33,000, 40,000, 44,000, and 51,000 lb capacities at 36 in. load center. Trucks include 6.7 L J-Series Hino diesel engine that operates with minimal noise and emissions, and 2-speed transmission that meets EPA Tier 3 regulations. They have fully oiled lift cylinders suited for harsh environments, wet disc brakes, and electronic parking brake engaged/disengaged via button. Vibrations are absorbed by cab mounting system and control levers.
