Genie, a Terex Company    Redmond, WA 98052
Dec 09, 2002 Self-propelled Model GS(TM)-1930 is equipped with disc brakes, variable speed motor, and proportional controls for lift and drive functions. Swing-out battery boxes and power modules allow access to components for service. Safety features include pothole guards, slip-resistant surface on deck platform, and built-in lanyard attachments. Model GS-1930 lifts up to 500 lb to working height of 25 ft, and includes easy roll-out platform extension.

JLG Industries, Inc.    McConnellsburg, PA 17233 9533
Dec 05, 2002 SkySaw™ integrates concrete wall saw system into aerial work platform and includes SkyCleaner™ pressure-washing system. Onboard hydraulic manipulator holds concrete saw and guides it along bolt-on track for precision cuts. Able to be operated by one worker, hydraulic pump powers saw, drill, and manipulator. Hydraulic hoses and water lines are located inside boom's power track. Adjustable system is capable of spraying at 1,000–3,500 psi. It includes two 150 gal water tanks.

Vestil Manufacturing Co.    Angola, IN 46703-0507
Dec 04, 2002 Fork Extensions speed up process of loading pallet on back of fork truck. Spacer length is slightly more than jam of truck door, eliminating need to back out of pallet, pick up pallet again and push to clear door. Extensions are offered with various retainers to keep from sliding off of forks. Lengths range from 48–96 in. Extensions accommodate existing fork widths of 4, 5, and 6 in. that are up to 2 in. thick.

TrynEx International / SweepEx Division    Warren, MI 48089
Nov 14, 2002 Able to manually angle broom, pivot mount attaches to most standard forklift tines. Suitable when sweeping long spans or excessive amounts of debris, unit clears paths for service vehicles and personnel, resulting in uniformly placed piles of debris. Broom angling is accomplished via 1 drop pin. Pivot mount works with all SweepEx Mega Series broom models. Mega-Series brooms are available in 48, 60, and 72 in. lengths. Extensions are also available.

Advance Lifts, Inc.    St. Charles, IL 60174

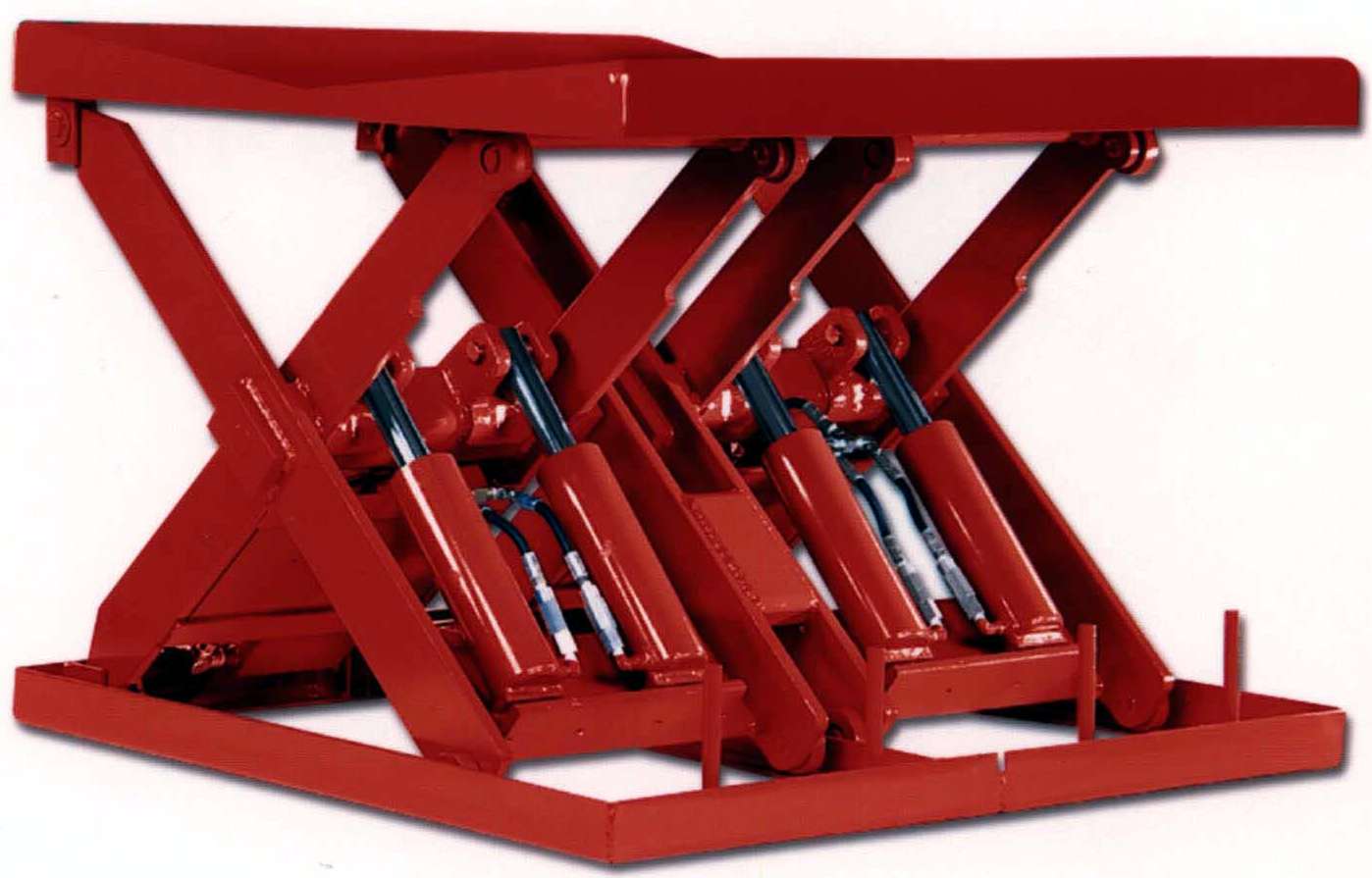

Oct 25, 2002 Available in 18 models, double wide lifts offer extra heavy axle rolling capacities to handle dynamic forces of rolling paper rolls as they come onto lift. End axle capacities are rated at 3,000, 4,500, and 9,000 lbs. Units, provided with "V" deck to nest rolls, are offered with platform sizes from 48 x 36 in. to 96 x 68 in. with vertical travels of 22, 34, and 46 in.

UpRight Inc.    Selma, CA 93662 3621
Oct 22, 2002 With 37 ft working height, Model LX31 provides over 23 feet of internal deck length via twin deck extensions. It facilitates handling and installation of cladding sheets and other construction materials such as glazing, curtain walling, H and V ducts, and steelwork. With 131.3 ft² platform workspace and load capacity rated at 1,764 lbs, model LX31 with Supa-Deck accommodates operatives and equipment.

Lift Mates, Inc.    Napa, CA 94558
Oct 18, 2002 Dual Lift(TM) and Solo Lift(TM) change how boxes can be lifted, stacked, and delivered. Dual Lift gives every box handles, reducing effective weight of box by 4.5 kg. It also allows box to be lifted correctly, eliminating need to twist back and tilt shoulders. Solo Lift creates single handle and allows user to lift and carry box with one hand, freeing other hand to open or close doors. Lift enables user to see foot traffic obstacles directly in front of them.

Liftomatic Material Handling, Inc.    Buffalo Grove, IL 60089

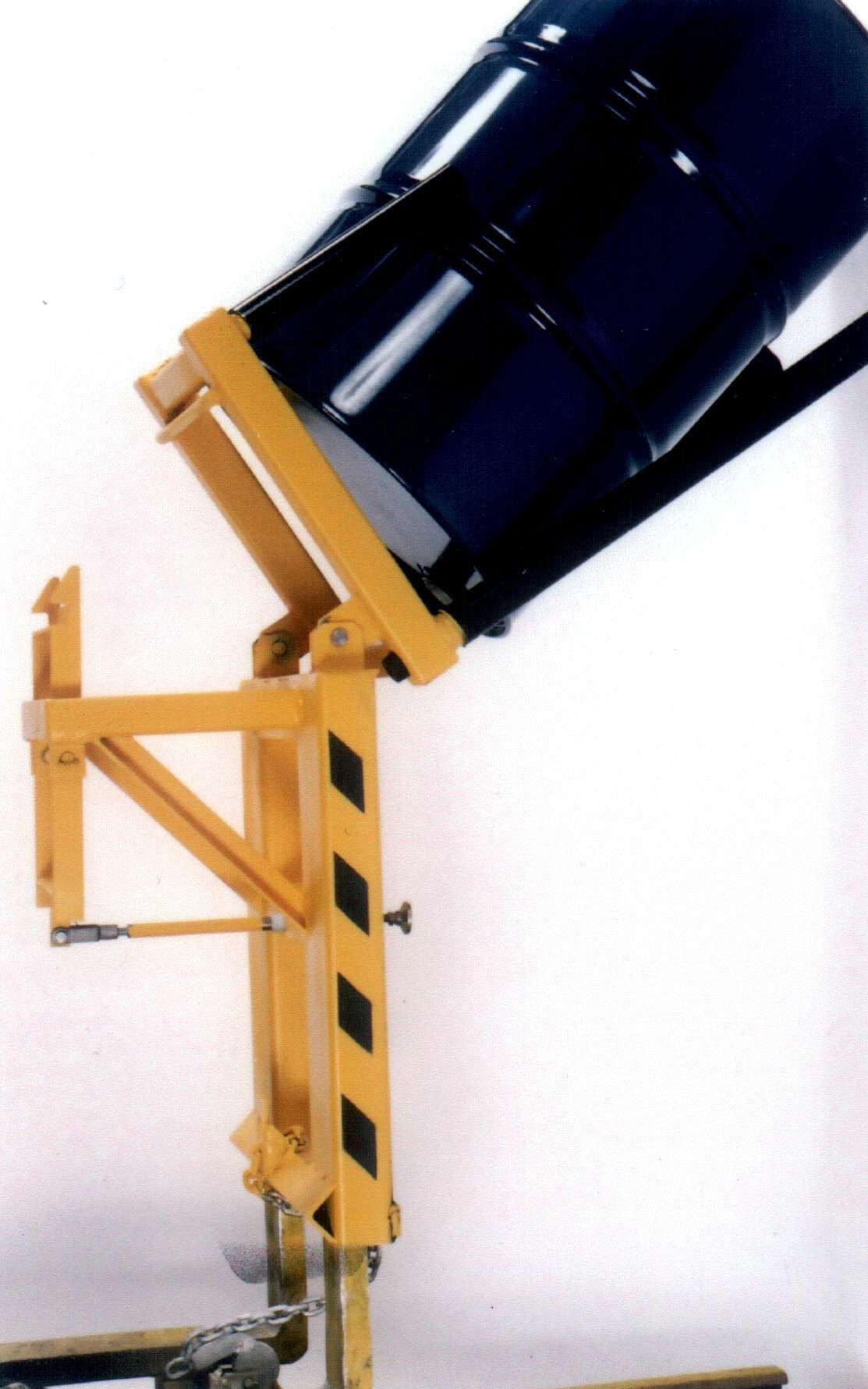

Oct 17, 2002 Model DU-SOM mechanical forklift attachment handles 55 gal drums in vertical, horizontal, and transitional positions. User can pick drum from horizontal rack or storage application, remove it safely, and manipulate drum to vertical position (or vice-versa), with no man-handling and without operator leaving seat of forklift. With 850 lb working capacity and all steel construction, unit withstands constant use.

Beta Max Hoists, Inc.    Melbourne, FL 32902

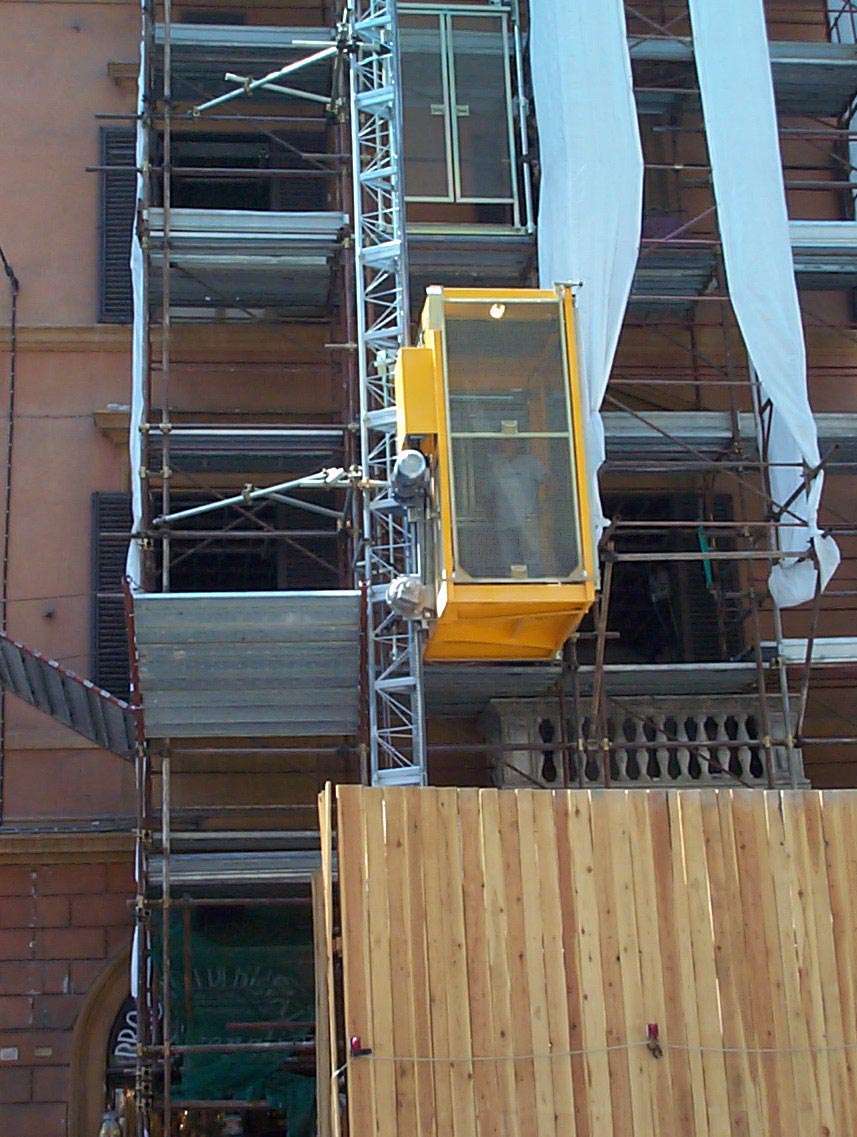

Oct 09, 2002 Max Climber(TM) 2000P features totally enclosed passenger cabin and ground enclosure with interlock switches to detect when it is safe to enter and exit. Floor landing gate and call box allow system to stop at pre-set levels or to be called to specific floor when needed. Platform for installing and anchoring masts from inside cabin is included. Rack and pinion lift can be changed to material hoist with open basket for dual uses. It meets or exceeds UL, CSA, and OSHA specifications.

Hyster Co.    Greenville, NC 27834
Oct 09, 2002 Model B80Z Walkie/Rider lift truck features Separately Excited Motor (SEM), steel frame, box-rail construction, 48 in. tapered pallet fork tips, and exit rollers and runners. Splined coupling provides quieter unit and simplifies replacement of parts. Service compartment is secured behind dent-resistant cowl cover. Pre-lubed, tapered roller bearings in steering unit provide low-effort control. Spring-loaded, polyurethane caster wheels ensure smooth travel over uneven warehouse floors.

Hyster Co.    Greenville, NC 27834
Oct 02, 2002 SpaceSaver S40-65XM lift trucks come in 4,000 to 6,000 lb capacities. ComforCab features extensive soundproofing to intercept vibrations and other movements before they reach operator. Elastomeric mounts on steering axle, sound absorption padding, and O-ring seals around perimeter of ComforCab further limit shocks and engine vibration. Engine choices include Mazda 2.0 or 2.2 liter gasoline or 63 hp 3.0 liter GM 4-cylinder electronically fuel-injected engines.

Magnetic Corporation    Olney, IL 62450 9749
Oct 01, 2002 TMS Series telescopic lifting columns lift loads 2 m in distance away from system's pillar. Centric loads up to 400 kg and eccentric loads up to 150 kg can be accommodated. TMS10 EASY and TMS00 MECHANICAL models each consist of 3 telescopic aluminum profiles mounted on 2 circulating ball rollers. Drives work on push load with force up to 900 lbs. Stroke lengths range from 300 to 700 mm. Retracted lengths are from 326 to 526 mm, and speeds range from 16 to 28 mm/sec.

Advance Lifts, Inc.    St. Charles, IL 60174
Sep 20, 2002 Top of ground dock lift has 6 ft wide x 8 ft long safety tread steel deck, 18 x 60 in. hinged transfer bridge, and 60 in. wide x 36 in. long hinged chock approach ramp. Lifting capacity is 5000 lbs with 6.25 in. lowered height and 54 in. vertical travel. Lift includes removable safety hand rails, safety restraint chains, and bridge lifting chain. Five HP electric hydraulic power unit is prewired and mounted on lift.

Genie, a Terex Company    Redmond, WA 98052

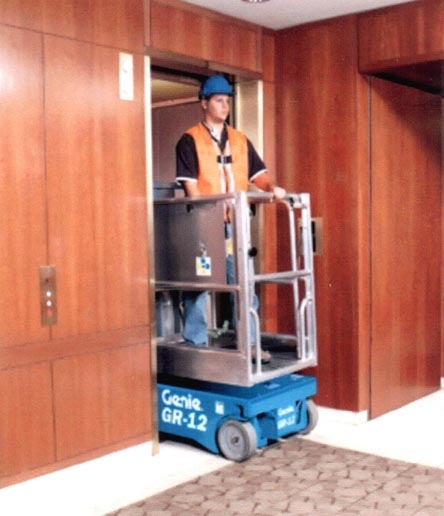

Sep 18, 2002 Self-propelled Runabout(TM) aerial work platform is 29.5 in. wide and 53 in. long, so it fits through single doorways and onto most passenger elevators. It can be driven through doorways with operator on board. Non-marking tires and low weight allow use on sensitive flooring. Models GR-8 and GR-12 can be driven when fully elevated with optional platform extension deck deployed. GR-15 can be driven when fully elevated with deck retracted.

Magnetic Corporation    Olney, IL 62450 9749
Sep 11, 2002 TELESMART systems allow for unobtrusive integration of 2, 3, or 4 table legs into range of table configurations. Microprocessor-controlled TMA, with 26 in. retracted height and 20 in. stroke, and TMD, with 22 in. retracted height and 28 in. stroke, coordinate synchronous operation of multiple table legs from seated to standing position at speeds over 2 in. per second. Integrated soft-start and soft-stop functions promote smooth movements.

Air Technical Industries    Mentor, OH 44060

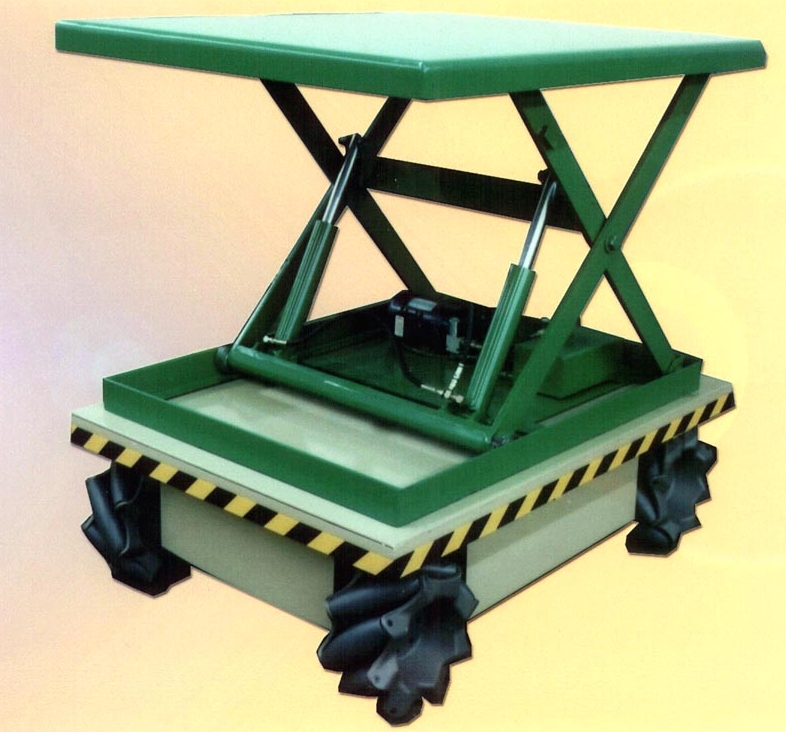

Aug 29, 2002 Hydraulic Scissor Lift Table travels in any direction 360° around and can spin 360° circles in either direction about its vertical axis. Capacities range from 500 to 10,000 lb, with deck sizes from 24 x 36 in. to 72 x 120 in. and vertical lifts up to 160 in. Controls are pendant remote control or radio remote control. Variable speed mobility, from 0 to 5 mph, is controlled by joystick. Equipped with camera, unit can be used to transport dangerous materials or armaments.

Toyota Industrial Equipment    Torrance, CA 90509 2991
Aug 27, 2002 Walkie Stacker electric forklift series is comprised of 7 models, which includes straddle, counterbalanced, and reach stackers with capacities ranging from 2,000 to 4,000 lbs. Engineered with Metal Oxide Semiconductor Field Effect Transistor (MOSFET) controller systems and SEM (Separately Excited Motor) drive technologies, forklift series offers stepless acceleration, heavy-duty wheels, multi-function control handle, and programmable drive system.

Magnetic Corporation    Olney, IL 62450 9749
Aug 22, 2002 TELEMAG telescopic columns raise and lower medical equipment, industrial devices, and work-place furniture with large offset loads. Columns can be powered by ac, dc, or 3-phase current. Maximum push force is 4000 N at speeds up to 1 in./sec. Minimum retracted height is 345 mm and maximum stroke length is 700 mm. Systems are available in 2 or 3 section models. Options include control units, operating elements, and maintenance-free actuators.

Hyster Co.    Greenville, NC 27834
Aug 21, 2002 E30-40HSD 3-wheel Electric StandDrive(TM) Counterbalanced lift truck allows for instant operator access to electrical apparatus, lift pump, drive motors, and power steering assembly. Ultima(TM) Control Handle allows for intuitive movement and simultaneous travel, hoist and one auxiliary function. It works in conjunction with operator display for set-up of traction and hydraulic functions, and is controlled via software for smooth transitions between moves.

Cooke Corp., The    Georgetown, MA 01833

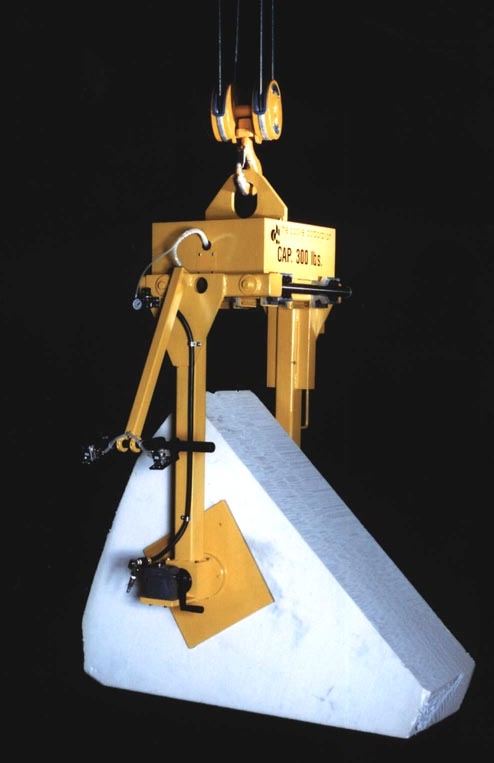

Aug 14, 2002 Below-the-hook Model CK350 picks up material and orients it for insertion into processing or assembly equipment. Two pads maneuver material from sides, evenly distributing clamping pressure. Clamping forces applied through pneumatic cylinders are adjusted with air regulator. Hand-powered gearbox controls multi-axis rotation. Air reservoir and check valve maintain clamping pressure. Lifter requires 100 psi shop air.
