Advance Lifts, Inc.    St. Charles, IL 60174
Nov 04, 2003 Available in 10 lift models with capacities from 5,000–6,000 lb, T2000 Series offers platform sizes from 6 x 8 ft to 8 x 10 ft. The 8 in. lowered height allows them to be installed in pit or on top of ground. They come equipped with 5 hp power unit, bridge, hand rails, push button control, and safety leg for servicing unit.

Handling Specialty, Inc.    Niagara Falls, NY 14304 0279
Oct 30, 2003 With motion on 2 axes, Custom Mast Lift offers capacity of 5,000 lb and allows tooling and fixture to be raised at 2.5 fpm. Mechanical actuation permits positive locking, so tooling can be held at any elevation for extended periods of time. Power rotator rotates tooling 180° at full up position. Controls include handheld remote control unit, expansion space for light curtain or safety mats, and sensors to ensure fixture is properly attached to lift.

ServoLift L.L.C.    Rockaway, NJ 07866
Oct 30, 2003 EyeLevelâ„¢, mounted on counterbalance type lift trucks equipped with tilting mast, helps operators determine if forks are level before entering pallets. Available in 8, 10, 12, and 14 in. sizes, construction is based on pivot motion with aligning pins to indicate appropriate fork level. Pins, in combination with gravity, ensure correct reading at all times.

Jungheinrich Lift Truck Corp.    Houston, TX 77043
Oct 29, 2003 Measuring 61 in. wide, man-up ETX-Kombi lift trucks have 98.3 in. turning radius to provide maneuverability sufficient for storing/retrieving pallet loads in narrow aisles. They feature 180° swing reach mast and are available in 2-stage or 3-stage versions with respective max lift heights of 462 and 560 in. Additional offerings include AC drive control, 3,300 lb load capacity, travel speeds to 6.5 mph, and load and lift speeds of 82 ft/min.

Pentalift Equipment Corp.    Buffalo, NY 14240 1510
Oct 08, 2003 Lift is capable of hoisting loads of up to 6,000 lbs in high-ceiling (up to 21 ft) warehouse storage applications. Unit has 48 x 96 in. platform, and table utilizes guide rollers that run within vertical channels from lower floor level to warehouse ceiling for stability. Pivot points incorporate chrome pins with lubricated-for-life, maintenance-free bearings. Also included are full-width leg hinge pins and Pentaflow hydraulic cylinder.

Lift Products, Inc.    Elm Grove, WI 53122 0349
Oct 03, 2003 Available in manual or electric versions, TILT and LIFT combines portable tilter with vertical travel functionality to precisely position workloads. With independent control of each function, operator can tilt load at correct angle and raise load up or down to create most comfortable ergonomic position. Workload is accessible without need for bending, reaching, stooping, or stretching. Unit is equipped with casters and can be moved throughout plant.

Hevi-Haul International, Ltd.    Menomonee Falls, WI 53051
Sep 29, 2003 Built with welded steel construction, products reduce repetitive stress disorders by helping workers unload pallets, boxes, crates, or baskets. Available with capacities from 500–30,000 lbs, lifts can be made to match existing space restrictions, and deck can be modified to accept roller conveyor or ball transfer tops. Units can be stopped in any position and raised or lowered via foot switch, hand-held pendant, or other control.

Aisle-Master    Memphis, TN 38122-0666

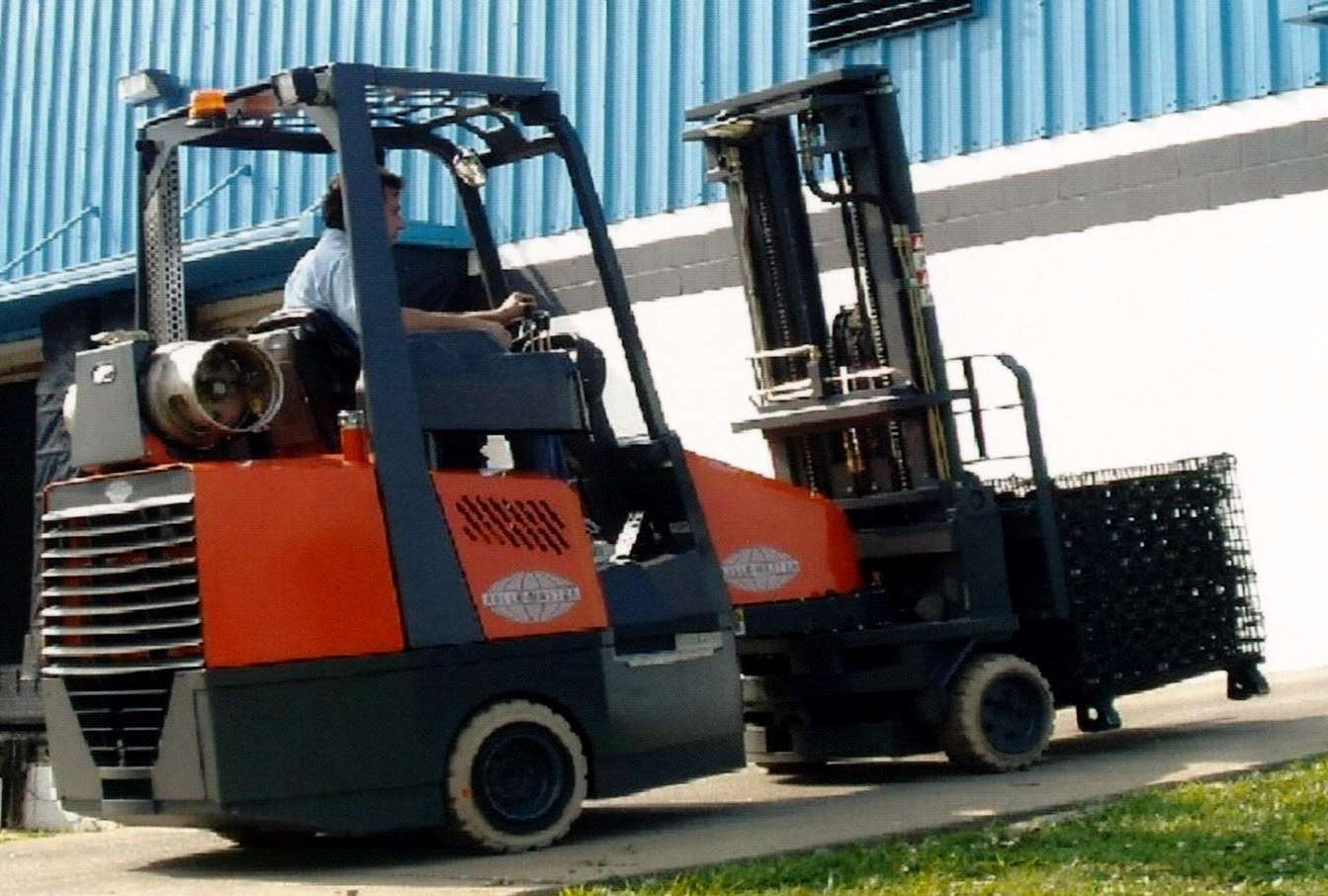

Sep 03, 2003 Aisle-Masterâ„¢ articulated, narrow aisle lift truck operates in aisles as narrow as 78 in. wide; negotiates rough, unpaved ground with 16 in. front wheels and 18 in. rear wheels; and handles grades or ramps to 15%. With 4,400 lb capacity and 24 in. load center distance, product is powered by LPG fueled, 67 hp engine with hydrostatic drive system. Triple and Quad masts with lift height options up to 30 ft are available, and side shift is fitted as standard.

BOSTONtec, Inc.    Midland, MI 48642
Sep 03, 2003 Powered by one 24 Vdc electric linear actuator drive, Boston Lifting Column offers safe low voltage up/down controls and can lift up to 1,000 lb. Product lifts instrumentation, machinery, and small work surfaces up to 16 in. off of surface with speeds to 0.78 ips. Unit is available as stand-alone column or assembled with base plate and feet. Optional work surfaces are available.

PHD, Inc.    Fort Wayne, IN 46899

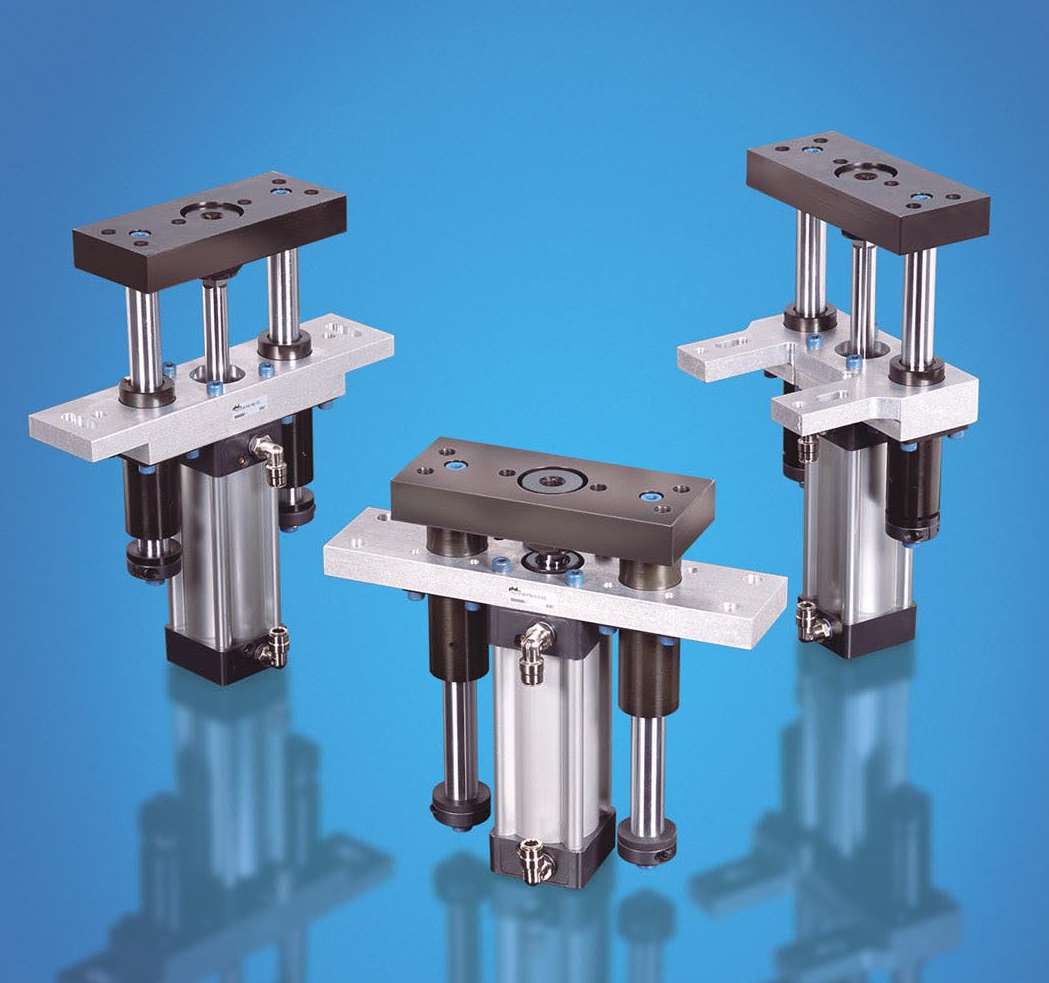

Aug 29, 2003 Series PHL Heavy Lifters are offered in stroke lengths of 50, 80, 100, 125, 160, and 200 mm. Cylinder has adjustable cushions, which reduce shock to unit, and magnetic piston for switches to provide end of stroke signal to controllers. Built-in rod compliance eliminates side load on cylinder piston. Composite bearings are internally lubricated. Able to handle off-center loads, lifters are suited for automated, high load part lifting applications.

JLG Industries, Inc.    McConnellsburg, PA 17233 9533
Aug 27, 2003 Pro-Fit™ Series combines hydraulic lift pump, reservoir, and motor with lift cylinder into single assembly. Control station permits 1-handed control of proportional drive and lift functions. Platform decks are non-corrosive aluminum. Narrow models have 30 in. overall width with platform heights of 19–26 ft and capacities from 500–800 lb. Wider models have platform heights of 26 and 32 ft with capacities of 1,000 lb and dual 700/1,000 lb, respectively.

Genie, a Terex Company    Redmond, WA 98052
Aug 21, 2003 With zero inside turning radius, GS(TM)-1530 and GS(TM)-1930 self-propelled scissor lifts can maneuver in close or tight quarters. Model GS-1530 has max working height of 21 ft and 600 lb lift capacity, while GS-1930 has 25 ft max working height and 500 lb lift capacity. Both feature 36 in. extension deck for work requiring limited outreach. Measuring 30 in. wide, products include trays that swing out to provide full access to all working components.

Advance Lifts, Inc.    St. Charles, IL 60174
Aug 13, 2003 Jumbo Scissor Lifts consist of 14 models, 7 of which are single leg lifts with capacities from 12,000–40,000 lb. Platform sizes range from 9 x 12 ft to 12 x 20 ft with travels from 5–6 ft. Remaining 7 models are double leg lifts with capacities from 6,000–60,000 lb. Platforms range from 8½ x 38 ft to 8½ x 50 ft. Lifts include electric hydraulic power units from 7½ to 40 hp and electric push button controls.

Unidex    Warsaw, NY 14569
Aug 11, 2003 Model ECL Electric Column Lift Manipulator offers 270° articulating arms plus end effectors for handling close tolerance work positioning requirements. Electric-powered chain/sprocket drive provides lifting and lowering while end-of-arm controls provide 3-speed vertical height adjustment. Standard lift stroke is 54 in. and load capacity is 250 lb 95 in. from centerline. Aut-O-Loc(TM) braking system protects operator from downward movement in case of chain or drive failure.

Monarch Hydraulics, Inc.    Grand Rapids, MI 49501 1764
Aug 11, 2003 INTERMEDIATE DYNA-LIFT features 4-cylinder system with 12 in. stroke. Suited for OEM and retrofit applications, hydraulic lift is for raising and lowering industrial workbenches, welding fixtures, and specialty machines for optimum worker comfort and position. Kits are available for mounting to existing equipment or original equipment designs.

Handling Specialty, Inc.    Niagara Falls, NY 14304 0279
Aug 05, 2003 Designed for use in replacing firebricks in arc furnaces, heavy-duty, 2-stage, hydraulic scissor lift can be placed by crane inside ladle. Ladle lift can be designed with capacity up to 11,000 lb, with top and base customized to suit dimensions of each ladle.

Raymond Corporation, The    Greene, NY 13778 0130
Jul 29, 2003 Reach-Fork® and Deep-Reach® 36 V forklift trucks incorporate AC-powered traction as standard feature, which extends battery life and results in less reduction in truck performance as battery discharges. For operators, AC traction provides increased acceleration and precision to store and retrieve loads. Due to AC-powered traction, trucks require less time to ramp up speed when compared to DC-powered traction.

Advance Lifts, Inc.    St. Charles, IL 60174

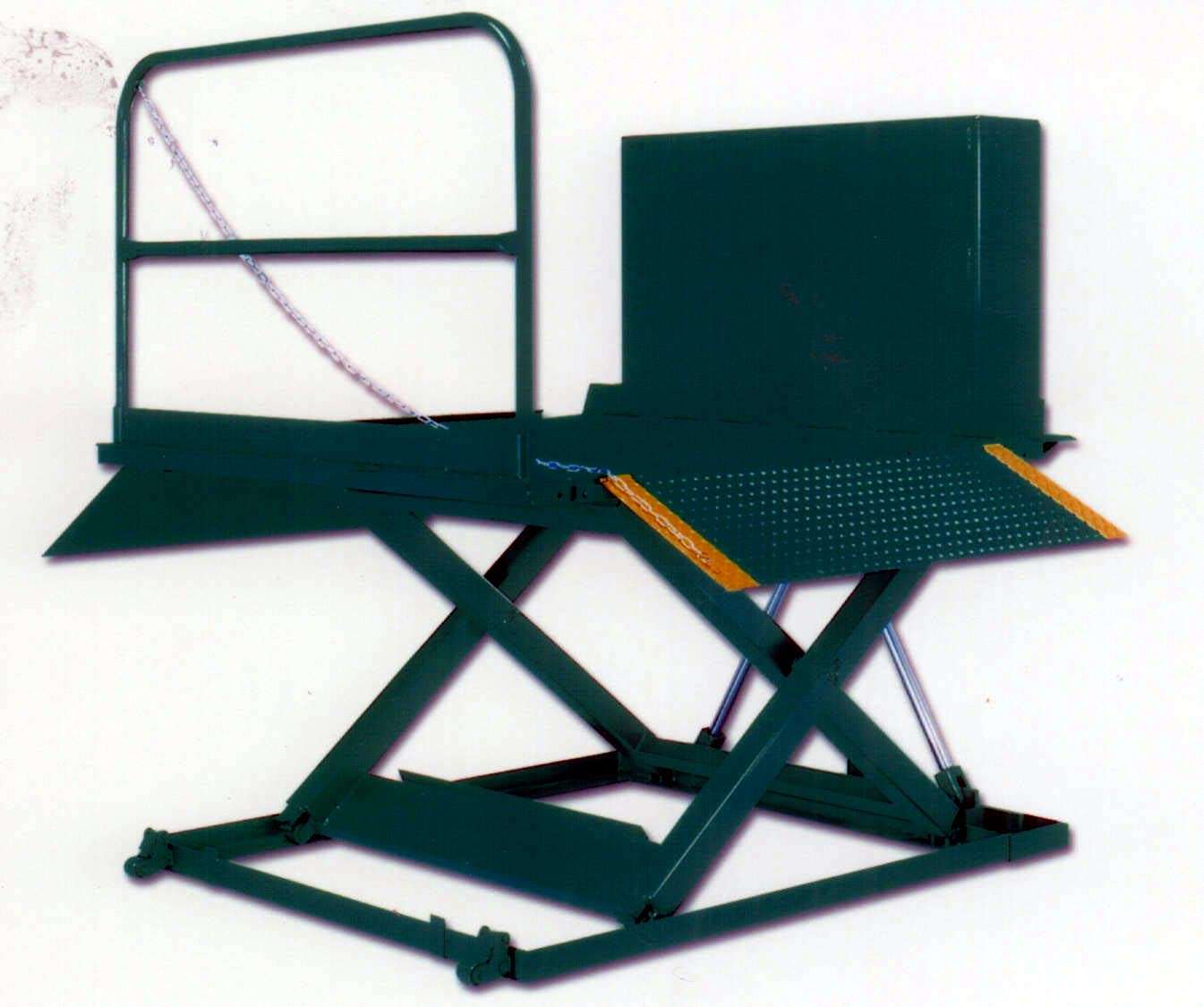

Jul 17, 2003 Portable Model 1045 facilitates loading and unloading of trucks in shipping and receiving areas that have no loading dock. Self-contained unit has built-in 2 hp power unit, 4,000 lb capacity, and 6 x 6 ft platform. Lowered height is 5¼ in. and raised height is 58¼ in. Standard features include 18 x 60 in. hinged bridge, 30 x 60 in. hinged approach ramp with built-in wheel chock, pushbutton controls, and removable handrail.

Jungheinrich Lift Truck Corp.    Richmond, VA 23231
Jun 12, 2003 Model EFXac, with 180° swing reach mast and AC drive control, stores and retrieves pallet loads. Side shifting and rotation can be accomplished simultaneously. Product utilizes 4.4 kW, 3-phase, AC motor and offers ergonomically designed driver's cab that provides unobstructed views of forks, load, and aisle way. Truck handles 2,200–2,750 lb loads, measures 70 in. wide, and is available with 2- or 3-stage mast with max lift height of 236 and 276 in. respectively.

Toyota Industrial Equipment    Torrance, CA 90509 2991

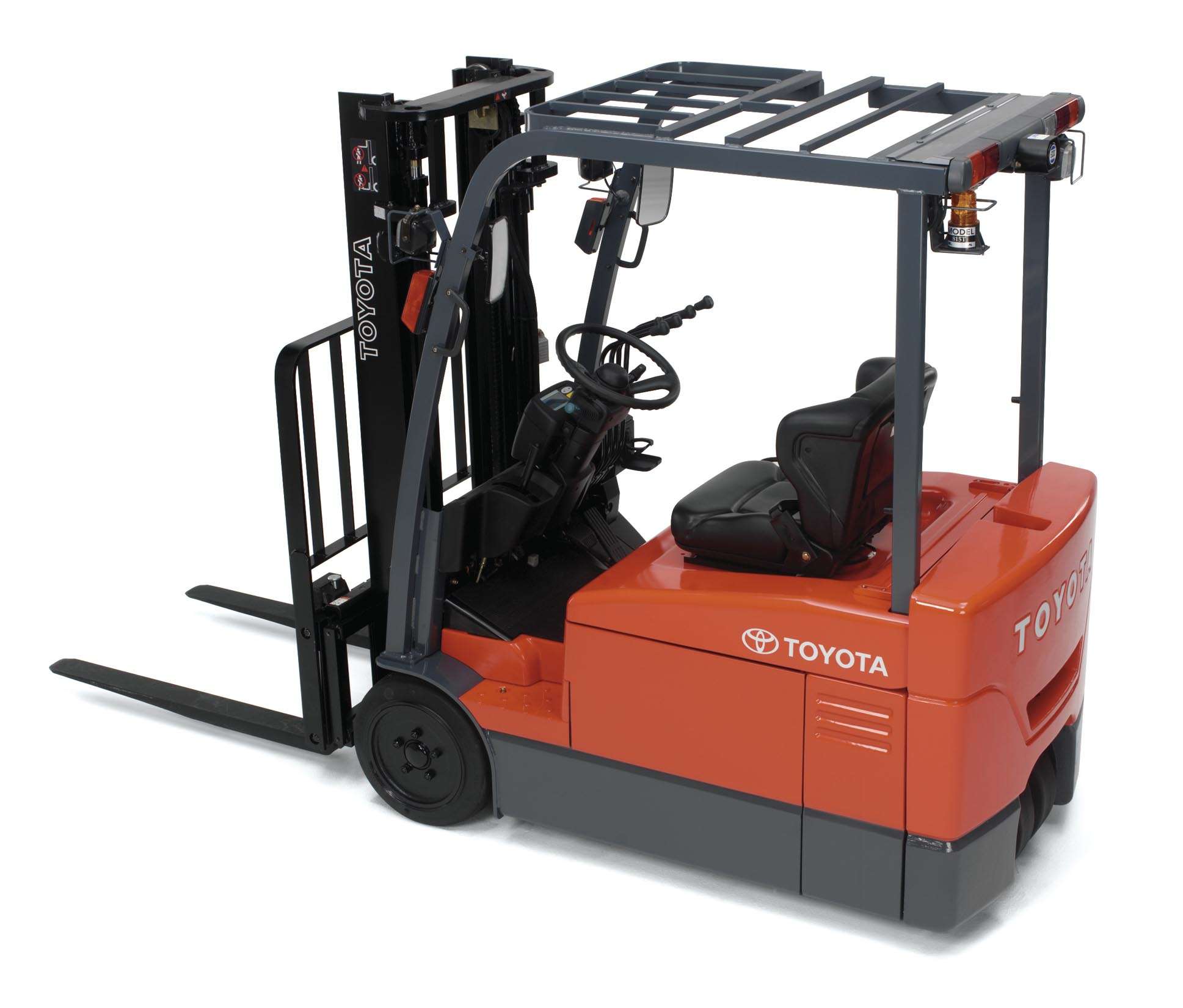

Jun 12, 2003 Series 7 3-wheel lift trucks utilize AC power system featuring MOSFET transistor control technology and brushless motors with contactor-free controllers. Hydraulic motor also controls steering function. Power-keep function compensates for battery depletion and corresponding loss of performance. Active Mast Control detects and responds to changes in operating status of lift truck, improving stability when handling loads of varying size and weight at high lift heights.
