Genie, a Terex Company
Redmond, WA 98052
Sep 19, 2008 Featuring 8 ft, 2 in. total width, 80 ft Models S(TM)-80 and S(TM)-85 can be transported over road on standard equipment trailer without special permit. Virtual pivot boom design keeps weight of boom over chassis' center of gravity as it elevates, eliminating need for extra counterweight. To optimize efficiency, elevation time from fully stowed to fully elevated is 68 seconds. Active oscillating axle provides traction in rough terrain for smooth ride.

Specialty Equipment
Houston, TX 77055
Aug 29, 2008 Designed to transfer empty drums from conveyor and stack them onto pallet, Model EDP-500 air-over-electric system loads 30-55 gal steel, fiber, or poly drums in 4, 5, or 6 drum pattern, onto pallet. Average load time is 4 drums/minute, and automatic pallet dispenser is available to discharge waiting pallet. Featuring steel components and all-welded construction, unit has selector switch to keep transfer carriage in home position allowing tall IBC to pass through.

Liftomatic Material Handling, Inc.
Buffalo Grove, IL 60089

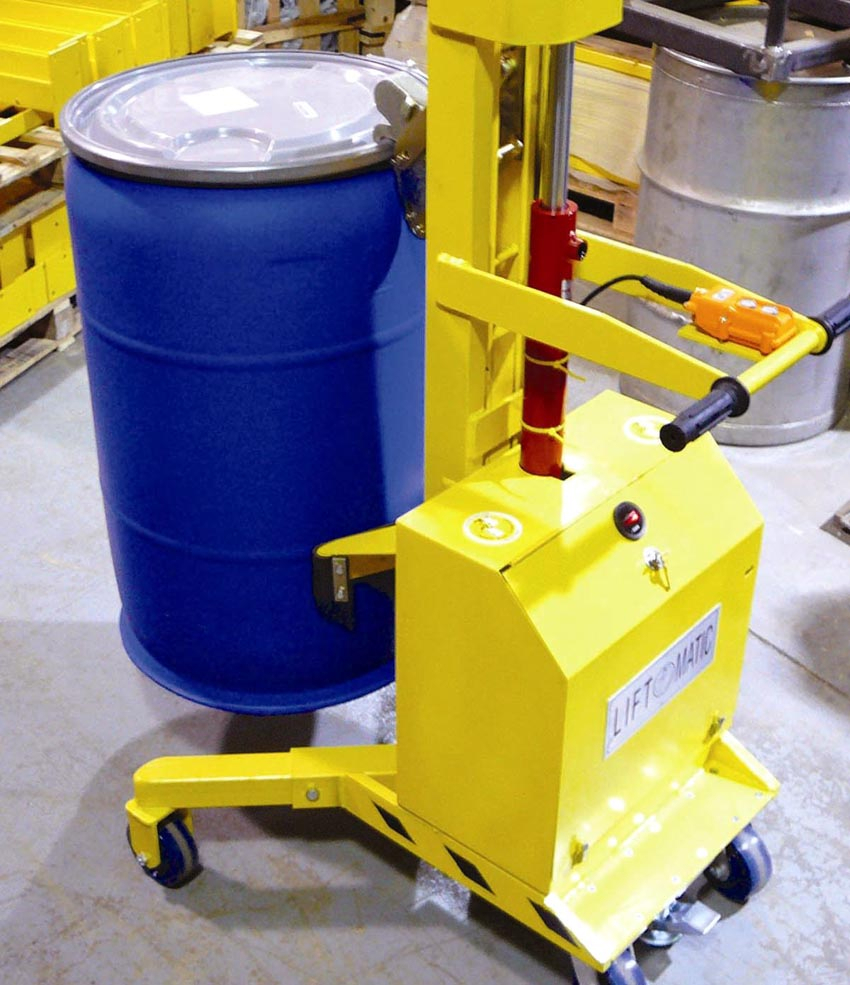

Aug 19, 2008 Ergomatic 1000-PLEH-BC drum transporter is manually propelled, self-contained electric/hydraulic lifting system that transports steel, plastic, and fiber drums weighing up to 1,000 lb. Available in 20 and 36 in. lift heights, system can include options such as non-sparking packages, alternate coatings, and Double Parrot-Beak clamping system.

Kinetic Technologies, LLC
Cleveland, OH 44092
Apr 25, 2008 LOBOY(TM) cart offers 2.3 in. of ground clearance and low center of gravity for towing drums or boxes of welding wire used in robotic or hard tooled welding applications. At 33 in. wide, product fits adjacent to or in welding cell and handles up to 1,000 lb containers. Push/pull forces required for manual moving are within ergonomic limits, and no-bend towing system features spring-loaded, self-stowing towbar, frame recessed auto-hitch, and auto-release floor lock.

Caldwell Group, Inc., The
Rockford, IL 61109
Apr 22, 2008 Combining reach of fork lift boom with precise lifting of winch, Winch Boom fits standard fork lift trucks. It is available in fixed, telescopic, and pivoting telescopic models with winch hook capacities of 2,000 or 2,400 lb. Unit features 110 V standard electrical operation, and with optional dc, hydraulic winch operation is available on any model.

Bil-Jax, Inc.
Archbold, OH 43502
Apr 21, 2008 Offered with variety of options, Self-Propelled X-Booms come with 45% gradeability, 3.5 mph drive speed, 4-wheel drive capability, and hydraulic outriggers. Featuring 43 ft of working height and 32 ft maximum outreach, Model 36XT telescopic boom weighs 4,900 lb and can be transported on trailer with medium duty SUV or truck. Weighing less than 4,580 lb, Model 45XA articulating boom comes with 51 ft working height and 27 ft of maximum outreach.

Spartan Motors, Inc.
Charlotte, MI 48813
Apr 16, 2008 Boomer(TM) is Furion®-based product that offers elevation, water discharge, hydraulics and air, electrical, and lift in compact device. System can lift 1,000 lb and has 28 ft master stream that can be rotated 360° and elevated from -10° to +90°. It includes 6,000 W light tower with adjustable lights, connections for high-pressure hydraulic rescue tools, and 2 additional hand-line discharges. Device features SS tubular design and boom is manufactured with extruded aluminum.

Skyjack Inc. / Boom Division
Guelph Ontario N1H 1B9, CD   Canada
Mar 10, 2008 Featuring direction sensing drive and steer control system, SJ 61T and SJ 66T telescopic boom lifts utilize axle based 4WD system that incorporates Detroit Locker type rear differential and limited slip front differential. Lifts include standard color coded and numbered wiring system along with relay based controls.

Material Transfer & Storage, Inc.
Allegan, MI 49010 0218
Mar 04, 2008 Equipped with Lift and Seal(TM) System, Drum Handling System includes 304 stainless steel pour cone and adjustable metering valve for dust-tight discharge and feeding of various dry solids and powders. Unit allows operator to load, seal, invert, and discharge variety of drum sizes at height specifically engineered for application needs.

New Pig Corporation
Tipton, PA 16684 0304
Dec 11, 2007 Designed to fit with 30 and 55 gal steel drums as well as 55 gal poly drums, PIG® Drum Filling Shelf allows user to position fluid dispensing container in close proximity to drum pump to reduce risk of spill and drips. Adjustable steel strap brackets attach securely to drum and can accommodate variety of container sizes, weights, and configurations, while ribbed top can capture and retain up to 32 oz of liquid. Chemically resistant unit does not rust, dent, or corrode.

Liftomatic Material Handling, Inc.
Buffalo Grove, IL 60089
Aug 29, 2007 Model 10HT-4W is 4-wheel hand truck with dual 10 in. main wheels that have full roller bearings and dual 3 in. swivel casters that support drum while moving through plants and warehouses. Designed with concern for ergonomic safety, hand truck eliminates need for operator to bear weight of load during transport of rimmed steel, fiber, or plastic drums weighing up to 1,000 lb. Parrot-Beak® clamping mechanism adjusts to handle 10-85 gal drum sizes.

Continental General Tire, Inc.
Charlotte, NC 28241
May 30, 2007 Designed for forklifts, super-elastic CSEasy Tires feature reusable, conical adapter between tire and rim that allows mounting with torque wrench. They offer optimum rim seating, high temperature tolerance, and maximized dynamic load capacity for transporting heavy loads. CSEasy Tires can be fitted on-site, ensuring forklift is back in operation within minutes.

Liftomatic Material Handling, Inc.
Buffalo Grove, IL 60089
May 07, 2007 Designed to assist in performing drum change-outs from one pallet size to another, LOM-4 can safely handle 1-4 drums at a time. It can handle mixed groups of steel, plastic, or fiber drums, rimmed or rimless, that cumulatively weigh up to 8,000 lb as long as drum heights are within 1.5 in. of each other. Product is available with spark-resistant and EE-rated components.

Material Transfer & Storage, Inc.
Allegan, MI 49010 0218
May 03, 2007 Custom Dual Drum Lift and Dump Discharging System elevates 2 drums of chemical powders from floor level to hopper 37 ft 2 in. above floor level and includes MTS Lift & Seal System(TM) that seals drums to pour cone for dust-tight operation. System features Control Link(TM) rotation for 180° rotation and 48 in. reach, along with stainless steel product contact surfaces, heavy-duty tubular construction, sealed cam rollers, and MTS 2-speed hydraulic circuit.

WMH Tool Group
Elgin, IL 60123
Mar 07, 2007 JET® Drum Lifter/Dispensers feature hardened steel chain and lever assembly to attach and release 55 gal steel drums and also include OSHA-approved frame and drum sleeves. With positive tilt lock on drum saddle to hold it, manual model can be rotated 360° in either direction when lock is released. Geared model has low-effort chain control, which allows operator to tilt drum using mechanical force for use at any height.

WMH Tool Group
Elgin, IL 60123
Feb 07, 2007 JET Drum Tongs have 1,000 lb capacity for lifting 55 gallon drums with overhead hoist. Model 262001 works with open top or tight-head steel drums and plastic drums with large or x-Large rings, while 262002 features release lever that allows hooks to fall and then secure drum's rim. JET Drum Lifter bears loads up to 770 lbs and can be used with overhead hoist or hooked from forklift truck. JET Drum Chain Sling is used with hoist and has single-chain capacity of 1,100 lb.

Kinetic Technologies, LLC
Cleveland, OH 44092
Nov 30, 2006 Featuring low center of gravity, LOBOY(TM) is constructed with rounded corners and smoothed edges and has built-in 11 gal capacity overflow. Additional features of this 100% welded cart include tubular steel drum support and safety yellow powder paint finish. Via wheel design, minimal push/pull forces are required for manual moving. No-bend towing system features spring-loaded, self-stowing towbar; frame recessed auto-hitch; and auto-release floor lock.

Liftomatic Material Handling, Inc.
Buffalo Grove, IL 60089

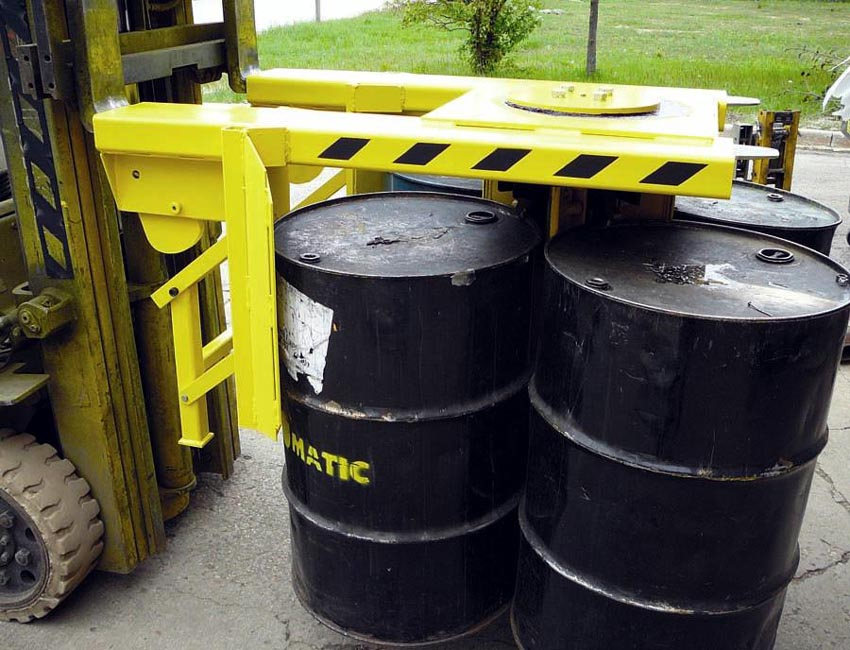

Jul 06, 2006 Automatic and mechanical 4-DCM, able to handle 1, 2, 3, or 4 drums in straight-line configuration, has total capacity of 8,000 lb. Equipped with Parrot-Beak® clamping system and cushioned belt-cradles, product is able to load 80 steel, plastic, or fiber drums into truck or container in under 15 min. Options include non-sparking components, EE/EX ratings, Quick-Claw® fork locking systems, and Steel-It® FDA-approved stainless steel coating.

Material Transfer & Storage, Inc.
Allegan, MI 49010 0218
Apr 06, 2006 Lift & Seal System(TM) is designed to discharge drums of non-free flowing powders into existing receiving hopper at 70 in. above floor level. It automatically docks drums inside discharge cone with 60° walls, for safe, dust-controlled discharge. Control Link(TM) Rotation System rotates drum to 180° for maximum product discharge. Unit can be custom designed for application requirements.

JLG Industries, Inc.
McConnellsburg, PA 17233 9533
Mar 30, 2006 Model E26MJ, E18MJ, and E33MS mast-style boom lifts include jib boom that extends platform away from mast. Model E26MJ is electric powered, has non-marking, lugged tires for both inside and outside operation, and features 26 ft 2 in. platform height, 7 ft 2 in. jib boom, and outreach with 440 lb platform capacity. Featuring 360° pivoting capability, self-propelled products provide access to reach overhead sites, and can be driven at speeds up to 2.5 mph.
