Columbus McKinnon Corp.    Amherst, NY 14228
May 23, 2013 Featuring 360° rotating handle, CM Series 653 ratchet lever hoist is suited for use in confined work areas. Metric rated hoist provides lift up to 20 ft. Compact, portable unit has impact-resistant stamped steel frame and gear cover, to withstand rigorous use in harsh environments, and enclosed Weston type load brake. Single-handed free chaining ensures chain is not accidentally freed under load, while double pawl design ensures one pawl is engaged at all times for reliable load control.

Columbus McKinnon Corp.    Amherst, NY 14228
May 23, 2013 Available in ¼–1 ton capacities, CM AirStar offers respective lifting and lowering speeds up to 45 and 120 fpm lowering (½ ton unit); 10 ft standard lift, with other lifts available; and Hoistaloy load chain for heavy-duty use or stainless steel chain for spark-resistant and medium-duty loads. Features includes aluminum frame and end-cover, inlet air swivel with built-in strainer, and control manifold and seals that lend to extended service life and air leak prevention.

Manitex International, Inc    Georgetown, TX 78626
May 14, 2013 Designed for global markets, CE-compliant TC700 can be configured to mount on trucks manufactured with 12 or 24 V electrical systems. Subframe is designed to be compatible with varying truck chassis rails and widths, enabling installation on 8 x 4 chassis; 5- and 6-axle factory installed configurations will be available to North American market. Features include 115 ft main boom length, 185 ft max tip height with optional 2-piece jib, and 15,000 lb bare drum line pull rating.

LCM Systems Ltd.    Isle of Wight PO30 5GY  United Kingdom
Apr 03, 2013 Providing dual volt-free relay outputs from load cell signal, LCTA Series Load Cell Trip/Relay Amplifiers offer hoist overload protection, safe crane lifting control, and personnel lifting platform protection. Units can power single load cell or load pin, or up to four 350 Ω load cells connected in parallel. Volt-free relay outputs have trip switching current of 10 A at 230 Vac and can be adjusted independently. For remote display, amplifiers also include 0-5 V analog output.

Harrington Hoists, Inc.    Manheim, PA 17545 1754

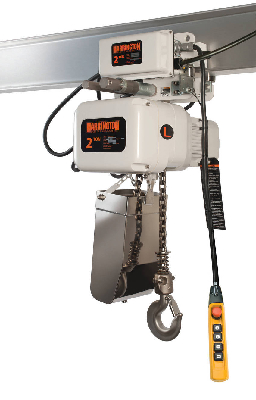

Mar 08, 2013 Available in capacities from ¼–2 tons, NER-FG Series includes standard single speed and under-the-cover, variable frequency drive, dual speed models. Units have white epoxy painted hoists, trolleys, hooks, and suspenders; nickel-plated load chain; canvas chain container; and food-grade lubricants in compliance with FDA standards. Designed with completely sealed body for indoor/outdoor applications, hoists are powered by extreme-duty 60 minute rated motor and include fail-safe brake.

Air Technical Industries    Mentor, OH 44060
Mar 08, 2013 Low-profile Gantry Crane has hydraulic cable lift and mobile trolley built into double girder boom. Only hook hangs below boom, accommodating low-headroom requirements when lifting loads up to 4,000, 6,000, or 10,000 lb in crowded areas. Trolley's mobility is made possible via 6 flanged wheels, and propulsion is via continuous chain with worm-gear drive. Bridge span is available in 8, 10, and 12 ft widths and same under boom heights, while hydraulic cable lift has 6, 8, or 10 ft range.

Air Technical Industries    Mentor, OH 44060
Mar 08, 2013 With counterweight built into base, Portable Jib Cranes can be used anytime and any place without requiring installation. Self-supportive design, available with manual or electrical hoist, features fork pockets for portability and can also be detached from base and mounted to floor. Standard boom rotation is manual, but optional powered boom rotation is available. Cranes offer capacities of 500, 1,000, or 2,000 lb with span length of 6–12 ft and under beam height of up to 24 ft.

Air Technical Industries    Mentor, OH 44060
Feb 05, 2013 Featuring battery operated design and max height up to 20 ft, Compact RBC Reversible Boom Crane has Triple Section Telescopic Boom that allows for reaching deep into, under, or above hard-to-reach places. Self propulsion offers infinitely variable speed control from 0–4 mph with smooth acceleration/deceleration. All crane functions are hydraulically operated, including optional hydraulic winch cable lift that can reach below floor levels into man holes, pits, basements, or lower levels.

Columbus McKinnon Corp.    Amherst, NY 14228
Dec 07, 2012 Available in various capacities with both underhung and top-running trolleys, Explosion Proof Yale Global King is suited for Division 2, Class 1 (Group B, C, and D) applications and offers such options as special enclosures, metal clad (MC) electrical cable and sealed fittings, intrinsically safe control stations, and explosion proof rated motors. Heavy-duty disc brakes, rated at 200% torque, provide positive stops and load holding.

Sumner Mfg. Co.    Houston, TX 77088 4036
Nov 19, 2012 Suited for mechanical contractors, GH2T Gantry Lift features 4,400 lb capacity and comes in 8, 10, 12, and 15 ft as well as 3, 4, and 5 m sizes. Unit consists of two A-frames, each with two 8 in. casters that lock at 90° angles, and frame legs that lock in opened or closed position using pushbutton release. Set screw on trolley secures it to cross beam offered in 7 sizes. Designed to be erected by 2-man crew, product has ground to lifting eye height range of 83-113 in. and weighs 285-331 lb.

Proper Storage Systems, Inc.    Seguin, TX 78155
Nov 14, 2012 To aid in storage and access of heavy tooling or raw materials, Roll-Out Shelf Racks are available with attachable hoist systems, which include monorail and electric conductor rail combined with CM Lodestar hoists. Hoist system is supported by steel superstructures mounted to top of pneumatic or manual roll-out shelving racks, facilitating loading/unloading while minimizing material handling injuries and damage to tooling and materials.

The David Round Co., Inc.    Streetsboro, OH 44241
Oct 25, 2012 Suited for lifting bulk bags or other materials up to 1,000 lb in clean room environments, all-stainless articulating jib cranes are available with lift heights and boom/knuckle configurations to meet unique requirements. Explosion proof models are available to meet electrical standards required in hazardous environment processing areas, and fully enclosed mechanical components include wire rope hoist, gearbox, and motor drum. Structural components are prepared with glass bead finish.

J D Neuhaus L.P    Sparks, MD 21152
Oct 22, 2012 With lift capacity ranging from 25–60 tons, Prof Ti Hoists with emergency lowering device are equipped with separate air tank, and two additional buttons incorporated into hand controller. Reservoir is automatically maintained at full working air pressure during normal hoist operations, ensuring availability of positive emergency braking system when required. Device becomes operable in event of severe reduction or total loss of mains air pressure.

Columbus McKinnon Corp.    Amherst, NY 14228
Jul 27, 2012 Featuring overload clutch and heavy duty rating, CM Man Guard is available in capacities from ¼-3 tons. Open design fosters access to brake and wiring for maintenance/adjustments. Standard components include heavy-duty AC disk brake, precision gearing, and electric hoist motors precisely designed for each speed and capacity. Available with single-speed or variable frequency drive, hoist offers rigid hook mounting as standard that is interchangeable with other mounting options.

Columbus McKinnon Corp.    Amherst, NY 14228
Jul 25, 2012 Based on industry-proven Gear Drive, Yale LodeKing features Vertical Lift Design for optimum load control and Center Drive Configuration for load centering. Optional Ion Nitriding of sheaves and drums is available for maximum protection against wear. Yale LodeKing is suited for heavy-duty applications found in industries such as energy and power generation, agriculture and logging, marine and transportation, and general manufacturing and construction.

Konecranes    Newington, CT 06111
Jun 15, 2012 With Hybrid Diesel/Electric Power Pack, Rubber Tired Gantry Cranes operate with electrical power drawn from energy store whenever possible, and takes energy generated during braking and converts it into electricity to recharge batteries. Diesel Fuel Saver provides power-on-demand, matching rpm of RTG engine to work machine is doing. Cable Reel and Busbar options convert RTG to fully electric operation, eliminating diesel exhaust emissions.

Sumner Mfg. Co.    Houston, TX 77088 4036
Apr 23, 2012 Intended for mechanical contractors, Model GH2T is available with cross beams in 8, 10, 12, and 15 ft sizes as well as 3, 4, and 5 m sizes. Two A-frames lock in folded position using plunger pins and feature removable quick action locking pin. With adjustable lifting handle, height adjustments can be made in 6 in. increments. Minimum and maximum heights from ground to lifting eye are 83 and 113 in., respectively, and maximum height to top of trolley is 113.5 in.

Harrington Hoists, Inc.    Manheim, PA 17545 1754
Mar 09, 2012 Made of die-cast aluminum, ED Infinity Electric Chain Hoists are available in 125, 220, 250, 350, 400, 525, and 1,050 lb capacities. External speed adjustment knobs enable operator to customize high and low hoist speeds, while metal hinged cover protects knobs from damage and prevents speed settings from shifting during operation. Additional features include Weston-style and regenerative load brakes, friction clutch for overwinding protection, and nickel-plated, heat treated load chain.

Ruger Industries, Inc.    Cleveland, OH 44139
Feb 16, 2012 Narrow enough to pass through standard door openings, narrow aisles, and elevators, Foldable Stainless Steel Floor Cranes retract into compact size when not in use and can be maneuvered in areas off-limits to other lifting equipment. Portable units feature 100% stainless steel construction with ¼-½ in. thick structural tubing, casters, and totally welded fabrication. There are no painted surfaces, enabling use in cleanrooms.

H2W Technologies, Inc.    Santa Clarita, CA 91350
Jan 25, 2012 Utilizing 0.1 micron resolution encoders for optimal accuracy and repeatability, custom XY gantry has 1 x 1 in. stroke and supports moving coil option that reduces moving mass and increases acceleration. Bottom axis uses 2 voice coil actuators in parallel, and gantry can be driven with DC servo or DC linear amplifiers and 2-axis programmable motion controller. For top and bottom axes, respective ratings are 2.3 and 4.6 lb for continuous force and 6.9 and 13.8 lb for peak force.
