Sheeter/Stacker offers continuous operation.
Goddard, KS 67052
Jun 05, 2002 Non-Stop Inline Sheeter/Stacker takes material coming off production system and sheets it; sheets are then stagger-stacked onto pallets that are automatically changed out when full. Festoon-type accumulator allows on-the-fly change out. While pallets are being changed, accumulator collects web so web does not have to stop.

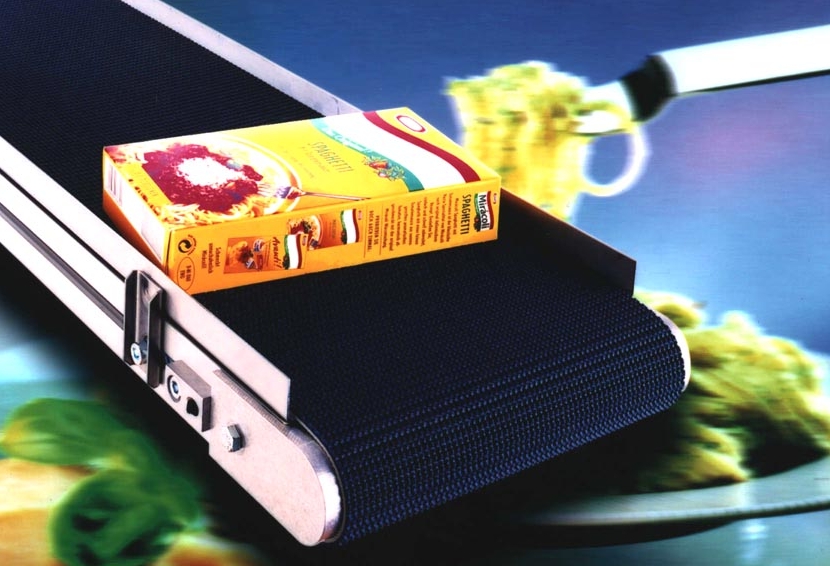

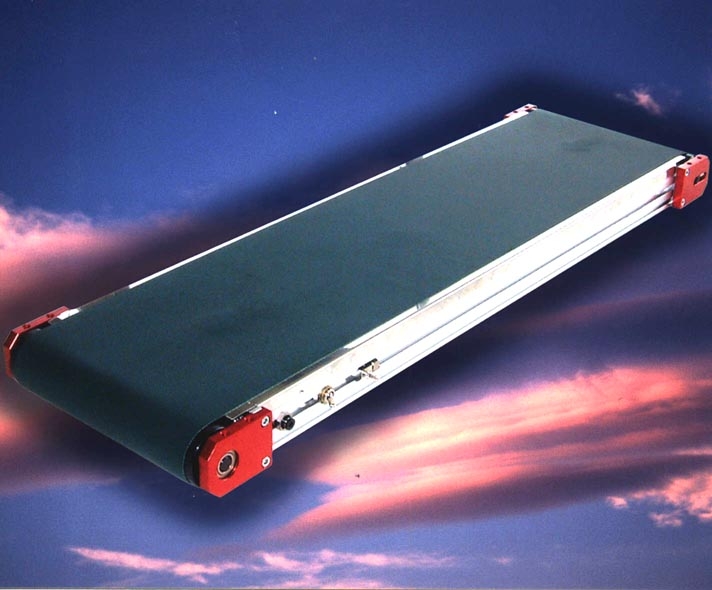

Belt Conveyors suit high-production applications.
MK Automation Engineering Inc.
Bloomfield, CT 06002
Jun 05, 2002 System GUF-P 2000 conveyors come with rubber, synthetic, or plastic belts, and are supported by stainless steel slider bed. Both flat and inclined models are available with head end drive for one-directional travel, or center drive and take-up arrangements for reversible operation. Standard constant speeds are 3.3 to 263 fpm, and standard variable speed ranges are 10 to 49 fpm and 49 to 164 fpm. Widths range from 2 to 32 in. and lengths range from 1 to 33 ft.

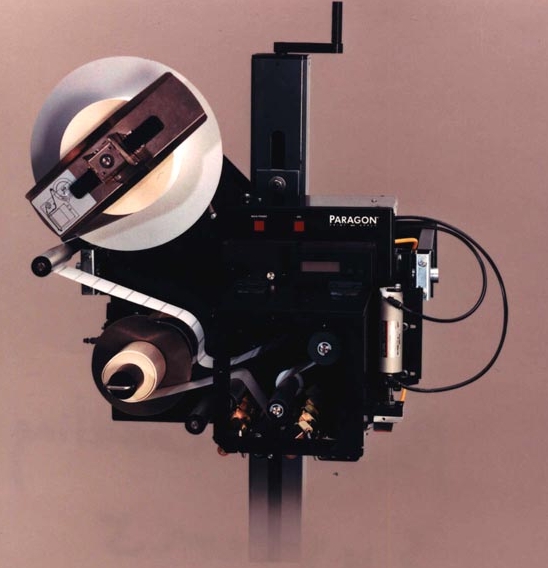

Label Applicator offers modular design.
Paragon Labeling Systems
White Bear Lake, MN 55110
Jun 05, 2002 Expressâ„˘ applies pre-printed labels to moving and stationary products, cartons, cases, and pallets. Open chassis allows variety of label applicator modules to be attached. Chassis also accepts various print engine modules for print-and-apply labeling. Modules include: standard tamp, dual-panel tamp, roll-on, wipe-on, corner wrap, and touchless vacuum-blow. Express operates at speeds up to 24 ips with ±1/32 in. label placement accuracy.

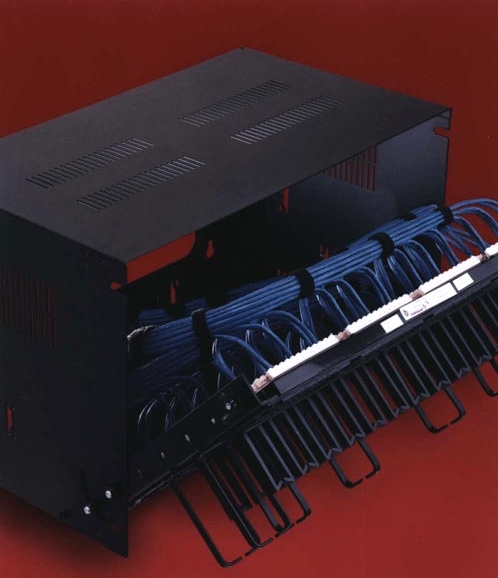

Racks and Cabinets accommodate network equipment.
Anoka, MN 55303 7504
Jun 05, 2002 EIA 310-D industry standard, 19 in. wall-mount racks and cabinets include 5 models in 18 different configurations. Hinged wall-mount panels, available in 1, 2, 4, 6, or 8 rack units accommodate partial network installations or remote nodes, while fixed wall-mount racks in 12, 20, 25, and 32 rack units are suitable for banks of small networking equipment. Racks and cabinets are constructed of 12 or 16 gauge steel and finished with black low gloss powder paint.
Indexing Conveyor places parts in position pneumatically.
ASG, Div. of Jergens, Inc.
Cleveland, OH 44110
Jun 04, 2002
PCF30 and PCF50 conveyors for light part assembly automate part transfer and load/unload procedures. They index their belts into position via air cylinder. Having no motor means they can be used in hazardous environments. Belt widths are available in 150, 200, 300, 400, and 500 mm sizes. Lengths are from 250 mm to 2000 mm. Typical applications include conveyors, slides, grippers, pick and place units, rotary actuators, and modular vacuum components.
Tool Holders suit Tornos multiple-spindle screw machines.
Schlitter Tool, Inc.
Warren, MI 48093 6036
Jun 04, 2002 Floating Tornos shave tool holders are manufactured from high-alloy steel for strength and rigidity. Tools compensate for machine spindle and indexing movements, and eliminate OD size and concentricity variations. They improve knurling and threading operations as well as surface finish. Design features include key that prevents chips from packing into keyway. One calibrated screw provides zero backlash taper adjustment. Holders have removable tool post.
Applicator Head suits high speed applications.
Fort Lauderdale, FL 33309-6314
Jun 04, 2002 Electromatic XVI Mid Size Applicator Head operates at pressures up to 2,000 psi, and typically fires above 1800 cycles per minute. Internal 24 Vdc or 120 Vdc solenoid coil eliminates need for additional valves, and may be operated by PLC. All wetted parts are stainless steel, with only one moving part and no seals or packings to wear. Applicator head is intended for use with cold adhesives, coatings, silicones, marking inks, water, and lubricants.

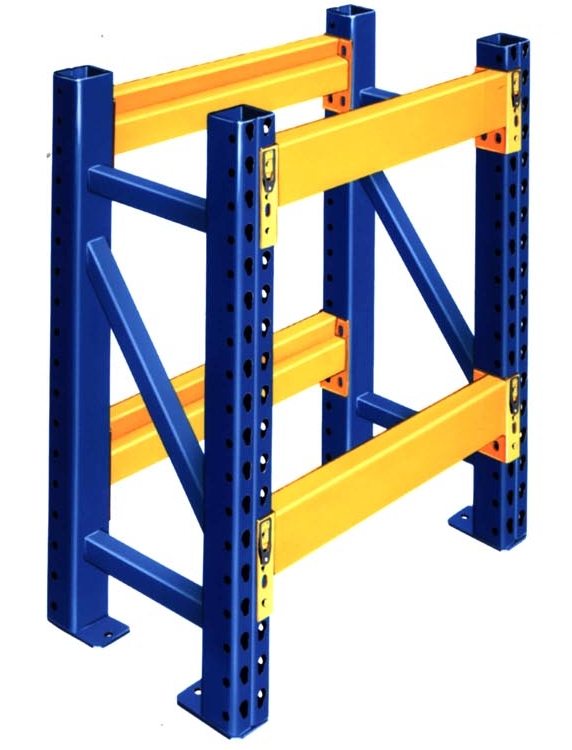

Storage Rack offers seamless, square-tube construction.
SpaceRak, A Div. of EWCO
Marysville, MI 48040
Jun 04, 2002 Raptor-Rak has 3 in. wide upright columns that withstand heavy-volume forklift traffic. Fully welded tubular beams connect via 3 or 4 stud end connectors, with spring-steel, replaceable safety locks. Frame posts come in 14 through 11 gauge, 50,000 psi continuously welded steel. Hot-rolled steel makes up horizontal and diagonal angle bracing, which is MIG-welded to posts. Raptor-Rak uprights provide beam height adjustability on 2 in. centers.

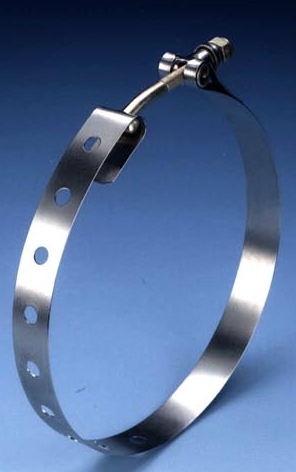

Stainless Steel Clamp adjusts over wide range.
Clampco Products, Inc
Wadsworth, OH 44281
Jun 04, 2002 Clamp provides large diametrical adjustment range, similar to worm gear clamps, but has higher strength of T-bolt clamp. This allows one product to be used in several different applications. It can be fastened using simple torque wrench. Clamp comes standard with 3/4 in. wide band and is available in both tempered and annealed stainless steel.
Hydraulic Vise clamps workpiece for machining center.
Pittsburgh, PA 15238
Jun 04, 2002 Arnold-Mat uses screw mechanism with integral self-contained hydraulic power booster to create up to 11,000 lb clamping pressure with little operator effort. Positive stop ensures that pressure is always the same, regardless of operator. Vises are available with optional power preset, or with hydro-pneumatic clamping mechanism that produces clamping pressure with shop air. Jaw widths of 3.54, 4.92, and 7.87 in. are available. All critical surfaces are precision ground.
Hand Cart maneuvers easily in tight settings.
Fresno, CA 93727
Jun 04, 2002 MouseCart uses gliding system to allow user to move quickly for order picking, fulfillment, and will-call applications in warehouses and distribution centers. Movement process puts focus on legs to propel cart into motion, reducing likelihood of lower back injuries. Cart is made from non-abrasive polyethylene plastic.
Soft Tool Box eliminates sharp edges.
Tacoma, WA 98498
Jun 04, 2002 Made with nylons and webbing, ToolToteâ„˘ has comfortable padded handles, large opening for easy access, rigid bottom, and 14 external pockets of varying sizes to accommodate all types of tools. It can be zipped closed to keep tools in. Optional shoulder strap frees hands for climbing ladders.
Hydraulic Clamps hold thin-walled workpieces.
Carr Lane Roemheld Mfg. Co.
Ellisville, MO 63021
Jun 04, 2002
Built-in locking pistons in threaded-body push clamps, block cylinders, and edge clamps allow floating clamping of workpieces with minimum deformation. Pistons provide light clamping force, but high support force, ensuring parts do not move when being machined. Plungers in cylinders have thin-walled section that expands under high pressure against inside of housing to lock plunger in place. Clamps operate at 7500 psi and provide clamping and supporting in one element.

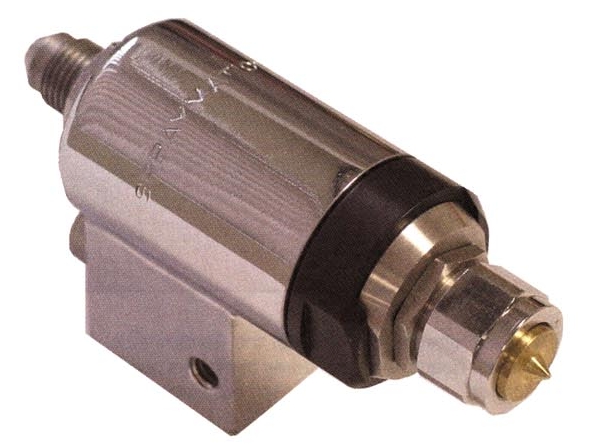

Adhesive Dispense Valve makes precise deposits.
East Providence, RI 02914-1342
Jun 04, 2002 Compact MicroDotâ„˘ 741MD-SS needle valve makes microdeposits as small as 0.007 in. dia. Internal needle seats in hub of dispensing tip reduces amount of dead fluid between needle seat and substrate. Pneumatically operated valve applies variety of assembly fluids including UV-cure adhesives, solvents, lubricants, and epoxies. Calibration knob allows user to restore valve stroke setting and tip-to-substrate distance when new dispensing tip is installed.
Dispense Systems have low-level sensors.
Henkel Loctite Corporation
Rocky Hill, CT 06067
Jun 04, 2002
PN 97020 and PN 97017 have sensors that alert users to diminishing levels of adhesive in reservoir. Both can apply cyanoacrylate, anaerobic, or acrylic adhesives packaged in 200 g tubes, 250 ml, 1 lb, 1 liter, and 2 kg bottles. They interface with hand-held applicators and automatic dispense valves. PN 97020 operates at 0 to 15 psi for dispensing low to medium viscosity fluids; PN 97017 runs at 0 to 100 psi for high viscosity fluids.
Coil Grab includes built-in crane scale.
Cochranton, PA 16314
May 31, 2002 Motorized Rotating Coil Grab is equipped with continuous belt edge protector modules, dual plunger safety saddle trios, and front and rear rollers. Crane scale can be read directly on lifting device or remotely at base station. Weight data can be interfaced to other computer data as desired. Applications include steel warehousing facilities, steel mills, aluminum mills, stamping plants, and other heavy industrial manufacturing facilities.
Scissor Lifts handle rough terrain.
JLG Industries, Inc.
McConnellsburg, PA 17233 9533
May 31, 2002 Model 3394RT has 33-ft. platform height and 2,250-lb platform capacity. Model 4394RT has 43-ft. platform height and 1,500-lb platform capacity. Both have load management system that prevents engine from bogging down in rough terrain conditions, dual pump hydraulic drive, and 3-speed selectable drive controls. Standard oscillating axle helps maintain traction and 15-in. wide tires increase flotation for optimum site travel. Both handle 45% grades.
Toolholders use concentricity to hold tools.
Morrisville, NC 27560
May 31, 2002 SK, BT, and HSK toolholders are manufactured with hydraulic chucks in extended, and slim extended lengths from 63.5 to 200 mm. Guaranteed run-out of 0.0012 in. is maintained, and clamping forces are rated to 23,000 lbs. Shank-holding system with internal piston forces sleeve around cutting tool shank. Clamping area remains almost dry and high torque transmission is accomplished via metal to metal contact at all spindle speeds.
Tray Carts suit electronic material handling applications.
Eagle MHC, An Eagle Group Co.
Clayton, DE 19938
May 31, 2002 Electronic Tray Carts feature open-wire construction in choice of side- or end-loading models. They are 69 in. high and can be made conductive by adding optional drag chain or ESD cable. Vibration-dampening models have polyurethane swivel casters with expander stems that reduce vibration during transfer. They are ESD-safe via aluminum split sleeves and grounding device. Full-size models are 62 3/8 in. high, while half-size models are 49 3/8 in. high.
Gantry Cranes lift and move bulky items.
Vestil Manufacturing Co.
Angola, IN 46703-0507
May 31, 2002 Aluminum and Steel Gantry Cranes are available in capacities from 200 to 6,000 lbs. FHA Series features all-aluminum construction for corrosion resistance. Lightweight I-beam allows height adjustment without hoist or fork truck. Adjustable solid steel gantry cranes have 8 in. diameter, double-locking swivel phenolic casters with roller bearings. They are designed for portability with or without load.
