Airflow Systems, Inc.    Dallas, TX 75243 8306
Jul 02, 2002 DT-3000 version 2 has work surface area of 3 1/2 x 5 ft. It is completely self-contained with motor-blower, cartridge filters, and self-cleaning system for collected dust. Ergonomic design allows operator to get close to table, while 3 hp blower provides quiet operation. Options include back and side shields with integrated work light, fiberglass or PVC-coated grates, and HEPA after filters.

United Receptacle, Inc.    Pottsville, PA 17901-0870
Jul 02, 2002 Signature Series(TM) trash ony and ash/trash receptacles are made from durable Marblet(TM), an alternative to Mediterranean marble. Square models have sleek, modern appearance; round designs have decorative Grecian style top and base; half-round models are suitable for high traffic areas where space is limited. Collection is available in 4 colors: black, green, sand, and gray, with brass or aluminum accents.

Snap-on Industrial    Kenosha, WI 53141 1410
Jul 02, 2002 KRL1004 is 108 7/16 in. x 29 1/32 in. x 45 7/8 in. (w x d x h) with 12,000 lb capacity. It has 28 drawers in variety of widths and heights. Stainless steel work surface offers more than 1,500 sq in. of workspace. Eight spring-loaded, heavy-duty casters provide mobility and lock when unit is stationary. End casters are equipped with swivel locks, which allow unit to pivot into optimal working positions.

Smith, T.M., Tool International Corp.    Mount Clemens, MI 48043 1065
Jul 01, 2002 Nylon sleeve in tool holder locking fixture protects ground steel taper shanks from being damaged when tools are mounted or removed. Locking fixtures can also be used to eliminate on-spindle tool changes that can cause damage to high-speed spindles. Fixtures are available in 30, 40, 45, and 50 CAT taper sizes, as well as all HSK A and C tapers. One set of sleeves is included with each fixture.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965
Jul 01, 2002 Servo-Floâ„¢ 302 dispenses programmable volumetric shots or beads of 1- or 2-component epoxy, silicone, urethane, or other materials for potting, encapsulating, gasketing, molding, casting, doming, or adhesive bonding. Servomotor drive has high-resolution absolute encoder feedback for accuracy. System can dispense at selectable pre-set or variable speed. It has touchscreen operator interface, positive displacement pump, and no-drip dispense valve.

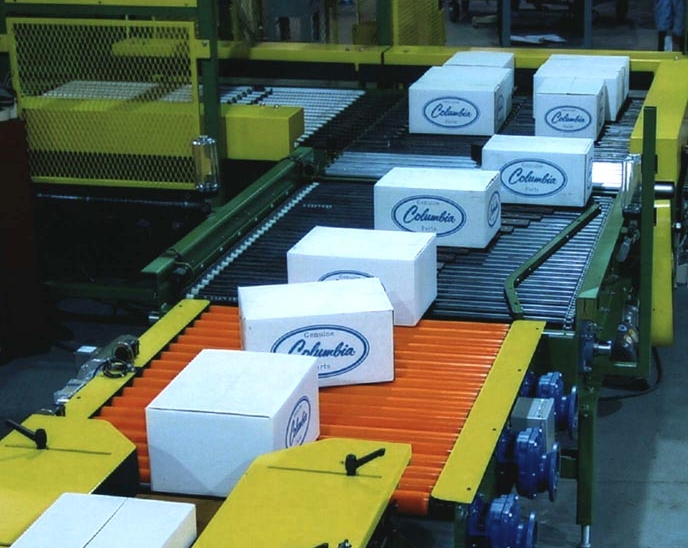

Columbia Machine Inc.    Vancouver, WA 98661
Jul 01, 2002 Turning infeed device for floor level case palletizers reduces product damage by eliminating case-turning pins and shoes. Split-roller section is controlled by 4 servo or electric drives, and can turn cases 90°, 180°, or 270° at high speeds. Infeed device can be combined with lane diverter and centering capabilities, making it suitable for palletizing case styles that require special handling, including bliss and display cases.

Morgan Marshall Industries, Inc.    Chicago Heights, IL 60411 3798
Jul 01, 2002 Stack Rack minimizes amount of floor space needed for high-volume storage by utilizing vertical space. It can be stacked up to 5 layers high with capacity up to 4,000 lbs. Stack Rack allows for high-volume movement of materials, is easily assembled, and comes in variety of sizes.

Genie, a Terex Company    Redmond, WA 98052

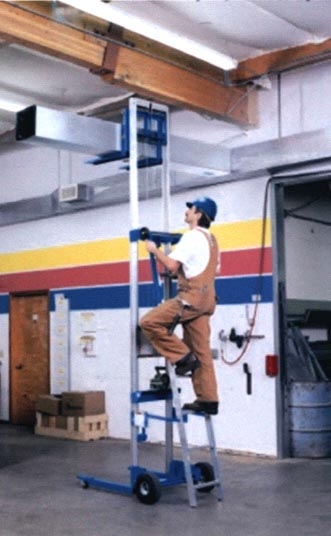

Jul 01, 2002 Genie Lift(TM) is manually operated and available in 3 base models. Lift capacity is 13 ft 9½ in. Compact design of standard model allows lift and maneuverability in congested work areas. Straddle base model, with adjustable base legs, straddles load or fixed objects up to 36 in. wide. Short 9 in. front legs of counterweight base model let user get close to load to access countertops or shelves above fixed objects. Masts are 4, 8, 10, or 12 ft.

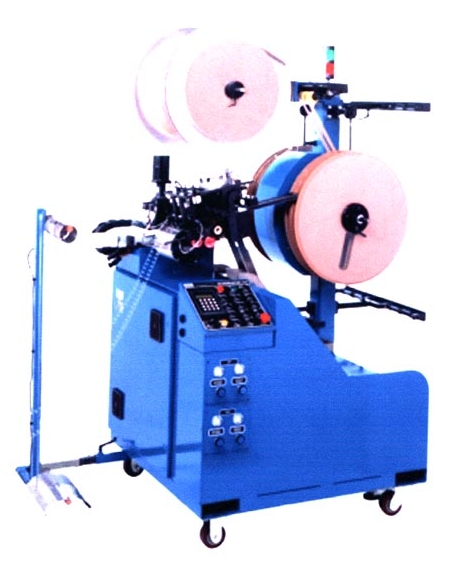

Automated Control Systems, Inc. (ACS)    New Haven, IN 46774 1362
Jun 28, 2002 Wyndmaster 324 incorporates 4-reel operation with side-by-side reel design, which allows machine to operate with both single strip and dual strip processes. It can function in both overwind and underwind mode. Machine can be programmed to operate with varying sizes of stamped parts, and up to 100 programs can be saved and protected with password. Motorized tangential feeder uses horizontal and rotational movement to follow reel diameter as it fills with product.

PSC Flo-Turn, Inc.    Union, NJ 07083

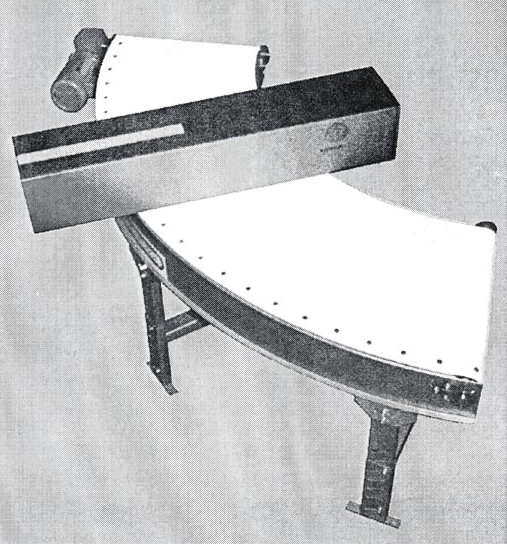

Jun 27, 2002 Flatop series conveyor belt employs series of lagged end pulleys to drive belt instead of chain. Not having chain cover in the way allows it to convey oversize products as long as their center of gravity stays on belt. Belt is available in widths up to 48 in. which, with 90 degree turn, can move products at speeds of up to 400 fpm. Options include stainless steel construction and bed relief rolls for higher load capacity.

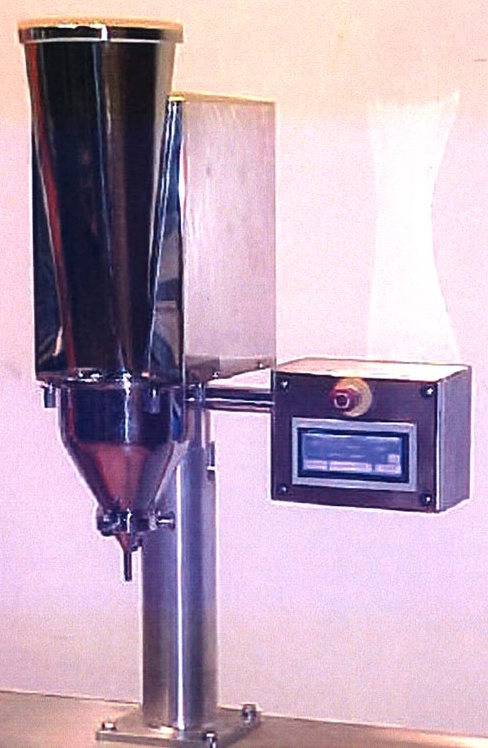

Per-Fil Industries, Inc.    Riverside, NJ 08075 0009
Jun 26, 2002 nano-Filler dispenses 25 to 1000 mg of powder and granular products into rigid and flexible containers or capsules. It fills volumetrically or can be integrated with balance for fill-by-weight operation. Designed for applications in pharmaceutical, cosmetic, and chemical industries, nano-Filler can be integrated with in-line or rotary index turret equipment. Tooling for specific products and container fill openings is included.

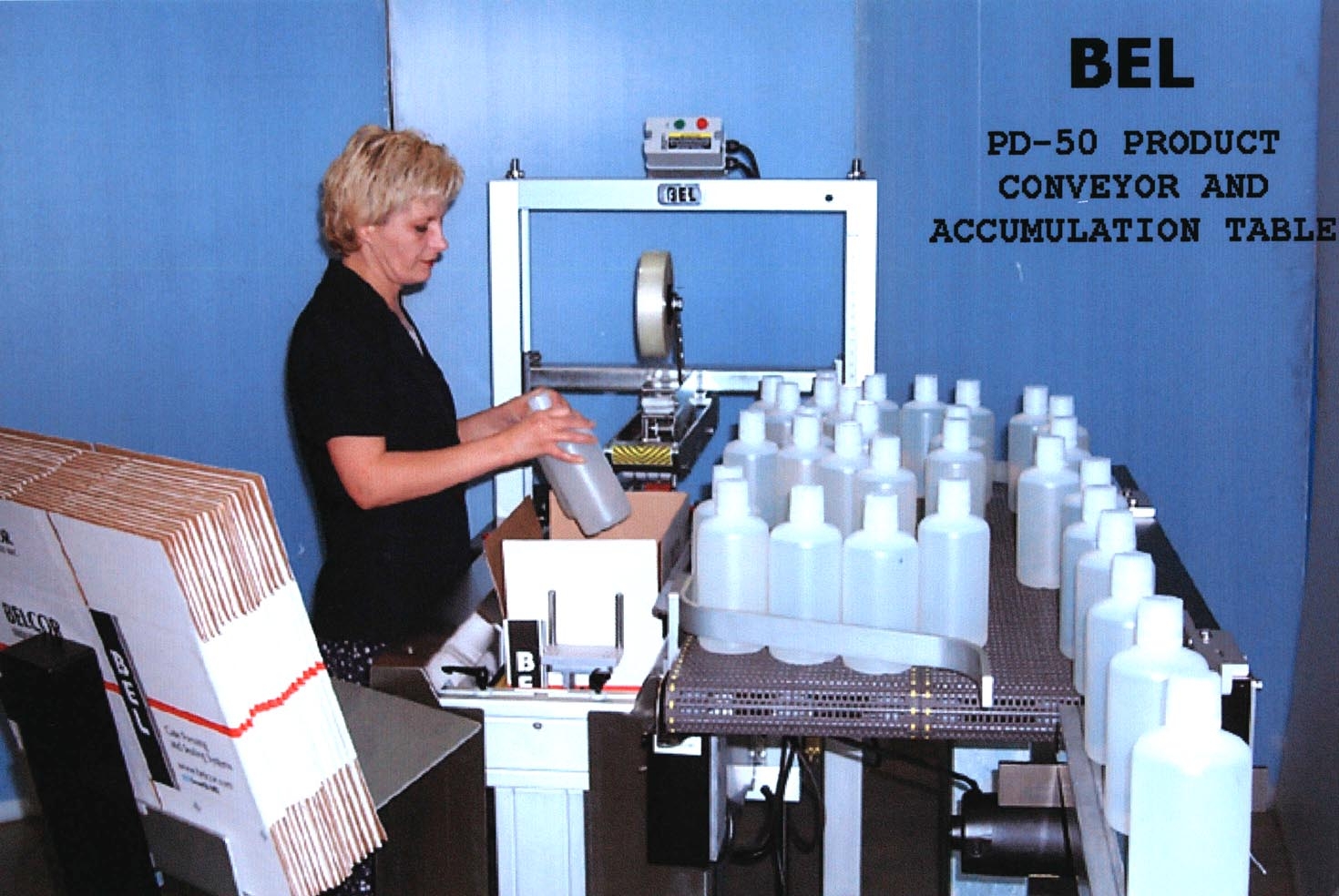

Belcor Industries, Inc.    Richmond, BC V6V1K9  Canada
Jun 26, 2002 Model PD50 product conveyor and accumulation table allows operator to control quantity of product accumulated and speed of product conveying. With variable-speed motor and speed differential belts, PD50 continuously conveys products to operator, and its conveyor deck allows for consistent accumulation. Constructed with heavy-duty, corrosion-resistant materials, features include pedestal style base, angle-adjustable table-top, and adjustable height.

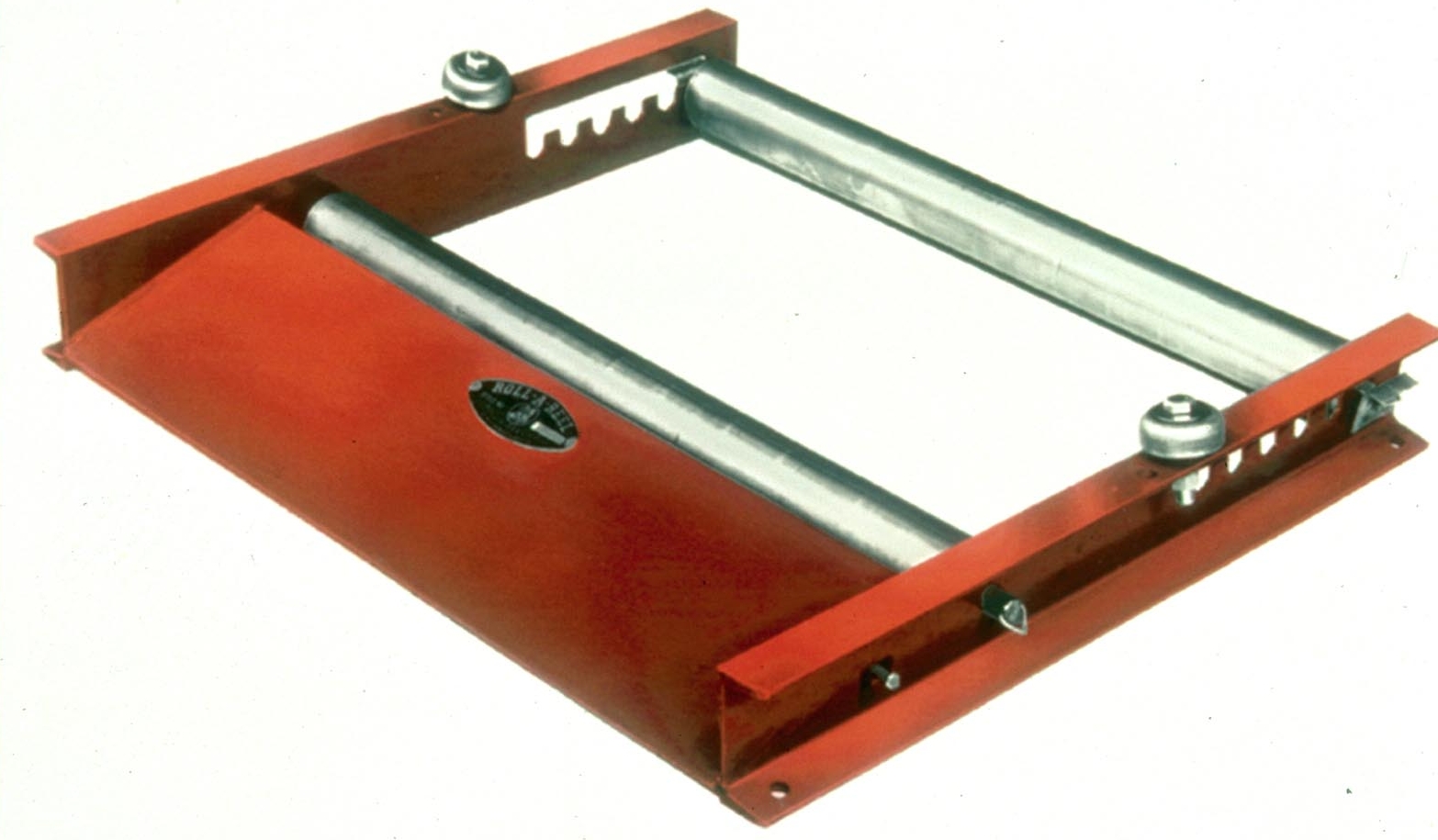

Roll-A-Reel Co.    Cincinnati, OH 45215-3810
Jun 26, 2002 Style A Roll-A-Reel provides pay-out and take-up of cable, wire, and rope as stored on reels. Unit accommodates reels up to 28 in. wide and is load rated per CEMA standards at 1500 lbs. Structural steel platform measures 31-1/2 in. wide x 28 in. deep. It is equipped with permanently mounted heavy-duty ball bearing roller assembly in front and six-position, adjustable roller assembly in rear. Front roller has positive spring-loaded lock.

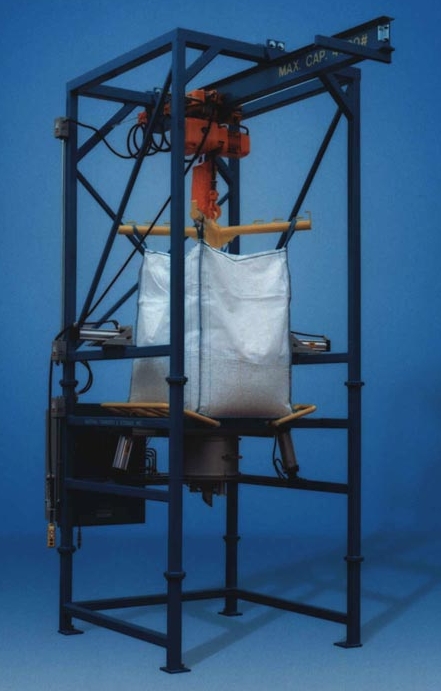

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Jun 26, 2002 Modular MATERIAL MASTERâ„¢ bag discharger offers automatically sequenced Flo-Masterâ„¢ bag massager and Power-Floâ„¢ bag impactor to promote material flow. Flo-Lockâ„¢ discharge spout closure system provides complete product flow shut off. For dust-tight operation, Sure-Sealâ„¢ spout clamp system pneumatically seals bag discharge spout to discharge spool. Sure-Seal spout clamp system is enclosed in a dust-tight Seal-Masterâ„¢ spout access chamber with gull wing doors.

Storch Magnetics, Div. Storch Products Co., Inc.    Livonia, MI 48153 1356
Jun 26, 2002 Non-jamming, beltless slide conveyors have non-moving 304 stainless steel bed. Magnet assemblies under bed move small and large scrap, awkwardly shaped parts and scrap, and finished parts such as nuts and bolts. Sealed oil bath continuously lubricates all moving parts and drive train components for minimal maintenance and longer service. All moving parts are completely enclosed.

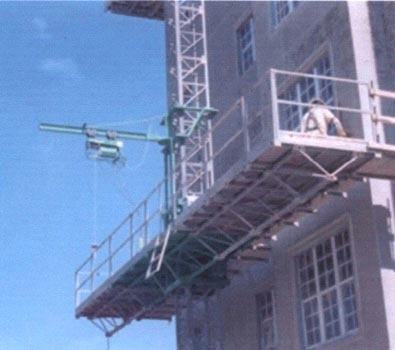

Hi-Tech Hoist Corp.    Melbourne, FL 32904
Jun 25, 2002 Portable electric PR-800-SS hoist works at 110 fpm. It lifts loads weighing up to 800 lb to heights of 350 ft.

Caterpillar, Inc.    Peoria, IL 61629

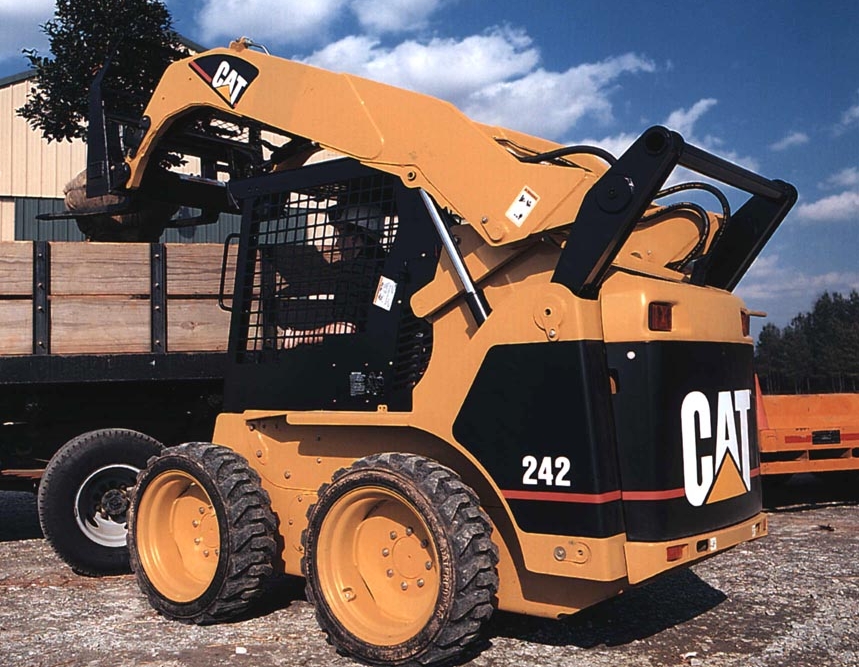

Jun 25, 2002 Caterpillar® smaller frame, vertical-lift series provides lift height of more than 9 ft 11 in. and reach of 30 in. at bucket angle of 45 degrees. Model 232 is rated for 1,750 lb capacity, and Model 242 has 1,900 lb capacity. Wheelbase of 42.9 in. is suitable for grading. Features include Cat 3024C (48 hp) or 3034 (54 hp) diesel engine, anti-stall for digging applications, low-effort controls, and suspension seat.

Caterpillar, Inc.    Peoria, IL 61629

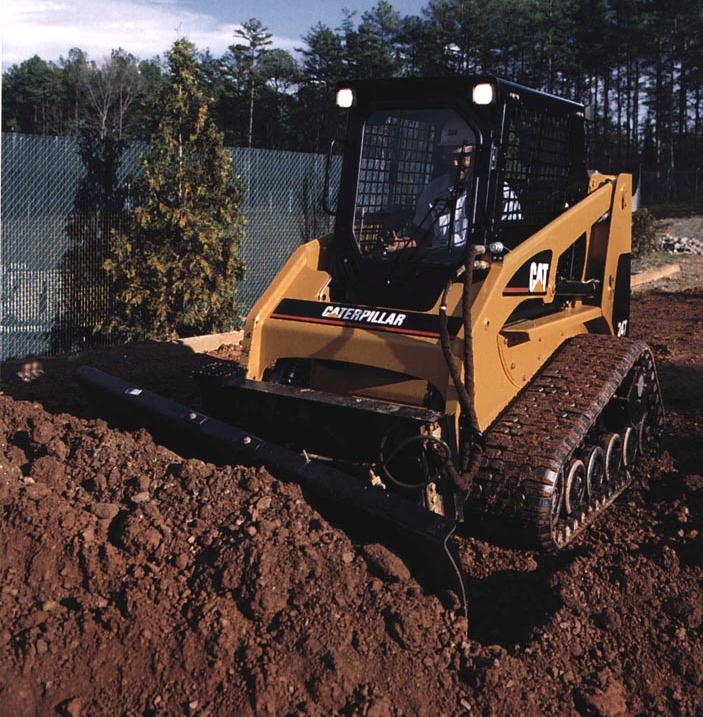

Jun 25, 2002 Multi Terrain Loader series includes models 247 and 257 rubber-tracked machines. Series offers suspended undercarriage that allows operation over various terrain conditions. Series works productively on sensitive surfaces without causing damage. Model 247 has operating capacity of 1,354 lbs, operating weight of 6,665 lbs, and ground pressure of 3.8 psi. Model 257 has 1,614 lb operating capacity, 7,628 lb operating weight, and 4.3 psi ground pressure.

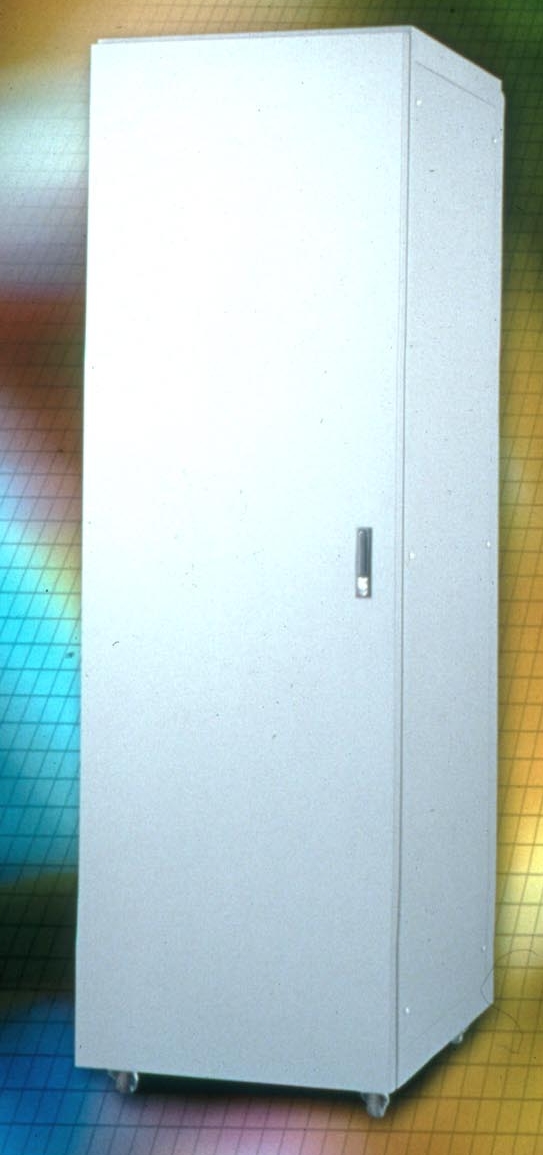

Bud Industries, Inc.    Willoughby, OH 44094
Jun 25, 2002 Cabinets protect electronic equipment from dirt, dust, and dampness. Equipped with oil resistant gaskets, they are offered in two different sizes: 19.00 x 70.00 x 29.25 in. (W x H x D) and 19.00 x 78.75 x 29.25 in. (W x H x D). Both rack sizes come with frames, locking front and rear doors, externally removable side panels, and four adjustable panel mounting rails. Gasketed panels cover cable access ports in cabinets' tops and bases.

NCP Coatings Inc. (Niles Chemical Paint Co.)    Niles, MI 49120
Jun 25, 2002 DynaMatch Tint Mix System allows finishers to meet application, VOC, and color requirements for small or large production orders without stocking expansive inventories. Using one set of 16 high-pigment loading tint pastes, system allows for accurate color matching via various bases, primers, catalysts, reducers, and additives. VOC base ratings range from 2.0 lb/gal to 5.5 lb/gal. Common bases can be blended to create product close to necessary VOC level.
