Chick Workholding Solutions, Inc.    Warrendale, PA 15086 7537
Aug 12, 2002 System 5 is offered in 6 sizes ranging from 2 to 6 in. VMC systems are available in either high strength aluminum (Qwik-Lok) or cast iron (BiLok). HMC systems (Multi-Lok) are offered in configurations consisting of 4-sides up to 8-sides, double stacked. Each system includes corrosion resistant, stainless steel slide assembly and high strength aluminum snap on/off machinable jaws that are interchangeable between VMC or HMC systems.

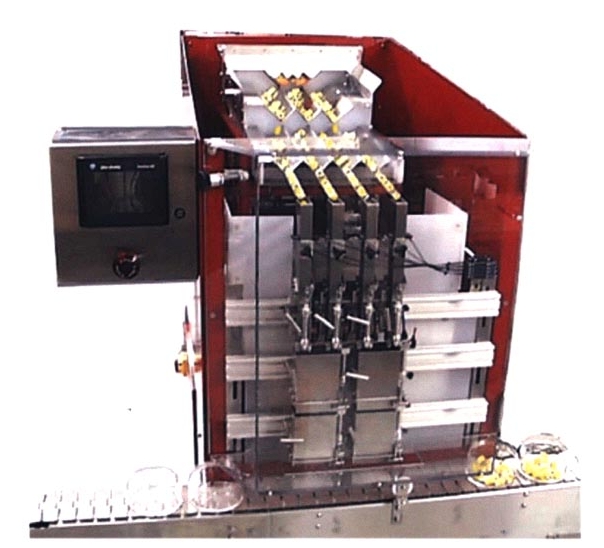

Palace Packaging Machines, Inc.    Downingtown, PA 19335
Aug 12, 2002 Model OT handles loose bulk quantities of filled pouches of product, both counting and inserting pouches into containers at same time. It accommodates filled pouches in sizes from 1/4 x 1/2 in. to 4 x 6 in. Unit can be customized to feed from 1 to 20 lanes, with per lane feed rate up to 150/min. Model OT can be attached to cartoners, baggers, bucket conveyors, and tray thermoformers.

Mathews Conveyor, An FKI Logistex Company    Danville, KY 40423-0928
Aug 12, 2002 Suitable for high-volume distribution centers and warehouses, cross-belt sorter operates at speeds up to 413 ft/min. It handles items that require horizontal discharge and items that must maintain precise position and orientation throughout sorting process. It supports articles up to 66 lbs., and can bridge items across two or three trays to accommodate long/unusually sized items. Induction unit dynamically measures all items, which can be volume-scanned, weighed, and identified.

Handling Specialty, Inc.    Niagara Falls, NY 14304 0279
Aug 09, 2002 Model MLT30-75, for metal-strip processing, is 132 in. long and 78 in. wide, with 30 in. of vertical travel. Welded structures accumulate cut-to-length sheets of steel into pac from chain conveyors which pass over lift. Because steel is dropped from up to 10 in. above, table withstands both impact and offset loading. Once pac is fully loaded, table lowers, allowing conveyor to suspend and power it off table.

Reelcraft Industries, Inc.    Columbia City, IN 46725
Aug 09, 2002 ReelTek consists of base and arm made from industrial-grade steel, a spool constructed of lightweight, engineered composite components, and an industrial-grade swivel. Spool contains drive spring that protects it from environment. Steel parts are individually powder-coated for corrosion resistance. Latch mechanism is mounted on arm, rather than base, making adjustments easy and assuring hose will retract onto reel when fully extended.

Span Tech    Glasgow, KY 42142
Aug 09, 2002 Whisper-Traxâ„¢ ST-PLN Straight Closed Top Conveyor is available in 12 belt widths from 7.31 to 46.28 in. and has speed range of 5 to 75 fpm, with optional speed ranges up to 400 fpm. Modular unit comes in standard lengths from 2 to 104 ft, and can handle 2.5 times load capacity of belt conveyor. ST-PLN is suitable for transporting packaged items, assembly work, and applications where users have traditionally used a belt conveyor.

Advance Lifts, Inc.    St. Charles, IL 60174

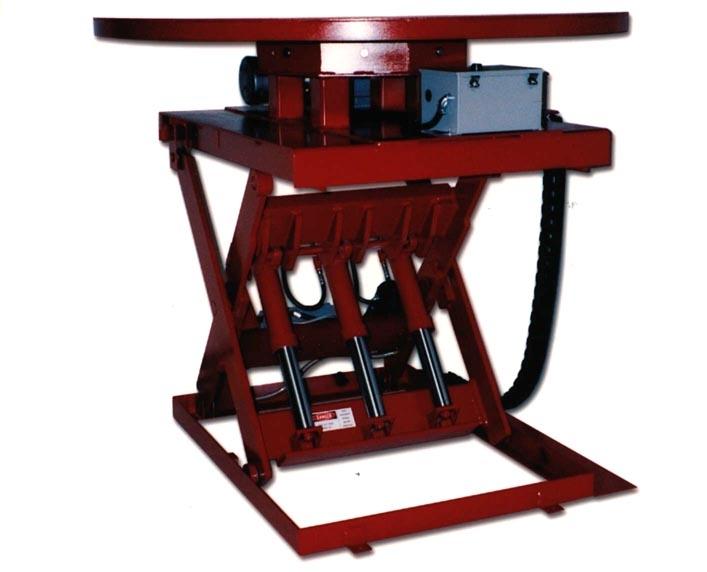

Aug 09, 2002 Available in 18 models, powered lift and turn tables eliminate manual lifting, bending, and reaching during pallet buildup and breakdown. Turntable platform sizes are available from 24 x 36 to 84 x 84 in. Capacities are from 2,000 to 10,000 lb, with vertical travels from 24 to 60 in. Lift tables are operated by 2 or 5 hp electrohydraulic power unit. Turntables use 1/3 to 3/4 hp soft start and soft stop dc motor with adjustable speeds from 0-7.5 rpm.

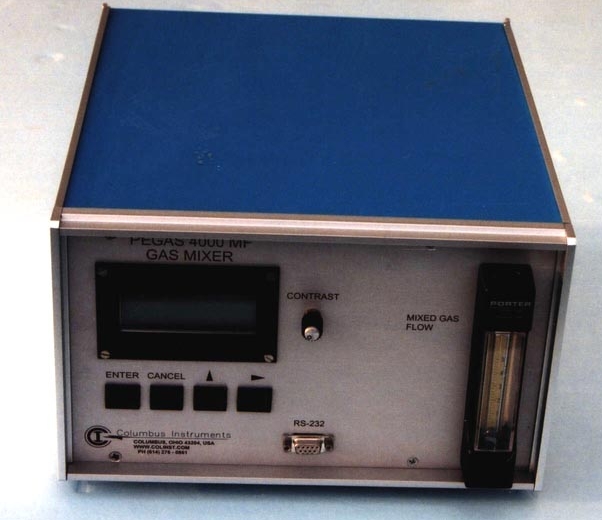

Columbus Instruments    Columbus, OH 43204 2121
Aug 09, 2002 Pegas 4000MF operates under control of internal microprocessor and utilizes mass flow controllers, which make gas mixture independent of temperature or gas pressure. Gas flow ranges from 100 ml to 20 L/min. Flow controllers' accuracy is 1% with repeatability of 0.2% full scale and require input gas pressures at 30 psi. Front panel gas flow meter (rotameter) confirms level of output gas mixture flow. Mixer can operate under control of PC communicating via RS-232 COM port.

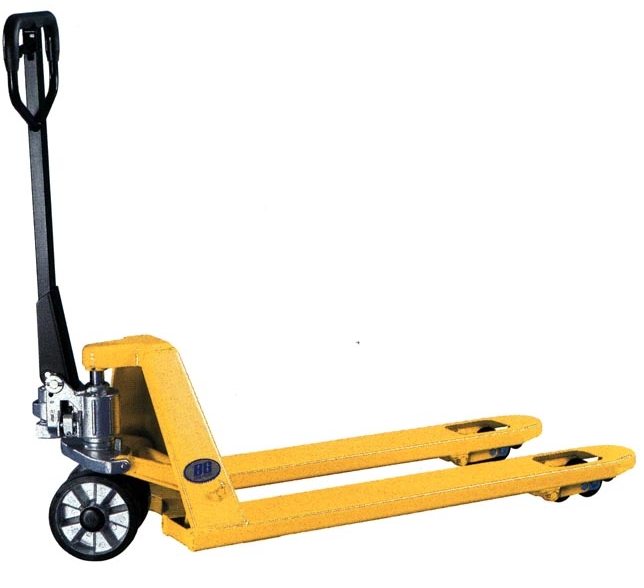

Blue Giant Equipment Corp.    Brampton, ON L6W 3K2  Canada
Aug 09, 2002 BPT-50 Hand Pallet Truck features 8.5 in. raised fork height that is achieved with 10 full pump strokes. Heavy-duty, galvanized cast pump housing is protected from collision hazards, is corrosion resistant, and provides protection from dirt and water contamination. Three-position handle has no pinch points and features insulated foam grip. Reinforced forks are rounded to avoid damage to pallets and include lead in rollers for easy pallet entry and exit.

Sumner Mfg. Co.    Houston, TX 77088 4036
Aug 09, 2002 Lightweight tri-stand is constructed of heavy wall 1 in. square tubing and is available with chain vise stand. Vise is made of cast iron with drop forged jaws. Legs fold up with no pinch points, and large rubber pads are bolted to each leg for solid contact on all flooring. Unit is suitable for threading, soldering, bending, cutting, or gripping small diameter piping or tubing.

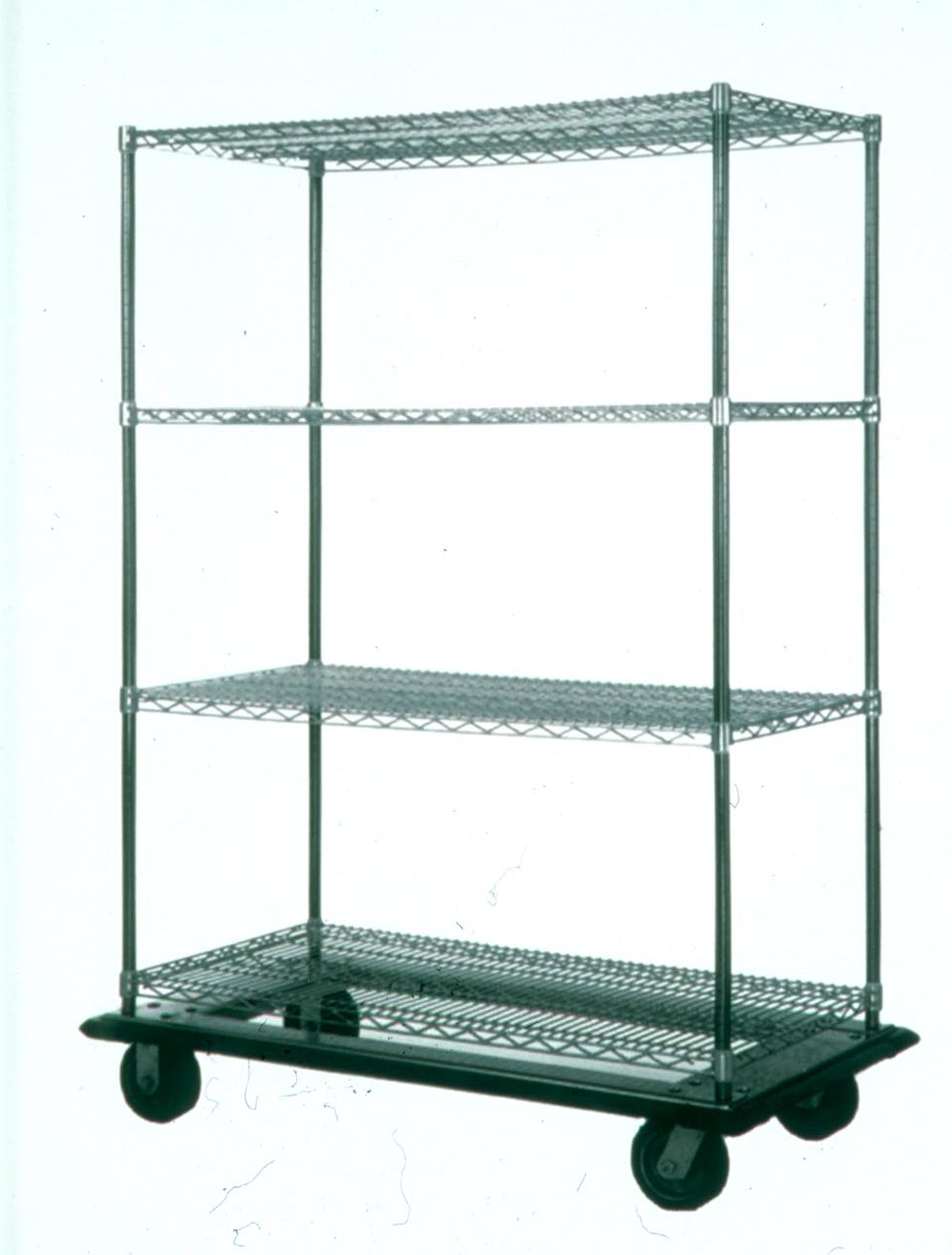

Eagle Food Service, An Eagle Group Co.    Clayton, DE 19938
Aug 08, 2002 Dolly Truck consists of 4 wire shelves and 4 chrome posts, mounted on aluminum truck dolly with protective wraparound bumper. Open-wire shelf construction promotes high visibility and air circulation to reduce dust and contamination build-up. QuadTruss® shelf design provides retaining ledge for storge stability. Trucks are 69 in. high with shelf widths of 18, 21, or 24 in. and shelf lengths in 36, 48, or 60 in. Poly casters are offered in swivel or swivel/brake styles.

Bud Industries, Inc.    Willoughby, OH 44094

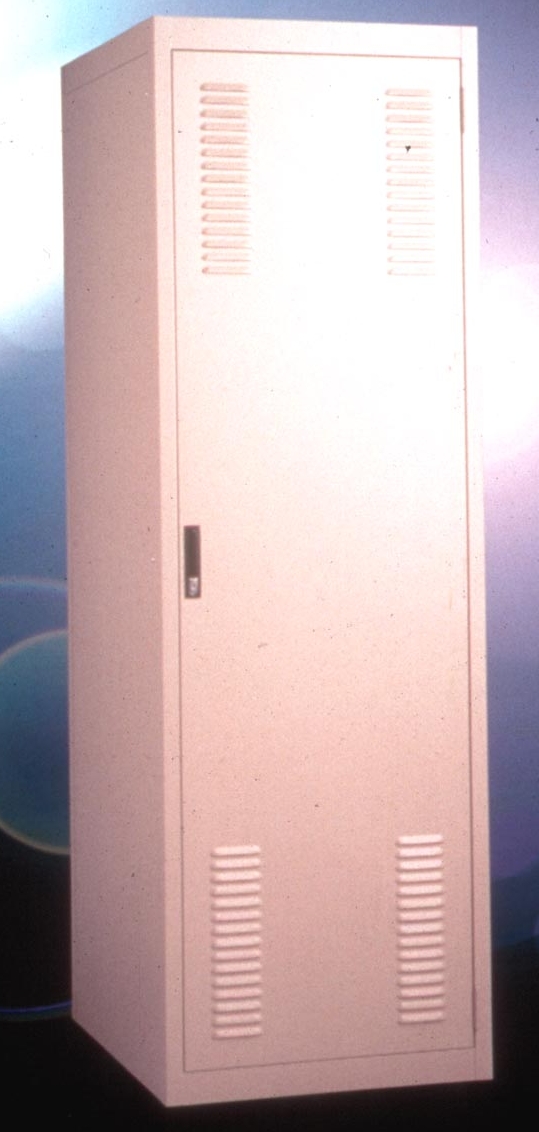

Aug 08, 2002 Model DC-8010 rack has panel mounting rail design that allows users to choose desired panel width. Four panel mounting rails come with cabinet. All-welded steel frame cabinets come in panel height of 78.75 in. with overall height of 84 in. Cabinet width is 27 in. and overall depth is 30.75 in. Neutral sand texture cabinet weighs 256 lbs and has 1,200 lb equipment load capacity. Cooling is accomplished via louvered front and rear doors and ventilated top.

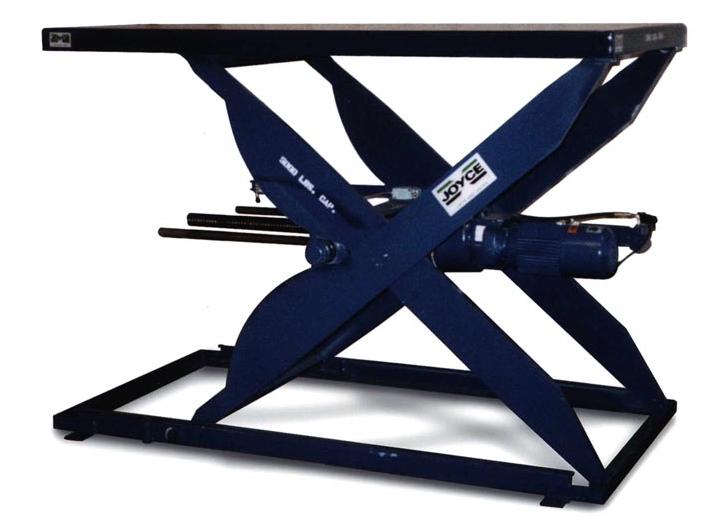

Joyce/Dayton Corp.    Dayton, OH 45401-1630
Aug 08, 2002 Skillet Scissor Lift can be programmed for various speeds and precise positioning for smooth operation throughout its entire length of travel. Ball screw driven scissor lift offers accurate and repeatable positioning and is suited for lifting material with high duty cycles. Constant speed scissor lift is rated for capacities from 1,000 to 8,000 lbs with programmable duty cycles. Lift also has built-in fall protection.

Sumner Mfg. Co.    Houston, TX 77088 4036
Aug 08, 2002 Series 2100 can lift heavy loads up to heights of 12, 18 or 24 ft. One-piece design allows for quick fold up of legs and compact storage, without loose pins or need of tools. Load cable feeds from inside masts to winch, and away from operator for safety. Lift includes winch for ease of operation and minimum maintenance. Built-in fork extension option available.

Genie, a Terex Company    Redmond, WA 98052
Aug 08, 2002 Z-80/60 boom has working height up to 86 ft, outreach up to 60 ft, and 29 ft up-and-over clearance. It allows operator to ascend and descend from ground to and from 80 ft with single function of primary boom. Suitable for rough or varied terrain, it has drive option combinations of 2WD or 4WD and 2 wheel or 4 wheel steer, providing ability to handle up 30% gradeability on 2WD models to 50% gradeability on 4WD. Maximum drive speed is 3 mph.

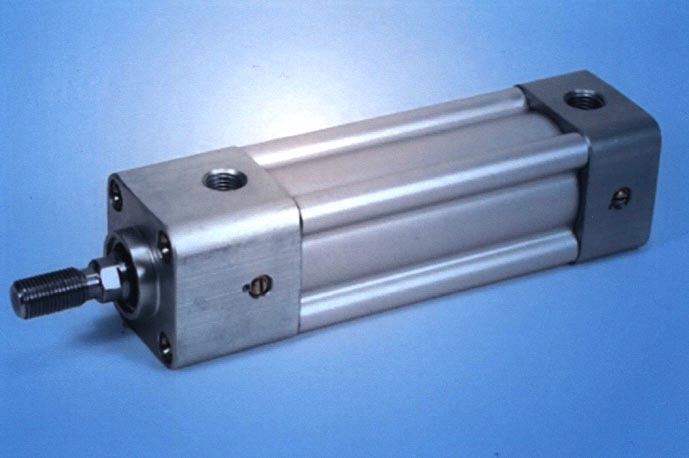

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
Aug 07, 2002 TaskMaster® pneumatic cylinder line offers 2 models: TM-8 series offers exact replacement for original line, while TM-1 series matches NFPA rod thread and port dimensions. Available in 1½ through 6 in. bore sizes, they have standard magnetic pistons for position sensing, oversize rod options, and port and cushion options. Control options include integral electronic position sensing, proximity switches, and integral valve mounting.

Presto Lifts    Pawtucket, RI 02861 0250
Aug 07, 2002 AX series pneumatic powered scissors lift table is available with 1,000 to 8,000 lb capacity, and can raise table from low height of 8 in. up to 32 in. Air bag delivers same speed and control as other power sources. Work area has no leaking oil, and air bag resists punctures and damage from chemicals. Bag requires 80 psi air at 15 cfm. Standard pedestal mounted or optional foot or hand control operates unit.

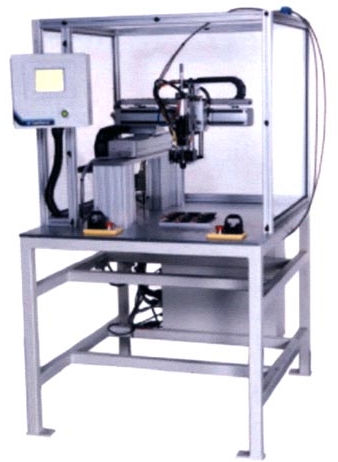

Liquid Control Corp.    North Canton, OH 44720
Aug 07, 2002 P-200 Series point-to-point motion platform provides 20 x 20 in. envelope for potting, sealing, bonding, doming, and other dispensing applications. X-Y actuators use ball screws driven by servo motors for ±0.003 in. repeatability. It has Windows based programming software and intuitive operator interface. Five programs can be stored in memory and recalled from front panel display.

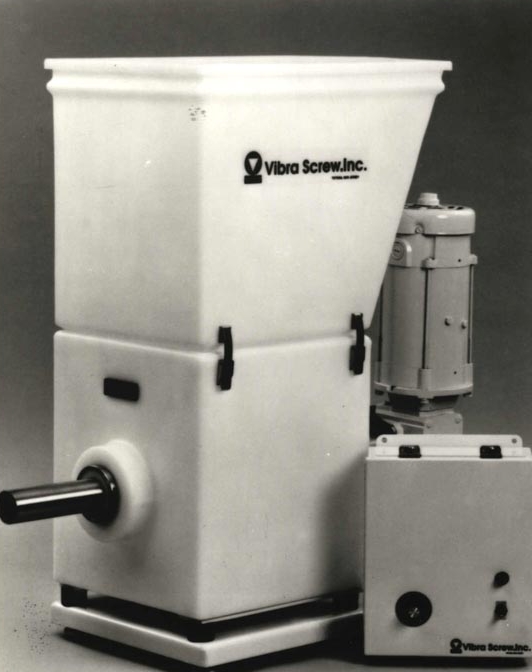

Vibra Screw, Inc.    Totowa, NJ 07511
Aug 06, 2002 Plastic-bodied AccuFeed feeder is designed to minimize loss of accuracy through incorporation of controlled vibration during refill cycle. Made of food grade polyethylene, it adapts to variety of storage/discharge systems, and has sanitary design that allows easy cleaning between material changes. Feeger is available with 1-6 in. screw dia, capacities from 2.8 to 600 cfh, and has membrane keyboard and easy-to-read display.

FKI Logistex North America    St. Louis, MO 63132 3207
Aug 06, 2002 Low-speed Model 780 in-feed palletizer utilizes right angle pattern formation allowing it to achieve virtually any case pattern. Close-center rollers and bi-parting plate apron give palletizer ability to handle variety of case and pallet sizes at rates up to 40 cases per minute. Diagnostic system displays man-readable messages that enable quick diagnosis of any potential problem.
