Hardnox LLC    Santa Barbara, CA 93105
Dec 11, 2002 Door Jakâ„¢ 50 allows one worker to transport and install heavy doors of all types. It weighs 60 lb and folds for easy transport. Unit is rated to handle steel, fire-rated, solid-core, and commercial-grade doors up to 250 lb. Door Jak 100 commercial door cart offers over capacity 750 lb and is used in hospitals, universities, airports, hotels, and large facilities.

Ideal Mfg. & Sales Corp.    Madison, WI 53704

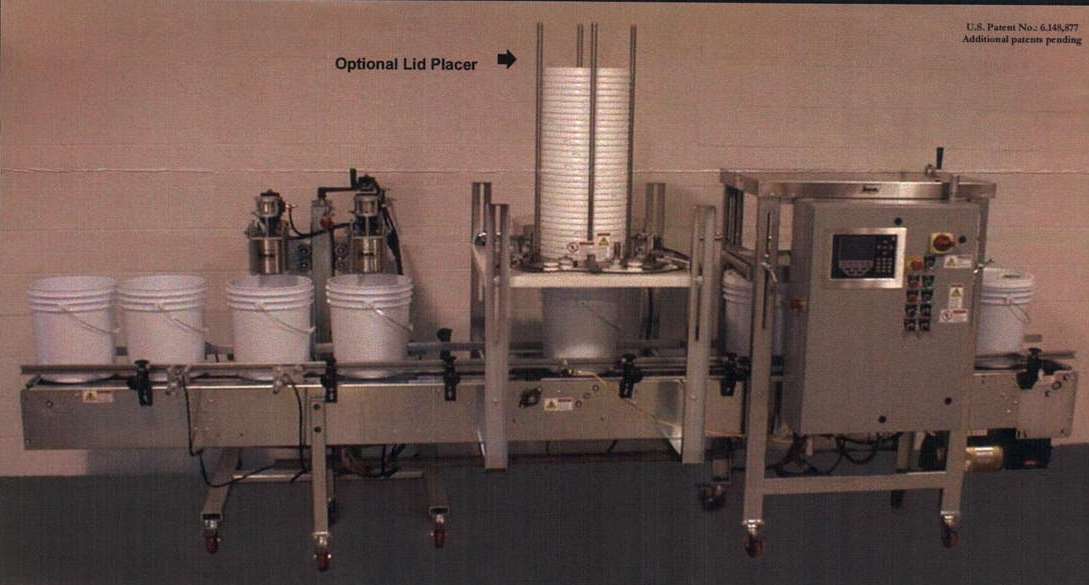

Dec 10, 2002 Model AE2-CEM Net Weight Filling and Closing Machine conveys 5-gal pails to 2 different nozzles for filling, while providing high-speed weight control. Connection free cart eliminates need to plug in air or electrical lines to machine control. With no control connections, machine operates on plant air and includes automatic filter drain, self-contained flush controls, expandable conveyor, permanent lubrication, and 2-way locking swivel casters.

Dadco, Inc.    Plymouth, MI 48170-2598

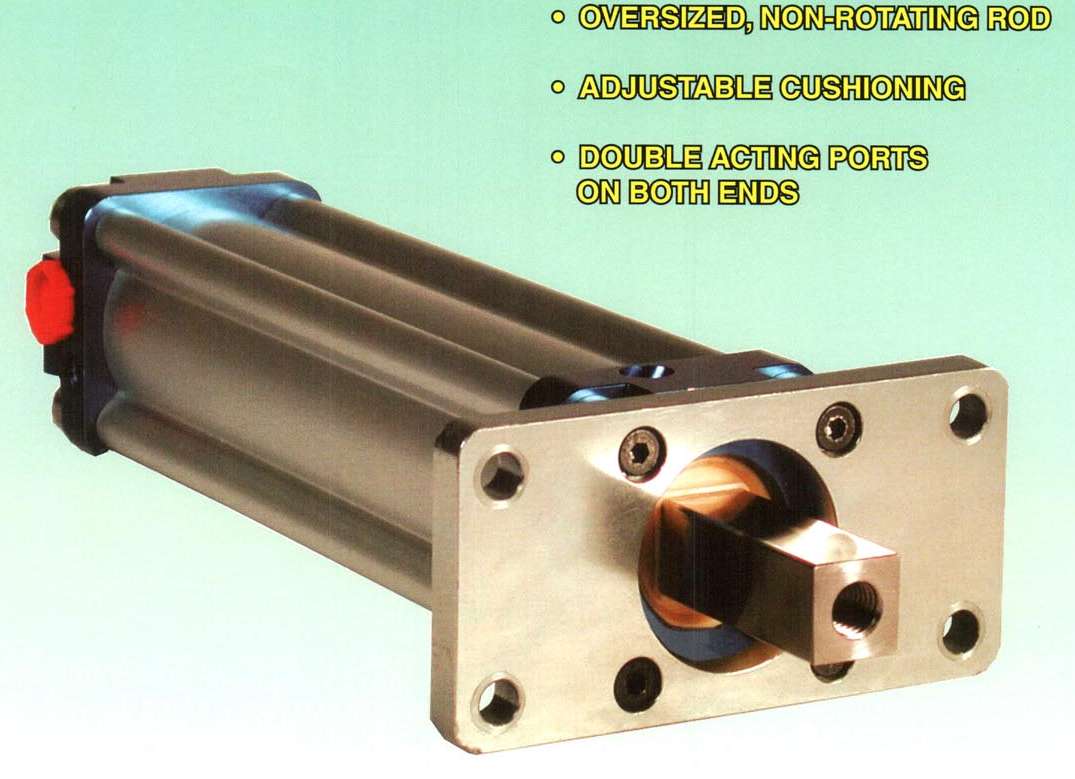

Dec 10, 2002 Model HP.S offers dual port capabilities and uses square rod to prevent rotation. It features 50 mm bore size and is available in variety of stroke lengths. Adjustable cushioning on both ends allows cylinder to meet specific deceleration requirements. Maximum speed is 0.66 ft/sec and maximum working pressure is 140 psi.

Demag Cranes and Components    Cleveland, OH 44139
Dec 09, 2002 Modular Model MPW includes option of 2-speed or infinitely variable speed operation, DC Brake or Double Shoe Brake, rope drum, and true vertical lift. Hoist uses 4-stage gearbox with offset between input and output shafts. Motor and brake are flange mounted to gearbox, eliminating additional connections between lifting unit and trolley frame. Load capacity is rated at 5-185 tons, lifting power is 25-224 hp, and rope-reeving arrangements are 4/2-8/2 and 12/2.

Kardex Remstar LLC    Westbrook, ME 04092
Dec 09, 2002 Automated Freezer Vertical Carousel provides high-density storage with access to items via vertically arranged carriers. Access area presents stored items at ergonomic height for picking, while carousel maintains temperature at consistent levels down to -20°C. Controller links operating system and cooling system, allowing carousel to rotate periodically to keep temperature of stored items uniform throughout unit. System also controls defrost and thaw cycles.

Carbis Inc.    Florence, SC 29502 6229
Dec 09, 2002 Custom, pre-engineered units handle pipe diameters up to 12 in., live loads of 30 psf per level, and wind loads of 90–120 mph. T-support racks are suited for lighter loads where space is limited, while bent racks support heavier loads and longer pipe runs. Both types of racks are available in multiple levels, are base plate mounted, and clear heights from 10–20 ft. Custom pipe bridges and service walkways with fall protection are also available.

GB Gardner Bender    Milwaukee, WI 53209
Dec 09, 2002 GB Xtremeâ„¢ wire terminals, lugs, primary wire, and cushion clamps withstand exposure to moisture, petrochemicals, acids, alkalis, UV rays, vibration, and salt water. Built from nylon, tin-plated copper, annealed stainless steel, and EPDM, products are suited for outdoor lighting, pool, irrigation, mower, pump, and likewise harsh environments. Terminals have nylon insulation that remains flexible in temperatures from -40 to +110 °C.

Genie, a Terex Company    Redmond, WA 98052

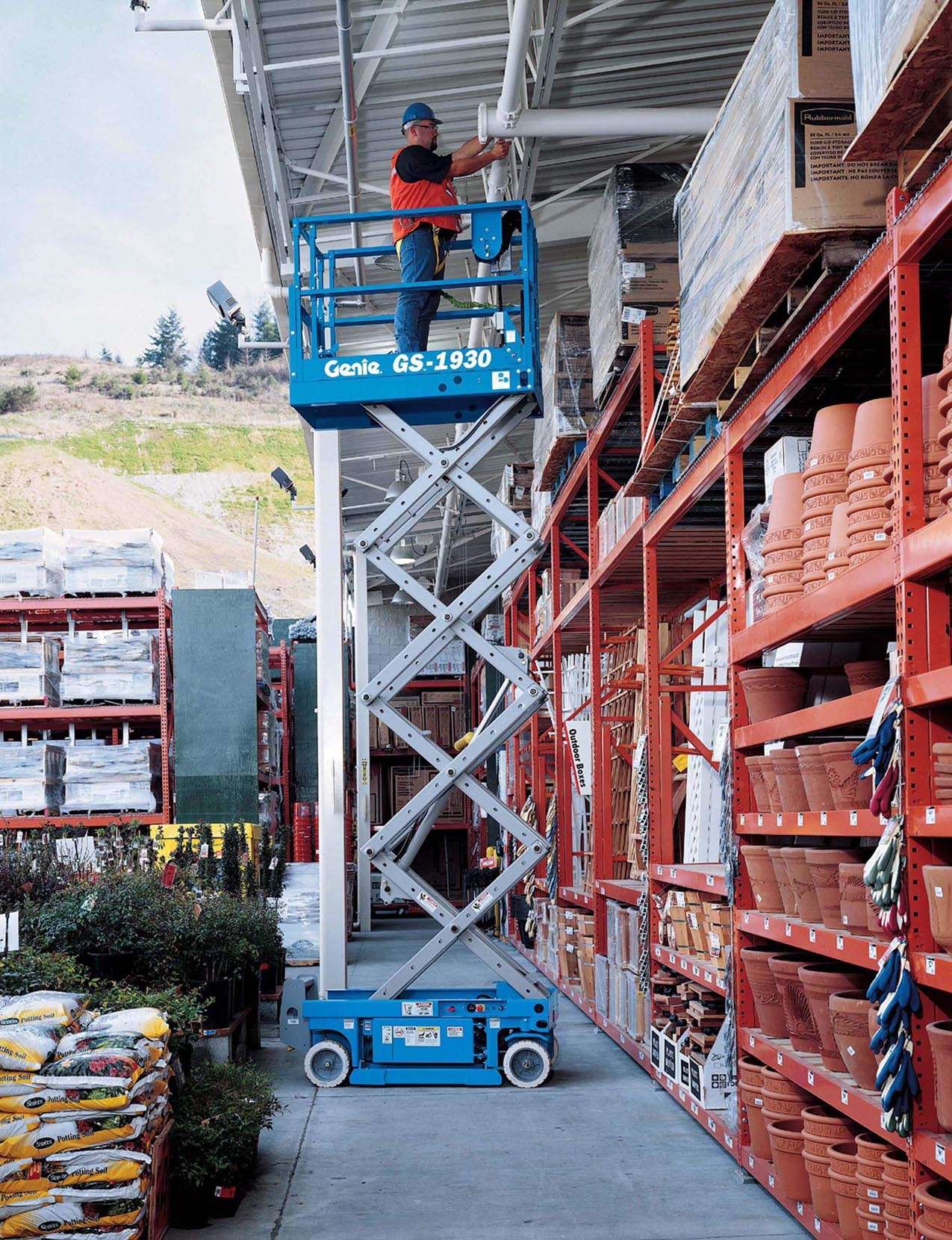

Dec 09, 2002 Self-propelled Model GS(TM)-1930 is equipped with disc brakes, variable speed motor, and proportional controls for lift and drive functions. Swing-out battery boxes and power modules allow access to components for service. Safety features include pothole guards, slip-resistant surface on deck platform, and built-in lanyard attachments. Model GS-1930 lifts up to 500 lb to working height of 25 ft, and includes easy roll-out platform extension.

Walls & Forms Inc.    Dallas, TX 75374

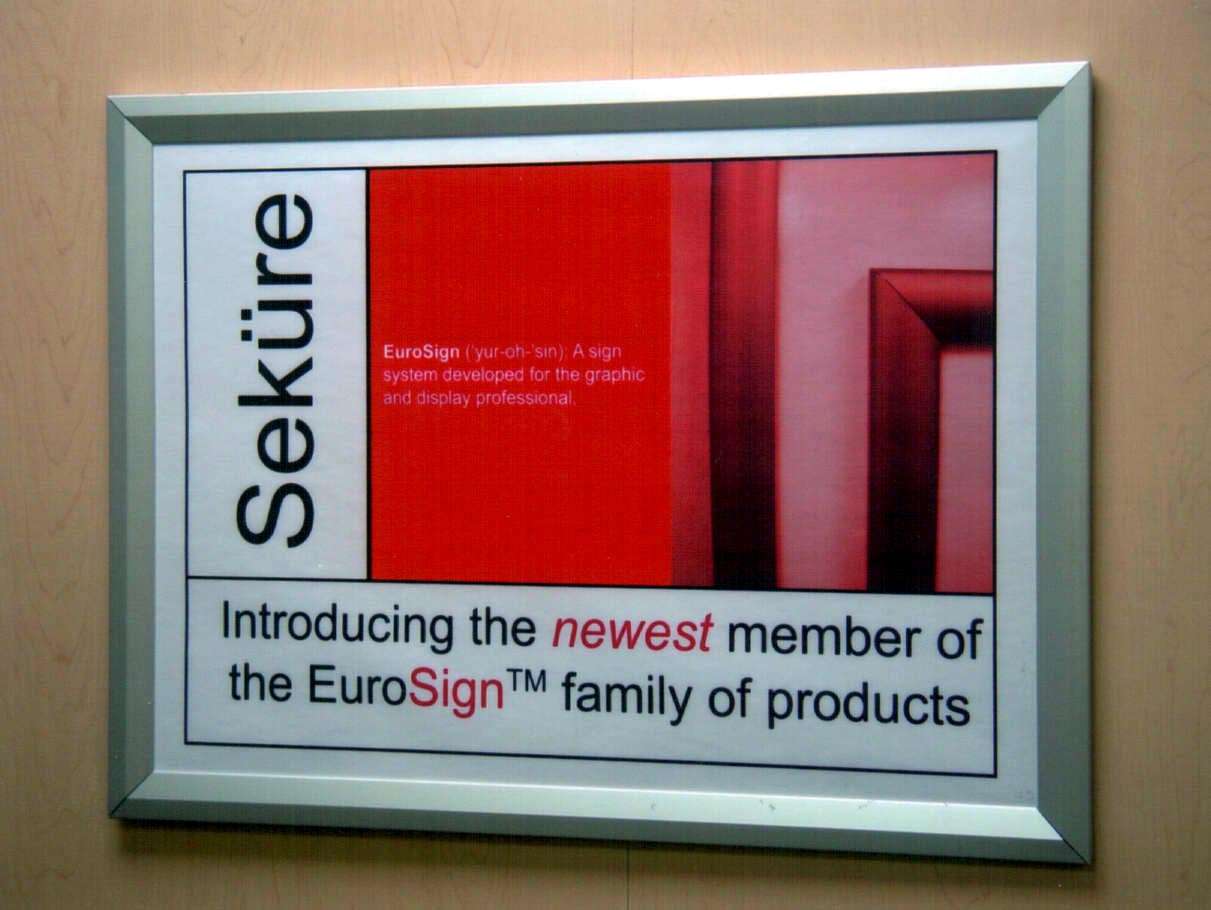

Dec 06, 2002 Eurosign(TM) Sekure Frame features slim, all aluminum profile for signage applications. Face profile dimensions are 1 ¼ in. wide x 5/16 in. deep with .05 in. wall thickness and back profile of 1 9/32 in. wide. Front loading frame is offered in standard 3 mil clear satin anodized finish and holds substrates up to 3/32 in. thick. Standard sizes range from 8 ½ x 11 in. to 36 x 48 in. Applications include signage in malls, hallways, restaurants, restrooms, and airports.

Southern California Packaging Equipment Inc.    Walnut, CA 91789

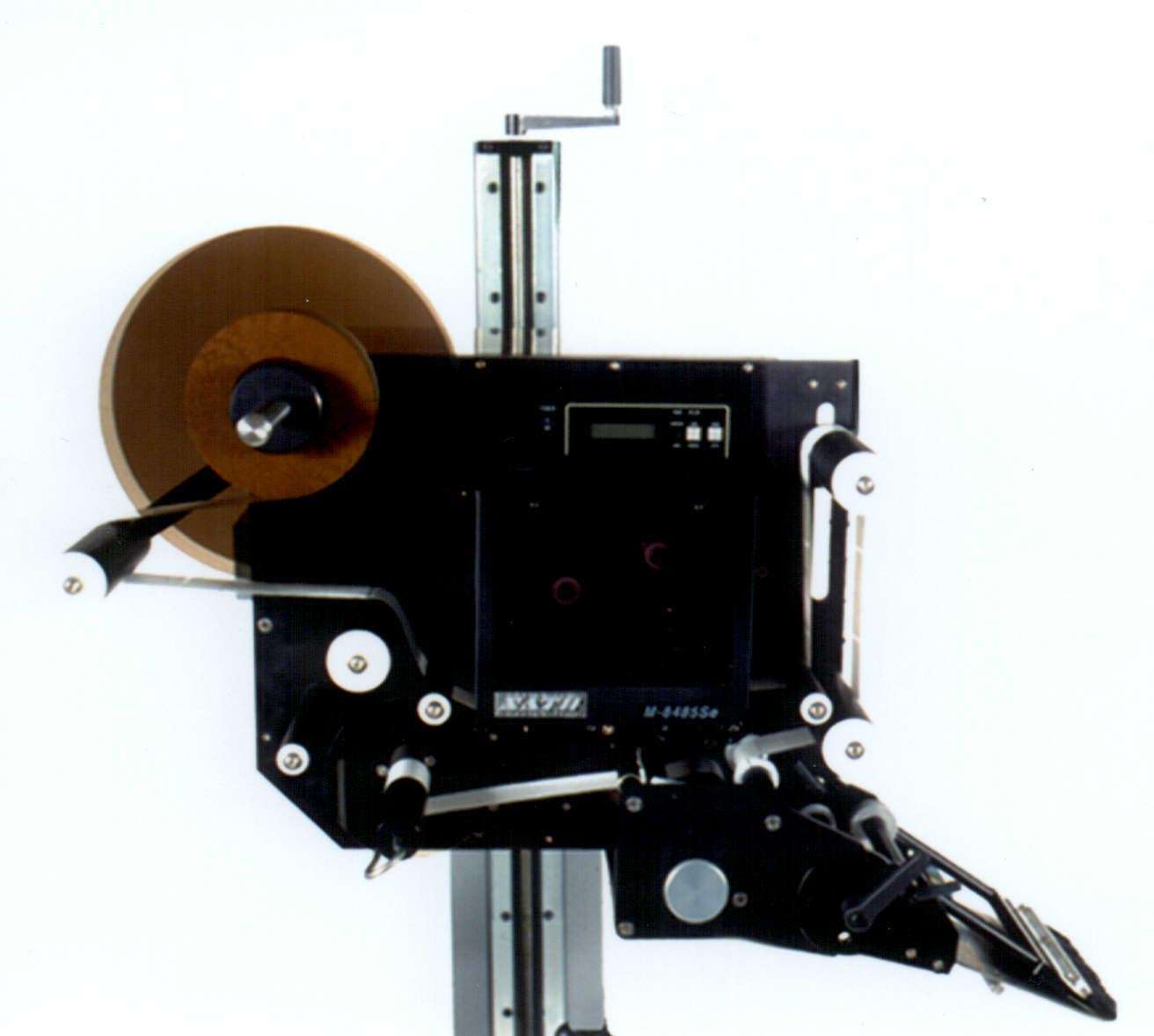

Dec 06, 2002 Model PA4000 includes direct drive DC stepper motor, powered rewind, 6.5 in. web width, and standard 12 in. diameter label roll capacity. Under microprocessor control, label placement is accurate to ±1/32 in. Printer applicator can be oriented for side, top, or bottom placement of wide range of label shapes and sizes. Wipe-on, tamp-blow, and blow-on versions are available. Each incorporates 50 memory presets for product changeover and setup.

ALL-CON World Systems, Inc.    Seaford, DE 19973

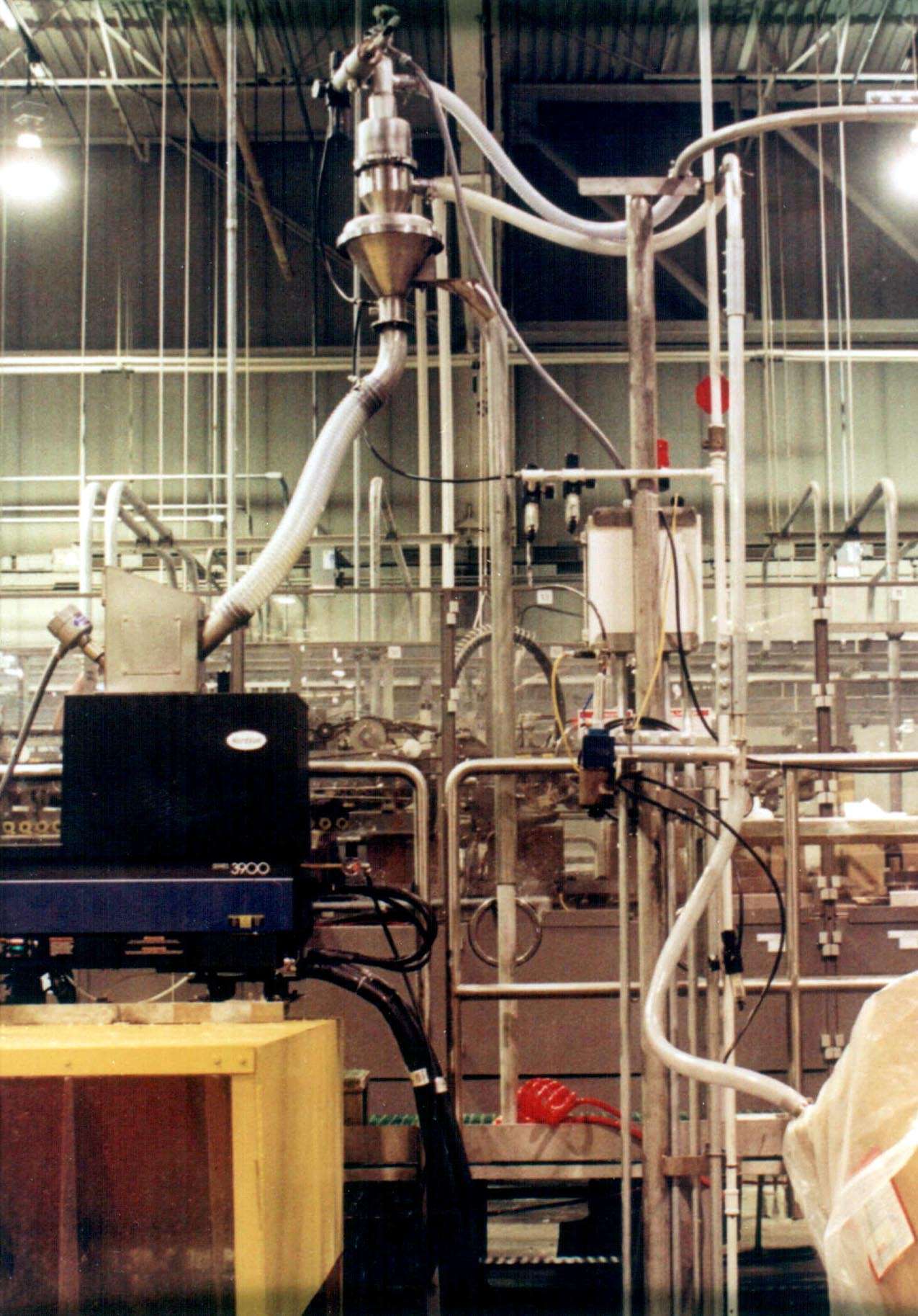

Dec 06, 2002 Automated, stand-alone system conveys consistent flow of thermoplastic adhesive pellets or chiclet-sized chips over distances of over 100 ft from bulk source to melter unit. Filters screen particle size of material flowing through line, minimizing foreign particle entry into melter unit. Able to feed single or multiple glue stations, it automatically responds to need for hot-melt glue using electronic instrumentation that senses, monitors, and controls process.

Hohl Machine & Conveyor Co., Inc.    Buffalo, NY 14213

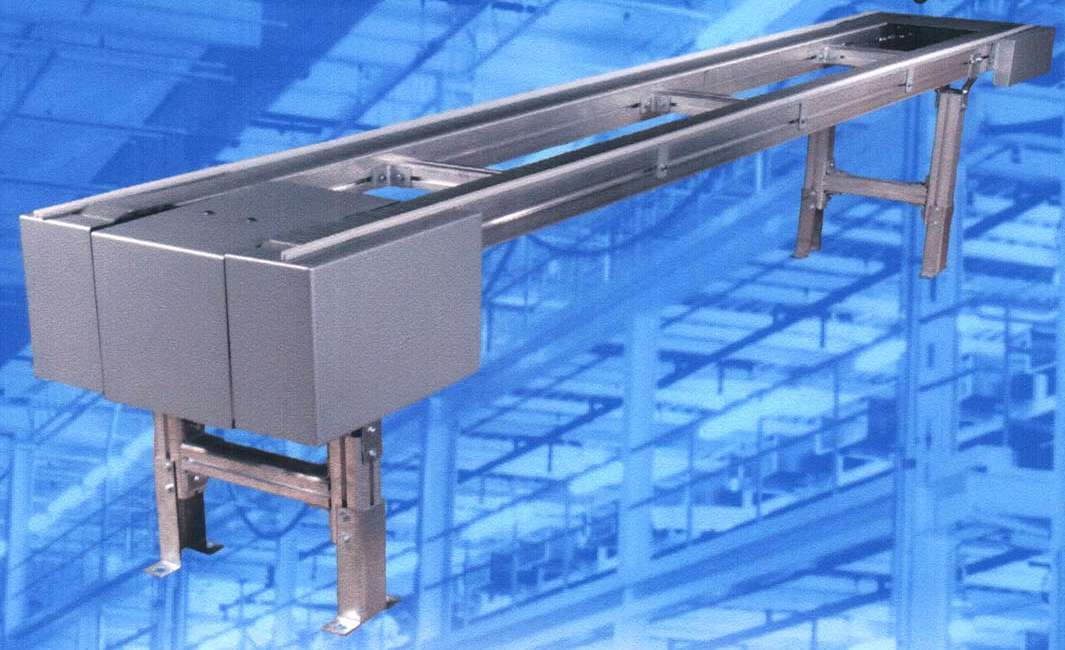

Dec 05, 2002 Manufactured with heavy-duty, extruded-aluminum rail, Adapt(TM) Conveyors employ frame that can accommodate chain, power and free, tabletop, or belt conveyors in same rail. Units offer modular drives, take-ups, and pop-up transfers, and can be utilized with or without pallets for progressive, synchronous, or non-synchronous assembly line operations. T-slot rails allow for bolt-on mounting of supports, guides, electrical controls, and part positioners.

JLG Industries, Inc.    McConnellsburg, PA 17233 9533
Dec 05, 2002 SkySaw™ integrates concrete wall saw system into aerial work platform and includes SkyCleaner™ pressure-washing system. Onboard hydraulic manipulator holds concrete saw and guides it along bolt-on track for precision cuts. Able to be operated by one worker, hydraulic pump powers saw, drill, and manipulator. Hydraulic hoses and water lines are located inside boom's power track. Adjustable system is capable of spraying at 1,000–3,500 psi. It includes two 150 gal water tanks.

Reid Supply Co.    Muskegon, MI 49444

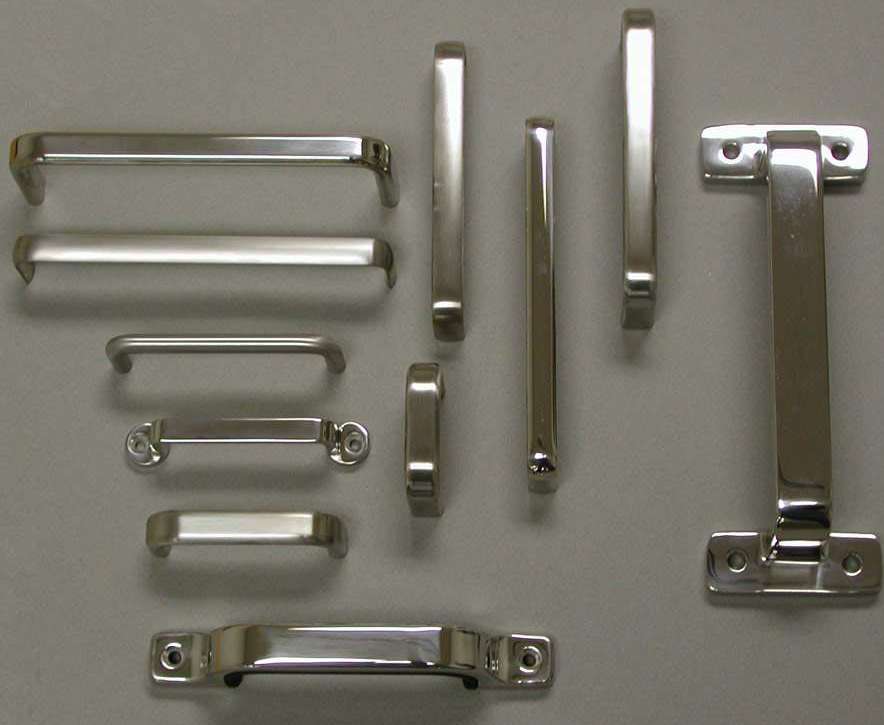

Dec 05, 2002 Available in various sizes with satin and mirror finishes, handles are NSF certified and meet Food Equipment Industry Standard. Applications include pharmaceutical, chemical, and marine industries.

ATS Automation    Cambridge, ON N3H4R7  Canada

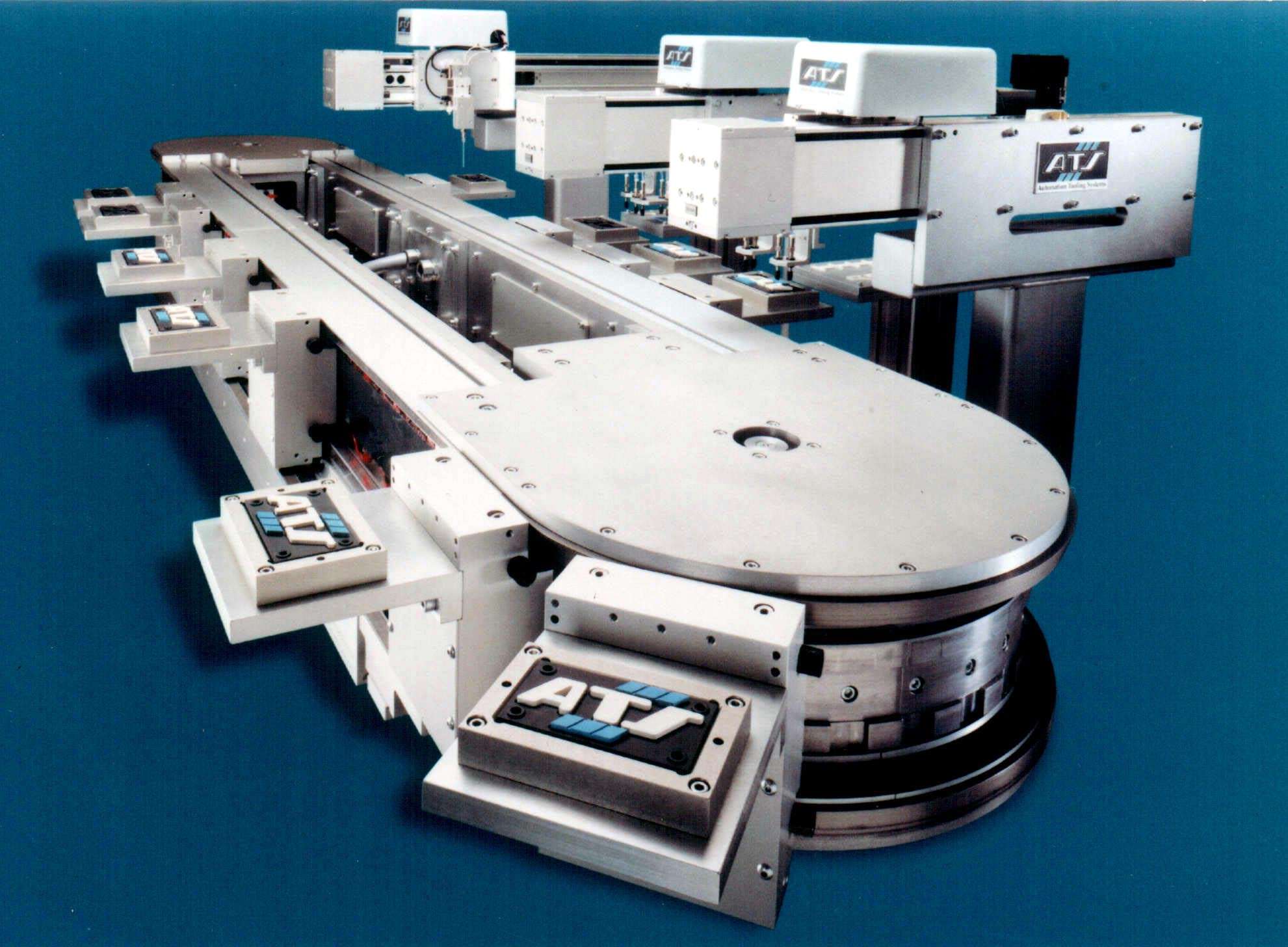

Dec 04, 2002 Supertrak(TM) is easily reprogrammed and handles various pallet sizes, allowing manufacturers to run multiple programs on single line. Based on fully integrated modular design, Supertrak offers speeds up to 2 m/s and fast acceleration and deceleration. Cantilevered pallet design allows for full multi-sided access to pallets and fixtures, while integrated x-axis operation eliminates need for multi-axis robots.

Gullco International Inc.    Cleveland, OH 44146

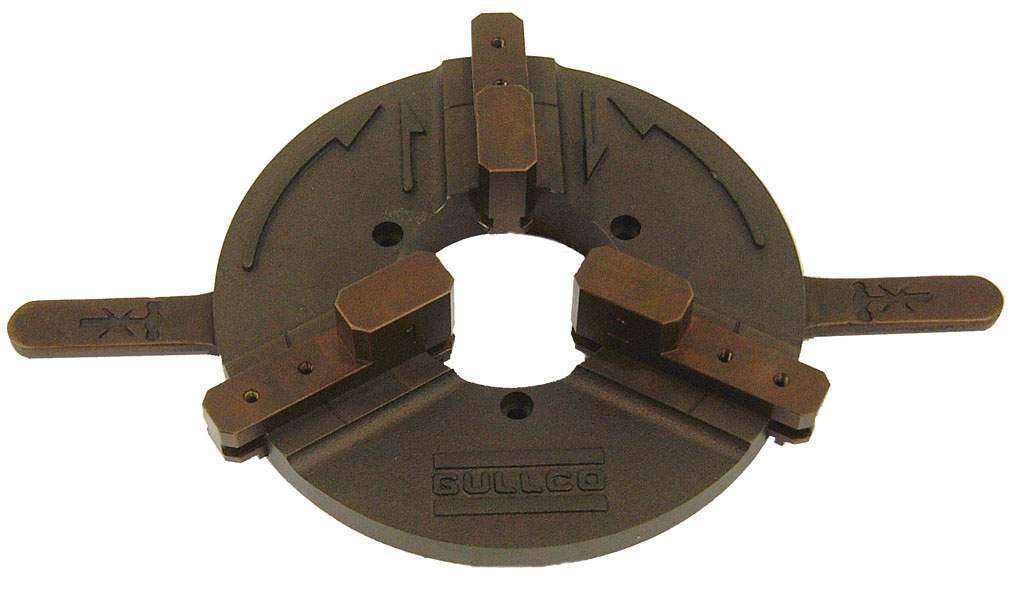

Dec 04, 2002 Model WPG-250 universal, 3-jaw, self-centering gripper has clamping range of .38–15 in. Mountable on any make of positioner, its smooth close/open action uses lever to firmly lock and release workpiece. Ruggedly constructed, unit provides minimal reduction in positioner capacity.

Vestil Manufacturing Co.    Angola, IN 46703-0507

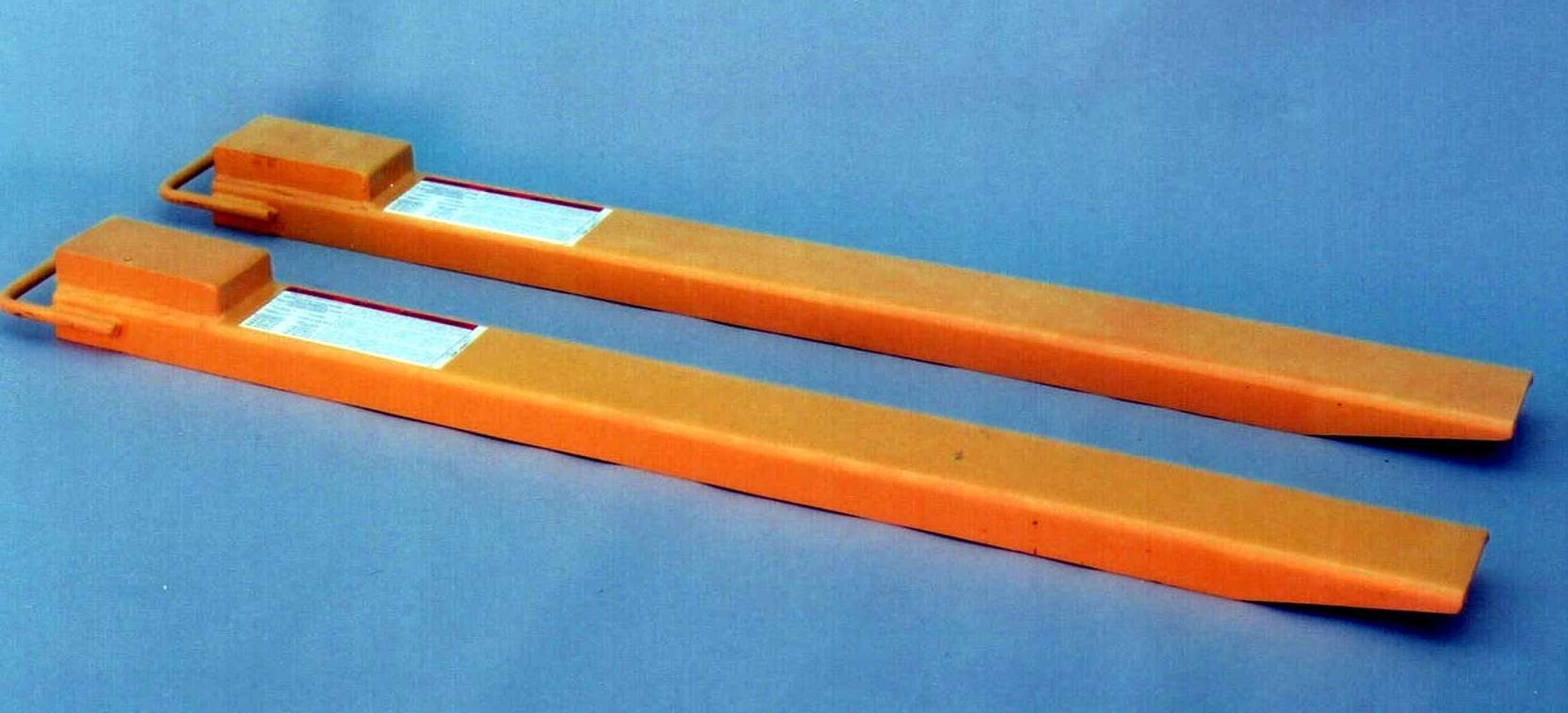

Dec 04, 2002 Fork Extensions speed up process of loading pallet on back of fork truck. Spacer length is slightly more than jam of truck door, eliminating need to back out of pallet, pick up pallet again and push to clear door. Extensions are offered with various retainers to keep from sliding off of forks. Lengths range from 48–96 in. Extensions accommodate existing fork widths of 4, 5, and 6 in. that are up to 2 in. thick.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214

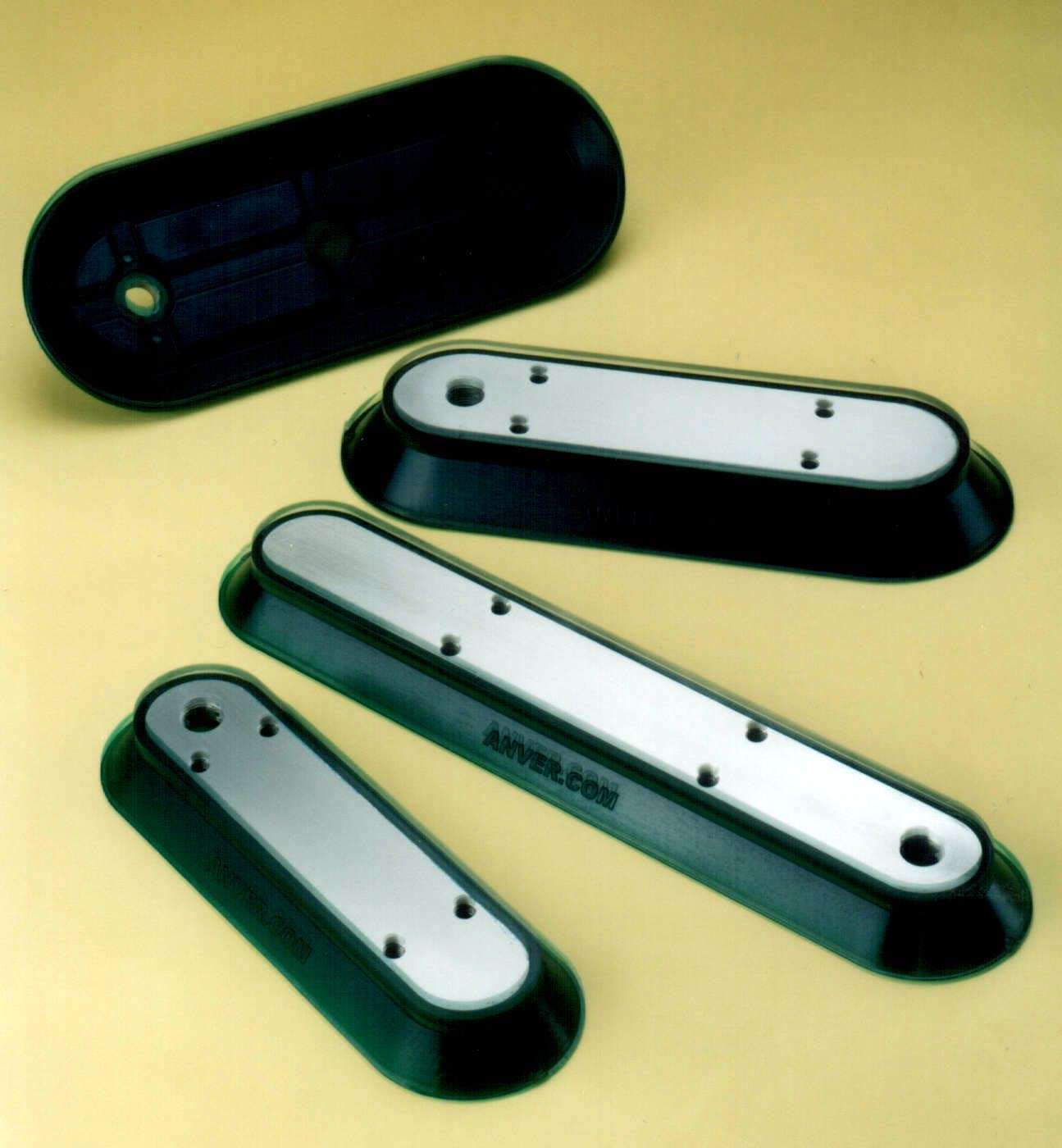

Dec 04, 2002 AnverFlex™ Mid-Sized Rectangular Flat Vacuum Cups are made from urethane blend, which is bonded to machined aluminum hub with pre-drilled and tapped mounting holes and vacuum port. Featuring inside sealing ring for security, non-marking cups range in size from 1.2–7.2 in. wide and 10–20 in. long. Rated load capacity is up to 800 lb at 24 in. Hg when used in horizontal plane, depending upon size, load surface, and vacuum generating system.

Rogan Corp.    Northbrook, IL 60062

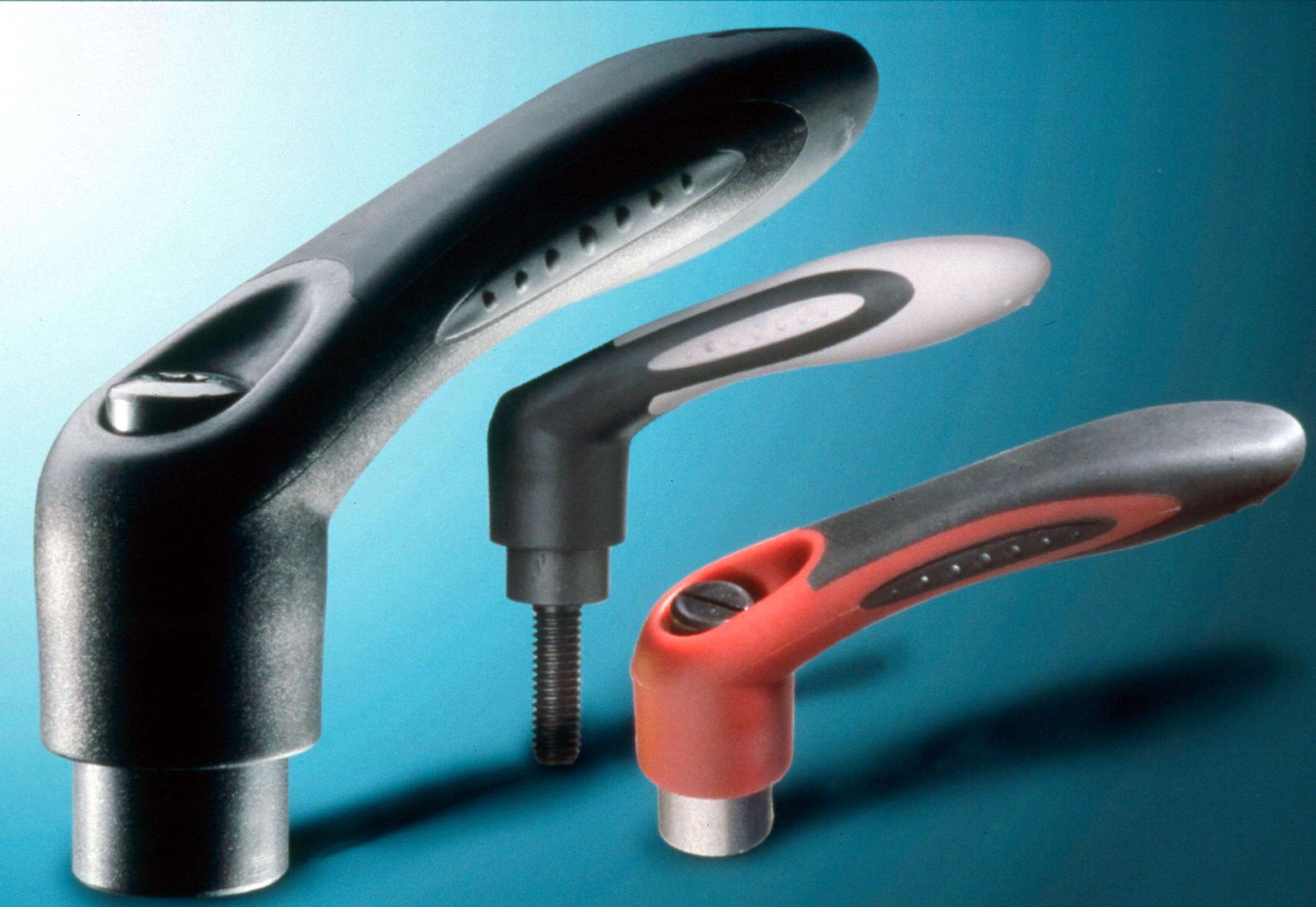

Dec 04, 2002 AXL Clamp Lever has Pure Touch(TM) thermoplastic elastomer inlays, rounded edge design, and reinforced fiberglass body. Unit can be adjusted to 20-45 positions, with and without load. Pulling up on handle disengages unit to swivel into desired clamping position. Releasing re-engages clamp for tightening and loosening. Available in charcoal and black, product utilizes one TORX(TM) head adjustment screw.

Fishman Corp.    Hopkinton, MA 01748

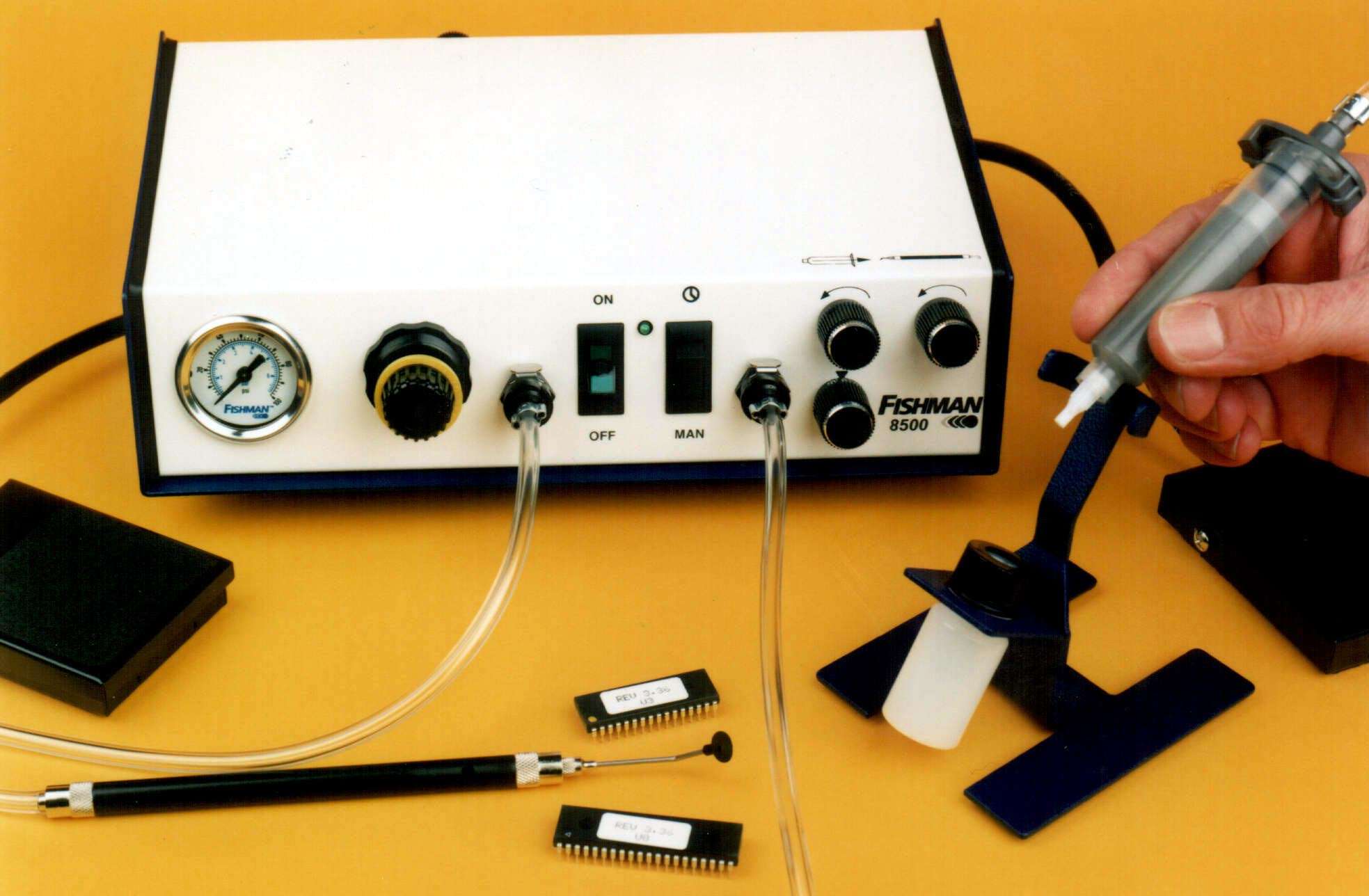

Dec 04, 2002 Suited for assembly and repair of small parts, Model 8500â„¢ offers 2 independent vacuum and air modules with separate foot pedals for controlling pickup pen and handheld syringe. Bench-top workstation frees both hands for manual operation and provides timed dispensing from 0.1 sec to over 3 min. With adjustment knobs to control each function, unit provides up to 100 psi dispensing pressure, has potentiometer-controlled timer with 4 ranges, and vacuum pull-back.
