Protecta-Pack Systems, Div. Of Liberty Carton Co.    Minneapolis, MN 55426

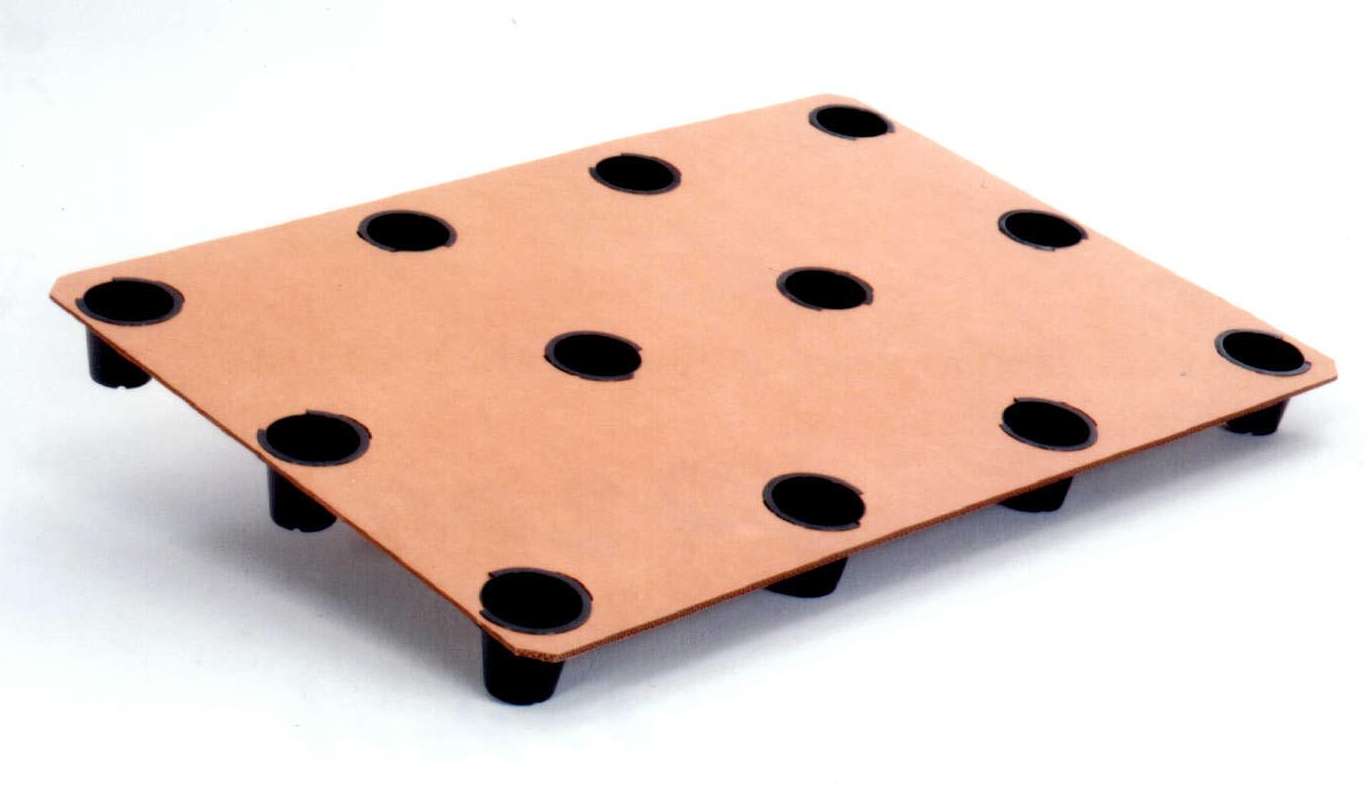

Dec 27, 2002 Triple-Wall Nestable Pallet weighs only 7.5 lb and provides transport protection for product. Base of triple-wall corrugated deck is constructed with 12 plastic cones to eliminate moisture absorption from bottom. Cones also allow pallets to be nested, saving space when not in use.

Hosokawa Bepex Corporation    Minneapolis, MN 55413-2810
Dec 26, 2002 Twin Rotor Hydramix operates in continuous flow without clogging. Self-cleaning design features close tolerances between rotor paddles and container walls to reduce material buildup. Unit has adjustable mixing speed and provides production rates up to 10 tons/hr. Rotors operate at 10 rpm, preventing particle damage during residence times of 20–30 min. Applications include hydration of phosphates and soda ash, or blending of feed supplements, fertilizers, and pesticides.

Sartorius Corp.    Edgewood, NY 11717 8315
Dec 23, 2002 Model isi20 performs batching of different chemicals by percent when compounds require specific ratio or percentage of several chemicals to create accurate mixture. Platform scale connected to unit deduces proper percentage when user places container filled with primary component and enters proportion into indicator. User then adds second ingredient into tared container until unit reads 100%. Tool includes applications such as counting, check weighing, and preset-tare.

CS Unitec, Inc.    Norwalk, CT 06850
Dec 23, 2002 Hand-held Model EHR23/1.2R is equipped with galvanized paddle that can mix concrete, mortar, and epoxy in batches up to 176 lb. Variable-speed, 100–275 rpm motor eliminates splash back. Ergonomic handles ensure comfortable operation and protect mixer motor from dirt. Paddle has helical design that mixes batches from bottom up, preventing splash and keeping air from being sucked into material.

Hapman Conveyors    Kalamazoo, MI 49003

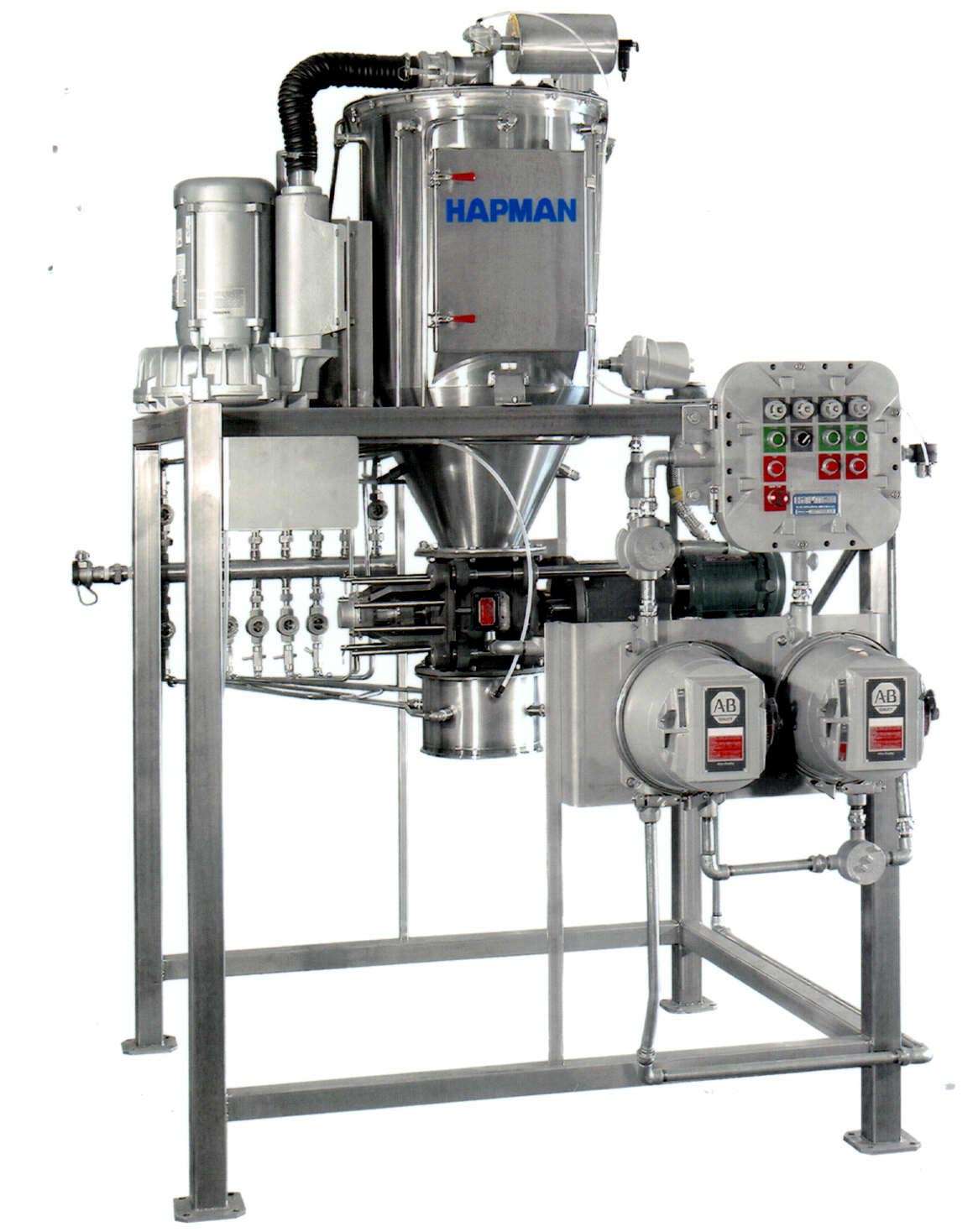

Dec 23, 2002 MiniVacâ„¢ features individually controlled spray wash ports throughout interior allowing user to clean and sanitize conveyor's interior without external procedures. Side access door permits quick filter cartridge change outs, and clean-in-place rotary valve allows disassembly, cleaning, and reassembly within minutes. Sanitary finish assembly is 304 SS with sealed motors and controls rated for explosive atmosphere and wash down applications.

Bug-O-Systems, Inc.    Pittsburgh, PA 15204-1899
Dec 20, 2002 POKKI pipe welding manipulator secures awkward and odd shaped pipe assemblies in desired welding position, then rapidly releases and repositions as welding progresses. Work can be done with operator sitting or standing. Telescopic rotating base can be adjusted to desired height by hydro-pneumatic cylinder. Total stroke is 16 in.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Dec 20, 2002 Explosion-proof Lift and Seal Systemâ„¢ accepts drum at floor level, then elevates and discharges product into mixer at 222 ½ in. above floor level. Dust-tight seal between drum and pour cone prevents product loss or contamination. Custom-designed unit features 60° discharge angle, stainless steel contact surfaces, NEMA 7/9 controls, and continuous-duty hydraulic system. System increases material handling efficiency and promotes clean plant environment.

A & A Mfg. Co., Inc.    New Berlin, WI 53151

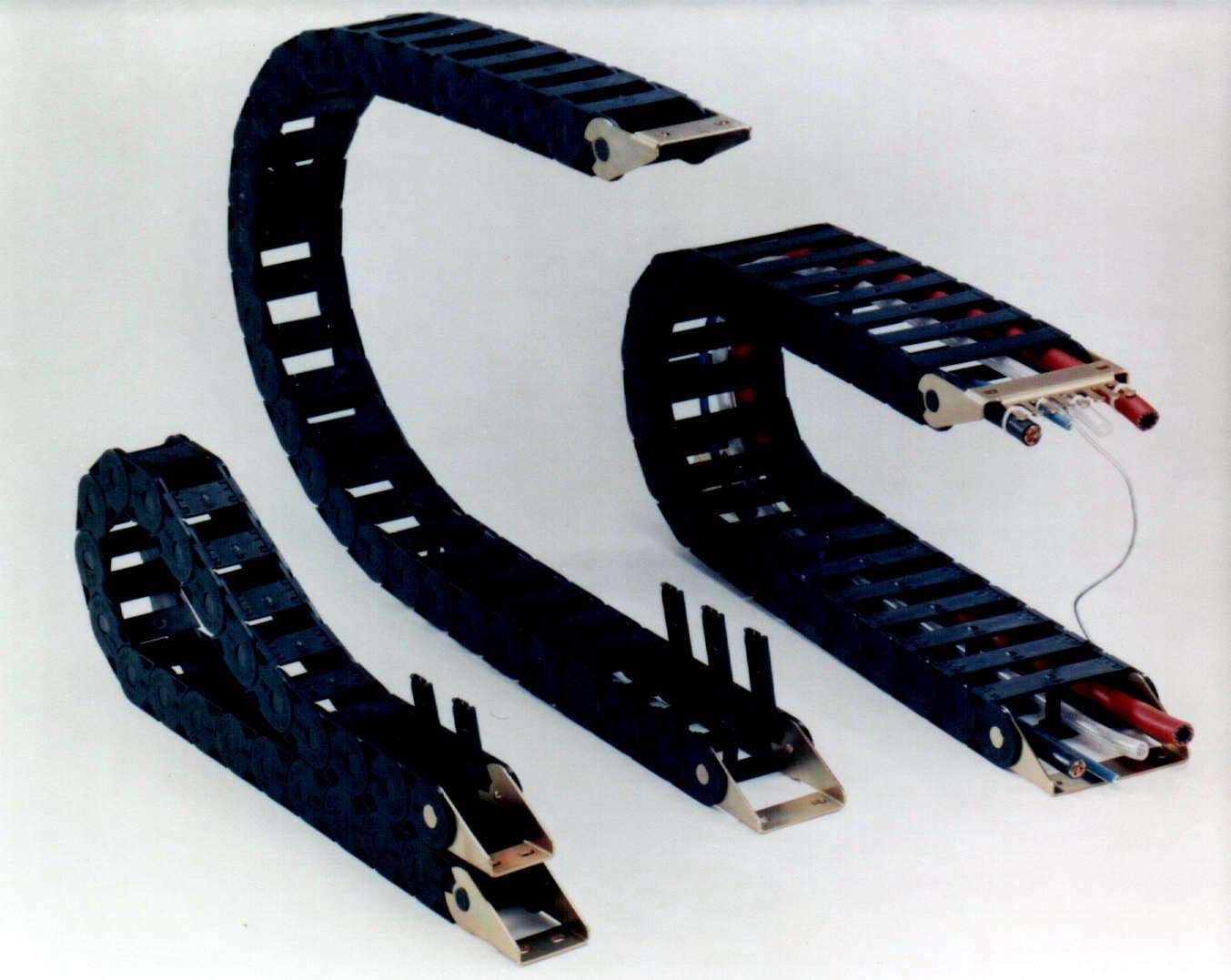

Dec 20, 2002 Gortrac® NP Series carriers maintain proper bend radius of air, hydraulic, and electric lines to prevent fatigue and excessive wear during operation. Double-lockout link design provides long life. Hinge-open bars on either inner or outer radius of carrier facilitate replacement or repair of hoses and cables. Applications include machine tools, industrial robots, and material handling equipment.

Atlas Technologies Inc.    Fenton, MI 48430 1703

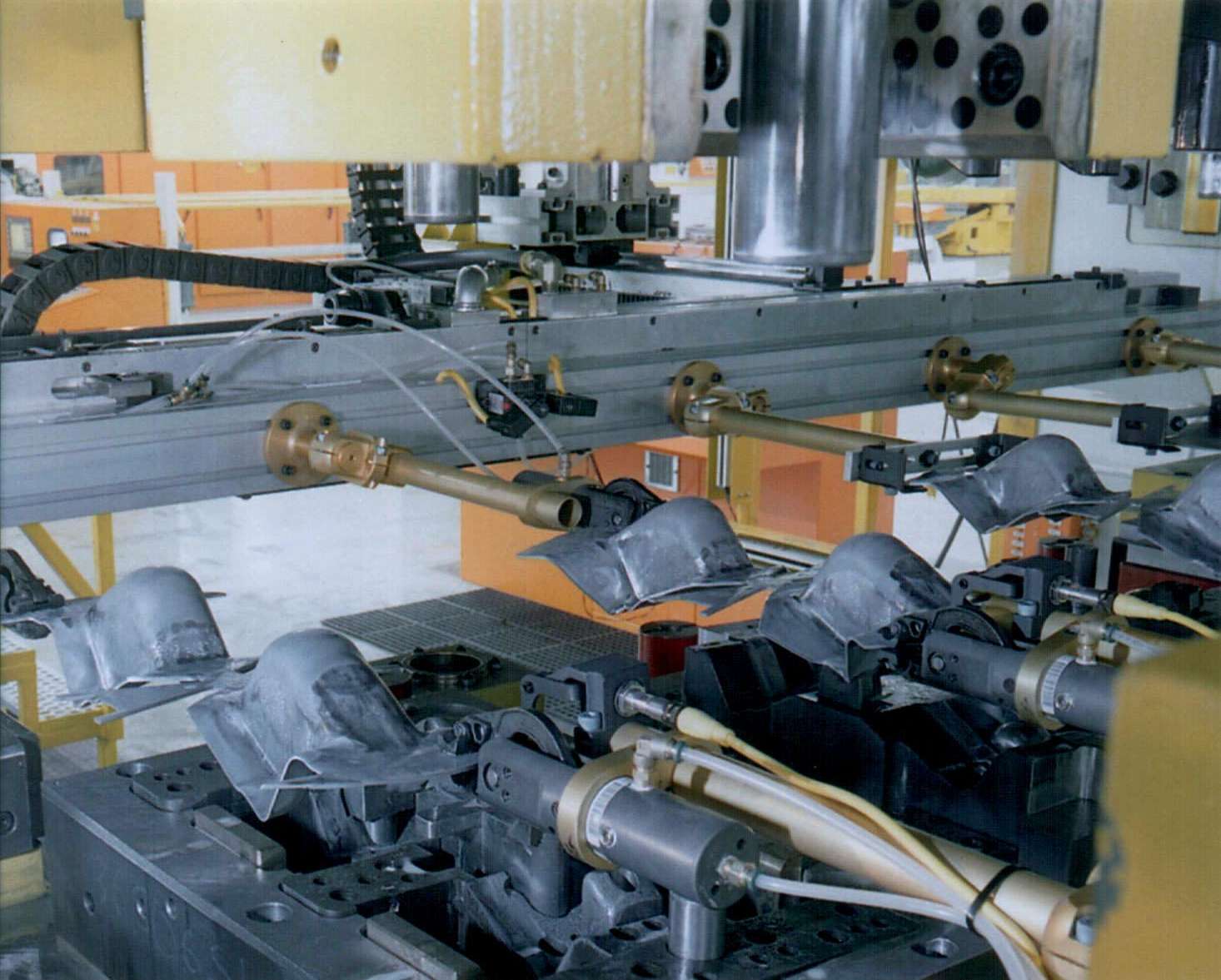

Dec 19, 2002 FLEX 3000 permits stampers to automate part transfer to multiple dies within large transfer press. Unit has servo feedback system and is hard-wired with simple electronic connections. With fully programmable transfer path, various part configurations can be run. Operated independent of press actuation, it can be mounted overhead to press uprights for access into diespace, visual inspection, and changeover. Options include automatic finger tooling rail pick-up/engage.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214

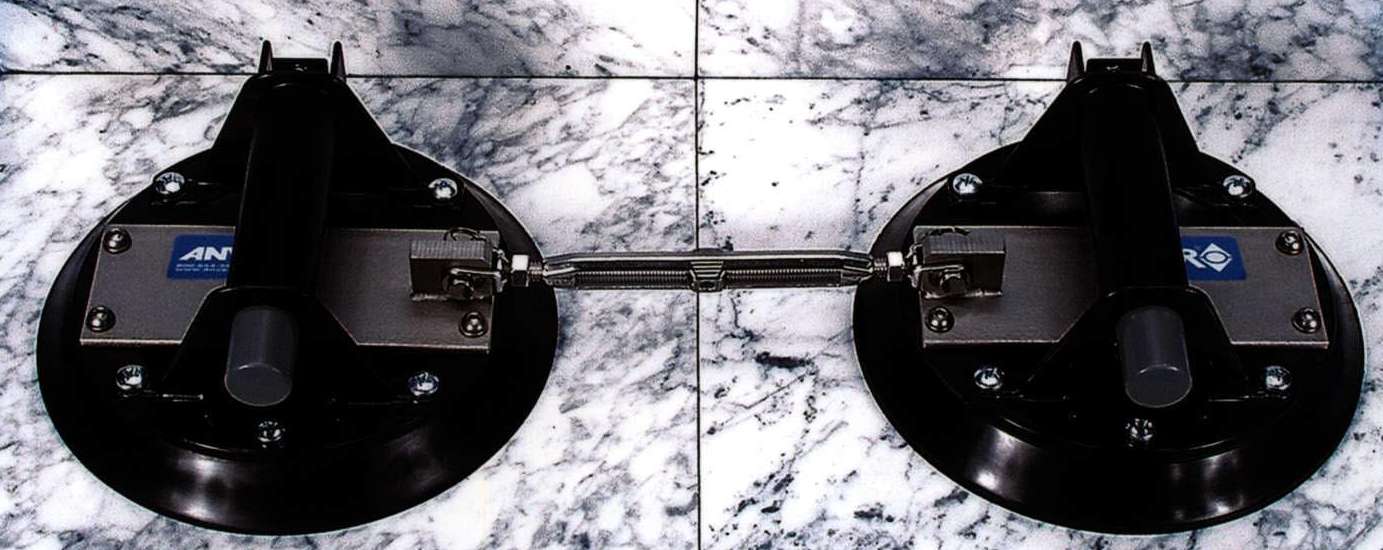

Dec 19, 2002 Product comes with turnbuckle assembly that screws into brackets on each vacuum hand cup for aligning and setting stone countertops, flooring, and likewise smooth, flat, non-porous surfaces. Units are used by engaging thumb-actuated hand vacuum cups and spinning turnbuckle by hand or wrench. Cups provide fully adjustable tension for pulling 2 pieces together. Products attach to surface using soft 8 in. dia rubber vacuum pads to prevent scratching.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
Dec 19, 2002 Constructed of stainless steel, ASG conveyors handle small parts in cleanroom environments. Custom-engineered to each application, products are available with various configurations, belt widths, lengths, and pulley diameters. Conveyors come complete with speed motors and drives (AC or DC, fixed or variable).

Dadco, Inc.    Plymouth, MI 48170-2598
Dec 19, 2002 Model SL.16 measures 14 mm in diameter with M16 threaded body. Forces on contact range from 13–114 lb, and stroke lengths are available from 10–100 mm. Internal hex aids in installation and removal. Also offered to assist in removal is the ratcheting RT-16-A removal tool.

Onset Computer Corp.    Bourne, MA 02532
Dec 19, 2002 Tested to NEMA 4X standards, case mounts HOBO LCD Temp/RH Data Logger in condensing, wet, or dusty environments. It protects against corrosion, wind-blown dust and rain, splashing, and hose-directed water. Sensor cable feeds from LCD Logger through watertight grommet to external sensor. Made of UV-stabilized polycarbonate, product contains removable cap with O-ring seal and internal desiccant pack to minimize internal condensation.

Cogiscan, Inc.    Bromont, QC J2L 2N8
Dec 19, 2002 Moisture Sensitive Device (MSD) Control System meets IPC/JEDEC J-STD-033A, which includes revised de-rating table to address environments with humidity rated upwards of 60%. Real-time tracking of moisture sensitive components ensures that components are assembled within specified floor life. System tracks part number, moisture sensitivity level, expiration date/time, body thickness, category, and type. Trays and reels containing MSDs are identified with re-usable RF tags.

Newport Corp.    Irvine, CA 92606
Dec 18, 2002 Series SDS Linear Translation Stages have side-mounted micrometer, profiled bearing ways for extended contact with ball bearings, and locking mechanism that secures stage position with negligible motion when lock is engaged or disengaged. Units provide 25 mm travel and load capability up to 39 lb. They are suitable for applications requiring pitch and yaw of less than 200 and 100 microradians, respectively. Sizes include 25 x 25, 40 x 40, and 65 x 65 mm.

Buckhorn, Inc.    Milford, OH 45150 9778
Dec 18, 2002 SecureToteâ„¢ measures 25 in. long and offers interior walls that fit Regular, Kings, 100's, and some 120's cartons for split-case or 30-carton distribution. Made of HDPE plastic, attached lid protects contents from theft, crushing, and moisture. Product stacks when full and nests when empty. Lid features recesssed interlocking finger design for secure closure. Unit is available with 4 reinforced tie holes in lid and ergonomic handles.

Key Technology, Inc.    Walla Walla, WA 99362
Dec 18, 2002 Prism®2 includes built-in graphical user interface and control module. Additional features include sorting engine, which consists of electronics, cameras, and camera configurations; full-color, Vis/IR, or monochromatic camera options; and High Intensity Discharge (HID) lamps. Color recognition distinguishes over 2.1 million different shades, and Advanced Vision Processor (AVP) combines industrial PC and vision engine using pipeline architecture.

Kardex Remstar LLC    Westbrook, ME 04092
Dec 18, 2002 Shuttle(TM) VLM provides vertically arranged trays, computerized controls, and ergonomically designed extraction platform, which delivers requested tray to any pick window. Multiple pick windows allow organizations to link multiple floors/work zones and receive materials on one level and extract them on another without sorting and duplicating inventory. Multiple windows provide queuing and sequencing of parts, kits, or completed orders. Modular design is fully customizable.

Alemite Corporation    Charlotte, NC 28226 3515
Dec 18, 2002 Spring-powered, self-retracting Model 8051 includes 52 ft of 5/16 in. hose, molded plastic housing, and pivoting bracket for mounting. When hose is extended, ratchet-type latch controls reel. Easy pull on hose releases latch and enables hose to retract into reel. Model 8051 is suitable for air powered tools, windshield washer fluid, antifreeze dispensing, and power washers. It can be used for hot or cold water.

FKI Logistex North America    St. Louis, MO 63132
Dec 18, 2002 Power Column(TM) 2 features tilt-tray that ergonomically tilts items at rear of tray toward operator for easy retrieval. Picking accuracy is enhanced using laser pointer that directs operator to proper cell location. Rack and pinion lift system positions trays continually for insertion and extraction without requiring adjustment. Unit offers tray width up to 100 in., and includes adjustable dividers, touchscreen monitor, and inventory control software.
