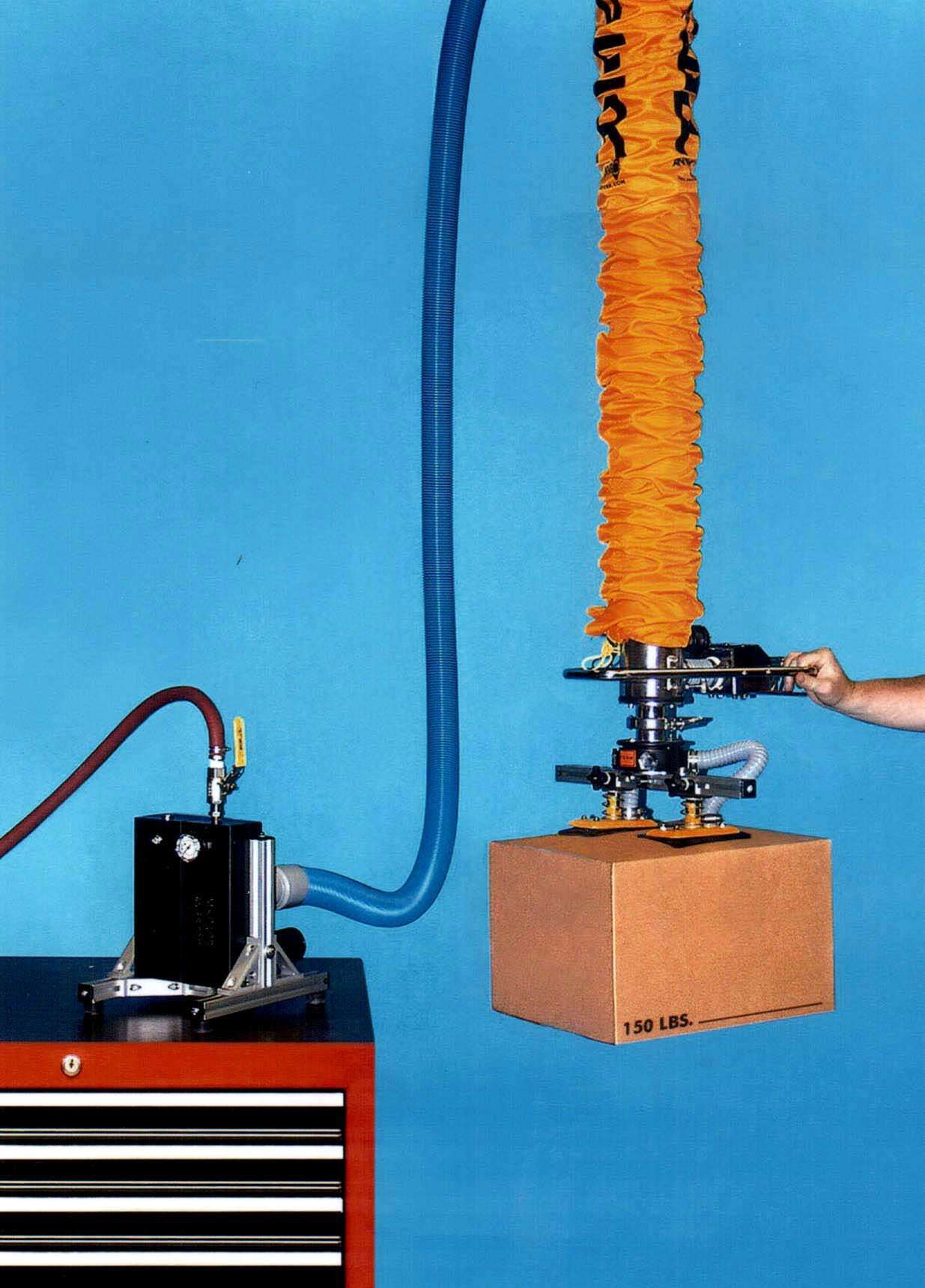

Vacuum Tube Lifter is powered by compressed air.
Anver Corp. - Anver.Com
Hudson, MA 01749 3214
Feb 10, 2003 Series VT Tube Lifter and MSP400 Multi-Stage Air-Powered Vacuum Station operate on venturi principle to provide vacuum levels down to 27 in. Hg and flow to 148 scfm. Providing 100% continuous duty cycle, lifter and vacuum station handle loads up to 150 lb. Suitable for handling boxes and bags in explosive environments, lifter eliminates electric pump burn-out. It includes easy-grip handle with up/down controls that adjust to user's hand strength.

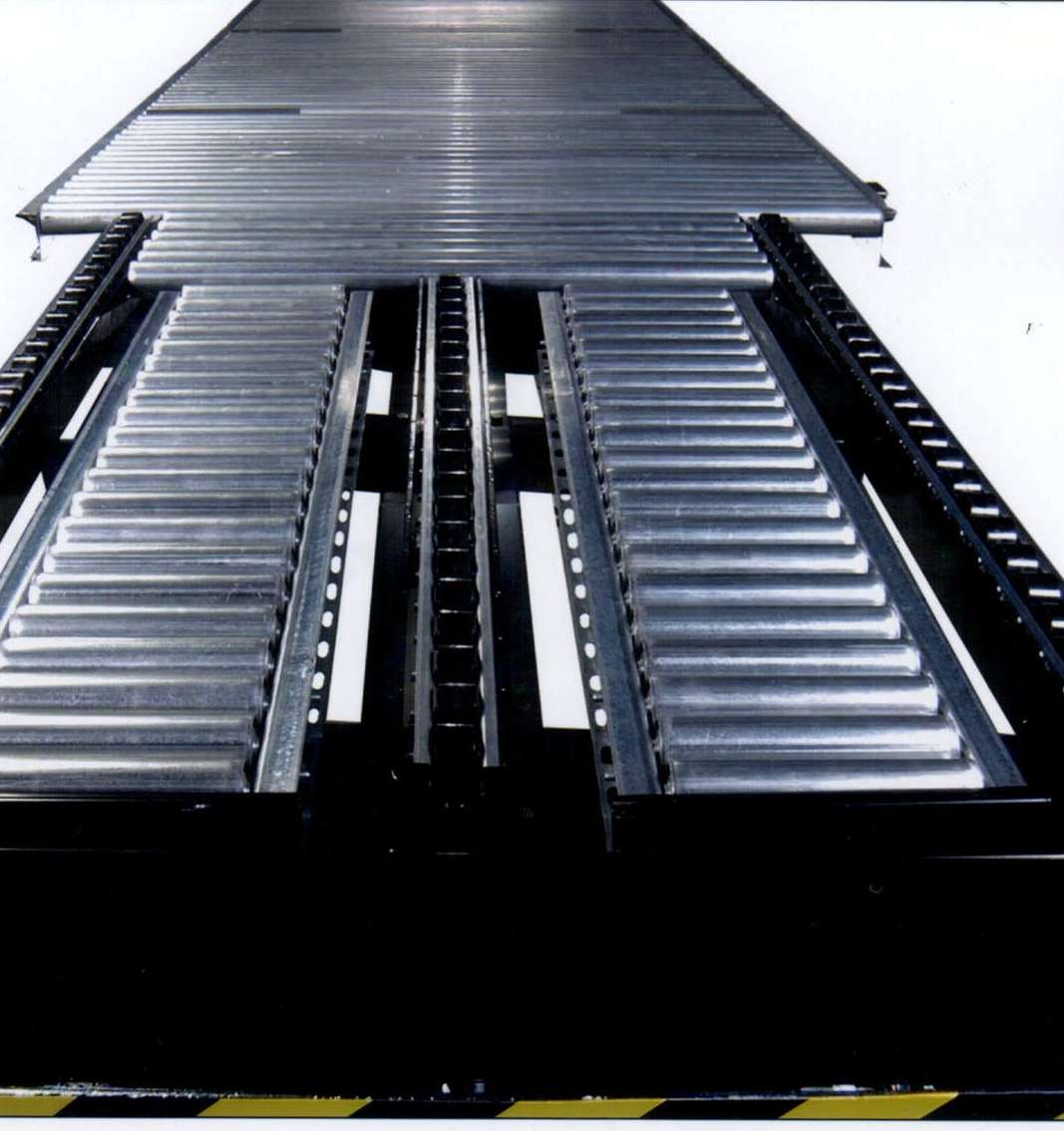

Storage System creates pallet-free environment.
Kennesaw, GA 30144
Feb 10, 2003 UniversALL Floâ„¢ accommodates slip-sheeted products in pallet flow and push-back flow system configurations and accommodates wooden and plastic pallets in same lane. Speed-controlled, wide-roller flow bed, with exit zone that activates lowering mechanism, allows platens or forks easier access under load on corrugated or plastic slip sheets. Dynamic rollers support load in exit position throughout extraction procedure. Modular design conveys loads up to 2,500 lb.
Bin Tilter eliminates repetitive bending and reaching.
Advance Lifts, Inc.
St. Charles, IL 60174
Feb 10, 2003 Product lifts and tilts loads to operator at angles up to 87°. BT model is a fork-type unit designed to handle bins and containers. BTS model is a straddle-fork-type unit designed to handle pallets. Manually portable BT and BTS models have DC power unit for tilting, and built-in battery charger. Stationary, pan-type BTP model handles any load placed in pan by pallet jack or fork truck and has 1 hp 110 Vac motor. Capacities of 2,000 and 4,000 lb are available.

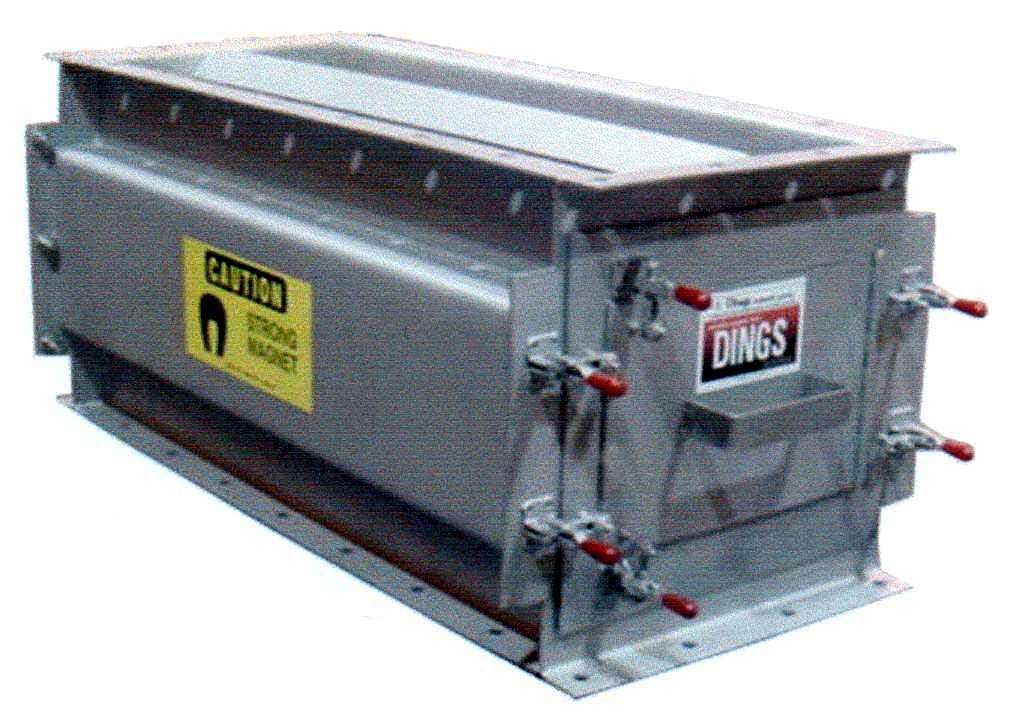

Chute Separator utilizes rare-earth magnets.
Dings Co., Magnetic Group
Milwaukee, WI 53219
Feb 10, 2003 Suited for removal of ultra fine and paramagnetic materials from freeflowing product, unit uses magnets with strong field at magnet surface for removal and retention of tramp metal from powders, grains, plastics, foodstuffs, and chemicals. Ceramic and rare-earth Perma Chute separators are offered in manual and easy-clean styles with widths from 8â€“12 in. and lengths from 8â€“48 in.

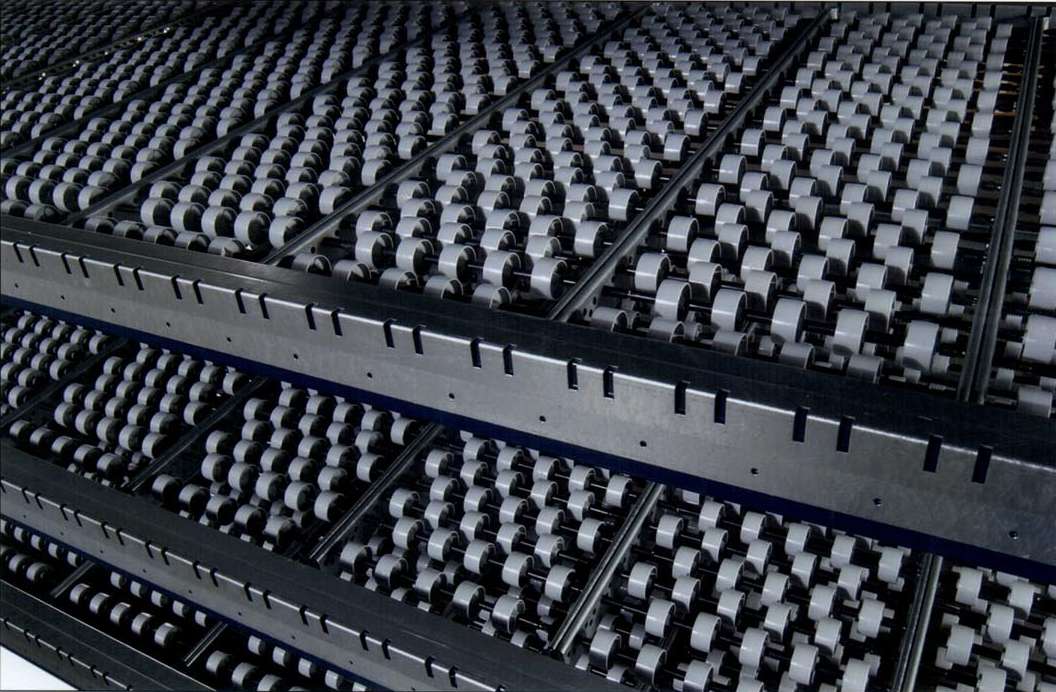

Roller Conveyors consist of easily mounted lanes/tracks.
Kennesaw, GA 30144
Feb 07, 2003 Constructed to fit existing rack systems without special supports, Dura-Floâ„¢ Carton Flow promotes flexibility for carton size without changing system components; universal connectors mount on roll-formed or structural rack beams without use of tools. Wash-down friendly product employs spring-loaded tracks and maintenance-free, self-lubricating Freewheelers® with extra-wide wheel design and Teflon-coated axles to support cartons and provide smooth flow.

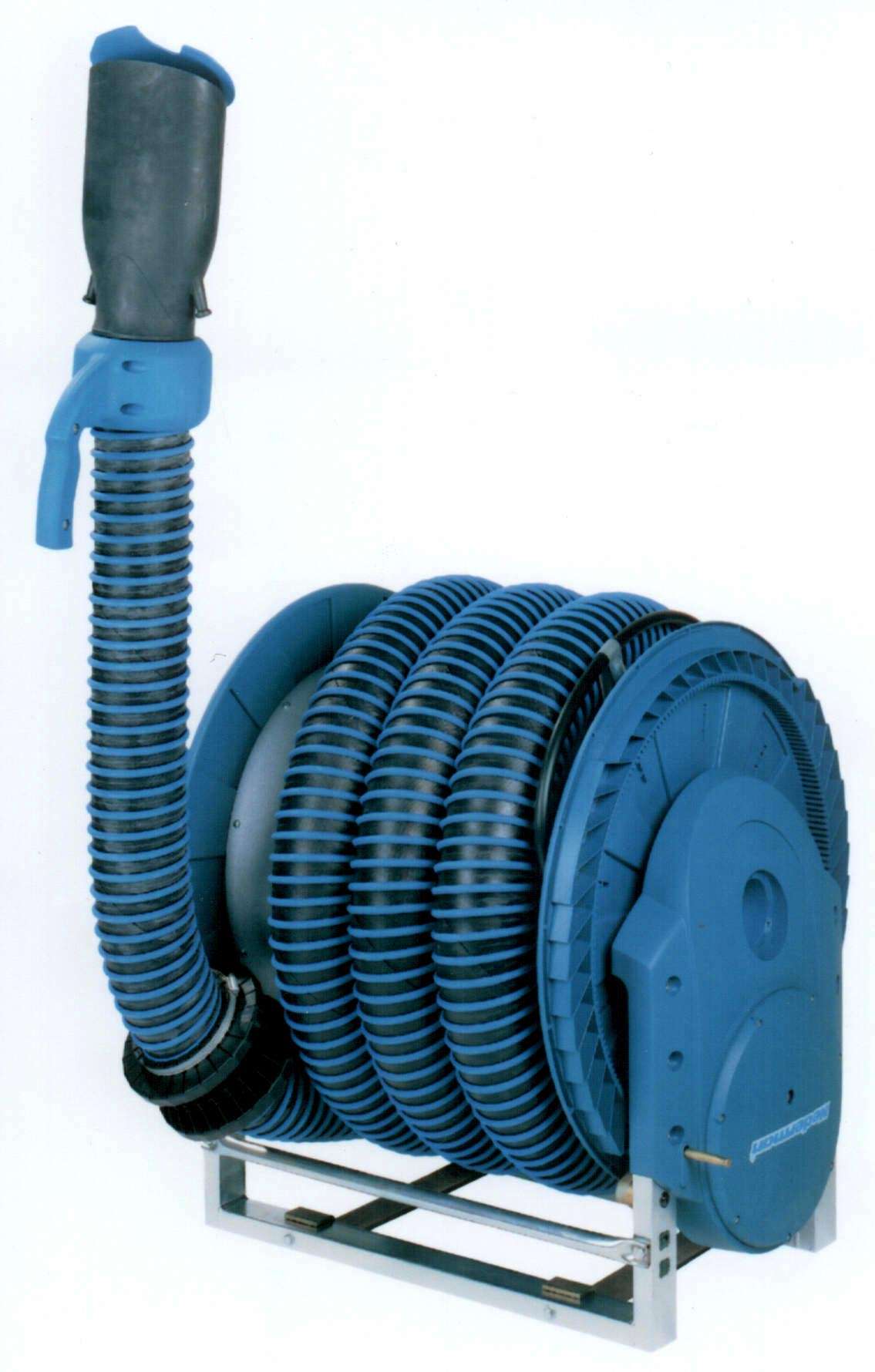

Hose Reel suits fleet maintenance facilities.
Westland, MI 48185
Feb 07, 2003 Model 865 removes harmful exhaust fumes before they can be inhaled ito lungs and cause health risks. Available in Spring Cassette or Motorized, reel can be mounted on wall or ceiling. Hose is offered in various lengths, types, and diameters and can be unwound automatically or with remote control. Once hose is unwound, nozzle is attached to exhaust pipe of vehicle to be worked on. Diesel exhaust and carcinogens are extracted through hose and vented outside.

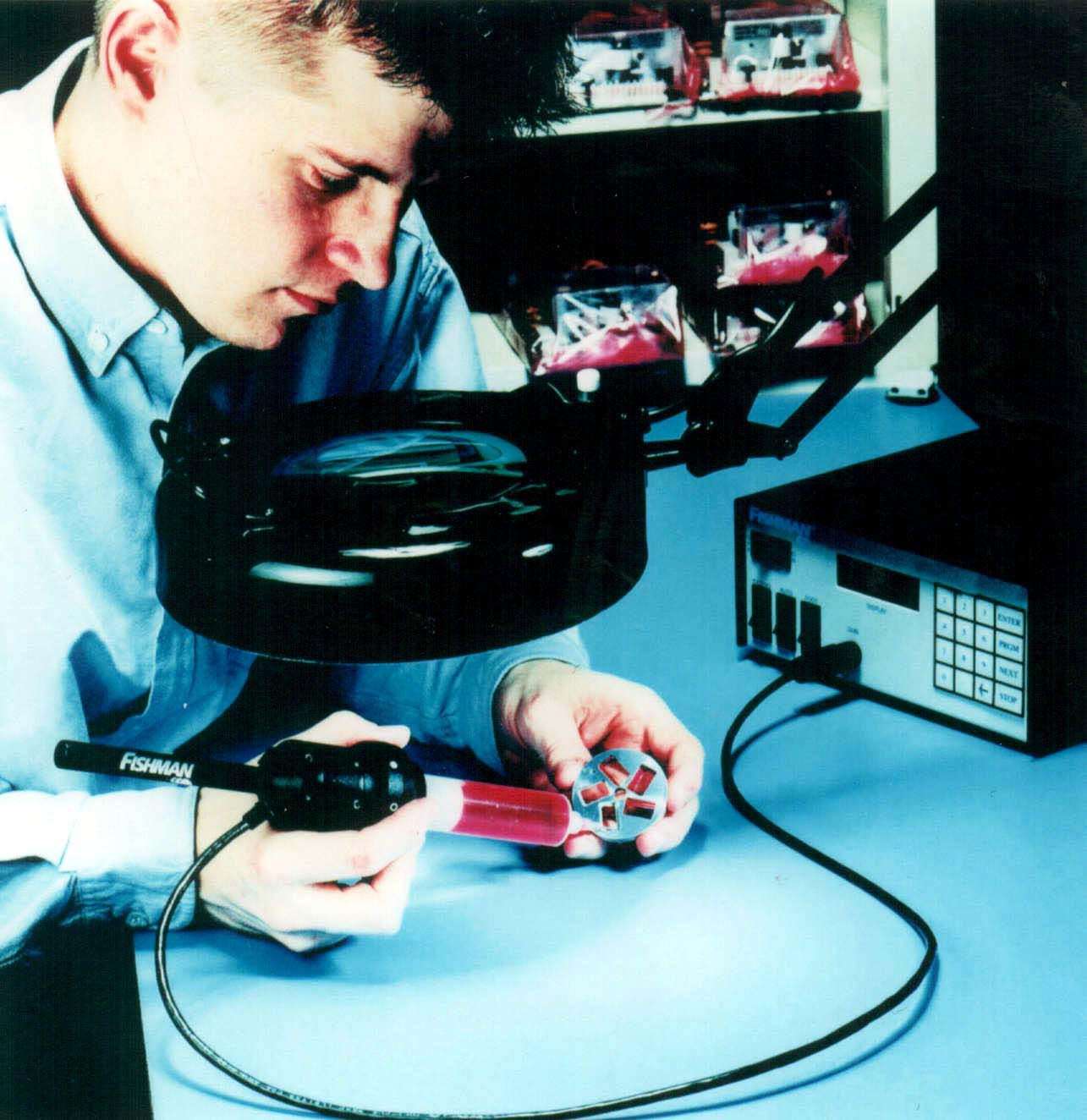

Dispensing System uses air-free, mechanical drive.
Hopkinton, MA 01748
Feb 07, 2003 Model LDS9000 features handheld gun with linear actuator-driven mechanical lead screw that smoothly pushes adhesive through plastic syringe. Dispense volume, flow rate, drawback, and drawback delay rate are programmable. Providing fully repeatable dispensing, system operates without pulsation and pounding of pneumatic dispensing systems. When dispense cycle is finished, system pulls plunger back automatically and adhesive recedes within tip to prevent dripping.
Pallet suits medium-duty applications.
Milford, OH 45150 9778
Feb 07, 2003 Pallet, 32 x 30 in., incorporates 3,000 lb dynamic load capacity, top cap, and optional seatbelts for securing dense, compact loads. Suited for manufacturing, distribution, and warehousing applications, product and top cap are molded of HDPE structural foam plastic. Its 5-rail base provides even load distribution and support for storage and racking. Offerings include 4-way fork entry, solid top deck with 1 in. lip, and open corners.
Bin Activators range from 2 to 16 ft in diameter.
Vernon, NJ 07462-0009
Feb 06, 2003 Bin Activators incorporate dual-baffle design for continuous flow of dry materials without plugging, jamming, or bridging. Endless beaded flexible sleeve is 7/16 in. thick with 3-ply reinforcement that will not puncture, slip, or leak. Solid steel suspension arms are bolted at 90° and support up to 500,000 lb each to ensure activator remains attached to bin. Unitized motor vibrator and motor are included in single, sealed enclosure with no belts to slip or break.
Lubrication System applies oil to stock and dies.
East Providence, RI 02914-1342
Feb 06, 2003
MicroCoat® 780 Series provides steady or pulsed lubrication up to 300 times/min. It includes valve, valve controller, and 1, 5, or 20 gal tank. Valves use low volume, low pressure air to evenly coat stock or dies with fine, consistent film of oil. One valve covers area from 3/16-6.5 in. wide. If wider coverage is required, additional valves can be mounted side-by-side. Stroke control adjustment permits amount of lubricant to be fine-tuned for each job.
Transporter has 2,000 lb capacity.
Kinetic Technologies, Inc.
Wickliffe, OH 44092
Feb 06, 2003
ProFlow Series(TM) Model KT2 features H-shape roller-conveyor upper frame with optional side tilting, 360° rotation, and low 13 in. working height. Safety lockouts secure loads from rotating and sliding during transport. Optional Mini-Might(TM) low-profile 2500 lb capacity lift, with 4½ in. lowered height, fits under transport frame. Non-rotational conveyor with flat, diamond-plate upper frames is also available.

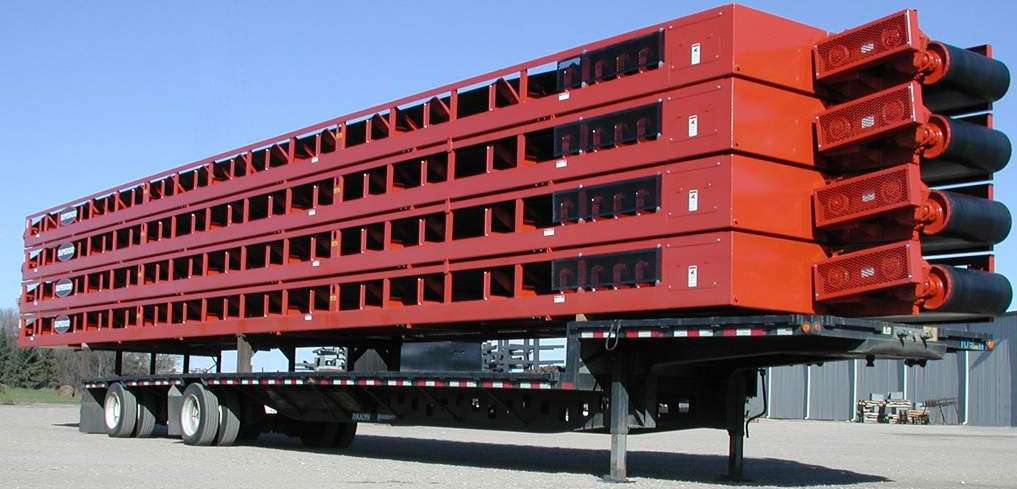

Conveyor allows transport of up to 8 units in one load.
Superior Industries Of Morris
Morris, MN 56267
Feb 05, 2003 Stackableâ„¢ Conveyor performs as transfer, stacking, and low-profile conveying unit. Undercarriage options include kick-down support, so unit can be used as transfer conveyor at 7-ft discharge height, axle undercarriage support to process material up to 500 tons per hr at 18° incline, and low-profile bend option, for use under discharge chutes with low headroom. Conveyor comes in 24, 30, and 36 in. belt widths and in 50 and 60 ft lengths.

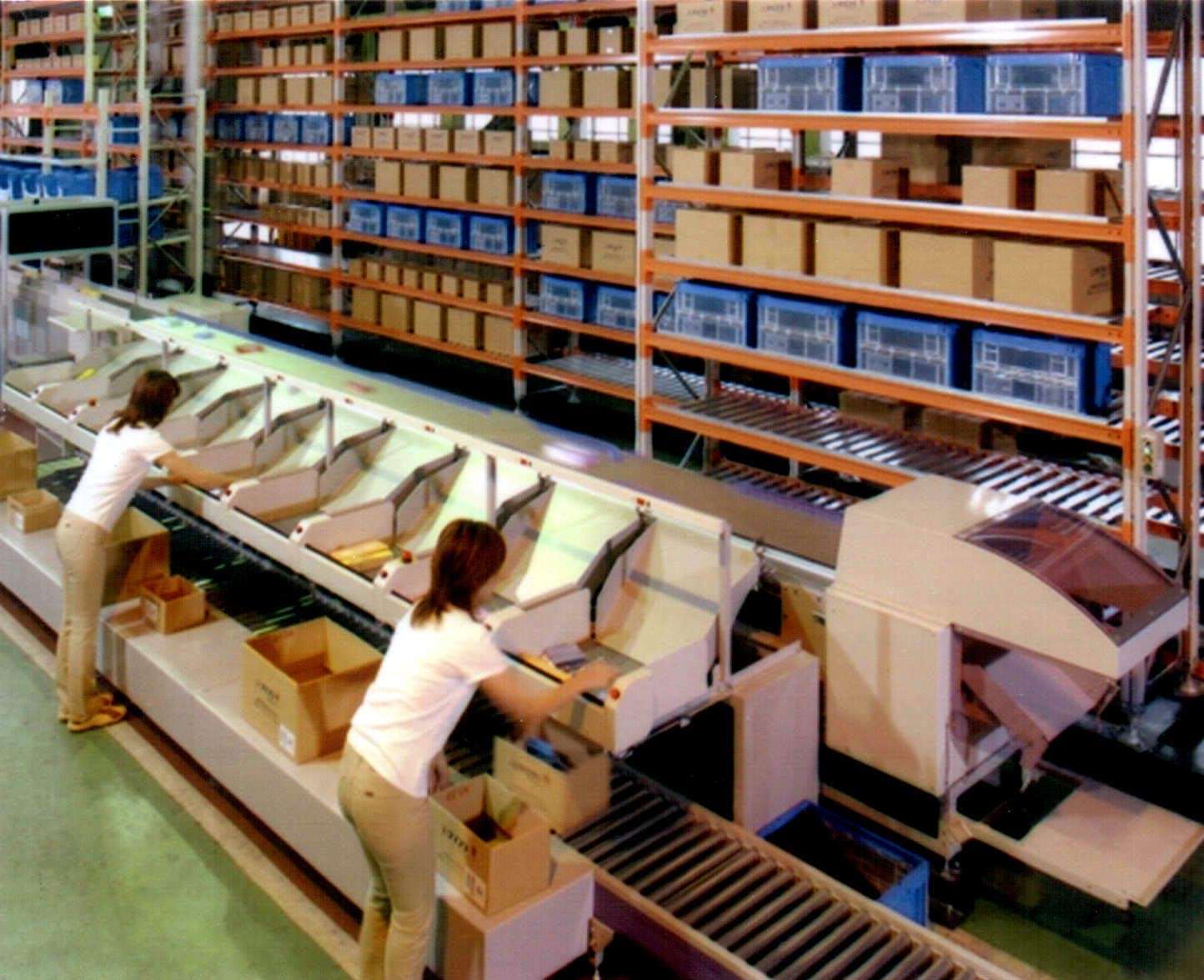

Sorter handles small and thin items.
Salt Lake City, UT 84116
Feb 04, 2003
Piece Sorter provides 6,000-8,000 sorts per hour for small and thin items from 1 oz up to 11 lb. It is easily adjustable to fit into any operation. Space-efficient design uses slide sorting with gentle touch. Non-contact/zero-maintenance power supply keeps unit running smoothly and quietly. When combined with barcode readers at sorting, accuracy is virtually 100%.
Two-Part Adhesive Gun dispenses fine bead without shaking.
Dispensing Technologies International Corp.
Clinton, MA 01510-2412
Feb 04, 2003 EZ-mix®HI hand-held dispenser eliminates repetitive squeezing and permits fine-tip dispensing. Portable, cordless unit incorporates light-touch trigger and instant retraction button for cartridge changes. Able to dispense up to fifty 50 ml dual cartridges on 1 charge, Drip-Freeâ„¢ design reduces/eliminates oozing from mix-tip. Made of ABS plastic, ergonomic tool has hardened steel drive mechanism and variable speed DC motor control with torque limiter for overload protection.

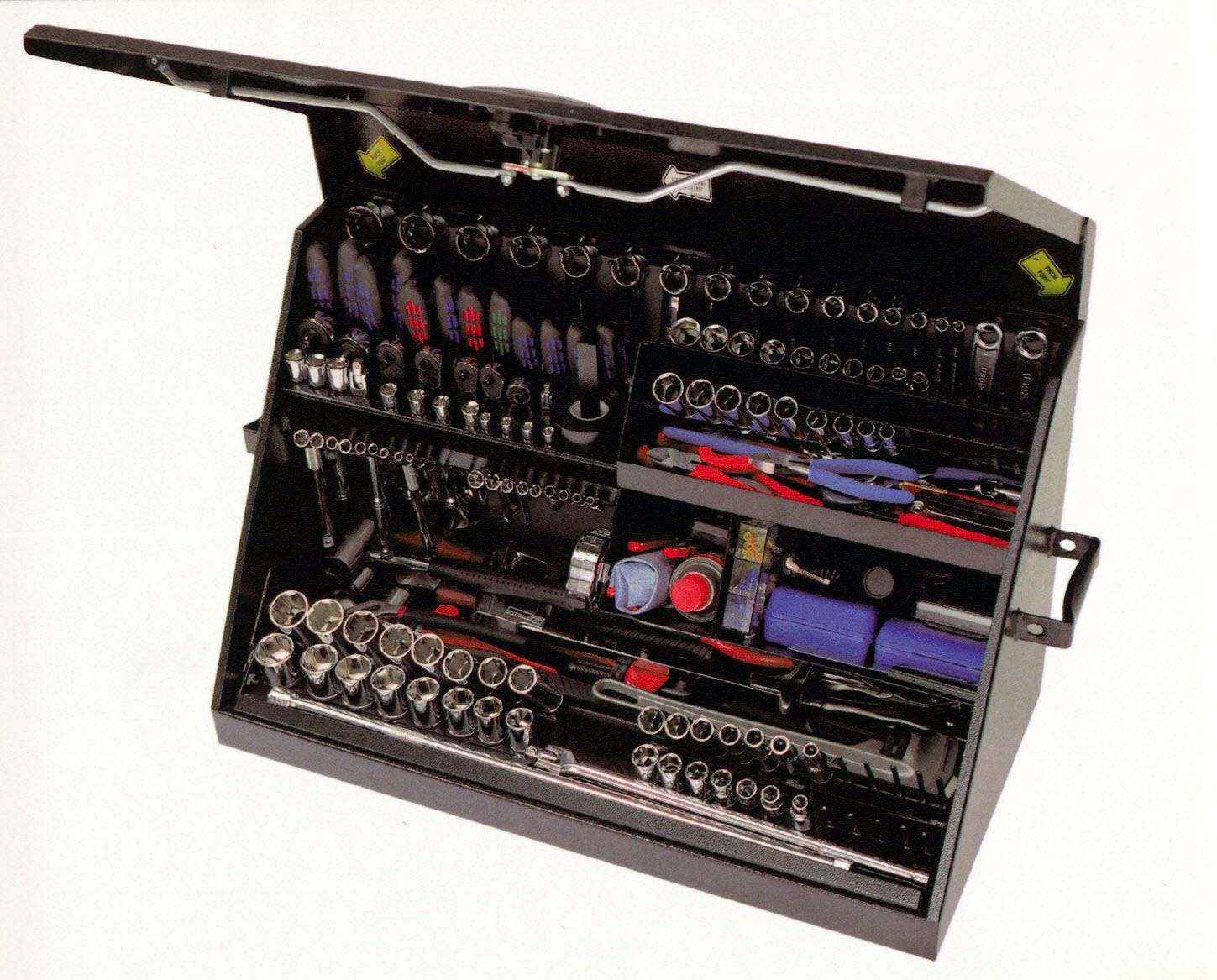

Toolboxes utilize steel pegs to hold sockets.
Montezuma Welding & Manufacturing Inc.
Montezuma, KS 67867
Feb 04, 2003 Largest of 3 models, Model LA400 accommodates metric and SAE tools. Models ME300 and SM200 accommodate SAE tools. T handle latch can be locked with built-in lock or by using spring loaded padlock eye. Toolboxes accommodate longer combination wrenches and can hold deep and regular sockets. All are offered in black, red, or white.
Trim Removal System accommodates extreme line speeds.
Precision Airconvey Corp.
Newark, DE 19702
Feb 03, 2003
TrimPAC(TM) cuts and evacuates edge trim from slitters and die cutters to provide clog-free conveying. Pre-engineered with in-line cutter, material handling fan, piping, air separator, and 2 inlet pickups, TrimPAC conveys film, foil, laminate, paper and other water material up to 300 ft at 5,500 fpm. TrimPAC may be customized with pedestal base, silencer, static eliminator, and range of motors to suit virtually any application.
Wire Feeders accept 8 and 12 in. spools.
Miller Electric Mfg. Co.
Appleton, WI 54912 1079
Feb 03, 2003
SuitCase(TM) 8RC and 12RC remote voltage-control wire feeders weigh between 22.5 and 25 lb, permit wire spools in 8 and 12 in. sizes, and perform MIG and flux-cored welding with wires from .023 to 5/64 in. in dia. They are suited for construction, manufacturing, and shipbuilding applications.
Fuse Holder works with BUSS® Bar.
Bussmann Div., Cooper Industries
St. Louis, MO 63178
Feb 03, 2003
Class J fuse holder enables direct power connections to be made through product to busbars. Offered in BUSS® Bar and panel-mount styles, 3-pole units with covers are available in 100, 200, and 400 A versions. Compact size saves busbar or panel space, while 3-pole fuse cover reduces possibility of contact with live parts. Design aids in complying with NFPA70E, Standard for Electrical Safety Requirements for Employee Workplaces.
Tool Storage Units have custom paint and racing graphics.
Kenosha, WI 53141 1410
Jan 31, 2003 Commemorating 10 seasons with Richard Childress Racing (RCR), model KRL7023PJCWS workstation has stainless steel work surfaces, risers, and overhead compartments, as well as full-width, 3 and 5 in. deep drawers with 3,406 in.³ and 6,348 in.³ capacities, respectively. With wooden worksurface, model KRA5213PJCWS depicts winning RCR team vehicles, while Combination Tool Box model KRA410714PJC commemorates 3 series victories and 2003 edition No. 29 car.

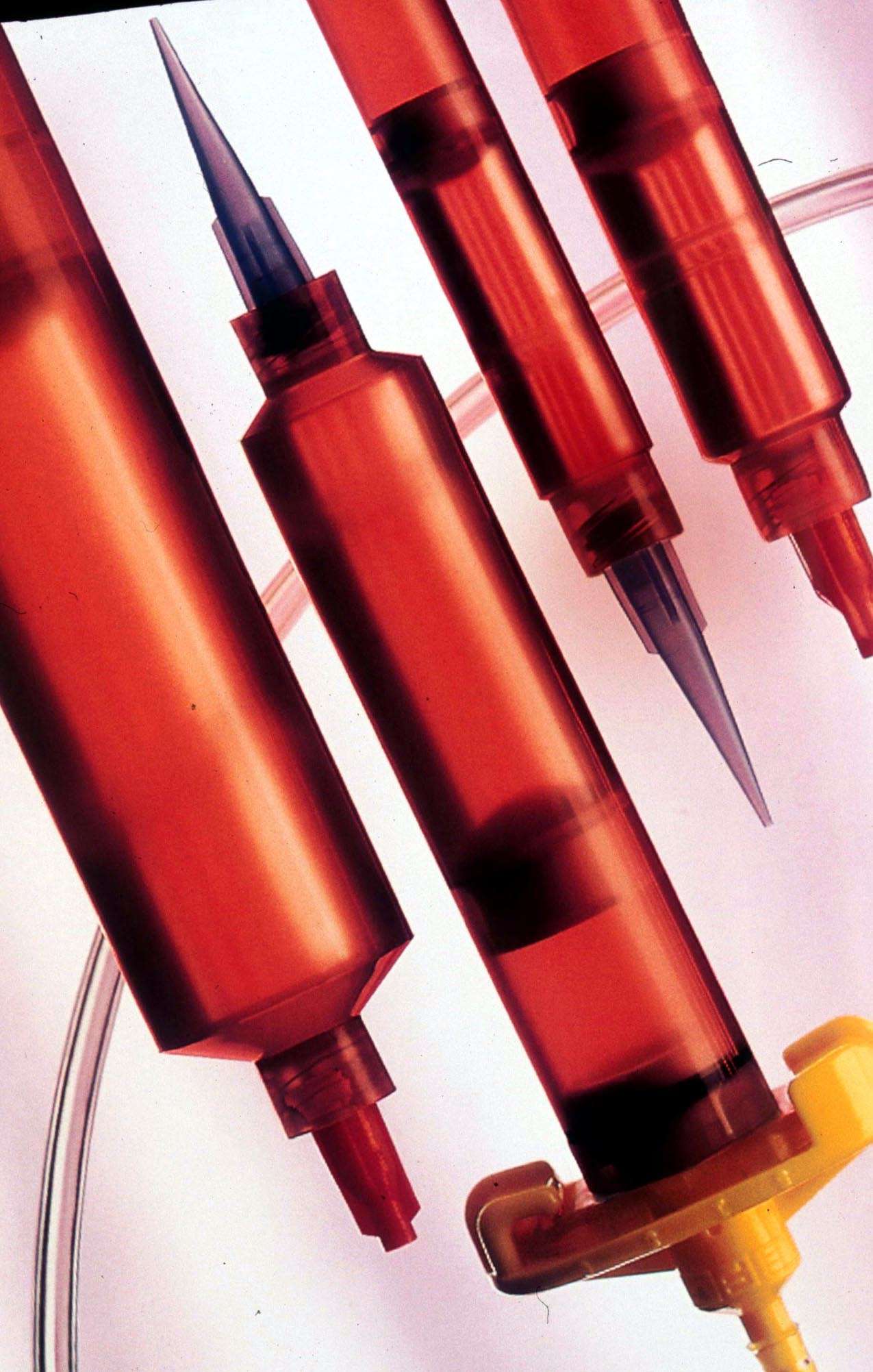

Syringe Reservoirs block light wavelengths from 240-550 nm.
East Providence, RI 02914-1342
Jan 31, 2003 Used with air-powered dispensing systems, LB Series syringes have translucent, dark amber reservoirs that prevent UV-cure adhesives and light-sensitive assembly fluids from curing prematurely. Users can monitor fluid levels and check for bubbles in fluid. SmoothFlowâ„¢ pistons, installed after reservoirs are filled, prevent dripping and eliminate fluid waste by wiping reservoir walls 97% clean. Reservoirs are available in 3, 5, 10, 30, and 55 cc capacities.
