Graco Inc.    Minneapolis, MN 55440

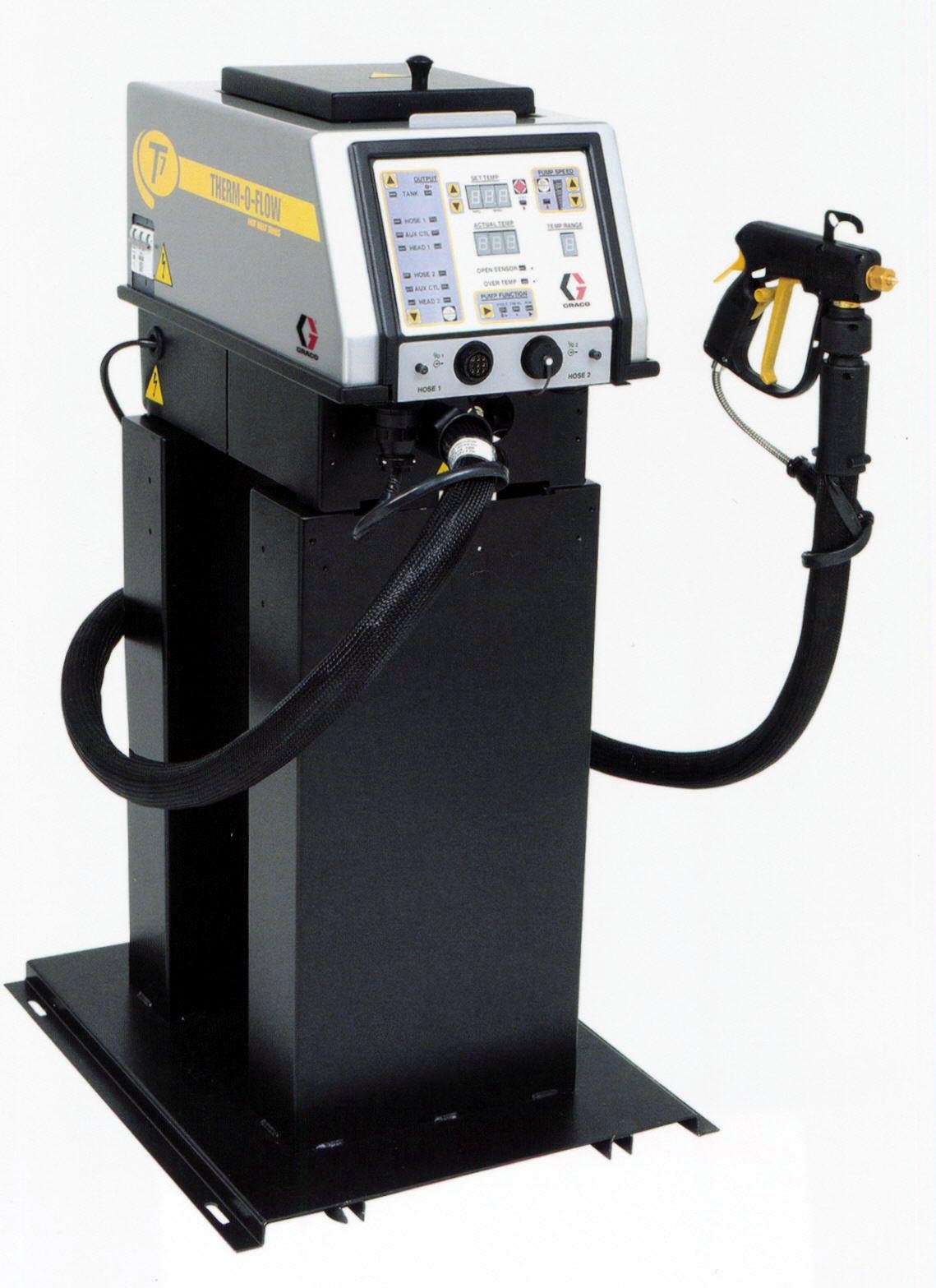

Apr 10, 2003 Therm-O-Flow® PTFE-coated tanks come in 5, 7, and 18 liter models. Each includes gear pump with pressure controlled output, accurate temperature control, sensors for diagnostics and over-temperature protection, and LED display for system status. Two larger units also feature adjustable speed DC-drive motor and user-selectable set back. Available in manual and automatic versions, systems support 1, 2, or 4 hose and applicator assemblies.

Bel-Art Products    Wayne, NJ 07470

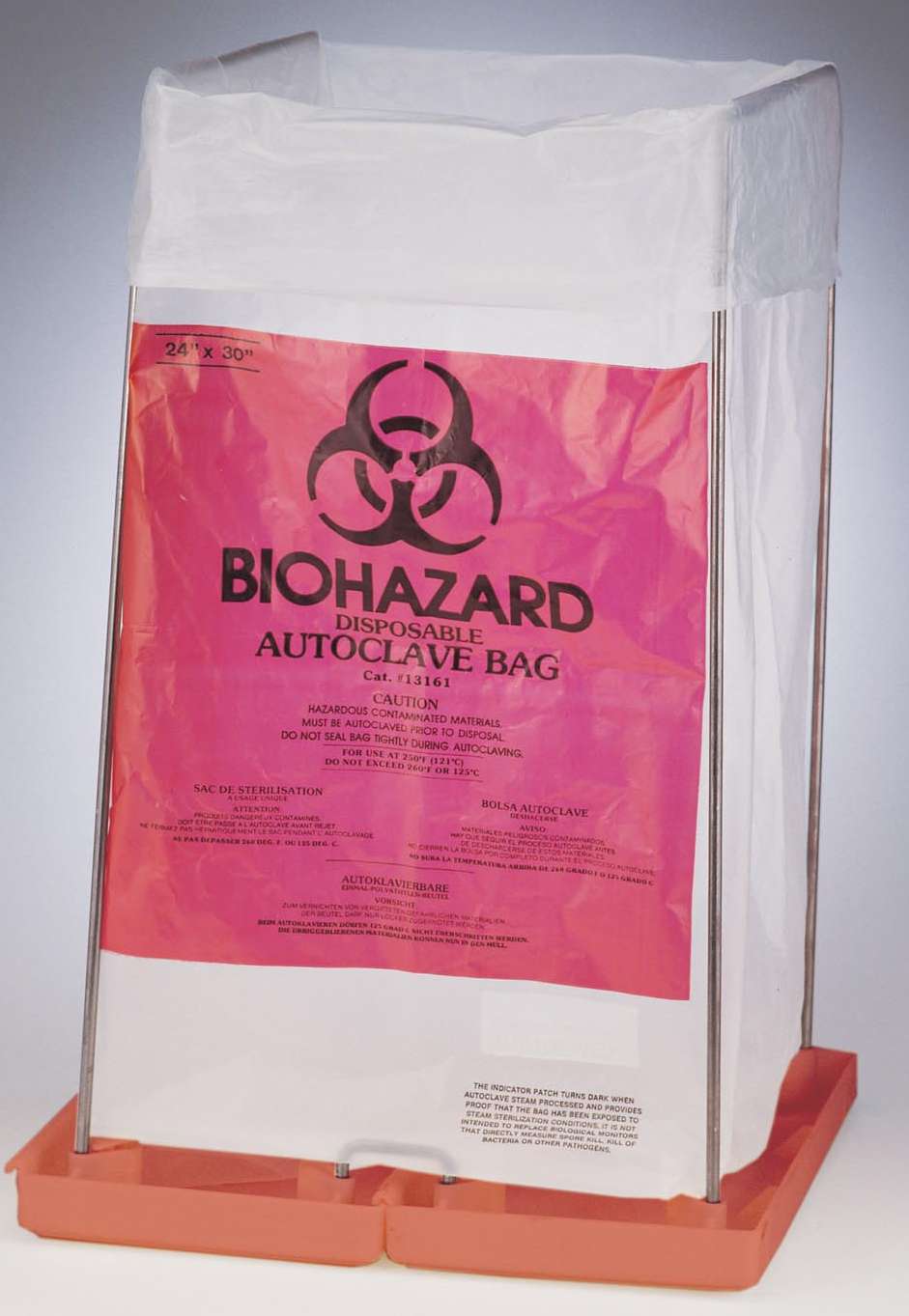

Apr 09, 2003 Clavies® Biohazard Bag Holder is designed with stainless steel wire frame and polypropylene bottom, which also serves as containment tray in case of bag leakage. Trays are safety orange in color for identification as biohazard containment system. Available in small, medium, and large sizes, bag holder is autoclavable at 250°F to maintain sterility. Product is shipped unassembled and can be assembled in minutes.

Safeline Metal Detection, Inc.    Tampa, FL 33634 3009
Apr 09, 2003 POWERPHASE metal detectors for fresh cut produce industry is for foodservice and consumer sizes of ready-to-eat salads and vegetables in bags or tubs. Multi-Frequency capability enables single metal detector to run conductive and non-conductive product. Detector helps processors meet guidelines for HACCP implementation and for Vendor Certification requirements. QA personnel may program detector to indicate frequency of manual testing.

Topper Industrial    Sturtevant, WI 53177

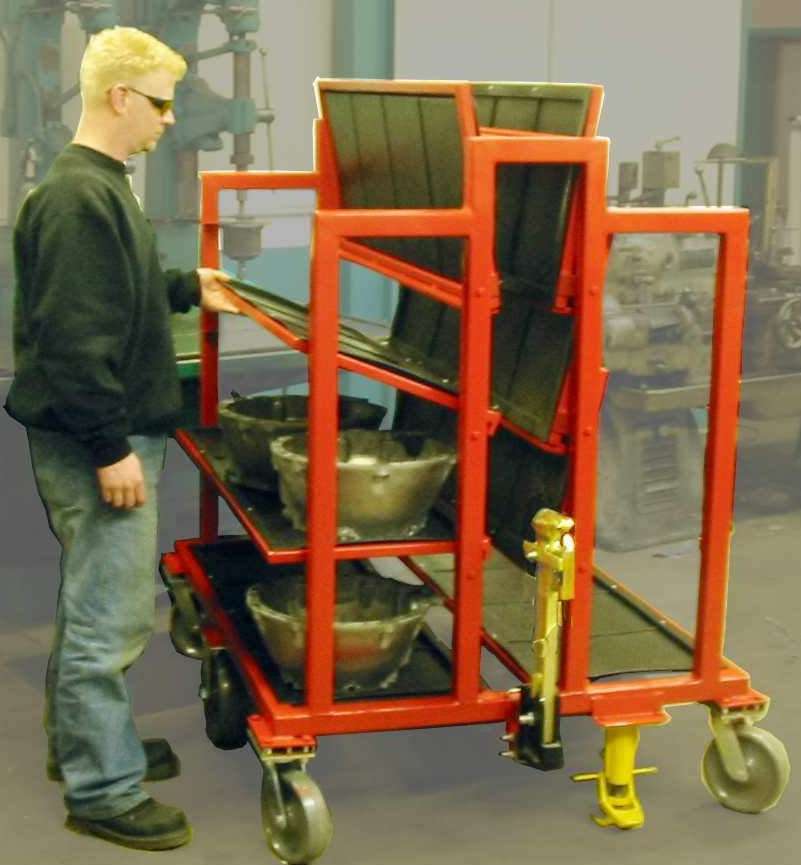

Apr 09, 2003 Tilt Shelf Cart has counterbalanced shelves that tip and pivot out of the way once product has been removed. Carts carry dunnage-cradled products to and from production area, with 6 casters for rolling and maneuvering up to 3,000 lb. Easy-Release Tow Bar hooks and unhooks from tugger and foot-operated floor stop keeps cart in place.

Mack Corp.    Flagstaff, AZ 86004
Apr 09, 2003 Low Profile Air Cylinders have heavy walls and threaded end caps for easy repair and seal replacement. Forty eight configurations are available in 16 mounting styles with 4 bore sizes and choice of stroke to 12 in. Units feature precision machined components, internal lube cavities, oil impregnated rod bearings, density enhanced cylinder bores, and internal shock absorbers. Port relationship is adjustable.

Hirschmann Engineering USA, Inc.    Schaumburg, IL 60173
Apr 08, 2003 Jauch and Schmider rotary indexing tables and A/B axes can be integrated on wire and die sinking EDM machines as well as CNC machining centers. Equipment includes face place or taper type part mounting. Optional clamping devices include proprietary, 3R, and Erowa clampers; accessories include collect chuck. Axes are equipped with direct or indirect measurement systems, and rotary indexing table can be controlled directly by machine control unit.

Graco Inc.    Minneapolis, MN 55440

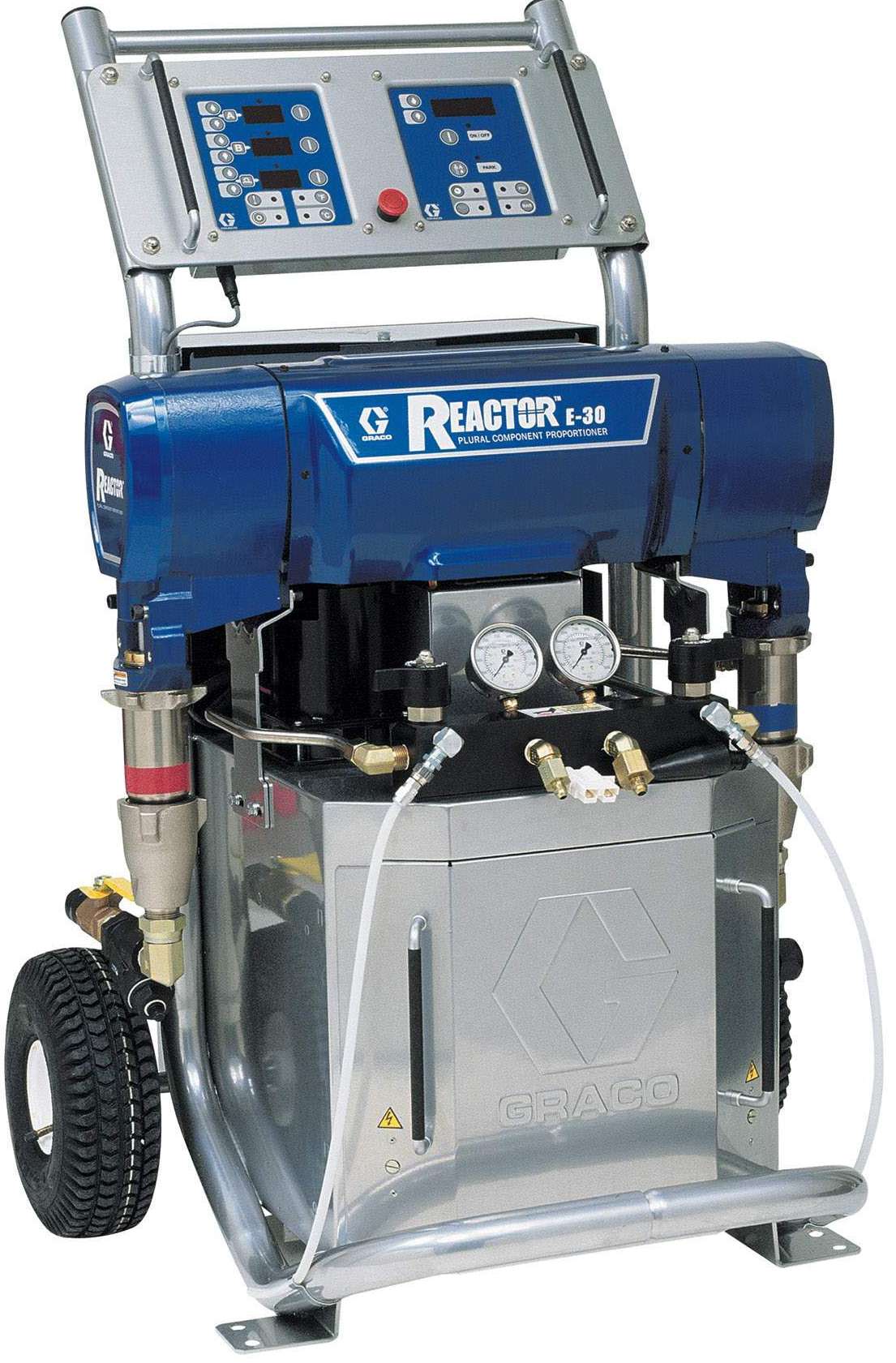

Apr 08, 2003 Reactorâ„¢ E-Series proportioner for spraying plural components such as polyurethane foam and polyurea is for insulation and waterproofing applications. Digital controls provide diagnostics and ratio assurance to simplify operation. Features include digital pressure control, reduced pulsation, improved pump loading, and balanced feed pressures. Temperature-sensing capabilities provide accurate heating.

Kason Corporation    Millburn, NJ 07041

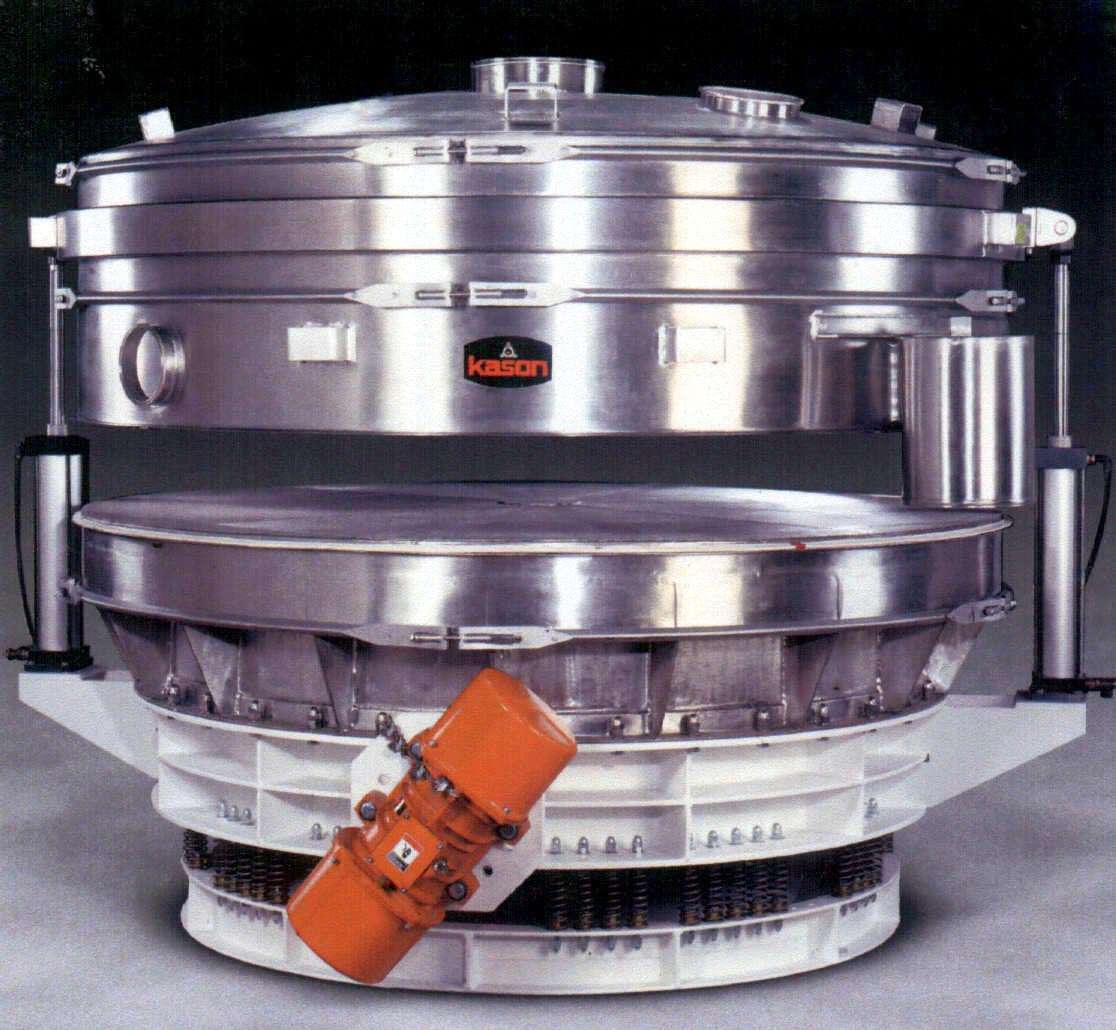

Apr 08, 2003 VIBROSCREEN® Flo-Thru low profile screener features Air-Lift device that allows rapid disassembly, cleaning, inspection, and screen changes. Two unbalanced-weight gyratory motors are mounted on opposing exterior sidewalls, reducing minimum height requirement. Design allows vertical alignment of top inlet and bottom outlet, permitting material to descend through screen in straight-through path at high rates. Diameters range from 18–24 in.

Hapman Conveyors    Kalamazoo, MI 49003

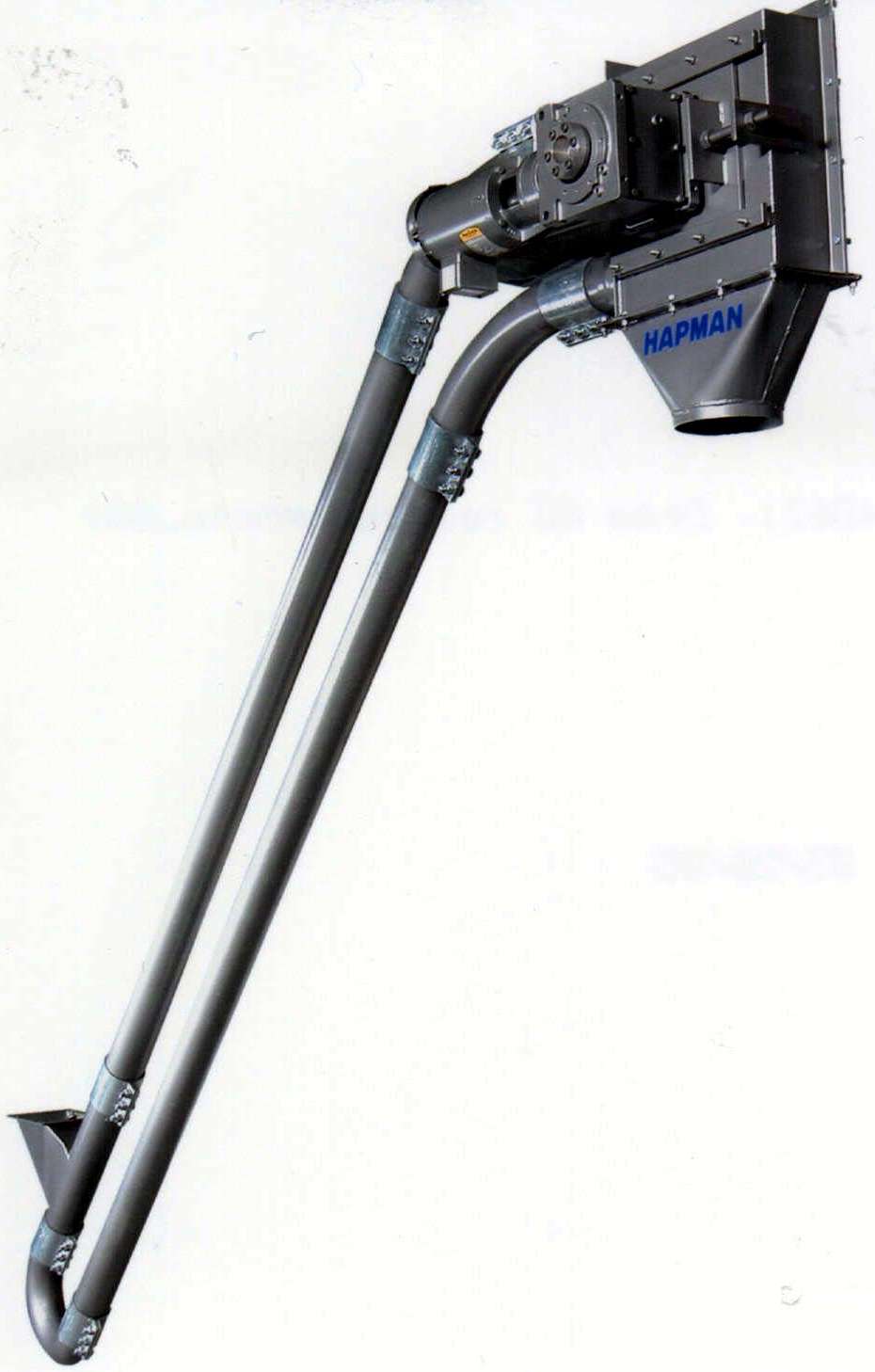

Apr 08, 2003 Engineered with chain design, Model C provides gentle handling with practically no degradation while maintaining totally enclosed system. Moderate-duty unit handles up to 15 cfm and serves as direct replacement for cable conveyors. Product is suited for applications such as powder and bulk material handling.

Spiroflow Systems, Inc.    Monroe, NC 28110
Apr 07, 2003 Dust-tight system includes mobile bulk bag discharger with integral aero-mechanical conveyor. Mobile unit eliminates need to build frames or gantries and can be set up by one operator. Bulk bags are lifted into place as needed by forklift. Adjustable conveying angle allows servicing of different size vehicles; throughput is unaffected by angle. Aero-mechanical conveyor is comprised of rope loop traveling through tube with spaced discs secured to it.

Ace Industrial Products    St. Louis, MO 63131

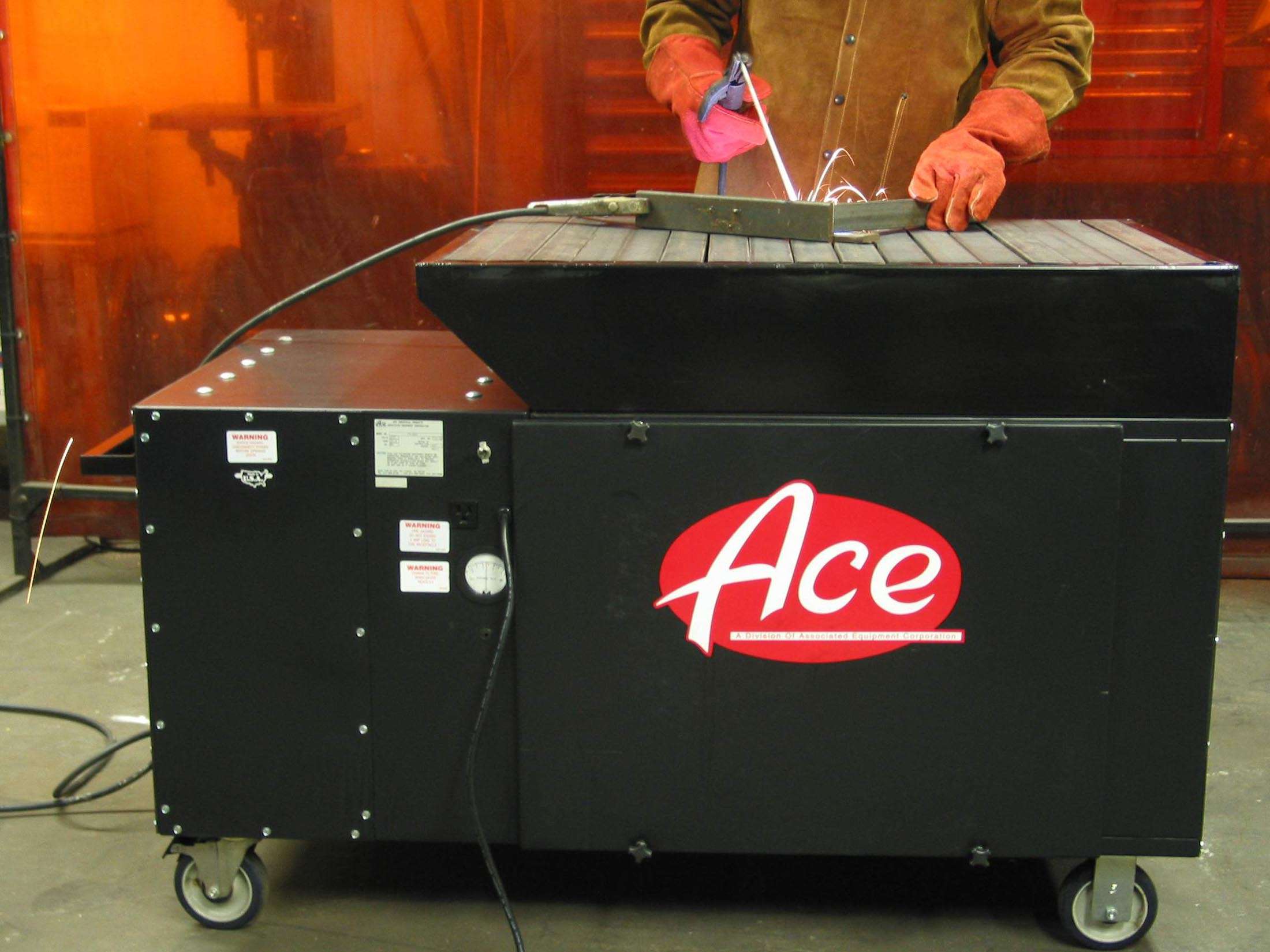

Apr 07, 2003 Model 73-923 roll-around, self-contained, air-filtration table eliminates dust and smoke particulate from welding, grinding, and plasma-cutting operations. Clean air is drawn through adjustable top at 1200 cfm. Five-stage process provides air filtration down to 0.3 micron at 99.97% HEPA efficiency. Series of 1/8 in. thick U-channels allow air to be drawn into unit at over 500 fpm. Tabletop measures 24 x 36 in. working top and has 500 lb capacity.

Dorner Mfg. Corp.    Hartland, WI 53029 0020

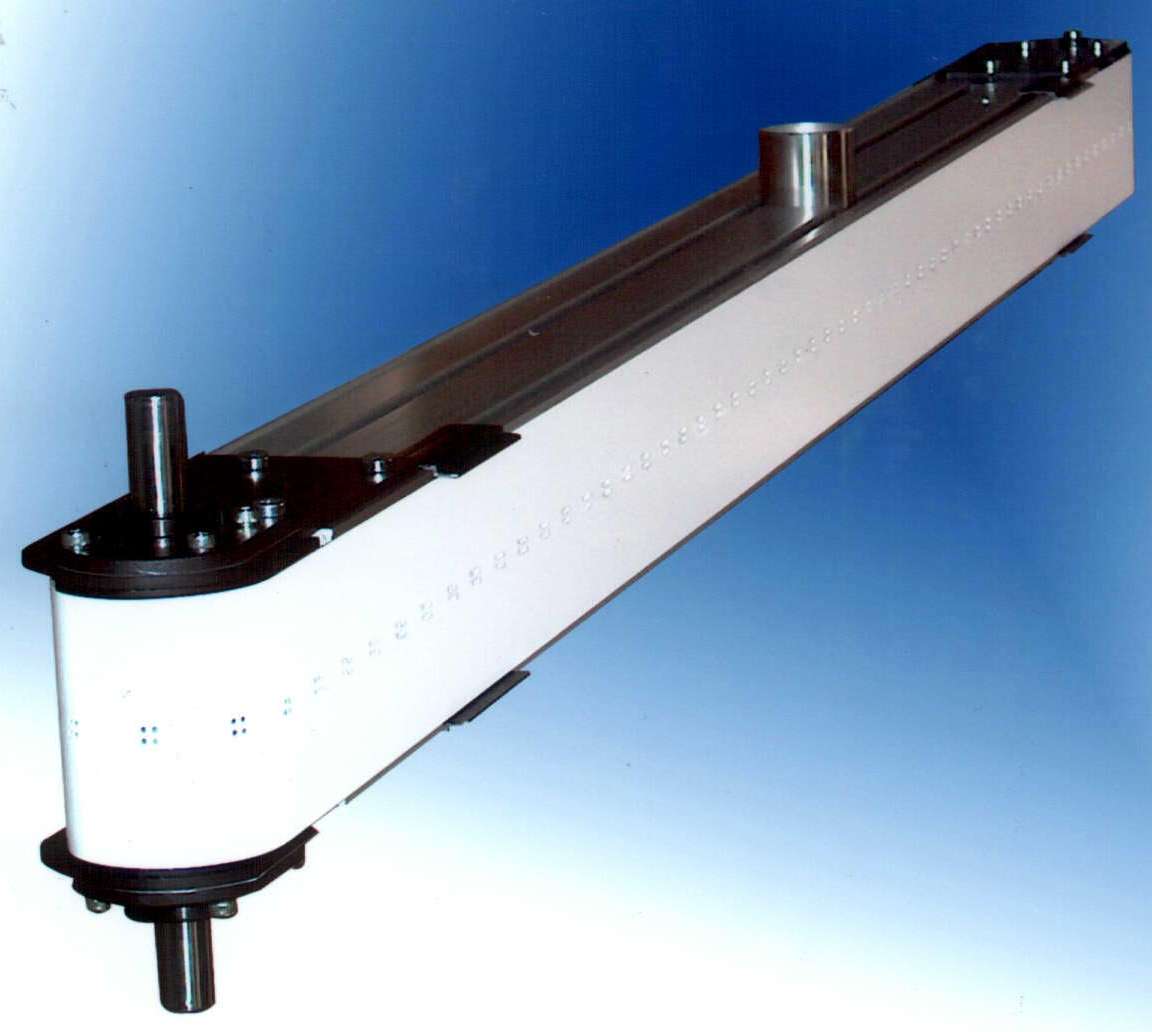

Apr 04, 2003 Made-to-order 3200 Series vacuum conveyors have enclosed frame bottom, port for vacuum source, and perforated belt. Offered with widths to 48 in., lengths are available from 4–30 ft in any 1/8 in. increment. Options include choice of flat belt, cleated belt, and center drive models; end and center drive options; and V-Guide belt. Units have belt speeds to 421 fpm and are suited for maintaining control of flimsy parts or material in transit.

Caldwell Group, Inc., The    Rockford, IL 61109
Apr 04, 2003 Krane-King® gantry cranes are offered in steel and aluminum, with fixed or adjustable heights and capacities of 1–8 tons. Posi-Gantriâ„¢ load rotation system attaches to new/existing gantry cranes, while rotating leg feature allows either leg to be turned to fit through bottlenecks as narrow as 12 in. Jib cranes are available in base, column, or sleeve mount and mast type in capacities to 5 tons. Wall-mount tension and cantilever designs are available in capacities to 3 tons.

Nex Flow Air Products Corp.    Williamsville, NY 14221
Apr 04, 2003 Ring-Vac is made of anodized aluminum or stainless steel for high temperature and food grade applications. Material flow rate is easily controlled with pressure regulator. Sizes include 1, 1¼, 1½, and 2 in. outside diameters to fit standard hose sizes. Ring-Vac is suitable for conveying paper, plastic pellets, chips, waste, and other items by connecting hose to each end.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214

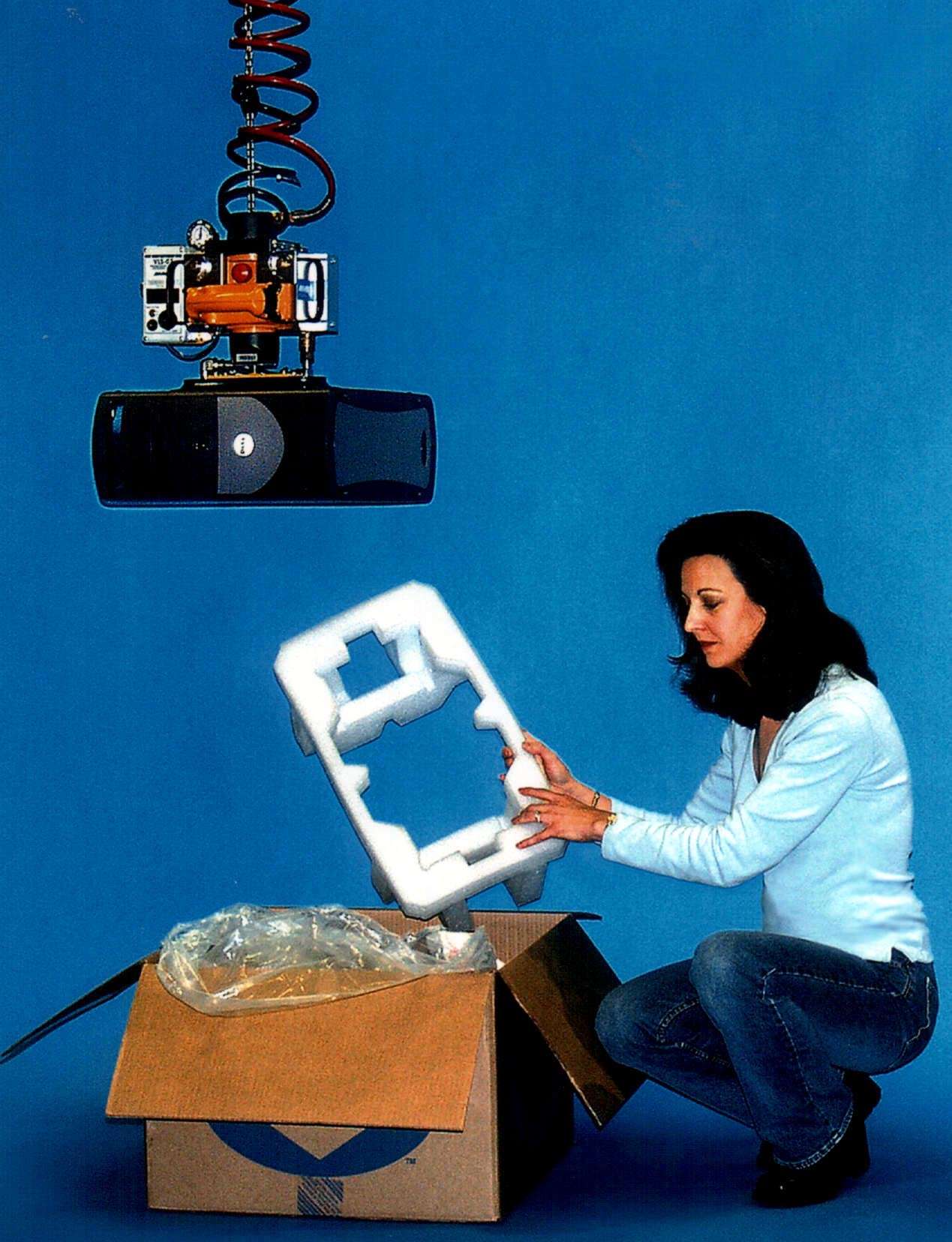

Apr 04, 2003 Series VM Integrated Ergonomic Vacuum-Hoist Lifting System stays in place without drift when up/down controls are released, eliminating need for two workers when packing finished goods. It uses compressed air to create vacuum and features 2-button load attach and release mechanism for safety. Lifter provides 24 in. Hg constant vacuum holding power, variable speed electric chain hoist for positioning loads, and offers capacities up to 1,000 lb.

Philadelphia Mixers    Palmyra, PA 17078 9518

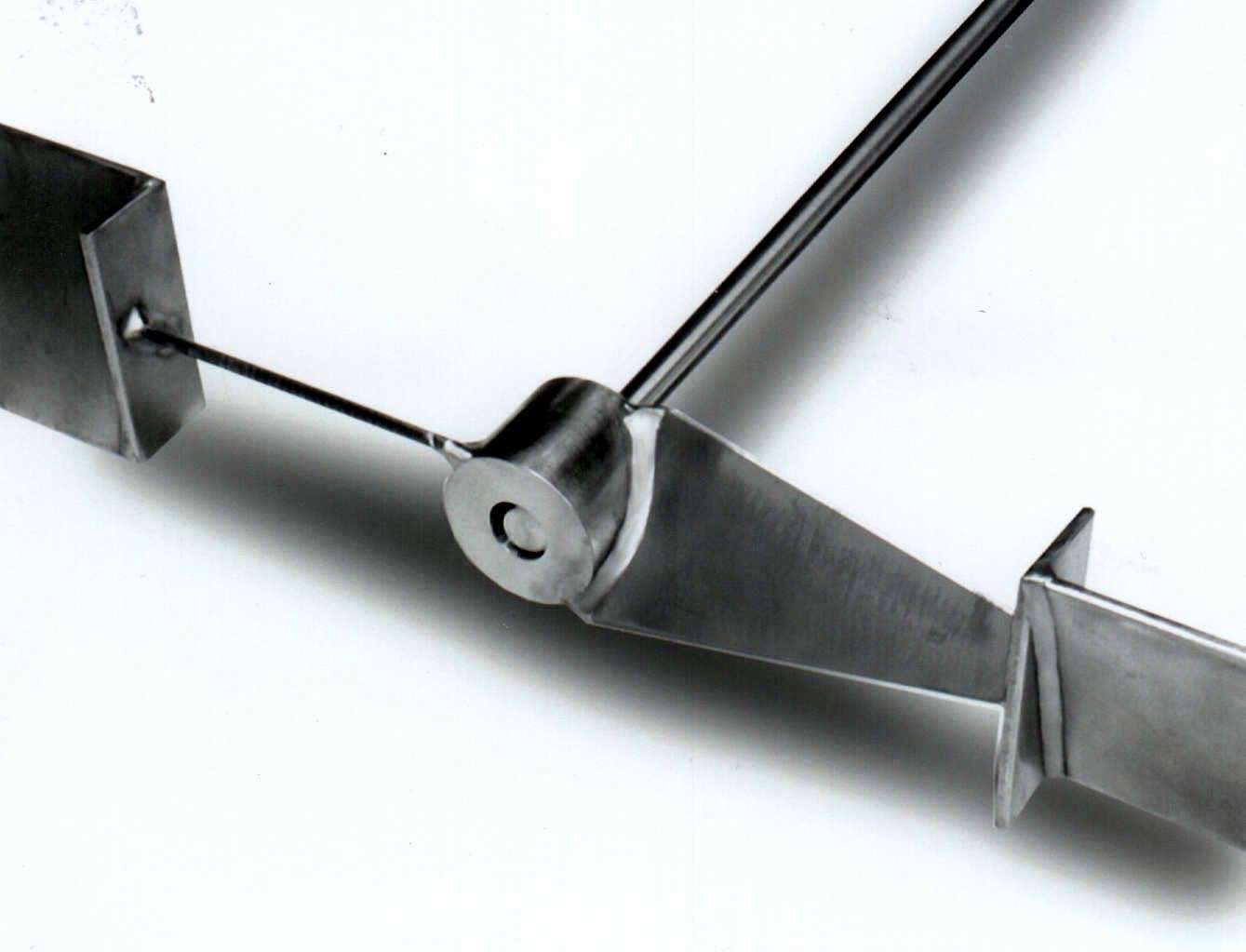

Apr 03, 2003 CF Counter Flow Mixer Impeller promotes strong up and down pumping action, while helping to control Weissenberg (shaft climbing) effect of fluid being blended. Mixed axial and radial flow allow it to operate at high impeller to tank ratios. Impeller is suitable for high viscosity polymer blending applications.

Handling Specialty, Inc.    Niagara Falls, NY 14304 0279
Apr 03, 2003 Gantry features guard rail, self-locking gate, safety hook-ups, double flanged wheels with locking brakes, and access ladder with safety cage. Air conditioners are lifted from railcar roofs via 2,000 lb capacity electric chain hoist.

Kurt Manufacturing    Minneapolis, MN 55421

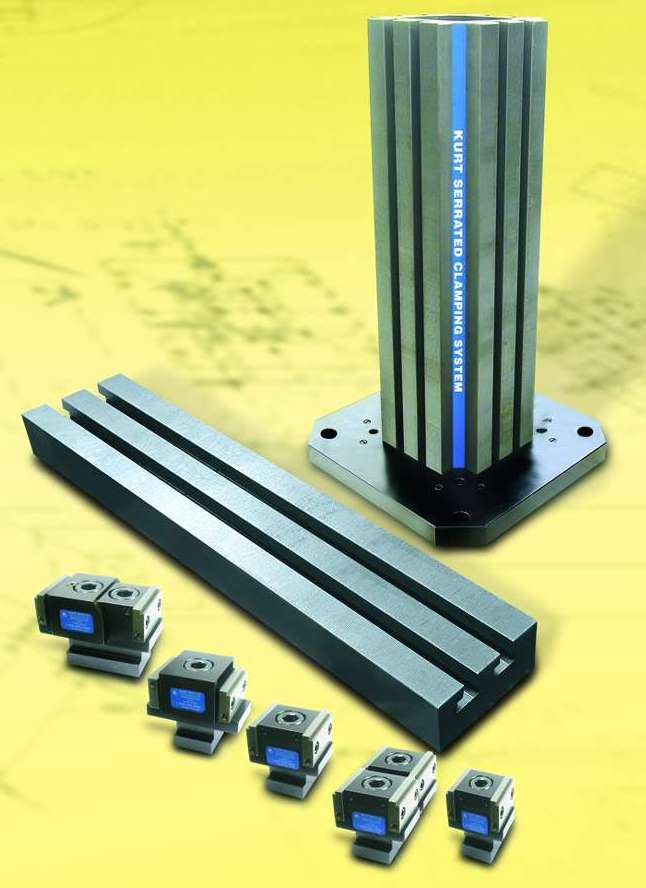

Apr 03, 2003 SeraLock Towers, Pallets, and WedgeLock self-aligning workholding modules allow machining of like and unlike workpieces all in same setup. System employs reusable clamping components that can be mixed and matched to hold any size part. Towers and pallets have V shaped serrated surfaces for alignment of WedgeLock clamping modules. Towers are available in 4-, 2-, and single-sided units, with base that mounts to horizontal machining center or indexer.

Wesco Industrial Products    Lansdale, PA 19446

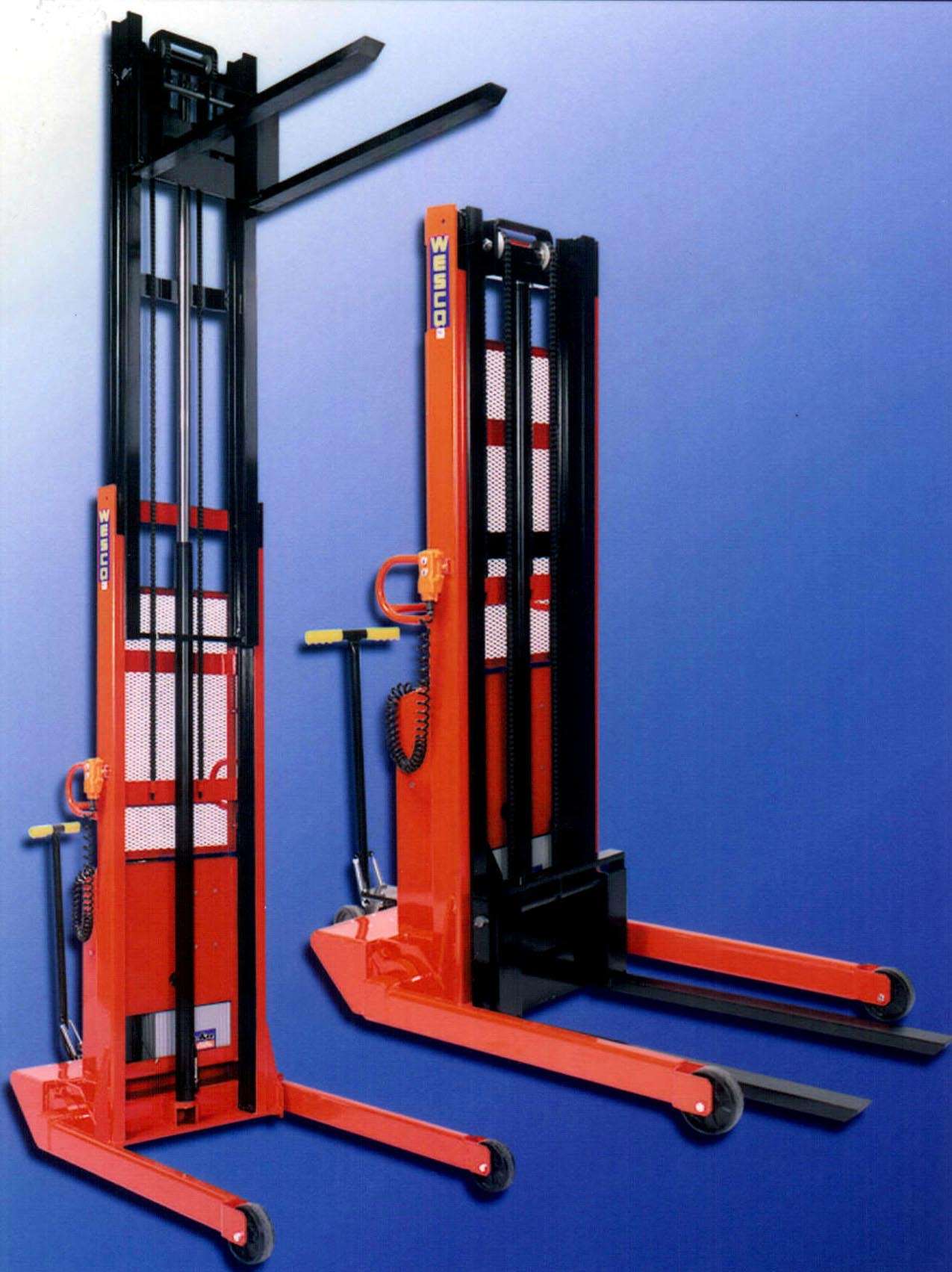

Apr 03, 2003 Stacker incorporates gel cell battery and telescoping rails to lift loads of 2,000 lb up to 130 in high. Extra deep straddle legs (42 in.) can be adjusted from 35–50 in. inside width to handle standard pallets. Offerings include LED battery charging status indicators, illuminated voltmeter, and computer-controlled charger that allows stacker to be used while recharging. Lift mechanism offers double chain/lift support and heavy-duty pump.

B.A.G. Corp.    Dallas, TX 75218

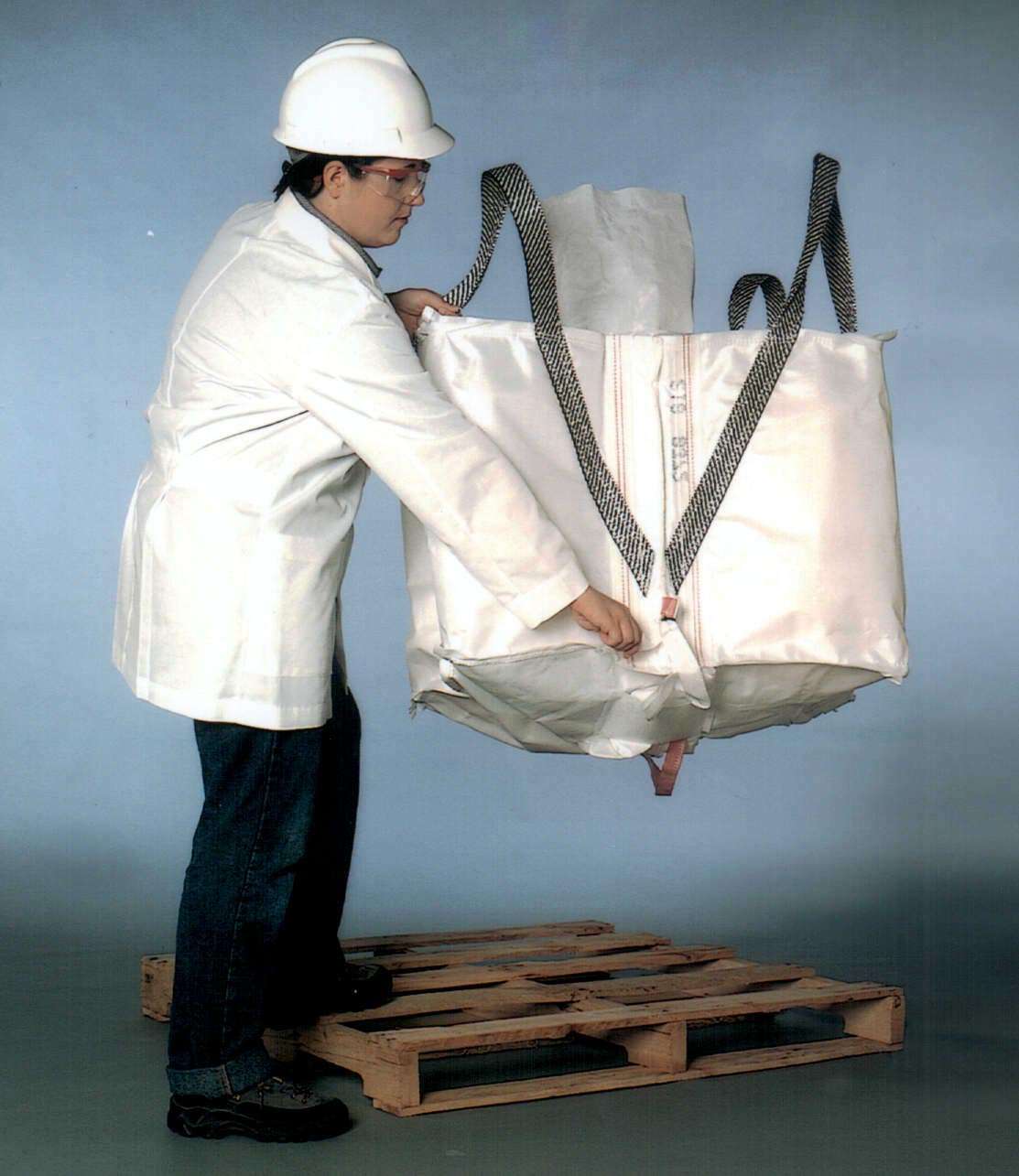

Apr 03, 2003 Super Sack® FIBC is composed of exterior double-walled woven polypropylene, internal baffle design, and reinforced stitching for maintained square shape and stackability. Lift loop design allows for forklift access and package handling. Remote Open Discharge permits operator to safely discharge bag and maintain control of product flow. Bag can handle over 2,500 lb with 5:1 safety ratio. It is suitable for plastic and metal parts, metal powders, and coins.
