Bel-Art Products    Pequannock, NJ 07440 1920
Oct 15, 2002 Secador(TM) 4.0 Auto-Dessicator Cabinet provides stable, dry protection for short and long-term dry storage of humidity sensitive items. System stabilizes humidity level to about 25% in 8 hr by automatically regenerating desiccant every 20 min. Sealed design is airtight and includes imbedded UV protection of cabinet and contents. Built-in hygrometer monitors humidity level. Cabinet provides 2 cu ft of storage in either horizontal or vertical configuration.

Lista International Corp.    Holliston, MA 01746
Oct 14, 2002 Shelf Converter(TM) freestanding system of modular drawers is set in wire frame, which easily inserts into any standard shelf. Wire housing is available in 14½, 20½, and 26½ in. heights and sizes of 36 x 18 and 36 x 24 in. Drawers have 100% full extension suspension system and 150 lb load capacity. Aluminum partitions and dividers can be placed in 1 in. increments for optimum use of drawer space. Handles have label holders for identification of contents.

MK Automation Engineering Inc.    Bloomfield, CT 06002
Oct 14, 2002 Flat-top and table-top chain conveyors are based on aluminum-profile frames with full length t-slots for assembly components, such as side-frames, drive units, supports, and guide rails. Flat-top chain choices including steel and thermoplastic are available in standard widths of 3¼, 4, 4½, 6, 7½, 10 and 12 in. Conveyor chain choices include all plastic, all steel, and roller chain, with snap-on flights in straight running or side-bow/side-flex types.

Vestil Manufacturing Co.    Angola, IN 46703-0507
Oct 11, 2002 Open End Dumping Hopper allows orderly loading at ground level. Rolling smoothly on 4 x 2 in. phenolic casters, it can easily be moved from one location to another. Once hopper is full or user has finished loading items, hopper can be dumped with use of fork truck. Overall size is 55 in. wide x 60 in. deep x 54 in. high with usable inside dimensions of 51½ in. wide x 60 in. deep x 48 in. high. Capacity is 2,000 lbs.

FKI Logistex North America    St. Louis, MO 63132
Oct 11, 2002 With two tilting trays on each cart, and ability to sort more than 40,000 items an hour, S-3000DT double-tray sorter measures, barcode-scans, and weighs items to be sorted. Economical footprint and ability to discharge items from either side of cart allow installation into facilities with limited floor space. Ideal for books, clothing, mail, pharmaceuticals, compact discs, and similarly lightweight items.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192
Oct 10, 2002 RexMoverâ„¢ rodless pneumatic cylinders offer virtually leak-free operation. Oval-shaped piston design allows greater resistance to side load. Air connection choices include: on side at both ends, on rear of end covers, or one on end cover. Models are available with internal guiding, slide bearing guide, mini guide, or heavy-duty guide. All feature aluminum construction, cushions and impact bumper, magnetic piston for sensors, and grooves for sensors on 3 sides.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192
Oct 10, 2002 Guided Pneumatic Cylinder is offered in 10 different diameters between 12 and 100 mm with stroke lengths up to 200 mm. Guide rods are supported by either slide bearings or ball bearings. Two cylinders can be directly combined to 2-axis system without any adapter plate. Applications include material handling systems, stopping or clamping, and carrier of grippers, suction cups and other fixtures.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192
Oct 10, 2002 VarioFlowâ„¢ single strand chain conveyor lets manufacturers link assembly operations with functions such as parts feeding and packaging on either side of assembly process. Profile widths include 65 and 90 mm, with chains of 62 and 87 mm, respectively. Chain handles tensile force up to 1250 N. Applications include automotive, electronics, packaging, and personal care industries.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192

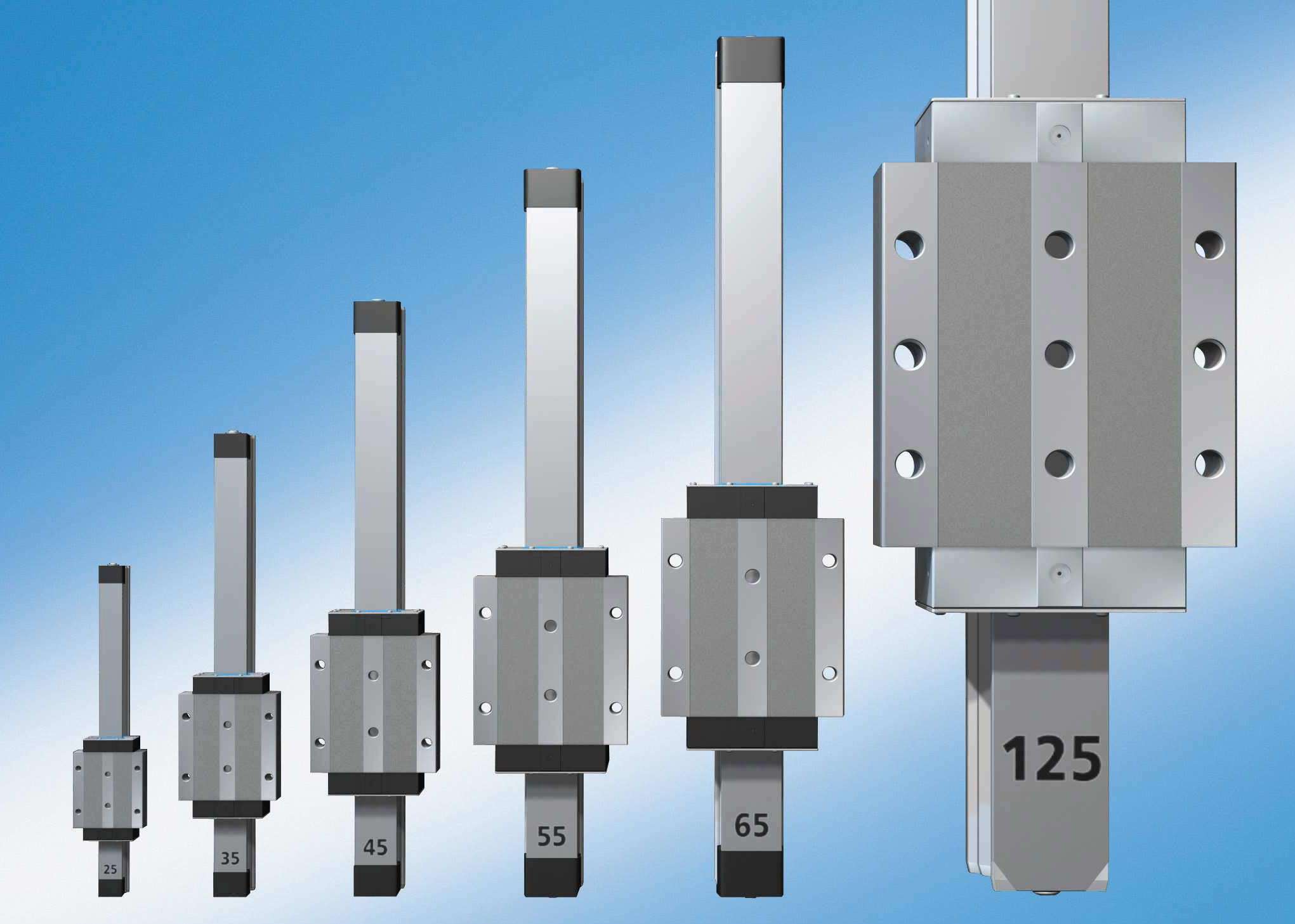

Oct 10, 2002 Roller Rail Systems are linear guide ways which utilize precision bearing rollers. Sizes 65/100 and 125 meet special requirements in machine tool, injection molding, robot, and heavy machinery industries. Size 65/100 is 100 mm wide with 2-row hole pattern. Both guide rails come with Rail Sealâ„¢ cover strip, machined aluminum end caps, and additional lube ports. They can be ordered in single-piece lengths up to 4 m, or as composite rails when lengths greater than 4 m are required.

Genie, a Terex Company    Redmond, WA 98052

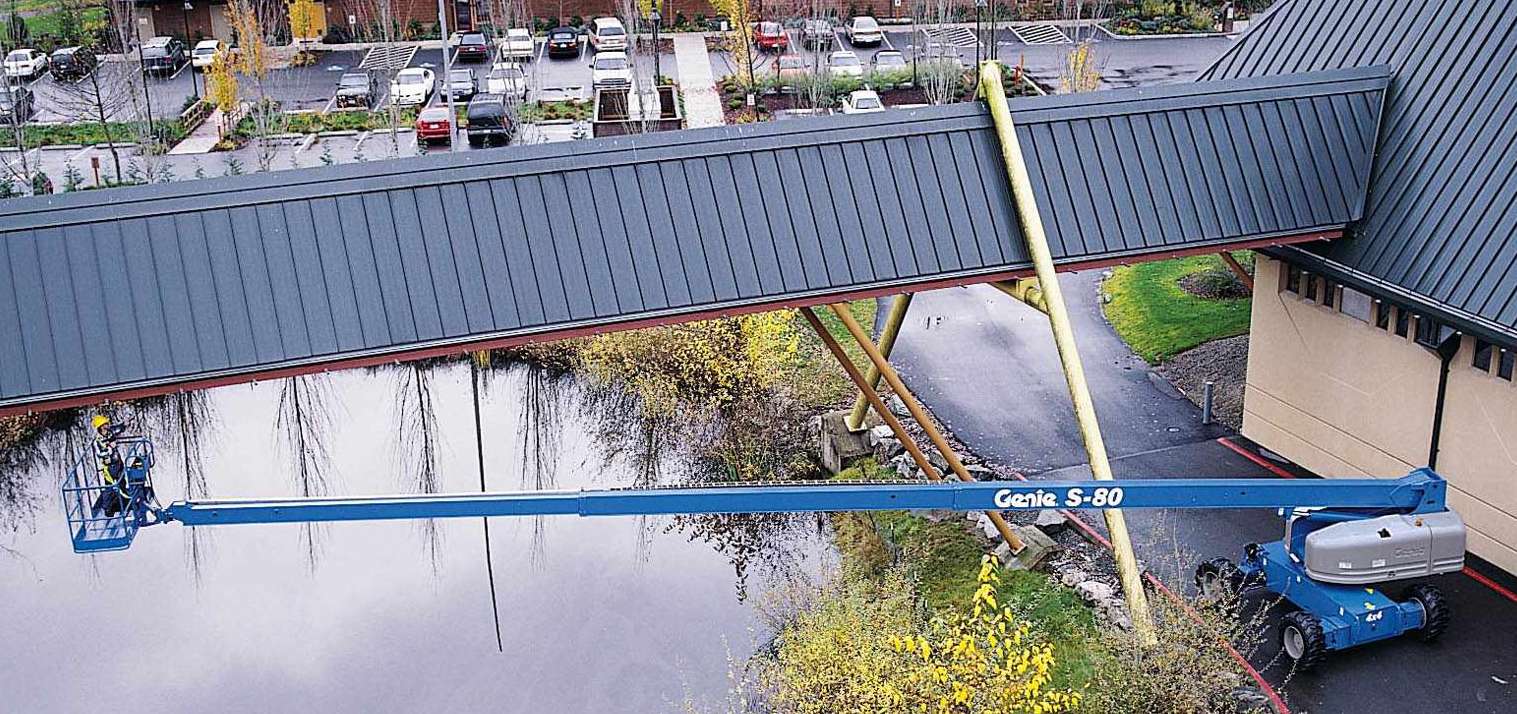

Oct 10, 2002 Model S(TM)-80/S(TM)-85 self-propelled booms are available with GM 3.0 L Gas/LPG 80 hp, Deutz Diesel F4L 913 77 hp, or Perkins 704-30, 63 hp engines. Able to operate multiple functions simultaneously, model S-80 booms elevate from ground to full height in 80 seconds. Oscillating axles sense terrain and adjust accordingly, maximizing 4-point contact with ground. Features include adjustable foot switch time out, onboard diagnostics, and joystick controller.

PHD, Inc.    Fort Wayne, IN 46899

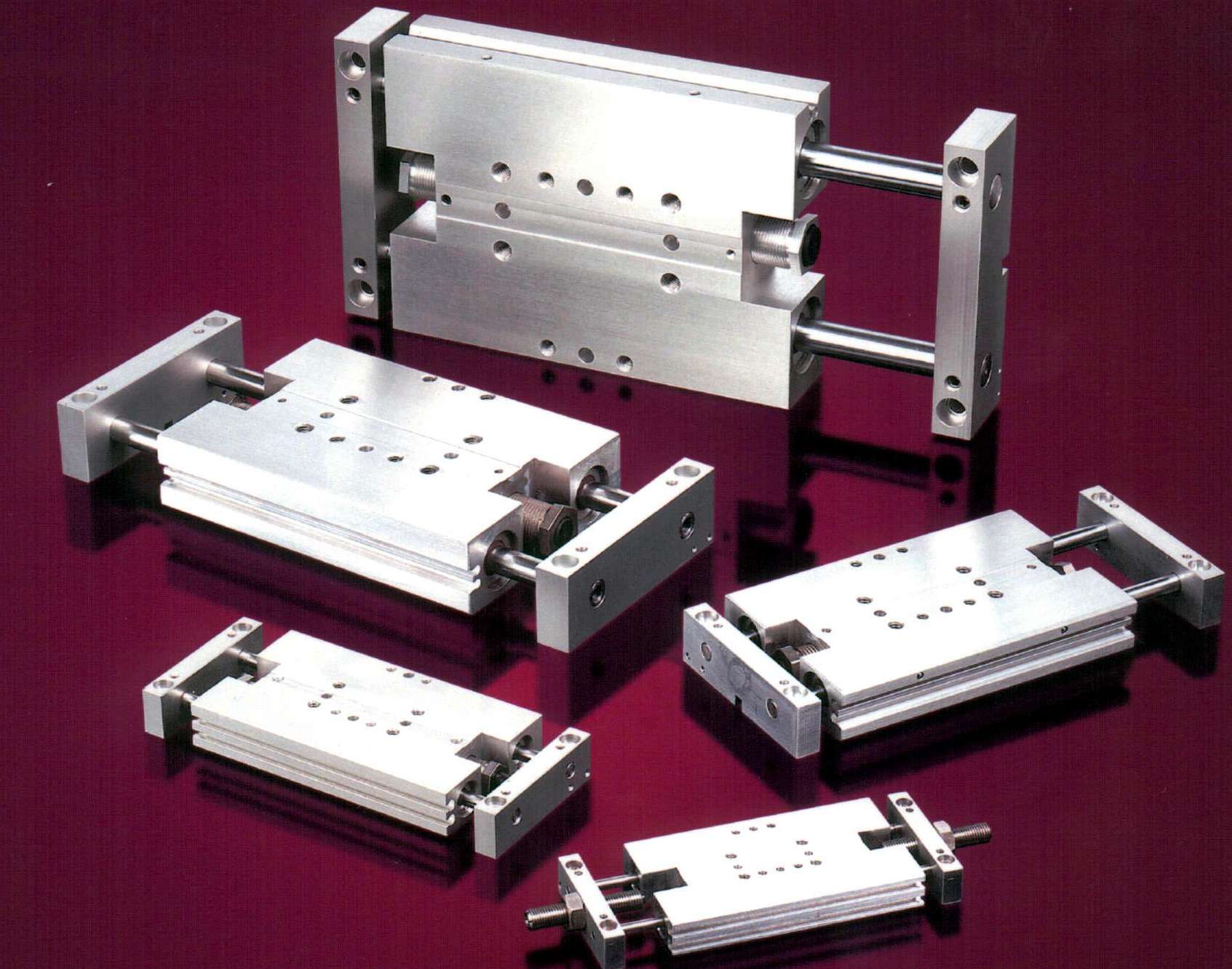

Oct 09, 2002 Series SIP Rail Bearing slide units are available in three bore sizes (12, 16, and 20 mm) with choice of three travel lengths. Internal shock pads reduce noise and end-of-travel impact forces. Mounting holes provide maximum application flexibility and recessed switch slots allow mounting of PHD's reed and solid state switches. Optional 5 mm of travel adjustment is available on extend and/or retract.

Beta Max Hoists, Inc.    Melbourne, FL 32902
Oct 09, 2002 Max Climber(TM) 2000P features totally enclosed passenger cabin and ground enclosure with interlock switches to detect when it is safe to enter and exit. Floor landing gate and call box allow system to stop at pre-set levels or to be called to specific floor when needed. Platform for installing and anchoring masts from inside cabin is included. Rack and pinion lift can be changed to material hoist with open basket for dual uses. It meets or exceeds UL, CSA, and OSHA specifications.

Probe Master, Inc.    El Cajon, CA 92020
Oct 09, 2002 Micro Gripper Kit consists of grippers designed to fit 2.54 to 0.8 mm lead pitch surface mount devices. Tips are 1.1 in. long and can be bent 30 deg for hard-to-reach signal probing. Grippers fit standard .025 in. wire wrap leads.

Cargotainer, Adrian Fabricators, Inc.    Adrian, MI 49221

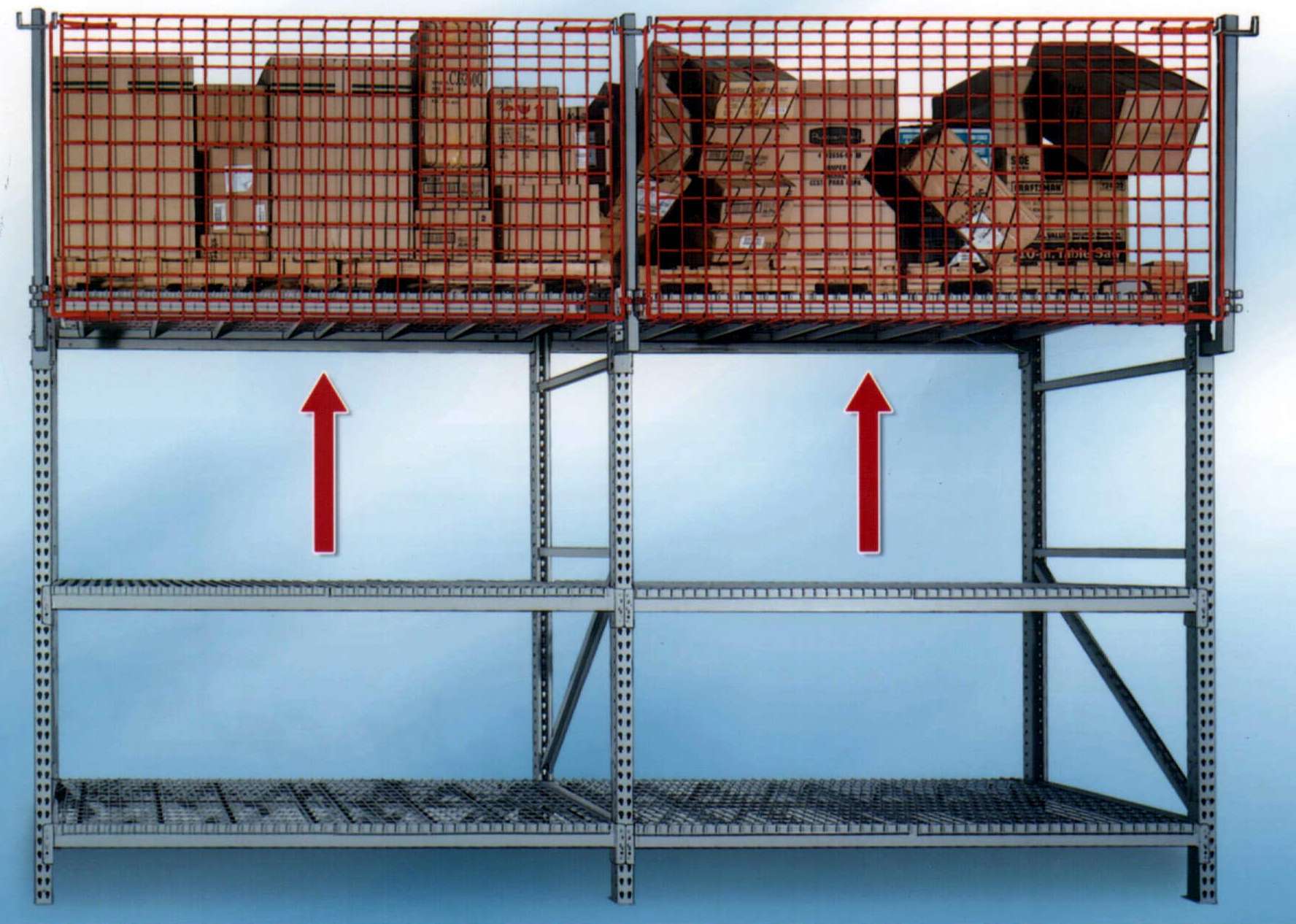

Oct 09, 2002 Cargo-Shield restraint system prevents accidental load spills from top shelves of pallet racks in storage warehouses. Its wire mesh drop panels are attached to pallet rack frames by means of offset upright post. Panels move up and down, tracking through loop brackets. Its panels lock securely in up position via latch fitting. In up position, panel guards act as barrier, while down position allows stockpickers full access to product stored on upper shelves.

Round, David, & Son, Inc.    Streetsboro, OH 44241

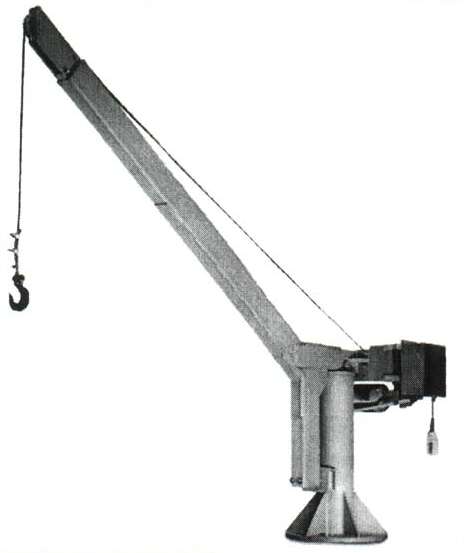

Oct 09, 2002 Portable and fixed-position davit cranes are available in manual and powered models for servicing pumps, positioning mixers, and replacing motors. Models can be manual, air, electric, hydraulic, or drill-driven. Individual components and entire cranes are available in stainless steel. Davits are available with rope quick-disconnects, multiple lifting points, boom angle adjustment, and foldout levers. Cranes offer capacities to 1 ton with spans to 10 ft.

PHD, Inc.    Fort Wayne, IN 46899

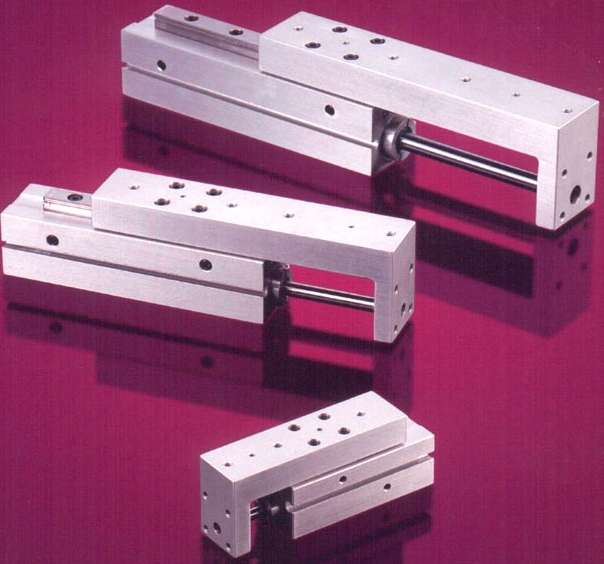

Oct 09, 2002 Offered in 8, 12, 16, 25, and 32 mm bore sizes, Series SM Slide provides choice of 3 travel lengths and smooth linear motion at twice the thrust of one bore cylinder. Optional porting through guide shafts allows saddle to move without flexing incoming air. Series has modular mounting patterns and is 8 mm proximity-switch ready, using external mounting kit to prevent flexing of electrical connectors of switches.

Multiton MIC Corp.    Richmond, VA 23223

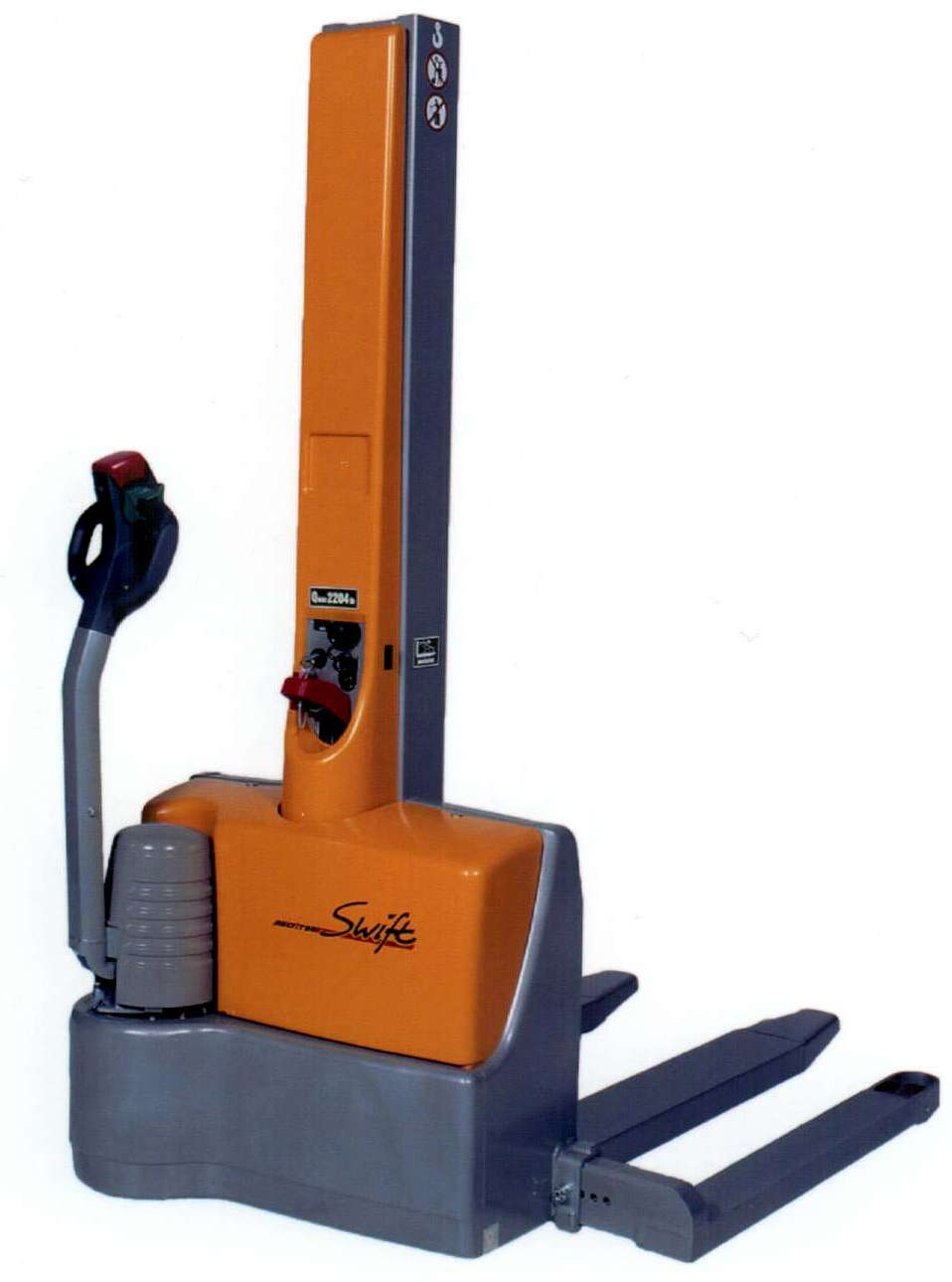

Oct 09, 2002 Swift model light- to medium-duty walkie stacker suits material handling applications requiring lift heights of 62.5 or 79 in. Available with adjustable straddle or fork-over design, unit handles pallets and skids of various sizes. Hydraulic lifting/lowering power is generated by high-pressure pump with 1.0 kW series wound motor. Vehicle drive system uses 0.3 kW permanent magnet motor. Load capacity is rated at 2,000 lbs with 23.6 in. load center.

Waterloo Industries, Inc.    Waterloo, IA 50704 2095
Oct 09, 2002 Traxx® TRX4100SS, 8-drawer chest and 12-drawer cabinet combination, offers stainless steel unibody shell. Drawer fronts feature extruded aluminum drawer pulls and powder coated interiors. Offerings include full-extension ball-bearing slides, angled Traxx cover lid design with chest stiffener, and heavy-duty 5 in. casters. Overall dimensions measure 41 x 18-1/8 x 62 in. (W x D x H), providing 28,485 in.³ storage capacity.

FKI Logistex North America    St. Louis, MO 63132
Oct 09, 2002 Sliding-shoe UniSort(TM) XV features extruded aluminum chain rail system; fully electric, solenoid-operated divert switch; and fully mechanical, center-crossover switch for quieter operation. With diversion angles of 20 and 30 deg, and ability to sort products weighing from 8 oz to 100 lb, it provides positive product sorting at 200+ cartons/min. Standard widths are 22, 28, and 34 in. Sorter handles left, right, dual-sided, and custom diversion configurations.

Norgren    Littleton, CO 80120
Oct 09, 2002 Small Rotary Actuators offer consistently smooth, cushioned movement and are available in 6 sizes; 2 miniature and 4 compact. They can be adjusted to provide customized angles of rotation. Expected service life is 3 million cycles before servicing or replacement is required. Grippers are fitted with magnetic pistons and are offered in 7 families. Angular and parallel motion versions are available as well as single and double acting models.
