Andax Environmental    Rutherford, NJ 07070
Aug 14, 2003 Form-Fit Gaylord Liners drop into Gaylord or flexible intermediate bulk containers. With smooth side walls and non-gusseted bottom, they're easy to load and dispense from. There are no folds, wrinkles, or creases to catch or hold product. Liners protect products from contamination or damage and are suited for powders, inks, and other granular products.

Oden Corporation    Tonawanda, NY 14150

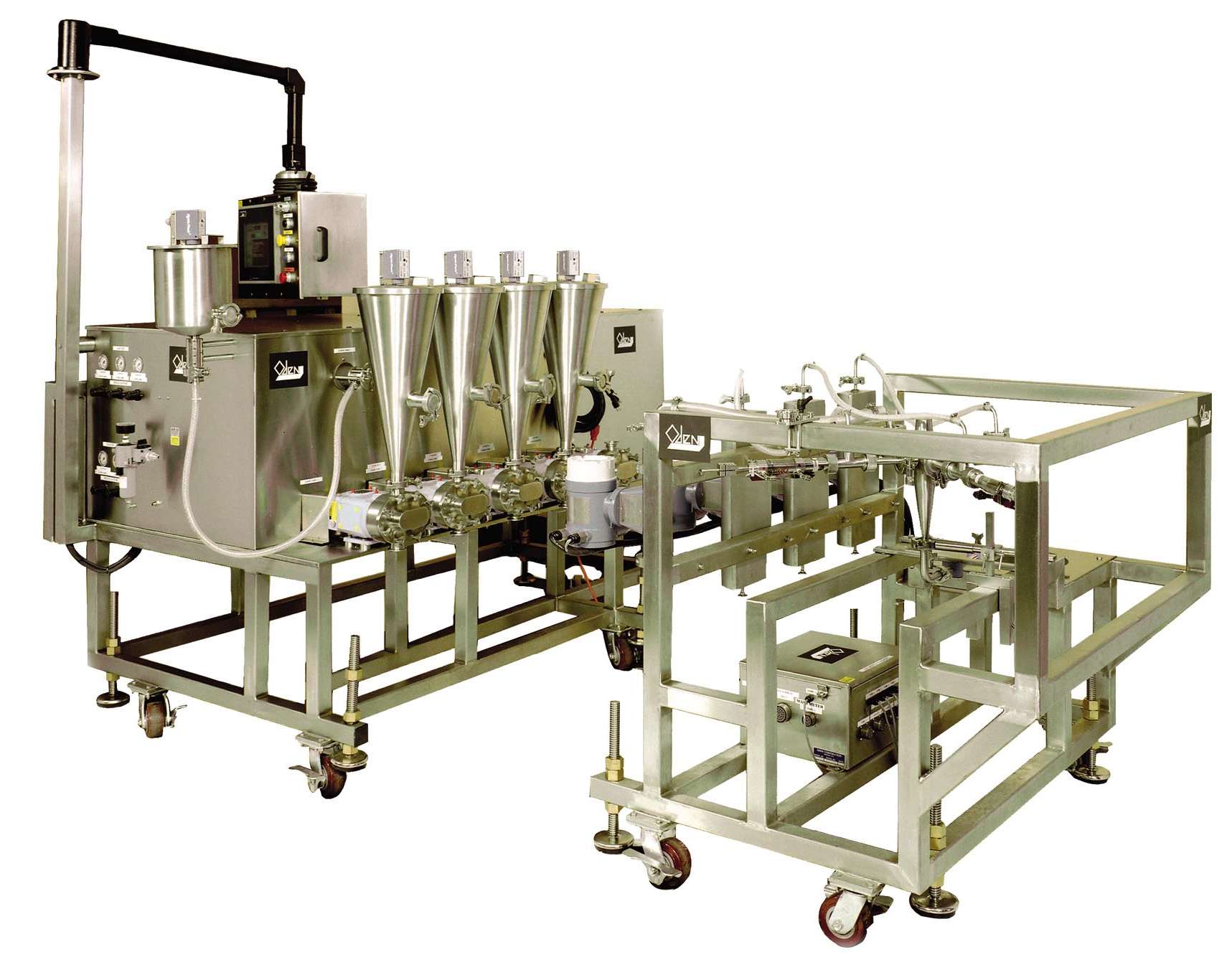

Aug 14, 2003 MASS/BLEND® Continuous Stream Digital Blending System makes liquid products on demand in real time from liquid feed stocks. Suited for pilot plant to production scale blending of liquid products, system uses inherently rational control methodology and features PC/PLC based controls. Blending accuracy is not compromised by stop-start events. System operates with all types of liquids with 0–400 gpm continuous stream capability and automatically adapts to changes in takeaway flow rates.

Superior Industries Of Morris    Morris, MN 56267
Aug 13, 2003 TeleStacker™ Telescoping Radial Stacking Conveyors feature Safety Stop™, which prevents damage to main truss or stinger of conveyor in event of cable failure. Should loss of cable tension occur, factory-set, spring-loaded Safety Stop activates forks, which support cross-members of stinger truss, holding stinger firmly in extended position. Conveyors come in 110, 130, and 150 ft models with capacities from 500–1,000 TPH.

Spiroflow Systems, Inc.    Monroe, NC 28110
Aug 13, 2003 Measuring 10½ ft high, Type 6 bulk bag discharger incorporates low-profile hoist and unloading station. Bulk bag is untied through access door in product transfer chute directly under discharger. Independent pneumatic massage paddles aid flow of powder from bag into discharge chute and conveyor. Product is offered in carbon or stainless steel models with optional flexible screw conveyor and loss-in-weight load cells.

Advance Lifts, Inc.    St. Charles, IL 60174
Aug 13, 2003 Jumbo Scissor Lifts consist of 14 models, 7 of which are single leg lifts with capacities from 12,000–40,000 lb. Platform sizes range from 9 x 12 ft to 12 x 20 ft with travels from 5–6 ft. Remaining 7 models are double leg lifts with capacities from 6,000–60,000 lb. Platforms range from 8½ x 38 ft to 8½ x 50 ft. Lifts include electric hydraulic power units from 7½ to 40 hp and electric push button controls.

IFH Group    Rock Falls, IL 61071
Aug 13, 2003 E.S.P. (Efficient, Safe, and Productive) Mobile lube maintenance carts have modular design that allows users to install different size containers on same unit and use different type of pump with each container. Carts feature heavy-duty, 28 x 60 in. frame base with 8 in. dia, molded-on rubber casters. Units are available in various models with any combination of containers, pumps, filters, meters, and reels.

Schuyler Rubber Co., Inc.    Woodinville, WA 98072 6934
Aug 13, 2003 Rubber Bucket Blade Scraper uses adjustable-slide channel, allowing heavy-equipment operators to adjust position of bolts within channel to match existing bolt pattern on plow. Rubber sections, reinforced with tough plies of nylon and steel, are compressed onto 1¼ in. steel rod and secured every 12 in. using flatbar retaining plates. Adjustable heel pads help level scraper and extend life of front edge.

FlexLink Systems, Inc.    Bethlehem, PA 18017 2266
Aug 12, 2003 Modular, CE-compliant, Genesis Series F3000 features ESD safe belting with max temperature of 176°F and adjustable belt tension. Module lengths range from 24–300 in. and standard belt widths are 12, 18, and 24 in. With ability to transport pc boards and pallets, module can be used to incline/decline products from wave soldering system. Options include PLC control package with indexing software, cooling fans, and high-temperature ESD belt up to 250°F.

Newport Corp.    Irvine, CA 92606
Aug 12, 2003 Designed for 300 mm wafer processing, DynamYX GT air-bearing wafer positioning system offers 6 axes of precision motion control. Machine includes silicon carbide stage, single plane system architecture, and low-profile design that reduces center of mass to minimize error from deflection or angular deviation. Alignment is achieved via Z-Tip-Tilt stage integrated on carriage in non-contact design. Machine offers both step-and-settle and step and scan capabilities.

GPAX Ltd.    Reynoldsburg, OH 43068
Aug 12, 2003 TekPAX combines mechanically interlocking tape and reel packaging technology with GPAX 2400 Intelligent Tape Feeder. System places each component in custom-designed GPAX tape carrier to prevent scratching, nesting, and damage, while feeder senses presence of each part and does not advance until part is removed. Able to precisely present part for manual or automatic assembly placement, product offers dimensional capability from less than ½ in. to 8 in. long.

Penco Products, Inc.    Oaks, PA 19456 0378
Aug 12, 2003 Inventory Cart transports supplies, orders, merchandise, tools, or files from point to point. Each shelf features load capacity of 300 lb and adjusts on 1½ in. centers. Cart includes push/pull handle and nonmarking 5 in. polypropylene wheels. Two swivel wheels lock for safety. Deck material is offered in particle board 1-M-1 grade or white melamine. Melamine decking features laminated surface that allows packages to slide on and off easily.

Diamond Phoenix Corp.    Lewiston, ME 04241
Aug 11, 2003 SMARTdepotâ„¢ Cross-bayâ„¢ Vertical Lift Module (VLM) includes Multi-bayâ„¢ design to maximize storage space and allow product in any storage bay to be delivered to an operator at any workstation. Identified by personal user ID, Smart-Accessâ„¢ Profile System allows each user to have unique settings pertaining to preferred workstation height, personal tray locations, language, and restricted tray locations.

Unidex    Warsaw, NY 14569
Aug 11, 2003 Model ECL Electric Column Lift Manipulator offers 270° articulating arms plus end effectors for handling close tolerance work positioning requirements. Electric-powered chain/sprocket drive provides lifting and lowering while end-of-arm controls provide 3-speed vertical height adjustment. Standard lift stroke is 54 in. and load capacity is 250 lb 95 in. from centerline. Aut-O-Loc(TM) braking system protects operator from downward movement in case of chain or drive failure.

Monarch Hydraulics, Inc.    Grand Rapids, MI 49501 1764
Aug 11, 2003 INTERMEDIATE DYNA-LIFT features 4-cylinder system with 12 in. stroke. Suited for OEM and retrofit applications, hydraulic lift is for raising and lowering industrial workbenches, welding fixtures, and specialty machines for optimum worker comfort and position. Kits are available for mounting to existing equipment or original equipment designs.

Bunting Magnetics Company    Newton, KS 67114 0468

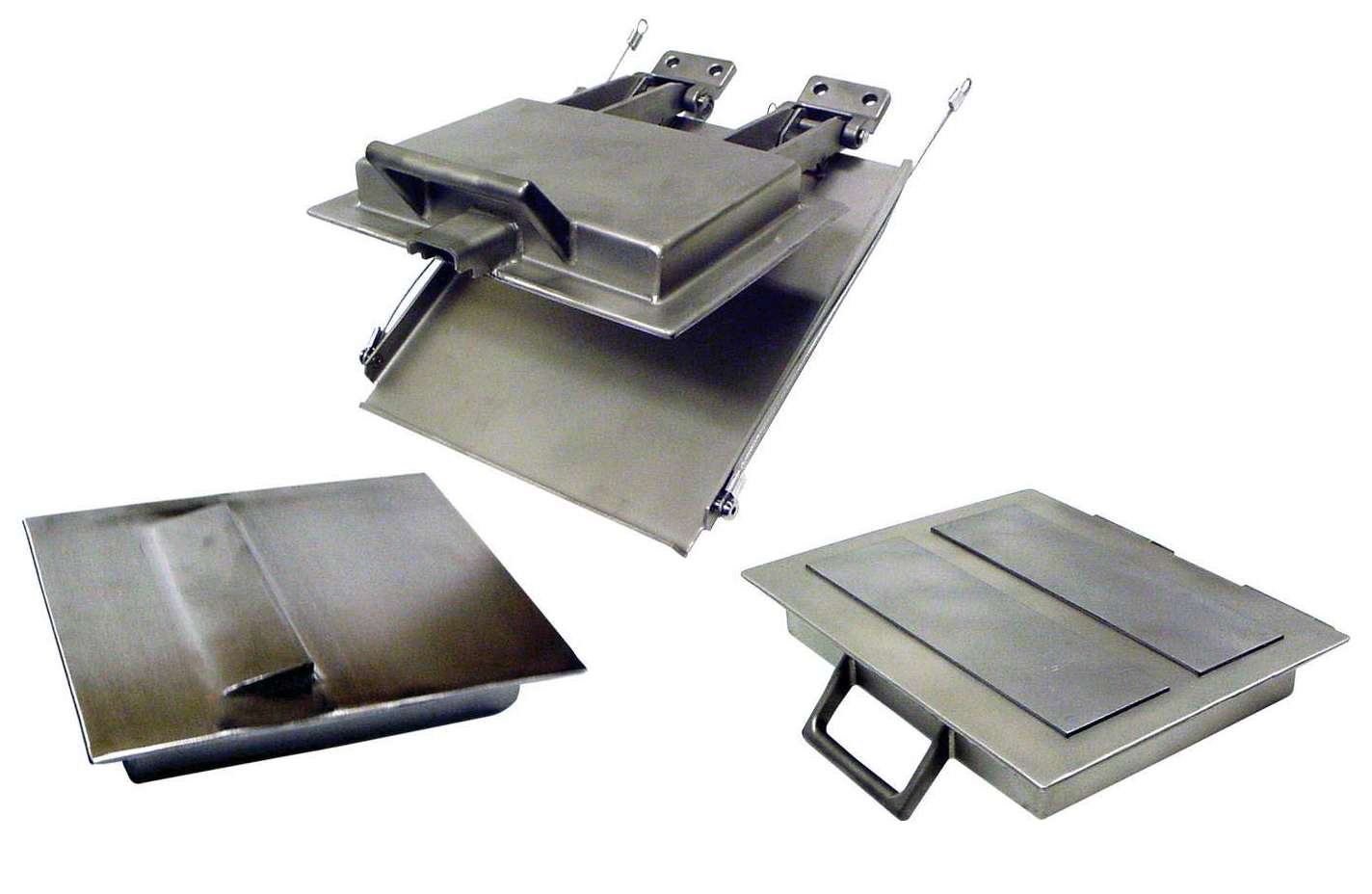

Aug 11, 2003 Able to achieve ferrous metal separation in chutes, spouting, and suspended applications, magnets are constructed with stainless steel exteriors and are offered with sanitary hinge design. Self-cleaning models feature reinforced stripper plates and optional live 410 stainless steel tapered step poles. Products capture and retain tramp iron and ferrous fines in dense, high flow rate applications.

Peck Paint Products, LLC    Westfield, NY 14787
Aug 11, 2003 Paint Platter snaps on bottom of gallon or quart cans of paint to catch drips and prevent cans from tipping over. It holds brushes and other tools that can be carried along with the can. Kit also includes 3-in-1 Gallon Ring, which snaps onto top of gallon cans and provides built-in brush holder clip that allows brush bristles to stay wet at any level inside cans. Quart Ring provides same benefits as gallon ring, but without brush holder.

Anderson Products    Worcester, MA 01610
Aug 11, 2003 Anderlex® Flap Wheels can be used on flat or contoured surfaces, and are practical for very fine finishes on aluminum, brass, and stainless steel. They can conform to irregular surfaces and create long-line brush finishes. Applications include applying satin finishes on soft metals, removing oxide from precious metals, removing fine burrs on threaded metals, producing fine finishes on aluminum extrusions, and for final sanding of wood moldings.

TKF, Inc.    Cincinnati, OH 45203
Aug 08, 2003 VALU-LIFT™ 4-strand, continuous lift, light-duty conveyor handles cartons and other smooth-bottom unit loads up to 50 lb. Platform consists of interlocking molded polymer flights with steel connecting pins, lifting at max speed of 118 fpm. Standard net lifting heights range from 8–14 ft. Maximum unit load is 21 in. long x 16 in. wide and 22 ft high. Standard safety features include 24 Vdc control, current sensing relay, and totally enclosed shroud-type tunnel guards.

Prab Conveyors    Kalamazoo, MI 49003
Aug 08, 2003 Measuring 3 3/8 in. high, standard-duty, low-profile, magnetic conveyors are completely sealed and self-lubricating. Applications include scrap removal and parts handling.

Logansport Matsumoto Co.    Logansport, IN 46947

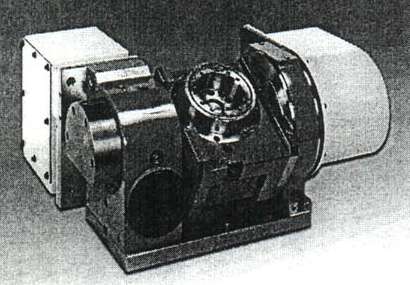

Aug 07, 2003 MDAT 2-axis NC Rotary Table adds 4th and 5th axes to 3-axis vertical machining centers by integrating directly into machine tool control. Stand-alone control is operated via M-codes and an RS-232C port connection. Slotted table face measures 3.94 in. dia and has 150° movement on tilt axis with speeds to 11.1 rpm. On rotary axis, movement is 360° with speeds to 22.2 rpm. Both axes can be positioned within .001°. Rotary table, with worm-gear drive, measures 18.62 x 14.37 x 8.86 in.
