Ceramic Media Liners work with slurry pumps.
ITT Goulds Pumps
Seneca Falls, NY 13148
Aug 27, 2003 Ceramic media liners for Model SRL Slurry pumps incorporate one layer of ceramic rods molded and compressed with natural rubber to provide wear performance. Hard wear face aids in extending impeller and casing liner life. Suited for severe slag and ball mill circuits, liners are available for 4 models of SRL-XT pumps and 6 SRL-C models.

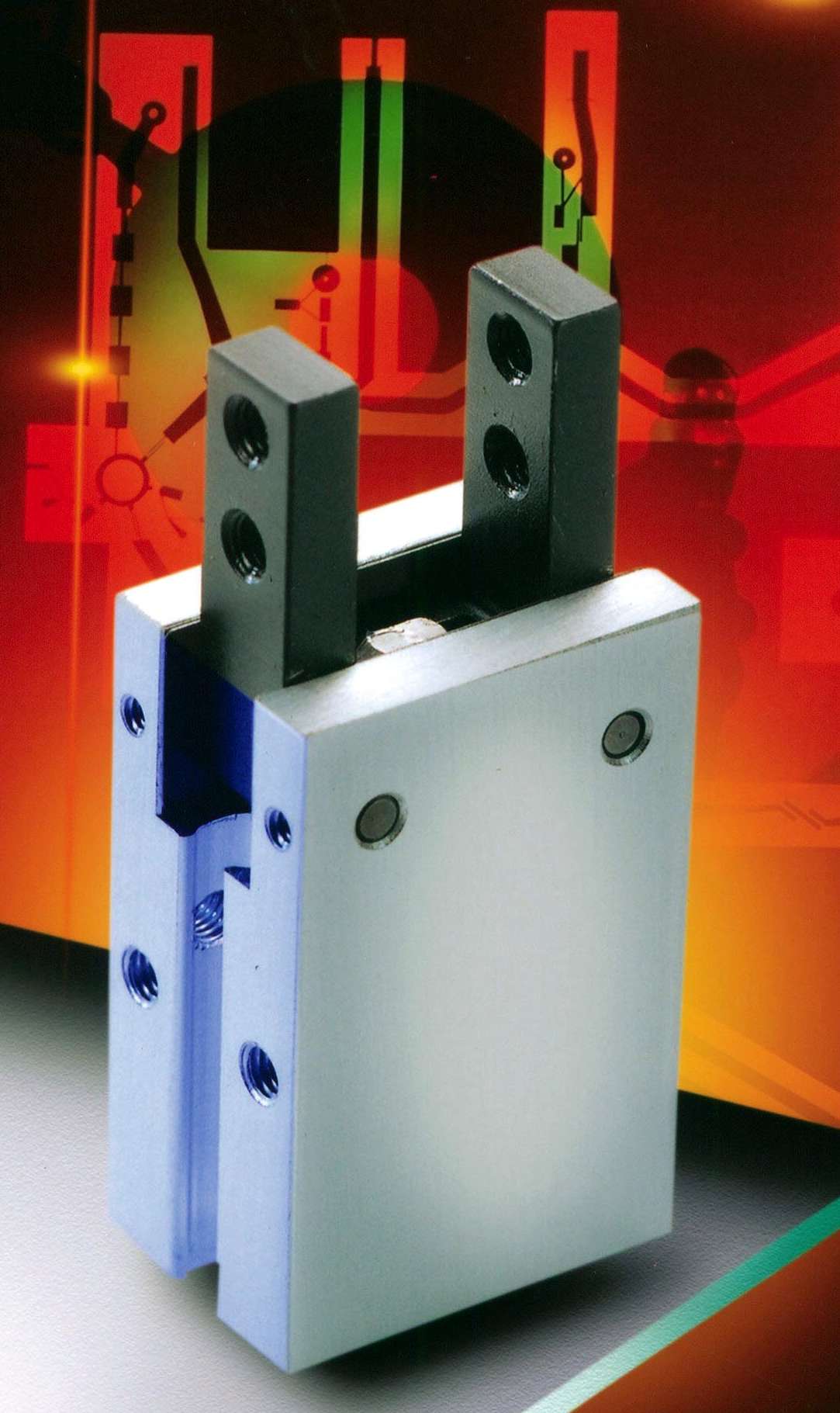

Pneumatic Grippers provide fast, accurate handling.
Littleton, CO 80120
Aug 26, 2003 Series M/160300 grippers offer cycle rates of up to 180 cycles/min and typical service life of 5 million cycles. Available in single- or double-acting formats, with temperature range of 32â€“140°F, grippers utilize precision bearings for smooth opening and closing and internal magnets for positional feedback. They are suited for electronics, packaging, and medical sectors.
Tongs suit bending, forming, and seaming applications.
Everhard Products, Inc.
Canton, OH 44707
Aug 26, 2003
Fairmont Tongs, available in Straight and Offset versions, feature heavy-duty construction and are available with optional cushioned grips. Tongs produce uniform, precise bends in sheet steel and non-ferrous metals. Forged steel jaws and handles are zinc-plated. Jaws measure 3 in. wide and 1 1/8 in. deep and have bending marks that aid in making precise depth bends.

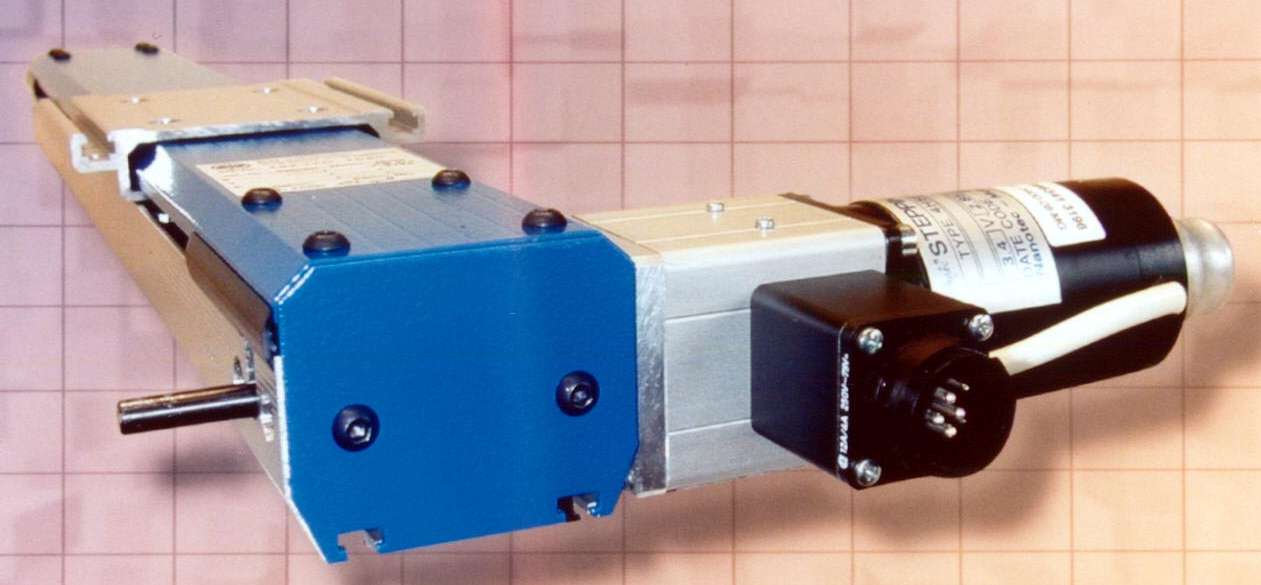

Belt Driven Slides feature HTD curvilinear belt drive.
Techno Linear Motion Components
New Hyde Park, NY 11042
Aug 25, 2003
Blueline 1 Series slides, able to reach speeds up to 2.4 m/sec, are offered in stepper, servo, and no motor configurations. Features include HTD timing belt drive with curvilinear profile for positive, non-slip operation and protective plate over carriage and belt that keeps out dirt and debris. Products are available in 17 lengths from 450-2,050 mm and are suited for dispensing, inspection, and parts transfer applications.
Rotary Table suits circular dispense operations.
Wayne, NJ 07470
Aug 25, 2003
Model RT-FLEXII-Z includes adjustable pneumatic Z axis that inclines to dispense at angles as working part rotates. Product accommodates dispense objects with up to 15 in. working diameter on left or right of system. Controls ensure correct bead size and finish to dispense circle. Model DSP501A metering system, housed within table, offers dispense and rotation delays, automatic cycling, and speed control. System may be actuated by foot-pedal or with 2-hand operation control.
Shelves comply with A.D.A.
Shure Manufacturing Corp.
Washington, MO 63090
Aug 25, 2003 Shuresafe® A.D.A. (Americans with Disabilities Act) Shelves provide standard writing surface with industry-wide mounting criteria. Products measure 16 x 9 x 5 in. and are made of brushed stainless steel. All seams are welded solid, all corners are rounded, and both are finished smooth. Units include 2 keyhole cutouts for attaching to walls.

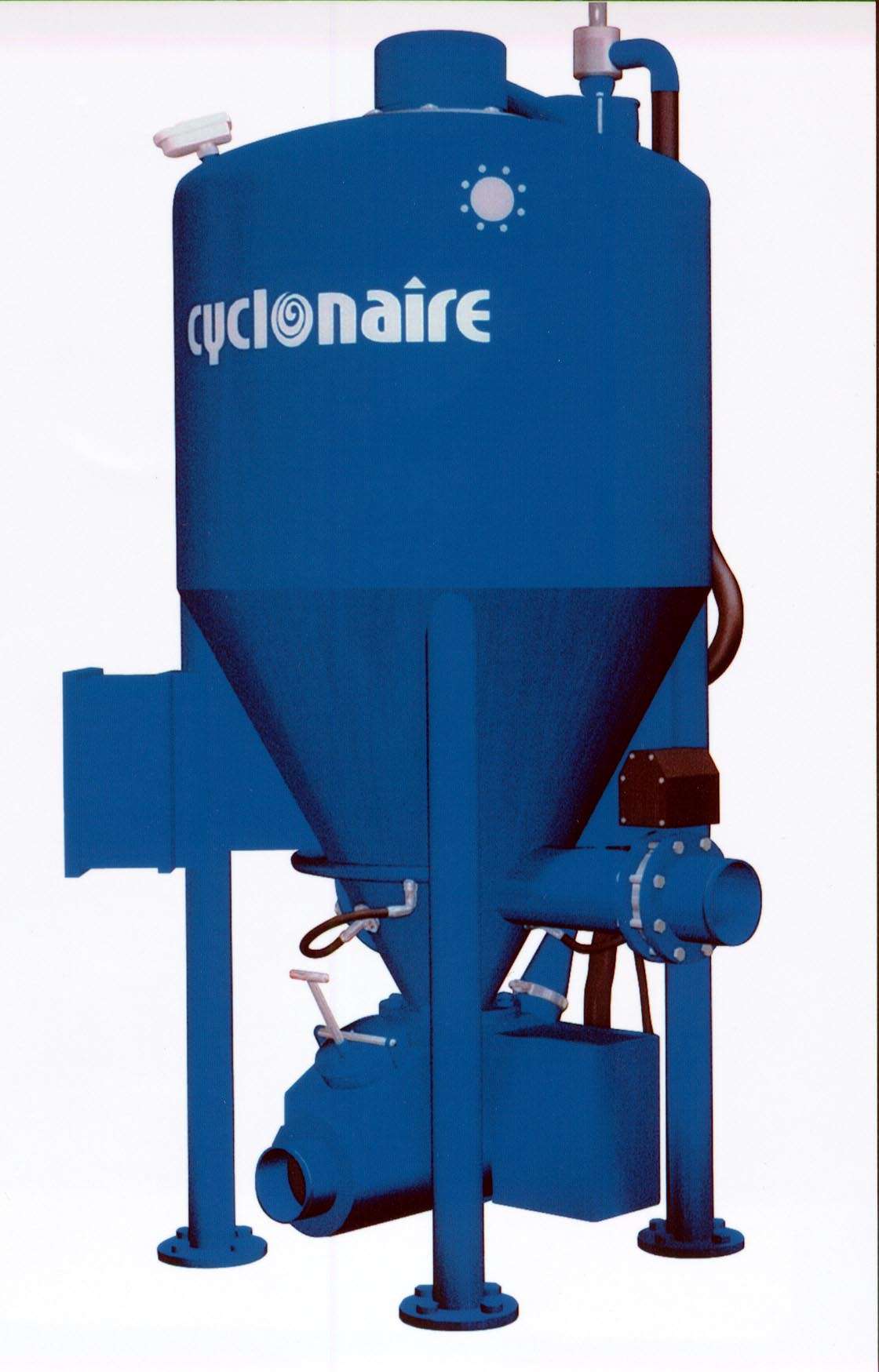

Pneumatic Conveyors handle high-capacity jobs.
York, NE 68467
Aug 21, 2003 Series HC Semi-Dense Phase Conveyors use only positive air pressure for vacuum loading and pressurized conveying of single or multiple ingredients. They use 15 psig convey air to move materials at balanced combination of intermediate line velocities between 2,000â€”3,000 fpm. Standard units offer capacities up to 80 tons/hr. Conveyors can handle materials that are abrasive and fluidizable and are suited for bulk bag, railcar, and trailer unloading and in-plant transfer.

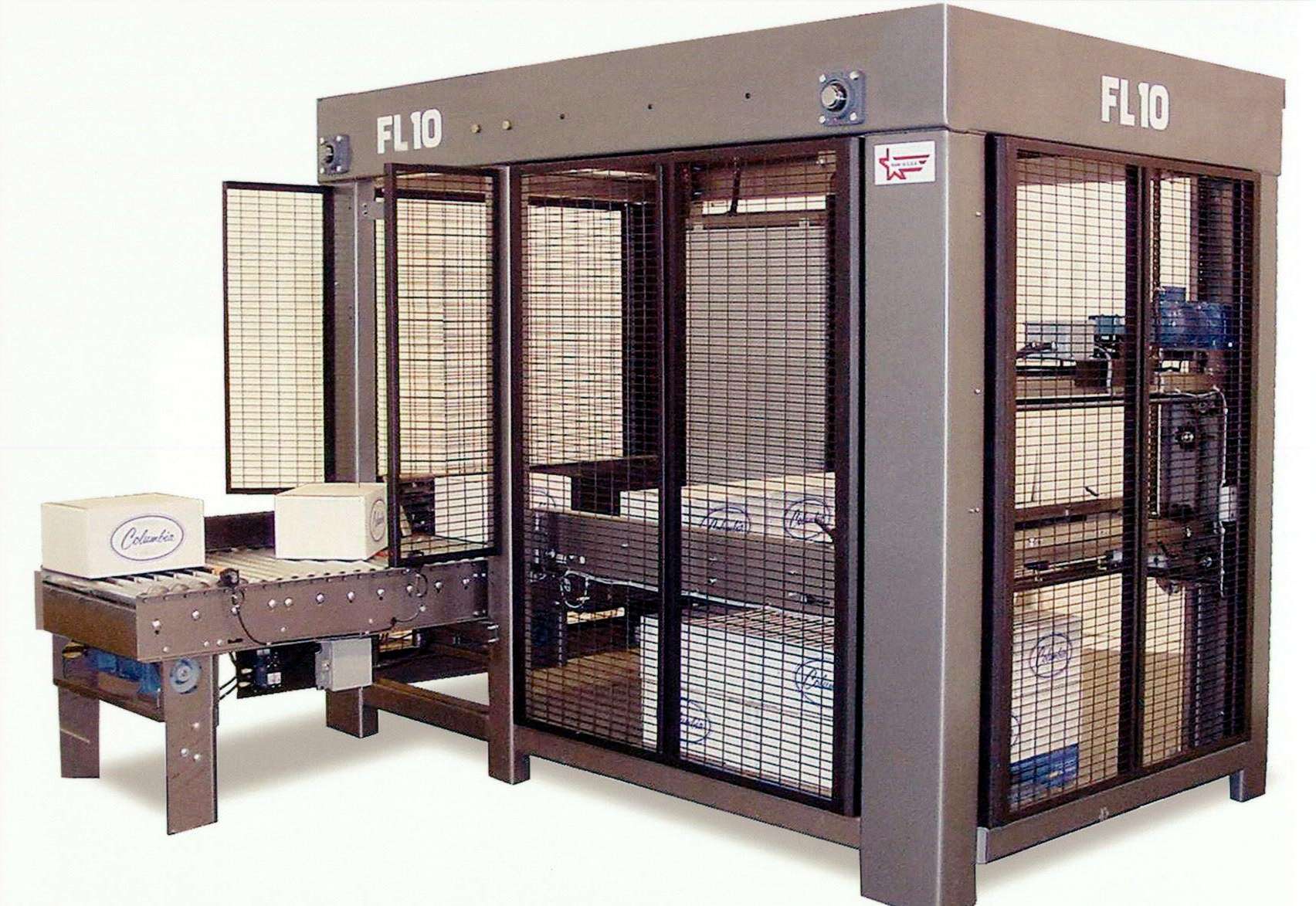

Floor Level Palletizer provides slow-speed line solution.
Columbia Machine Inc.
Vancouver, WA 98661
Aug 21, 2003 Suited for smaller production operations, model FL10 offers palletizing at speeds up to 10 cases per minute. Automated solution is small enough to be installed through 8 x 8 ft doorways, and its footprint utilizes less than 60 ft² of floor space. Product comes preprogrammed with palletizing patterns and features welded-frame construction.
Food-Grade Suction Cups handle breads, cakes, rolls, and pies.
Anver Corp. - Anver.Com
Hudson, MA 01749 3214
Aug 21, 2003 Food-Grade Silicone Suction Cups are available in metal-detectable and standard versions for depanning and handling baked goods and similar food products. Suited for use directly at exit point of baking ovens, they are rated for temperatures up to 600°F. Six round sizes range from 0.98â€“2.36 in. ID with bellows up to 2.72 in. H. Rectangular sizes range from 3.15 in. L x 0.87 in. W to 1.57 in. W, with bellows from 0.59â€“1.30 in.
Motion Sensor Controller protects production line equipment.
Vibro Industries, Inc.
Port Royal, PA 17082
Aug 21, 2003
Transporter Motion Sensor controller automatically shuts down production line machinery, within 6 sec, whenever air pressure to conveying system is interrupted to protect equipment and valuable material. Unit incorporates pneumatic control technology and electronic circuitry and controls Vibro's Model 250, 320, 450, and 850 Air-Operated Transporter conveying systems.
Dual Spindle Label Rewinder is suited for desktop slitting.
Henderson, NV 89014-2002
Aug 21, 2003 TWIN-CAT-2 Rewinder utilizes 2 powered rewind spindles with Quick-Chuckâ„¢ Core Chucks to handle multiple rewind cores for slitting or to rewind finished label and waste matrix rolls for die-cut label matrix stripping operations. Product offers heavy-duty, steel construction and allows users to remove waste matrix from die-cut labels as they rewind from printer.
Containment Isolator enables mixing of toxic/potent products.
Microfluidics, Division MFIC Corp.
Newton, MA 02464 9101
Aug 21, 2003 Suited for use with stainless steel Microfluidizer® fluid processors, hermetically sealed containment isolator contains toxic submicron particles and droplets during high-pressure processing and helps companies comply with OSHA 1910.119 regulations. Isolator offers negative-pressure, HEPA filtration; 12 x 12 in. swing door; 2 flip up style windows; and glove ports with Hypalon® chemical-resistant gloves. Product also incorporates Microfluidizer processor's controls.
Mini Scissor Lifts perform indoors and outdoors.
Genie, a Terex Company
Redmond, WA 98052
Aug 21, 2003
With zero inside turning radius, GS(TM)-1530 and GS(TM)-1930 self-propelled scissor lifts can maneuver in close or tight quarters. Model GS-1530 has max working height of 21 ft and 600 lb lift capacity, while GS-1930 has 25 ft max working height and 500 lb lift capacity. Both feature 36 in. extension deck for work requiring limited outreach. Measuring 30 in. wide, products include trays that swing out to provide full access to all working components.
Adapter Plate Kit simplifies engine removal.
Steck Mfg. Co., Inc.
Dayton, OH 45408 1952
Aug 20, 2003 EngineOut Kit helps remove engine from front engine/rear wheel vans. It comes in choice of Chevy, Chrysler, or one of 3 Ford Engine Plates. Adapter Plate bolts to front of engine where water pump has been removed. Hoist Arm installs in engine hoist and Angle Adjuster controls engine tilt. With engine held by front instead of top, user can easily lift and tilt engine as necessary for removal and installation.

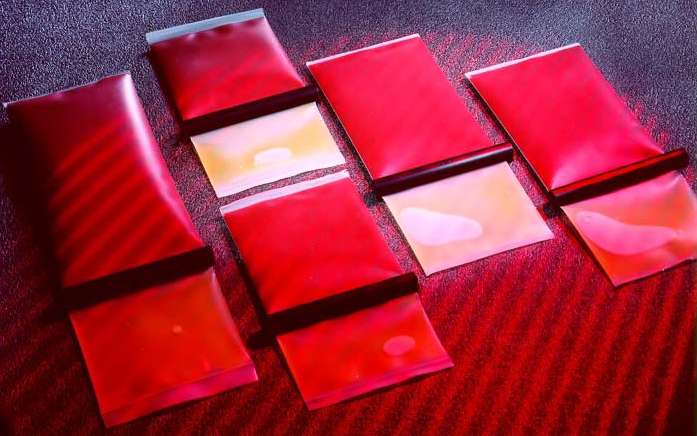

FIBCs comply with hygiene standards.
Packaging Concepts, Inc.
Virginia Beach, VA 23462
Aug 19, 2003 Hygiene-certified UNSA FIBCs are 100% food-approved polypropylene and other materials. Inner liners, made of LDPE and LLDPE, comply with hygiene standards established by food and pharmaceutical industries. Extra-clean packaging is produced in contamination-free facility.
Epoxy Coating System cures at elevated or room temperatures.
Hiram, OH 44234
Aug 19, 2003 The E958-12A Epoxykits, pre-measured, 2-component epoxy coating system, allows for mixing of both components within provided package. Coating cures tack-free in 4â€“8 hr and obtains complete cure after 96 hr at room temperature. Product may also be fully cured in 5 min at temperatures of 212°F. Properties after cure include insulation resistance at 77°F at 1.1 x 1012 ohms and 82 Shore D hardness rating.
Potlife is ~20 min, and shelf life is 1 year prior to mixing.
Steel Linings protect against abrasion and impact.
Urbana, IN 46990-0038
Aug 19, 2003 KALMETALL® W hard overlay, welded steel linings can be self-supporting or installed into existing steel structures. They combine steel base composed of ASTM A-36 carbon steel or alloy plates with hard overlay welded chromium carbide protective layer. Steel base ranges in thickness from 3/16â€“1/4 in. with other sizes available. Standard alloy plates measure 48 x 96 in. and 60 x 120 in. Linings are suited for bunkers, mills, chutes, dust pipes, and cyclones.
Vacuum Lifter/Tilter has adjustable cups and cross arms.
Anver Corp. - Anver.Com
Hudson, MA 01749 3214
Aug 18, 2003 Able to mount on any hoist, ETL Series Powered Vacuum Lifters with Powered Tilting are offered in 115 Vac or air-powered models with remote pendant control. Products can lift steel, plastic, and fiberglass plates up to 500 lb and employ vacuum suction cups that adjust and pivot on adjustable cross arms that also adjust along main beam. Ergonomic lifter/tilter enables one person to manipulate heavy, awkward loads.

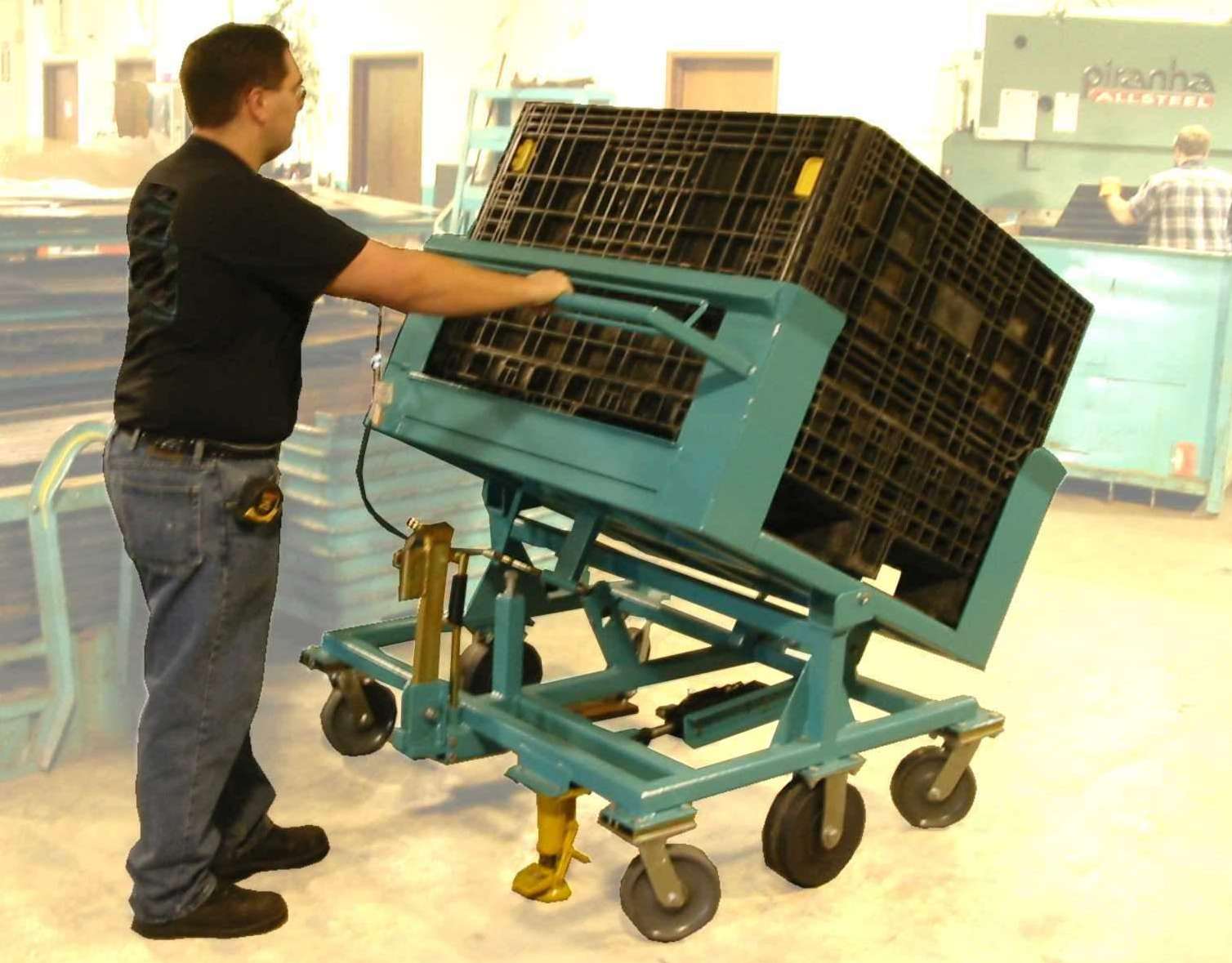

Cart allows workers to dig deep into containers.
Sturtevant, WI 53177
Aug 18, 2003
Ergo-Cart tilts high-wall containers up to 30°, presenting parts within reach of employee's ergonomic window. Product carries loads across plant floors on 6 wheels and is offered in 2 versions: one with purely mechanical tilt for loads up to 400 lb, and one equipped with hydraulic damper for controlled tilt of up to 3,000 lb loads. Pulled by tugger or small, motorized cart, cart can be positioned using 35 lb of force and locked into place via foot pedal.
Portable Hoist features variable-frequency-drive controller.
Beta Max Hoists, Inc.
Melbourne, FL 32902
Aug 18, 2003
Portable Hoist adapts to most continuous climbing scaffolds and mast climbing work platforms. It contains non-rotating cable to help keep loads from spinning while lifting and lowering. Pushbutton pendant and upper limit switch enable safe and up and down movement. Fail-safe brakes hold load securely when not lifting or lowering. Electrical controller with overloading sensing device protect motor from damage caused by overwork or poor power supply.
