Indexing Part Sorting Table suits loose piece manufacturing.
Automated Control Systems, Inc. (ACS)
New Haven, IN 46774 1362
Nov 04, 2003 Indexing Part Sorting Table has 78 in. dia turntable and tooling for 6 loose piece containers. Operation is controlled via part count totalizer, bin location sensor, and indexing motor. It counts parts up to preset number, then indexes to next container and resets part count total. Options include vision inspection systems, PLC controlled sorting systems, conveying systems, and packaging systems.

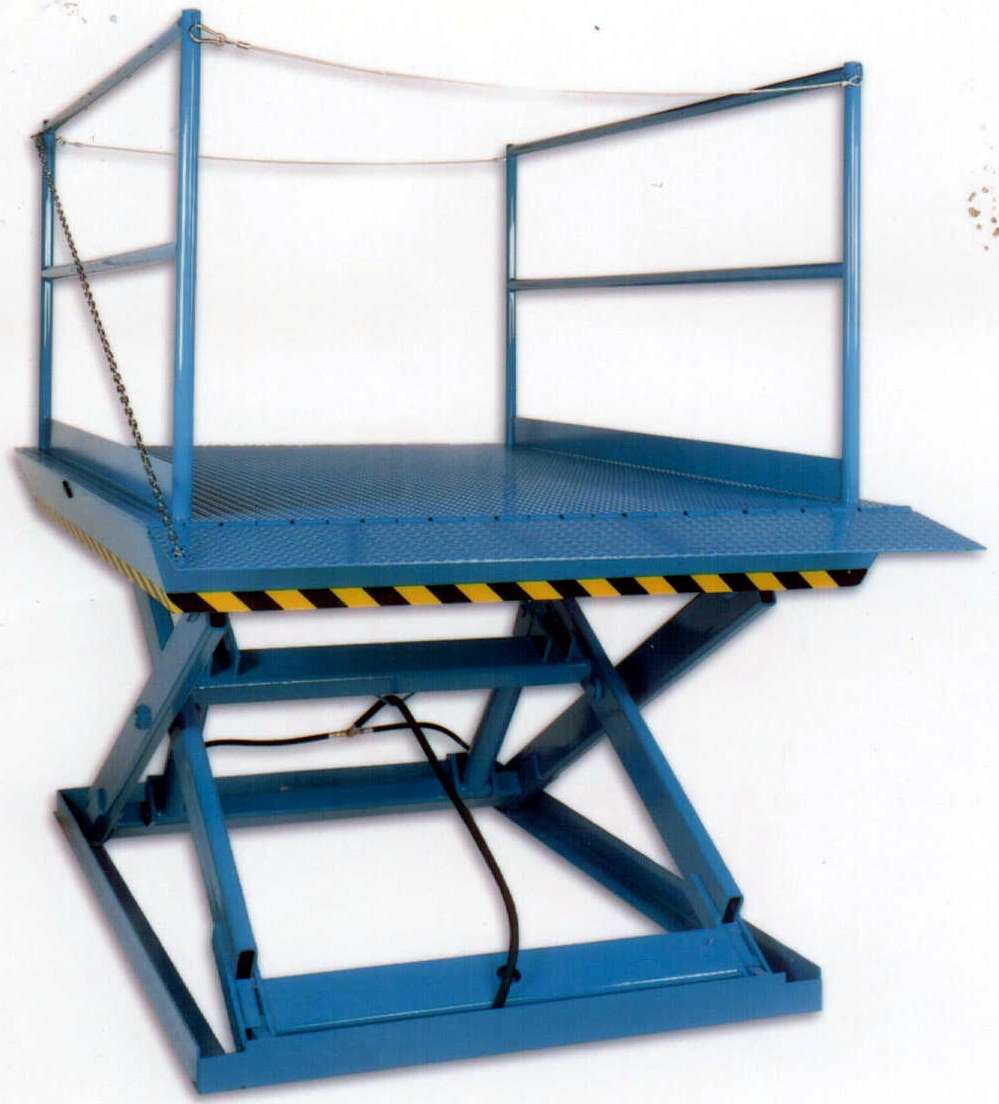

Dock Lifts are offered with up to 6,000 lb capacity.
Advance Lifts, Inc.
St. Charles, IL 60174
Nov 04, 2003 Available in 10 lift models with capacities from 5,000â€“6,000 lb, T2000 Series offers platform sizes from 6 x 8 ft to 8 x 10 ft. The 8 in. lowered height allows them to be installed in pit or on top of ground. They come equipped with 5 hp power unit, bridge, hand rails, push button control, and safety leg for servicing unit.
Thrust Pads/Grub Screws provide clamping force.
J. W. Winco, Inc.
New Berlin, WI 53151
Nov 03, 2003
Grub Screws are made from steel with black oxide finish, and Thrust Pads are black nylon plastic. Both transmit clamping forces by leaning to uneven and unparallel surfaces. Thrust pads can be pressed on to ball point of grub screw by hand. Combining grub screws with different handles and knobs can create variety of clamping screws.
Palletizer moves up to 175 lb.
Schneider Packaging Equipment Co., Inc.
Brewerton, NY 13029 0890
Nov 03, 2003 K-Bot 4-axis, floor-level palletizer/de-palletizer is capable of running single or dual line applications at up to 10 cycles/min. Compact 62 x 104 in. footprint allows for pallet sizes up to 48 x 48 in. and unit loads up to 72 in. high. Operator interface is programmed with pre-defined pack patterns. K-Bot includes stationary motors and power encoder cables, protecting machine for long life.
Workholding System offers modular design.
Datron Dynamics, Inc.
Milford, NH 03055
Oct 31, 2003 Quick-Palletsâ„˘ modular universal workholding system uses vacuum to hold special templated plates or pallets for part setups and changeovers; changing pallet requires no tooling or clamping. On machine bed, units are located in same spot every time because they are registered using beveled-boss in cavity system. Configurations include T-nut with pneumatic short-stroke clamps, Vacumate vacuum-table setup, retro-fit kits, and empty pallet.
Portable Storage Units feature modular design.
Denver, CO 80222
Oct 31, 2003 CabinZ Storage and Accommodation Units are made of polyethylene and can be assembled by 2 people in 10 min without special tools. Panels go through doorways, up stairs, into elevators, and even underground. Assembled units measure 8 ft 6 in. x 5 ft 11 in. x 7 ft 5 in. Multiple units can be linked to create larger storage spaces. They are suited for on-site security, hazardous materials storage, and temporary jobsite offices.

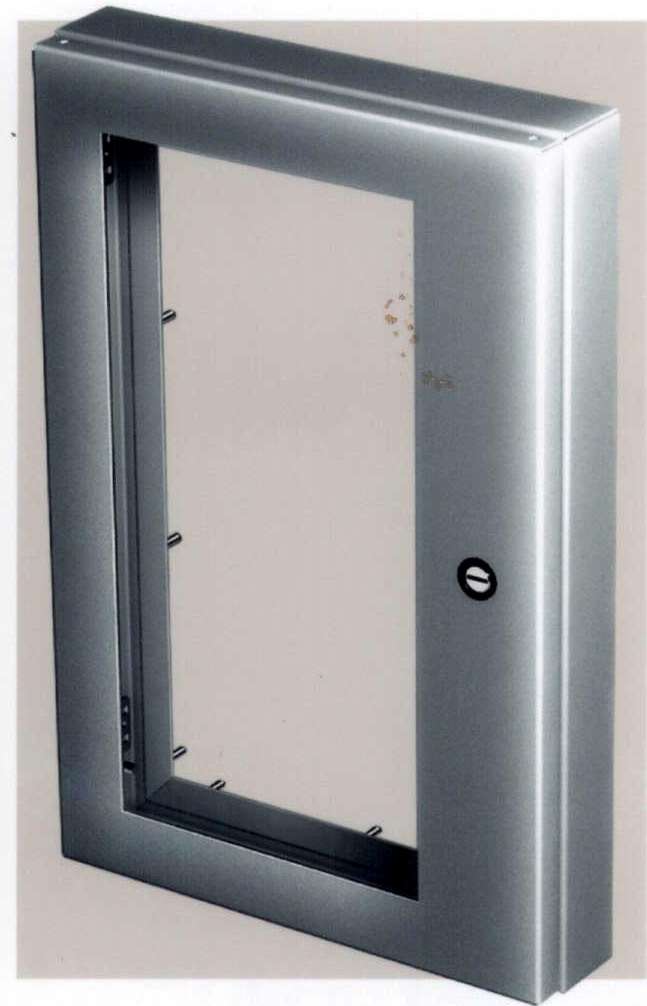

Window Kits/Handles accessorize enclosures.
Anoka, MN 55303 7504
Oct 30, 2003 Type 4X-rated, 316SS Deep-Hinged Window Kits mount in NEMA and CONCEPT® wall-mount enclosure doors. They provide protection, visibility, and access to equipment and components mounted behind window. POWERGLIDE® 316SS Handles provide corrosion resistance and are suited for washdown applications. Versions include clockwise opening with integral screwdriver defeater, clockwise opening without defeater, and counter-clockwise opening without defeater.
Side-Entry Mixers target oil and petrochemical industries.
Palmyra, PA 17078 9518
Oct 30, 2003 Cutlass Fixed-Angle Mixer offers 10° fixed position that handles homogenizing, blending, and temperature uniformity of crude oils and refined products in storage tanks. Cutlass Swivel-Angle Mixer provides 60° rotation to effectively scour tank floor and keep sediment, water, and solids in suspension. Both feature electric motor, PM Lancer Propâ„˘ Impeller, and tank shutoff device for zero leakage.

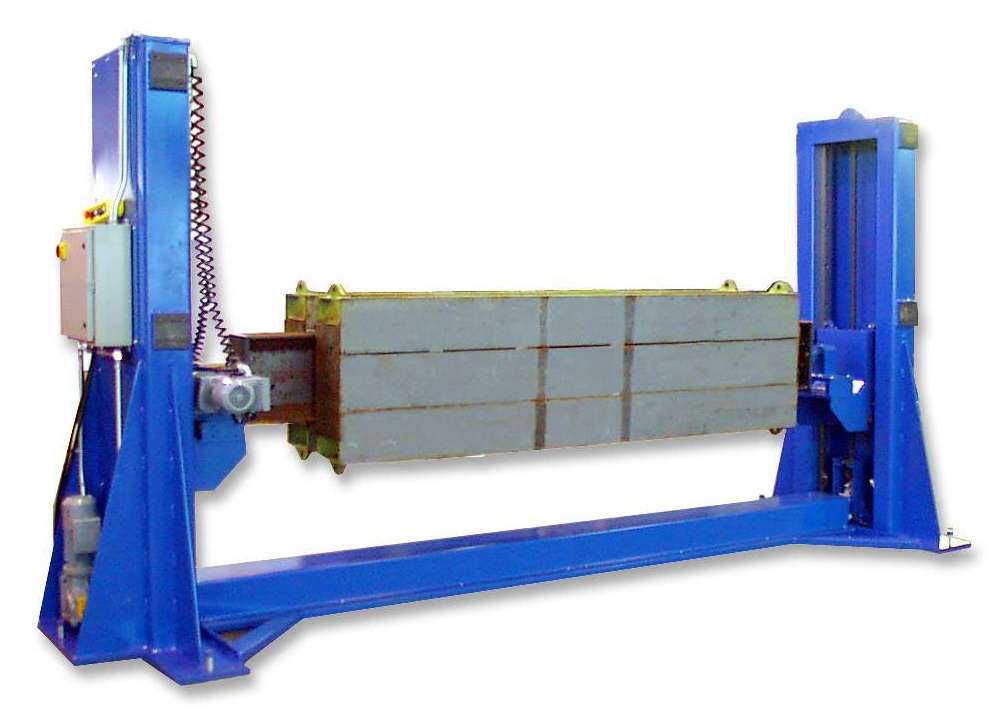

Custom Mast Lift aids in turbine equipment inspection.
Handling Specialty, Inc.
Niagara Falls, NY 14304 0279
Oct 30, 2003 With motion on 2 axes, Custom Mast Lift offers capacity of 5,000 lb and allows tooling and fixture to be raised at 2.5 fpm. Mechanical actuation permits positive locking, so tooling can be held at any elevation for extended periods of time. Power rotator rotates tooling 180° at full up position. Controls include handheld remote control unit, expansion space for light curtain or safety mats, and sensors to ensure fixture is properly attached to lift.

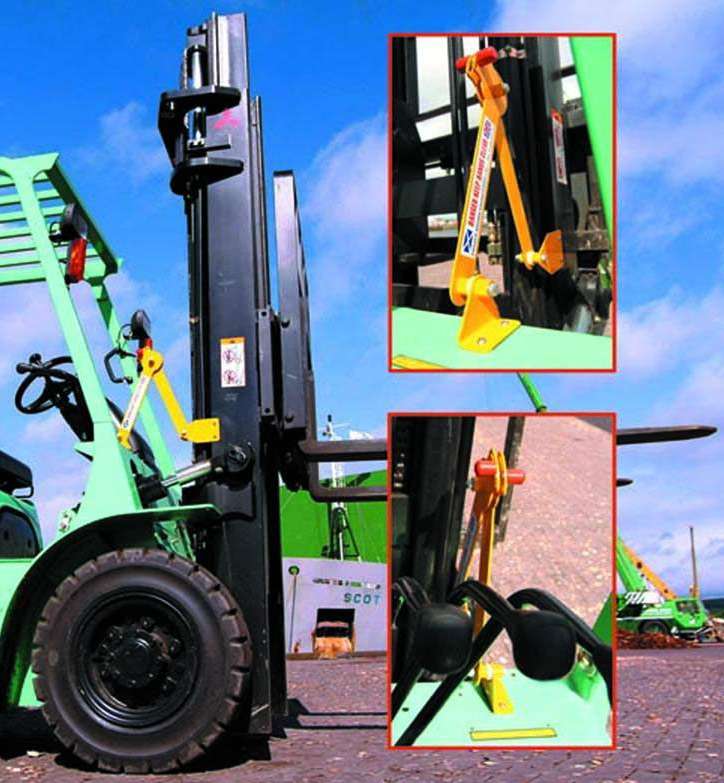

Leveling Device suitable for forklift trucks.
Rockaway, NJ 07866
Oct 30, 2003 EyeLevelâ„˘, mounted on counterbalance type lift trucks equipped with tilting mast, helps operators determine if forks are level before entering pallets. Available in 8, 10, 12, and 14 in. sizes, construction is based on pivot motion with aligning pins to indicate appropriate fork level. Pins, in combination with gravity, ensure correct reading at all times.

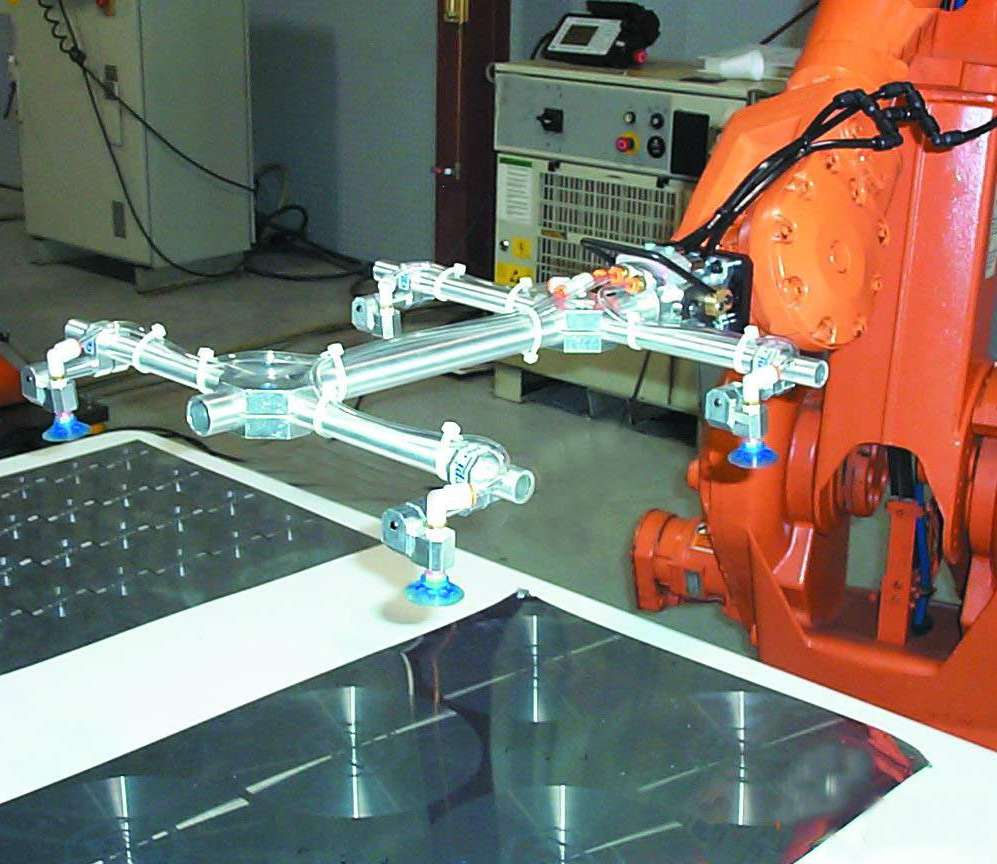

Tooling System suits light material handling applications.
DE-STA-CO Industries, A Dover Resources Co.
Madison Heigths, MI 48071
Oct 30, 2003 Configurable Modular End Effector Tooling System (MET) offers accessories such as automatic tool changers, compliance devices, robotic adapter plates, vacuum cups, and nipper mounts. Made of aluminum, it can be mounted to robot in end-mount cantilever style or mid-mount configuration. Features include 360° positioning, quick-disconnect air ports, vision camera mount, and bayonet with 4 air ports and air shut off.
Square Liners utilize flexible film technology.
Rutherford, NJ 07070
Oct 30, 2003 Closed Top Square Liners eliminate need to clean up storage totes and shipping containers. With dual fitment option for fill and discharge, user is assured of clean product storage. Liners provide sanitary conditions, protecting products from contamination or damage.
Lined Products suit ultra-high-purity applications.
Avondale, PA 19311 0667
Oct 30, 2003 Rotomolded and Rotolined Products include bulk chemical delivery tanks and variety of wafer processing components and equipment. They are available in PFA, ETFE, ECTFE, PVDF, PP, and PE in pigmented or natural unpigmented forms. All rotomolding and rotolining operations are performed in clean rooms to ensure high product purity. Smooth surfaces minimize imperfections that can trap contaminants. Lining capacity for tanks is 76 in. dia x 80 in. high.

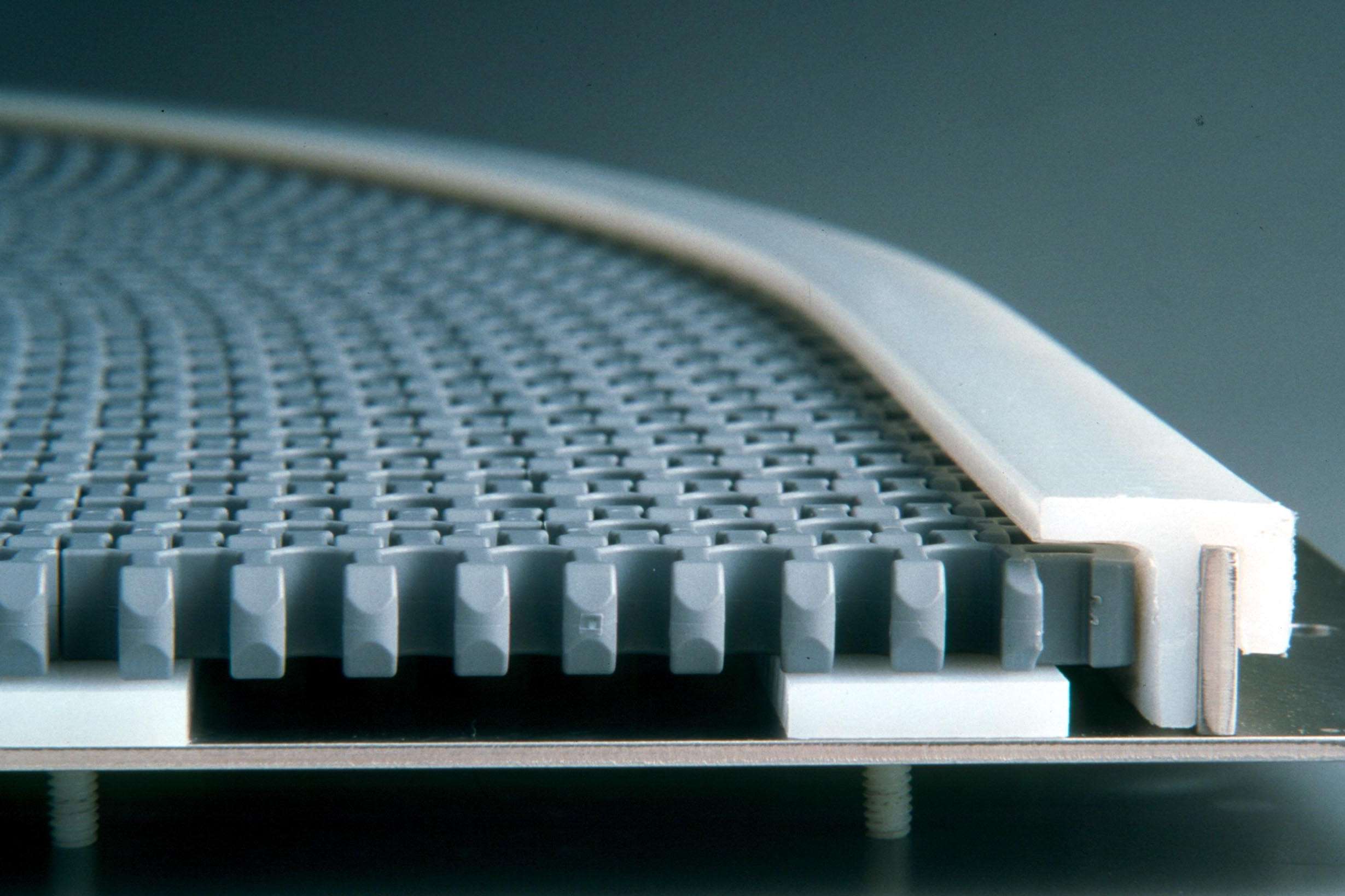

Roller Retrofit Components eliminate jams.
Harahan, LA 70123-5395
Oct 29, 2003 EZ Roller Retrofit Radius Component Set helps transform roller curves into modular plastic belt systems. Drop-in components bolt onto existing roller conveyor and provide carryway and returnway for Series 2200 and 2400 radius belts. Round drainage holes in steel base remove spillage, reducing chance of case damage. Low-friction wearstrip material on curve's inside edge reduces wear in area of highest friction.

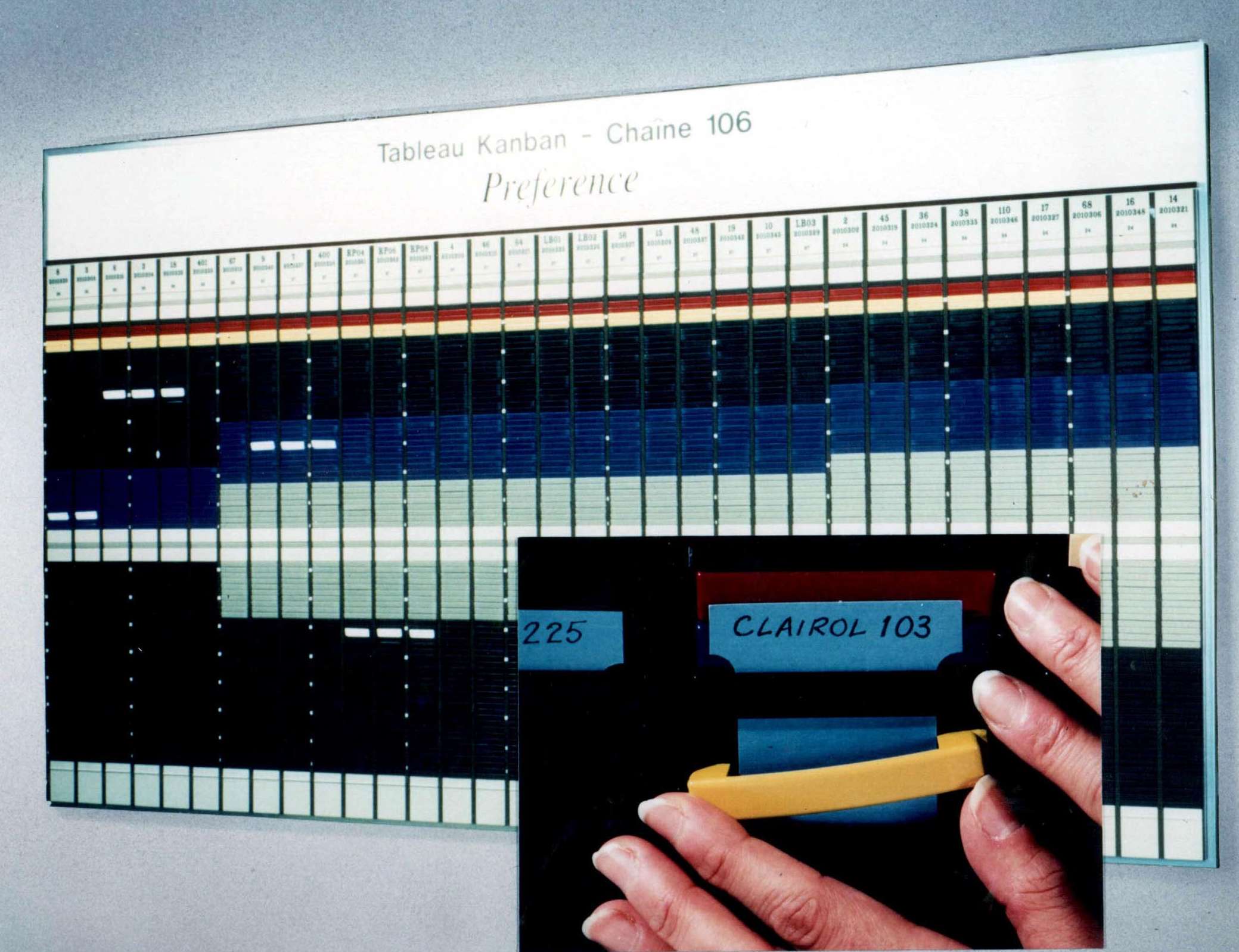

Display Board helps control inventory and production.
Champlain, NY 12919 5007
Oct 29, 2003 Modular T-Card System consists of wall-mounted panels molded in plastic. Product inventory is color-coded to indicate normal, critical, and overstock levels. Production cycles begin when inventory drops below pre-determined levels. Columns can be assembled laterally without limitations and can be lengthened by adding extension sections. Key words are written on top portion of T-card and remain visible while details written on lower portion remain hidden.

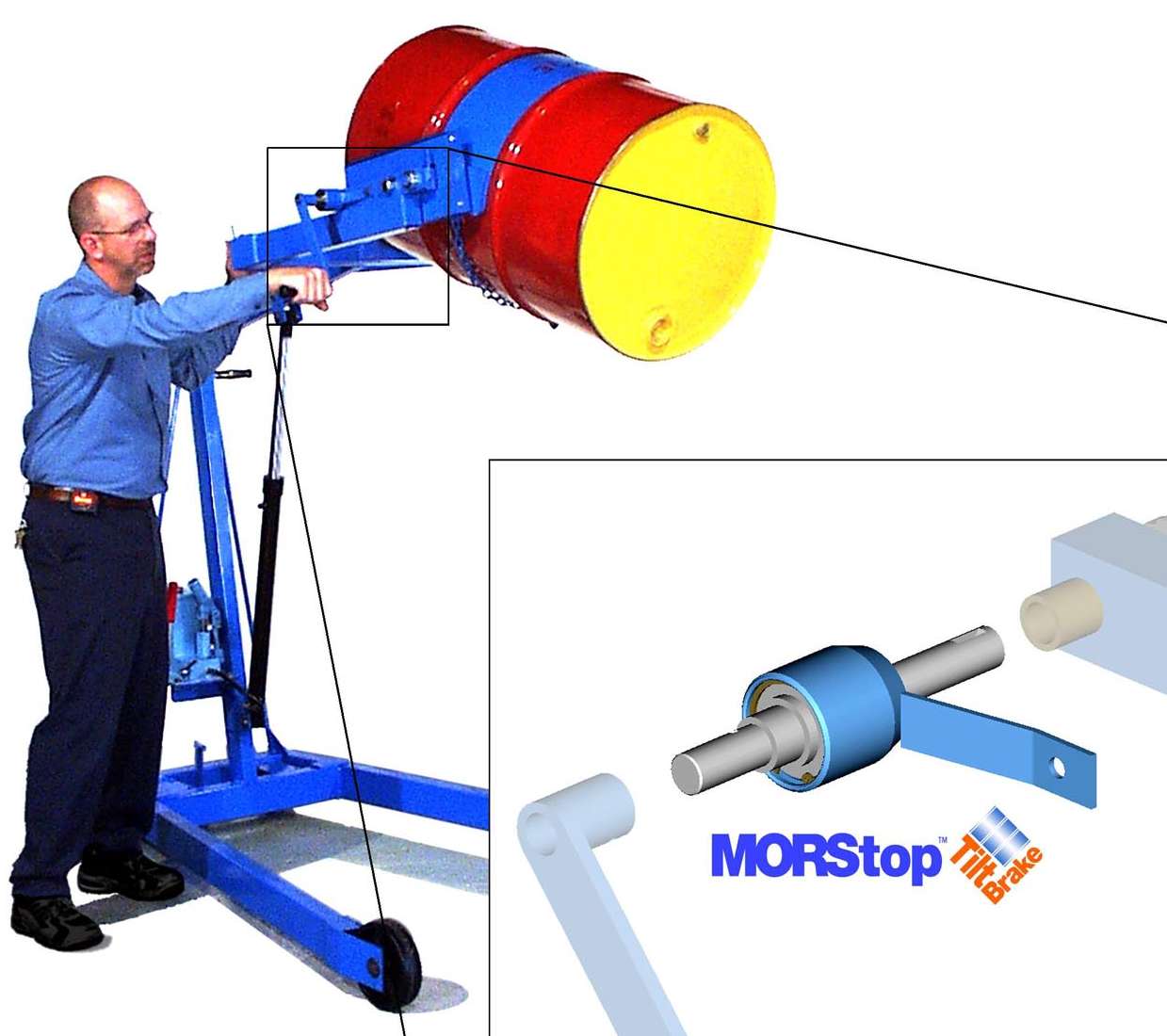

Anti-Backdrive Device suits material handling industry.
Morse Mfg. Co., Inc.
East Syracuse, NY 13057-0518
Oct 29, 2003 When dispensing heavy drums, MORStop Tilt-Brake mechanism stops and holds drum tilt angle to prevent unwanted drum rotation. Functioning smoothly and quietly in both directions, unit maintains drum tilt without requiring operator to hold onto pull-chain or crank handle. It can be used on any new or used product from Morse Karrier 185, 285, or 400 product series as well as any manual tilt product using Morse style gear block.

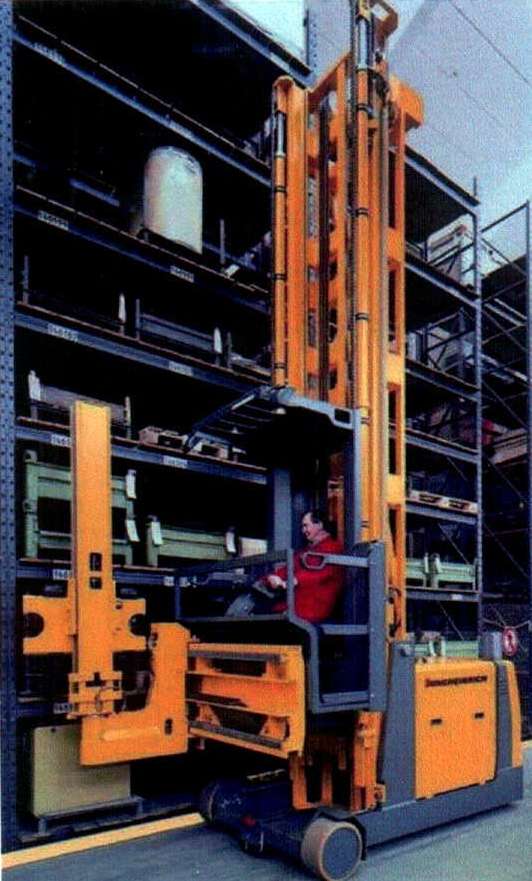

Lift Trucks access both sides of narrow storage systems.
Jungheinrich Lift Truck Corp.
Houston, TX 77043
Oct 29, 2003
Measuring 61 in. wide, man-up ETX-Kombi lift trucks have 98.3 in. turning radius to provide maneuverability sufficient for storing/retrieving pallet loads in narrow aisles. They feature 180° swing reach mast and are available in 2-stage or 3-stage versions with respective max lift heights of 462 and 560 in. Additional offerings include AC drive control, 3,300 lb load capacity, travel speeds to 6.5 mph, and load and lift speeds of 82 ft/min.

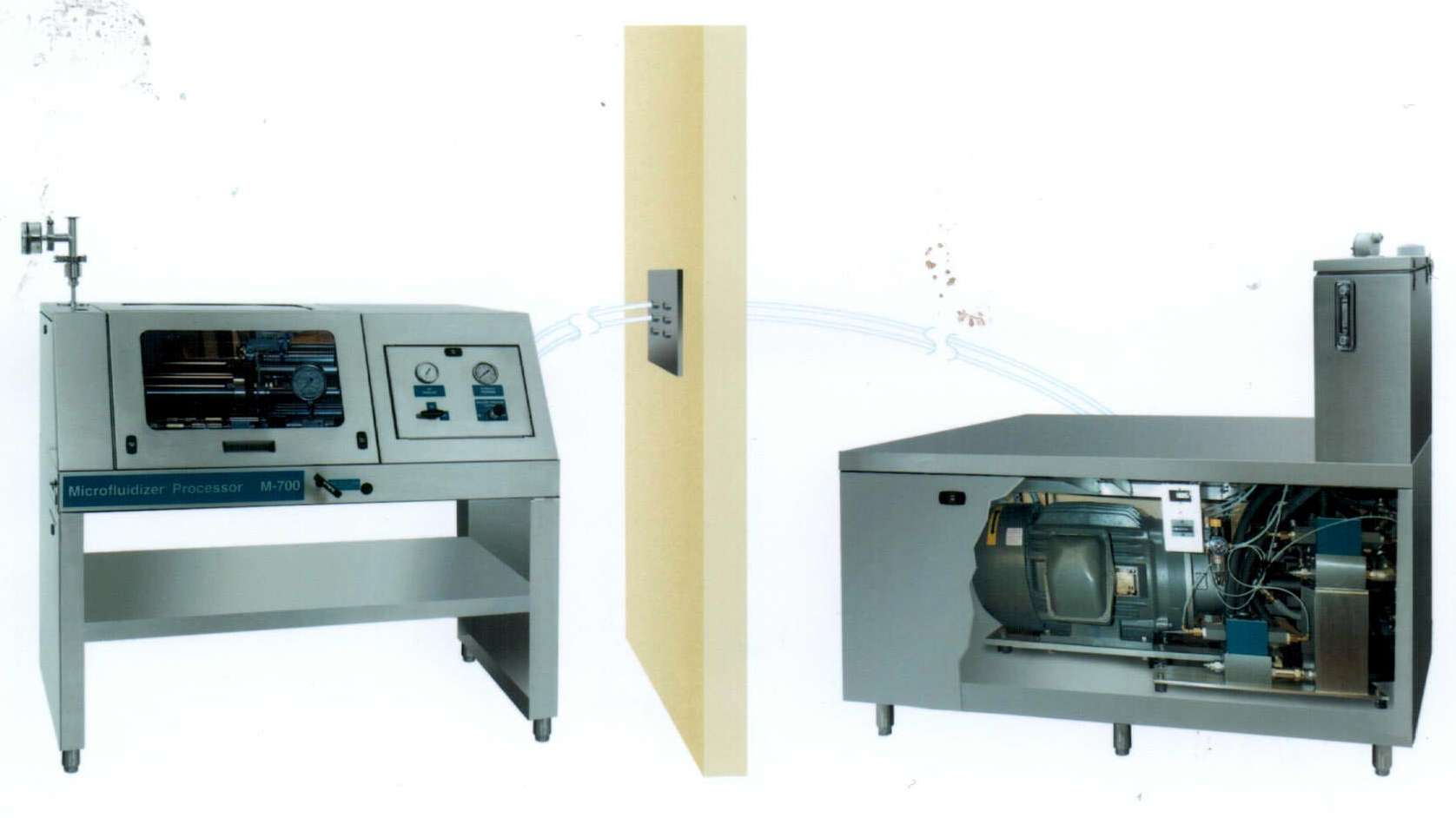

Fluid Processor suits cleanroom applications.
Microfluidics, Division MFIC Corp.
Newton, MA 02464 9101
Oct 29, 2003 Stainless steel, split-system Microfluidizer® 600 and 700 model series can be set up so that operating assembly is in separate room from processing assembly; one hose, up to 30 ft long, runs through wall to connect separated assemblies. Processor reduces particles to sub-micron or droplet sizes, while intensifier pump drives product stream at velocities and pressures up to 40,000 psi through fixed-geometry microchannels.

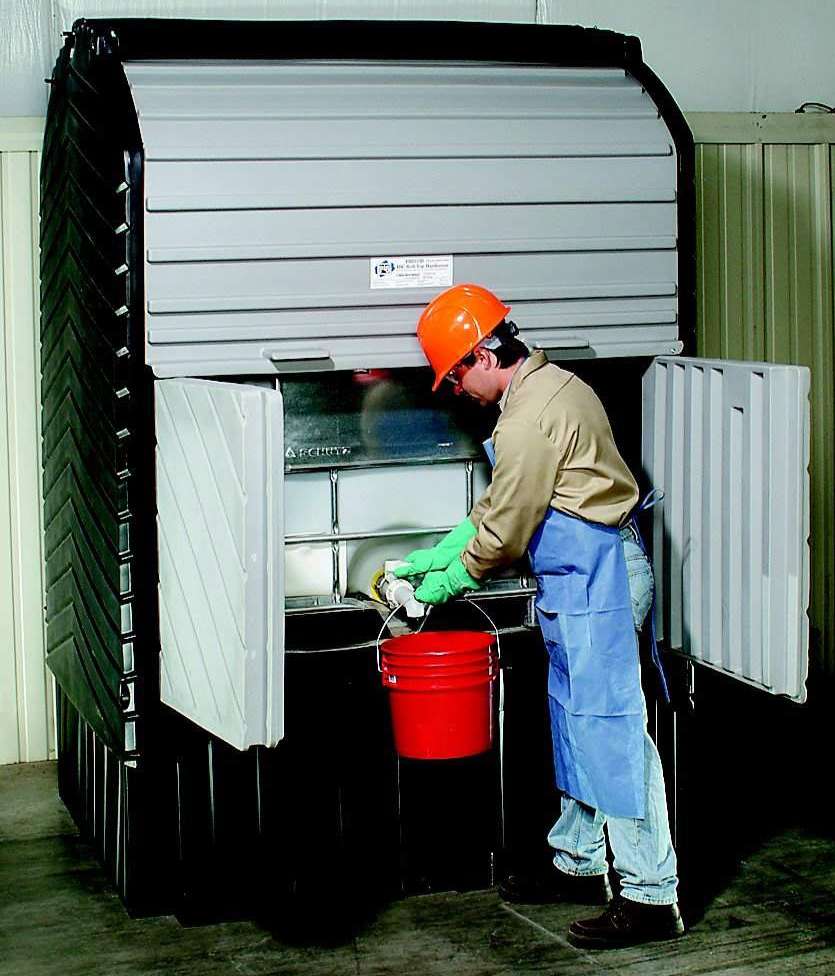

Storage System enables IBC storage indoors or out.
New Pig Corp.
Tipton, PA 16684 0304
Oct 29, 2003 PIG® IBC Roll-Top Hardcover Storage Unit provides protected storage of IBCs. Corrosion-resistant, weather-tight design keeps IBCs safe and secure, while lockable doors and roll-top covers open from both sides and slide out of way for ease of access. Unit features 2-way forklift entry and sits atop one 360-gal sump, which contains leaks and spills from IBC. Units help comply with 40 CFR 122.26 and 40 CFR 264.175 for containment of hazardous waste.
Storage and Picking System increases pickers' safety.
SK Daifuku Corporation
Salt Lake City, UT 84116
Oct 29, 2003
Shelf Storage and Picking System presents 2 sets of shelves at one time to pickers. Shelving units are designed to take up allotted space to increase storage efficiency. Pickers work from pick area located outside harsh environments where product may be stored, while shelves rotate to display available inventory. Suited for freezer storage or limited space operations, unit maintains FIFO control and keeps inventory safe from theft or damage.
